50A HV Battery For Growatt Solis SOFAR Megarevo Hybrid Inverter 10KW 20KW 30KW Stacked Energy Storage Battery For Energy S
- Category: >>>
- Supplier: Xiamen Whaleflo Industry And Trade Co. Ltd.
Share on (1600803419249):
Product Overview
Description
Product Description

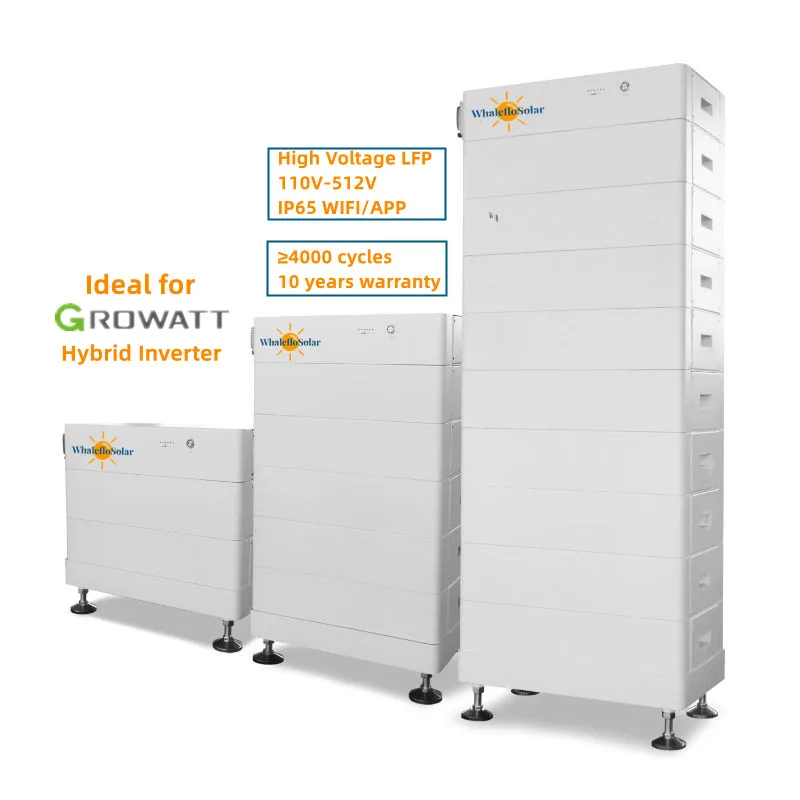

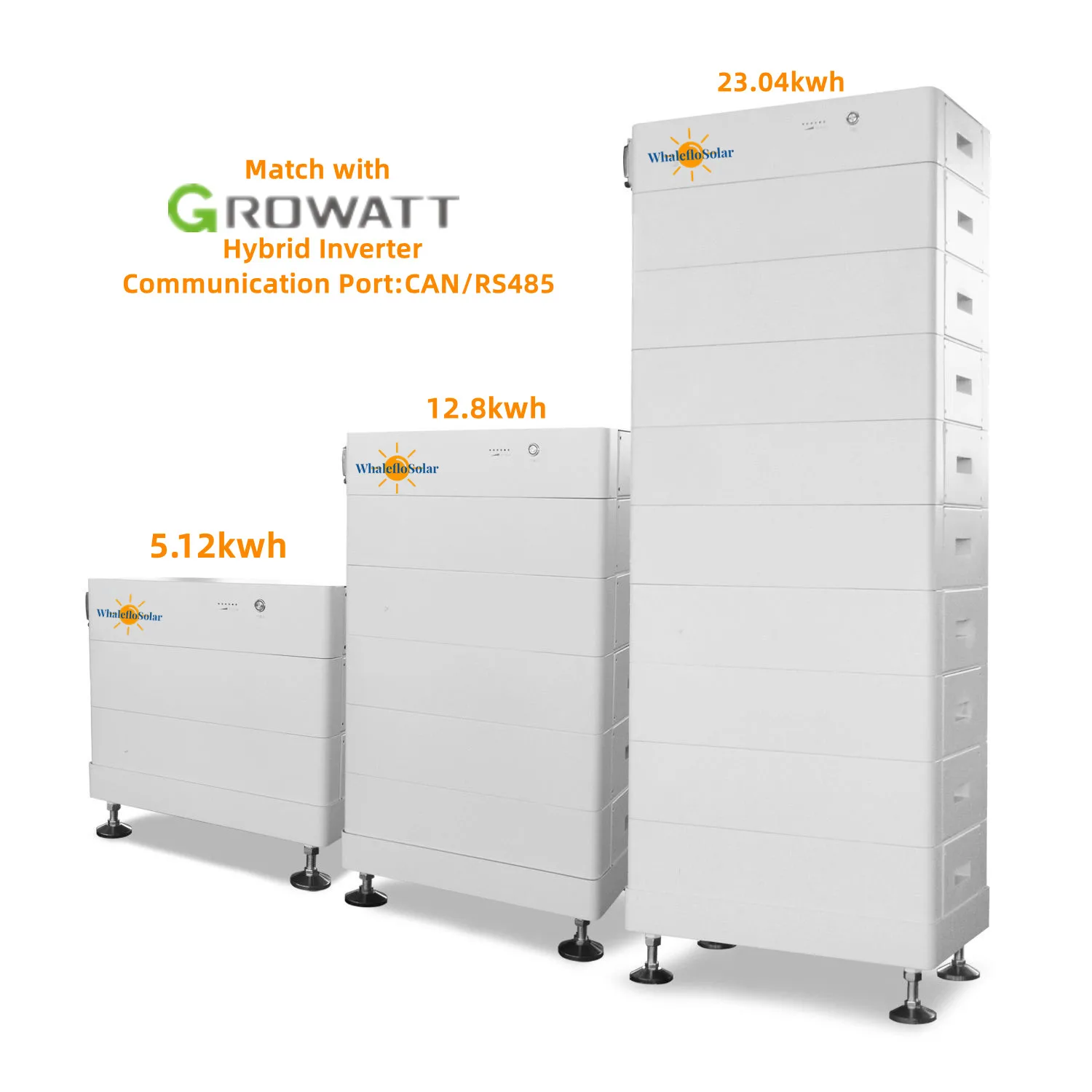

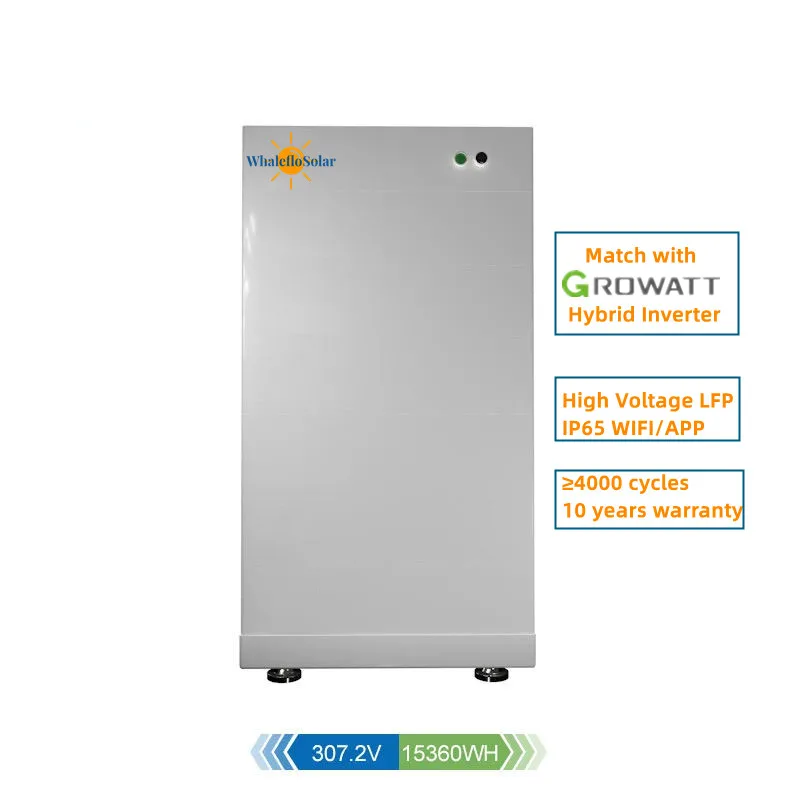

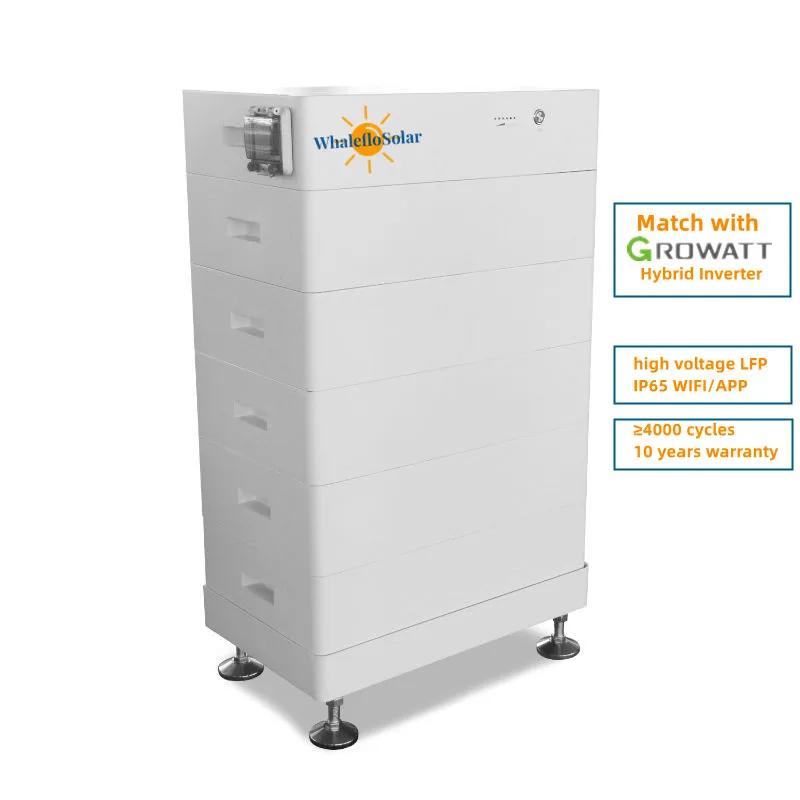

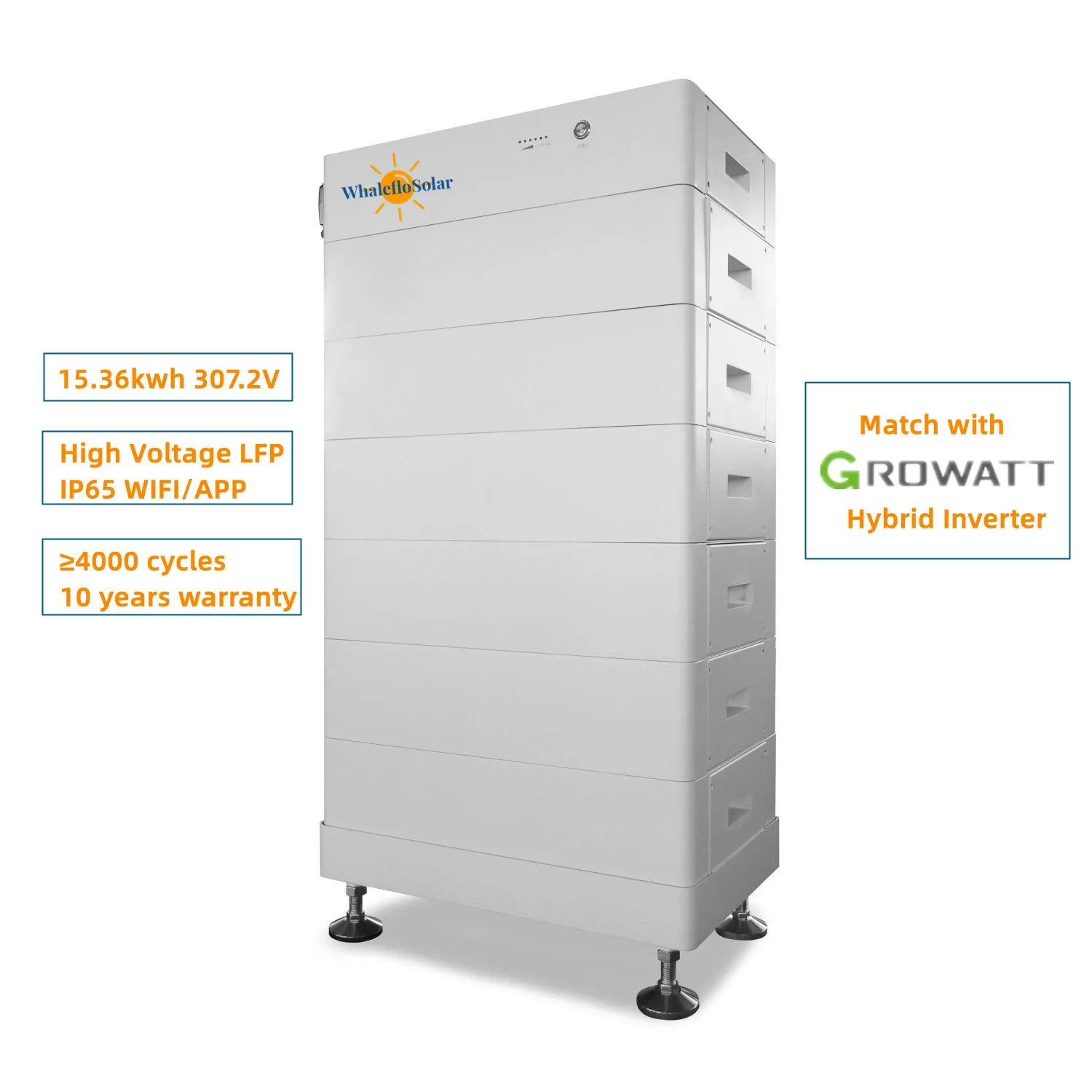

ELEBOX- HV 5.1K-25.6K High voltage Lithium Battery
- Sufficient capacity
- Long life cycle > 6000 cycle @ 90%DOD
- Support multi-machine in series to increase capacity Max 10
- Intelligent communication RS232/RS485/CAN
- Customizable communication protocol: Growatt,Solis, Goodwe,Victron, INVT etc.
- REPT cell
- 5+5 years warranty
- High voltage energy storage lithium battery
- CE IEC62619 MSDS RoHS UN38.3

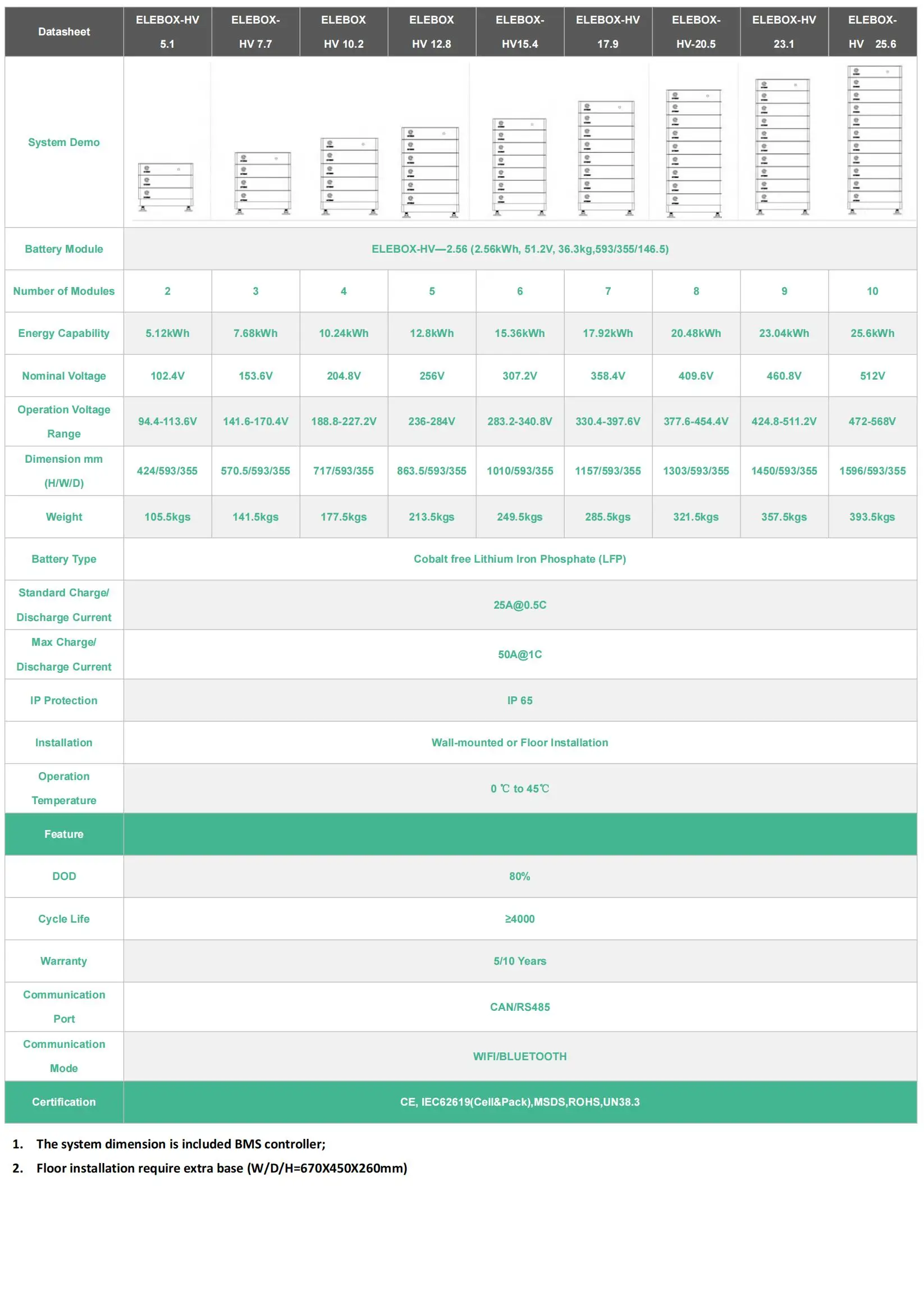

Datesheet | ELEBOX HV-10.2K |
Battery Module | ELEBOX-HV-2.56 (2.56kWh, 51.2V, 34kg, 600/355/145) |
Number of Modules | 4 |
Energy Capability | 10.2KWh |
Nominal Voltage | 204.8V |
Dimension mm (H/W/D) | 600/355/442 |
Weight | 161kgs |
Battery Type | Cobalt free Lithium Iron Phosphate (LFP) |
Standard Charge/Discharge Current | 25A @ 0.5C |
Max Charge/Discharge Current | 50A @ 1C |
IP Protection | IP65 |
Installation | Wall-mounted or Floor Installation |
Operation Temperature | 0 °C to 45°C |
DOD | 90% |
Cycle Life | >6000 |
Warranty | 10 Years |
Communication Port | CAN/RS485 |
Communication Mode | WIFI |
Certification | CE, IEC62619, MSDS, ROHS, UN38.3 |
Packaging & Delivery
Package size per unit product:120.00cm * 110.00cm * 67.00cm
Gross weight per unit product:170.000kg
HS code:8507600090
