200 Ton Deep Drawing Hydraulic Press Machine for Wheelbarrow Making
- Category: >>>
- Supplier: Anhui Zhongrui Machine Manufacturing Co. Ltd.
Share on (1600803738366):
Product Overview
Description

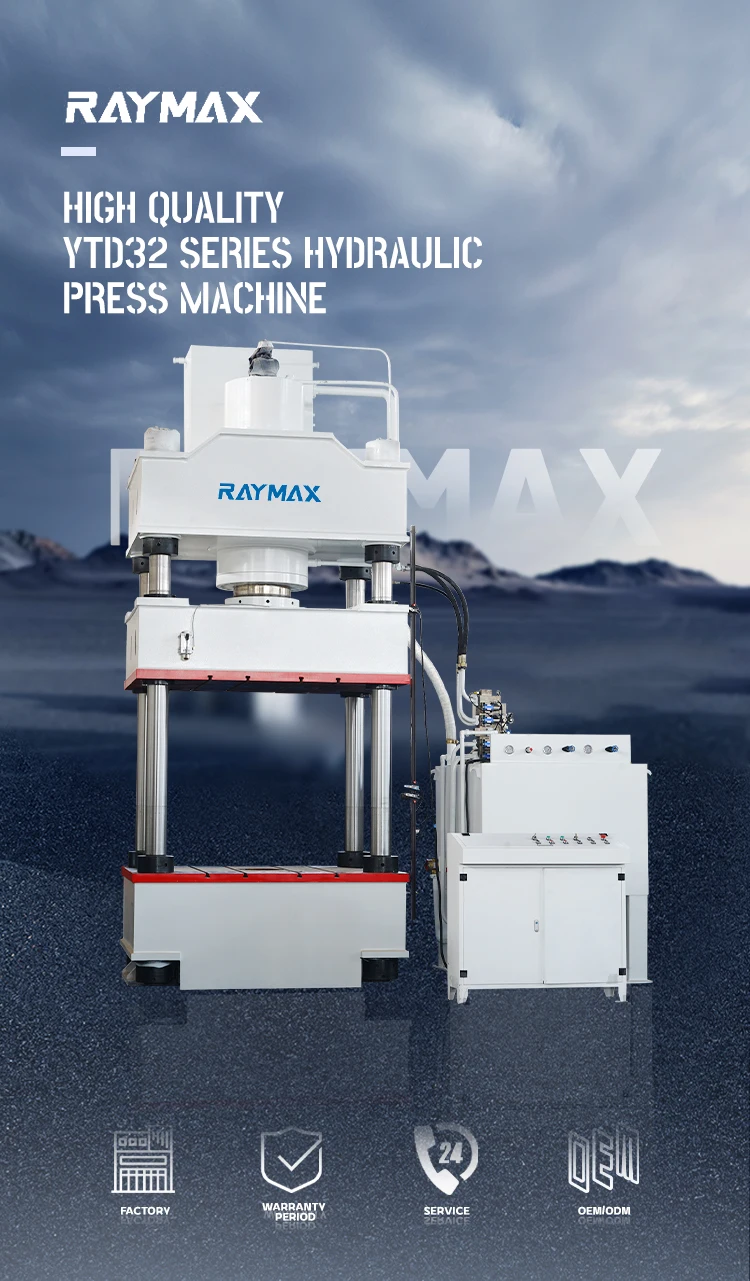

YTD32 Series four column hydraulic press is one of the new generations of plate process. The four-column three-beam and four-pole structure are designed for large operating spaces.

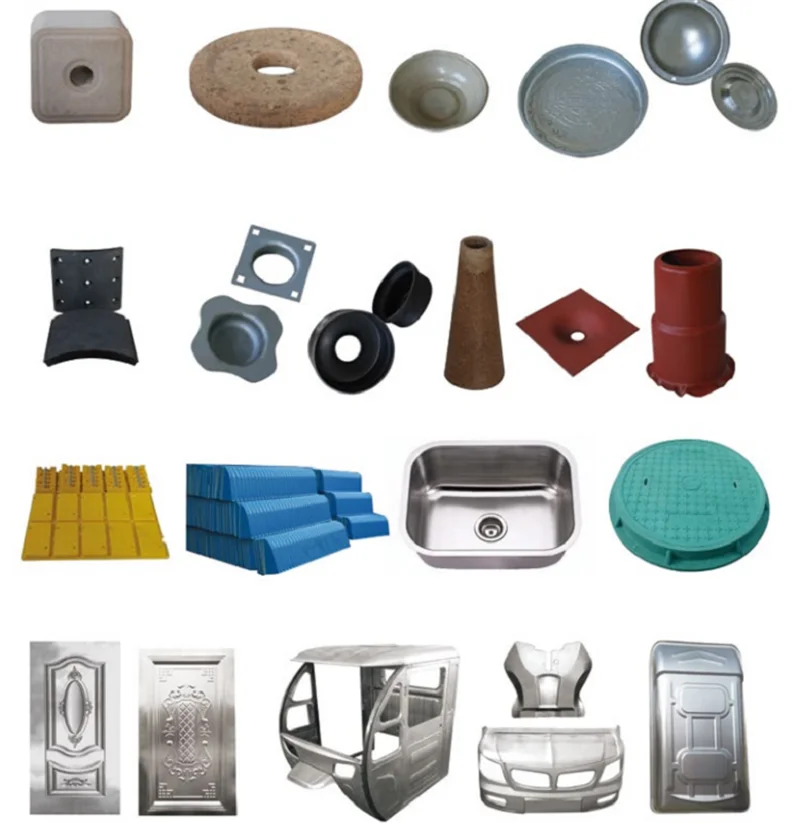

The work pressure of the series products, pressing speed, travel range can be adjusted according to the requirements within the specified range, can achieve constant pressure and constant stroke of two kinds of Technology. When the constant pressure is formed, the pressure holding time delay and the automatic return stroke are pressed. A top out device is arranged in the middle of the working table, in addition to the top products, can be used as hydraulic cushion for the forming process of drawing parts.
PAY ATTENTION TO: We can accept customized machines according to customer's requirements. If the technical parameters of the machine are not clear, we can also provide product drawings.
The work pressure of the series products, pressing speed, travel range can be adjusted according to the requirements within the specified range, can achieve constant pressure and constant stroke of two kinds of Technology. When the constant pressure is formed, the pressure holding time delay and the automatic return stroke are pressed. A top out device is arranged in the middle of the working table, in addition to the top products, can be used as hydraulic cushion for the forming process of drawing parts.
PAY ATTENTION TO: We can accept customized machines according to customer's requirements. If the technical parameters of the machine are not clear, we can also provide product drawings.
Description | Pressure | Max. pressure of liquid | Stroke slide | Daylight | Workbench | Motor |
YTD32-40 | 400KN | 25MPA | 450mm | 750mm | 500X460 | 5.5KW |
YTD32-63 | 630KN | 25MPA | 500mm | 750mm | 580X500 | 7.5KW |
YTD32-100 | 1000KN | 25MPA | 600mm | 880mm | 720X580 | 7.5KW |
YTD32-160 | 1600KN | 25MPA | 700mm | 1000mm | 1000X800 | 11KW |
YTD32-200 | 2000KN | 25MPA | 700mm | 1100mm | 1000X900 | 15KW |
YTD32-315 | 3150KN | 25MPA | 800mm | 1250mm | 1260X1120 | 22KW |
YTD32-400 | 4000KN | 25MPA | 800mm | 1250mm | 1240X1200 | 22KW |
YTD32-500 | 5000KN | 25MPA | 900mm | 1500mm | 1400X1400 | 2X22 |
YTD32-630 | 6300KN | 25MPA | 900mm | 1500mm | 1500X1500 | 2X22 |
YTD32-800 | 8000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X30 |
YTD32-1000 | 10000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X30 |
YTD32-1250 | 12500KN | 25MPA | 900mm | 1500mm | 1700X1600 | 2X37 |
YTD32-1600 | 16000KN | 25MPA | 900mm | 1500mm | 1600X1600 | 2X37 |
