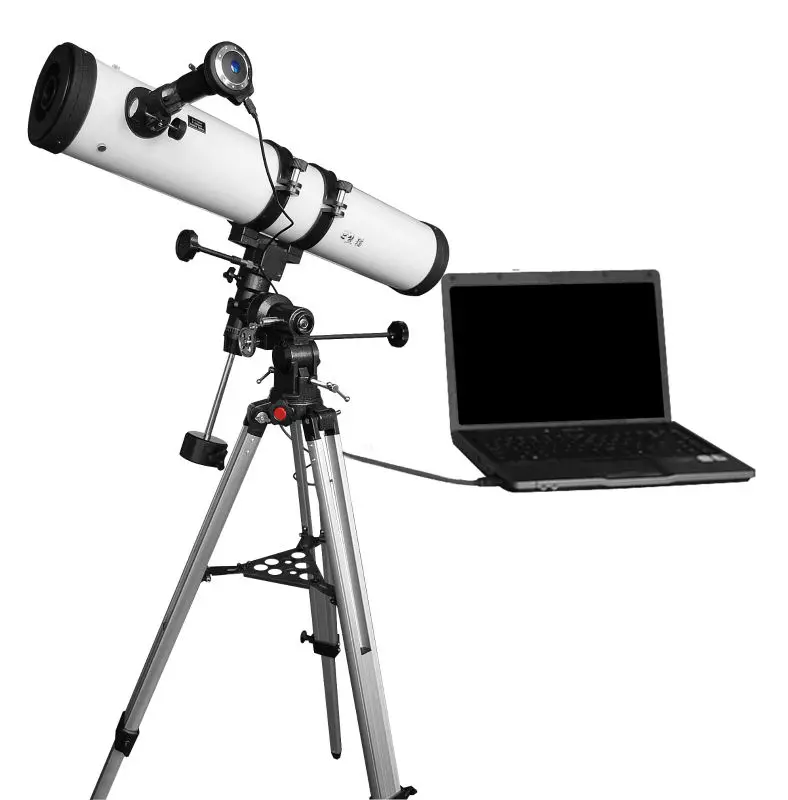

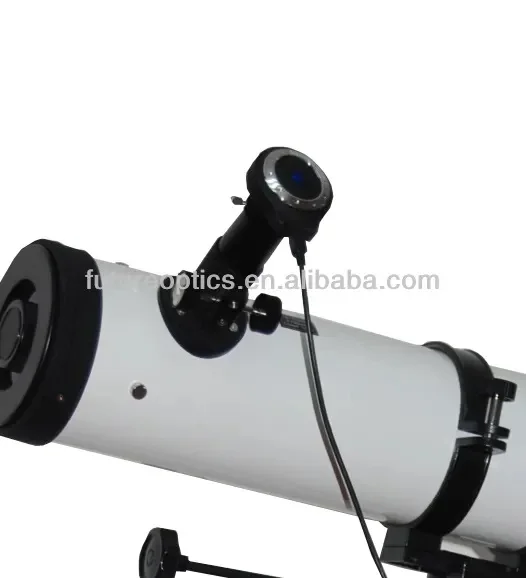

TEM1300 F9114EQ 1.3MP USB digital reflective telescope equipped with equatorial and heavy duty metal tripod

Product Overview

Description

♦Features:

1. Digital imaging module: Wider dynamic range 1.3MP imaging module;

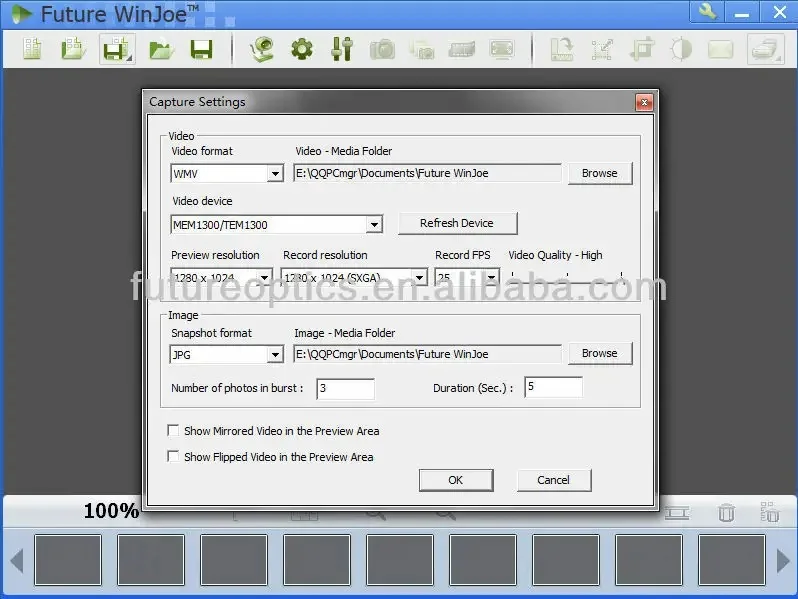

2. Imaging software: astronomical imaging software of Future Win Joe.

3. Optical imaging module: 114mm (4.5”)aperture and 900mm(f/7.9) focal length, reflector type;

4. Mount module: EQ3 equatorial and telescopic aluminum tripod.



♦Applications:

Future Optics’ USB digital telescopes perform extremely well under the control of software which makes them ideal for astronomical objects viewing and images or movies capture, and even be used to take images of terrestrial subjects during daytime.It’s an affordable imaging solution for astronomy.







♦Functions:

1. To preview images on screen of PC and to shoot pictures or to record movies, no squinting with one eye, just be enjoyable and to share with others;

2. To adjust the gain, contrast, exposure time, frame rate and color saturation manually for best images and to recognize dim target which could not be found by human eye;

3. To offers function of images inverted vertically and horizontally that renders the image in its natural orientation on screen, so no extra erecting lens is needed;

4. The performance of powerful equivalent digital magnification acts as a super power zoom and high magnification eyepiece.





♦Benefits:

1. Easy installation, convenient operation;

2. Compatibility with Win/MAC/Linux;

3. High resolution of 1280*1024 for preview, picture shoot and video recording

4. Real active resolution, no interpolation, no jaggies in picture.

5. Copyright software with 8 languages version.



♦Quality control:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

Copyright software of Future Win Joe V1.0  Registration Code:2009SR035346

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M



♦OEM/ ODM:

Available for both hardware and software to be designed and made on clients' specification.

Including:

Logo package printing;

Optical system design;

PCB imaging module design;

Shell design ;

Software amendment.



♦Detailed specifications:

Capture Mode	Picture and Video
Active pixels of sensor	1280*1024
Sensitivity	1.0V/lux-sec
Dynamic Range	71dB
S/N Ratio	44dB
Spectral Range	400-650nm(with IR-filter)
Frame Rate	17fps@1280*1024
Preview Model	1280x1024,800x600,640x480,352x288,320x240
Exposure	ERS or Manual
Power Consumption	190mW
Focus of Objective Lens	900mm
Diameter of Objective Lens	114mm
Focus of Optics Eyepiece	20.0mm, 12.5mm, 4.0mm
Optics Magnification	45X, 72X, 225X
Digital Zoom	96X (17” LCD screen)
Power Supply	USB Powered
Device Weight	13.45kg
Device Size	95.5cm*38.5cm*27.5cm
USB2.0 Cable length	3.0 m
Function of Software	Image & video Capture, Edit and Management
PC Requirements	CPU: Inter Core2 2.8GHz or Higher; Memory: 2GB or More; USB Port:USB2.0 High-speed Port
