Hot Sale Automatic 12 volt battery charger 6A Smart Car Motorcycle Pulse Repair Battery Charger for GEL AGM Lead Acid Battery
Products Description
Name: | Hot Sale Automatic 12 volt battery charger 6A Smart Car Motorcycle Pulse Repair Battery Charger for GEL AGM Lead Acid Battery |
Model: | TK-300 |
Input Voltage and current: | 100-240V AC,50/60Hz |
Output Voltage and current: | 12V/6A |
Port: | DC,AC |
Battery Type: | DC12V lead-acid Battery |
Output Power: | 96W |
Material: | ABS |
Place of Origin: | China，Anhui |
Protection: | -Polarity protection -Output short protection -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
Apply to: | car,motorcycle,vans |
color: | Red,Yellow |
weight: | 0.43KG |
Dismension: | (L)150*(W)82*(H)63MM |
Efficiency: | 85% |
Certification： | CE FCC ROHS PSE |
Product details

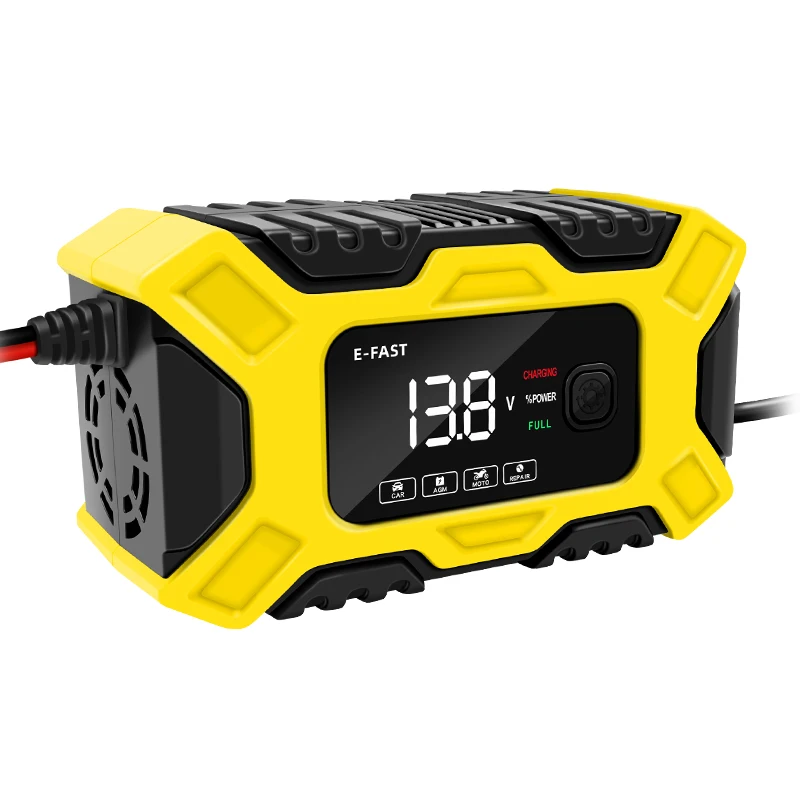

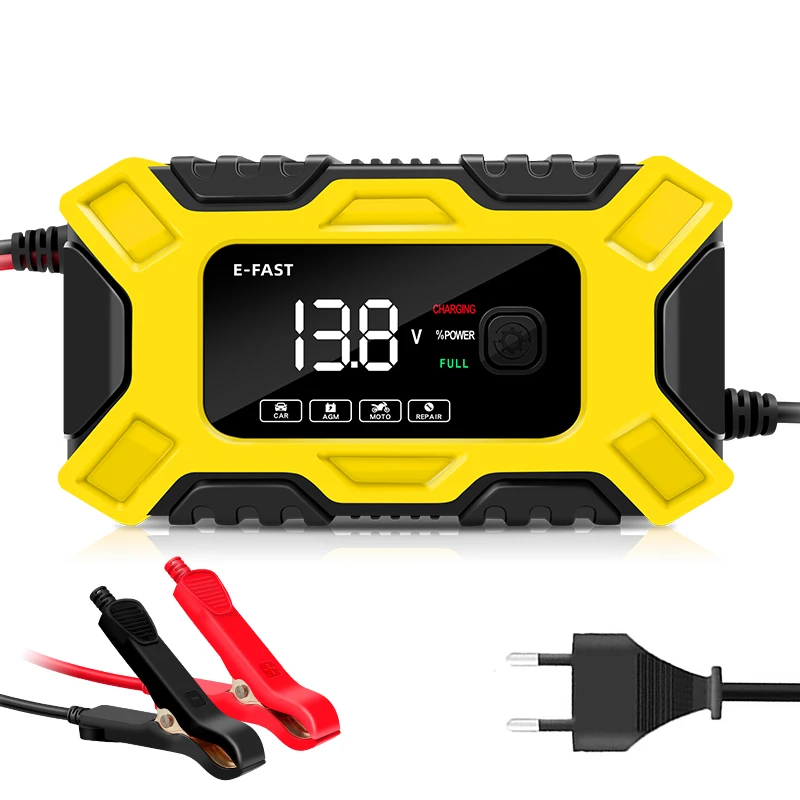

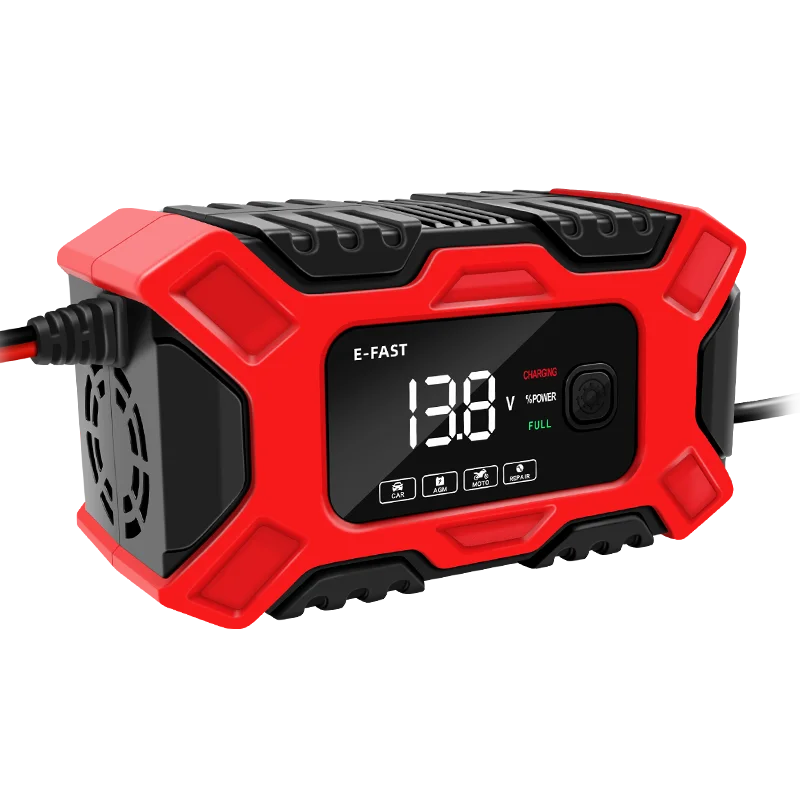

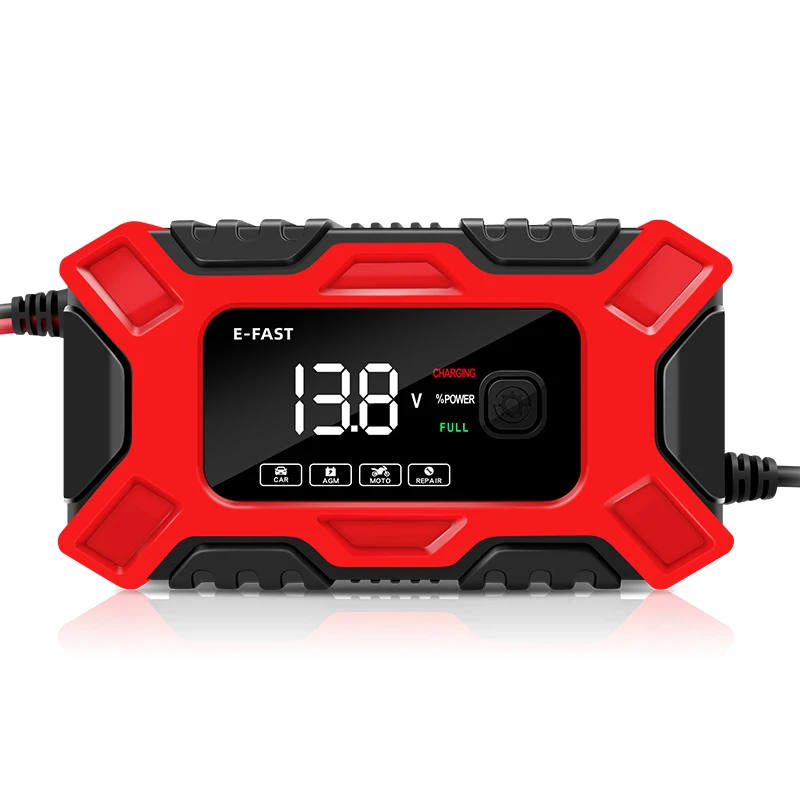

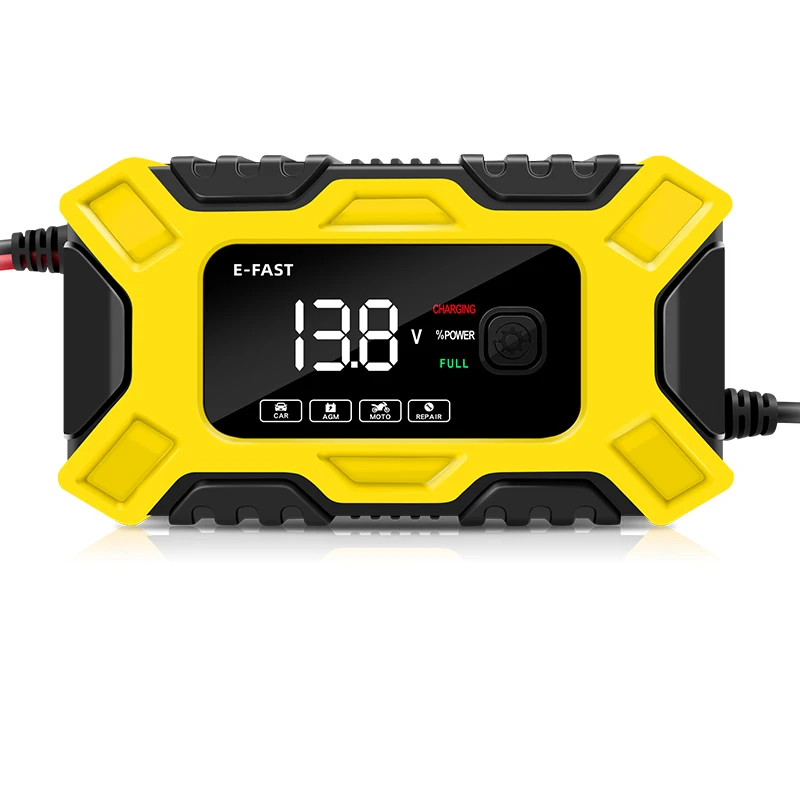

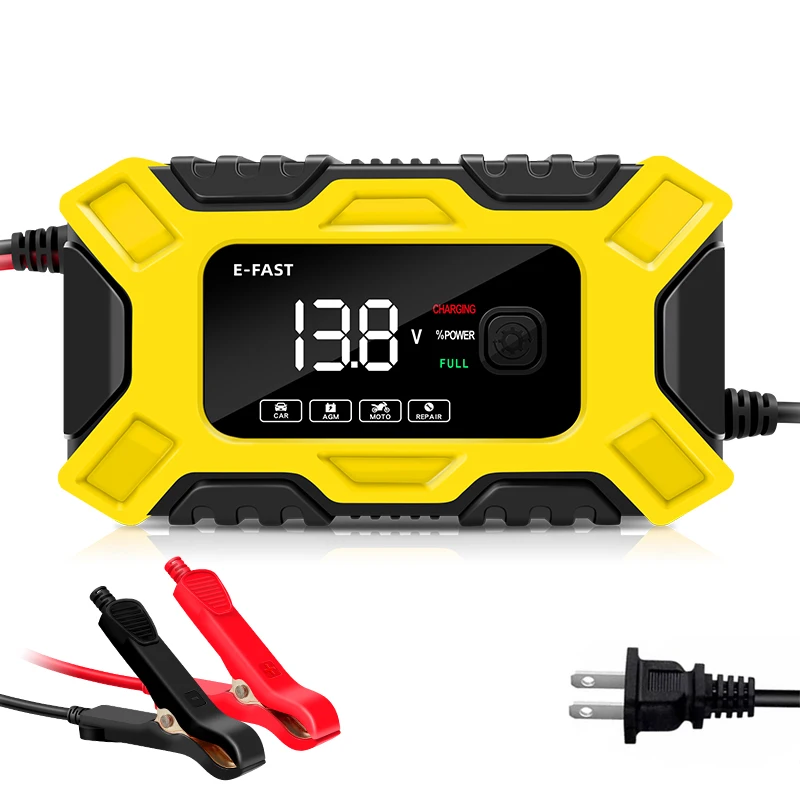

What is The E-FAST TK300 12V6A battery chager ？
E-FAST TK300 12V6A battery charger is mainly a charger with an integrated charging control system developed for DC12V lead-acid batteries. The self-developed battery charging management system has a more optimized charging and discharging curve and multiple battery mode settings, making the battery charging more full. When using TK300 battery charger to charge the battery, as long as the battery and charger are connected and the power supply is turned on, the TK300 smart battery charger can automatically detect the existing power and ambient temperature of the battery to be charged, and charge it according to the different discharge amounts and real-time ambient temperature of the battery to be charged. After the battery is fully charged, the 12V6A battery charger portable battery charger will automatically shut down the charging system.
The car charger 12V6A powerful activation mode can solve the following problems of the battery: poor battery usage,loss of old power supplies when the battery is standing idle for a long time, and low voltage in cold winter. The 12V6A battery charger repair mode can effectively solve the problems of battery feeding, charging failures and high internal resistance. The TK300 smart battery charger returns the battery to a youthful state through intelligent activation and pulse repair functions.
The 12V6A battery charger is accurately controlled by an intelligent chip and equipped with a large screen digital display. The display has four modes to choose from, including car mode, AGM mode, motorcycle mode,and repair mode. It can also display the battery charging status and battery voltage, current, temperature,and power in real-time.
The TK300 12V6A battery charger has a pulse repair function. For lead-acid batteries that cannot be charged due to moderate or mild vulcanization, the pulse repair mode can be used to repair and activate the battery,which can reduce the vulcanization phenomenon to a certain extent and enable the battery to charge normally.
The car charger 12V6A powerful activation mode can solve the following problems of the battery: poor battery usage,loss of old power supplies when the battery is standing idle for a long time, and low voltage in cold winter. The 12V6A battery charger repair mode can effectively solve the problems of battery feeding, charging failures and high internal resistance. The TK300 smart battery charger returns the battery to a youthful state through intelligent activation and pulse repair functions.
The 12V6A battery charger integrates multiple protection functions, such as reverse connection, short circuit, overcharge, over temperature, over current, and other intelligent settings, which can effectively ensure the safety of the charging device and its charger; At the same time, personalized settings such as charger memory, battery power detection, and touch buttons are added to make charging more convenient and efficient.
The TK300 12V6A battery charger is designed with pure copper soft core wires and is equipped with a full package alligator clip to prevent cold and freezing; The ABS flame-retardant housing is both fireproof and sturdy.The TK300 is equipped with a low noise cooling fan that does not generate heat during charging.
The TK300 12V6A battery charger can be used as an intelligent charger for ordinary lead acid batteries, wet dry batteries, AGM start/stop batteries, and multi-functional batteries, and is widely used in automobiles, motorcycles, passenger and freight vehicles, etc.
Manufacturing Technique
Product Function Introduction
E-FAST TK300 12v6a battery charger Function Introduction:
(1) Output short circuit and anti reverse connection: The 12V6A Battery Charger has a prompt for output short circuit and reverse connection of the battery (reverse connection 1-2S detection, when reverse connection or short circuit is detected, the LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process), and during reverse connection, there will be no reverse connection spark phenomenon after processing by a microprocessor program.
(2) Battery power detection: Without connecting to the AC input voltage, the battery clip is sandwiched between the positive and negative electrodes of the battery (red, positive, black, negative), and the current and voltage parameters of the battery can be displayed (digital tube display data: voltage and ambient temperature cycle display, the power grid is displayed in percentage form based on the detected data, the first power on 6S self check wait, 6S not reached only display temperature, 6S reached temperature and voltage cycle display).
(3) Winter/Summer Mode: During the charging process, detect the ambient temperature, adjust the charging state of the product in a timely manner, and ensure battery life and charging safety. Winter Mode: LCD displays snowflakes, Summer Mode: LCD displays the sun (unique to car mode, not available in other modes).
(4) Over temperature protection: The TK300 12V6A Battery Charger has an over temperature protection function. If the product detects excessive temperature, it will automatically start the over temperature protection program. When the temperature returns to normal, the initial charging state will be restored.
(5) Overcharge protection: The TK300 12V6A Battery Charger has an overcharge protection function to prevent overcharge from reducing the battery life and enhancing the reliability of charging safety (the maximum charging duration is 15.5-16.0H by default).
(6) Battery charging progress bar: The charging progress bar is displayed during the charging process of the product, in the form of a percentage, and the full charge display is 100%.
(7) LCD display status:
a: Full state: LCD displays "FUL".
b: Clip disconnection mode: LCD displays "OFF".
c: Fault mode: LCD displays "ERO".
e: Charging state: LCD circularly displays voltage, current, and charging progress.
f: Repair mode: LCD displays "PUL", and the repair icon flashes.
h: Repair completed: LCD display "FUL" repair icon is always on.
g: Detect battery power: LCD cycle displays voltage, and battery power is displayed as a percentage.
(1) Output short circuit and anti reverse connection: The 12V6A Battery Charger has a prompt for output short circuit and reverse connection of the battery (reverse connection 1-2S detection, when reverse connection or short circuit is detected, the LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process), and during reverse connection, there will be no reverse connection spark phenomenon after processing by a microprocessor program.
(2) Battery power detection: Without connecting to the AC input voltage, the battery clip is sandwiched between the positive and negative electrodes of the battery (red, positive, black, negative), and the current and voltage parameters of the battery can be displayed (digital tube display data: voltage and ambient temperature cycle display, the power grid is displayed in percentage form based on the detected data, the first power on 6S self check wait, 6S not reached only display temperature, 6S reached temperature and voltage cycle display).
(3) Winter/Summer Mode: During the charging process, detect the ambient temperature, adjust the charging state of the product in a timely manner, and ensure battery life and charging safety. Winter Mode: LCD displays snowflakes, Summer Mode: LCD displays the sun (unique to car mode, not available in other modes).
(4) Over temperature protection: The TK300 12V6A Battery Charger has an over temperature protection function. If the product detects excessive temperature, it will automatically start the over temperature protection program. When the temperature returns to normal, the initial charging state will be restored.
(5) Overcharge protection: The TK300 12V6A Battery Charger has an overcharge protection function to prevent overcharge from reducing the battery life and enhancing the reliability of charging safety (the maximum charging duration is 15.5-16.0H by default).
(6) Battery charging progress bar: The charging progress bar is displayed during the charging process of the product, in the form of a percentage, and the full charge display is 100%.
(7) LCD display status:
a: Full state: LCD displays "FUL".
b: Clip disconnection mode: LCD displays "OFF".
c: Fault mode: LCD displays "ERO".
e: Charging state: LCD circularly displays voltage, current, and charging progress.
f: Repair mode: LCD displays "PUL", and the repair icon flashes.
h: Repair completed: LCD display "FUL" repair icon is always on.
g: Detect battery power: LCD cycle displays voltage, and battery power is displayed as a percentage.
