Adjustable Pressure Switch Electric Automatic Water Pump Controller
- Category: >>>
- Supplier: Anhui Zixing Electronic Technology Co. Ltd.
Share on (1600804201209):
Product Overview
Description
Products Description

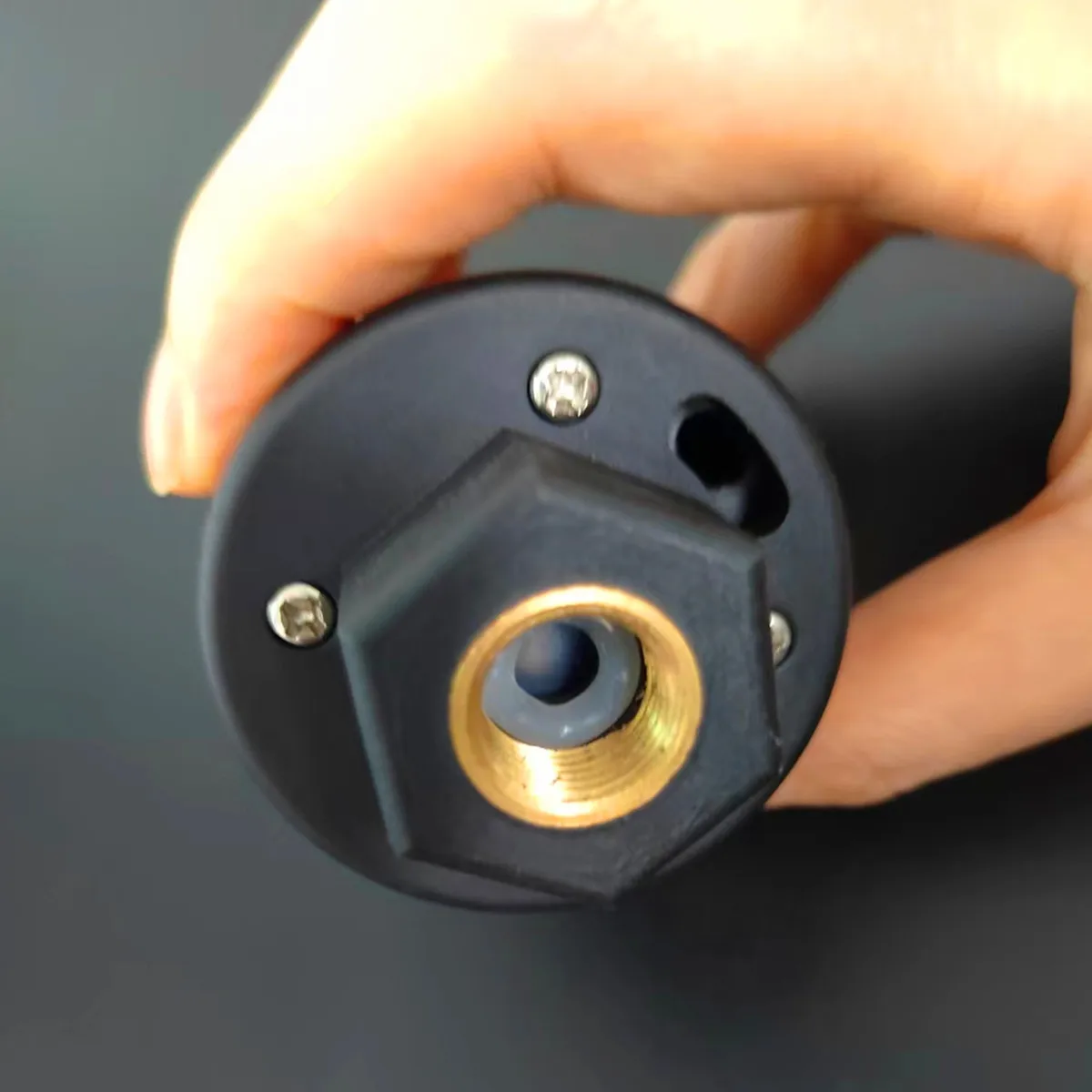

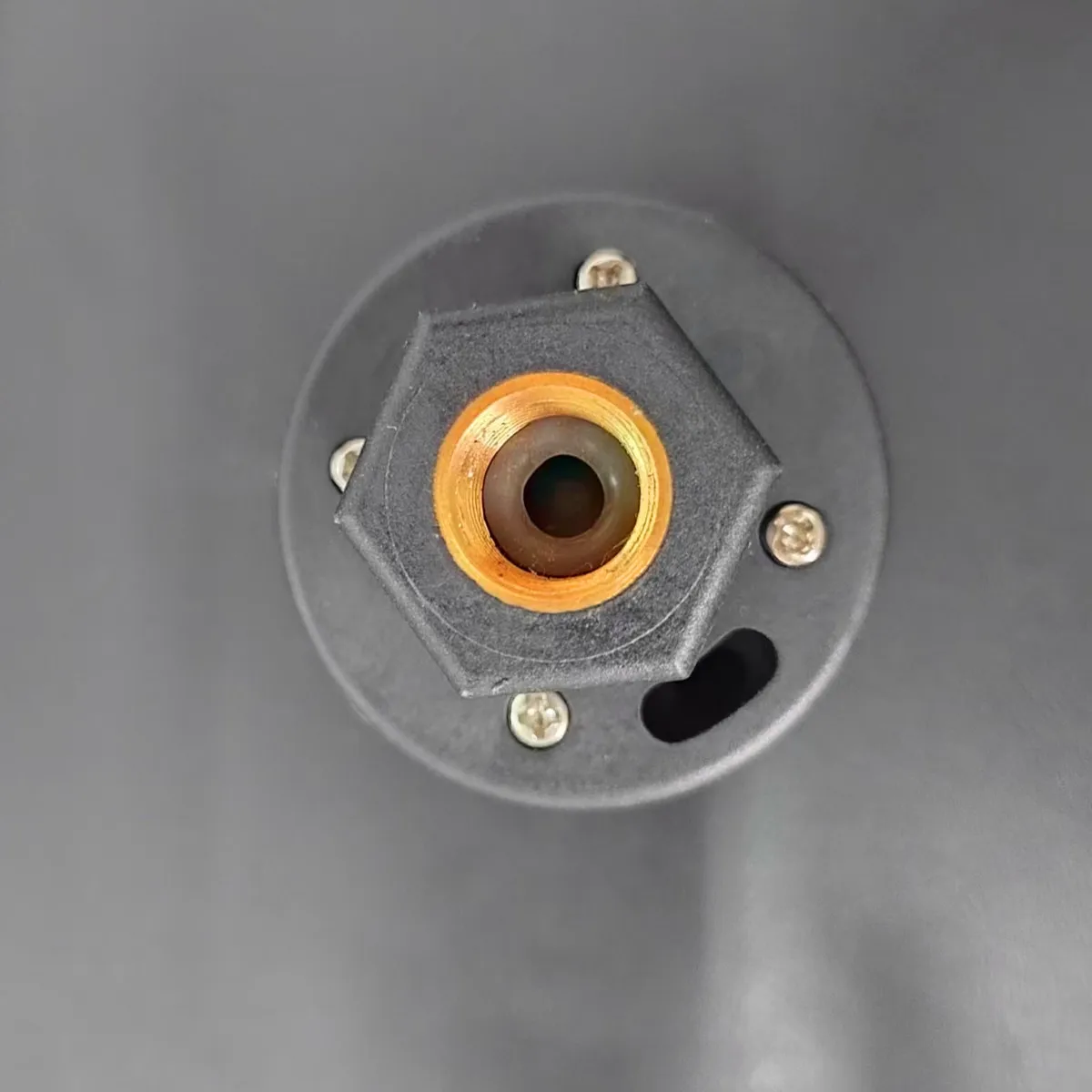

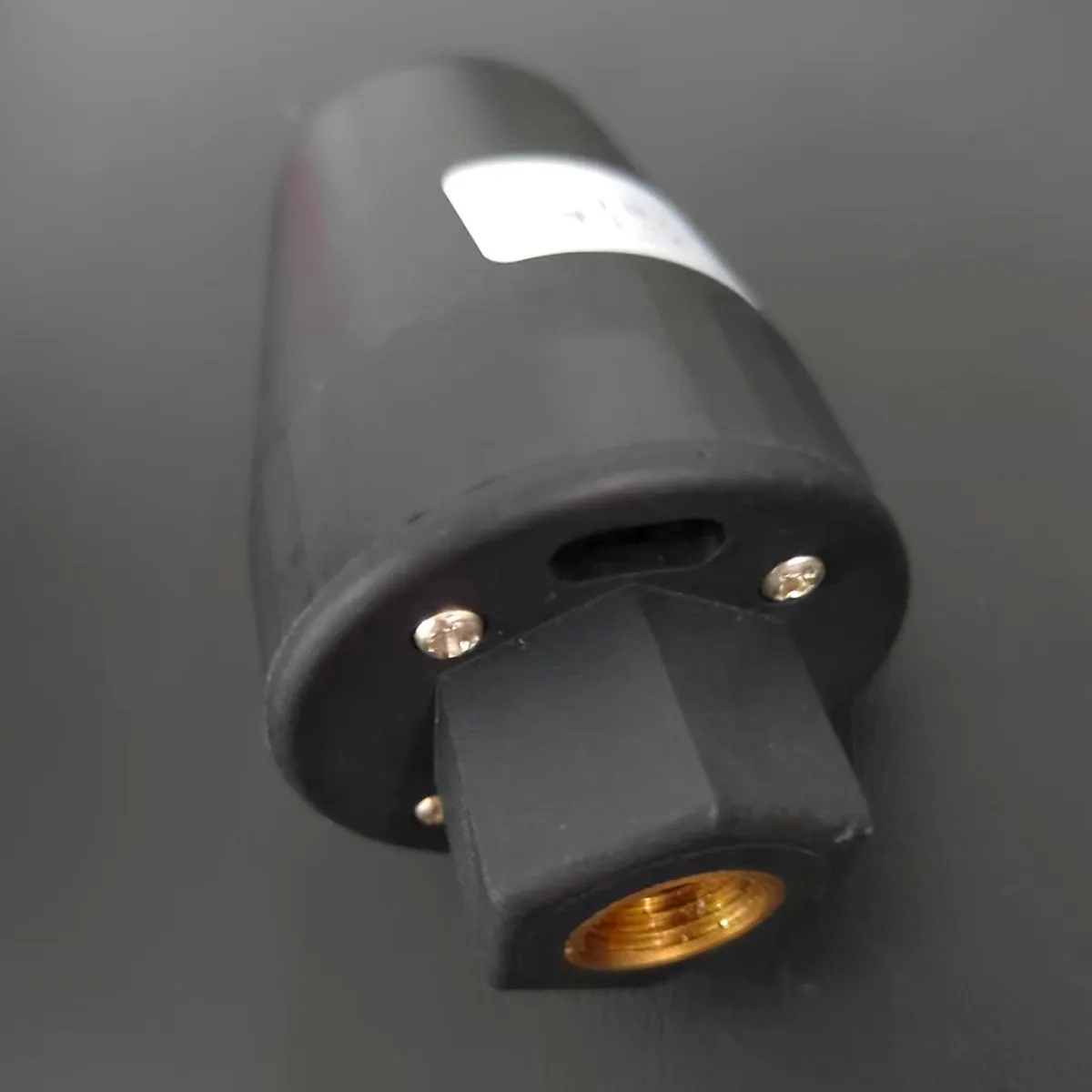

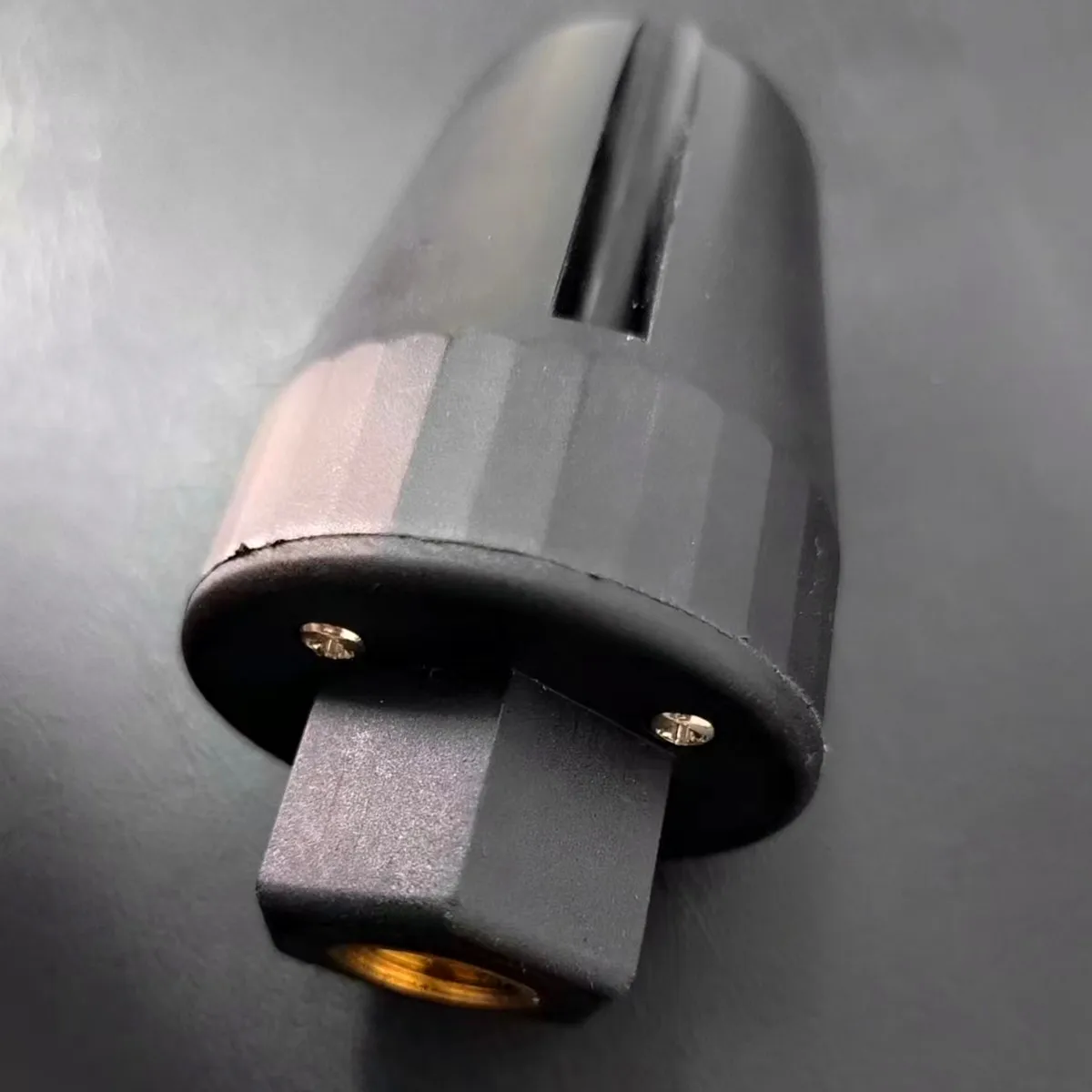

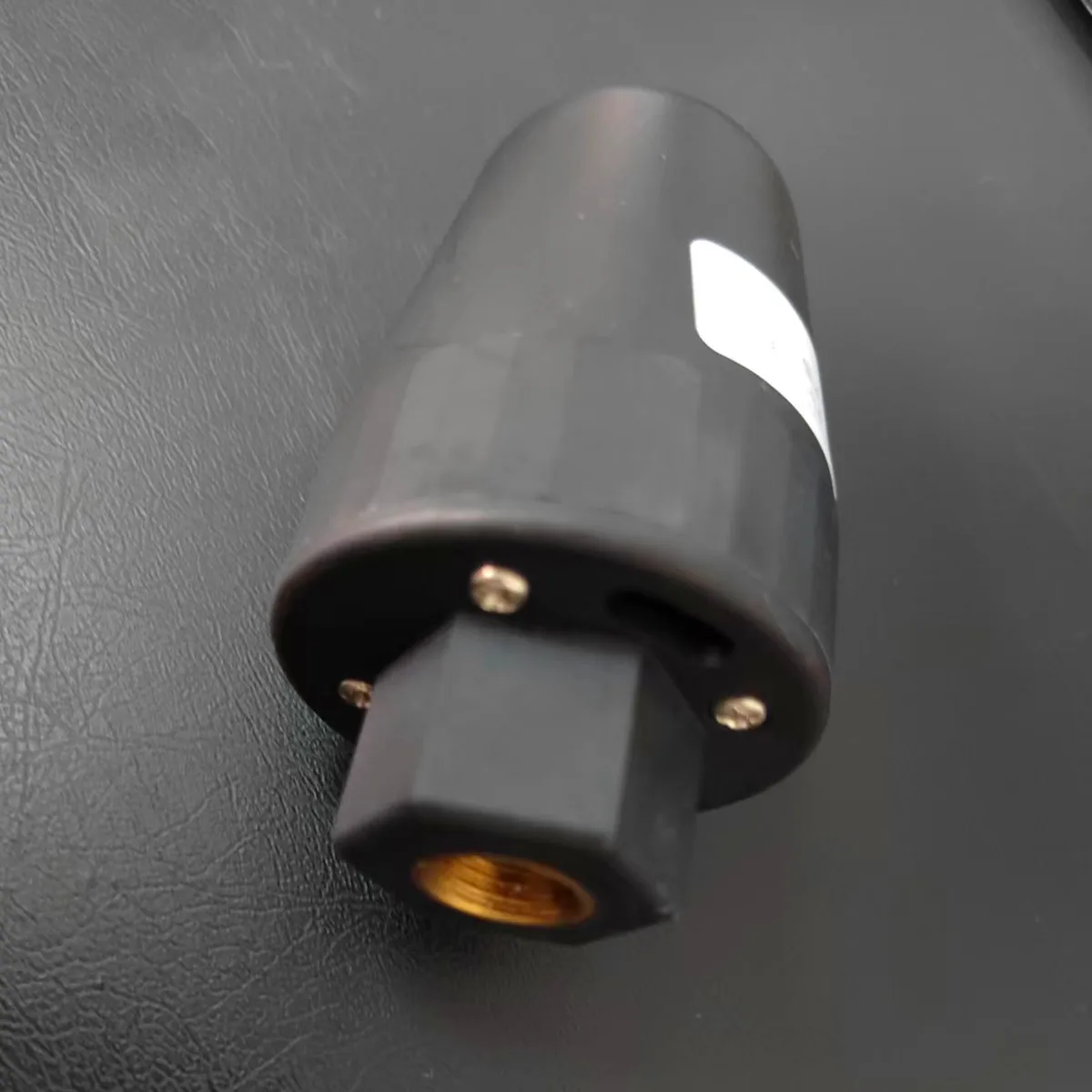

Adjustable Pressure Switch Electric Automatic Water Pump Controller
√ Patent Design
√ Double regulated starting & stopping pressure
√ Mechanical endurance more than 500,000 times
√ Avoid the influence of water pressure fluctuation
√ IP65 Insulation Grade

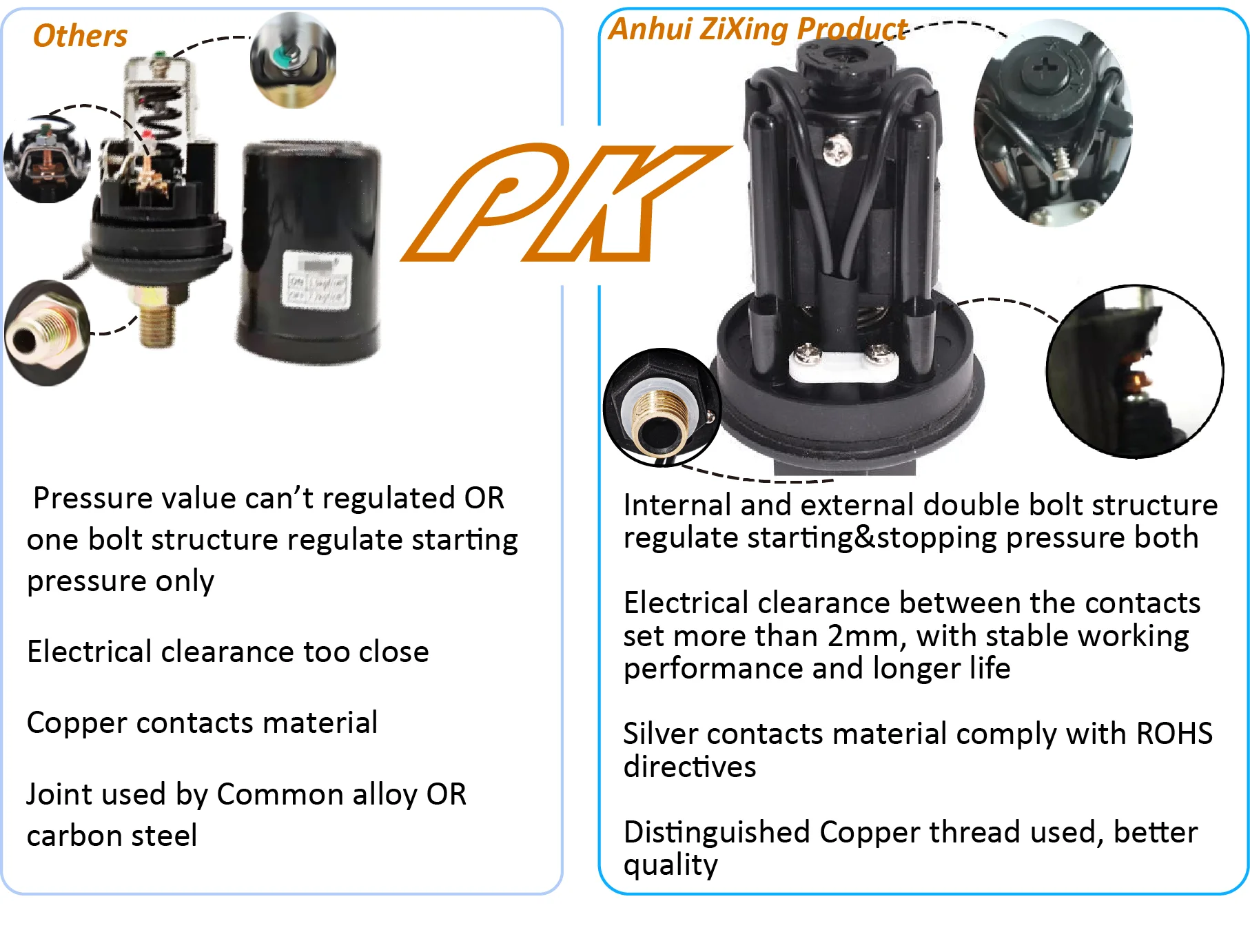

Pressure value can't regulated Or one bolt structure regulate starting pressure only
Electrical clearance too close
Copper contacts material
Joint used by Common alloy OR carbon steel
Internal & external double bolt structure regulate starting & stopping pressure both
Electrical clearance between the contacts set more than 2mm,with stable working performance and longer life
Silver contact material comply with ROHS directives
Distinguished Copper thread used,better quality.
Product Paramenters
Model No | Female thread Size | Interface material(in accordance with ROHS directive) | Starting pressure code(kg) | Stopping pressure code(kg) | Applicable power value (W) | ||
AHZX- YKNT140816C | G1/4" | Copper | 0.8 | 1.6 | 100W | ||
AHZX-YKNT141018C | G1/4" | Copper | 1.0 | 1.8 | 120W,125W,150W | ||
AHZX-YKNT141522C | G1/4" | Copper | 1.5 | 2.2 | 250W,300W,370W | ||
AHZX-YKNT141626C | G1/4" | Copper | 1.6 | 2.6 | 550W | ||
AHZX-YKNT142028C | G1/4" | Copper | 2.0 | 2.8 | 550W | ||
AHZX-YKNT142230C | G1/4" | Copper | 2.2 | 3.0 | 550W,750W | ||
AHZX-YKNT142535C | G1/4" | Copper | 2.5 | 3.5 | 750W | ||
MOQ | 100pcs | Custom MOQ | To be negotiated | ||||
Note: this series of products are used for the matching of corresponding brand products of water pump manufacturers and the replacement of products required by the retail market. Water pump products without corresponding requirements (such as water pump pressure tank) cannot be used.
Applications
Company Profile
Anhui Zixing Electronic Technology Co., Ltd.
Anhui Zixing Electronic Technology Co., Ltd. is founded by Bengbu(Anhui)Sanhuan Electronic Technology Co., Ltd. (City High New Technology Enterprise) as the main body of investment, a high and new technology product manufacturing enterprise which integrates design, manufacturing and sales, and is jointly set up by the company's management team and scientific research team.
Product development and advantages: The company has developed a new patented product of the third generation pressure controller -double-regulated pump pressure controller series on the basis of the second generation mechanical pressure controller, which has now been put into use in the water pump controller market.
The first feature is that the starting pressure value, stopping pressure value and pressure difference of the automatic water pump can be independently and randomly adjusted to the required parameter value.
The second feature is that this product breaks through the limitation of integrating the water pressure detection follow-up mechanism and switch toggle mechanism of the traditional automatic switch of water pump, set the water pressure
detection follower mechanism and the switch toggle mechanism to a special mode separated from each other and with a certain adjustment distance.
detection follower mechanism and the switch toggle mechanism to a special mode separated from each other and with a certain adjustment distance.
Certifications
Packaging & Shipping
FAQ
Q: How about the quality?
A: It is fully complies with ROHS directive and CE standard,the electrode gap of this product exceeds 2.0,will not cause ignition and electric leakage due to humid air. Material of product contacts is fully comply with ROHS directives. Service life more than 500,000 times which is far superior to similar products.
Q: What's your warranty?
A: we have 1 year warranty time.
Q: Could I put my own logo on it?
A: Sure, it depends on purchase quantity.
Q: If I have my ideas, do you have persons to design according to my concept?
A: Certainly, we have great design, research and development team and we are patent owner.
Q: What’s your payment term?
A: TT is preferred.
Q: What's your shipping ways?
A: For bulk goods,it ship by sea on FOB terms. For sample approval, we can send by DHL or others express on your demand.
Q: Can I get a sample to check your quality and how long i can get samples?
A: yes,sample will be finished about 7 days.
A: It is fully complies with ROHS directive and CE standard,the electrode gap of this product exceeds 2.0,will not cause ignition and electric leakage due to humid air. Material of product contacts is fully comply with ROHS directives. Service life more than 500,000 times which is far superior to similar products.
Q: What's your warranty?
A: we have 1 year warranty time.
Q: Could I put my own logo on it?
A: Sure, it depends on purchase quantity.
Q: If I have my ideas, do you have persons to design according to my concept?
A: Certainly, we have great design, research and development team and we are patent owner.
Q: What’s your payment term?
A: TT is preferred.
Q: What's your shipping ways?
A: For bulk goods,it ship by sea on FOB terms. For sample approval, we can send by DHL or others express on your demand.
Q: Can I get a sample to check your quality and how long i can get samples?
A: yes,sample will be finished about 7 days.
