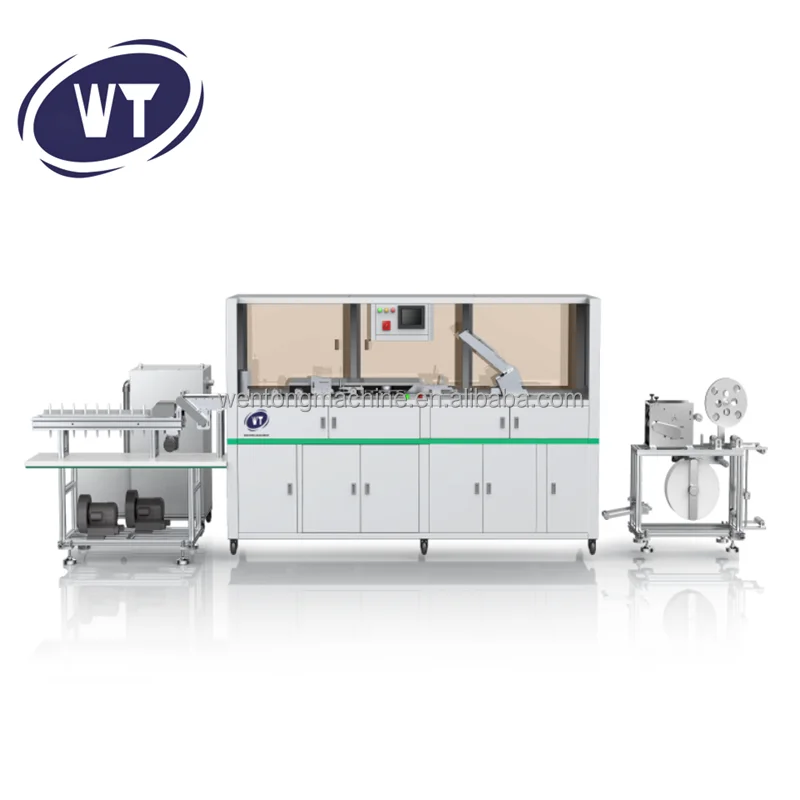

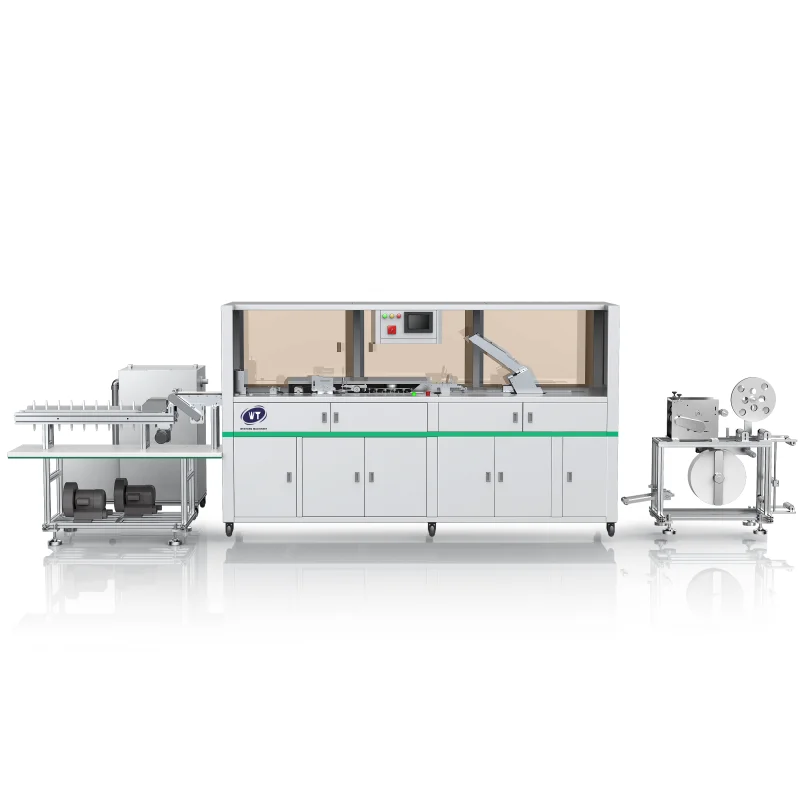

WT 008BZJ Ultrasonic Sealing Automatic Game Cards IC Cards Packaging Machine
- Category: >>>
- Supplier: Shenzhen Wentong Machinery Co. Ltd.
Share on (1600804330081):
Product Overview
Description

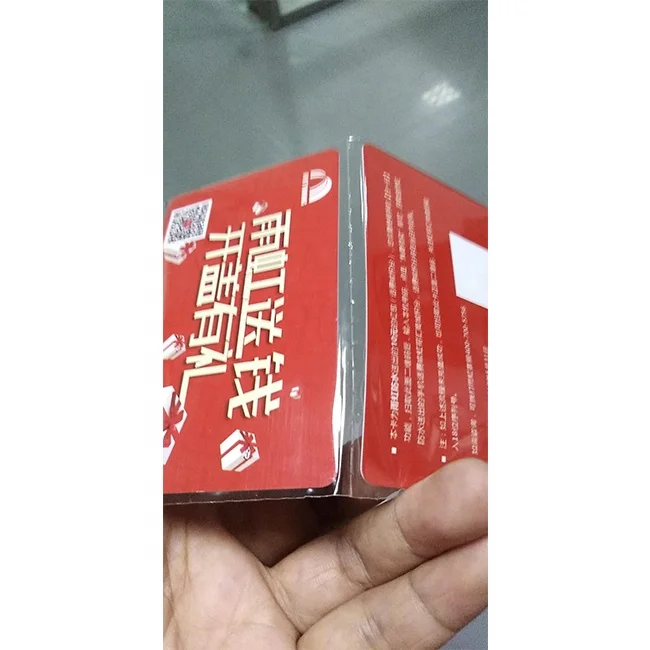

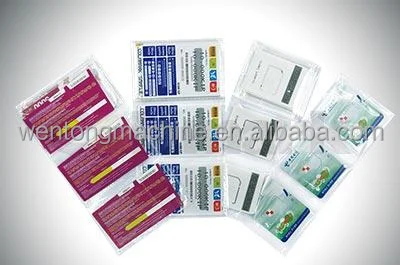

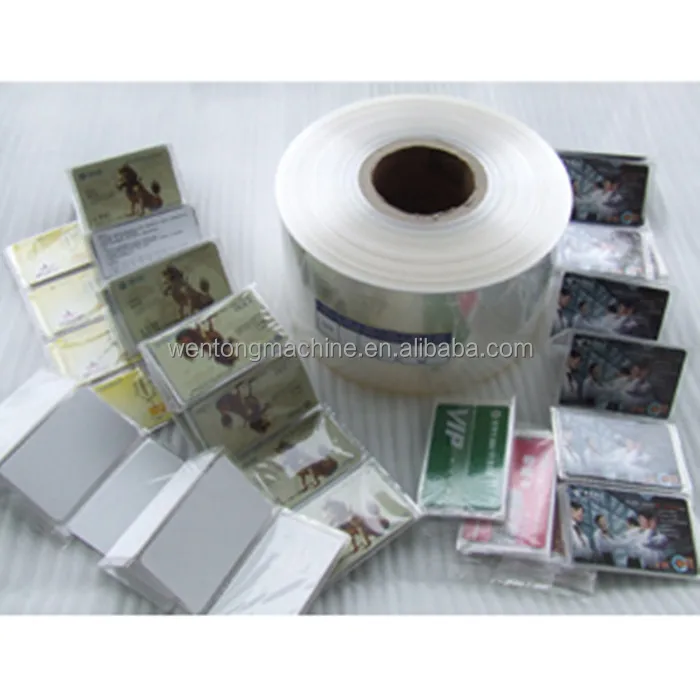

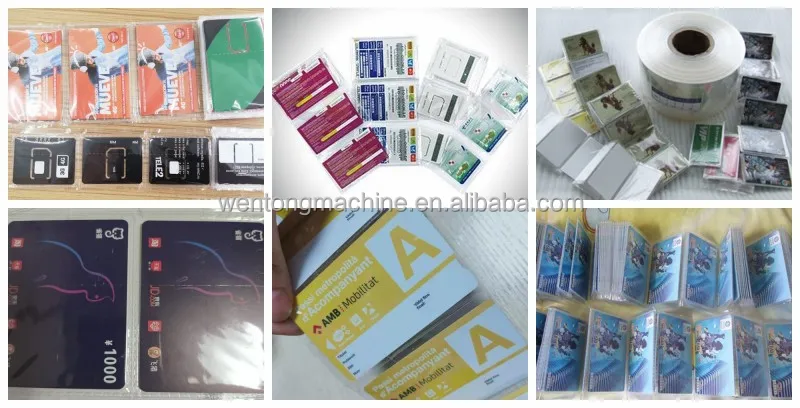

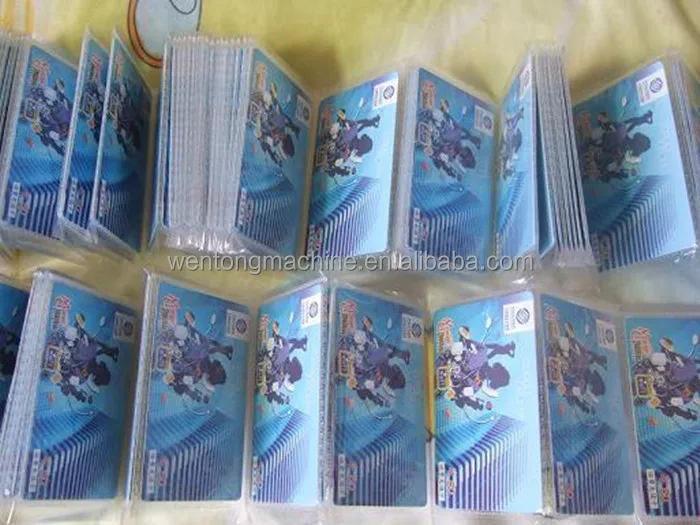

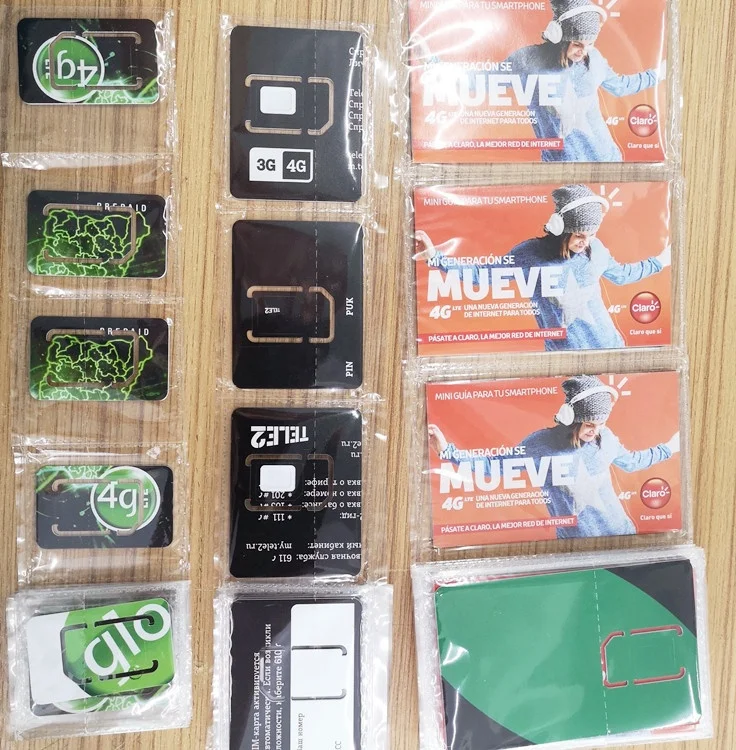

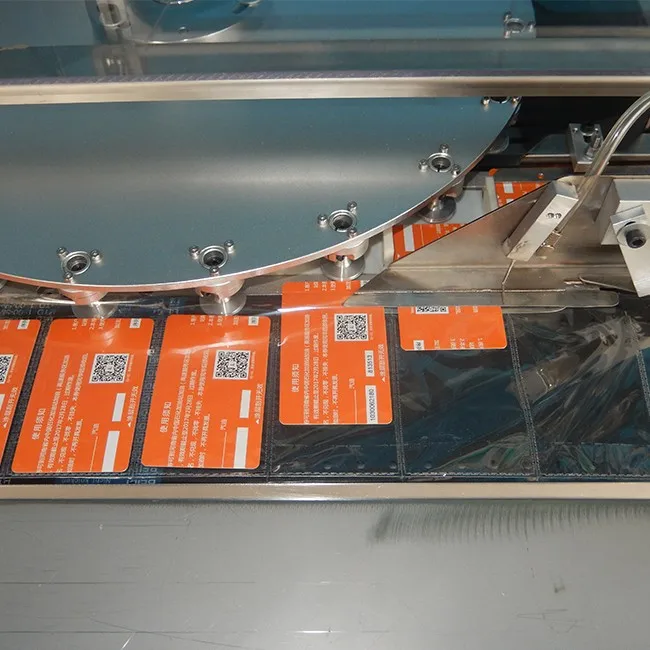

Finished Cards Sample
Product Description
Wentong’s card packaging machines are primarily designed for packaging of paper or PVC plastic cards with diverse sizes, such as scratch cards, prepaid cards, SIM cards, membership cards and game cards. Our card packaging machine allows both individual packaging and continuous strip packaging of cards. In addition, machine vision inspection system is optional.
This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards, such as packaging prepaid cards, game cards, IC cards, SIM cards, etc.
Specifications
Power supply | AC 380V/50 HZ |
Card size | Thickness 0.25mm~1.00mm (standard card) |
Total power | 3.0 KW |
Control | PLC control + servo system |
Air source | 6 kg/cm2 |
Air consumption | Approx. 30L/min |
Dimension | L4800*W980*H1860MM |
Packaging film material | BOPP film,OPP film etc. |
Packaging film thickness | 0.025mm~0.05mm |
Sealing method | Ultrasonic sealing |
Productivity | 30000PCS/H |
Card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
Product features
1.Combining functions of film unwinding, card feeding, card packaging, and card collection;
2.Suitable for paper cards and PVC cards with thickness over 0.15mm;
3.Utilizing BOPP film with thickness over 0.025mm;
4.Heat sealing process provides high operation speed and reliable closure;
5.Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
6.Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
7.Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
8.Machine vision inspection system is optional, it can inspect and read serial number and bar-code of cards;
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
Company Profile

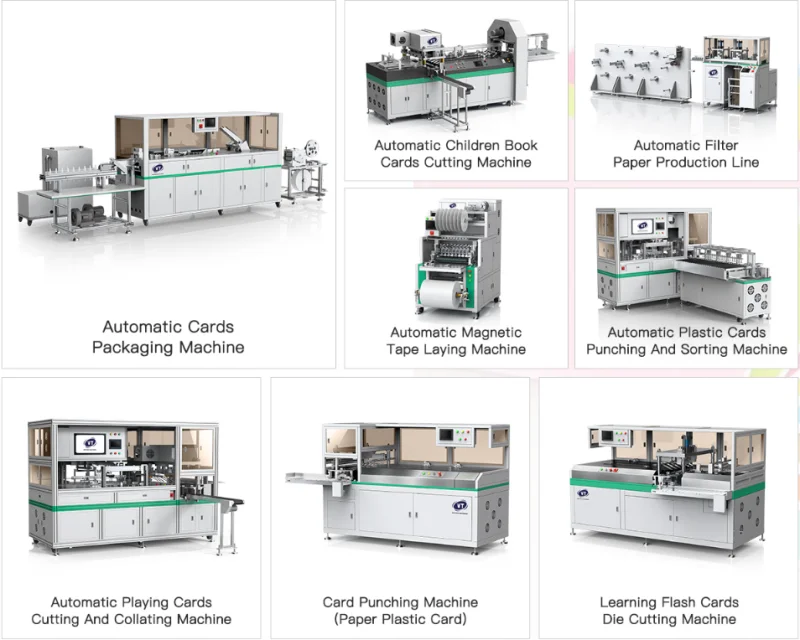

Established in 1996, Wentong has over 20 years of experience in developing and manufacturing of smart card machines and post-press equipment. We have been committed to constantly growing and improving our products and service to meet all our customer’s requirements for production of children’s books, board books, paper cards and plastic cards. Our wide range of products includes die cutting machine, card collating machine, card punching machine, SIM card production machine, board book mounting and gluing machine, automatic packaging machine, ultrasonic welding system, magnetic tape laying machine, sheet cleaning machine, etc. which are widely applied in a variety of industries such as card production, printing & packaging, children’s book, paper products, etc.
Exhibition
FAQ
1.Q: How to order a card punching machine?
A:If you want to order a machine ,You need to provide some of the following information
1: Maximum and Minimum size of product
2: Thickness and specification of materials
3: The layout of the product
2.Q: Can you provide on-site installation services for your machine?
A: Yes, we have professional engineers to provide on-site training and commissioning services until you learn how to operate the machine. If you have any questions, we will have a technician to answer your questions.
