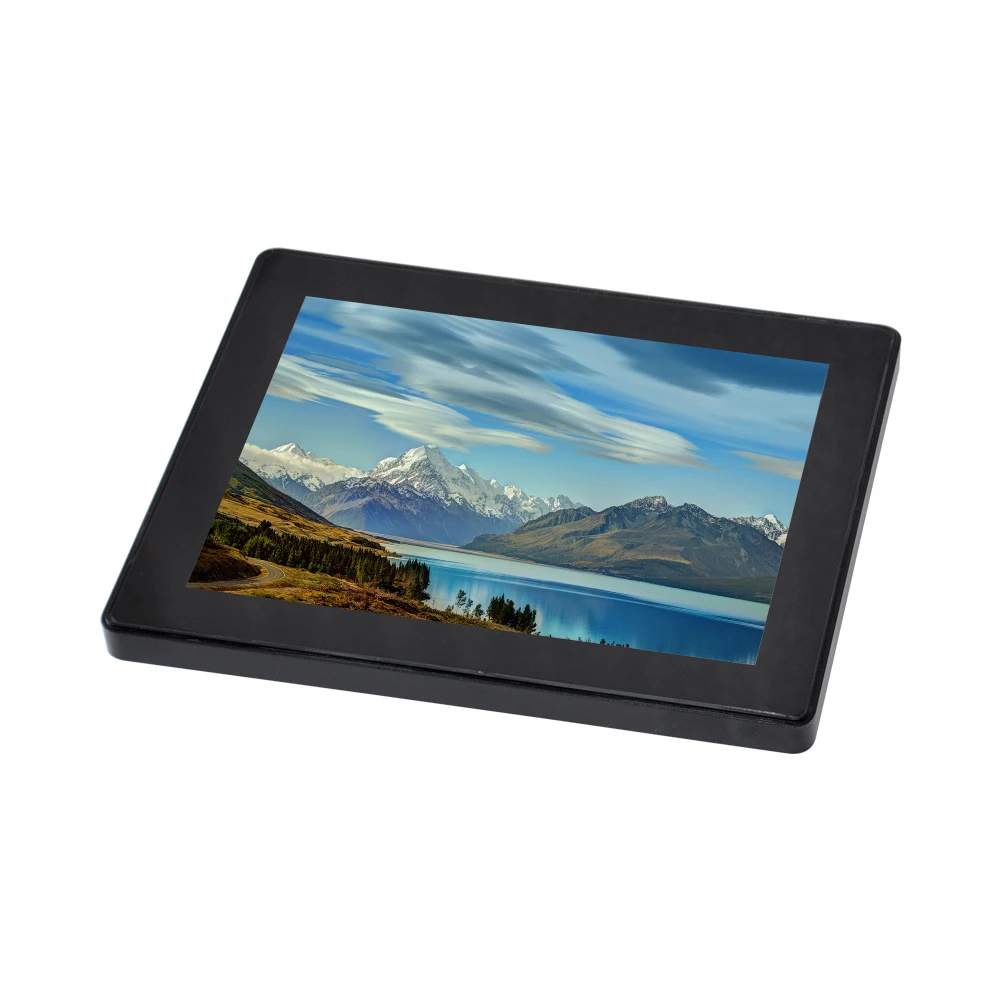

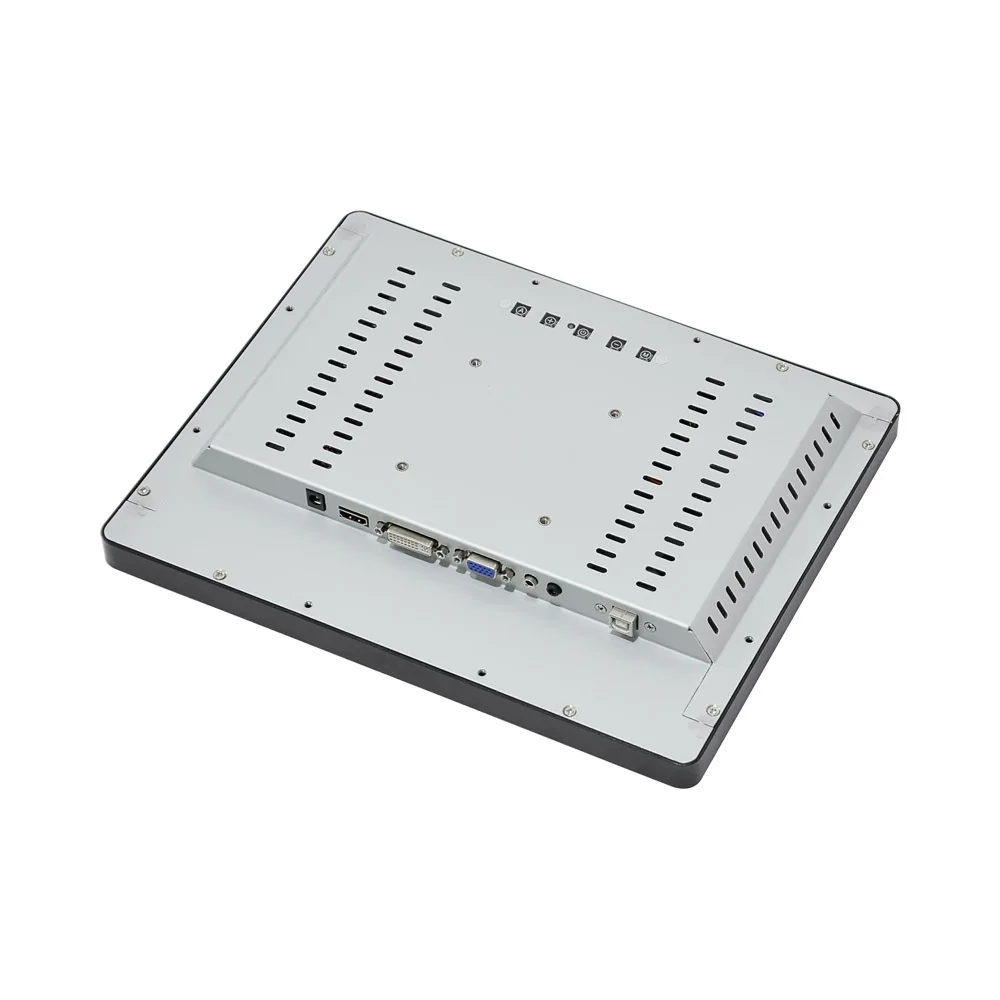

Standard 12.1' Flat Screen Touch Monitor Project Capa citive Touchscreens Vandal proof Sur face Waterproof meet IP67
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (1600804330976):
Product Overview
Description
Product Description
Standard 12.1” Flat Screen Touch Monitor Project Capacitive Touchscreens Vandal proof Sur-face Waterproof meet IP67
High-brightness(Customization)
High-definition
3/6mm Tempered Glass
USB Touch Interface
Durable Metal Housing Design
Specification
General | ||
Model | COT121-CFF02 | |
Series | Flat Screen Frameless waterproof | |

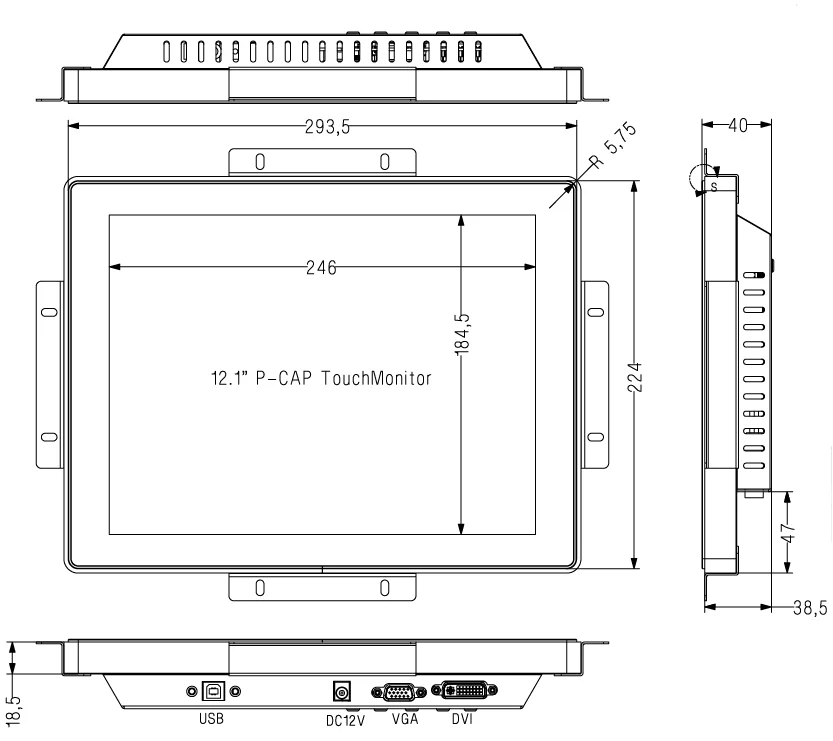

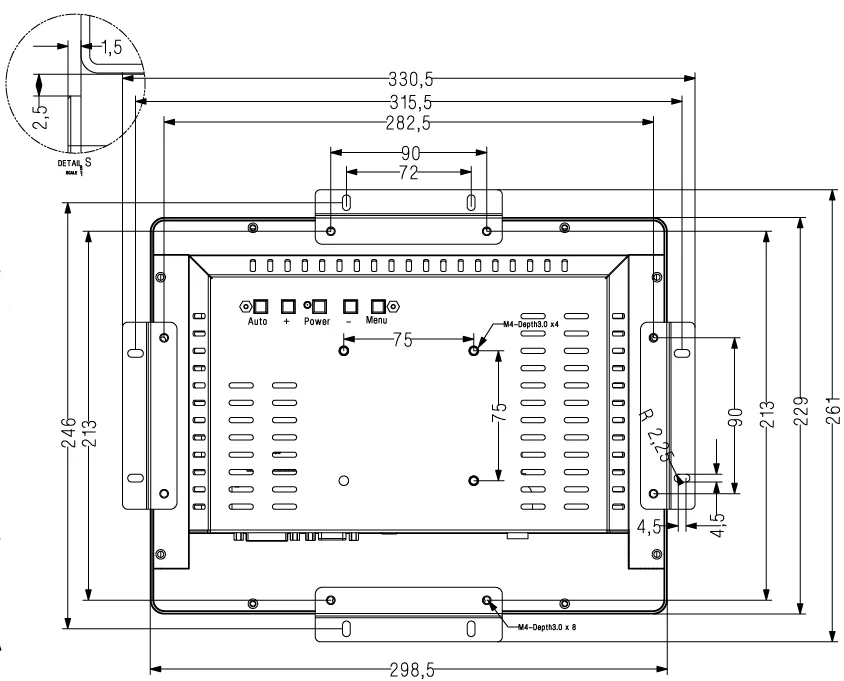

Monitor Dimensions | Width: 293.5mm Height: 224mm Depth: 40mm | |
LCD Type | 12.1” Active matrix TFT-LCD | |
Video Input | VGA and DVI | |

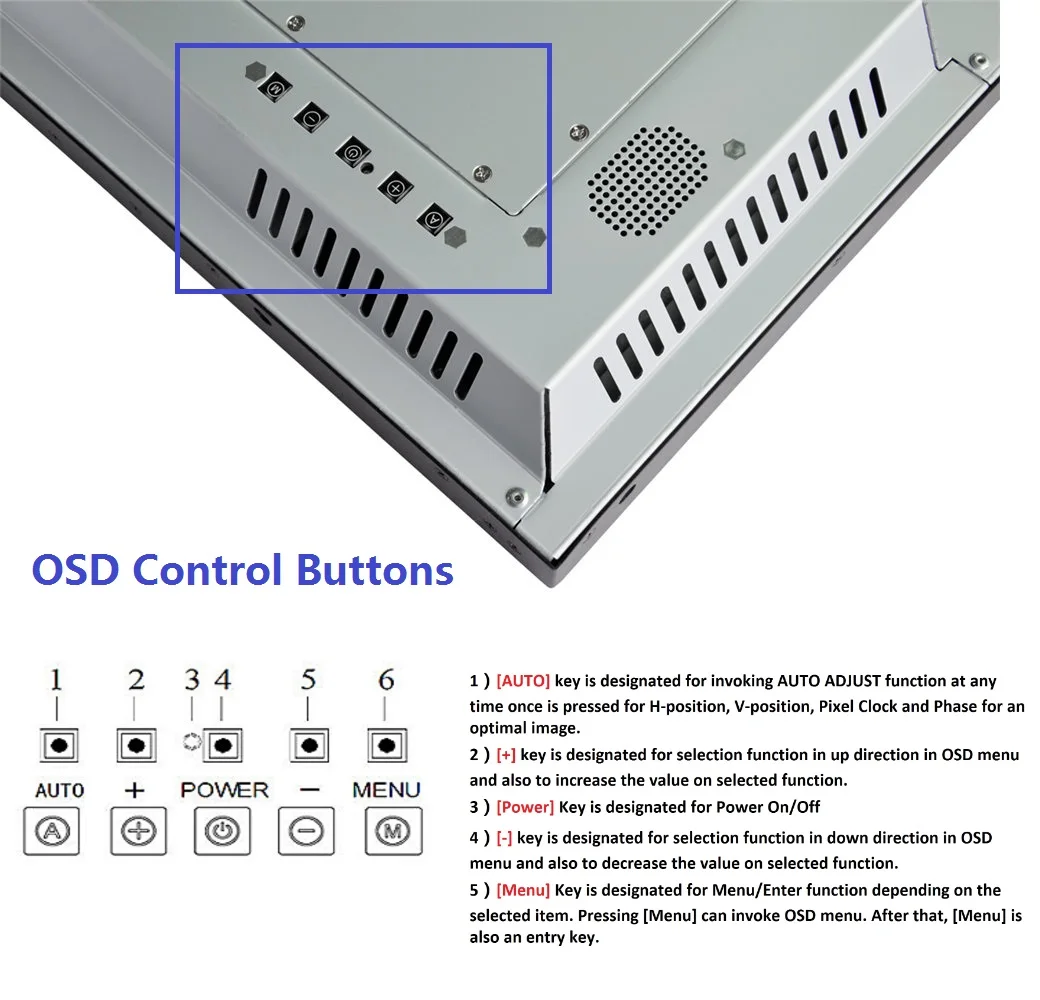

OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max | |
Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical | |
LCD Specification | ||
Active Area(mm) | 245.76(H)×184.32(V) | |
Resolution | 1024×768@60Hz | |
Dot Pitch(mm) | 0.24×0.24 | |
Nominal Input Voltage VDD | +3.3V(Typ) | |
Viewing angle (v/h) | 80°/80°(CR=10) | |
Contrast | 700:1 | |
Luminance(cd/m2) | 500 | |
Response Time(Rising/Falling) | 25ms/10ms | |
Support Color | 16.2M colors | |
Backlight MTBF(hr) | 50000 | |
Touchscreen Specification | ||
Type | Cjtouch Projected Capacitive touch screen | |
Resolution | 10points touch | |
Light Transmission | 92% | |
Touch Life Cycle | 50 millions | |
Touch Response time | 8ms | |
Touch System Interface | USB interface | |
Power consumption | +5V@80mA | |
External AC Power Adapter | ||
Output | DC 12V /4A | |
Input | 100-240 VAC, 50-60 Hz | |
MTBF | 50000 hr at 25°C | |
Environment | ||
Operating Temp. | 0～50°C | |
Storage Temp. | -20～60°C | |
Operating RH: | 20%～80% | |
Storage RH: | 10%～90% | |

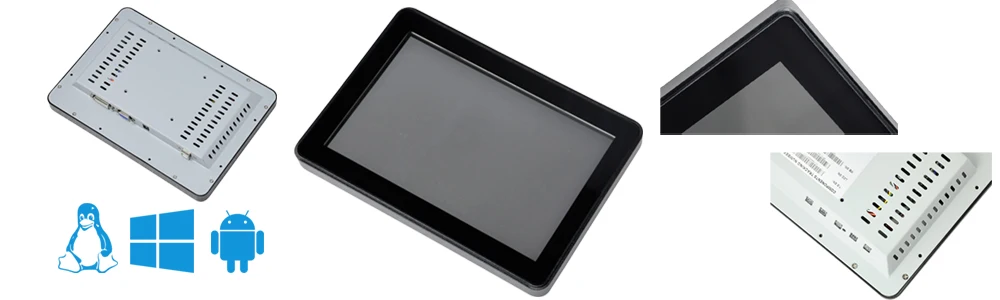

Special features

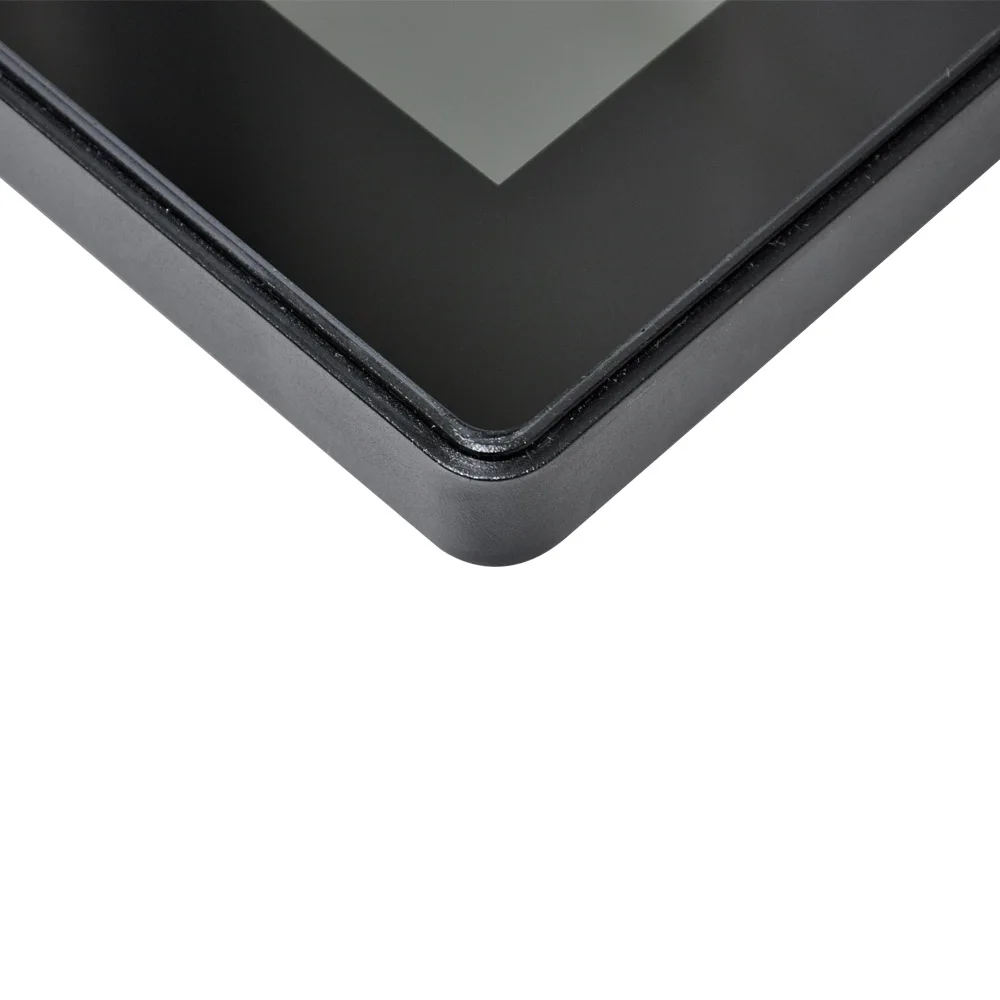

3 mm Tempered Glass:
Possess good anti-knock ability
Capacitive 10 Points Touch:
Smart interaction function
Smart interaction function
Support Multi monitors:
Suitable for more scenarios
Suitable for more scenarios

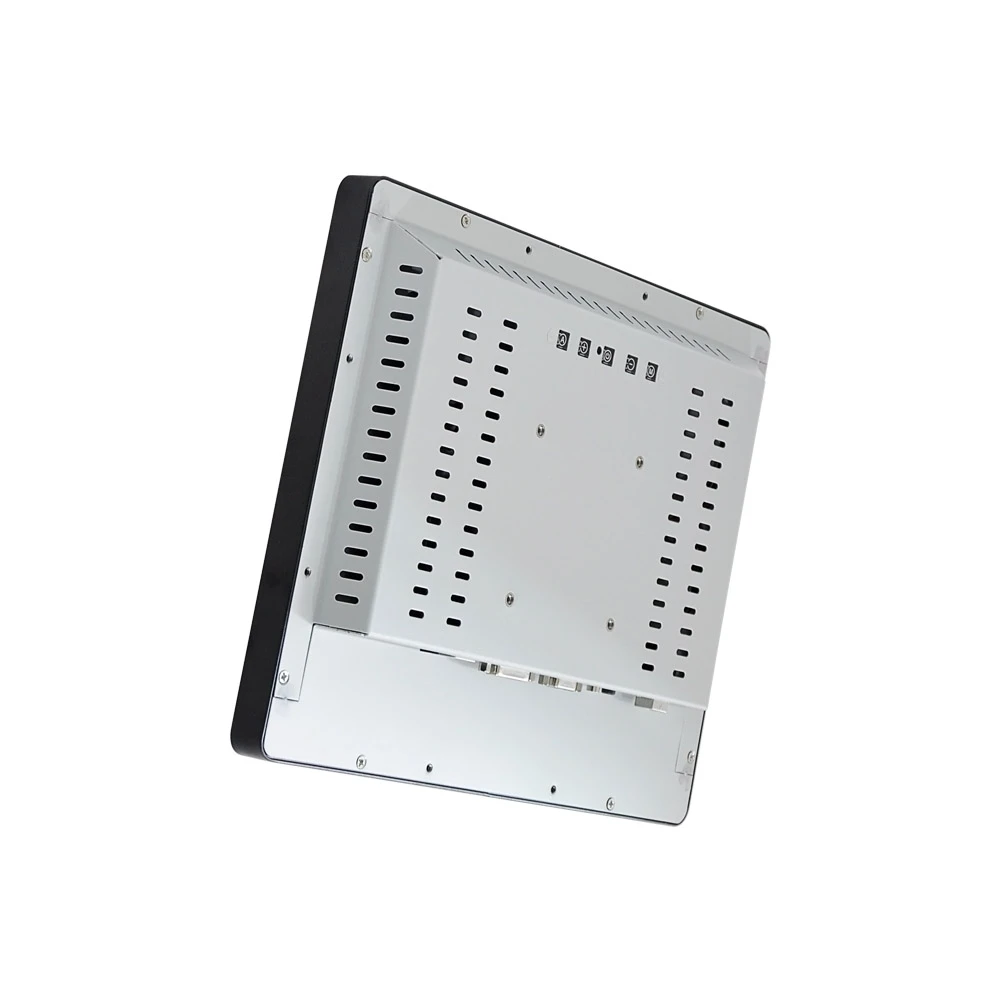

Durable Metal Housing Design

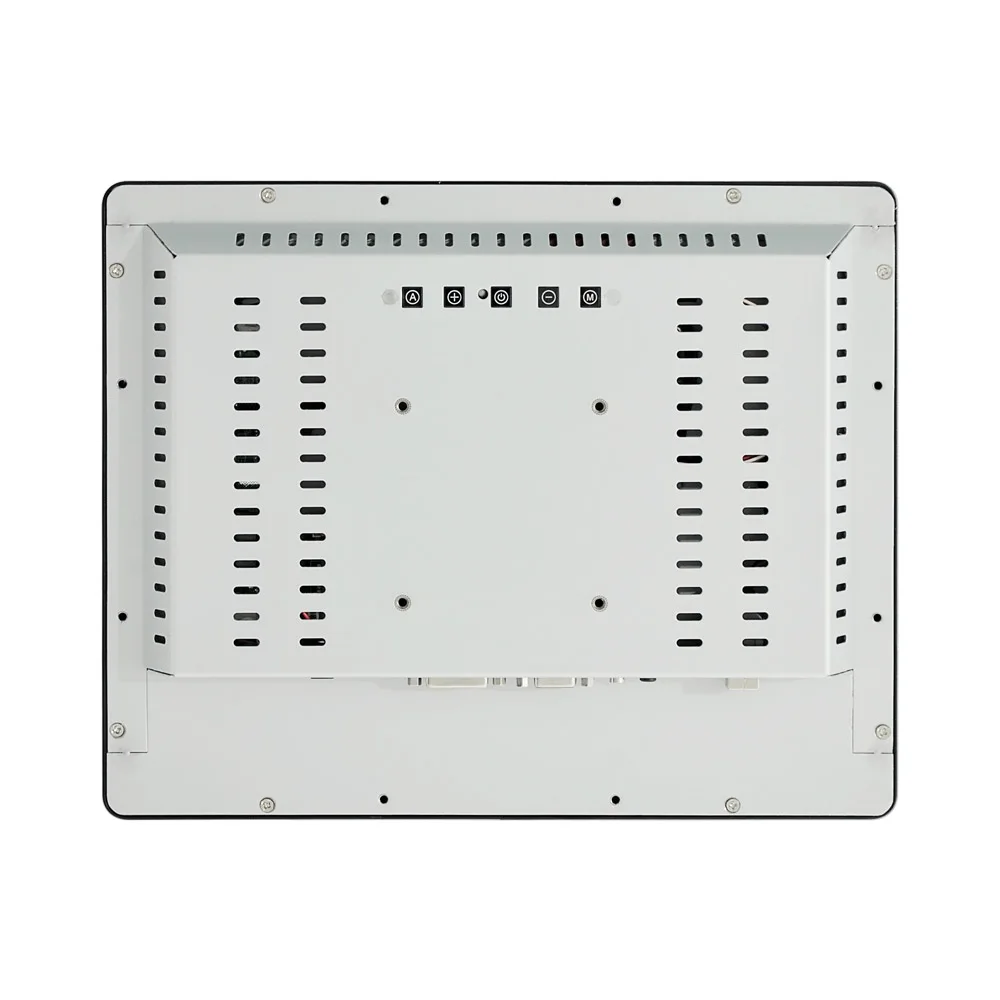

VESA 75&100 mm Mounting

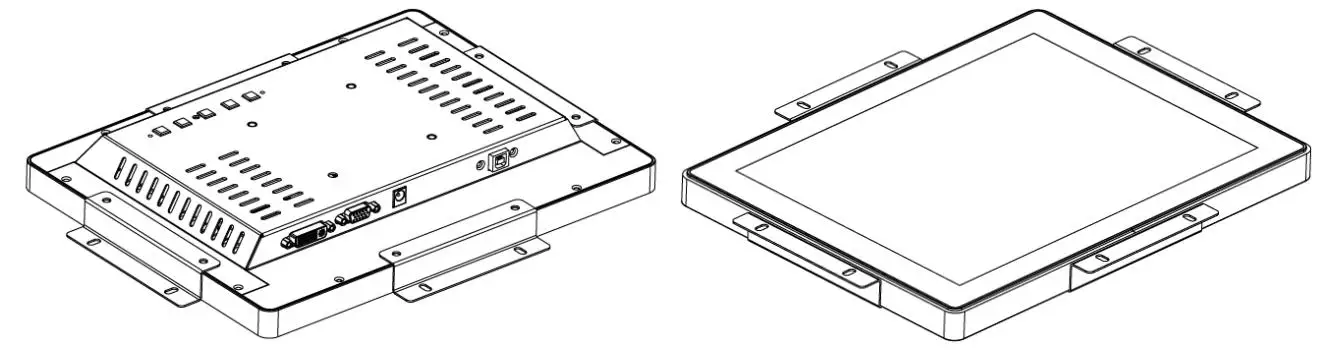

Rear Brackets Mounting Optional
DC 12V 4A Power Supply

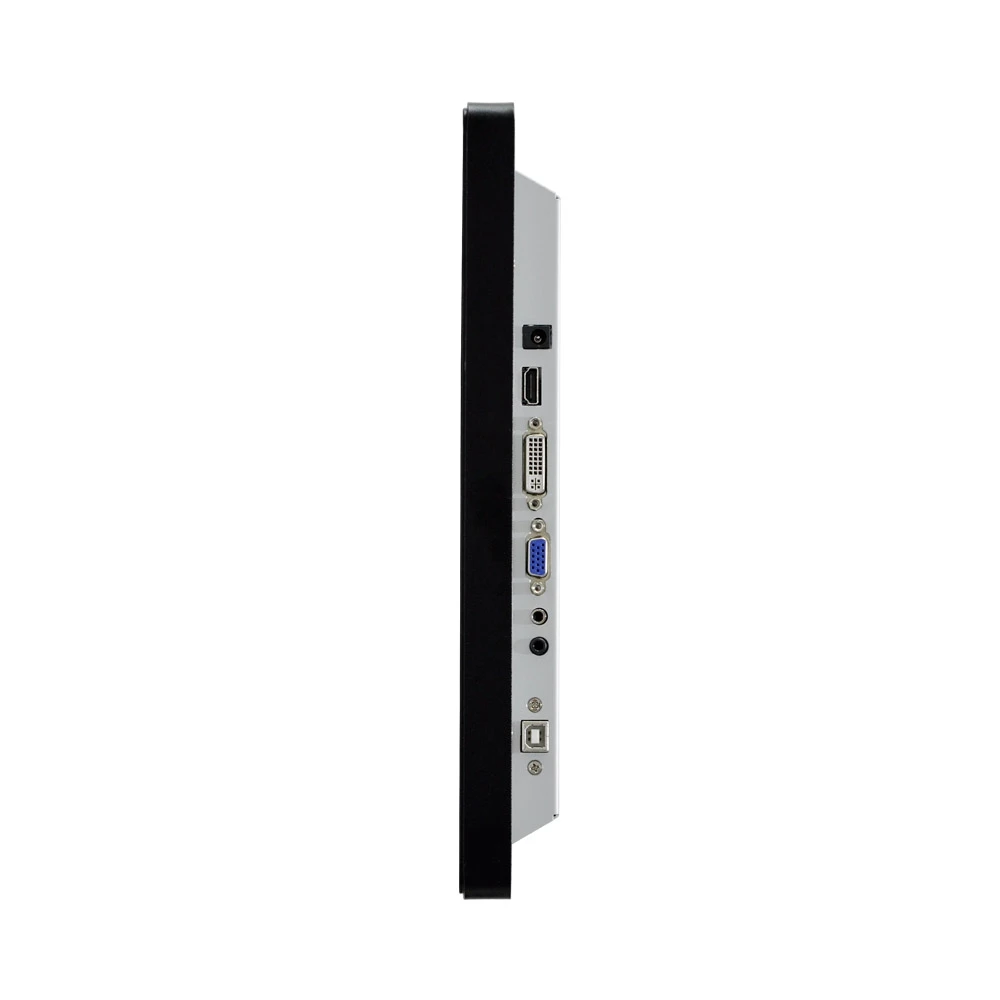

VGA/DVI Video Input
USB Touch Interface
USB Touch Interface
Packing & Delivery
Components
USB Cable 180cm*1 Pcs, VGA Cable 180cm*1 Pcs, Power Cord with Switching Adapter *1 Pcs, Bracket*2 Pcs
