adss 24core 48core 96core aramid yarn mini adss cable single PE jacket fibra cable
- Category: >>>
- Supplier: Zhuhai Surelink Communication Cable Co. ltd.
Share on (1600804358792):
Product Overview
Description
SURELINK adss 24core 48core 96core aramid yarn mini adss cable
single PE jacket fibra cable
ADSS cable is loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.
It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.
It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
PRODUCT SPECIFICATIONS

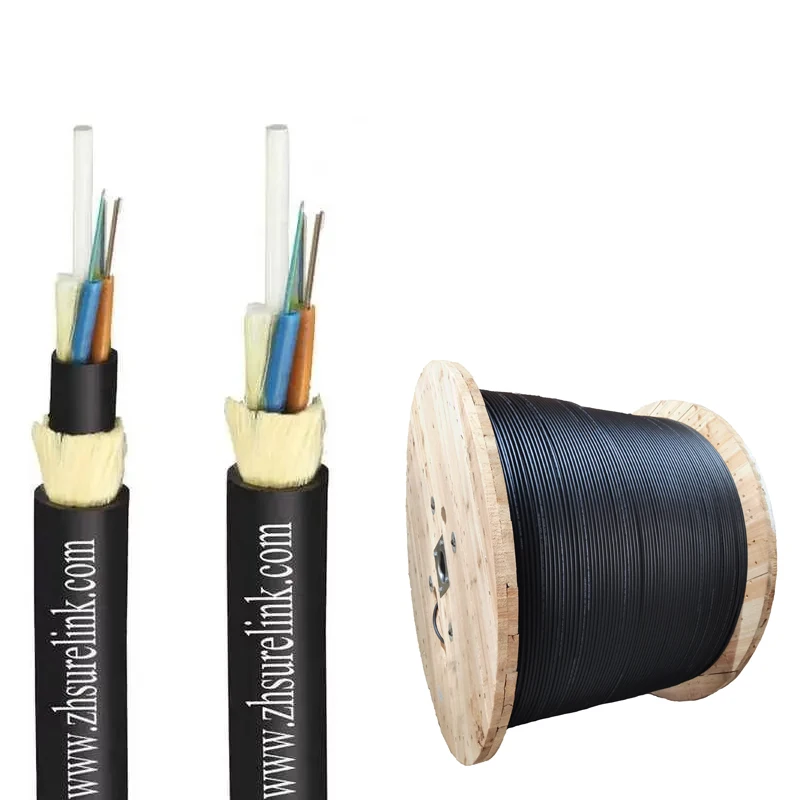

1.Product Structure
2.Technical specification
Model Number | ADSS |
Type | Fiber optic cable |
Number of Conductors | >=10 |
Application | Aerial fiber cable |
Function | Delivery signal light |
Certification | ISO9001,TIL,CE |
Sheath material | PE or AT for adss fiber optic cable |
Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
Length per roll | 2km/3km/4km ADSS fiber |
Marketing | printing |
Fiber count | 2core to 288 core |
Strength member | FRP |
2.Features
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT)
outer sheath.
4.Sutable for Aerial self-support installation
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT)
outer sheath.
4.Sutable for Aerial self-support installation
3.Performance
Fiber Type | G.652D,125.0+-1.0μm |
Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
Cladding Diameter | 125+-1μm |
Cladding Non-Circularity | <=1% |
Coating Diameter | 245+-10μm |
Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
Zero Disperson Wavelength | 1300-1322nm |
PMD Coefficient | <=0.2ps/√km |
SIMILAR PRODUCTS
COMPANY PROFILE
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

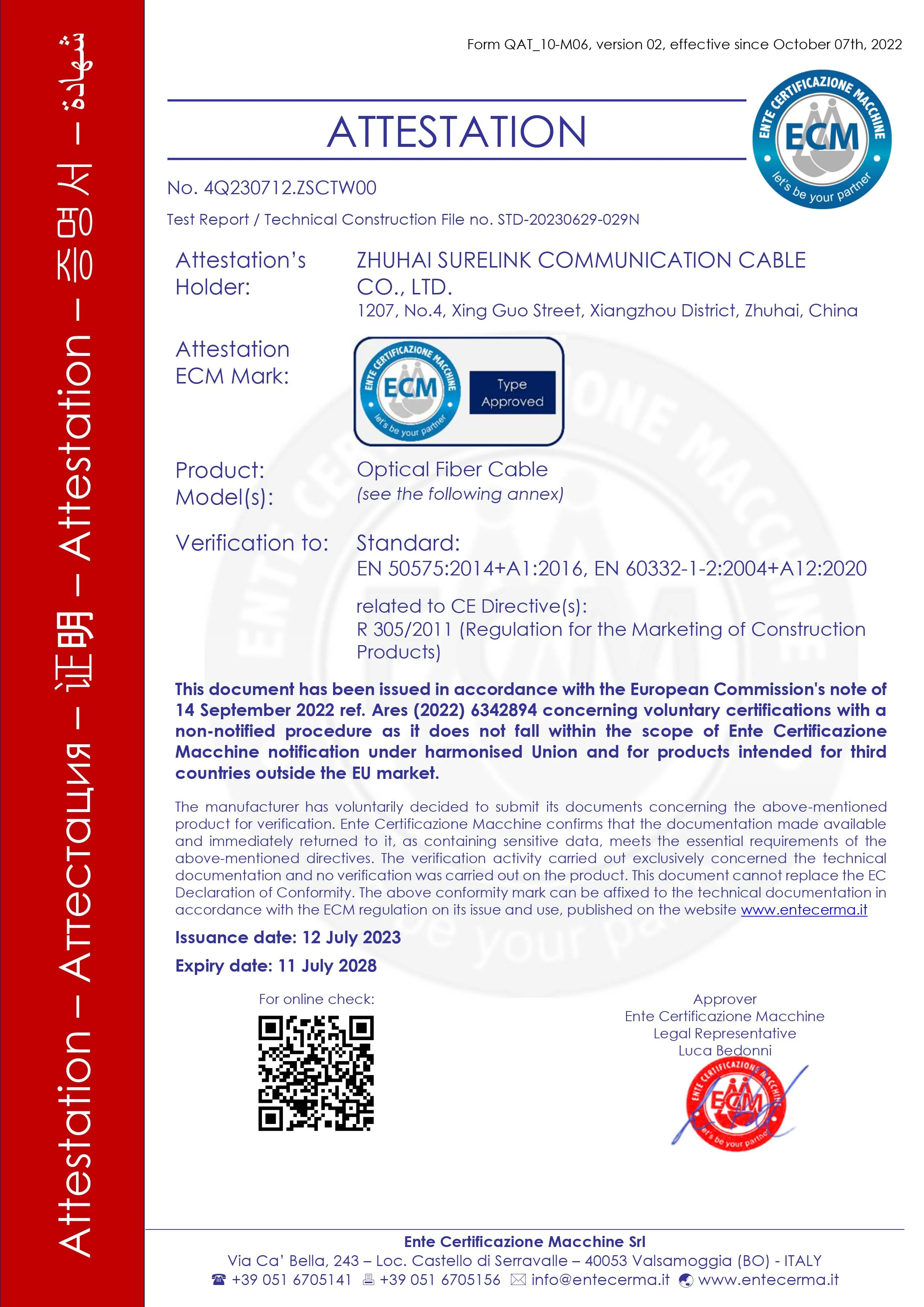

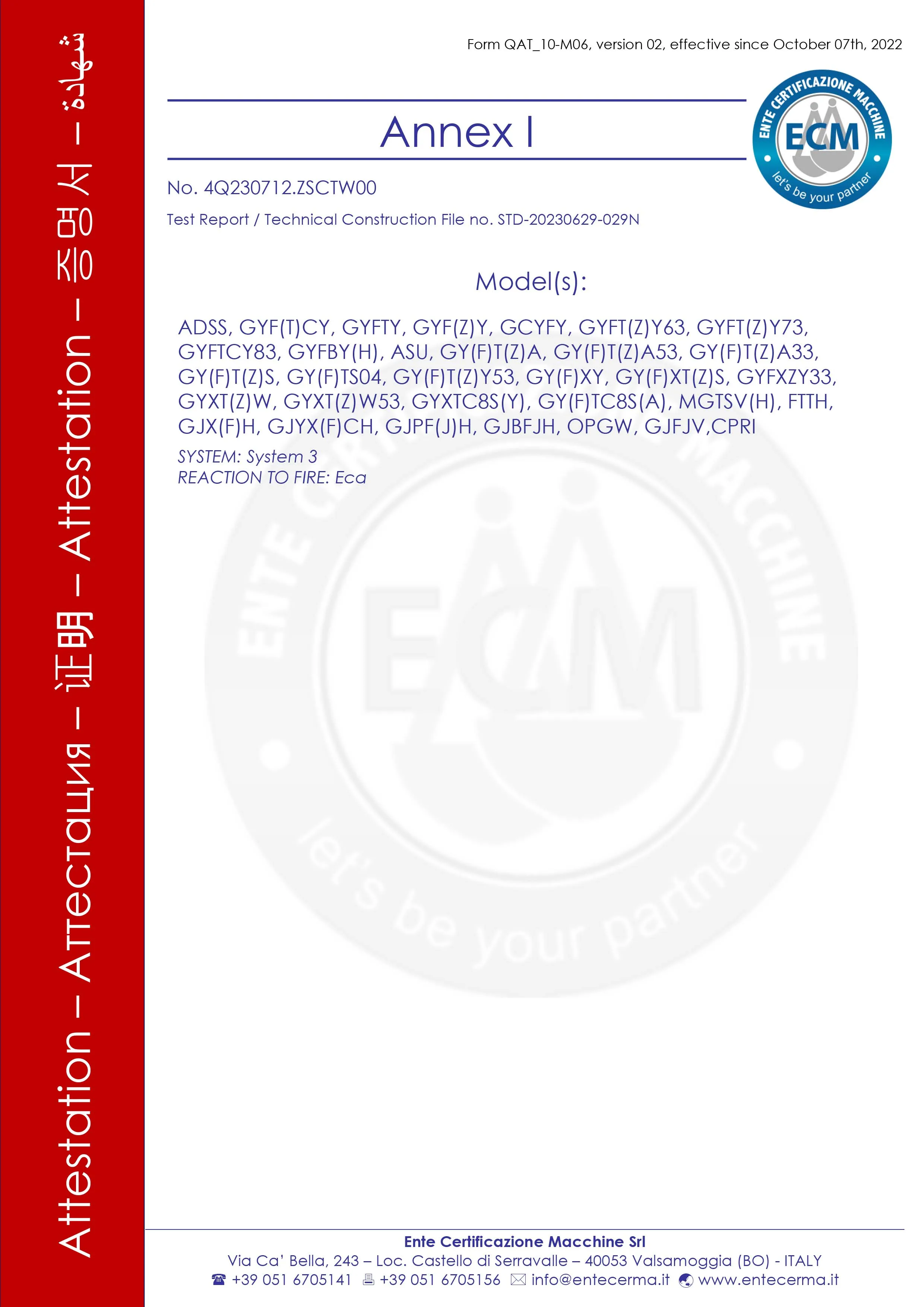

CERTIFICATE

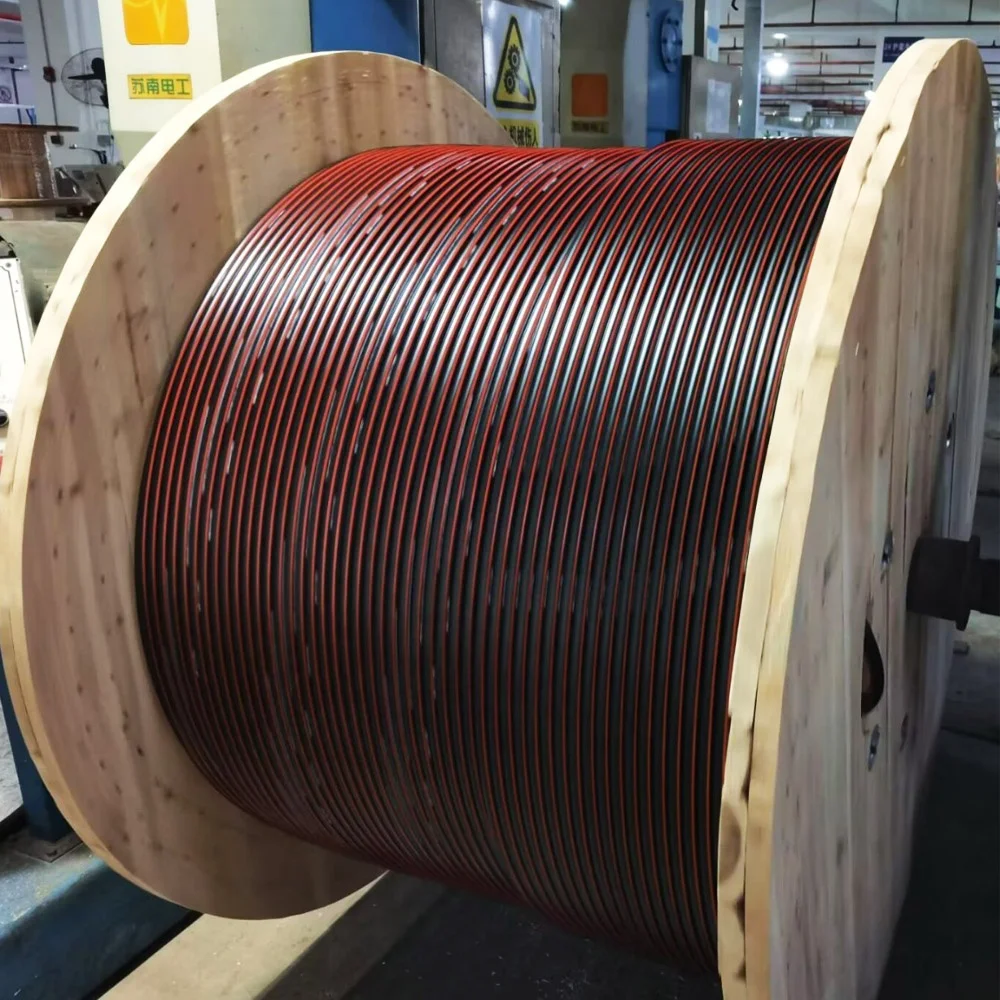

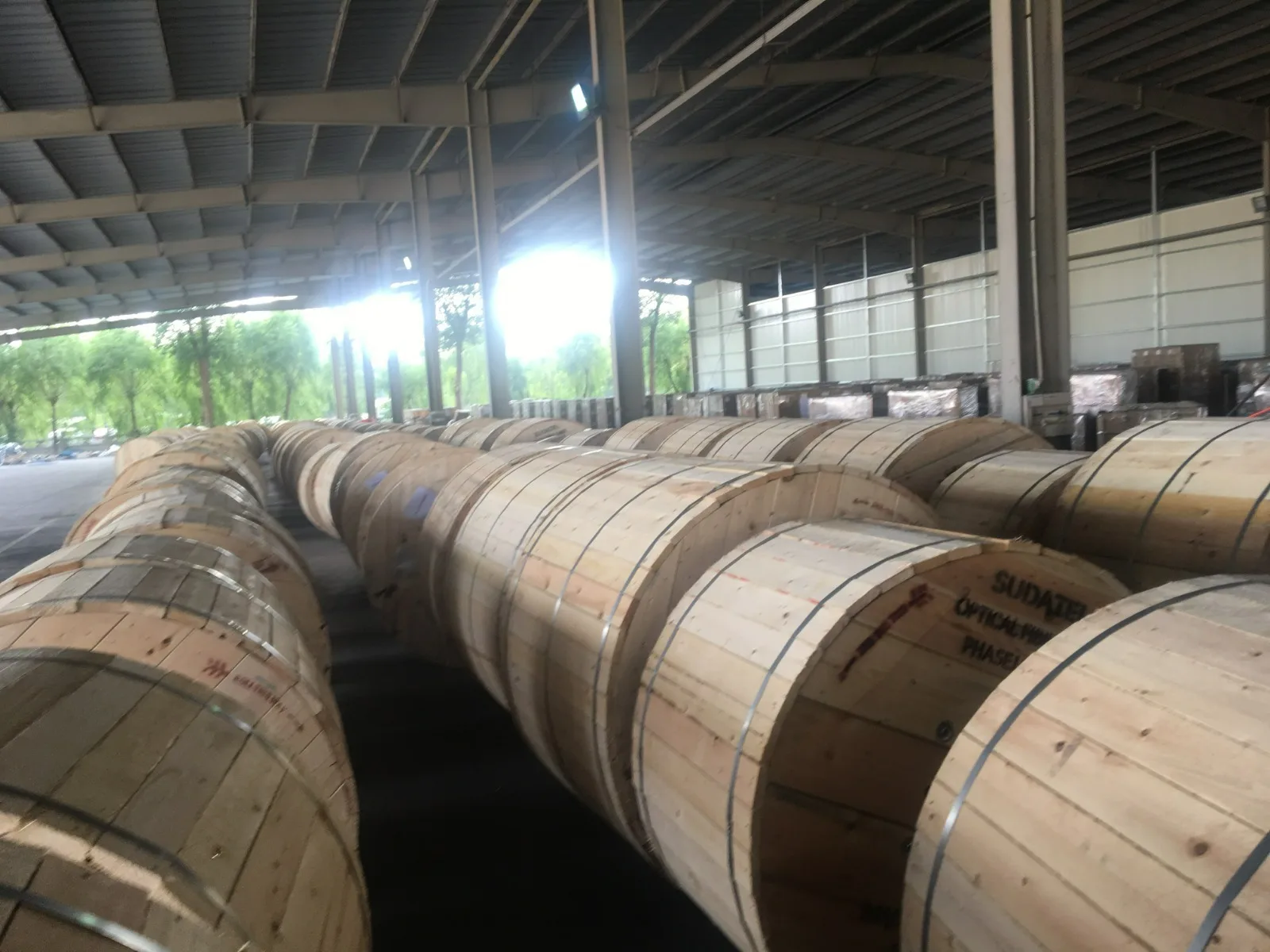

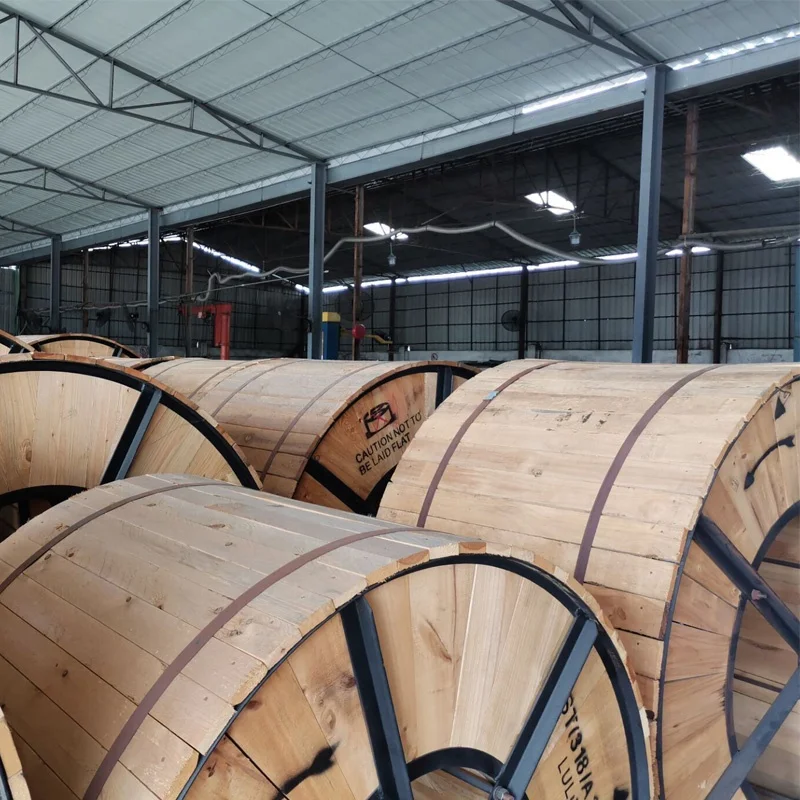

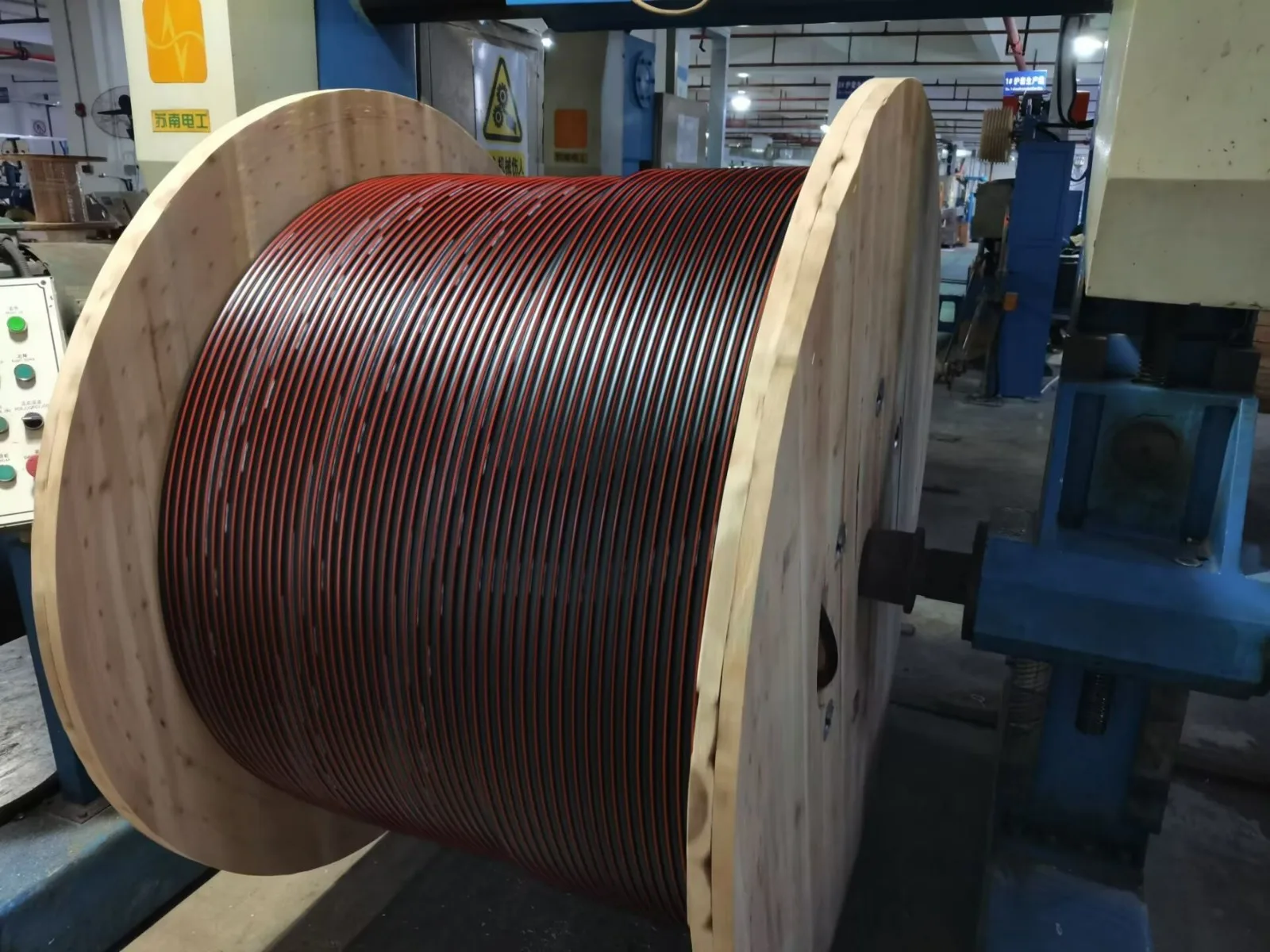

MANUFACTURE

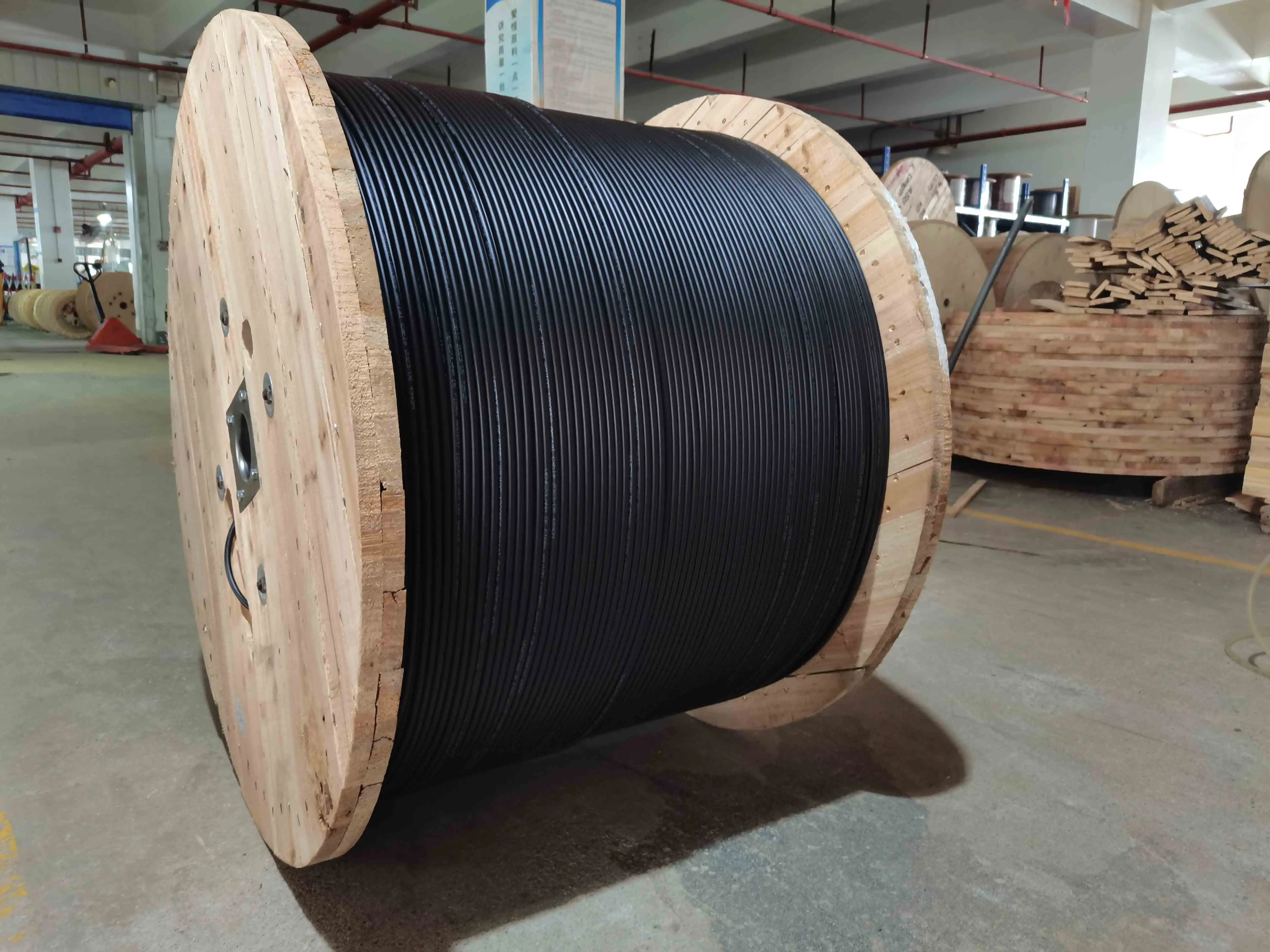

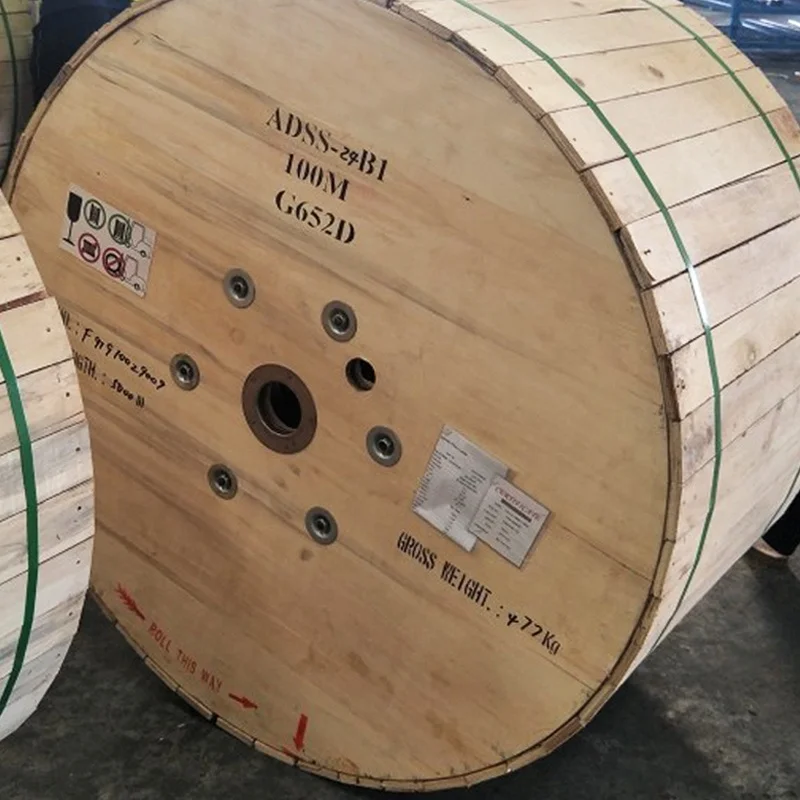

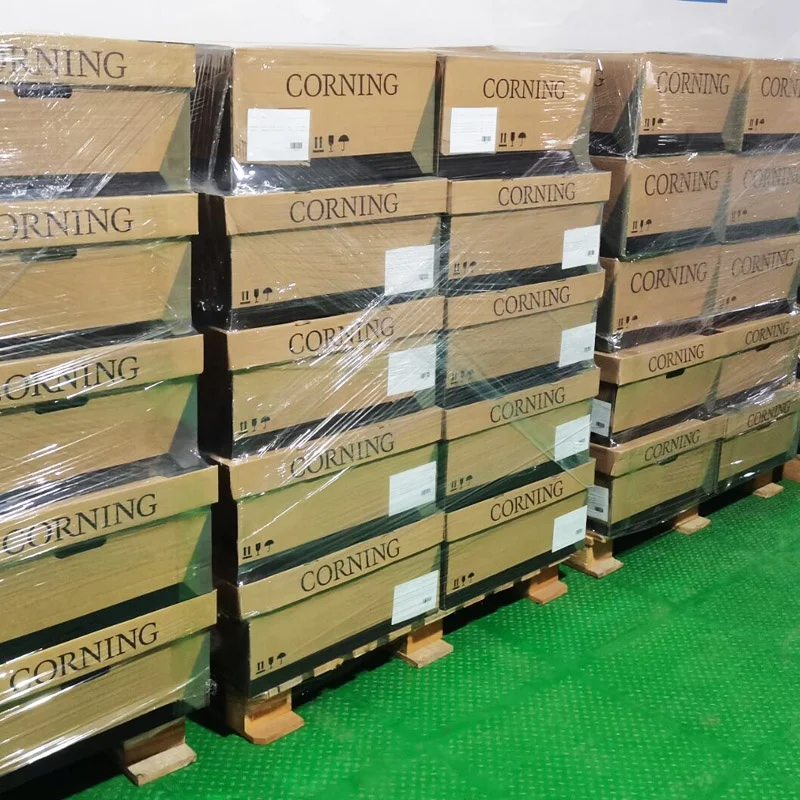

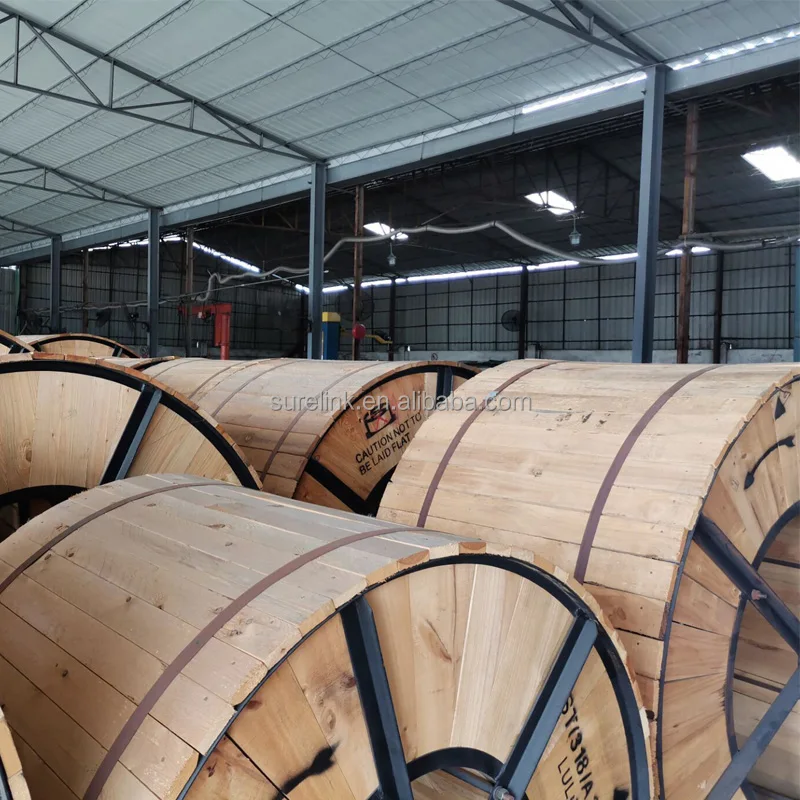

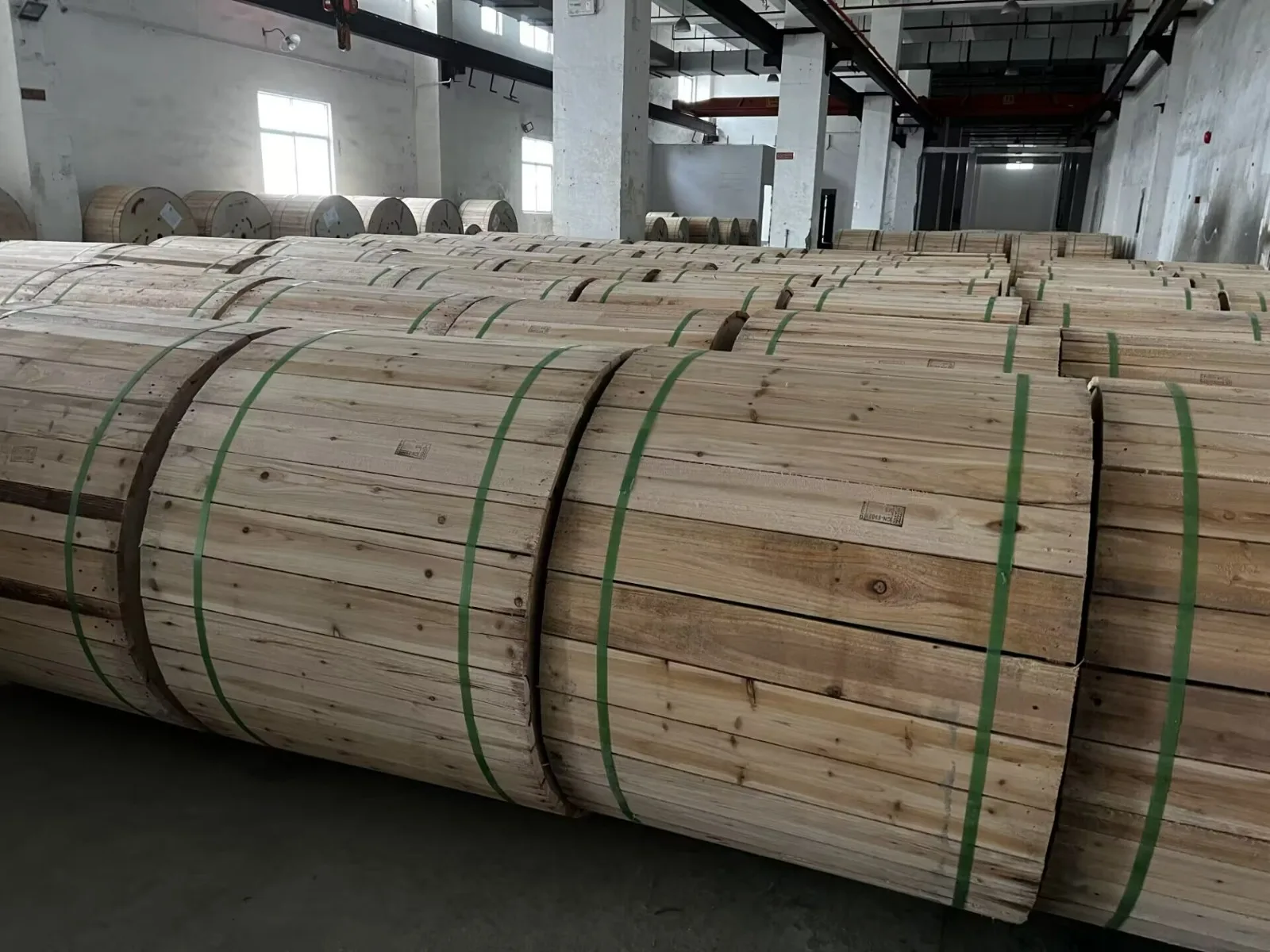

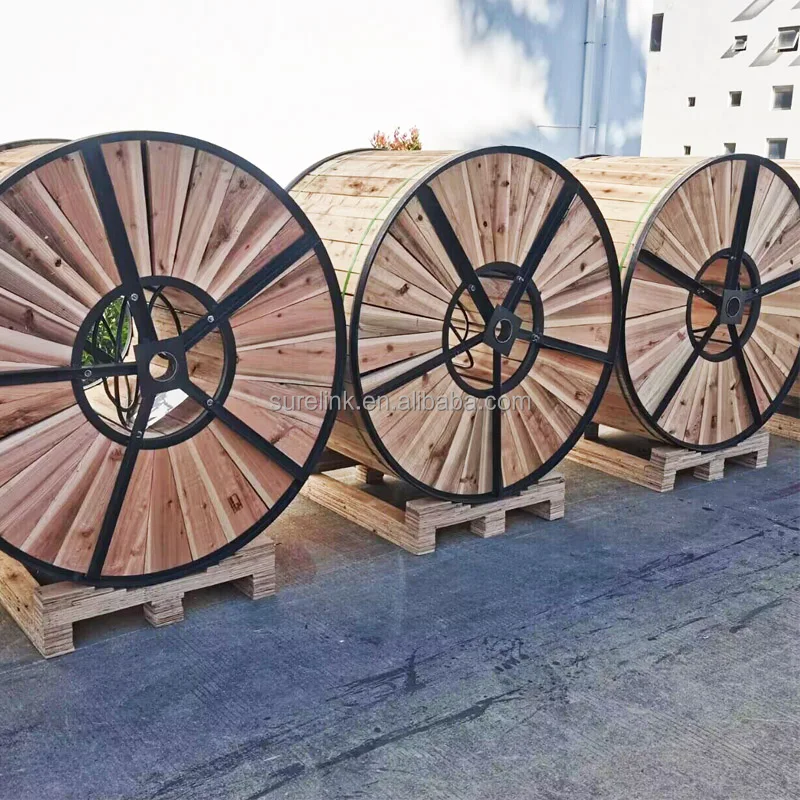

PRODUCT PACKAGE
