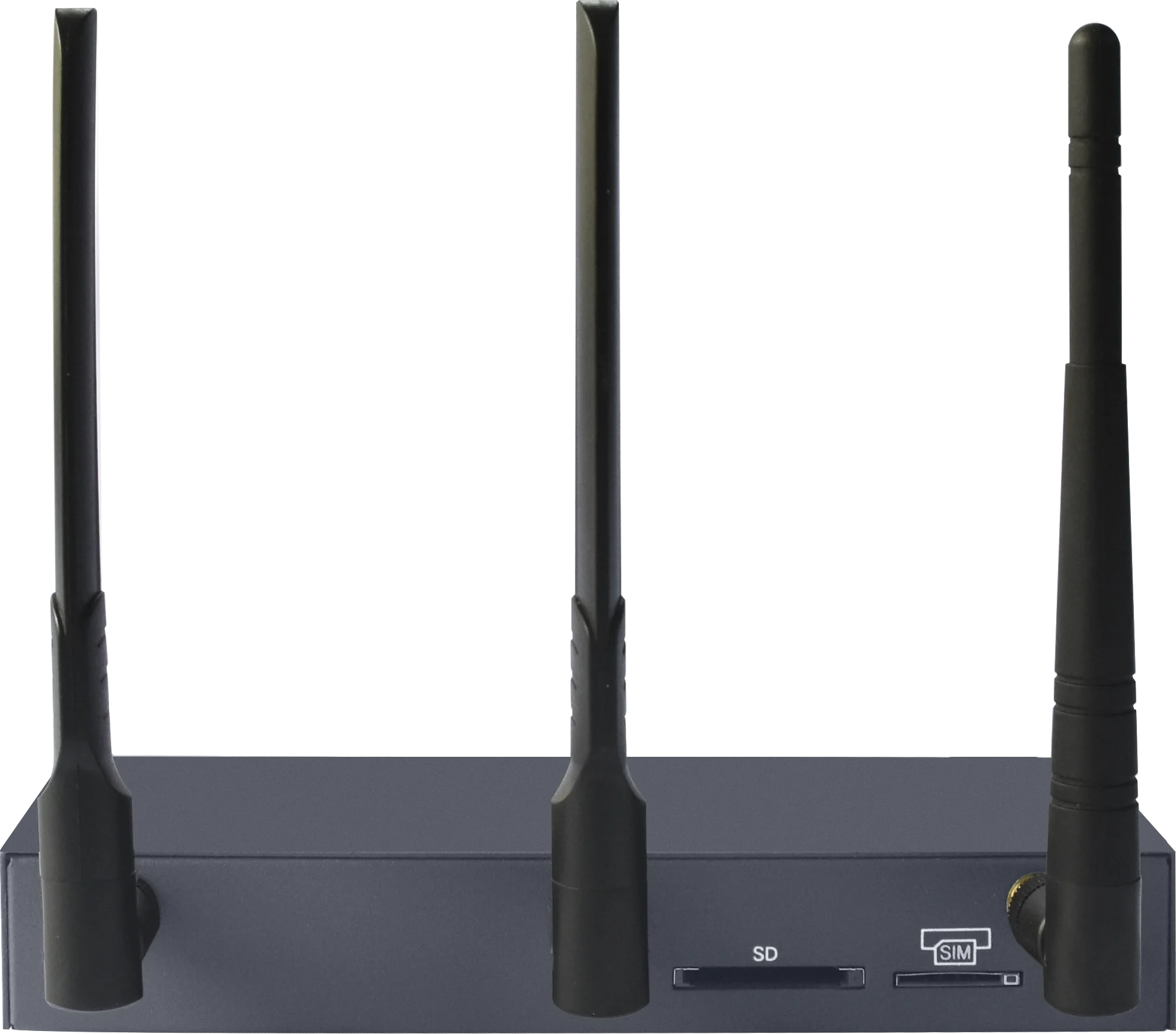

UC120 2O VoIP PBX with 2 FXO ports, SOHO, SME, Voice call Recording
- Category: >>>
- Supplier: Shenzhen Dinstar Co. Ltd.
Share on (1600804375871):
Product Overview
Description
Product Description
Product Paramenters
Overview
UC120 is a VoIP PBX phone system designed for small and medium sized enterprises to boost productivity, improve efficiency and reduce telephony and operational cost. As a converged platform offering diverse connectivity to all networks like FXO (CO), FXS, GSM/VoLTE and VoIP/SIP, supporting up to 60 users, UC120 allows businesses take advantage of state-of-art technology and enterprise class features with small investments, delivers high performance and superior quality to meet the communication needs of today and tomorrow.
Key Features
Integration of multiple networks include FXO (CO), FXS, GSM/VoLTE and VoIP/SIP
Modular design with selections of FXS/FXO module, GSM/LTE module
Open standard SIP, easy to integrate with different SIP endpoints
Voice Mail and Integrated Auto-attendant, Voice Recording
Easy to integrate Wi-Fi desk phone, Wi-Fi handsets with SIP through Wi-Fi hotspot
Powerful performance, with up to 60 SIP Extensions and 15 concurrent calls
User-friendly web interface, multiple management ways
Modular design with selections of FXS/FXO module, GSM/LTE module
Open standard SIP, easy to integrate with different SIP endpoints
Voice Mail and Integrated Auto-attendant, Voice Recording
Easy to integrate Wi-Fi desk phone, Wi-Fi handsets with SIP through Wi-Fi hotspot
Powerful performance, with up to 60 SIP Extensions and 15 concurrent calls
User-friendly web interface, multiple management ways

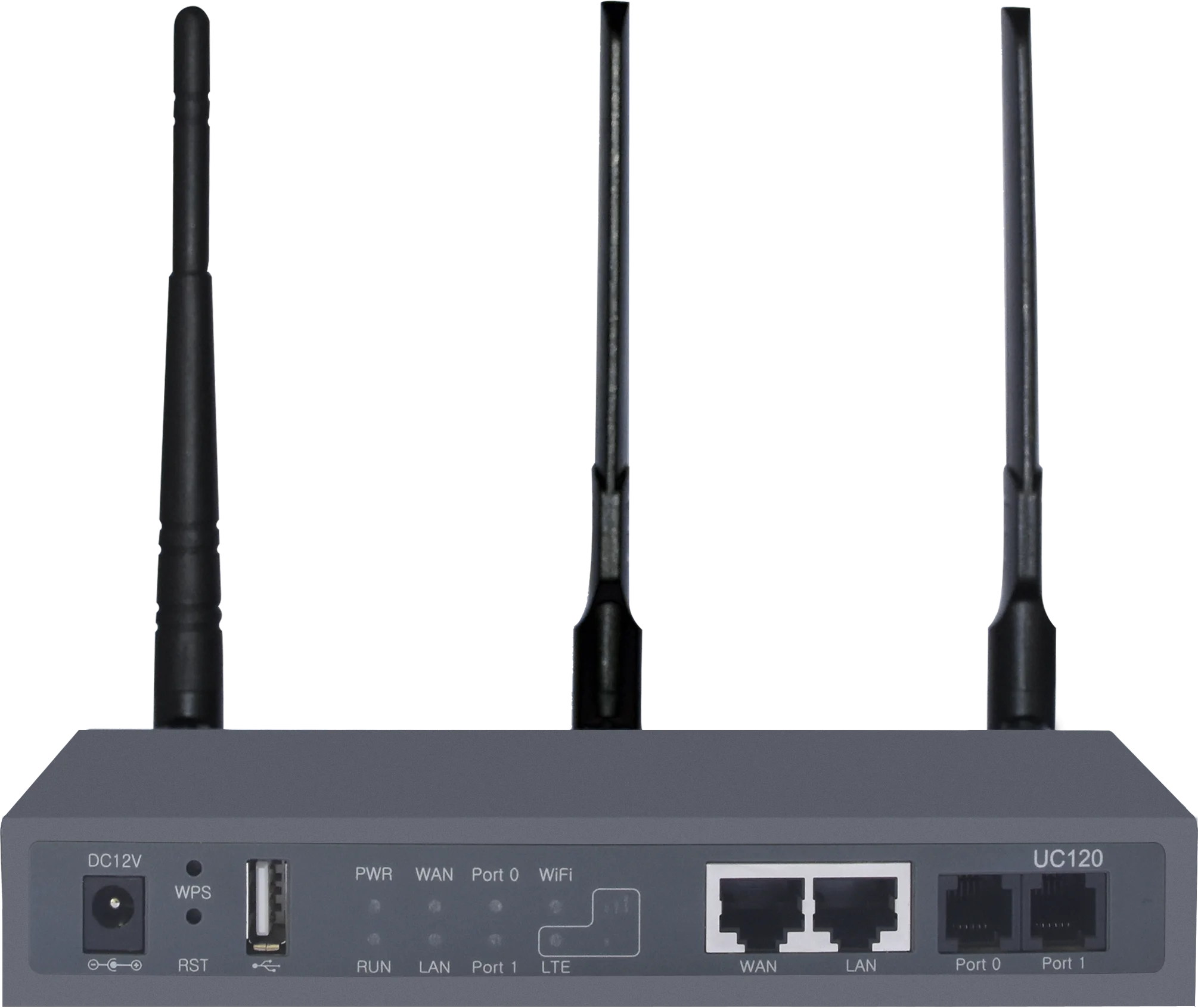

Physical Interfaces
FXS/FXO Ports:
1* FXS/FXO Hybrid or 2 * FXS or 2* FXO
1* GSM or VoLTE Channel
USB Interface: 1* USB2.0
Ethernet Interfaces:
2* 10/100M, Base-T, RJ45
Wi-Fi: 802.11 b/g/n ,2.4GHz ,1T1R
1* SD card slot
Indicators: FXS, FXO, USB,SD,PWR/RUN
FXS/FXO Ports:
1* FXS/FXO Hybrid or 2 * FXS or 2* FXO
1* GSM or VoLTE Channel
USB Interface: 1* USB2.0
Ethernet Interfaces:
2* 10/100M, Base-T, RJ45
Wi-Fi: 802.11 b/g/n ,2.4GHz ,1T1R
1* SD card slot
Indicators: FXS, FXO, USB,SD,PWR/RUN
FXS / FXO
Connector type: RJ11
Caller ID: DTMF, FSK ITU-T V.23 and FSK Bellcore
Polarity Reversal
Busy Tone Detection ( FXO)
Connector type: RJ11
Caller ID: DTMF, FSK ITU-T V.23 and FSK Bellcore
Polarity Reversal
Busy Tone Detection ( FXO)
Voice Capabilities
VoIP Protocols: SIP over UDP/TCP,RTP/RTCP
G.711a/μ law,G.723.1, G.729A/B Codecs
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
G.168 Echo Cancellation
Dynamic Jitter Buffer
Adjustable Gain Control
Automatic Gain Control (AGC)
Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
NAT: STUN/Rport
DTMF: RFC2833/Signal/Inband
SIP TLS/SRTP/VOS encrypt
VoIP Protocols: SIP over UDP/TCP,RTP/RTCP
G.711a/μ law,G.723.1, G.729A/B Codecs
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
G.168 Echo Cancellation
Dynamic Jitter Buffer
Adjustable Gain Control
Automatic Gain Control (AGC)
Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
NAT: STUN/Rport
DTMF: RFC2833/Signal/Inband
SIP TLS/SRTP/VOS encrypt
PBX Services
SIP Trunks and Extensions
Fax over IP (T.38 and Pass-through)
Call Forward
Call Waiting / Hold
Call Transfer
Call Pickup
Call Monitor / Bargin in
Hotline
Do-not-disturb
3 Way Conference
Ring Group/Route Group
Call Queue
Paging
Caller/Called Number Manipulation
Routing Based on Time Period
Routing Based on Number Prefixes(Support Regex)
Routing Based on Multi Source
Failover Routing
SMS Route
Multi-level IVR
Auto-attendant Function
CDRS/Signal Trace Loop Back
Voicemail/Voice Recording
Up to 60 SIP Extensions
Up to 15 Concurrent Calls
Open NATS Cloud Service
Event Report via HTTP/NATS
Voicemail to Email
SIP Trunks and Extensions
Fax over IP (T.38 and Pass-through)
Call Forward
Call Waiting / Hold
Call Transfer
Call Pickup
Call Monitor / Bargin in
Hotline
Do-not-disturb
3 Way Conference
Ring Group/Route Group
Call Queue
Paging
Caller/Called Number Manipulation
Routing Based on Time Period
Routing Based on Number Prefixes(Support Regex)
Routing Based on Multi Source
Failover Routing
SMS Route
Multi-level IVR
Auto-attendant Function
CDRS/Signal Trace Loop Back
Voicemail/Voice Recording
Up to 60 SIP Extensions
Up to 15 Concurrent Calls
Open NATS Cloud Service
Event Report via HTTP/NATS
Voicemail to Email
Maintenance
Web GUI Configuration
Telnet Management
Configuration Restore/Backup
Multiple Languages Supported
HTTP/HTTPS/FTP Firmware Upgrade
Auto Provision
CDR Report and Export
Syslog
Ping and Tracert
Traffic Statistics: TCP,UDP,RTP
Network Capture
NTP
Web GUI Configuration
Telnet Management
Configuration Restore/Backup
Multiple Languages Supported
HTTP/HTTPS/FTP Firmware Upgrade
Auto Provision
CDR Report and Export
Syslog
Ping and Tracert
Traffic Statistics: TCP,UDP,RTP
Network Capture
NTP
Environmental
Power Supply: 12VDC, 1A
Power Consumption: <10W
Operating Temperature. 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity: 10%-90% Non-Condensing
Dimensions (W/D/H): 178×98×28mm
Unit Weight: 0.5kg
Power Supply: 12VDC, 1A
Power Consumption: <10W
Operating Temperature. 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity: 10%-90% Non-Condensing
Dimensions (W/D/H): 178×98×28mm
Unit Weight: 0.5kg
Company Profile
Why Choose Us
Certifications
Exhibition
Payment & Delivery
FAQ
1. Can I get a free sample?
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western Union
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western Union
Shipping method: DHL, Fedex, TNT, UPS, by sea, or your own shipping agent
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
