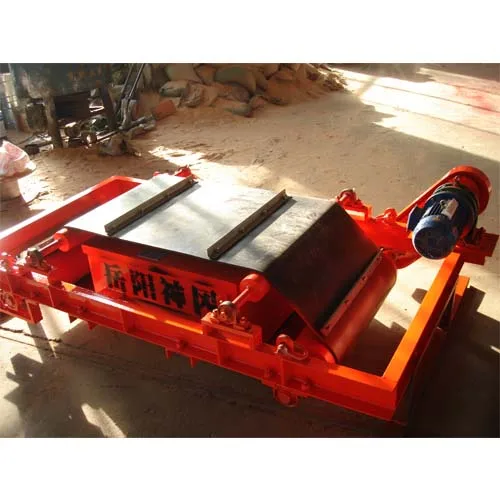

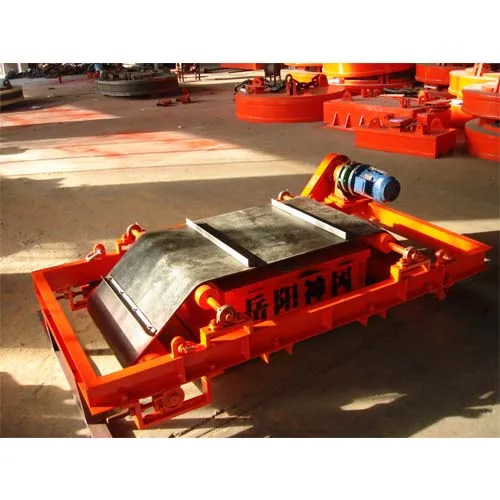

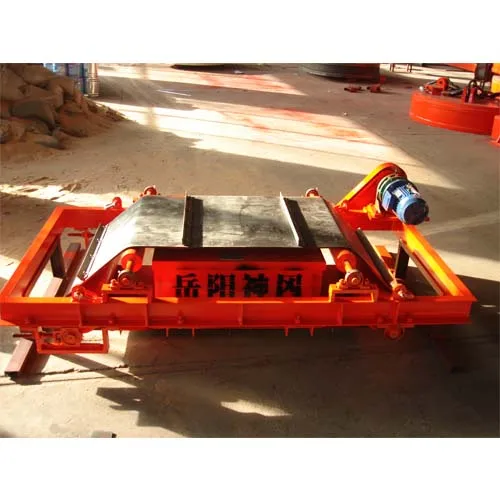

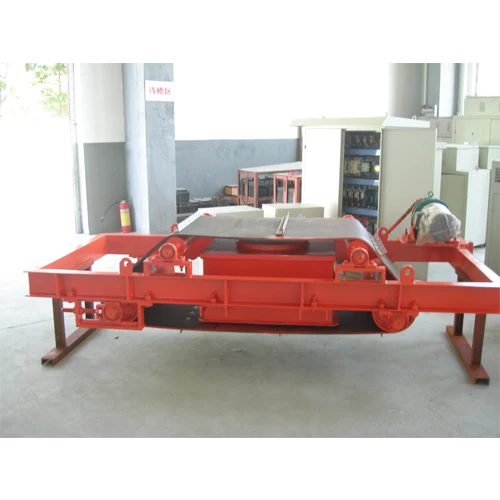

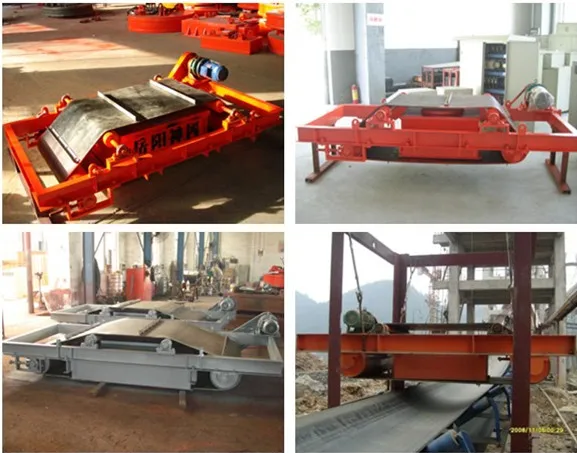

Self unloading Suspended Belt Conveyor Electric Magnetic Separator
- Category: >>>
- Supplier: Yueyang Shengang Lifting Electromagnet Co. Ltd.
Share on (1600804434823):
Product Overview
Description
Product Description
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.
Classification:
--Electromagnetic Type (with control panel)
--Permanent Type (without control panel)
--Manual Discharge Type (without motor and belt)
--Self-Discharging Type (with motor and belt)
Cooling Type:
Air Cooling, Oil Cooling, Fan Cooling
Technical data:

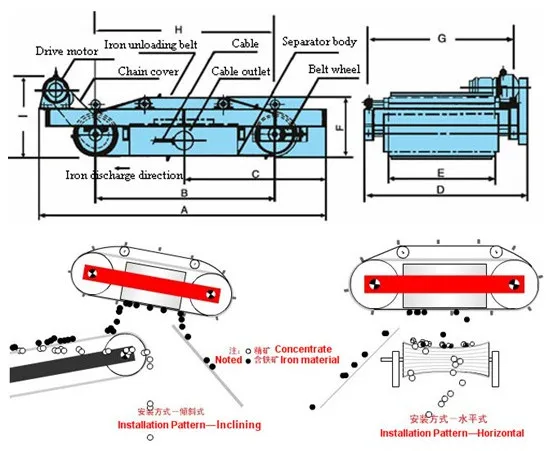

International Standard model | Standard Erection T(mm) | width of Conveyer belt(mm) | Rated voltage (v) | Cold state Consumption Power(kw) | Weight (kg) | Overall dimension (mm) | Driving Motor capacity (kw) | Corollary control panel | |||||
| A | B | C | D | E | F | ||||||||
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 | |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 | |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 | |
| RCDD-16 | 410 | 1600 | 220 | 8.2 | 6020 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 4 | SSTQ-12D1-D |
For inquiry:
(The separator is used to separate/eliminate iron impurities from material.)
1.What is the material on conveyor and how about material thickness?
2.What kind of irons mixed in the materials,how about the iron size?
3.Please kindly inform us width and speed of the conveyor?
4.Kindly tell us your power supply information:__V, DC or AC?___Hz
5.Do you prefer FOB or CIF price,which is the destination port?
More products
About us
Certifications
Cooperative clients

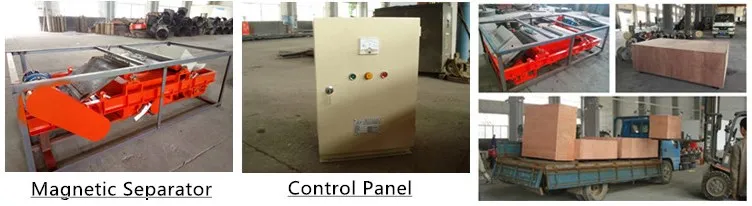

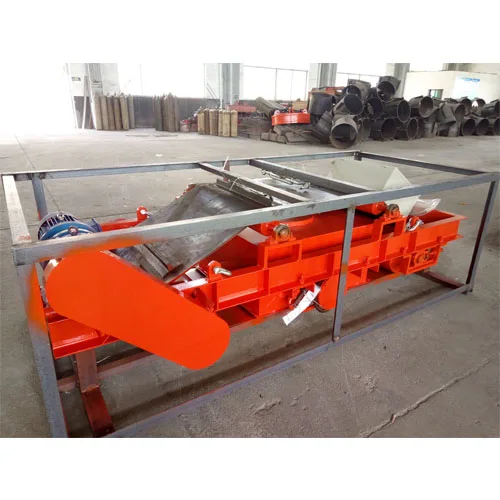

Packaging & Shipping
FAQ
1. Why customers choose us?
We are a professional lifting magnet products manufacturer with 20 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
30% T/T deposit,70% balance before factory delivery.Or 100% irrevocable L/C at sight.
3.How long is your delivery time?
Standard model is within 8 workdays after deposit confirmed.
Customerized model will depend on actual production needs.
4.What is the total cost of freight?
Please provide your seaport or airport of destination so that give accurate freight.
5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
