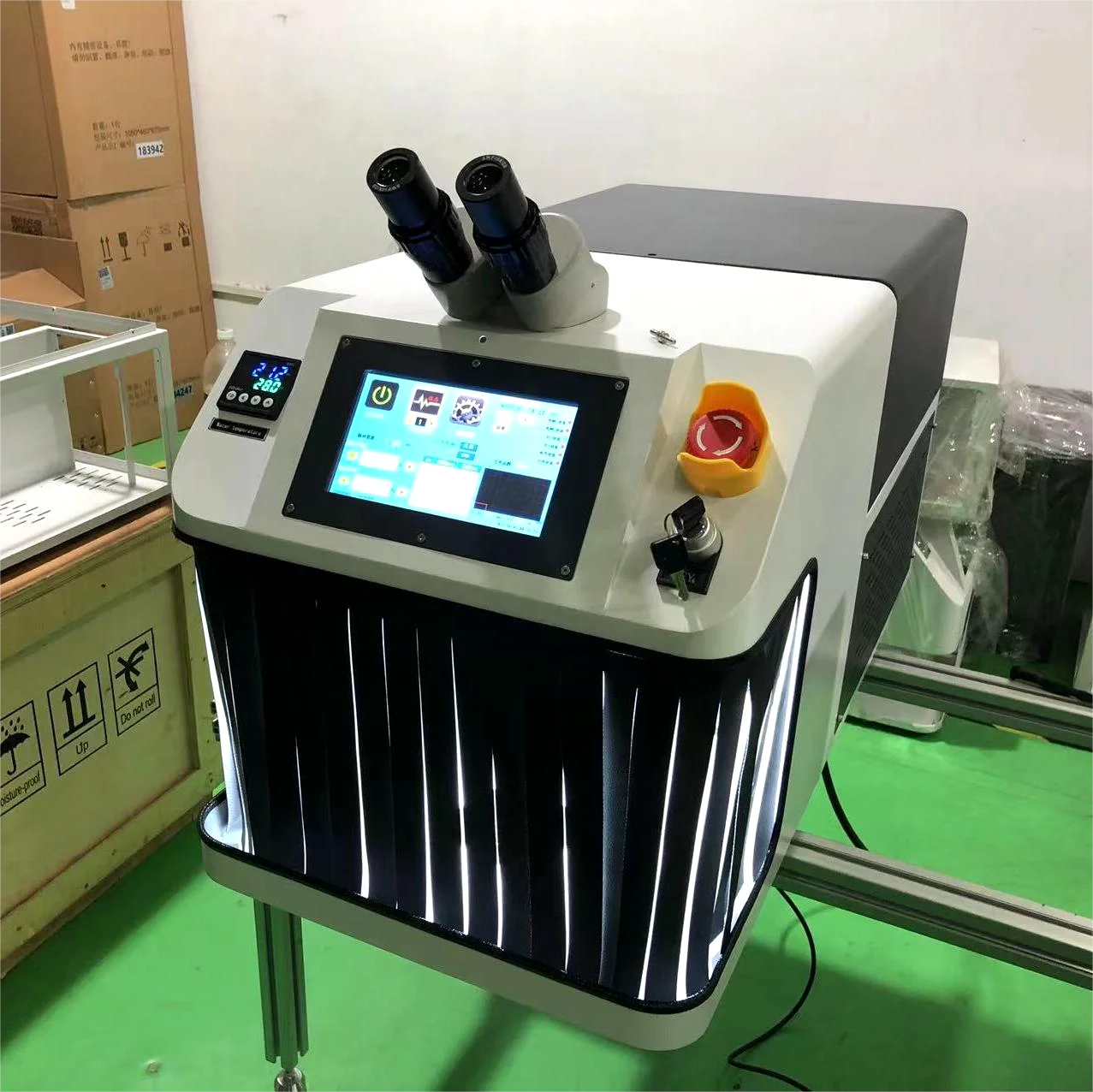

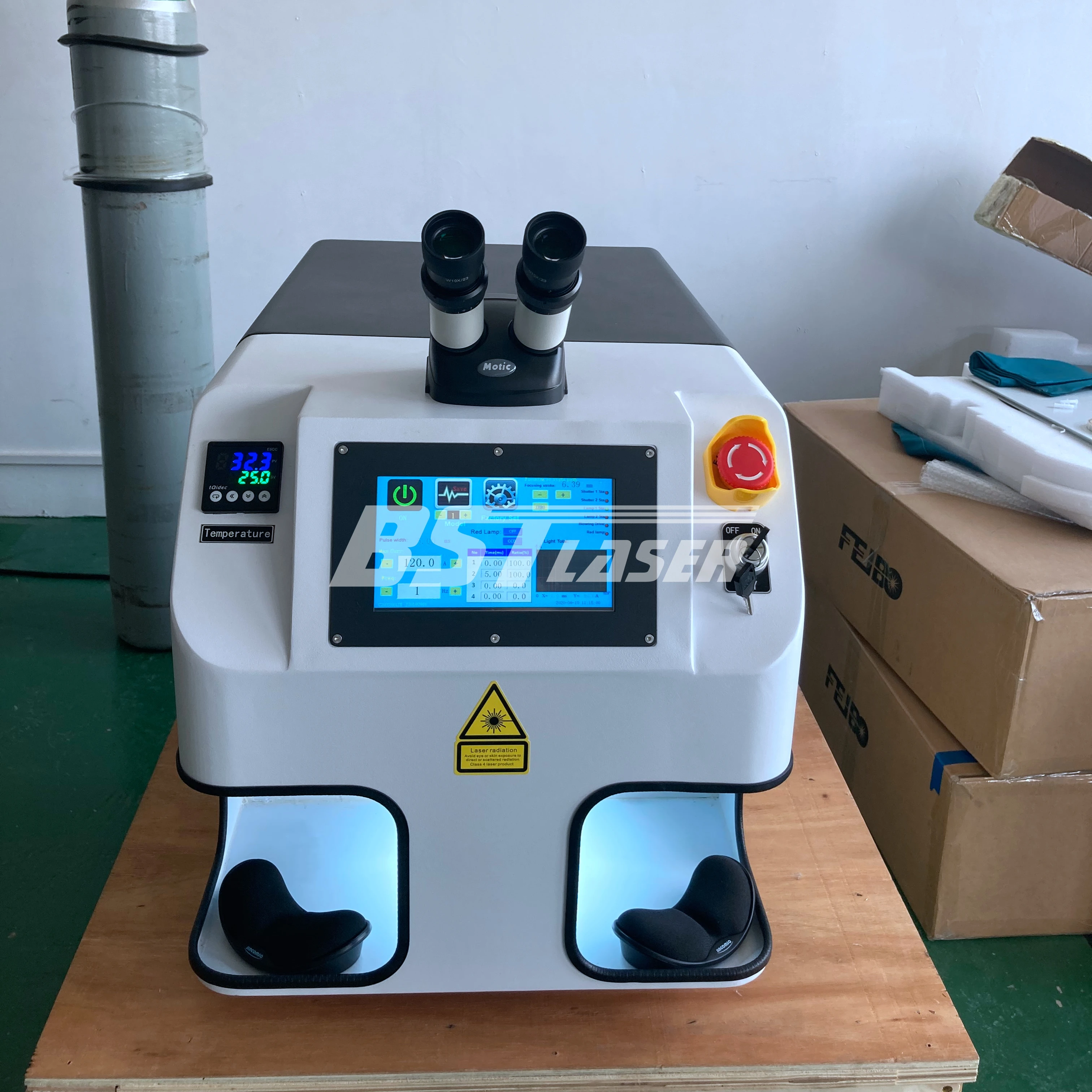

60W 100W 150W 200W Gold Silver Mini Customized Laser Spot Welding Soldering Machine for Jewellery
- Category: >>>
- Supplier: Wuhan BST LASER Machinery Co. Ltd
Share on (1600804459185):
Product Overview
Description
Product Description
60W 100W 150W 200W Gold Silver Mini Customized Laser Spot Welding Soldering Machine for Jewellery
Contact: BST Bonnie Wechat/Whatsapp: +86 18971376270 Mail: bonnie@bstlaser.com
Brief Introduction
Newest Model jewelry laser welding machine adopts HD microscope and CCD camera, bringing great convenience to position the welding spot and realizing high precision welding performance. Advanced water pump and air exhaust fan double cooling avoid rust-free and keep stable performance even after long-term use. BST Laser's mini portable compact jewelry laser welding machine provide customers good welding quality machine at reasonable price!

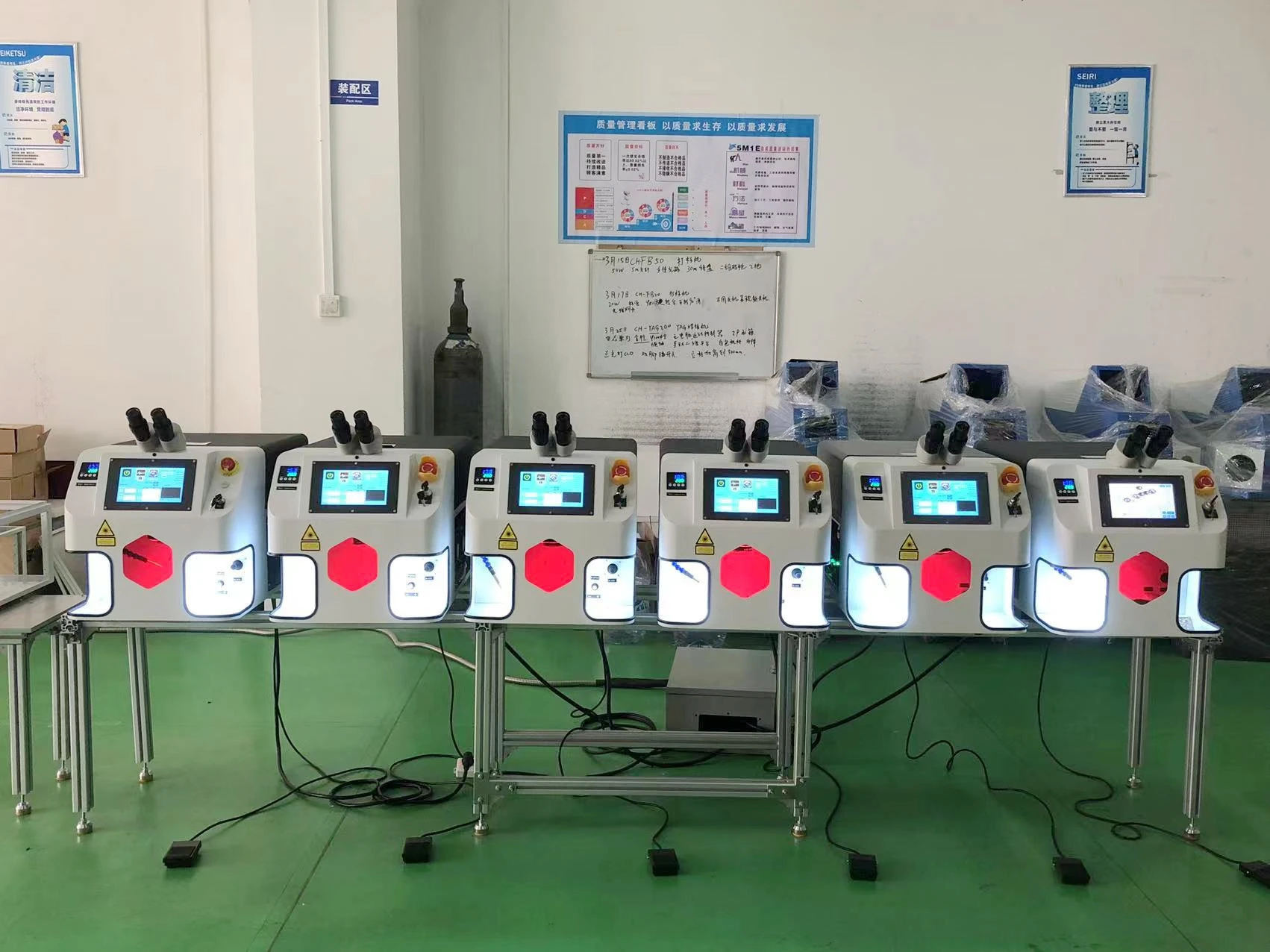

Mini Compact Small Size Standard Design

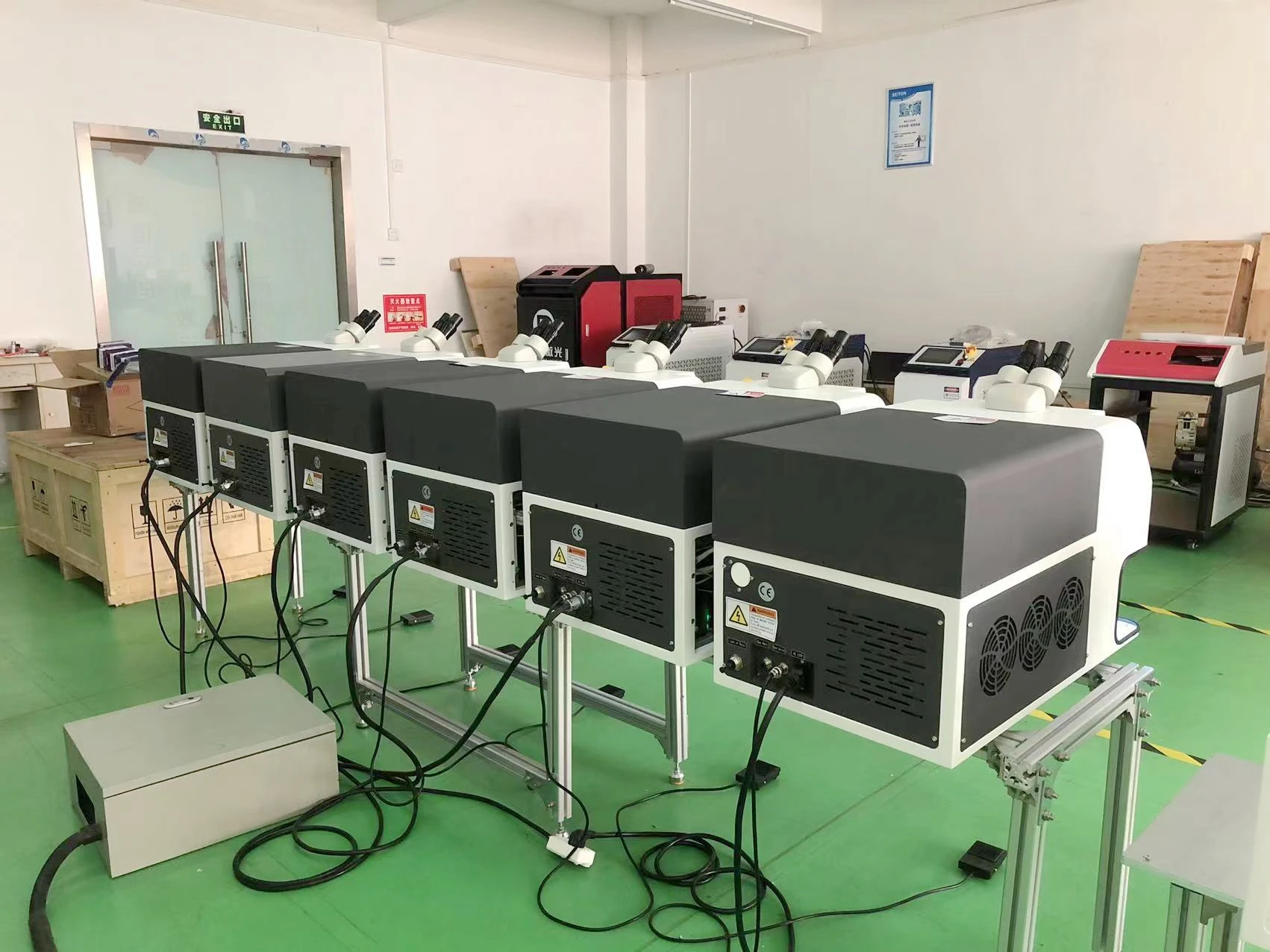

Customized Design with Open Door and Bigger Space
What our machine differs from others?
1. Scientific and reasonable optical path design ensures balance, which is conducive to good transmission of laser beam. Each part has dowels to ensure stability and the laser path does not deviate.2. High photoelectric conversion efficiency. The copper heat exchange system is conducive to heat dissipation.
3. Three big fans for cooling
4. All joints are all metal joints, will not fall off or leak
5. Water, electricity and light are separately partitioned to eliminate interference and facilitate maintenance.
Model | BE-W150/W200 |
Power | 150w/200w |
Wavelength | 1064nm |
Power Consumption | 3.5KW |
Laser Focus | 110mm |
Pulse Frequency | ≤0.1-20Hz |
Pulse Width | ≤15ms |
Protection Gas | Single |
Voltage | 220V |
Observation System | Microscope 10X/CCD camera |
Cooling | Inner Water Cooled+Air Cooled |
Controls | Touch Screen/Joystick |
Language | Chinese/English |
Protective Gas | Argon |
Dimension | L730*W430*H520mm |
Net Weight | 50kgs |
Package Size | L850*W530*H610mm |
Package Weight | 80kgs |
Machine Features
1.This type machine is designed according to ergonomics, which meets the need of exquisiteness and stable performance of jewelry industry, and is suitable for long and continuous working time.
2.Big inner space, convenient for the placing of tools and tongs.
3.A laser spot and parameter switch is installed in the working zone.
4.Being convenient to clean the working zone ant to collect the welding chips.
5. LED-lamp can adjustable brightness to make it clearer when observe the welding area.
6.More subtle laser spot meets the needs of subtle welding.
2.Big inner space, convenient for the placing of tools and tongs.
Tabletop Laser Welder is extremely compact but features a roomy working chamber.
3.A laser spot and parameter switch is installed in the working zone.
4.Being convenient to clean the working zone ant to collect the welding chips.
5. LED-lamp can adjustable brightness to make it clearer when observe the welding area.
6.More subtle laser spot meets the needs of subtle welding.
Detailed Images
Humanized Design
* European portable mini design
* Scientific streamlined mechanical structure
* High-grade alloy chassis, which anti-static, anti-rust, easy moving and saving space.
* European portable mini design
* Scientific streamlined mechanical structure
* High-grade alloy chassis, which anti-static, anti-rust, easy moving and saving space.
Observation Microscope+CCD Camera
* China top quality high-precision microscope(10X)
* CCD Camera+Red Pointer
Accurate positioning and welding process
* China top quality high-precision microscope(10X)
* CCD Camera+Red Pointer
Accurate positioning and welding process
Laser Optical Path
* UK imported Morgan brand optical cavity, which protect the laser source and extend the lifespan.
* Strong Current and Weak Current Separate for Static Free.
* Clear Layout of Wiring, Complying with European Standard.
* UK imported Morgan brand optical cavity, which protect the laser source and extend the lifespan.
* Strong Current and Weak Current Separate for Static Free.
* Clear Layout of Wiring, Complying with European Standard.
Controlling Screen
* Built-in controlling system with high sensitivity
* Convenient parameters setup
Users can set up different parameters(current, frequency, pulse...) according to different materials.
* Built-in controlling system with high sensitivity
* Convenient parameters setup
Users can set up different parameters(current, frequency, pulse...) according to different materials.
Temperature Display Screen
* Intelligent Temperature Inspection
* User-Friendly Operation Detecting Problems Easily
* User-Friendly Operation Detecting Problems Easily
Big Inner Space
* Big Inner Space Area Inside
* Flexible Welding Skills
* Hand Pad Relieve Fatigue
* Flexible Welding Skills
* Hand Pad Relieve Fatigue
Connection Ports
* Scientific Design on Connection
* Clear Layout for Easy Use
* Clear Layout for Easy Use
Powerful Crystal Rod
* Beijing famous brand 7*145 crystal rod, which designed by China 11th Scientific Research Institute
* Intensive Energy and Not Easily Damaged
Maximum Power Reach 150W
* Intensive Energy and Not Easily Damaged
Maximum Power Reach 150W
Laser Xenon Lamp
* Made of Exquisite UV Filtering Silica Glass
* China top brand original Xenon lamps.
* Lifetime: 10,000,000 times
* Good Fine Laser Beam
* High Efficiency
* China top brand original Xenon lamps.
* Lifetime: 10,000,000 times
* Good Fine Laser Beam
* High Efficiency
Key Switch-Urgent Button
* Hotkey Operation
* Urgent Button to Avoid Any Sudden Cases Happen

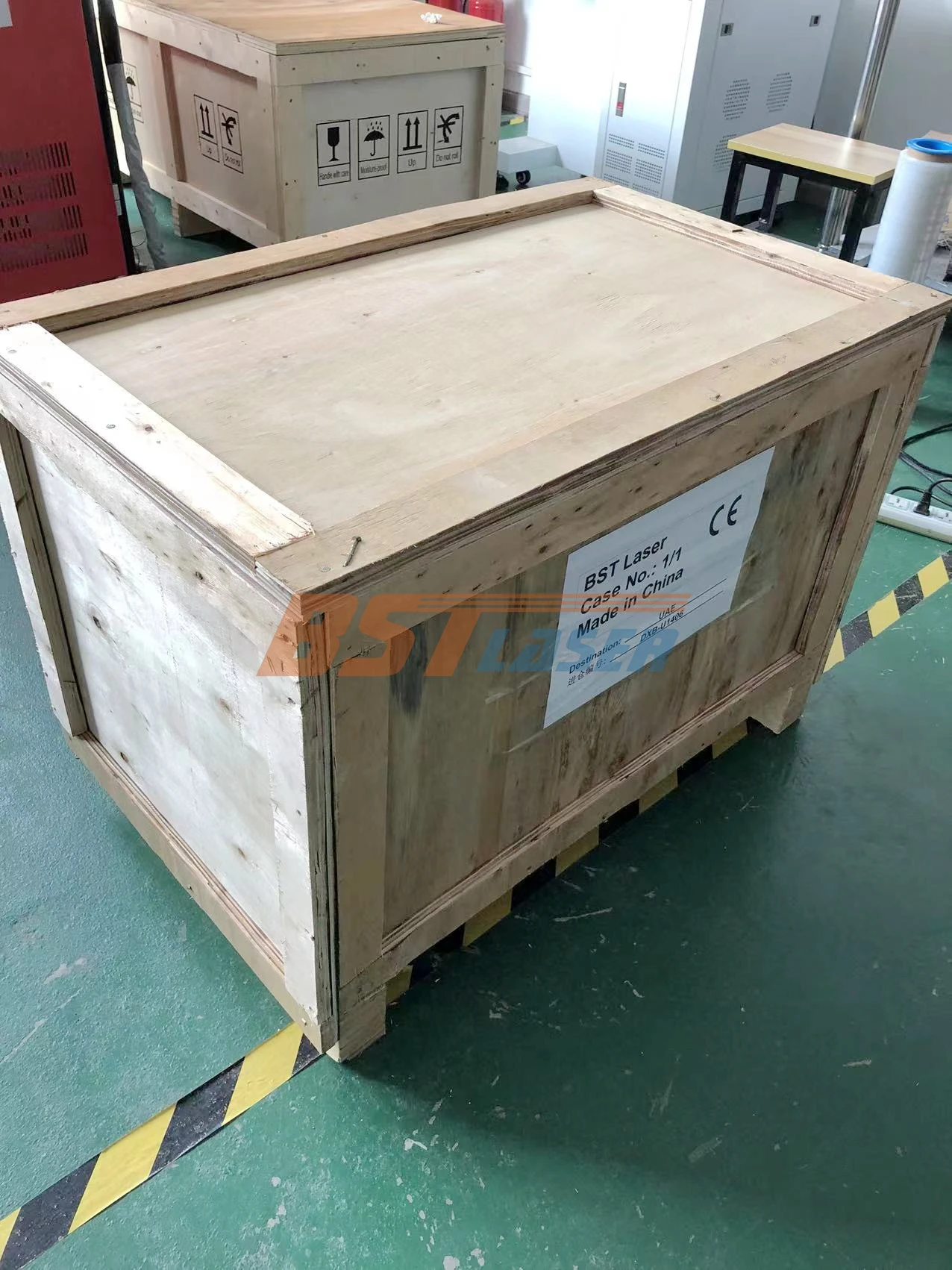

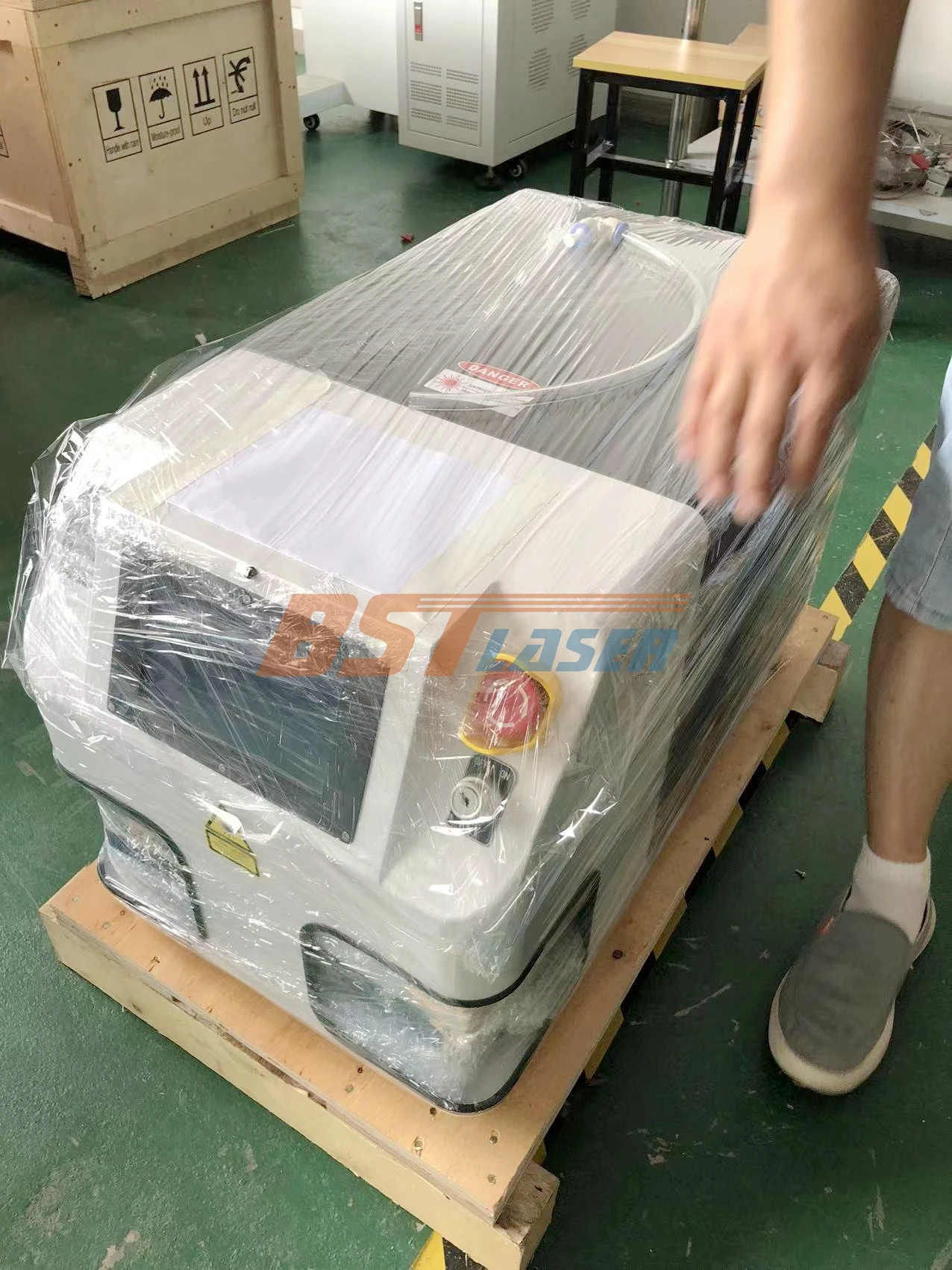

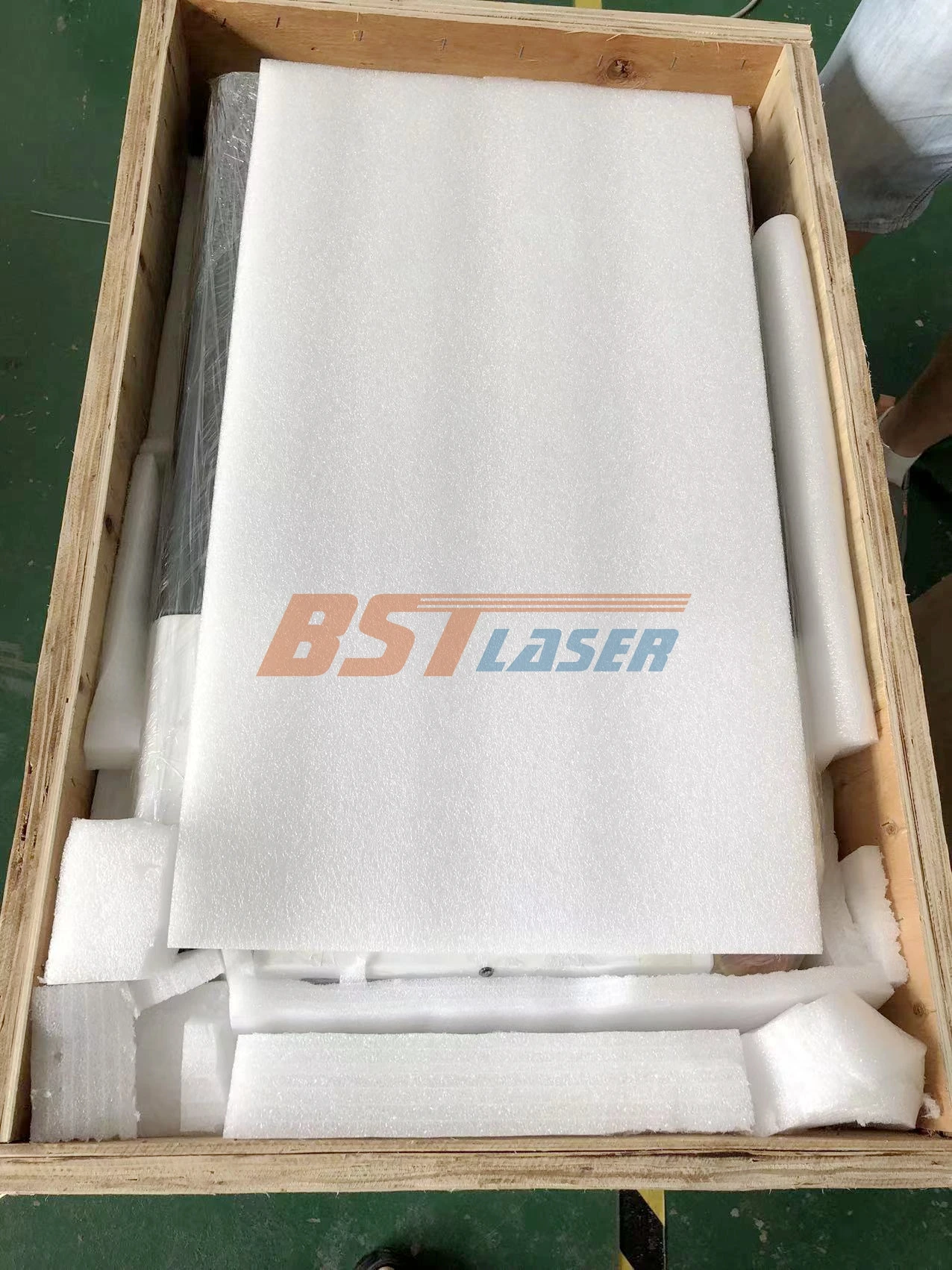

Packing&Shipping
Configuration List | ||||||
No. | Name | MFR | Qty. | |||
1 | Laser Crystal | YAG 7*145（Brand New, Beijing Opto） | 1 | |||
2 | Laser Cavity | UK Imported Brand Morgan Ceramic Cavity | 1 | |||
3 | Power Supply | LCD Touch Screen | 1 | |||
4 | Water Pump | Strong Inside Cooling（50HZ) | 1 | |||
5 | Xenon Lamp | 8*125*270mm | 1 | |||
6 | Position | Microscope+CCD+Red Pointer | 1 | |||
7 | Shading System | 10 Times Auto Microscope | 1 | |||
8 | Controller | Single Chip | 1 | |||
9 | Foot Pedal | BST Laser | 1 | |||
10 | Temperature Display Screen | BST Laser | 1 | |||
11 | Professional Export Wood Craftcase | BST Laser | 1 | |||

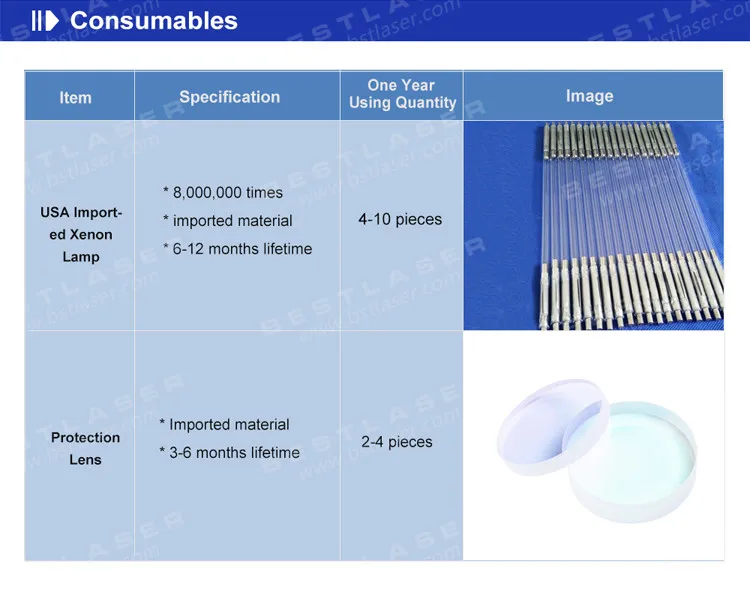

Consumables

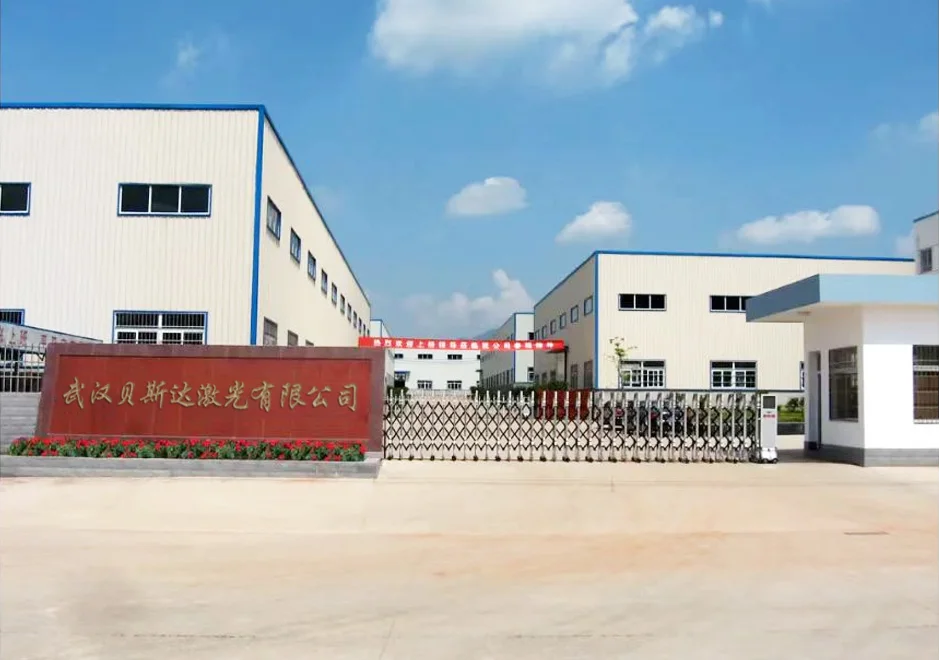

Company Introduction
As 15 years Laser Welding Machine manufacturer, BST Laser is committed to providing customers with high-quality and reliable laser machines.
As a result of our quality control measures, our laser machines all have got CE certification.
Best Laser also has got TUV certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
As a result of our quality control measures, our laser machines all have got CE certification.
Best Laser also has got TUV certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
Related Products
After Sales Service
Services
---Pre-Sales Service
Free Pre-Sales Consulting / Free Sample Marking
Best Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
---Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Best Laser machines.
Free Pre-Sales Consulting / Free Sample Marking
Best Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
---Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Best Laser machines.
Contact
To recommend you suitable machine, here are some questions:
1. May i know your welding material? such as gold, silver, Titanium, brass, steel....
2. What's your working application? such as jewelry welding, medical tools welding, high precision welding...
3. Could you provide your email/whatsapp/wechat? That we can send you more details.
1. May i know your welding material? such as gold, silver, Titanium, brass, steel....
2. What's your working application? such as jewelry welding, medical tools welding, high precision welding...
3. Could you provide your email/whatsapp/wechat? That we can send you more details.
BST Bonnie Contact
Web:www.bstlaser.com
Mail:bonnie(@)bstlaser.com
MP:+86 18971376270
Tel/Fax:(+86)-27 81787970
Whatsapp:+8618971376270
ADD: Optic Valley No.8 Industrial Park,No.1 Tanhu Road ,Jiangxia District,Wuhan,China.zip code :430205
