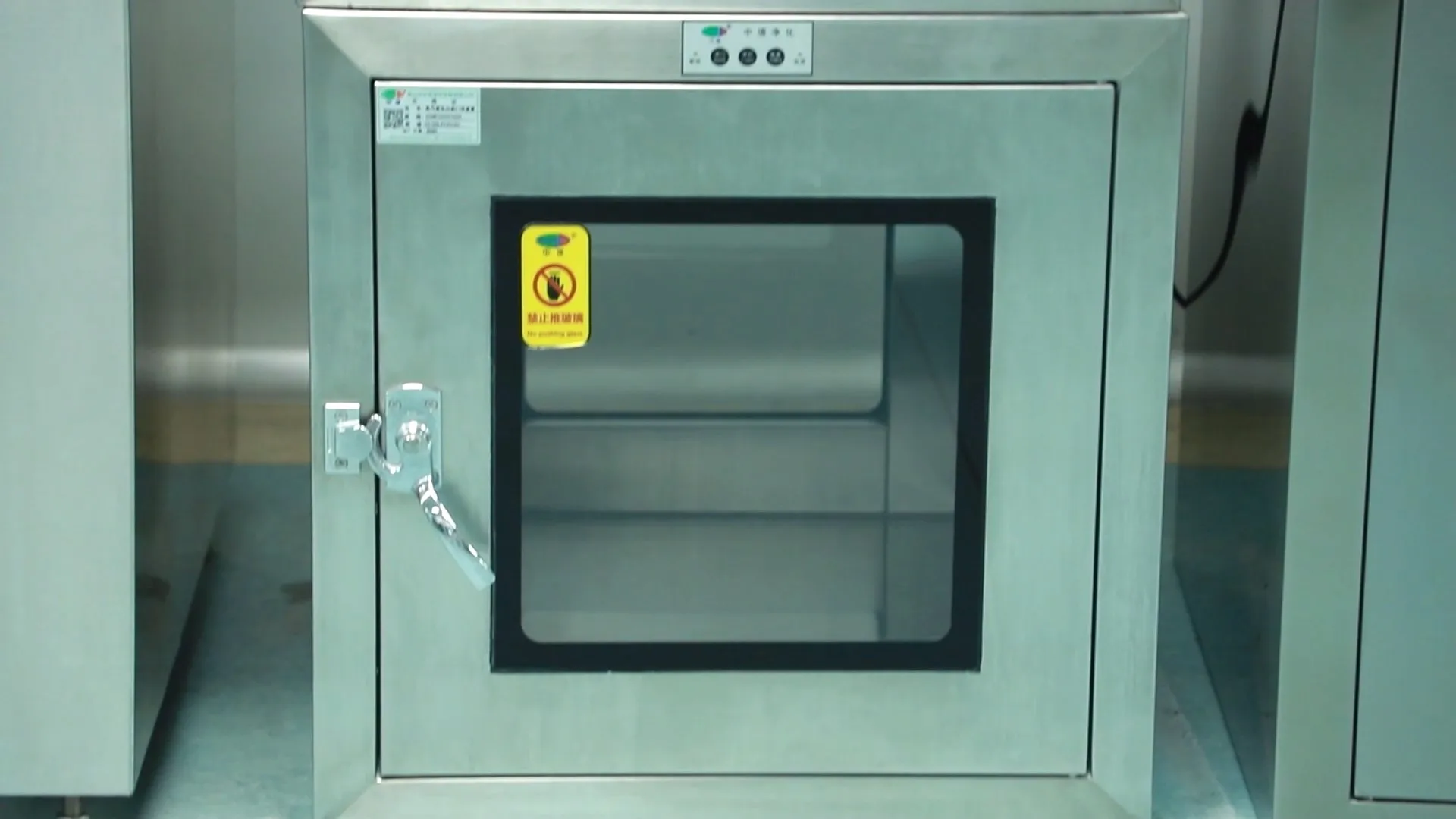

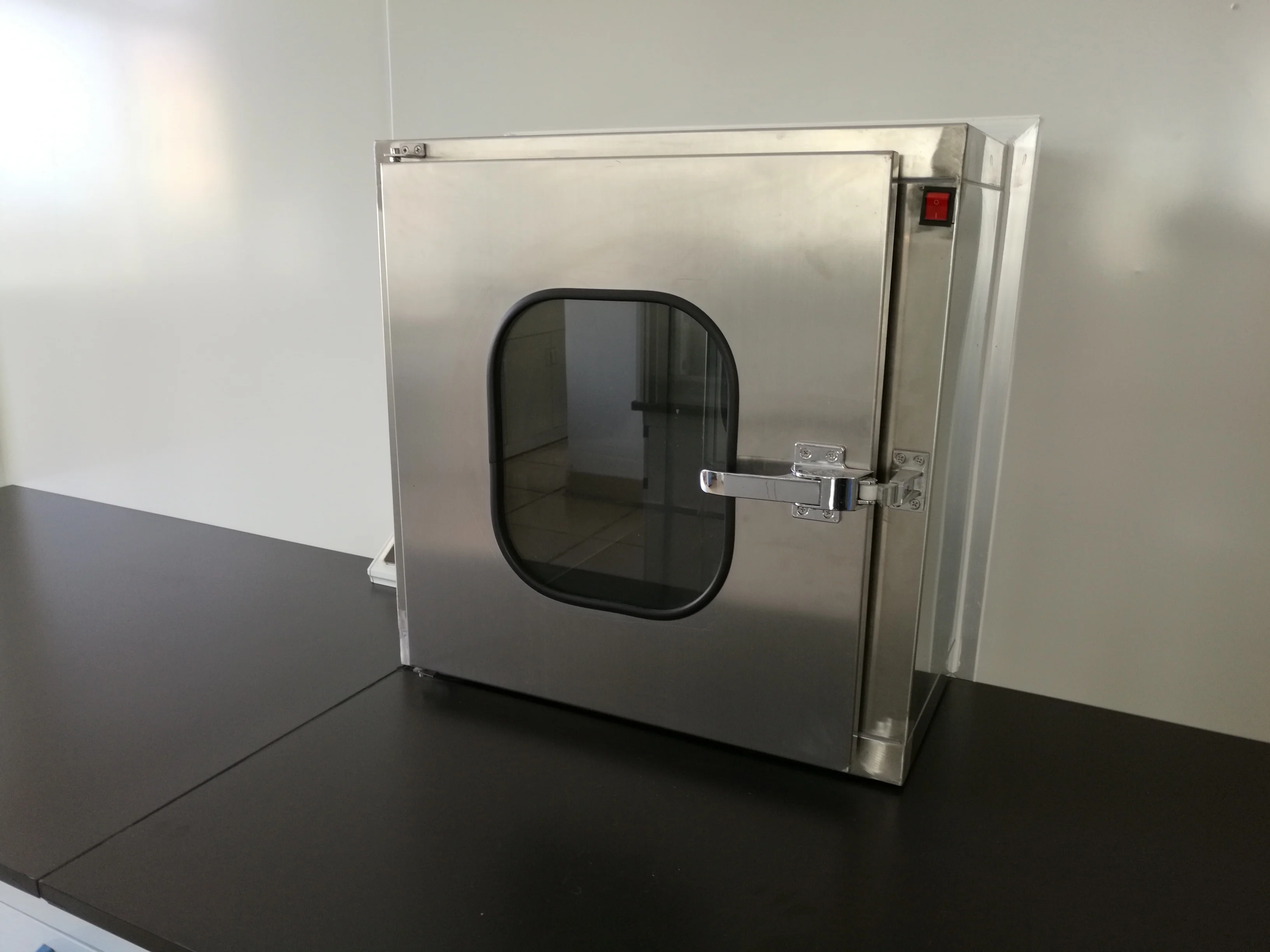

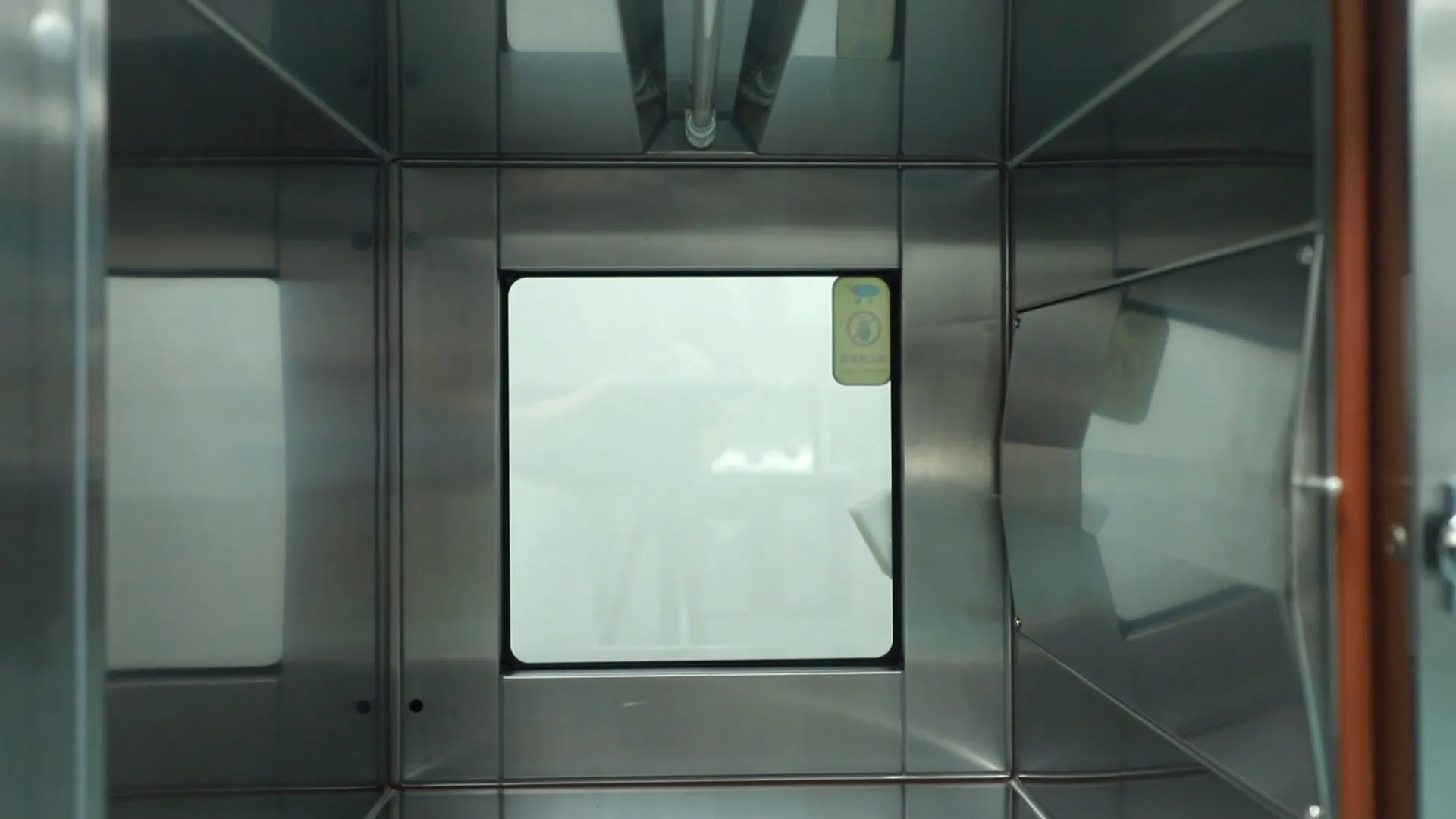

Стерильная Система доступа Sas Pass для чистых помещений, лабораторная динамическая коробка из нержавеющей стали с УФ вентиляцией для биологических пропусков, коробка для чистки пропусков
- Category: Air Cleaning Equipment >>>
- Supplier: Guangzhou Airwoods Environment Technology Co. Ltd.
Share on (1600804470165):
Product Overview
Description

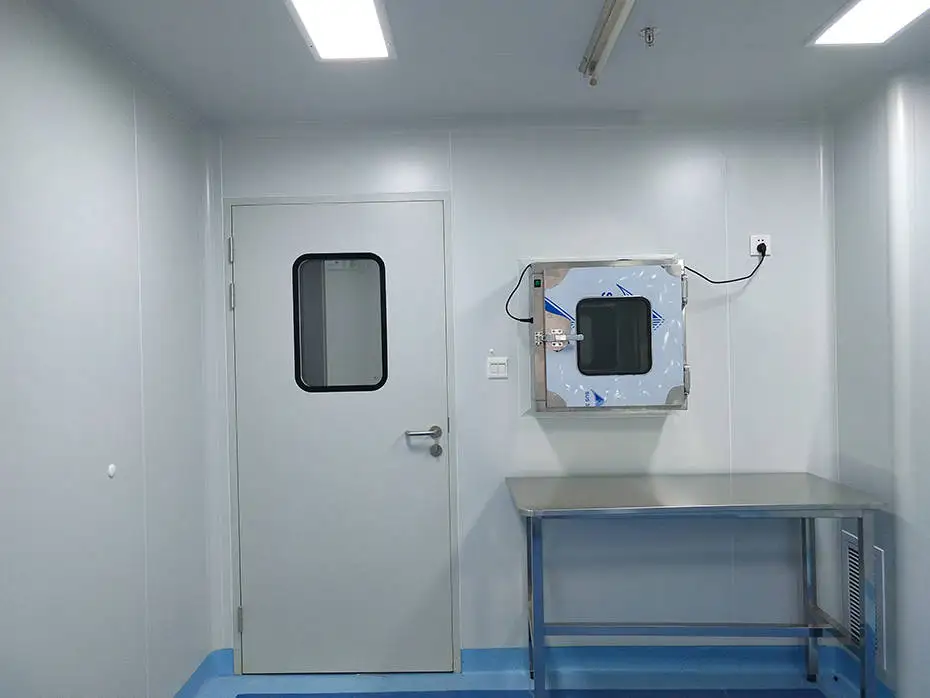

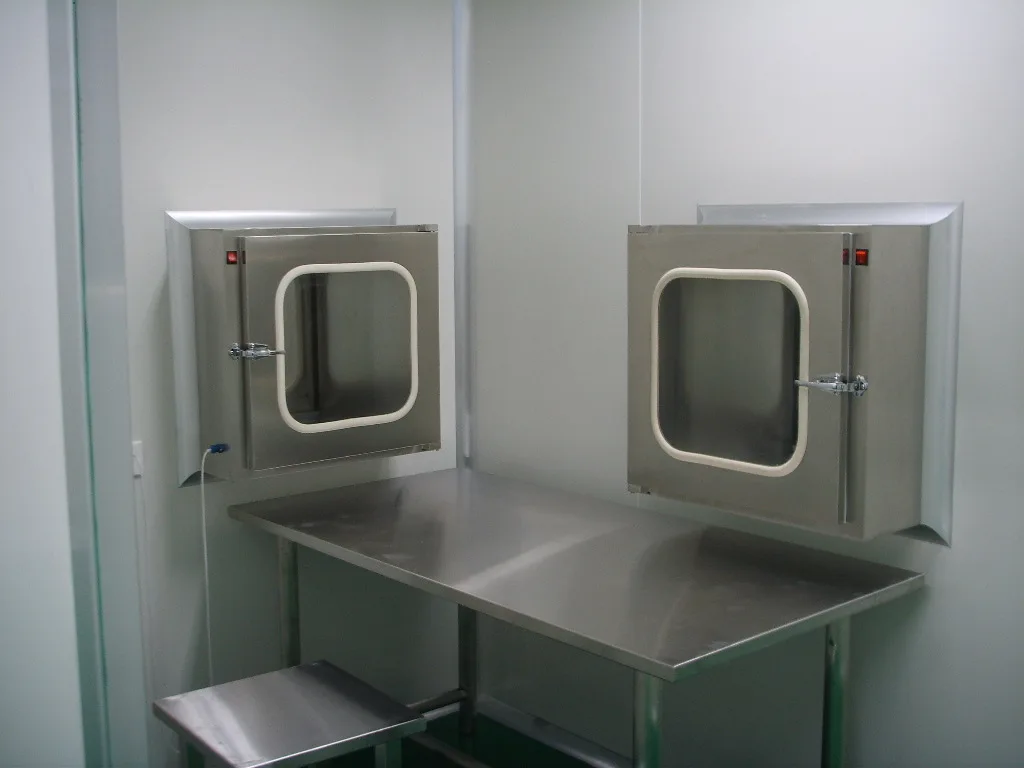

Cleanroom Cases
Product Features:

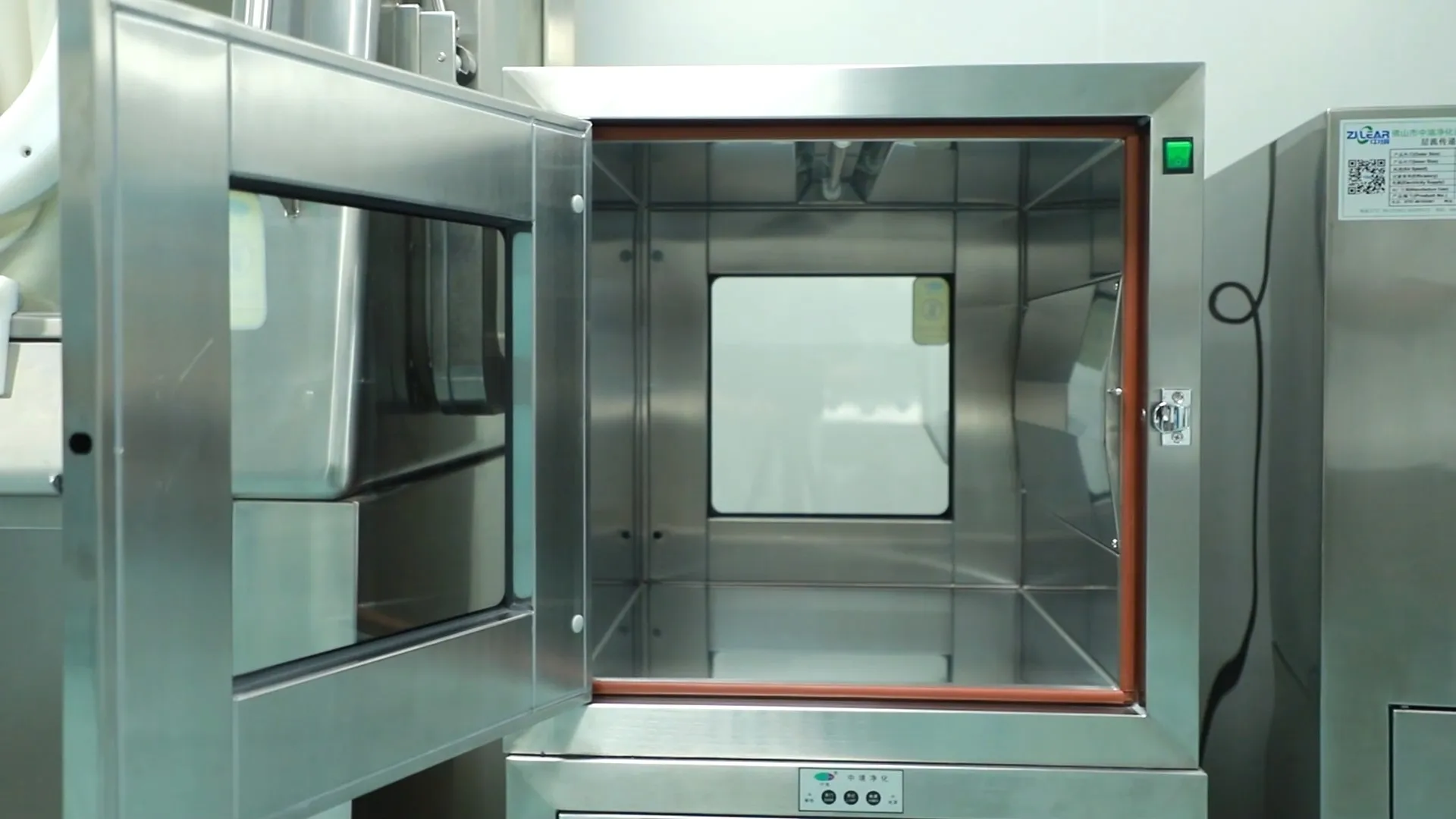

1. Embedded door structure eliminates the disadvantage of dust accumulation above the external door structure, making it easier to maintain the cleanliness of the clean room.
2. The integrated door panel structure eliminates the disadvantage of poor air tightness at the joint position of the square tube door structure, which is beneficial to maintaining the airtightness between two rooms.

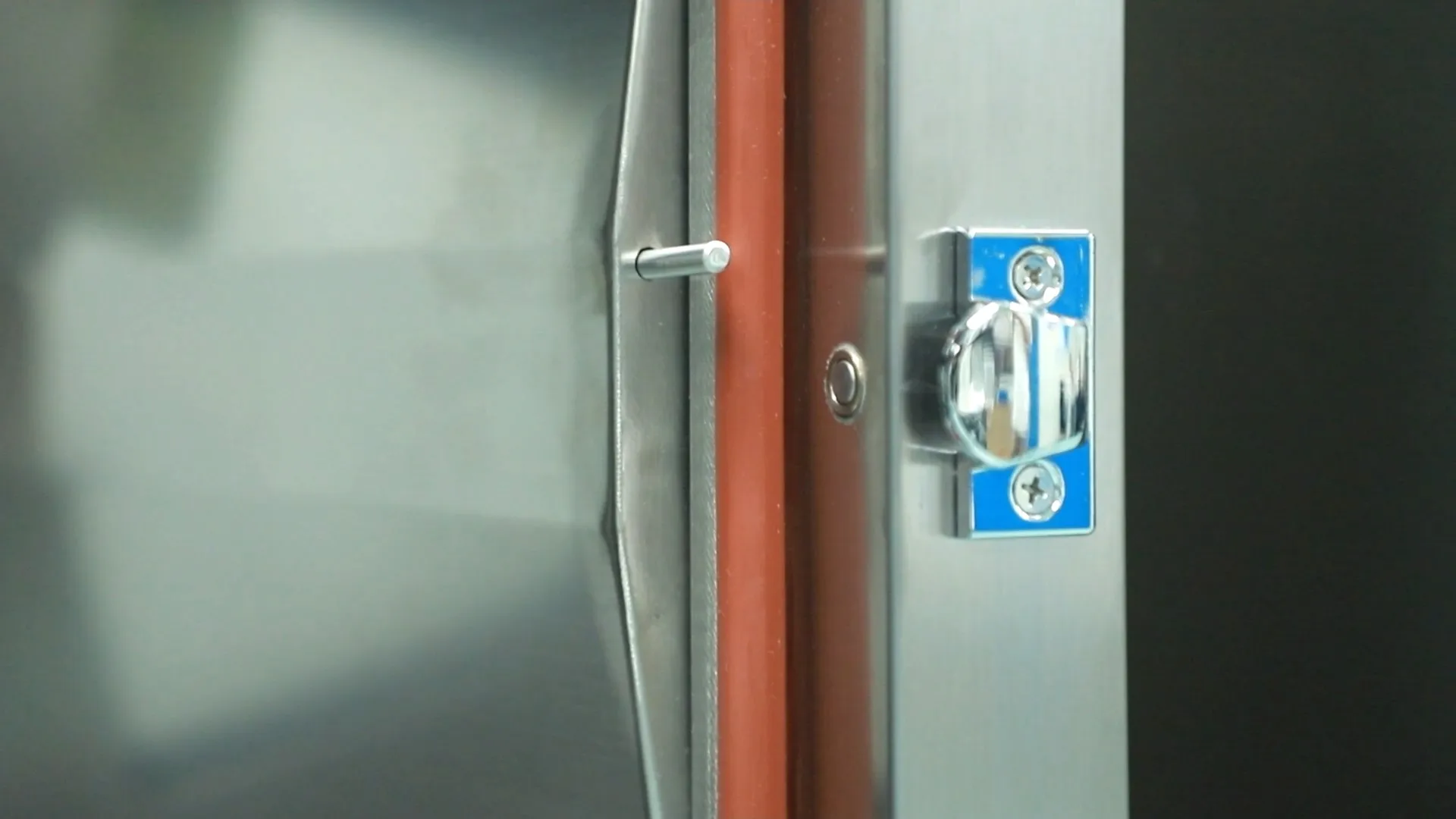

3. The specially designed card slot type door panel seal is more firm and durable after installation, eliminating the disadvantage of the adhesive seal strip aging and falling off.

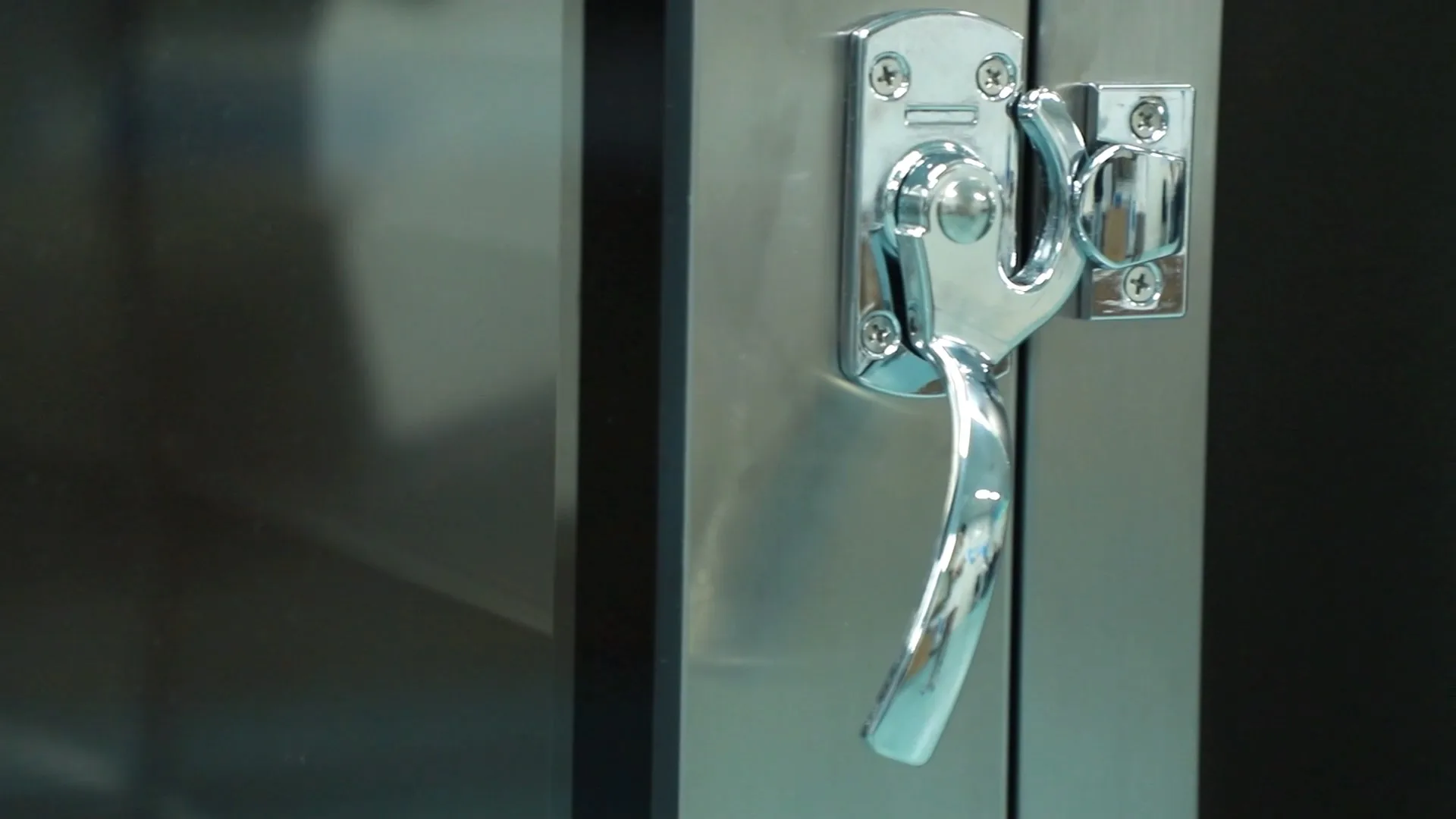

4. Mechanical interlocking and electronic interlocking can be selected according to user needs.
5. Different corner styles and door opening directions can be customized according to site layout.
6. 304 stainless steel material for both interior and exterior or stainless steel interior and steel plate exterior spray material can be selected according to user needs.
7. Intercom can be added according to user needs.
1. Embedded door structure eliminates the disadvantage of dust accumulation above the external door structure, making it easier to maintain the cleanliness of the clean room.
2. The integrated door panel structure eliminates the disadvantage of poor air tightness at the joint position of the square tube door structure, which is beneficial to maintaining the airtightness between two rooms.
3. The specially designed card slot type door panel seal is more firm and durable after installation, eliminating the disadvantage of the adhesive seal strip aging and falling off.
4. Mechanical interlocking and electronic interlocking can be selected according to user needs.
5. Different corner styles and door opening directions can be customized according to site layout.
6. 304 stainless steel material for both interior and exterior or stainless steel interior and steel plate exterior spray material can be selected according to user needs.
7. Intercom can be added according to user needs.
Standard List Table of Static Pass Box | Notes | ||||||
Model | AW-500 | AW-600 | AW-750 | Pass box size can be customize-made according to site requirements. | |||
Product Name | Standard PB | Standard PB | Standard PB | ||||
Internal size (mm) | 500*500*500 | 600*600*600 | 750*750*750 | ||||
External size (mm) | 685*500*600 | 785*600*700 | 935*750*850 | ||||
MoC of external | Cold rolled steel paint or stainless steel | ||||||
MoC of internal | Cold rolled steel paint or stainless steel | ||||||
Types | Standard PB or floor mounted PB without access floor | ||||||
Power | 220V/1Ph/50Hz or 60Hz | ||||||

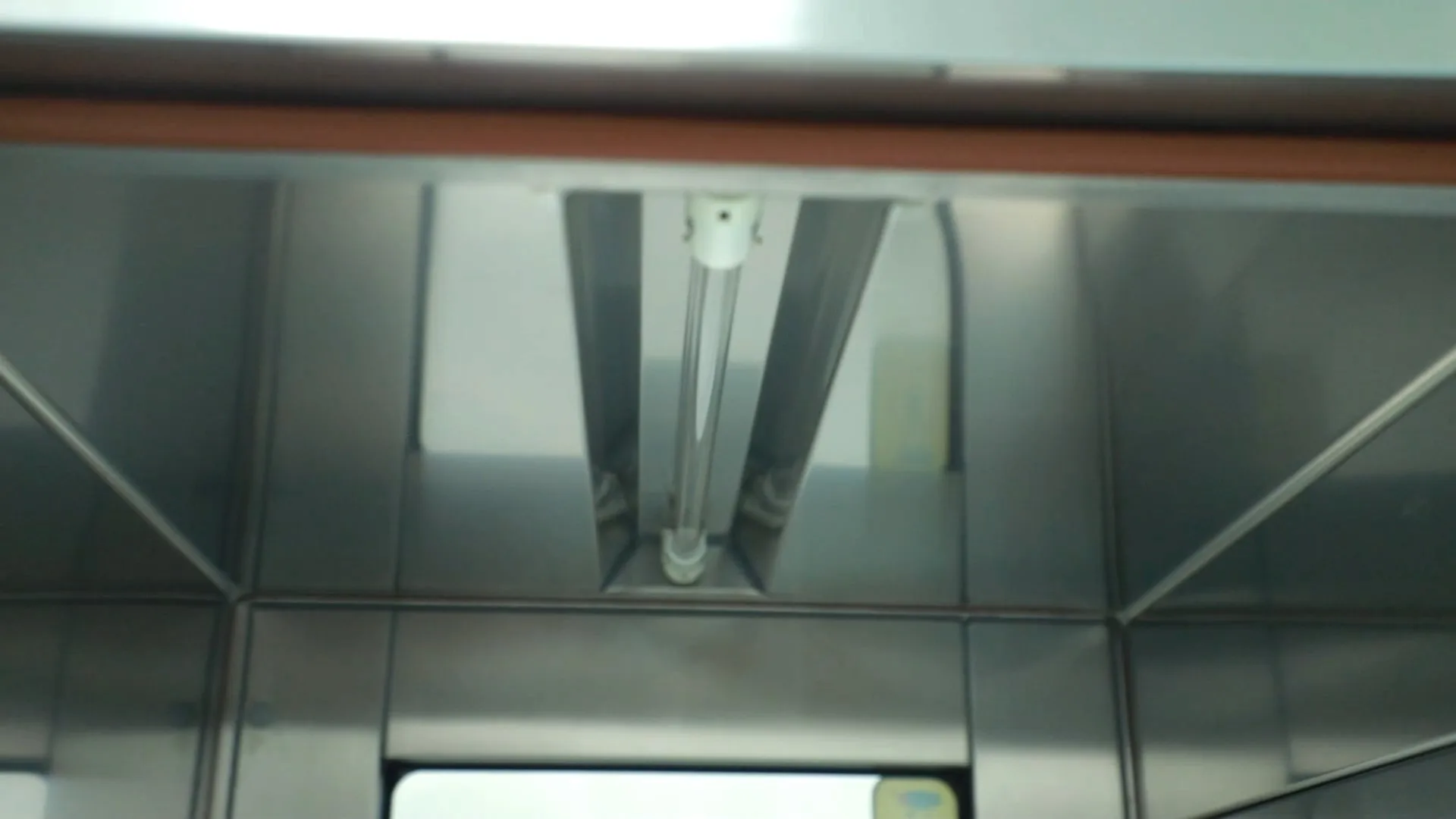

Options | 1. Machenical or electronic interlock 2. UVC light | ||||||
Standard List Table of Dynamic Pass Box/LAF Pass box | ||||
Model | AW-BPF-600 | AW-BPF-800 | ||
Internal working size (mm) | 600*600*600 | 800*800*800 | ||
External size (mm) | 770*680*1200 | 870*880*1400 | ||
Air speed at nozzle (m/s) | 0.3~0.45 | |||
Blowing Time (S) | Manual Control | |||
MoC of Box Body | Both internal and external body are made of #SS 304 | |||
HEPA Filter size | 320*320*96 | |||
Filteration efficiency | (H14)99.995%@0.3μm | |||
Fan power | 135W | |||
Power Supply | 220V/1PH/50Hz or 60Hz | |||
Cleanroom Service
We are not only the AHU supplier for HVAC system,
but also a turnkey solutioner for Different Project In domestic and abroad.
* Hospital Site Survey
* Hospital HVAC System Consultancy
* Hospital HVAC System Design
* Hospital HVAC System Equipment and Materials Supply
* Site Installation and Commissioning
* Site Tranining
* Aftersales Support
Cleanroom Introduction
Cleanrooms are essential to any manufacturing process where particulate contamination can affect the quality of goods produced.
Specific clean room classifications and ISO class code descriptions provide protective guidelines and secure environments through controlled air filtration, which lowers the possibility of product contamination or large particulate interference within critical process manufacturing. Specific cleanroom requirements and ISO 14644-1 cleanroom standards are used to protect consumers from any potential flaw or mishandling of a product.
Additionally, clean room classifications require that positive pressure is continuously maintained while the cleanroom is operational. This process prevents contaminated air from flowing back within the clean air environment. This process allows clean filtered air to continuously flows from clean to less-clean spaces, allowing for continual air movement.
Specific clean room classifications and ISO class code descriptions provide protective guidelines and secure environments through controlled air filtration, which lowers the possibility of product contamination or large particulate interference within critical process manufacturing. Specific cleanroom requirements and ISO 14644-1 cleanroom standards are used to protect consumers from any potential flaw or mishandling of a product.
Additionally, clean room classifications require that positive pressure is continuously maintained while the cleanroom is operational. This process prevents contaminated air from flowing back within the clean air environment. This process allows clean filtered air to continuously flows from clean to less-clean spaces, allowing for continual air movement.
Specification
Airwoods Cleanroom turnkey project Service Scope:
Cleanroom Project Scope(from structure, HVAC,electric to autoc ontrol) | 1. Cleanroom Structure: Wall Panel, Ceiling Panel, Windows, Doors, Fttings, Flooring |
2. HVAC: AHU, Chiller, dehumidifier, Ducting, Piping, etc. | |
3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc | |
4. Auto- control: PLC Controller, Sensors for Humidity and Temperature, Control Panel | |
5. Process Piping System: Gas, Water Pipeline | |
Equipment | Air shower, Cargo shower, Mist shower, Dynamic pass box, Static pass box, Sampling booth,Weighing booth, Dispensing booth, Medicine stability test chamber, isolator, VHP sterilizer,Biological safety chamber, FFU, LAF, etc. |
Temperature | 21-27*C (or as per required) |
Humidity | 30-60°C (or as per required) |
Application | Pharmaceutical factory, hospital, medical device factory, electronics factory, food factory,cosmetics factory, etc. |
Qualification Documents | CE GMP ISO |
Full Service | FAT and SAT Service, Professional Consultation, Training, 24 hours technical support |
