Product Overview
Description
Product Overview

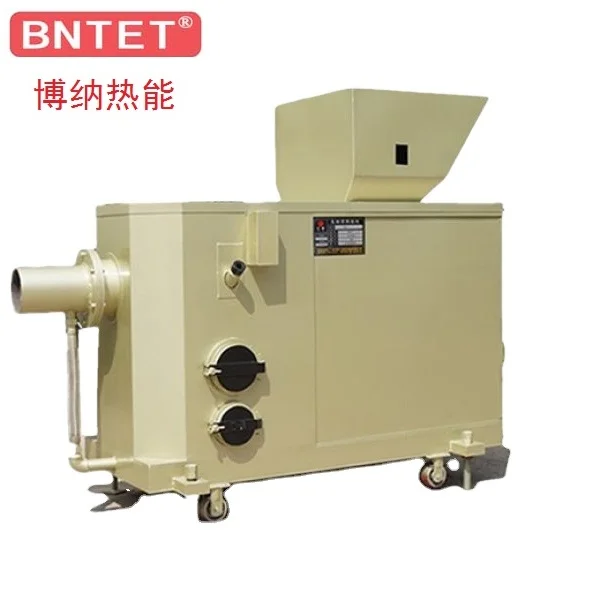

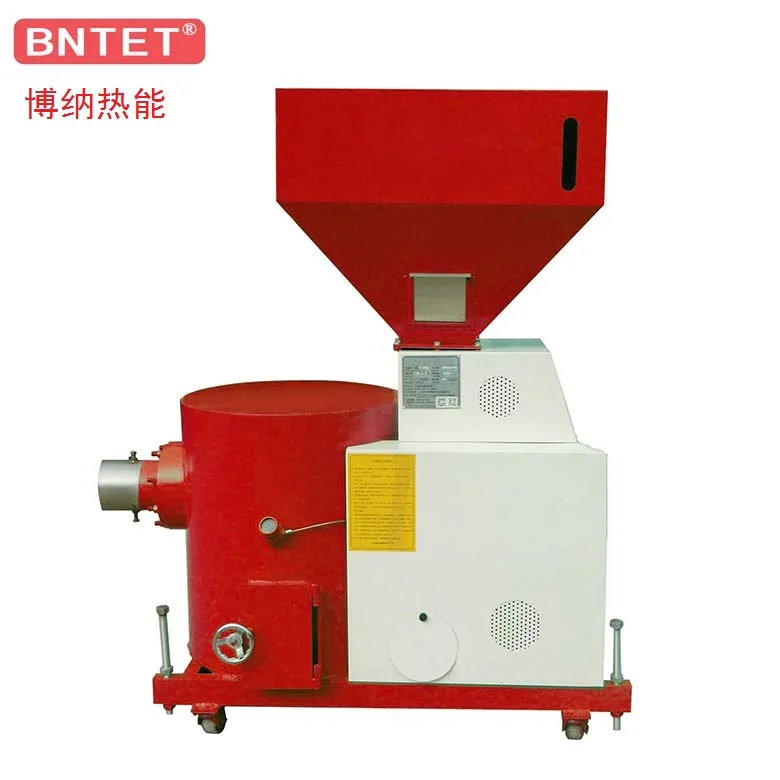

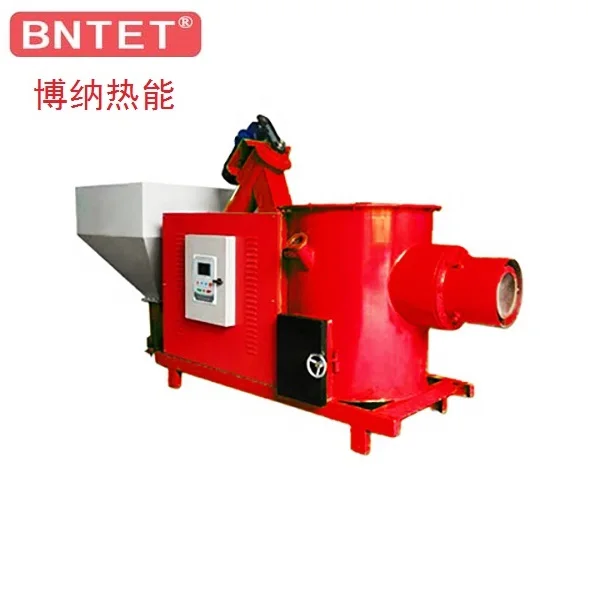

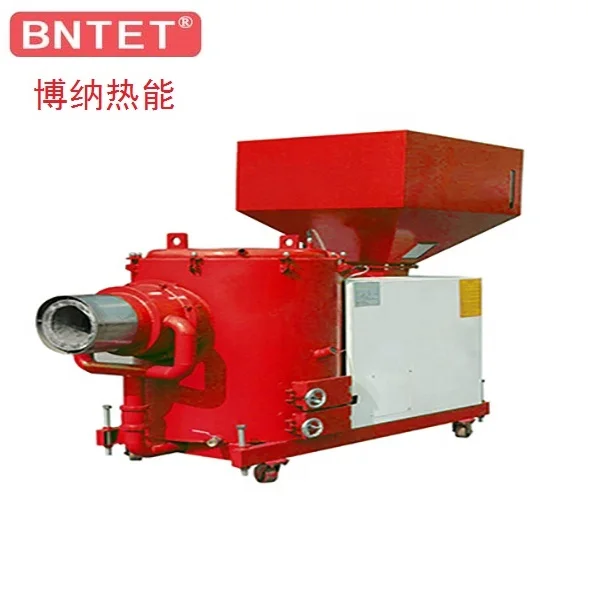

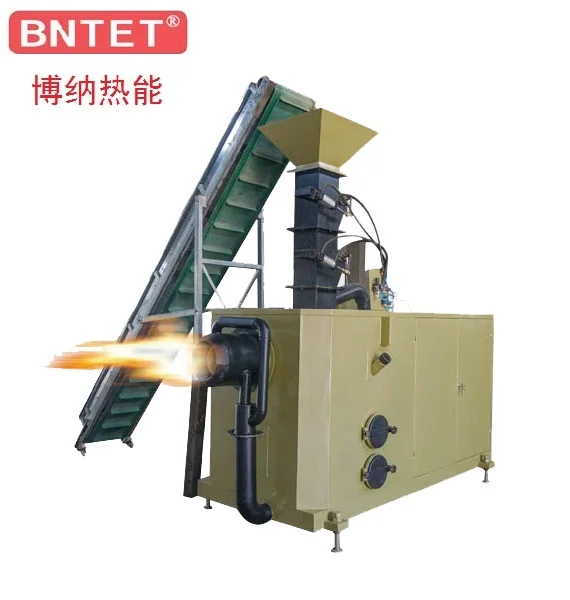

Introduction of biomass pellet burner:
This series of products adopt PIC operating system, automatic intelligent operation, touch screen one-key, Chinese LCD operating interface, fully sealed frequency conversion speed regulating feeding, with remote 485 operating interface, automatic ignition, automatic temperature control, automatic conversion between big and small fire.Using double frequency conversion can achieve the air supply, feed frequency synchronization, high thermal efficiency, full combustion, can reduce the fire nozzle dust discharge.Double connected double control, can control the temperature (high stop low start) and boiler pressure.No pollution, low emission, compact structure, simple and convenient installation, small occupancy space, low operating cost, etc.
In order to meet the needs of different customers, make full use of the heat energy, the use of air-cooled, water-cooled two kinds of protection, air combustion, so that the flame temperature more powerful.Water-cooled structure, the hot water produced can be used for production or domestic use, but also can be connected to the boiler for secondary use, make full use of heat source.
Product performance advantages
Advantages of biomass pellet burner:
1. High efficiency and energy saving: use renewable biomass pellet fuel as energy, low cost, reduce 30%-60% operating cost by fuel (gas).
2. High thermal efficiency: Semi-gasification suspended combustion and tangential swirl air distribution design, low-temperature sub-combustion, combustion rate of more than 98%, the temperature in the furnace reaches more than 1200℃.
3, stable and reliable: micro positive pressure operation, silo isolation mode of material transport, no tempering and defiring phenomenon, has applied for the national invention patent.
4. Low carbon and environmental protection: low emission of soot, sulfur and nitrogen, close to zero emission of carbon dioxide, meeting the emission requirements of GB12371.
5. Simple operation: convenient installation, automatic feeding, simple operation, small workload, large capacity of silo (large capacity silo can be customized).Feeding can run for 3-12 hours at a time, only need to timely fill the bin, a person on duty can be.
2. High thermal efficiency: Semi-gasification suspended combustion and tangential swirl air distribution design, low-temperature sub-combustion, combustion rate of more than 98%, the temperature in the furnace reaches more than 1200℃.
3, stable and reliable: micro positive pressure operation, silo isolation mode of material transport, no tempering and defiring phenomenon, has applied for the national invention patent.
4. Low carbon and environmental protection: low emission of soot, sulfur and nitrogen, close to zero emission of carbon dioxide, meeting the emission requirements of GB12371.
5. Simple operation: convenient installation, automatic feeding, simple operation, small workload, large capacity of silo (large capacity silo can be customized).Feeding can run for 3-12 hours at a time, only need to timely fill the bin, a person on duty can be.
PRODUCT SPECIFICATIONS
Model | Heat (10,000kcal/h) | power (Kw) | Corresponding boiler (Ton) | Fuel consumption (kg) | Dimensions (mm) | weight (t) |
BNBP 360 | 360 | 14 | 6 | 8o0 | 3850x1785x2720 | 4.8 |
BNBP 480 | 480 | 19.5 | 8 | 1066 | 4100x1800x3900 | 7 |
BNBP 600 | 600 | 22 | 10 | 1335 | 4500x2200x4300 | 9 |
BNBP 900 | 900 | 37 | 15 | 2000 | 5800x2600x4600 | 11 |
BNBP 1200 | 1200 | 45 | 20 | 2666 | 6000x2800x4800 | 13 |
Available fuel
Biomass particles
Wood chips
Bark
Successful Project
Company Information
Established in August 2006, Zhengzhou Bona Heat Energy Equipment Co., Ltd is an innovative technology enterprise, which is focusing on the production, R & D and technical consulting services of burner, burner accessories, hot air furnace, and boiler related products.
Zhengzhou Bona Heat Energy Equipment Co., Ltd upholds the development and innovation consciousness, produces products with high-performance combustion technology.
Our Main products is various boiler burners, and industial burners. Such as natural gas burners, liquefied gas burners, industrial gas burners, light oil burners (diesel burners), heavy oil burners, waste oil burners, pulverized coal burners, rotary kilnburners, hot air furnace(hot blast stoves), and related products.
Zhengzhou Bona Heat Energy Equipment Co., Ltd upholds the development and innovation consciousness, produces products with high-performance combustion technology.
Our Main products is various boiler burners, and industial burners. Such as natural gas burners, liquefied gas burners, industrial gas burners, light oil burners (diesel burners), heavy oil burners, waste oil burners, pulverized coal burners, rotary kilnburners, hot air furnace(hot blast stoves), and related products.
