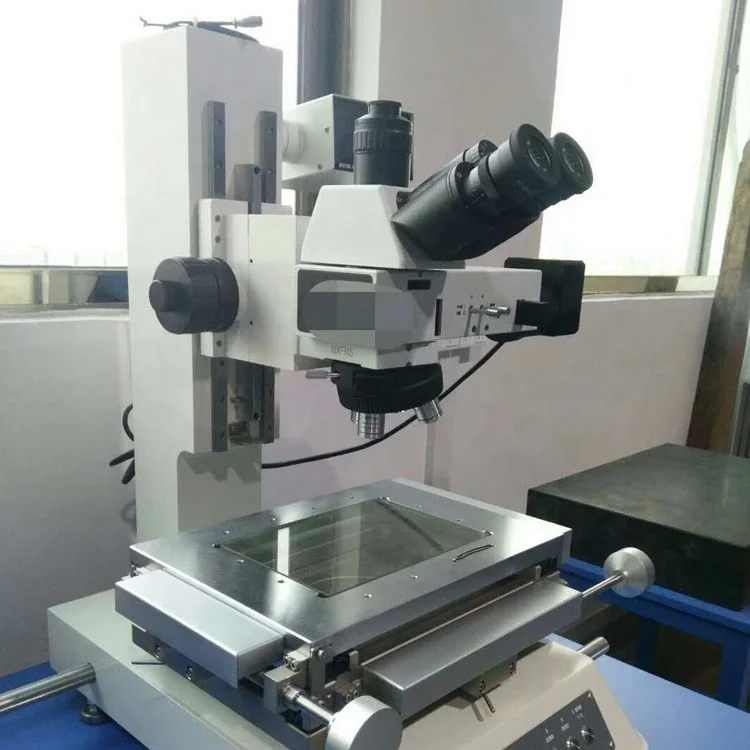

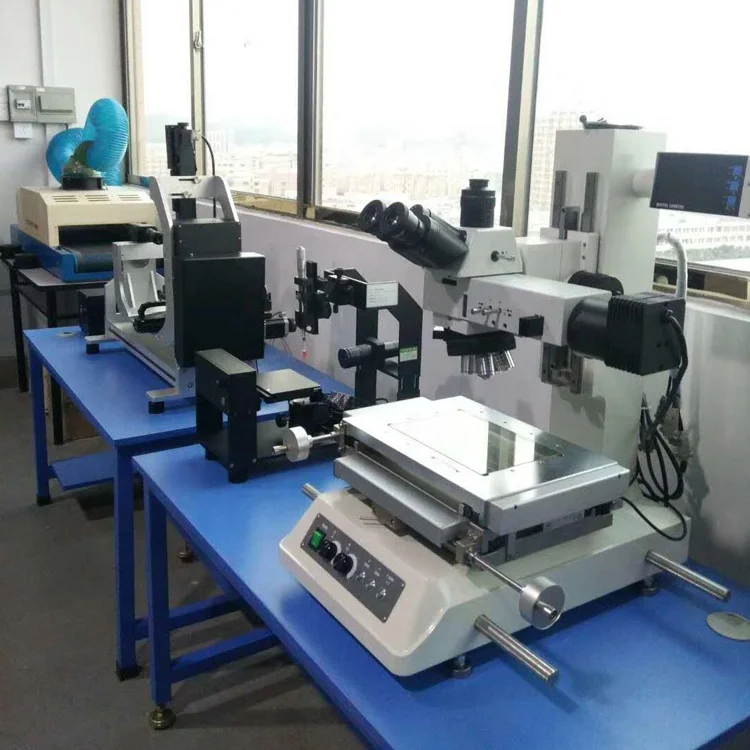

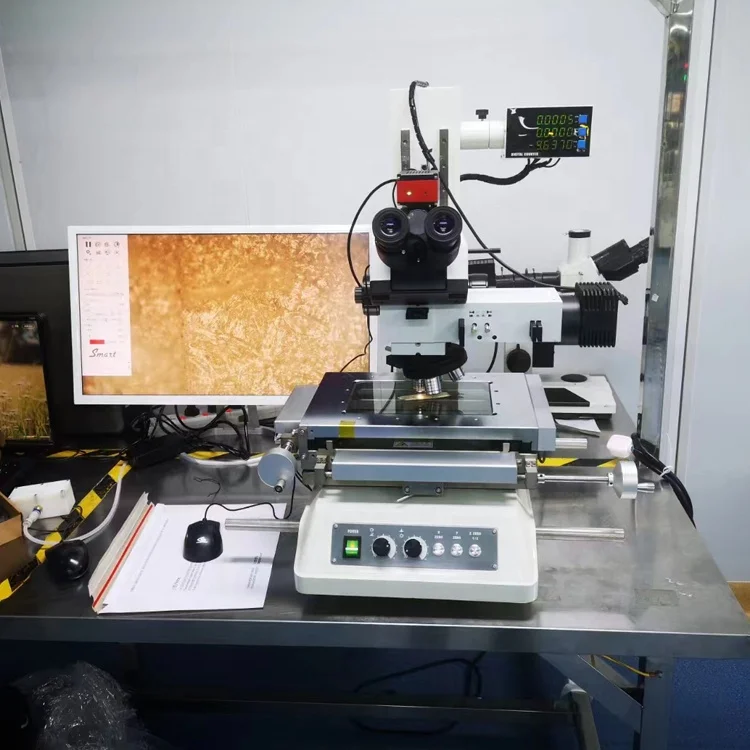

Factory price BD 100M 2010 metallurgical microscope Optic 50x 1000x with measurement for 12 inch wafer checking
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (1600804518798):
Product Overview
Description
Product Paramenters
▲ Stage: Stage size Customized.
▲ Optical Maginification: 50X-1000X
▲ LCD display: Optional.
▲ Measurement: Optional.
Specification
Model | BD-100M serial. |
Observation | Optional: Bright field, Dark field, Polarizing, DIC. |
Optical system | Infinity Plan Achromatic optical system |
View tub | Trinocular, 30° inclined, 360°rotating. Splitting ratio: 100: 0. IPD adjustment: 54mm ~ 75mm. Diopter adjustment: ± 5 diopters. |
Eyepiece | WF PL10 × (Φ22mm) |
Objective | Unstressed Infinity Plan achromatic long working distance metallurgical objective(Optional): LM Plan 5X LM Plan 10X LM Plan 20X LM Plan 50X LM Plan 100x |
Nosepiece | 5-position. |
Focusing system | Coaxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm. Focusing stopper for protecting objective and samples. |
Stage | Stage size: 360mm*260mm(Measurement Range: 200*100mm). Optional: 460*360mm(Measurement Range: 200*100mm). |
LCD Display | 12 inch monitor for living image display(Optional). |
Digital Display Meter | Display the measurement date(Optional). |
Illumination | Coaxial LED illuminator. |
Camera adapter | 0.5X or 1X C-Mount. |
Power supply | AC100-240V, 50/60Hz. |
Product Description
WHY CHOOSE US?
ABOUT US
CERTIFICATE
Our business scope

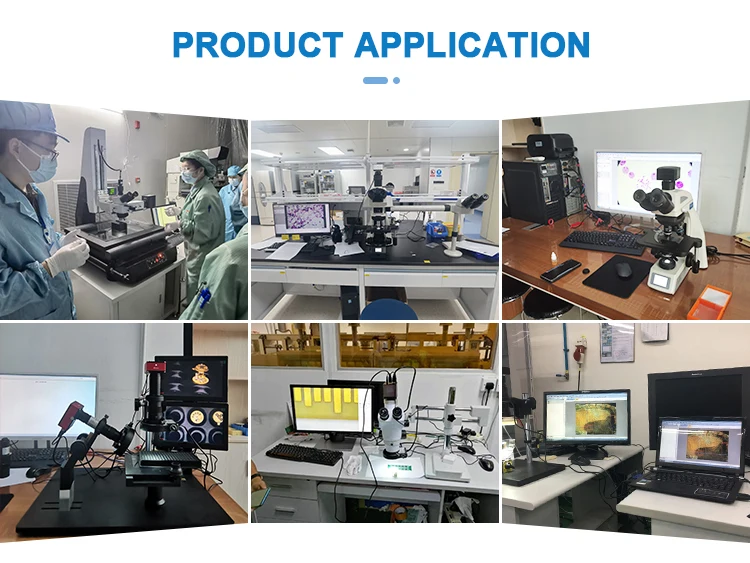

PRODUCT APPLICATION

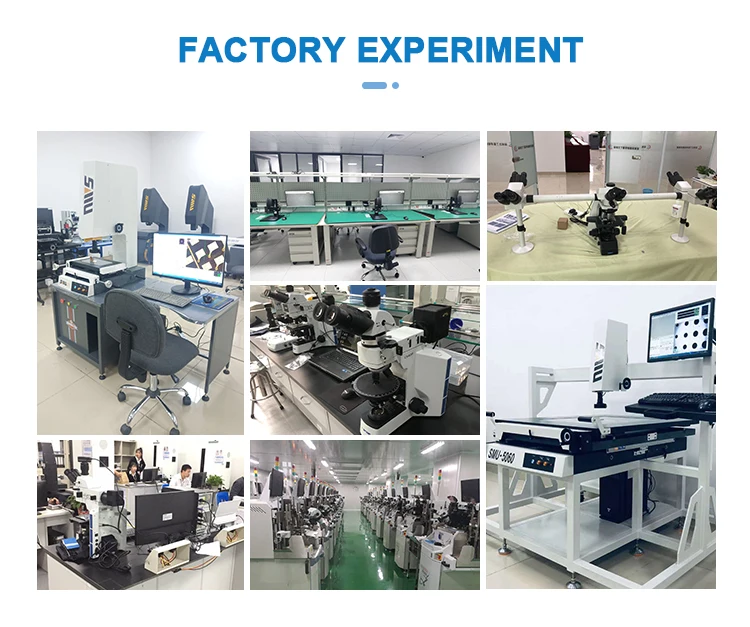

FACTORY EXPERIMENT
PRODUCT PACKAGING

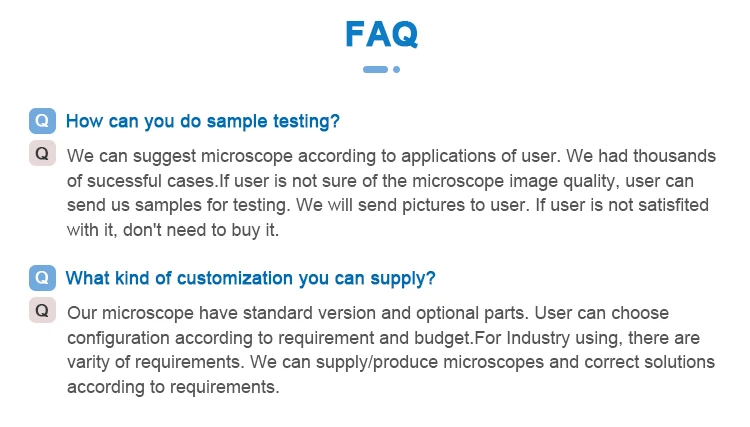

FAQ
