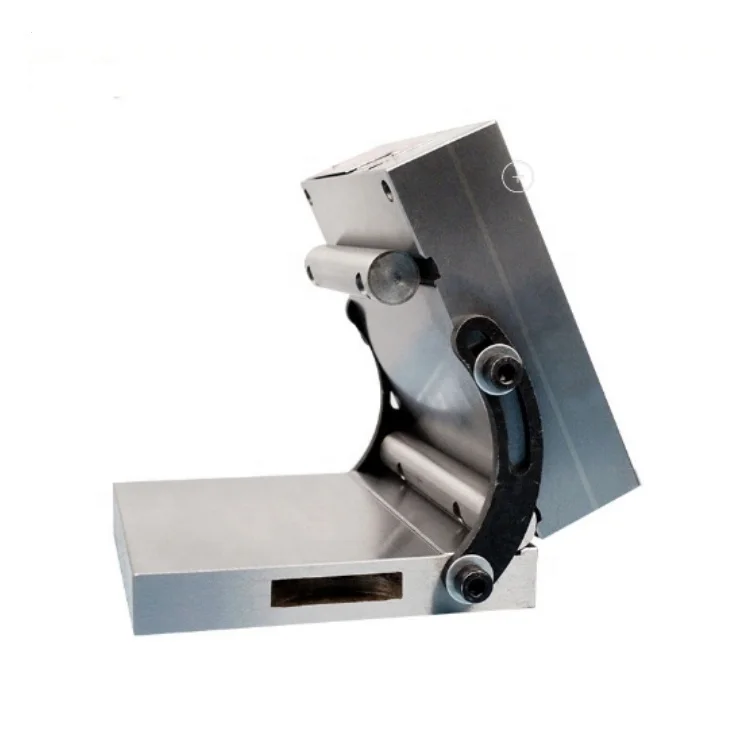

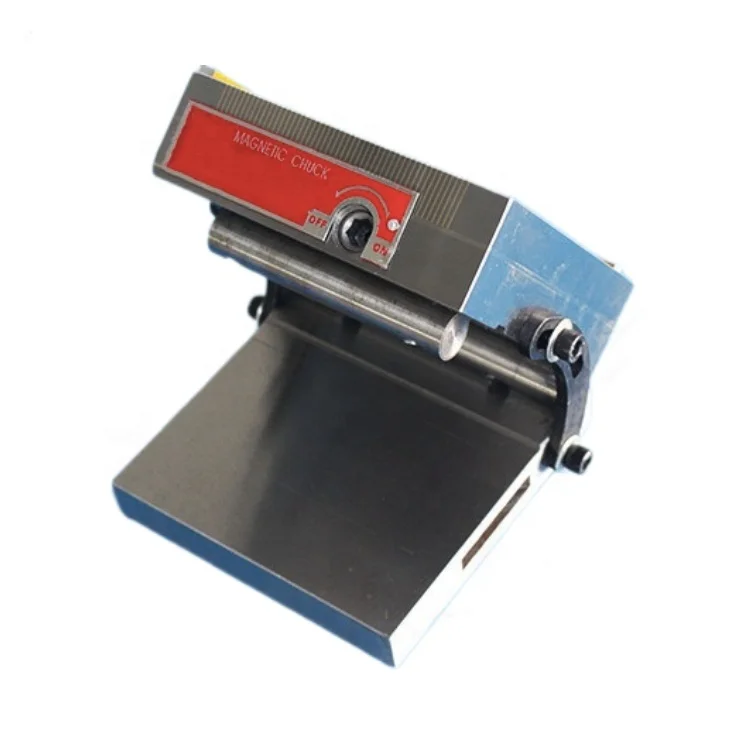

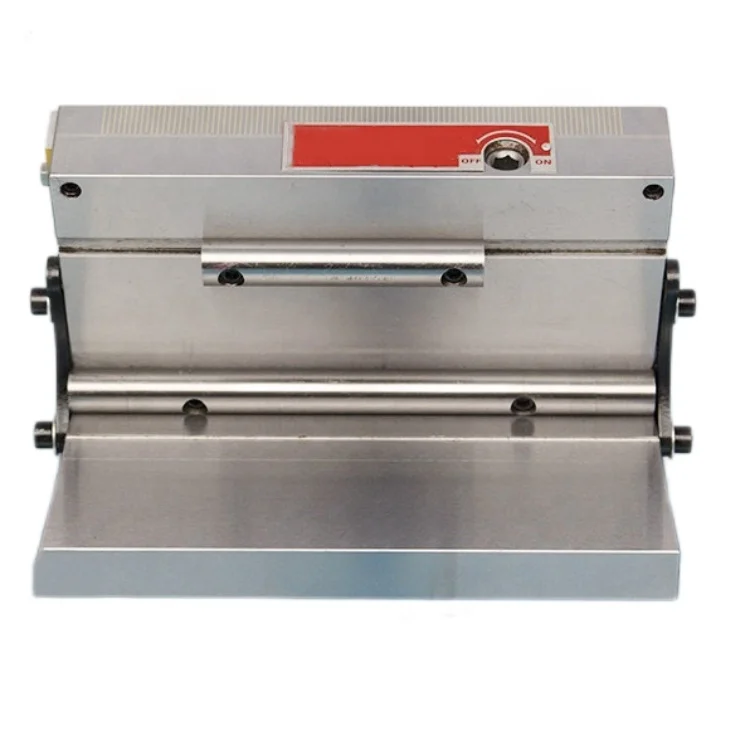

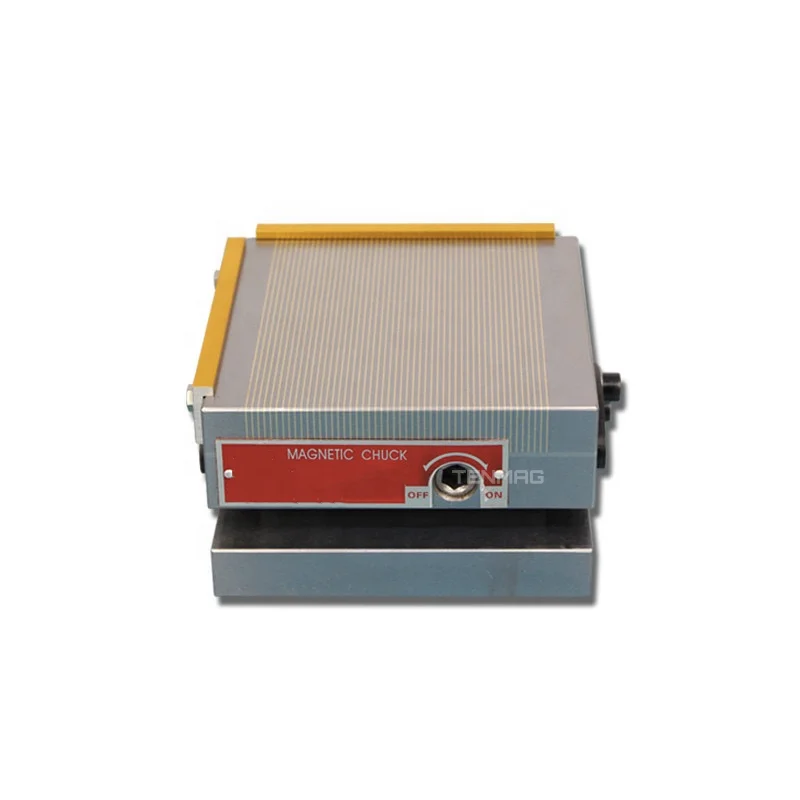

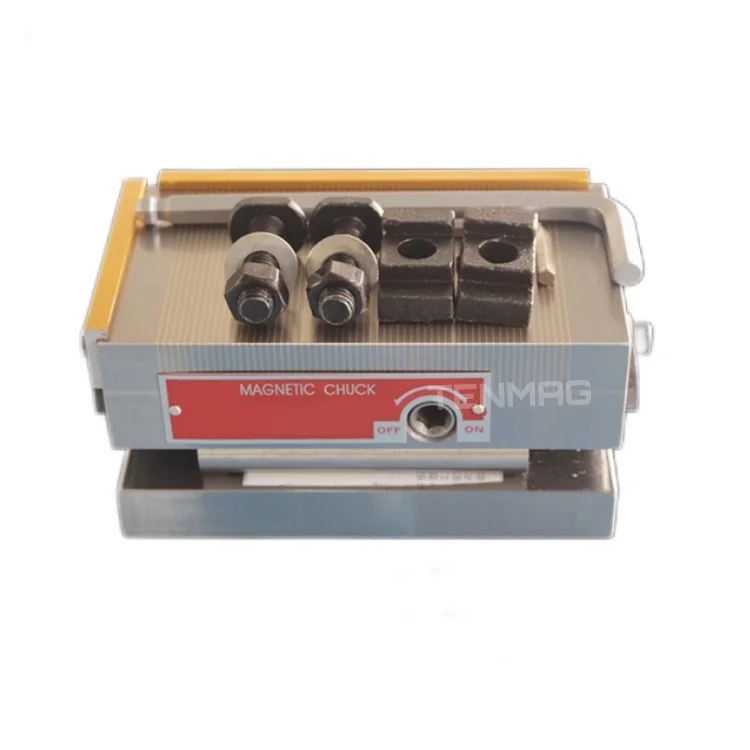

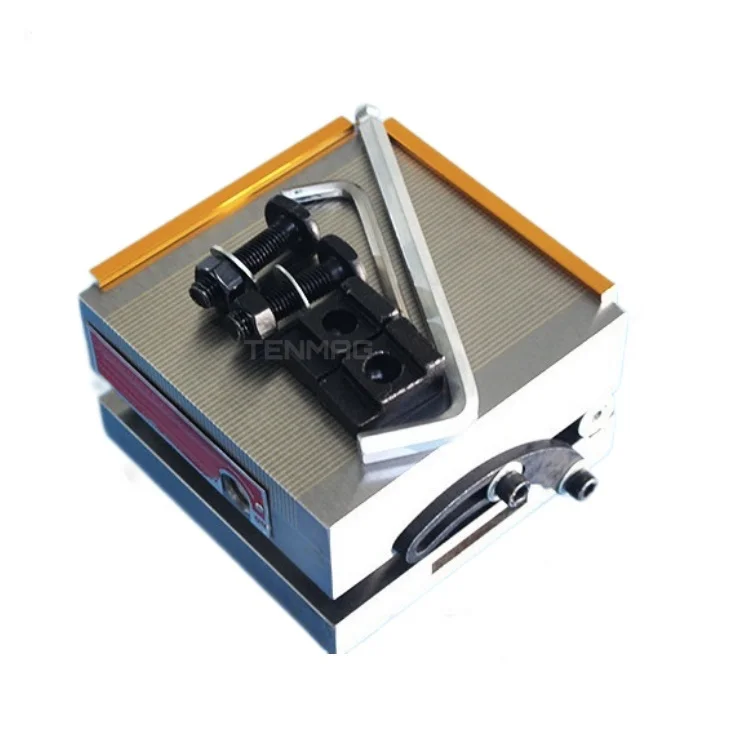

150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine

150x150 150*300 Custom Sizes Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine

Share on (1600804526697):


Price:

Quantity:


Product Overview

Description



Product Description


Permanent magnetic chucks are manufactured from magnetized materials and exhibit a constant magnetic field without needing to introduce an electric current. Because these materials are highly magnetized materials, they do not lose their magnetic force.
Accelerate your work during machining ferromagnetic materials. Magnetic chucks are modern devices replacing vices, mechanical clamps and fixtures. Using electromagnetic, electropermanent, and permanent magnetic chucks for clamping and unclamping of the machined components saves time, allows the workpiece to be accessible from five (5) sides, and does not damage the product.​
The use of magnetic chucks for workholding has become a popular option in manufacturing facilities. The goal is simple. Hold the blank, casting, or forging to be machined with enough grip to allow milling, turning, drilling, or grinding. Traditionally, workpieces for machining were held in place using vises or fixtures. Magnetic chucks have been an accepted method of workholding in surface grinding applications. Magnetic chucks reduce setup, increase access to the many sides of a workpiece, and simplify workholding.
A key advantage of magnetic chucks for workholding is consistent clamping. Unlike mechanical clamps and vises, there are no variations on how tightly the workpiece is held. Full support of the workpiece is another advantage of magnetic chucks. For example, if toe clamps are used on the outer surfaces of a workpiece, supporting the center of the piece is a challenge. These unsupported areas can chatter, resulting in increased cycle time.
Workholding chucks hold the whole workpiece. This complete support reduces chatter and accelerates the process. The lack of clamps allows your equipment to cut without interference. Setup and tear down are critical to a machine shop’s bottom line. Magnetic chucks installed on your machine table; workpieces can be attached to the machine without bolts. Workholding chucks will increase throughput, and reduce costs.






Product Name
150x150 100x175 Factory Customized Sing Sine Titling Fine Pole Permanent Table Magnetic Chucks For Flat Grinding Grinder Machine
Material
Permanent Magnet, Copper, Steel
Type
T-Xm42
Model No.
Inch Size
Size(mm)
Pole Pitch(mm)
Machining angle
Magnetic Force(N/㎡）
Length
Width
Height
100x175
4"x7"
175
100
84
2(0.5+1.5)
0°-45°
≥100
125x250
5"x10"
250
125
84
2(0.5+1.5)
0°-45°
≥100
150x150
6"x6"
150
150
84
2(0.5+1.5)
0°-45°
≥100
150x300
6"x12"
300
150
84
2(0.5+1.5)
0°-45°
≥100
150x350
6"x14"
350
150
84
2(0.5+1.5)
0°-45°
≥100
150x400
6"x16"
400
150
84
2(0.5+1.5)
0°-45°
≥100
150x450
6"x18"
450
150
84
2(0.5+1.5)
0°-45°
≥100
150x500
6"x20"
500
150
84
2(0.5+1.5)
0°-45°
≥100
150x600
6"x24"
600
150
84
2(0.5+1.5)
0°-45°
≥100
150x800
6"x32"
800
150
84
2(0.5+1.5)
0°-45°
≥100
200x200
8"x8"
200
200
84
2(0.5+1.5)
0°-45°
≥100
200x300
8"x12"
300
200
84
2(0.5+1.5)
0°-45°
≥100
200x400
8"x16"
400
200
84
2(0.5+1.5)
0°-45°
≥100
300x300
12"x12"
300
300
84
2(0.5+1.5)
0°-45°
≥100
Customized Sizes Are Also Available.

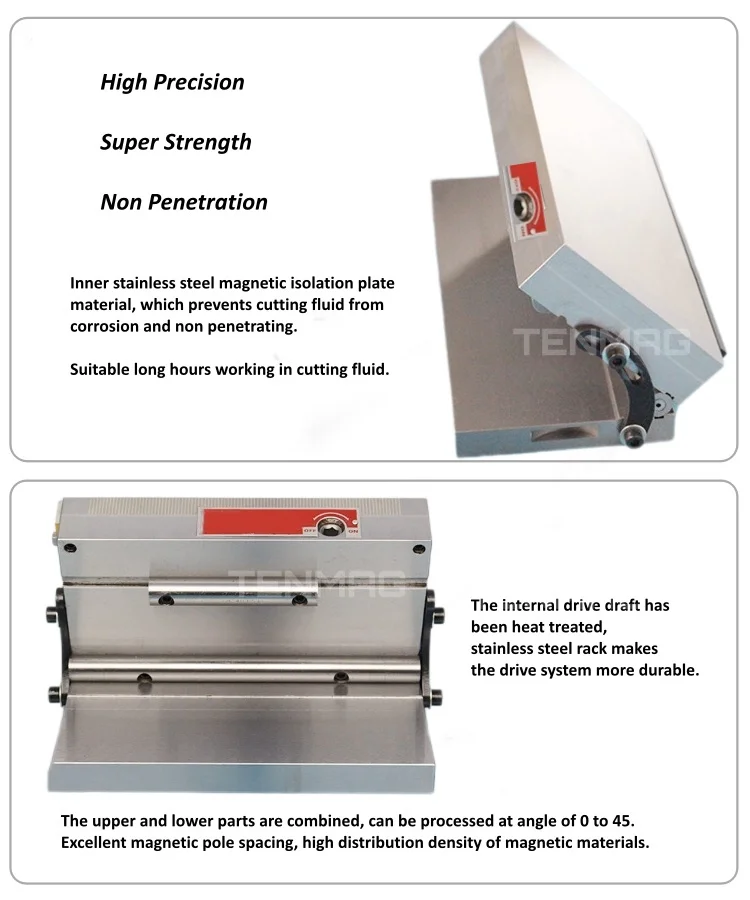

Details Images

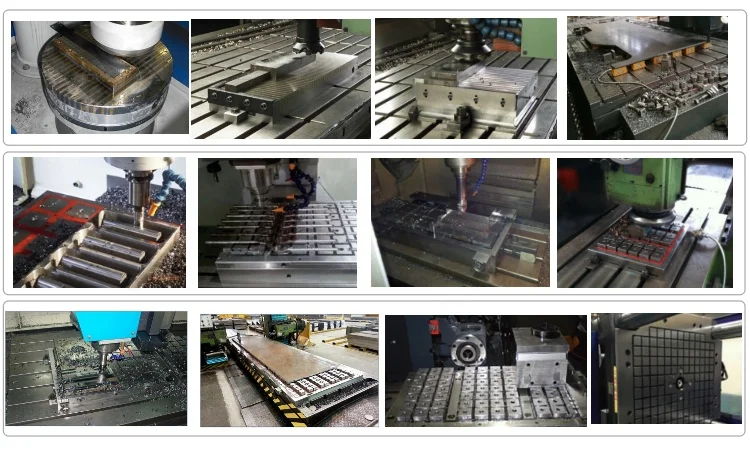

Product Usage

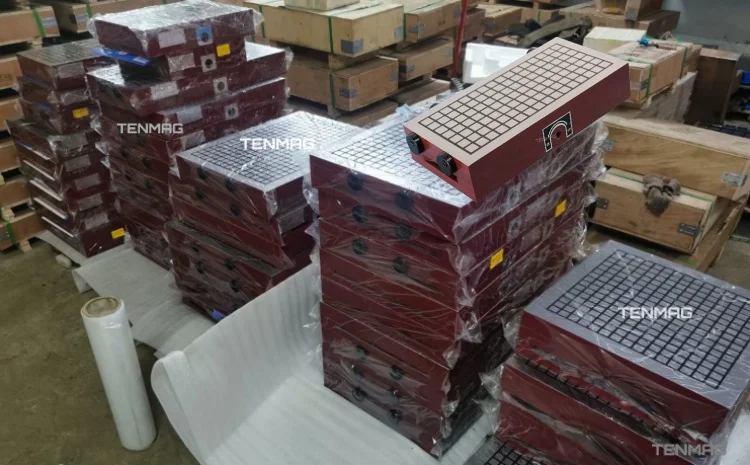

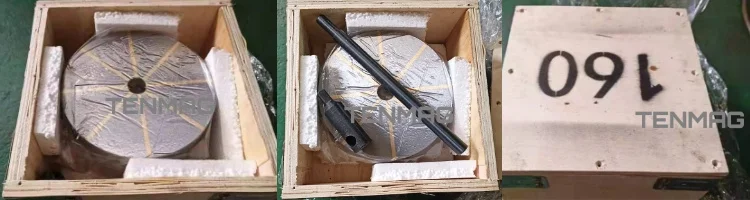

Packing&Shipping










Company Introduction




Certificate






FAQ


Q: Are you trading company or manufacturer ?
A: We are a professional magnets manufacturer with strong R&D team.

Q: Could I get samples?
A: Yes.

Q: How about your delivery date?
A: Regularly, 7-15 days for samples and 15-25 days for mass production.
For special custom item, will be double checked before order.

Q:Do you have any MOQ limit?
A: No MOQ, 1pc sample for check is available.

Q: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.

Q: How to ship and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, takes 3-5 days to arrive. Air and sea shipping also optional.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
