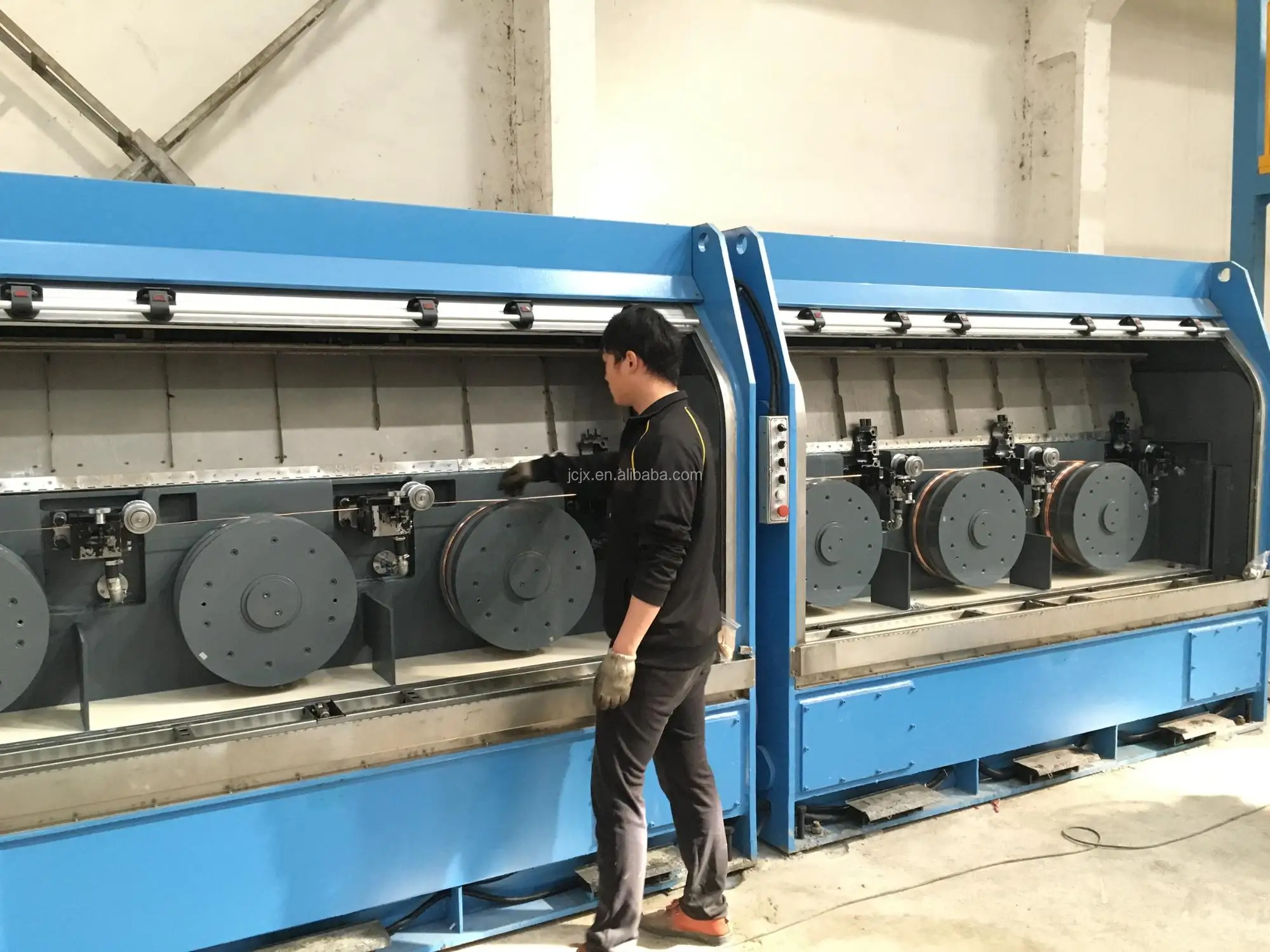

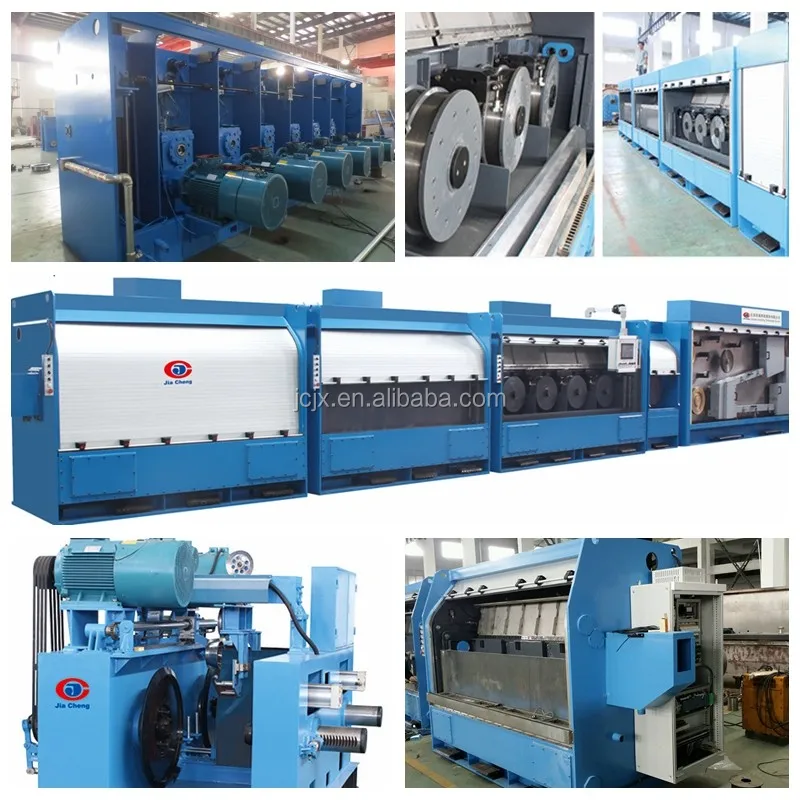

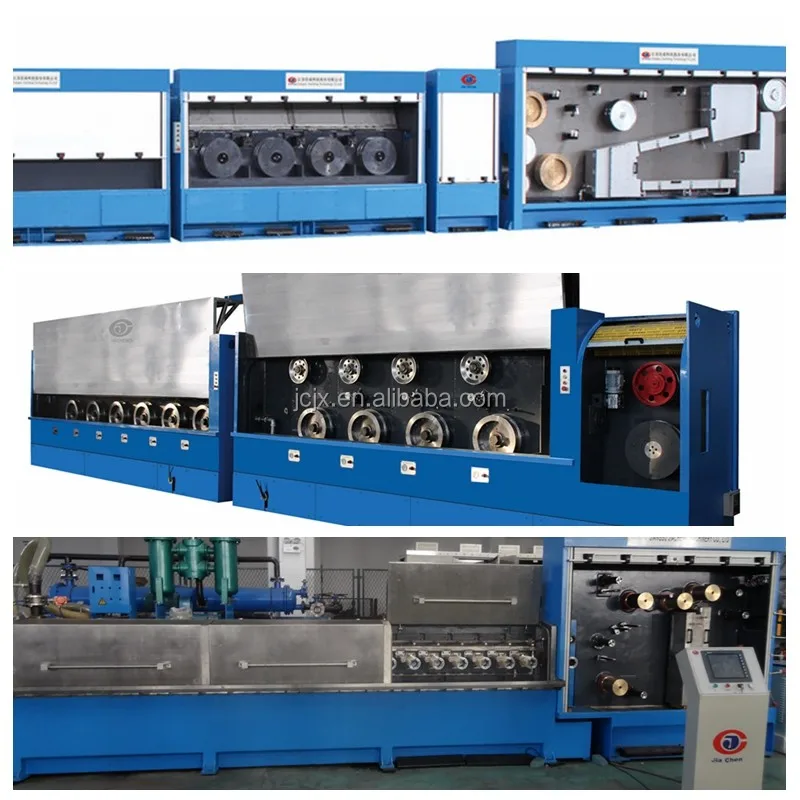

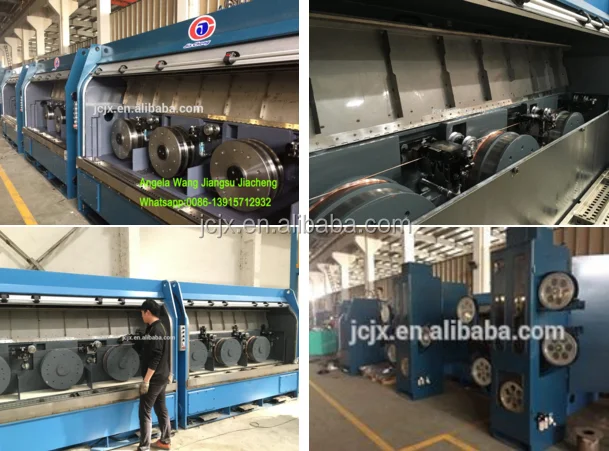

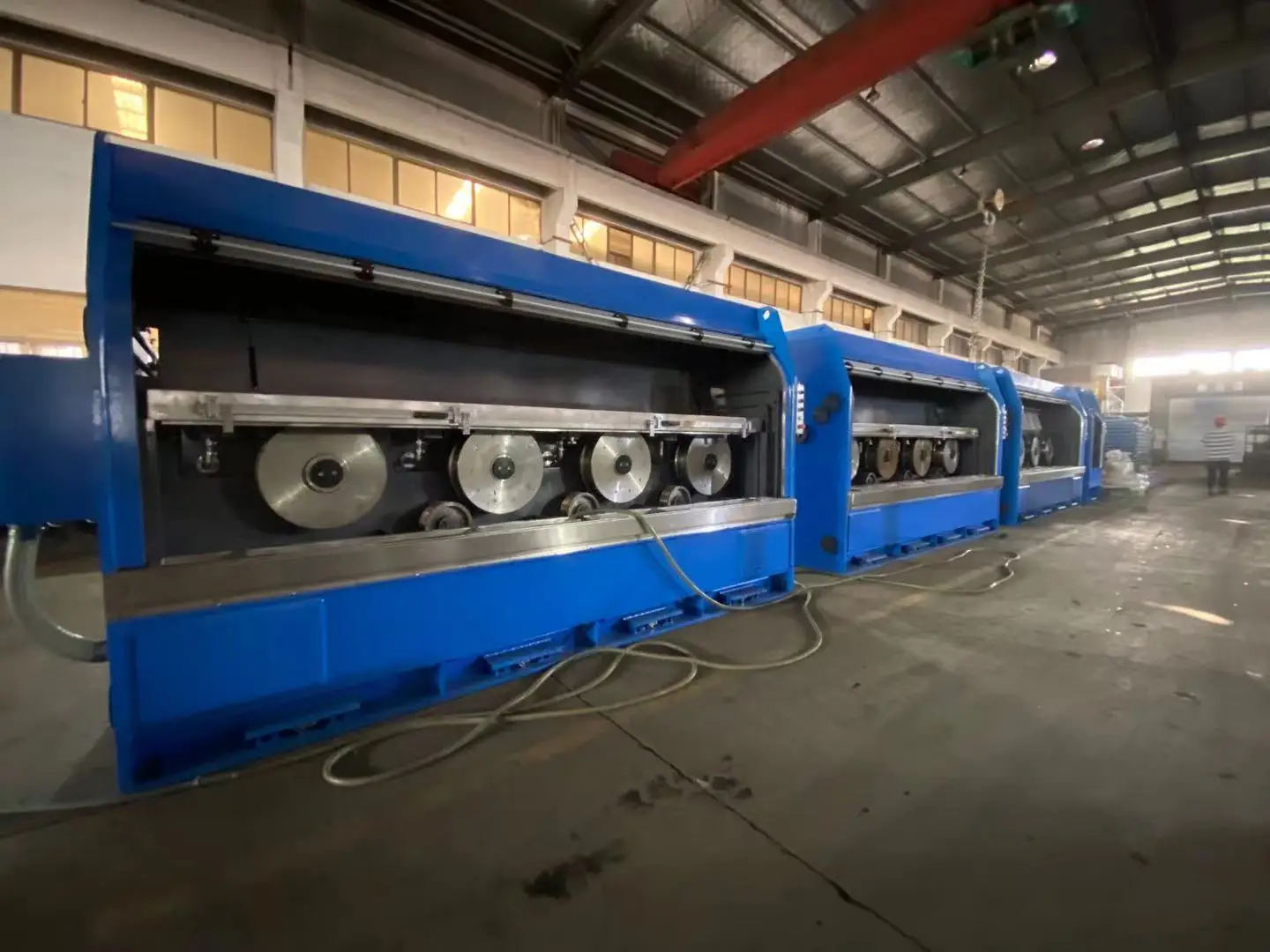

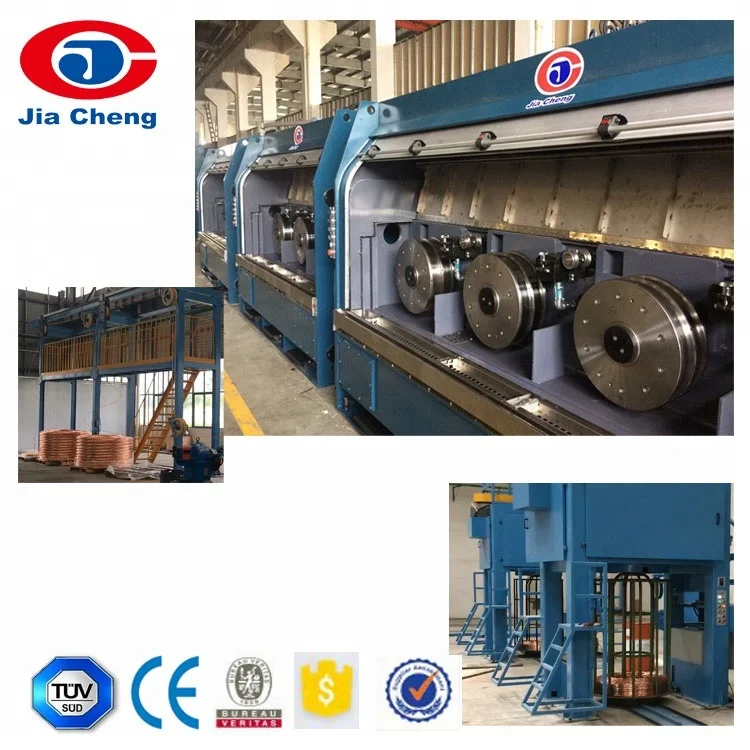

Jiacheng Brand LSD450 2 High Speed Two Wires Al or Al alloy Rod Drawing Machine
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (1600804544333):
Product Overview
Description
Product Overview
Main usage
This kind of machine is used to draw two Al and Al Alloy rods from 9.5 mm to 1.7-5.0 mm with high speed.
Feature

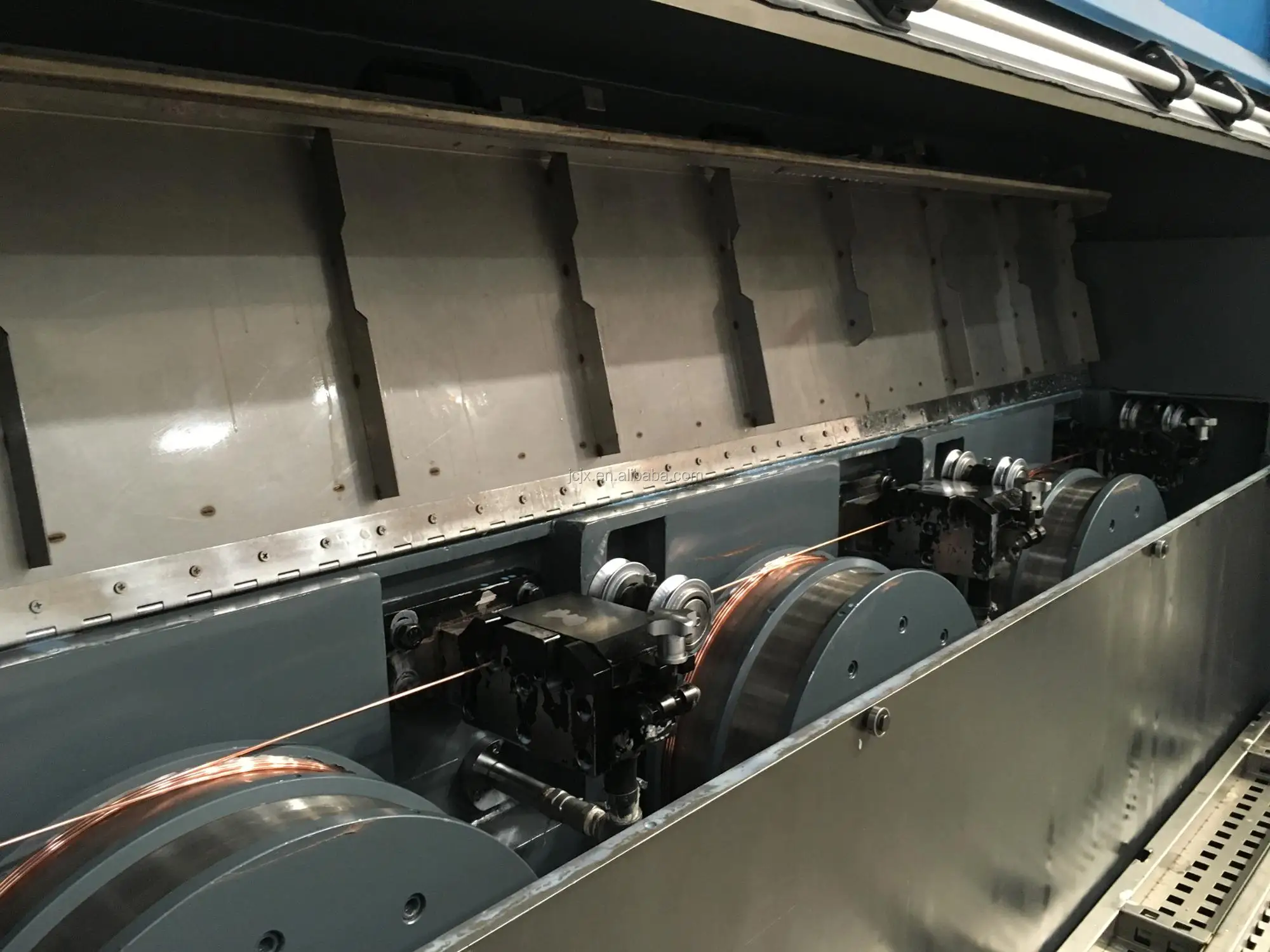

1.Full immersion,can guarantee the wire's cooling and lubrication.

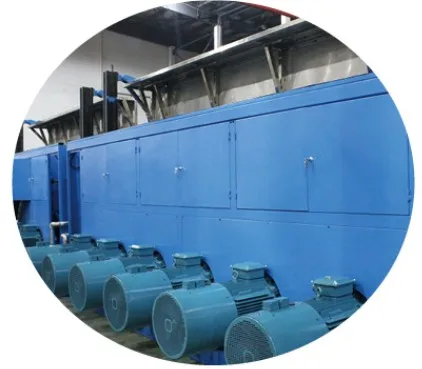

2.Every drum is transmitted by single motor,the tensile rate can be adjustable,it can also realize fast die change.
Technical Parameter
Machine Type | LSD450/13-2 | LSD450/11-2 | LSD450/9-2 | ||
Drawing Wire No. | 2 wires | ||||
Drawing Capstan Dia.(mm) | φ450 | φ450 | φ450 | ||
Max.Die No. | 13*2 | 11*2 | 9*2 | ||
Inlet Dia.(mm) (Copper) | 2*φ9.5 | ||||
Outlet Dia.(mm)(Copper) | 2*φ1.7~φ5.0 | 2*φ2.0~φ5.0 | 2*φ2.8~φ5.0 | ||
Max.Drawing Speed(m/s) | 30 | 28 | 20 | ||
Main Motor(KW) | 45/55/75/132KW(AC) | ||||
Capstan Arrangement | Horizontal Type | ||||
Take-up Type(Optional) | Double Take-up/Single Take-up/Coiler | ||||
Main Usage

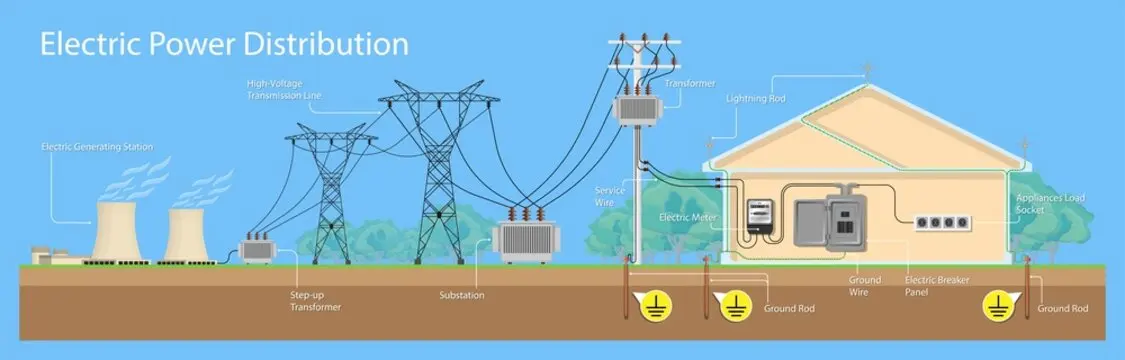

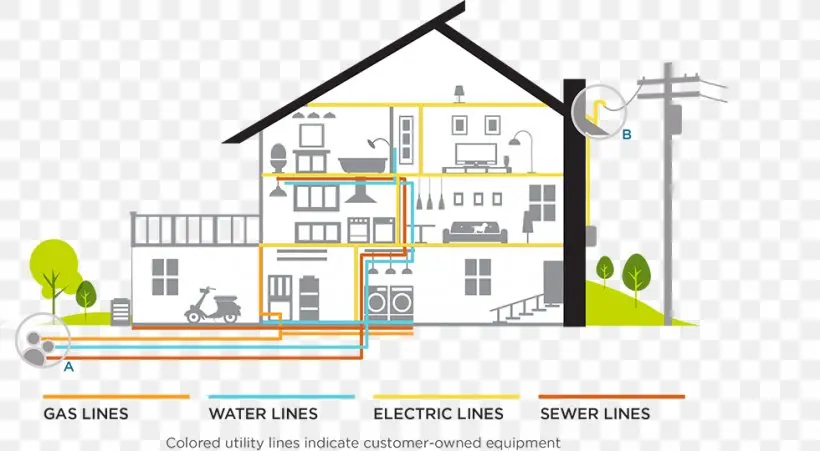

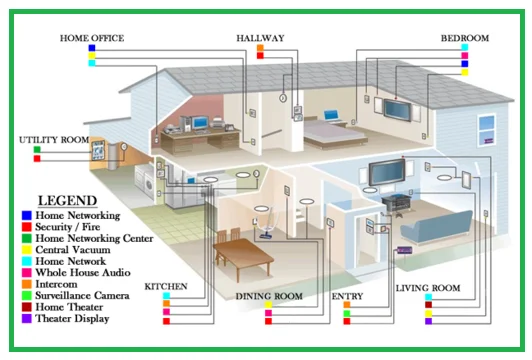

——mainly used to transmit electrical energy、information and complete electromagnetic energy conversion

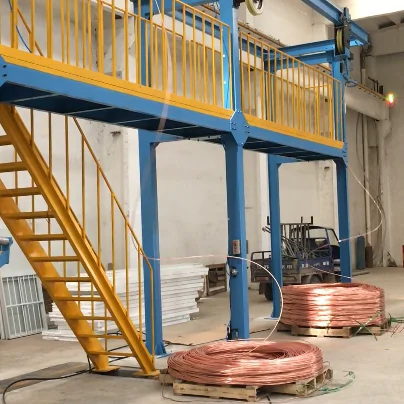

Finished Products

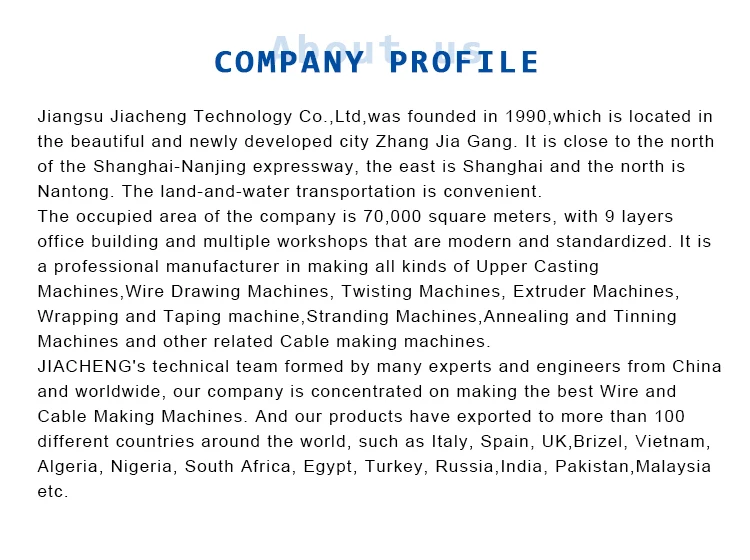

Our Company

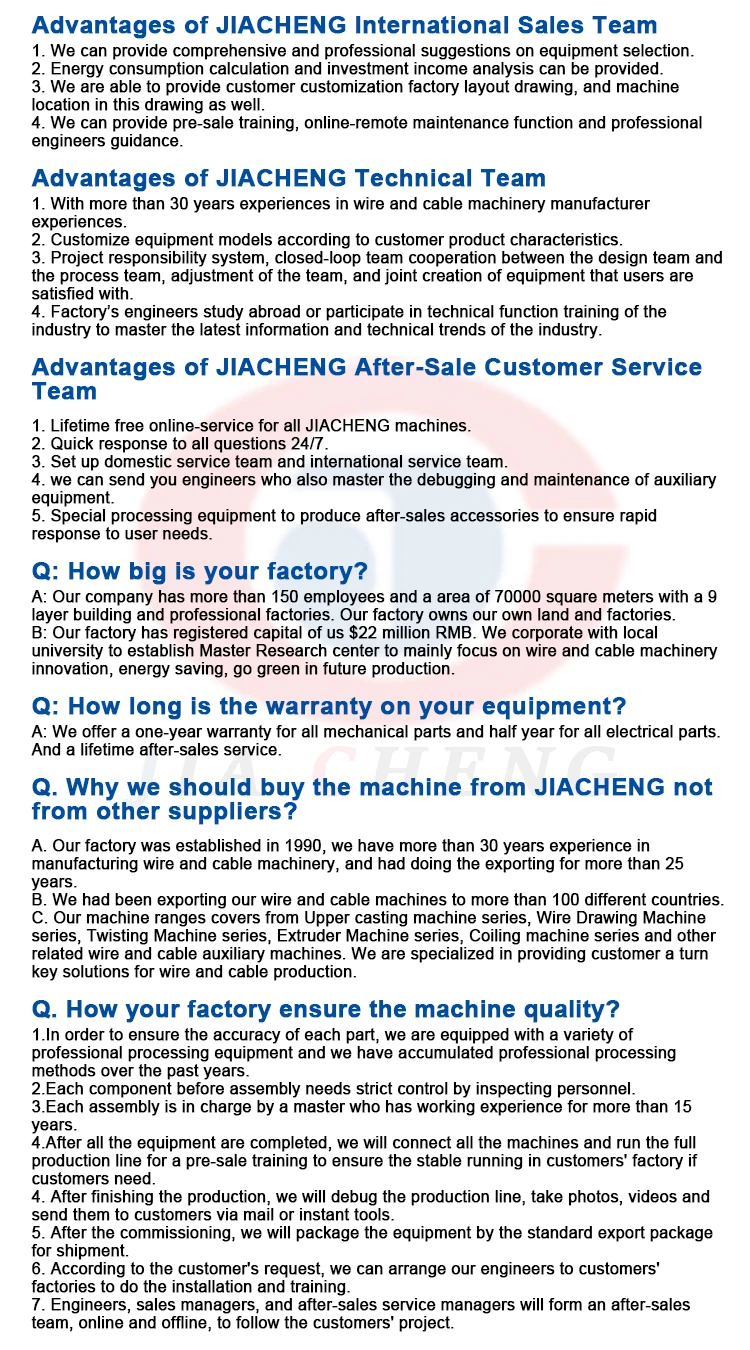

FAQ
