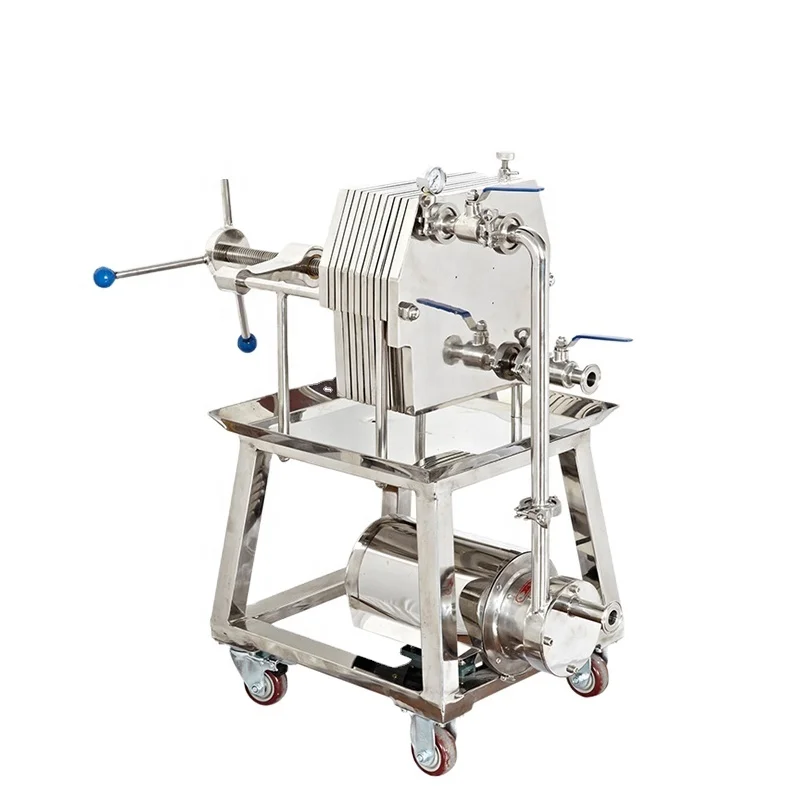

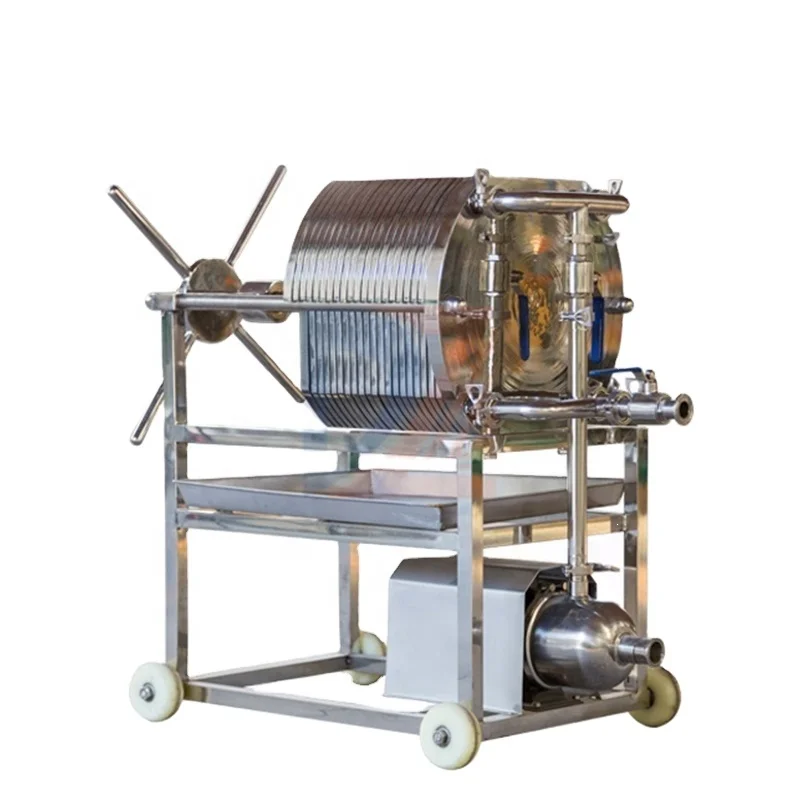

0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar
0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar
0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar
0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar
0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar
0.1-10 um Stainless Steel Plate Frame Multi-layer Filter for Sugar

0.1 10 um Stainless Steel Plate Frame Multi layer Filter for Sugar

Share on (1600804581592):


Price:$1,200.00 - $1,300.00

Quantity:


Product Overview

Description



Product Description

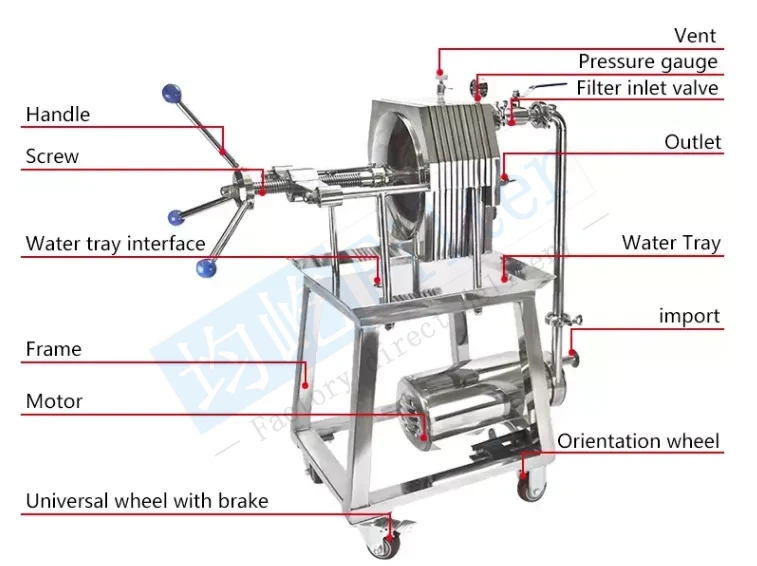

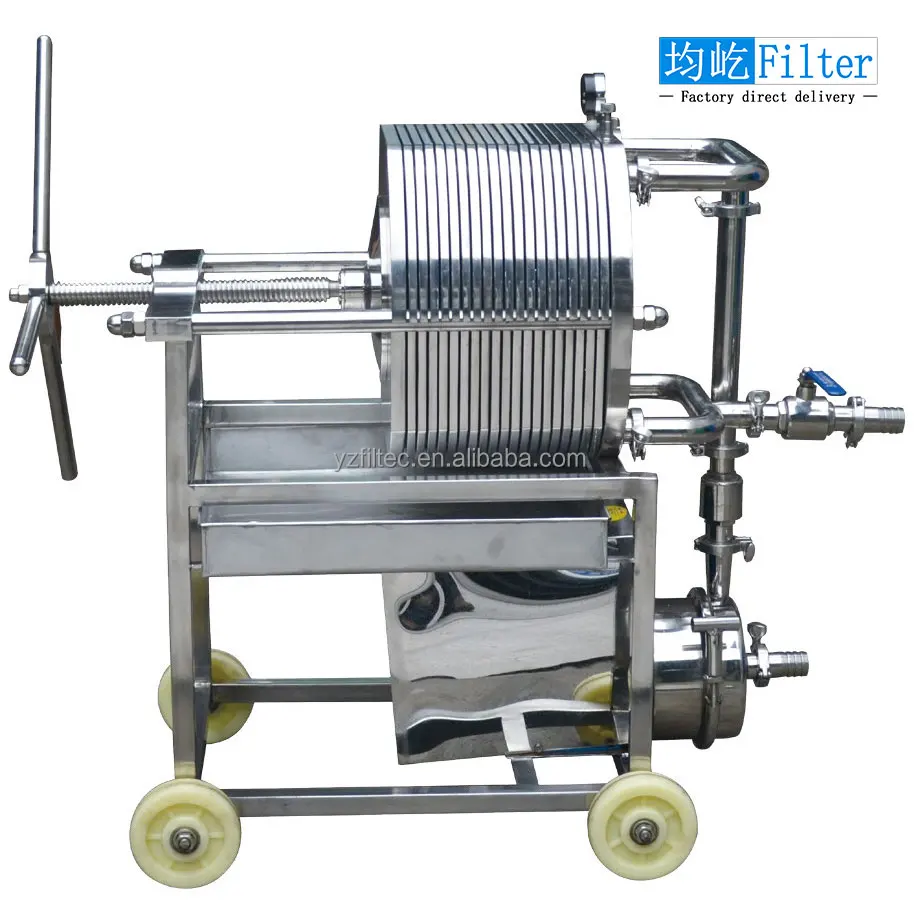

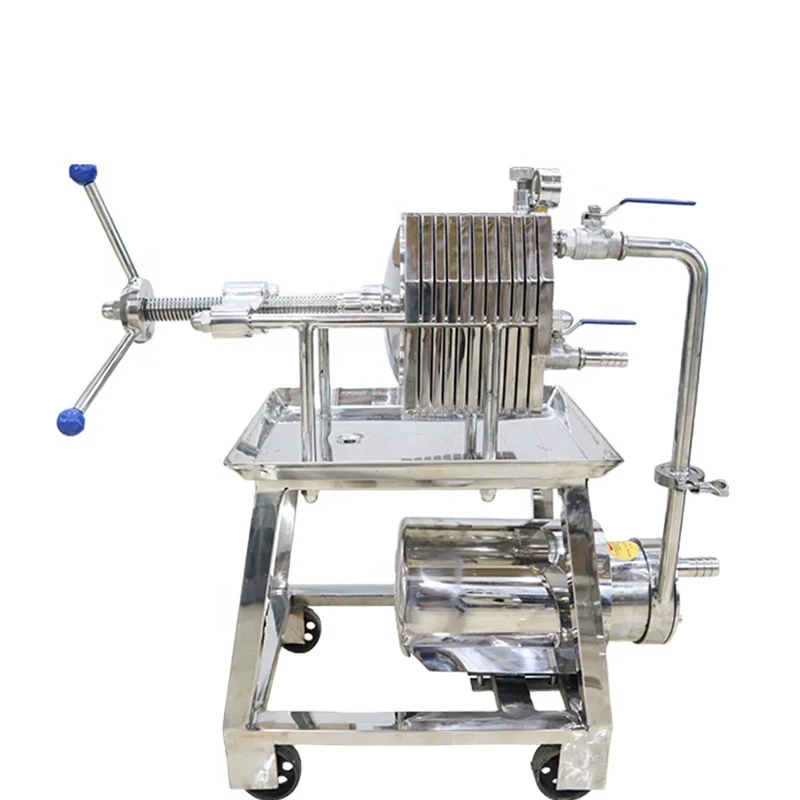

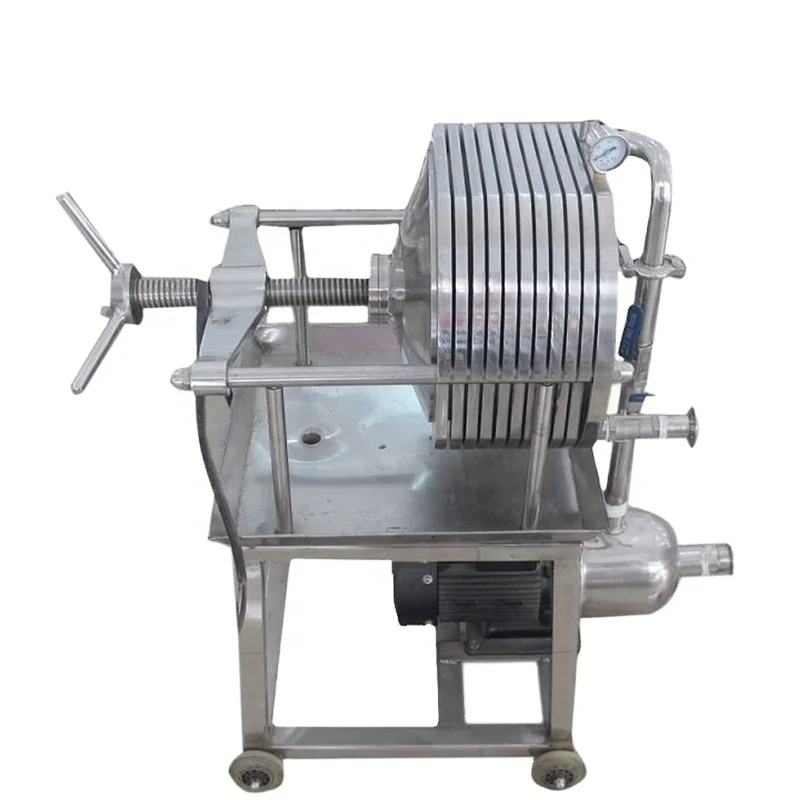

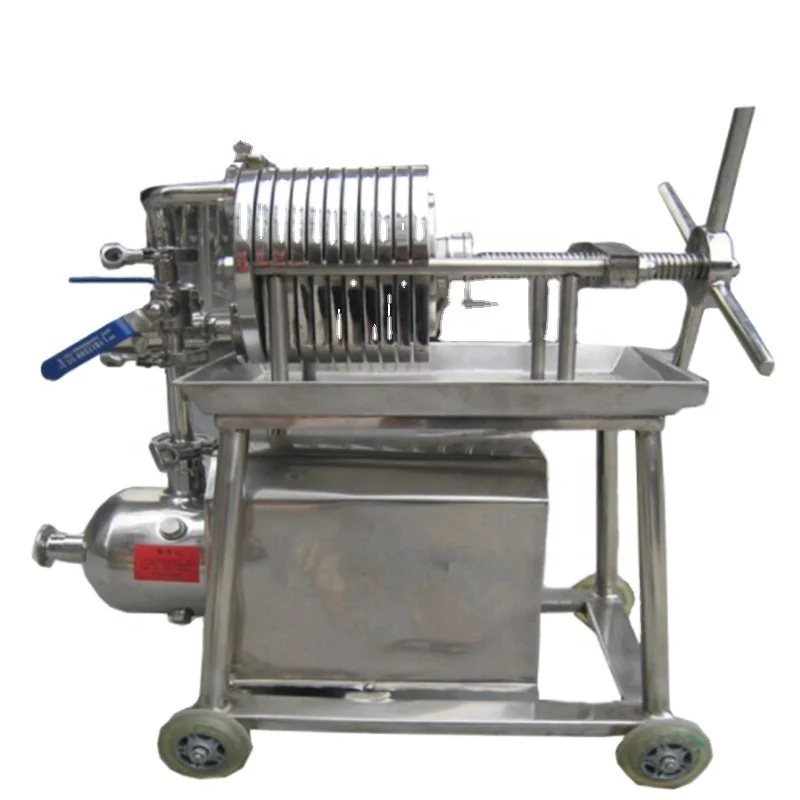

Stainless Steel Multi Layer Plate and Frame Filter
Stainless Steel Plate Frame Multi-layer Filter is a precision liquid filter. The whole mirror of the machine is polished, filtered with filter cloth and filter membrane, added with sealing strip and stainless steel pump. It is especially suitable for solid-liquid separation and liquid filtration in laboratory, fine chemical industry, pharmaceutical chemical industry, traditional
Chinese medicine extraction, food, cosmetics and other industries.

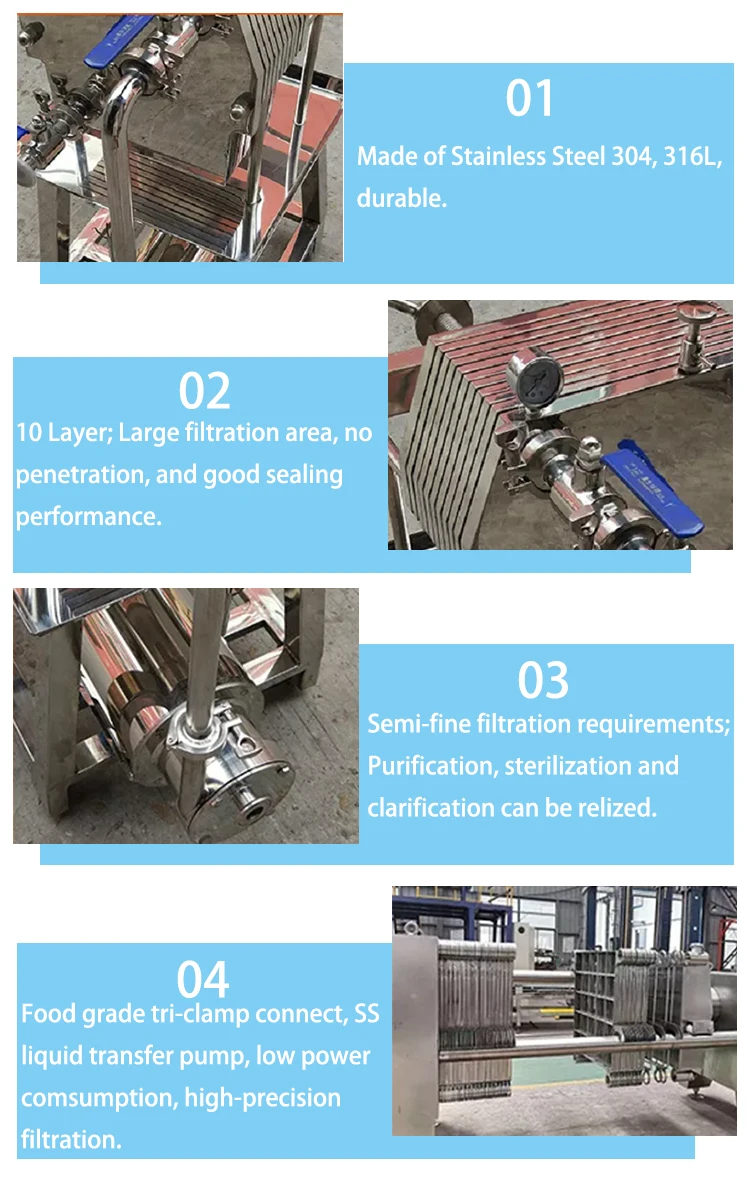

Feature






Specification


Model
Layers
Filtration Area (㎡)
Membrane Pore Size (μm)
Filtration Pressure (Mpa)
Water Flow
(T/h)
Motor Power (Kw)
Boundary Dimension (mm)
Inlet
(mm)
Outlet
(mm)
JYPF-100
10
0.078
0.1-10
0.3
0.8
0.37
600*300*600
19
19
JYPF-150
10
0.17
0.1-10
0.3
1.5
0.37
650*380*650
25
25
JYPF-200
10
0.314
0.1-10
0.3
2.0
0.37
650*400*700
25
25
JYPF-300
10
0.7
0.1-10
0.3
3.0
0.55
700*500*800
32
32
JYPF-400
10
1.25
0.1-10
0.3
5.0
0.75
900*600*1000
38
32
JYPF-400
16
2.0
0.1-10
0.3
8.0
0.75
1000*600*1000
38
38
JYPF-400
20
2.5
0.1-10
0.3
10
1.50
1100*600*1000
50
38
JYPF-400
24
3.0
0.1-10
0.3
12
2.20
1200*600*1000
50
38
JYPF-400
32
4.0
0.1-10
0.3
14
2.20
1320*600*1000
50
38
Note：Above the 20th floor, double inlet and double outlet are used to increase the flow. The horizontal plate frame filter can be processed to 100 layers and adopted hydraulic compression.


Application




Packing And Delivery




Company Profile




FAQ


Q1: Are you filter press manufacturer?
A1: Yes, We are experienced manufacturer of filter press equipment, we can provide you sample test, consult for product model seclect,degign,after service,etc.

Q2: What products you provide?
A2: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press, round filter press, cast iron filter press, stainless steel filter machine, filters,filter plate and filter cloth ,filter element etc.

Q3: How to select the type you needed?
A3: When you contact us, we will ask some basic questions to help you select the product type.such as, what is the usage for the equipment you want to buy, water sources, flowrate, filtration area,working temperature & pressure,etc.

Q4: What is the delivery time?
A4:It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.

Q5: What is the MOQ?
A5: Our MOQ is one set or we will set MOQ for item in the quotation list.

Q6:Do you accept OEM?
Yes, we can provide the OEM services according to your requirement for the products.

Q7:What is your acceptable payment term?
A7:Usually by T/T, 30%-50% deposit payment once PI/Contract confirmed, then the remaining balance will be paid after inspection and before shipment via T/T ;

Q8: Do you support on site installation & commissioning?
A8: Yes,We have professional technician can guide you finish such job.
