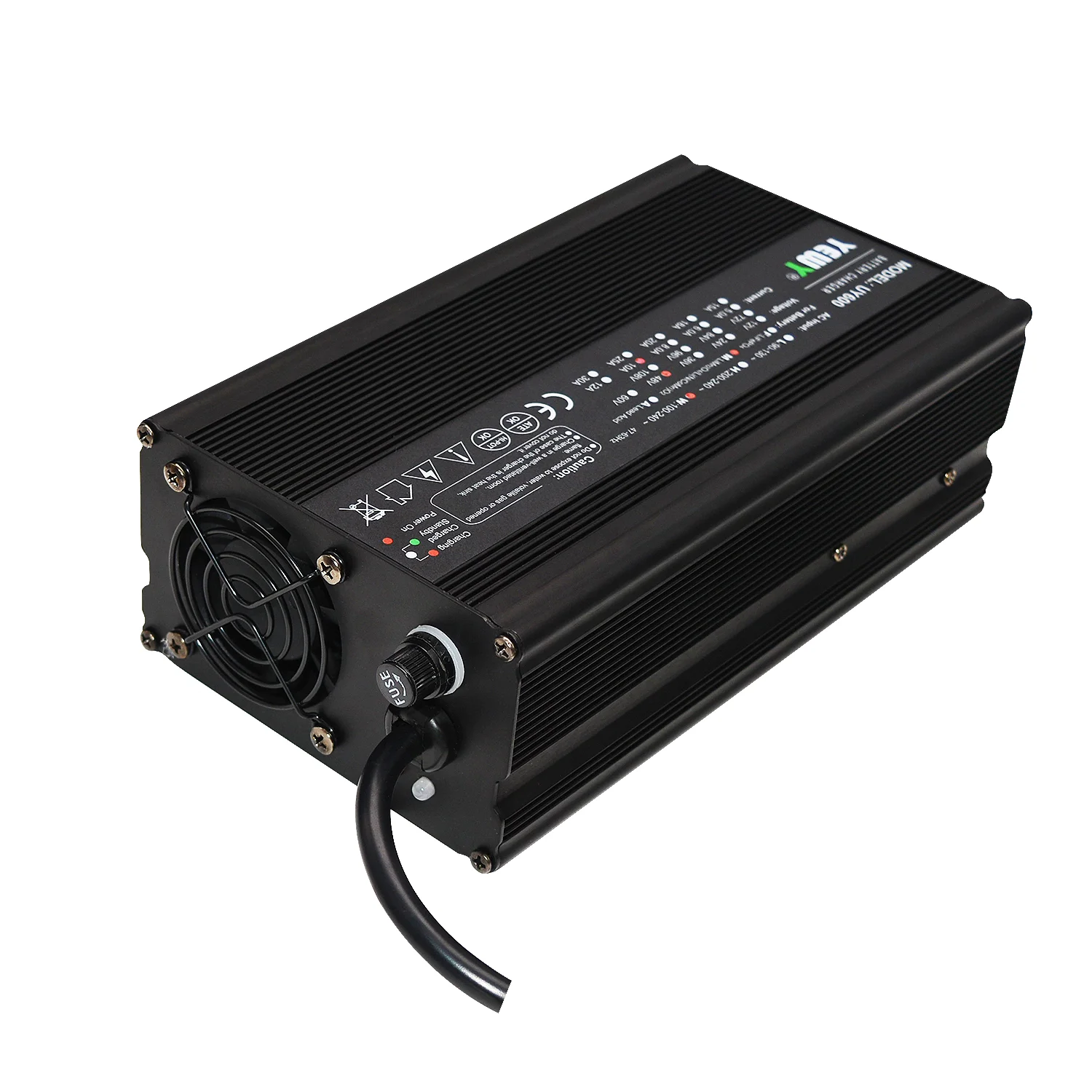

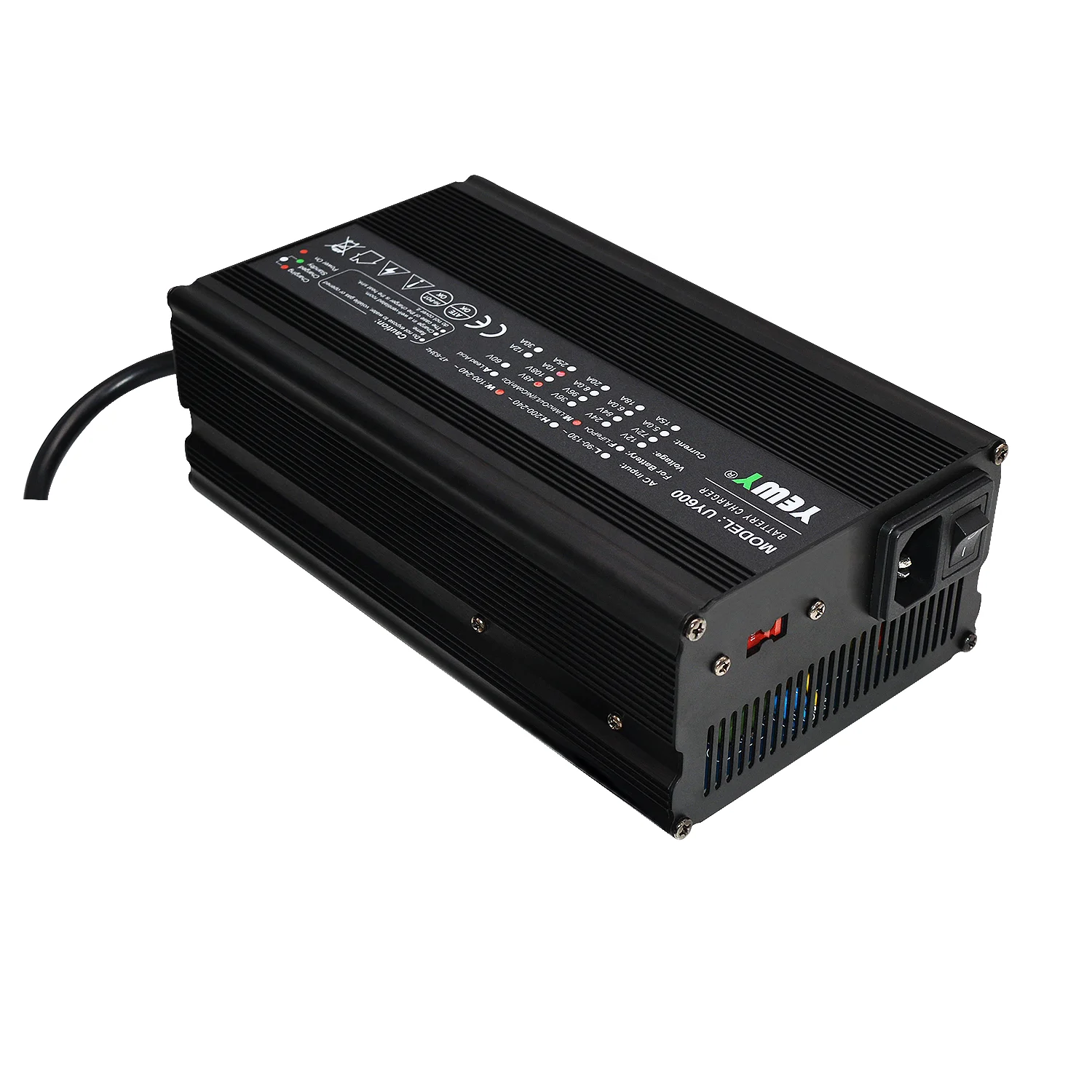

600W E Rick shaw EV Scooter Battery Charger 60V 8amp UNU Scooter Portable Fast Charging Battery Charger
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. Ltd.
Share on (1600804583076):
Product Overview
Description
Guangzhou Yunyang Electronic Technology Co.,Ltd.
Professional Battery Charger Manufacturer
China "National Hi-Tech Enterprise"
Product Details
Charger Model: | UY600 | Max Power: | 600W | ||
Shell: | Aluminium Alloy | Size: | 208*120*70mm | ||
AC Input: | 100-120Vac/200-240Vac/47~63 Hz | Communication: | CAN,RS485 | ||
Max Efficiency: | >=88% | Operating Temperature: | -20 to 40℃ | ||
Storage Temperature: | -40 to +70℃ | Noise: | <=40dB | ||
Cooling: | Intelligent temperature control fan | ||||

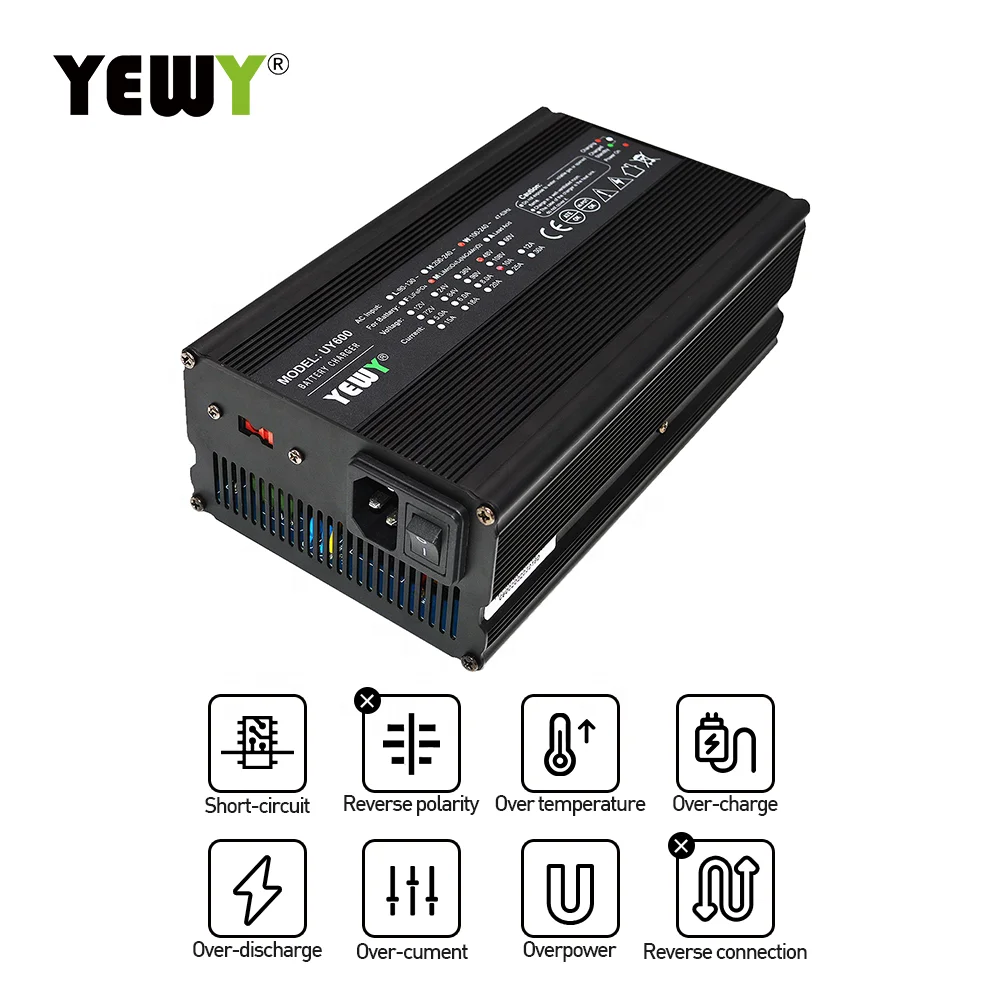

Protection: | 1,Input low-voltage&over-voltage protection. 2,Overheat protection. 3,Output empty-load protection. 4,Output short&reverseprotection. 5,Output over-current&over-voltage protection. | ||||
Battery Charger Features
1.600W
2.Intelligent temperature control fan
3.Circuit topology: Current Half-bridge type
4.Voltage and current display and the charge curve can be set arbitrarily
5.Dual-color LED charging status display
6.MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.
7. Aluminum alloy shell, better heat dissipation, strong, beautiful, reliable
2.Intelligent temperature control fan
3.Circuit topology: Current Half-bridge type
4.Voltage and current display and the charge curve can be set arbitrarily
5.Dual-color LED charging status display
6.MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.
7. Aluminum alloy shell, better heat dissipation, strong, beautiful, reliable
Type | Specification | DC Voltage | Charging Current | Light Turning(A) | ||||||||||
Type | Specification | Li-ion | LiFePo4 | Lead-acid | Lithium | Lead-acid | ||||||||
UY600 | 12V25A | 12.6V/16.8V | 14.6V | 14.7V | 25A | 8% | 25% | |||||||
24V20A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 20A | 8% | 25% | ||||||||
36V12A | 42V/46.2V | 58.42V | 44.1V | 12A | 8% | 25% | ||||||||
48V10A | 50.4V/54.6V/58.8V | 73V | 58.8V | 10A | 8% | 25% | ||||||||
60V8A | 63V/67.2V/71.4V | 87.6V | 73.5V | 8A | 8% | 25% | ||||||||
72V6A | 79.8V/84V | 87.6V | 88.2V | 6A | 8% | 25% | ||||||||
84V5A | 88.2V/92.4V | 102.2V | 102.9V | 5A | 8% | 25% | ||||||||
Remark:We are manufacturer!We can customize the charging profile according to your battery or your requests | ||||||||||||||
Lithium Battery Charger Charging Curve
Charging mode：3 stage
CC mode, CV mode ,Battery Full,
Lead Acid Battery Charger Charging Curve
Charging mode：5 stage
CC mode, CV mode ,Battery Full&Float Charge

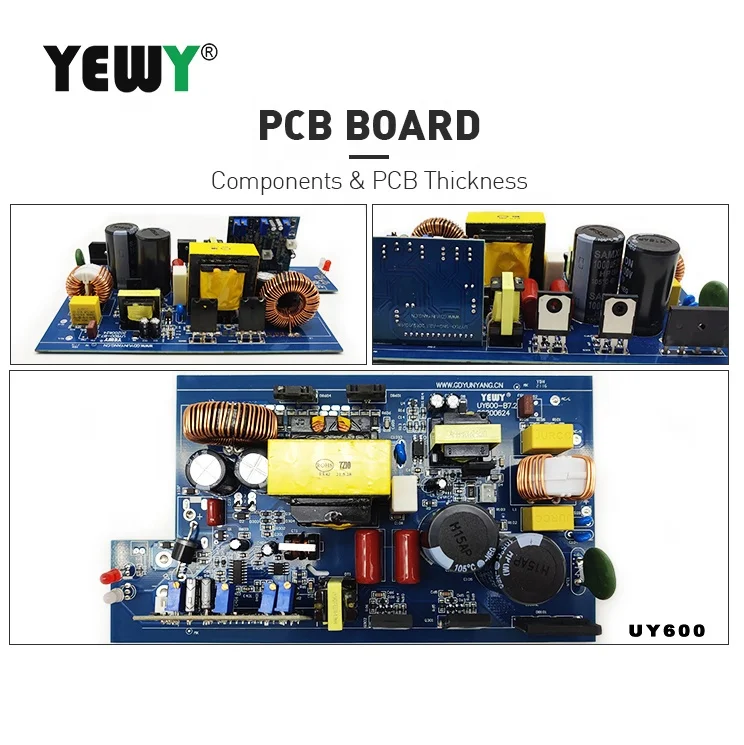

* Our chargers use high-quality components, including a two-sided FR-4 PCB and SAMXON Electrolytic Capacitors for superior durability and optimal performance.
* Every charger comes with a certified input wire and AC power plug, ensuring safety and quality.

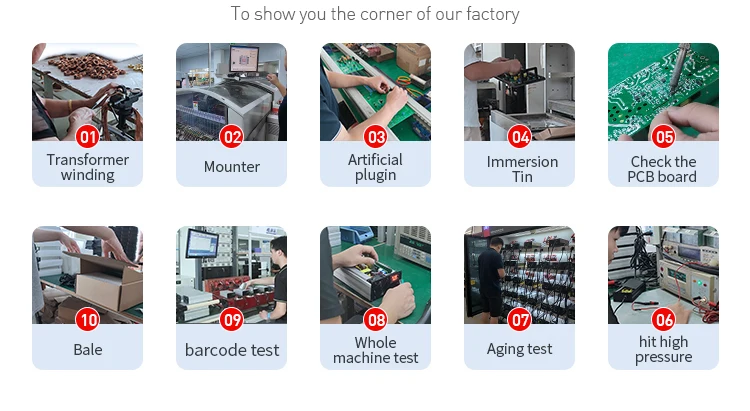

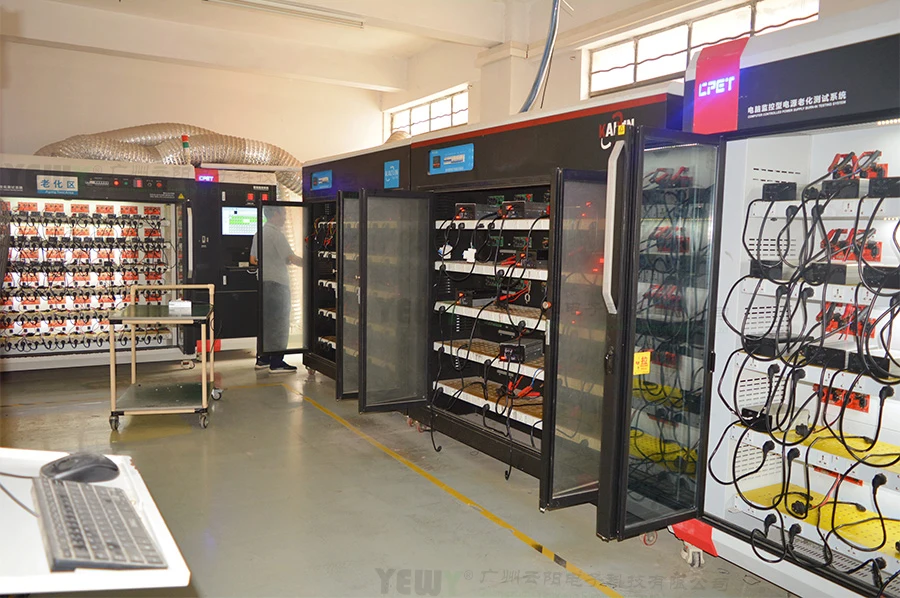

* We rigorously test each charger, including 100% full power aging baking machine tests, to guarantee flawless performance.
* Our chargers are packaged with three-layer B-pit corrugated kraft paper for protection during shipping and a premium unboxing experience.
* Every charger comes with a certified input wire and AC power plug, ensuring safety and quality.
* We rigorously test each charger, including 100% full power aging baking machine tests, to guarantee flawless performance.
* Our chargers are packaged with three-layer B-pit corrugated kraft paper for protection during shipping and a premium unboxing experience.

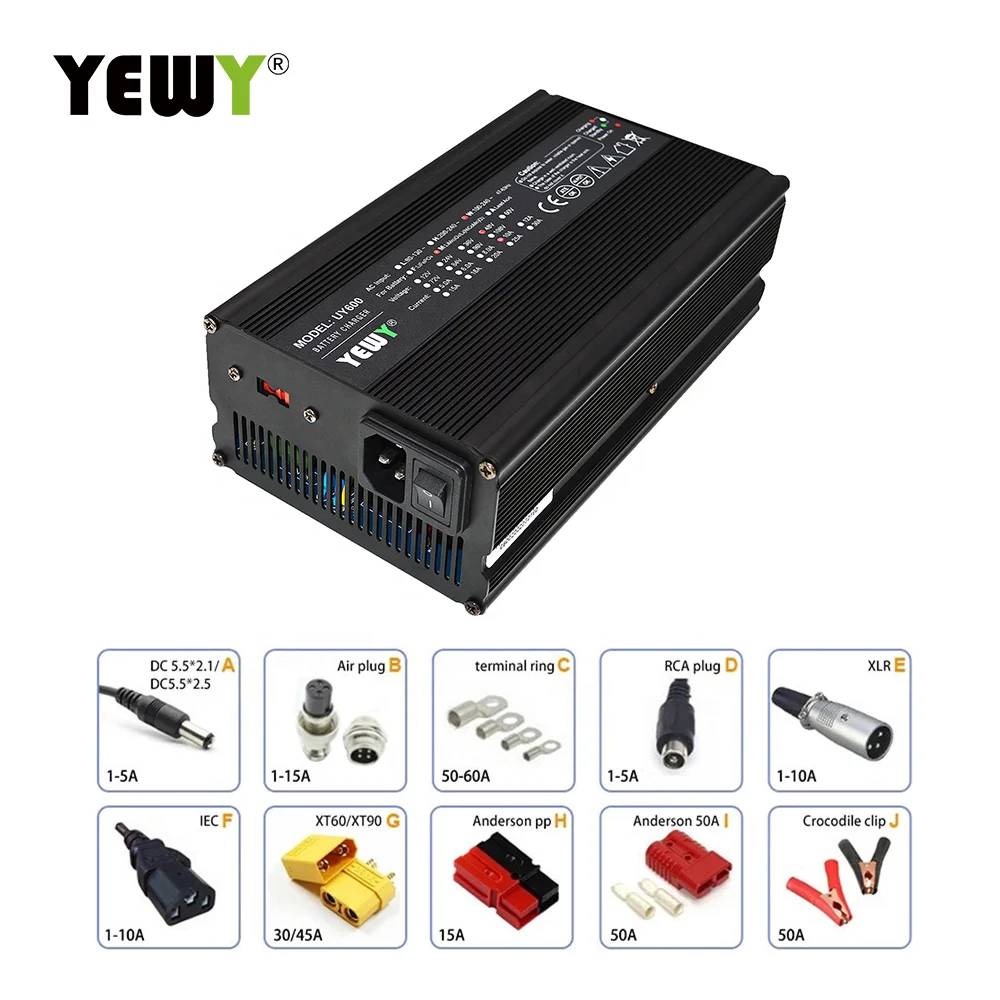

Input&Output Plug
Input Plug from 1 to 10, Output Plug from A to J, choose according to your demand.
If you have any special requirement, please contact us!
If you have any special requirement, please contact us!
YEWY Battery Charger Parameters | ||||||||||||||||
Model | Input 47~63Hz | Power | (voltage & Current) | 24v | 36v | 48v | 60v | 72v | ||||||||
Model | Input 47~63Hz | Power | 12V | 24V | 36V | 48V | 60V | 72V | ||||||||
Umini | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | 1.5A | 1A | ||||||||
UY120 | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | - | - | ||||||||
UY180 | 110/220Vac | 180w | 8A | 6A | 4A | 3A | 2A | 2A | ||||||||
UY240 | 110/220Vac | 240W | 15A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY360 | 110/220Vac | 360W | 18A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600 | 110/220Vac | 600W | 30A | 20A | 12A | 10A | 8A | 6A | ||||||||
UY900 | 110/220Vac | 900W | 40A | 28A | 18A | 15A | 12A | 10A | ||||||||
UY1200 | 110/220Vac | 1200W | 50A | 35A | 25A | 20A | 15A | 12A | ||||||||
UY1500 | 110/220Vac | 1500W | 70A | 45A | 30A | 25A | 20A | 16A | ||||||||
UY2000 | 110/220Vac | 2000W | 100A | 60A | 40A | 30A | 25A | 20A | ||||||||
UY2500 | 110/220Vac | 2500W | 100A | 70A | 60A | 60A | 50A | 23A | ||||||||
UY240LP | 100-240Vac | 240W | 10A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY300LP | 100-240Vac | 300W | 15A | 10A | 7A | 5A | 4A | 3A | ||||||||
UY360L | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY360LP | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600L | 100-240Vac | 600W | 30A | 20A | 12A | 10A | 8A | 6A | ||||||||
UY600S | 100-240Vac | 600W | 25A | 18A | 12A | 10A | 8A | 6A | ||||||||
UY900L | 100-240Vac | 900W | 35A | 30A | 20A | 15A | 12A | 10A | ||||||||
UY1200S | 100-240Vac | 1200W | 50A | 35A | 25A | 20A | 16A | 12A | ||||||||
UY1500S | 100-240Vac | 1500W | 50A | 45A | 30A | 25A | 20A | 16A | ||||||||
L-PFC +LLC charger, Universal, with PFC, the efficiency up to 93%. LP/S-PFC+LLC, Waterproof | ||||||||||||||||
Application Scenario
Our charger ADAPTS to lithium iron phosphate battery, lithium ion battery, lithium polymer battery, lithium manganese acid battery, lead-acid battery, AGM, colloidal battery, silicone battery, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Company Profile
About us
Guangzhou Yunyang Electronic Technology Co., Ltd. is a specialist battery charger manufacturer based in Guangdong, China. We produce battery chargers, waterproof battery chargers with power ratings ranging from 50 watts to 2,500 watts, supporting lithium and lithium lead acid battery chargers. These battery chargers are widely used in electric scooters, electric cars, electric robots, golf carts, electric yachts, surfboards, energy storage batteries, etc. As a manufacturer, we have our own factory and R&D team, experienced engineers and efficient workers, so prices will be more competitive, and we offer pre-sales, after-sales and technical support services. More than 15 years of professional R&D teams and experience provide us with strong technical support to work on the O E M and O D M projects. We sincerely look forward to building a friendly business relationship with you and achieving our win-win goals.
Certifications
IOS 9001:2015,CE,CB,LVD,C-TUV-US,ROHS,FCC,UL,CQC,GS,KC,KCC,RCM
Shipping & Payment
FAQ
Q:How to buy YEWY charger?
Q: What can you buy from us?
A: On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM.
A: First, you should tell us your product requirements.We will recommend appropriate products according to your requirements and quote. After you confirm and the payment, we will immediately arrange production.Always a pre-production sample before mass production. Final Inspection before shipment.
Q: Why choose us?
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE&ROHS.Also have relevant certificates of FCC, CB, LVD and KC & KCC for waterproof series products.
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE&ROHS.Also have relevant certificates of FCC, CB, LVD and KC & KCC for waterproof series products.
Q: What can you buy from us?
A: On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM.
YEWY chargers are widely applied to AGV Carts, electric scooter/ motorcycle, electric tricycle, electric forklifts,golf carts, electric surfboards, electric drone, robots, low-speed electric vehicles, electric vehicles, energy storage batteries and equipment etc.
Q: Can I have a sample order?
A: Yes, we can provide the initial sample, but we need to charge the sample fee.
Q: Can I have a sample order?
A: Yes, we can provide the initial sample, but we need to charge the sample fee.
