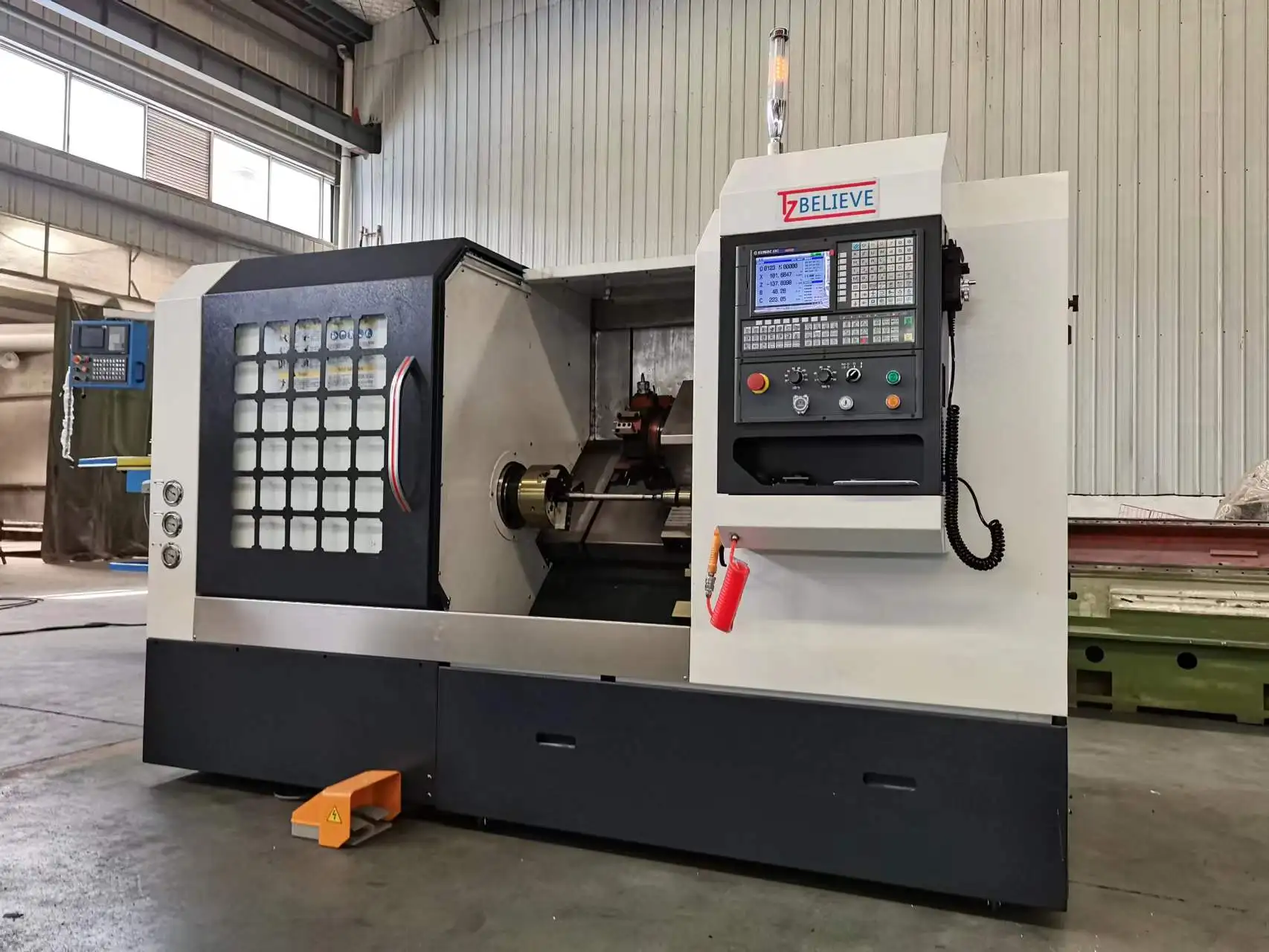

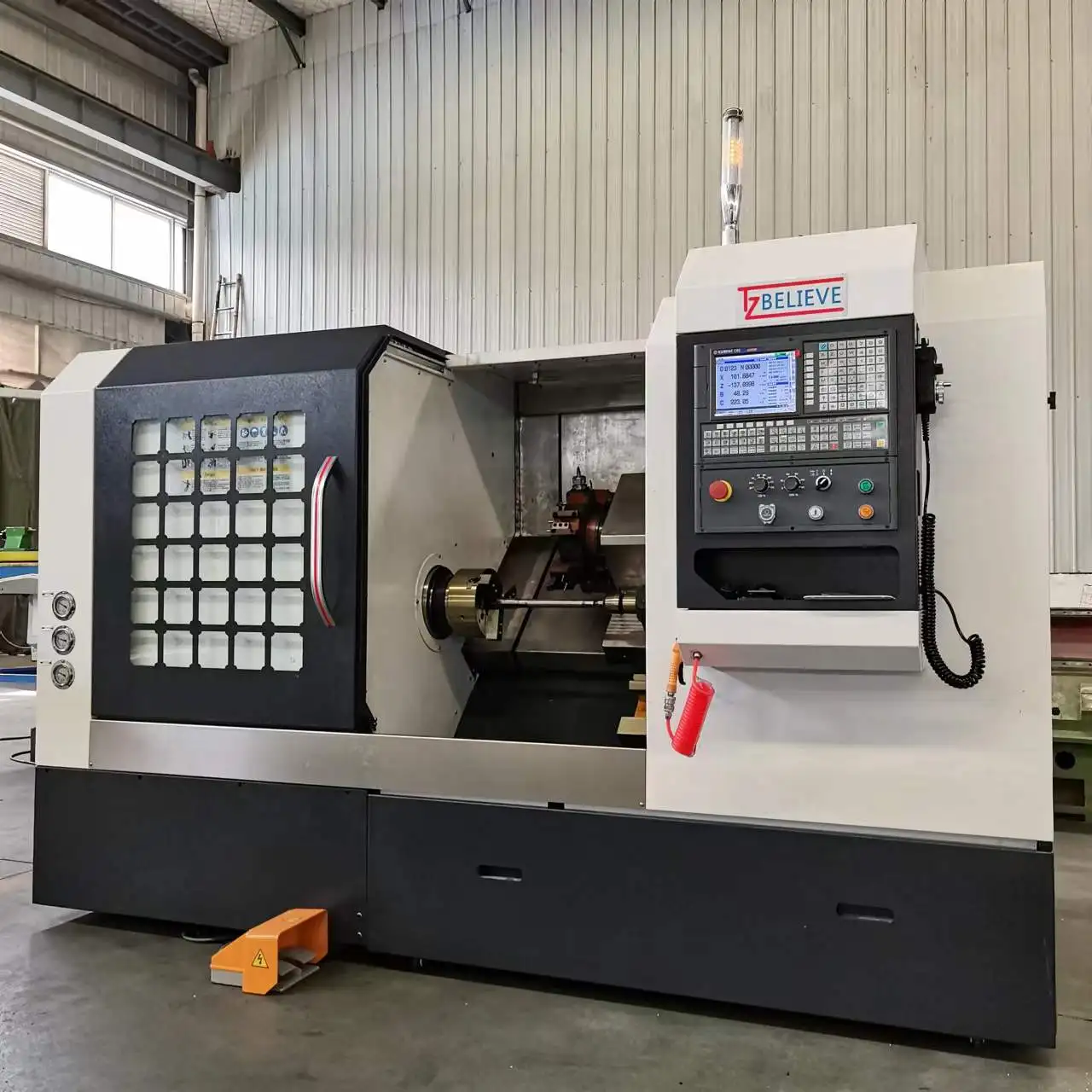

TCKS6340 lathe, oblique body lathe, turning and milling compound cheap latheHigh precision Swiss lathe low price lathe
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600804613881):
Product Overview
Description
Product Description
Guide way type | Taiwan /HIWIN or PMI brand higher accuracy linear guide | |||
Slant bed | degrees | 45 | ||
Max. swing over bed | mm | 400 | ||
Max. swing over cross slide | mm | 300 | ||
Max. processing length | mm | 500 | ||
X/Z axis travel | mm | 260/700 | ||
Spindle nose | A2-5 | |||
Spindle bore | mm | Φ56 | ||
Max. Diameter of the bar | mm | Φ45 | ||
Spindle speed | rpm | 5000 | ||
Work piece clamping type | 8” Hydraulic chuck | |||
Spindle motor power | kw | 5.5 | ||
X/Z axis motor torque | N.m | 7.5/7.5 | ||
X/Z repeat-ability | mm | +/-0.003 | ||
Tool post type | 12 station servo power turret | |||
Hydraulic tail stock sleeve diameter | mm | 70 | ||
Hydraulic tail stock sleeve travel | mm | 80 | ||
Hydraulic tail stock sleeve taper | MT4# | |||
Hydraulic tail stock travel | mm | 200 | ||
X/Z ball screw specification | 3210/3210 | |||
Machine dimension (L*W*H) | mm | 2500*1300*1710 | ||
N.W. | kg | 2600 |
Machine provides free spare parts
1 | Foundation parallels | 4 pcs | ||
2 | Foundation nuts | 4 pcs | ||
3 | Foundation bolts | 4 pcs | ||
4 | Screw driver | 1piece | + | |
5 | Screw driver | 1piece | - | |
6 | Socket head wrench | 1piece | 4 mm | |
7 | Socket head wrench | 1piece | 10 mm | |
8 | Socket head wrench | 1piece | 12 mm | |
9 | Solid wrench | 1piece | 14-17 mm |
warrant
1.12 months.
2. Multiple engineers can provide 24-hour technical support online.
3. Parts damaged due to non manual reasons shall be provided free of charge during the warranty period.
4. Training in our factory is free of charge.
5. Training can also be conducted at the customer's factory.
2. Multiple engineers can provide 24-hour technical support online.
3. Parts damaged due to non manual reasons shall be provided free of charge during the warranty period.
4. Training in our factory is free of charge.
5. Training can also be conducted at the customer's factory.
