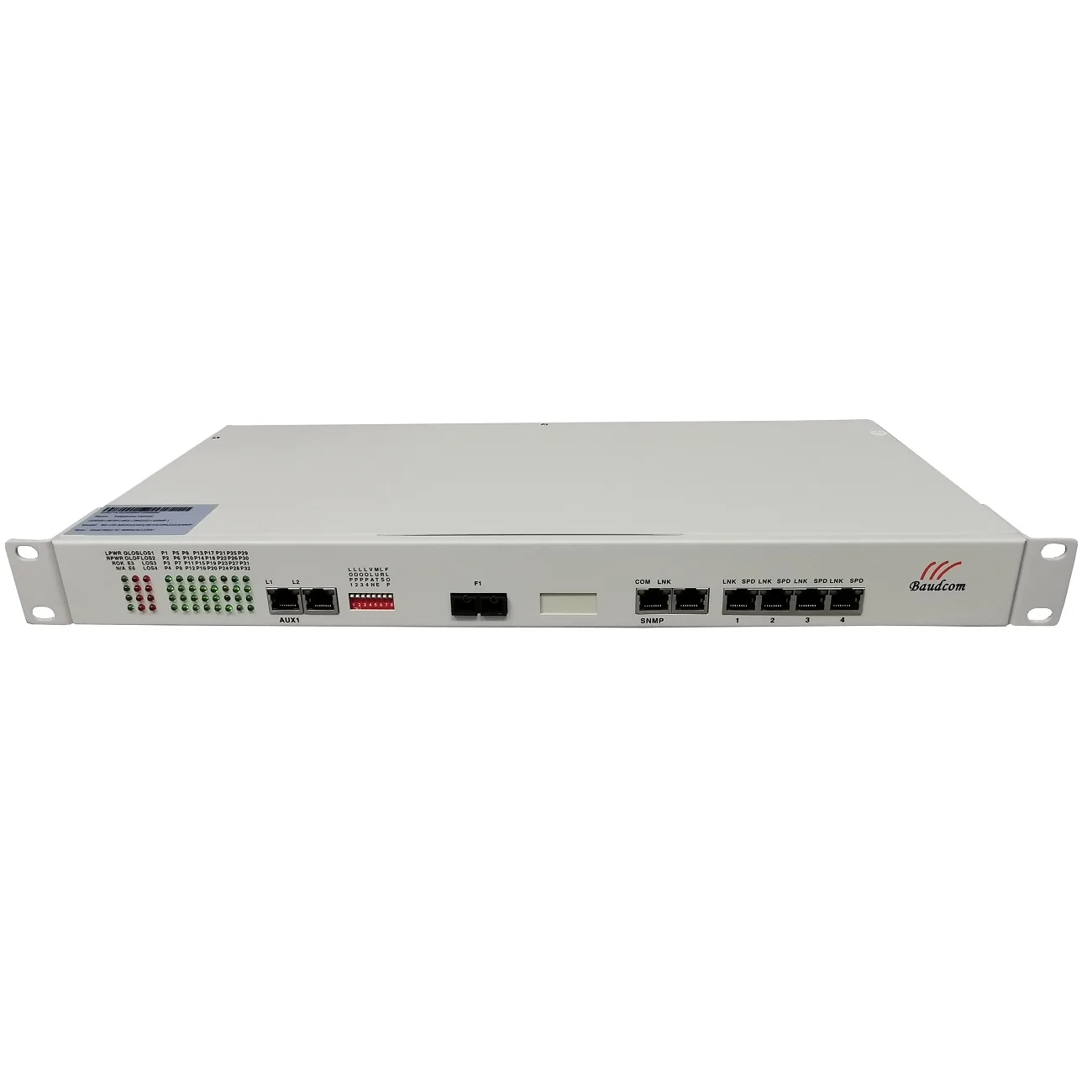

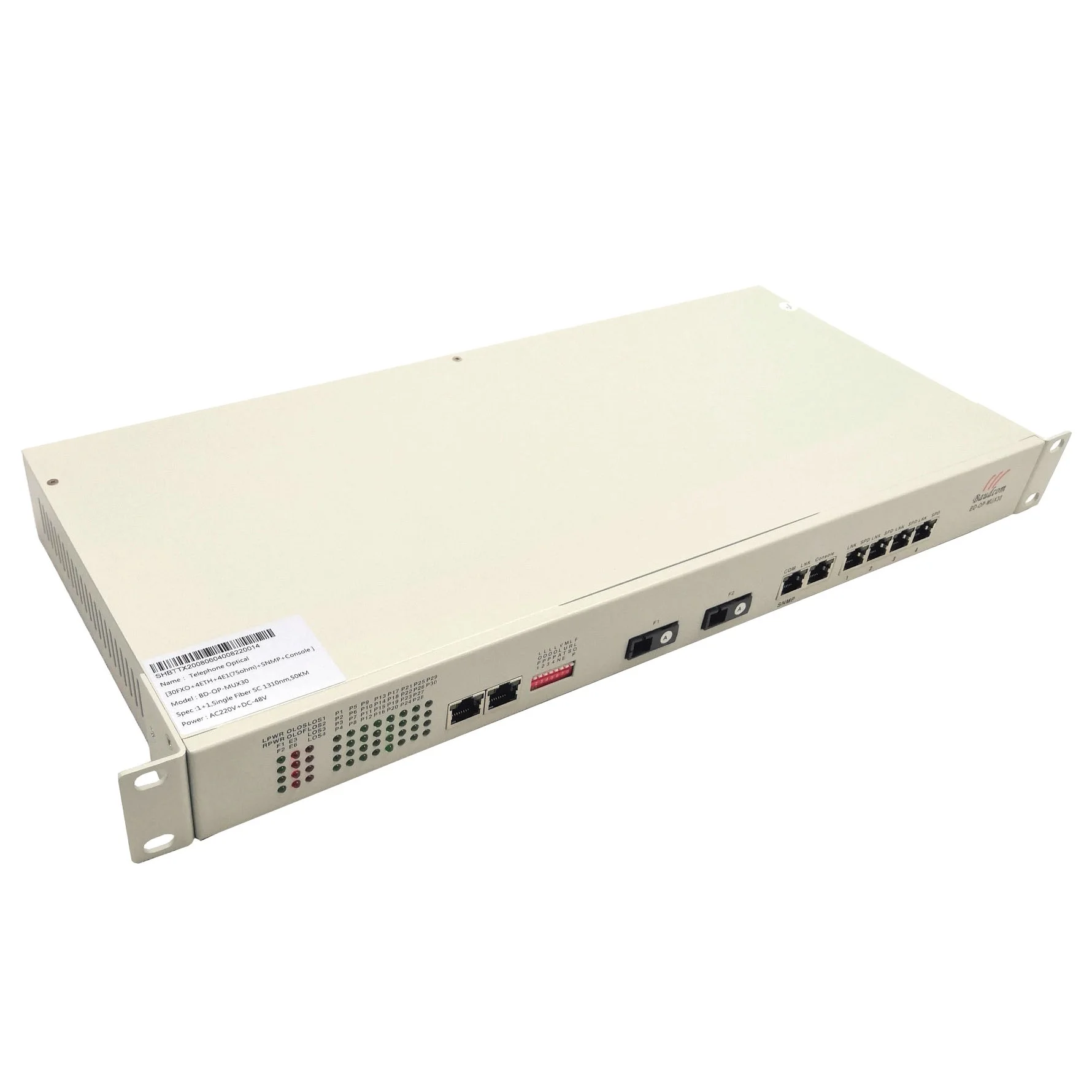

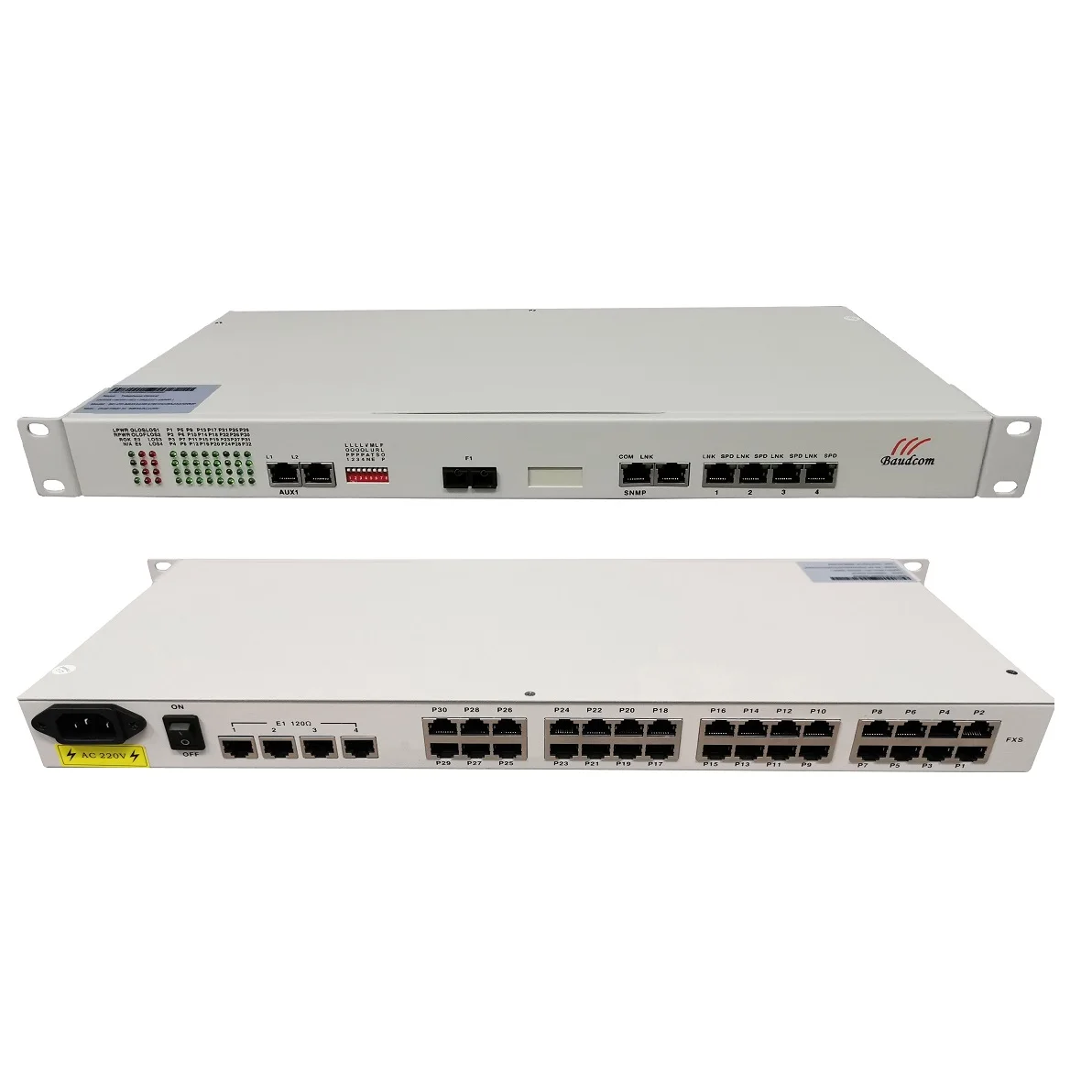

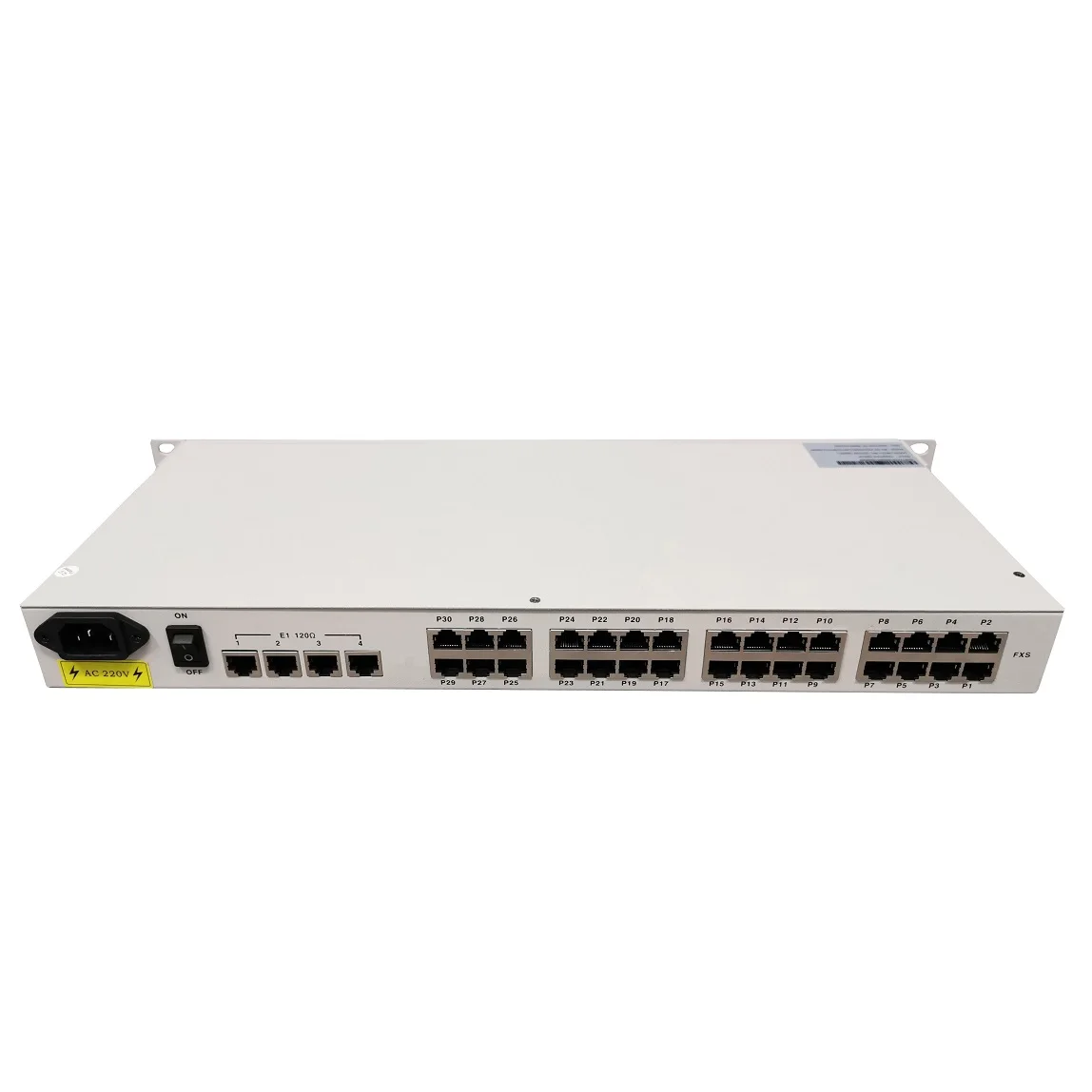

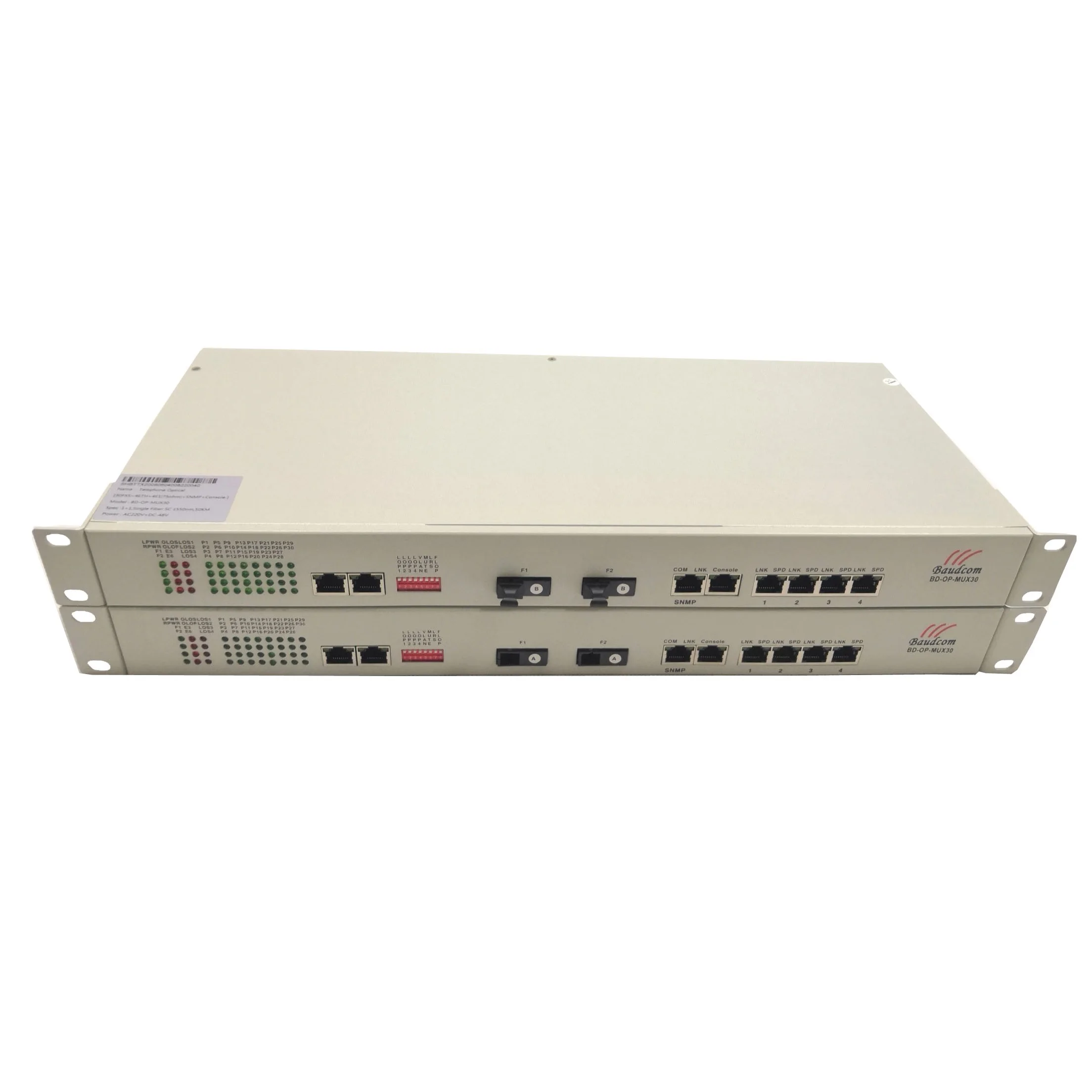

30 channel POTS(FXO/FXS) Voice over Fiber Multiplexer Voice over Fiber Converter with Ethernet and E1 Ports

   The 30 Channels Voice fiber multiplexer provide a method of multiplexing up to 30 analog (POTS) channels over a single pair of multimode or single mode fibers. The voice fiber multiplexer solves the problem of limited available fiber, reduces equipment space and lowers overall equipment costs.
    In addition to voice(POTS), the voice multiplexer also can be with 4x10/100 Base-T Ethernet ports and 4xRS232 ports and 4xE1 ports. All ports operate simultaneously over the fiber optic cable, and may be used with leased lines to build up private networks and private telephone networks.
     Its merits include complete warning function, high integration, low consumption,stable performance and convenient usage.
     The 30voice(FXS/FXO) phone over fiber multiplexer can be managed by SNMP management, user can monitor kinds of devices' operation status easily.

• provides 1~4 channel E1 G.703 for option;


• provides 1~4 channel (liner) Ethernet for option;


• provides 1~30 channel POTS( FXO/ FXS), 2/4 wire E&M for option;


• provides 1~4 channel RS232, rate supports 300-15200 bps for option;


• Ethernet port support 10/100M or 10/100/1000M, full/half duplex auto-adaptable and supports VLAN;


• Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);


• 1~30 channel voice connection, supports calling indication;


• Configuration:  E&M to Fiber convertor point to point;


• Voice port supports O port and S port, O port connects switch and S port connects user’s phone;


• Optical interface supports SC/FC interface and supports single fiber interface

1.How can I get sample ?
You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.

4.How about the shipment?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.

If big quantity we will ship by Ocean transportation, it takes one month to arrive.

if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.


Packaging & Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.
