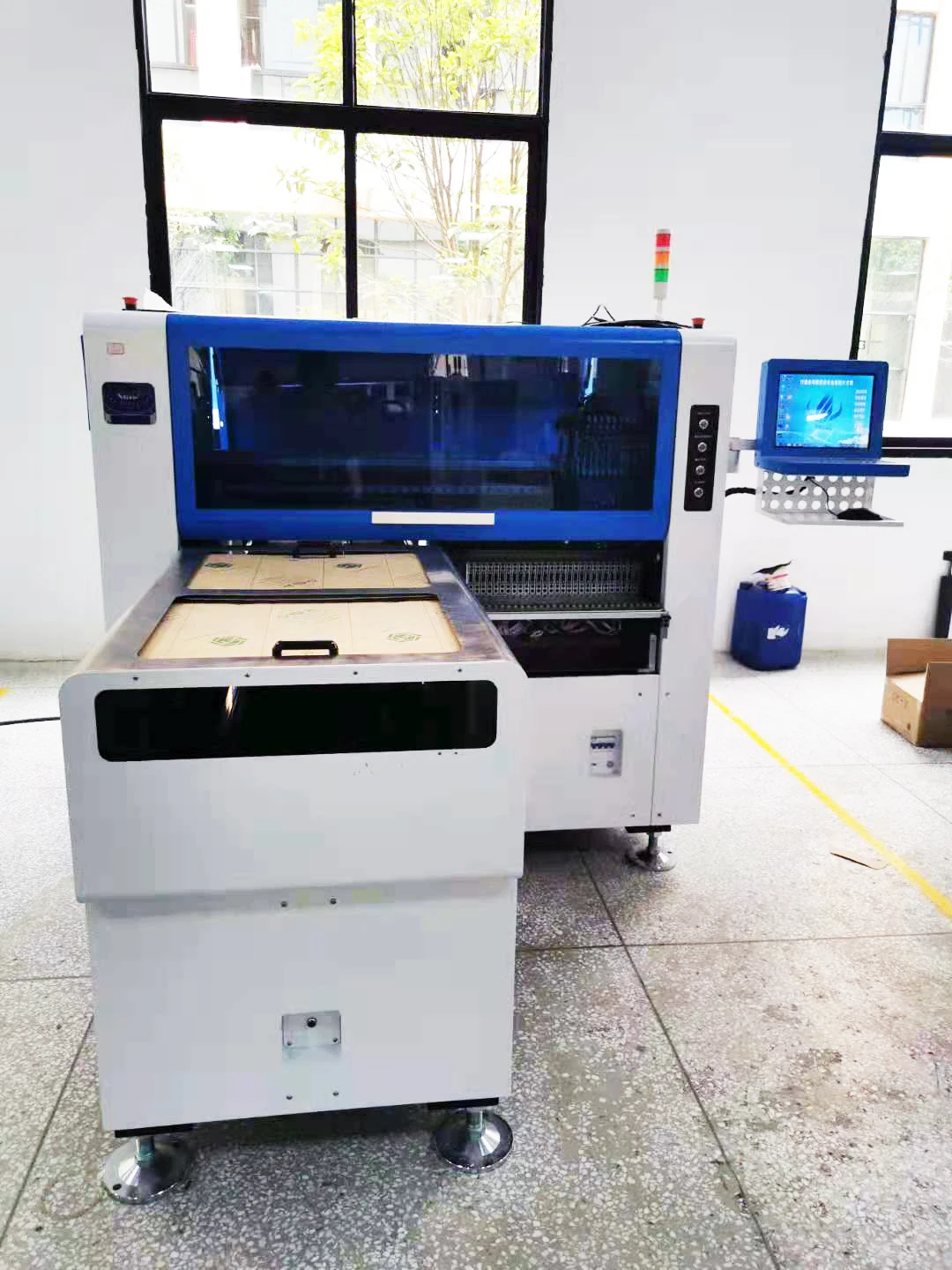

ETON 12 heads picking machine led assembly production line multi-function pick and place machine


Product Description


Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: power driver, electric board, lens, linear bulb, household application etc.




Product Paramenters


Length* Width* Height
2550mm*1650mm*1550mm
Total weight
1700kg
PCB Size
Max:1200*500mm Min:100*100mm
PCB Thickness
0.5-5mm
PCB Clamping
Adjustable pressure pneumatic
Display
Touch screen monitor
No. of camera
2 sets of imported camera
Vision for the flight identification, mark correction
Mounting speed
45000CPH
Components
LED, capacitors, resistors, IC, shaped components, etc.
No. of feeders station
28PCS single module
No. of nozzles
12PCS single module
XYZ Axis drive way
High-end magnetic linear motor + servo motor
Feeding way
Electric feeder with double motor


Advantage of machine


Low failure rate
The feeding method adopts dual-motor electronic feeder, independent control is more precise.
intelligent
Automatic recognition of compensation optimization, and non-stop refueling function.
Wide application
Mounting technology is group picking and splitting, splitting and splitting, which is suitable for the mounting of a variety of
products, such as: flexible light strips, panel lights, lenses, display screens, bulbs, tubes, etc.


Application

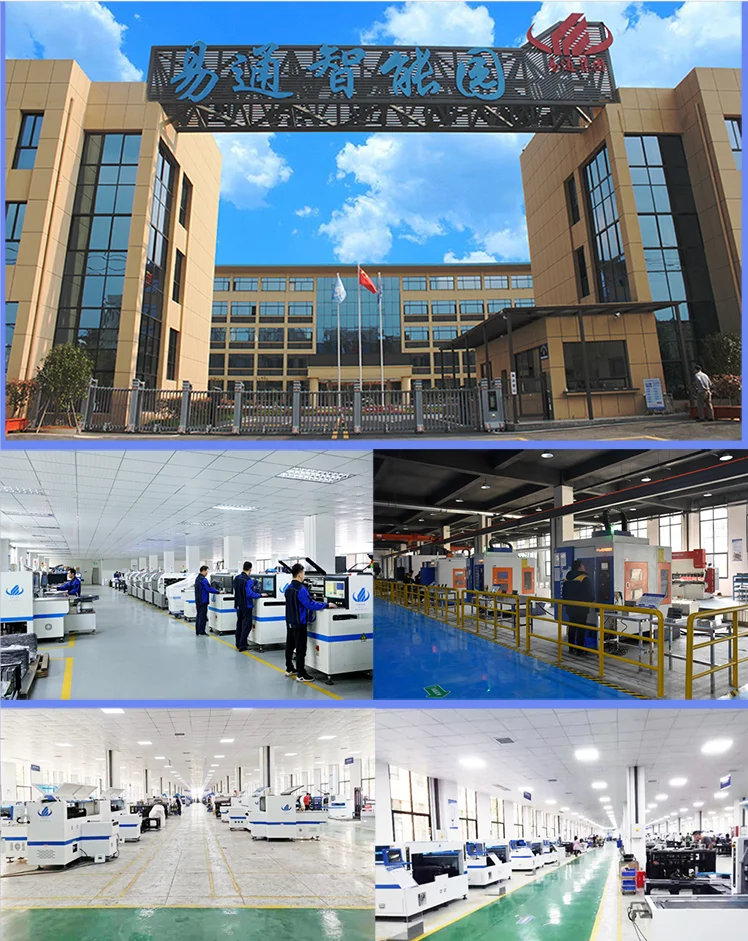

Company Profile


Since its establishment in 2011 with Shenzhen, China, ETON is a technology enterprise dedicated to the development, production and sales of SMT high-speed placement machines. In 2020, ETON Jiangxi Industrial Park will be completed, equipped with an advanced processing and manufacturing center, and the production process will be further standardized and streamlined. The products are sold to more than 20 countries and regions including South Korea, India, Vietnam, Turkey, Egypt, Tunisia, etc.












Exhibition


In order to promote the company’s products efficiently, increase visibility, recognize and understand related industry knowledge, and obtain certain customer resources, our company will participate in a large number of domestic and foreign exhibitions every year, such as Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Delhi Exhibition in India, and Turkey Exhibition. , Pakistan Exhibition, Egypt exhibition, Thailand exhibition, etc.


Packing & Delivery










FAQ


1.Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
2.What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
3.Is your software interface in English?
English interface and Chinese interface are both available.
4.How is the training?
After purchasing our machine, first we will send you the installation and operation video, and then we will arrange engineers to go to your factory for installation and training, or you can arrange your engineers to study and operate in our factory.
