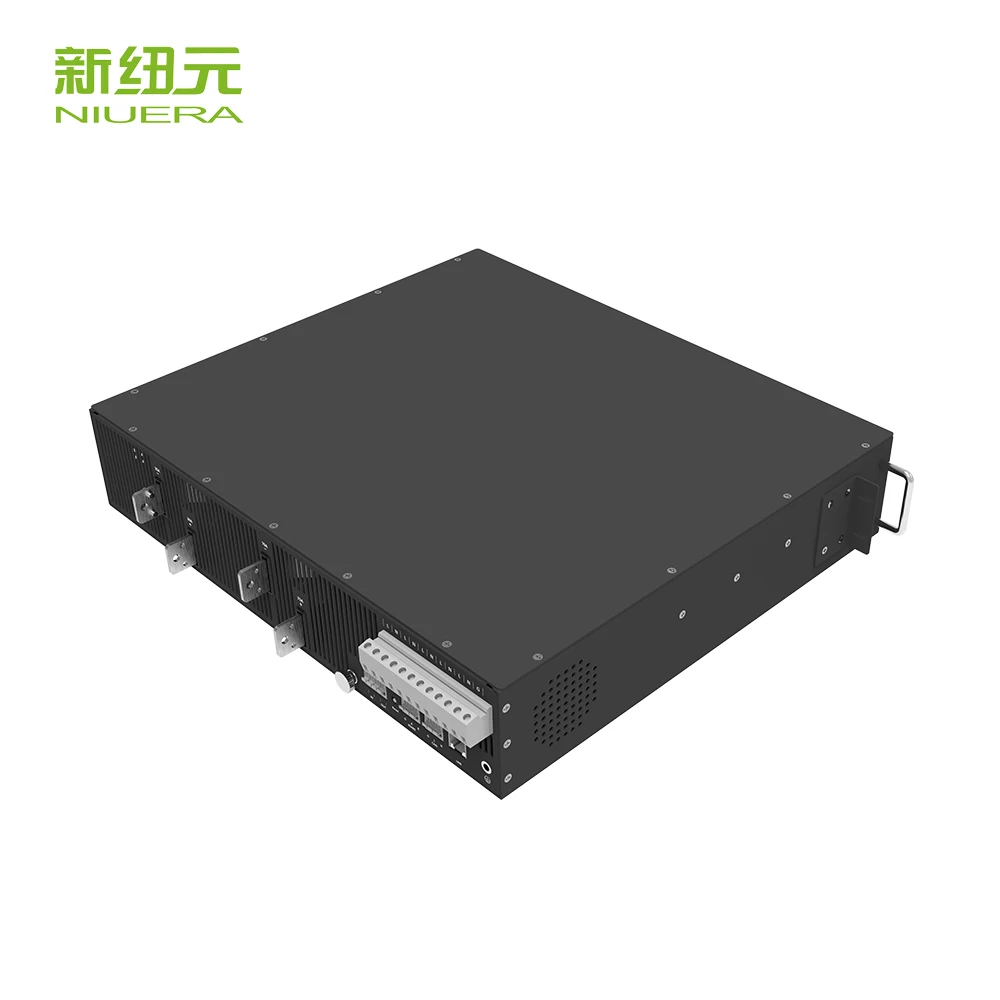

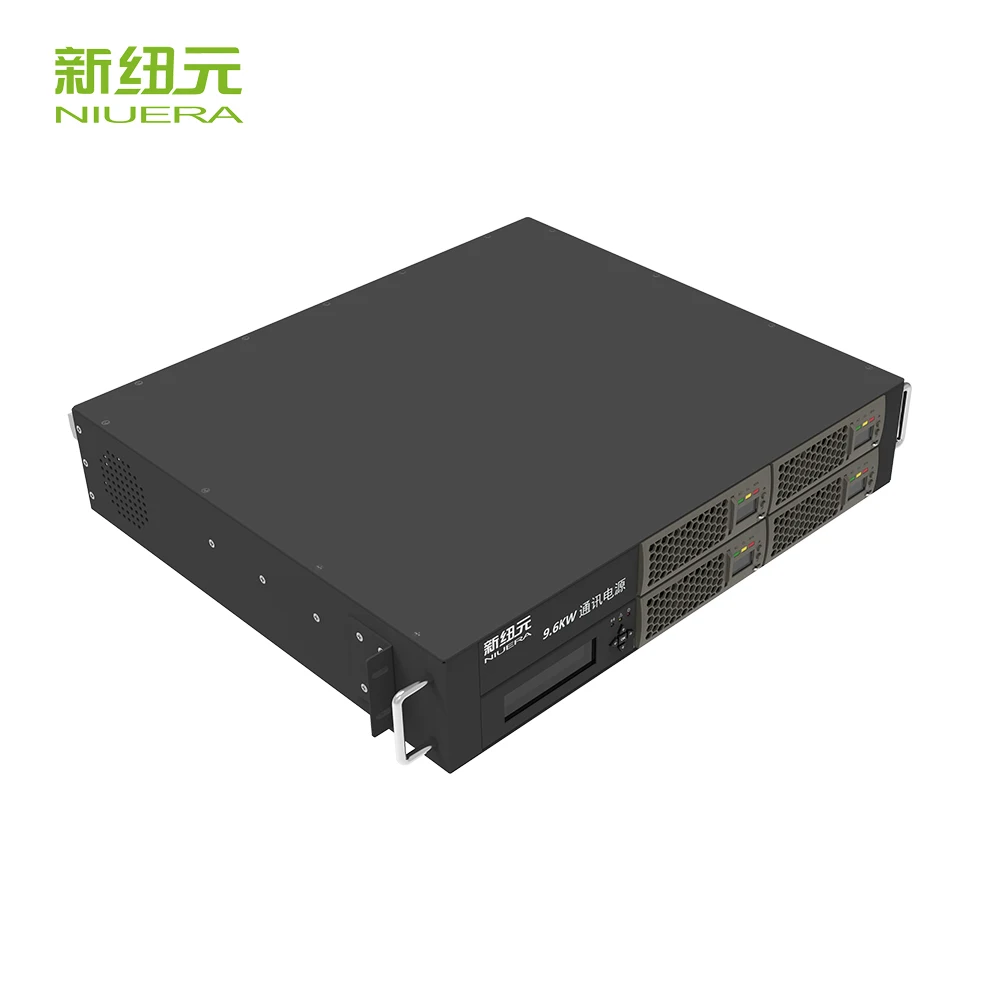

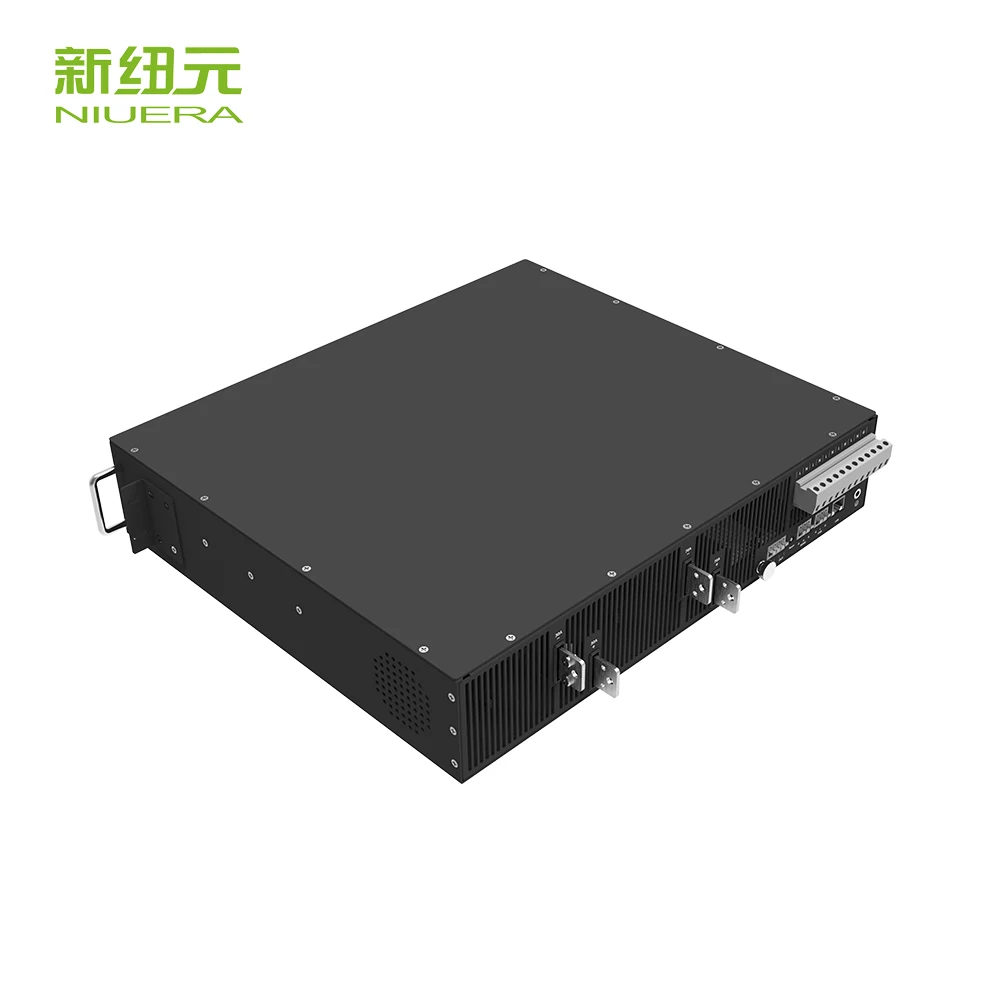

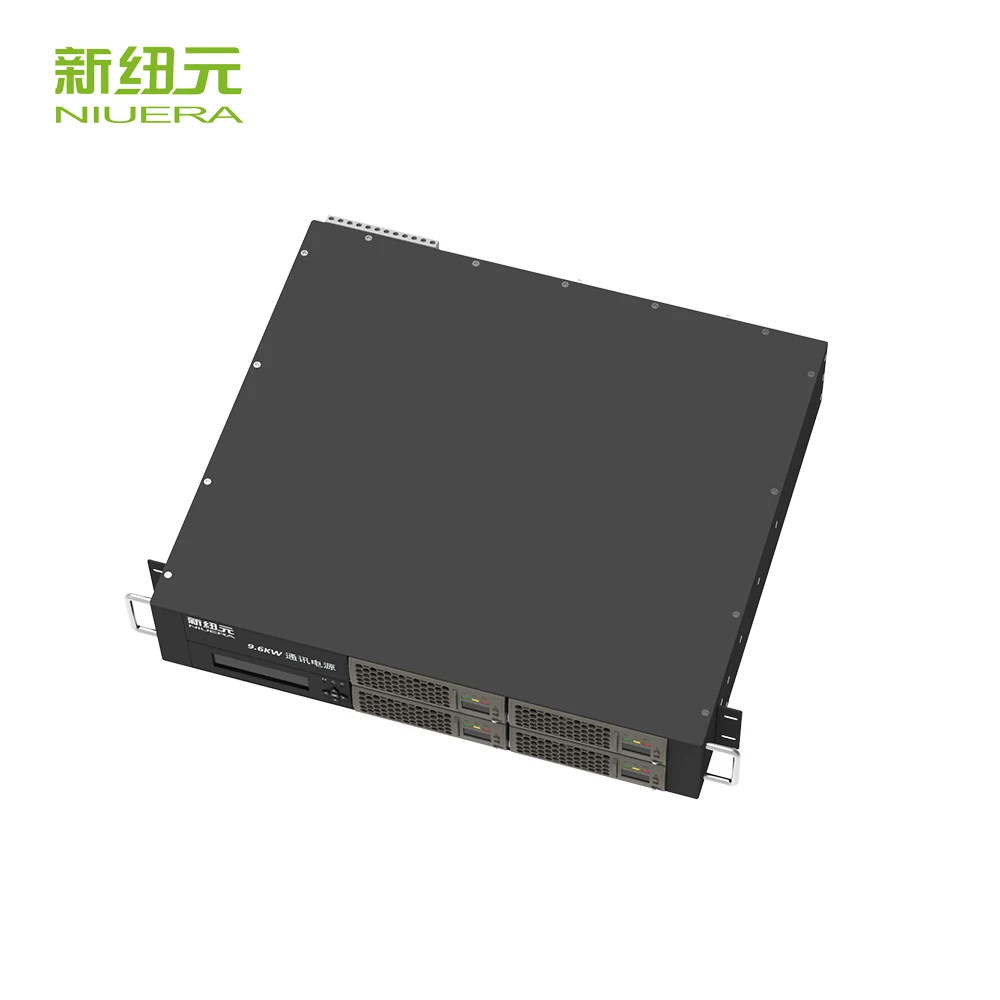

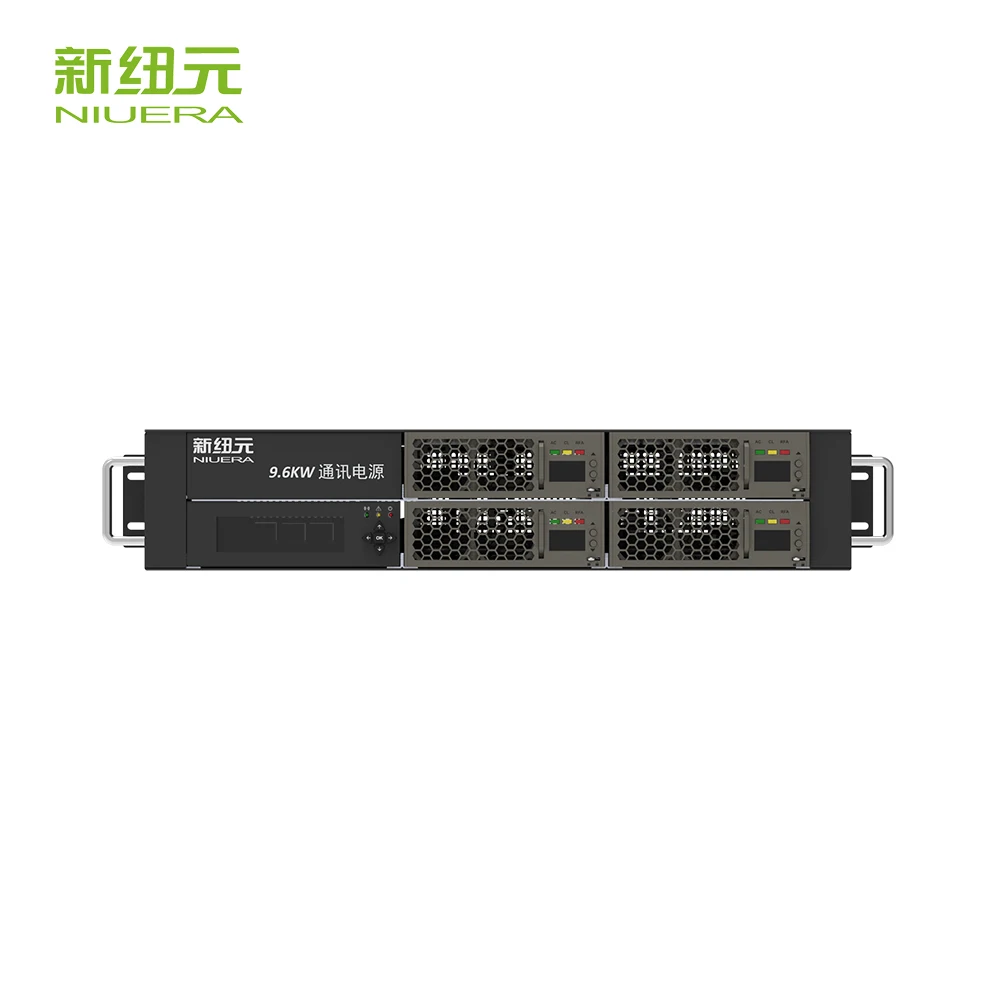

Easy to Maintain and Reliable 9.6kw Comm Modern Power Supply Communication Rectifier Integrated System DC Power System
- Category: >>>
- Supplier: Suzhou Niuera Energy Co. Ltd.
Share on (1600805233643):
Product Overview
Description
Product Description

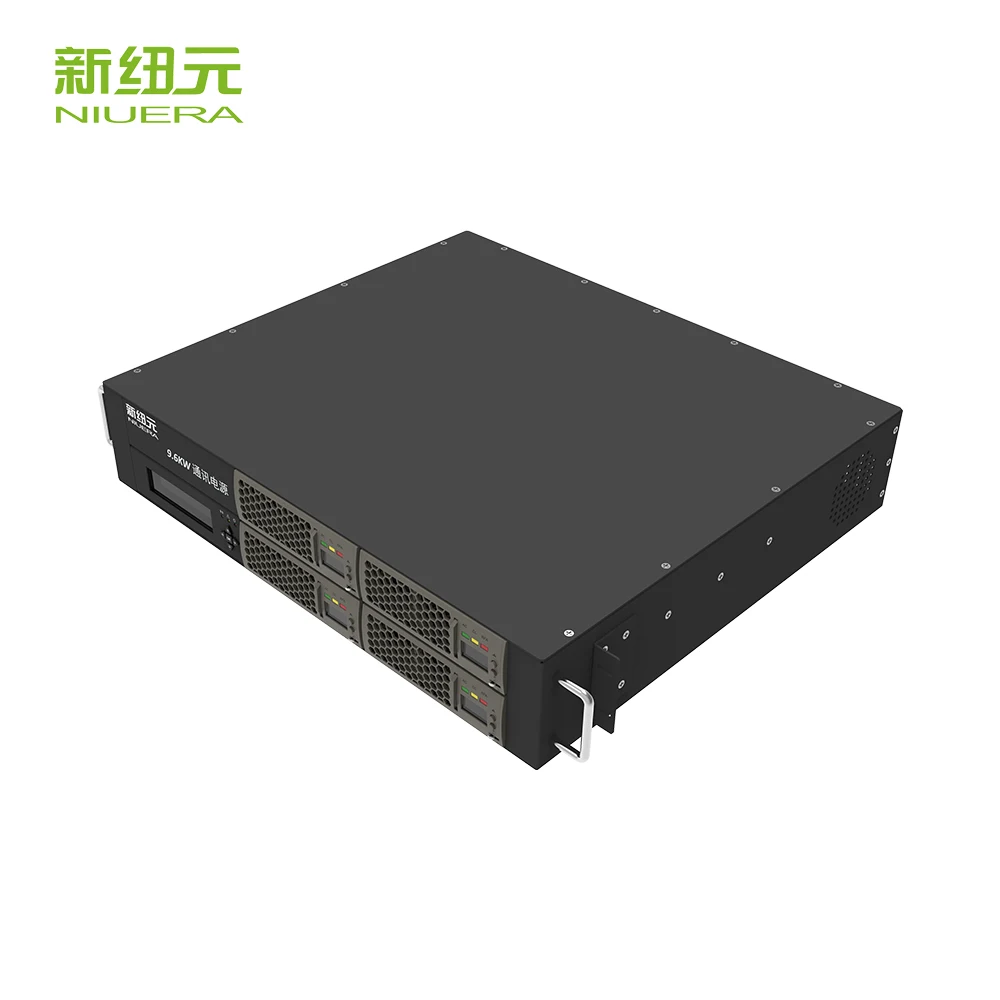

The Communication Rectifier Integrated System is a compact power supply system that contains a monitoring unit, 4 communication rectifier modules. It can accommodate up to 5 communication rectifier modules. The resonant topology and high switching frequency switch mode technology are used to obtain high reliability with minimal size and weight. The system can accommodate large variations in input voltage (176-264VAC) and draws sinusoidal current through a soft-start power supply. It is suitable for applications requiring scalable, easy-to-maintain and reliable power supply with a small space footprint.
Product Features
1. The resonant topology adopted by the product enables the module efficiency to be positioned as a leader in the industry and helps to reduce the product size of the rectifier.
2. The product adopts pure digital control and has excellent monitoring and regulation characteristics.
3. Applicable to highly reliable, long life, trouble-free DC power system.
4. The overall product heat dissipation is in the form of a chassis integrated heatsink, which provides the most suitable working environment for the overall module in the form of active heat dissipation, and has no limitation in the scalability of the required system solution.
5. True plug-and-play connection system: shortens installation time and helps reduce costs.
6. Product meets CE certification, UL certification and NEBS certification for worldwide
installation.
2. The product adopts pure digital control and has excellent monitoring and regulation characteristics.
3. Applicable to highly reliable, long life, trouble-free DC power system.
4. The overall product heat dissipation is in the form of a chassis integrated heatsink, which provides the most suitable working environment for the overall module in the form of active heat dissipation, and has no limitation in the scalability of the required system solution.
5. True plug-and-play connection system: shortens installation time and helps reduce costs.
6. Product meets CE certification, UL certification and NEBS certification for worldwide
installation.
Product Parameters
Complete machine model | Input Voltage | Rated output voltage | Full power current | Maximum output power | Power Factor |
XNY-C02 | 220Vac/240Vdc | 48Vdc | 0-200A | 9600W | 0.97 |
Remarks:
①The above test results are obtained under 100% load, 220Vac test conditions;
②4800W rated output for the host, 4800W rated output for the backup
①The above test results are obtained under 100% load, 220Vac test conditions;
②4800W rated output for the host, 4800W rated output for the backup
