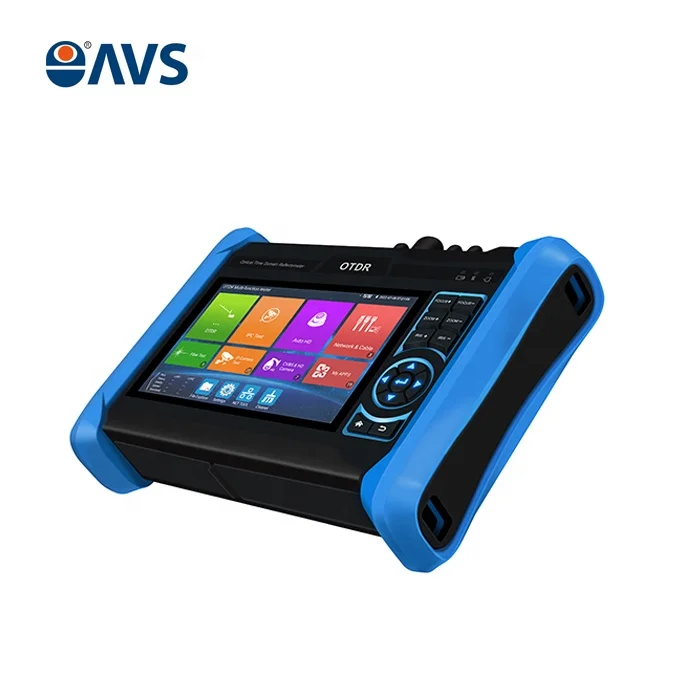

MT 6800 New Multifunction OTDR and CCTV Tester Pro 5.4 Inch IPS Touch Screen Portable CCTV Camera Tester Monitor
- Category: >>>
- Supplier: Shenzhen Avs Technology Co. Ltd.
Share on (1600805560640):
Product Overview
Description

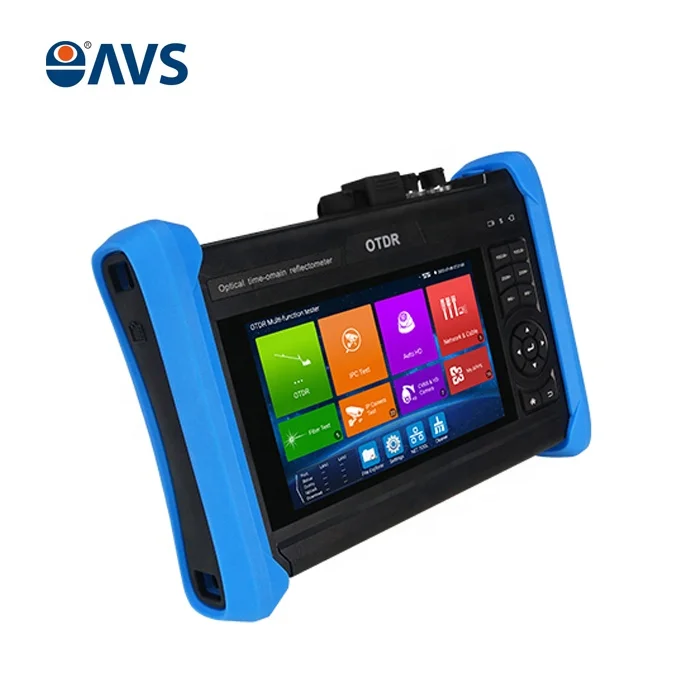

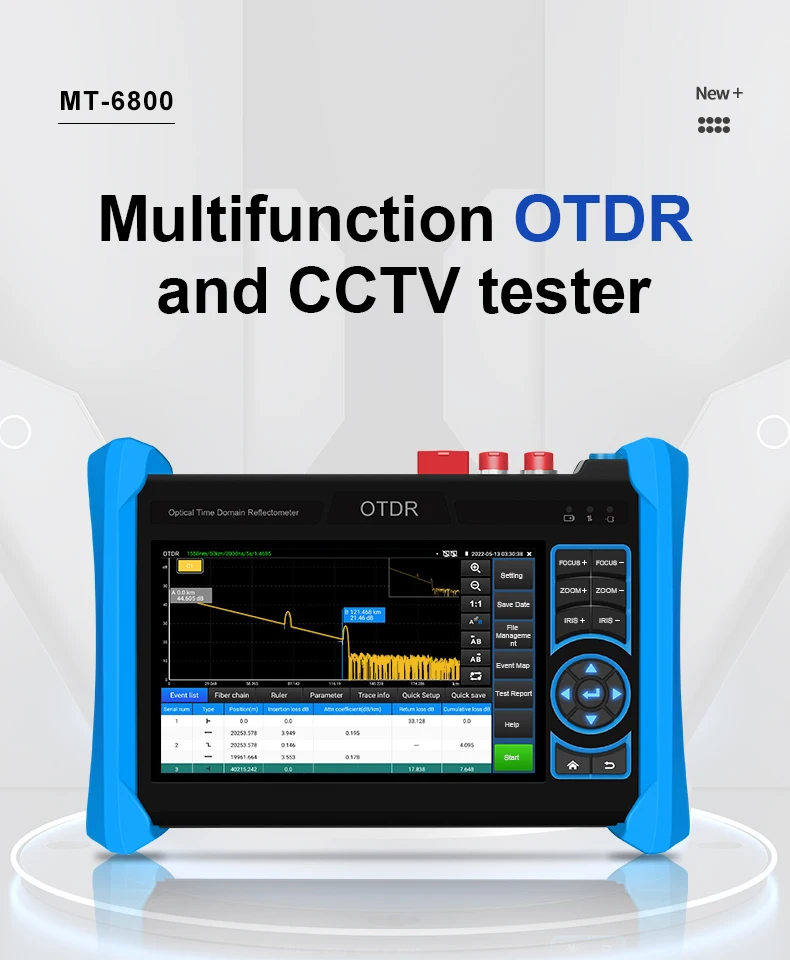

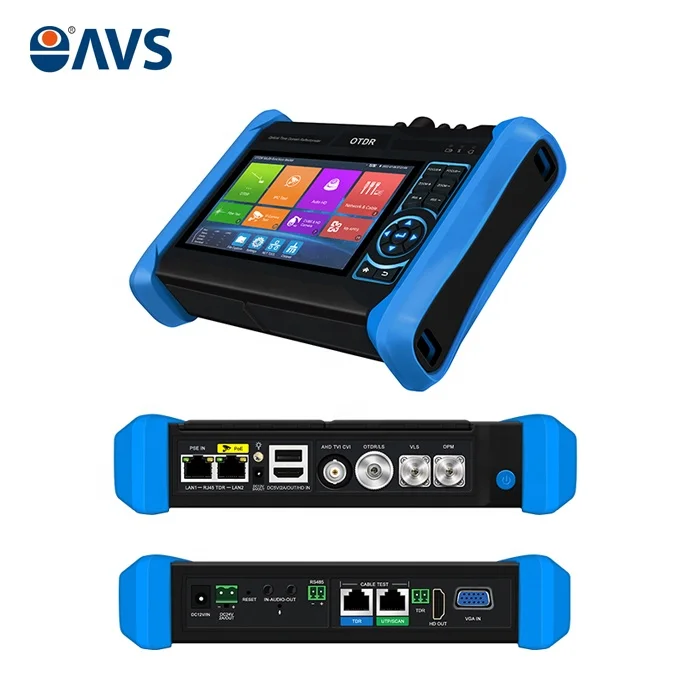

MT-6800 New Multifunction OTDR and CCTV Tester Pro 5.4 Inch IPS Touch Screen Portable CCTV Camera Tester Monitor
Application

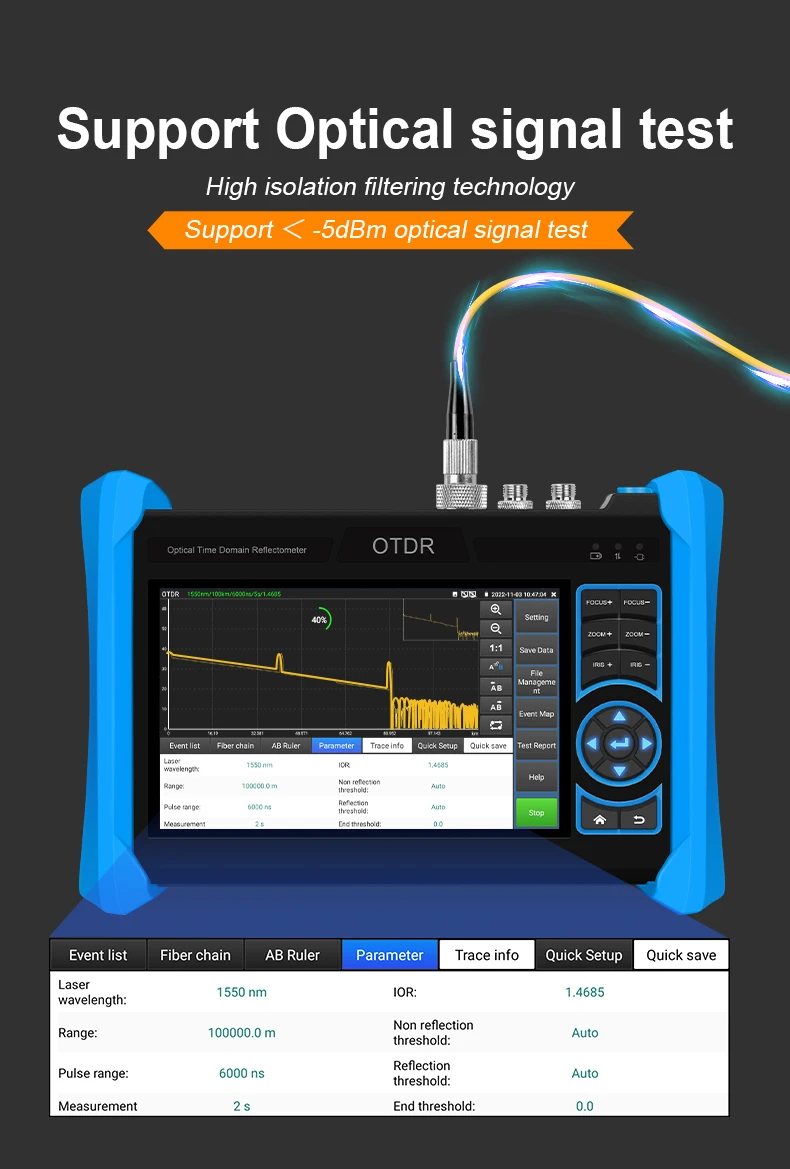

Multi-function MT-6800 OTDR is an essential tool for fiber length, network and camera testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line. It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. as well, built in camera tester for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. If taking the all in one OTDR, making working conditions safer and increasing productivity.
CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing
Video transmission channel testing
PTZ controller
Fiber length testing and Event Map etc
Features

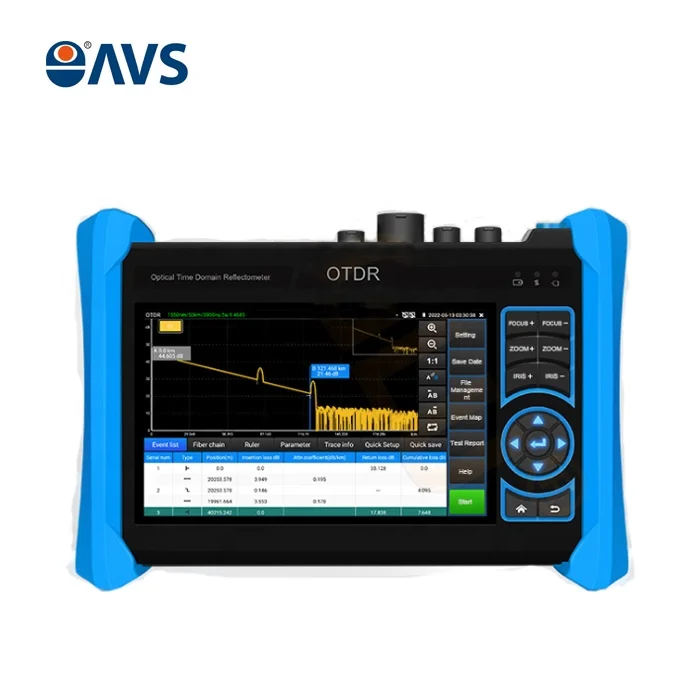

OTDR: New
5.4 inch retina touch screen, 1920*1152 resolution

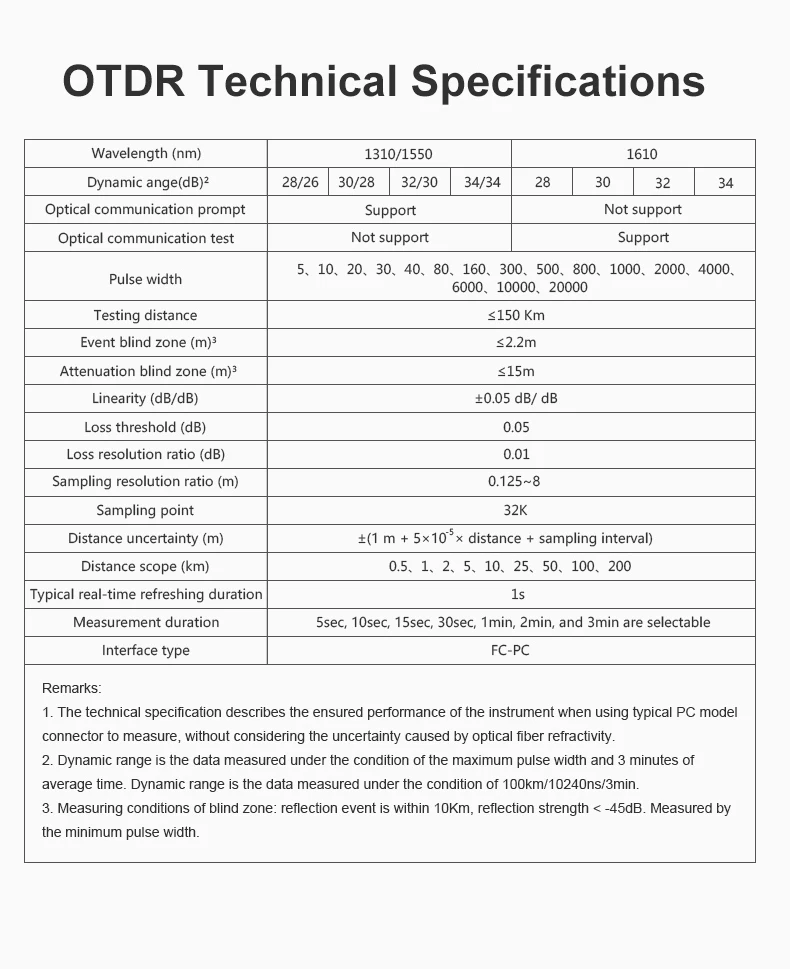

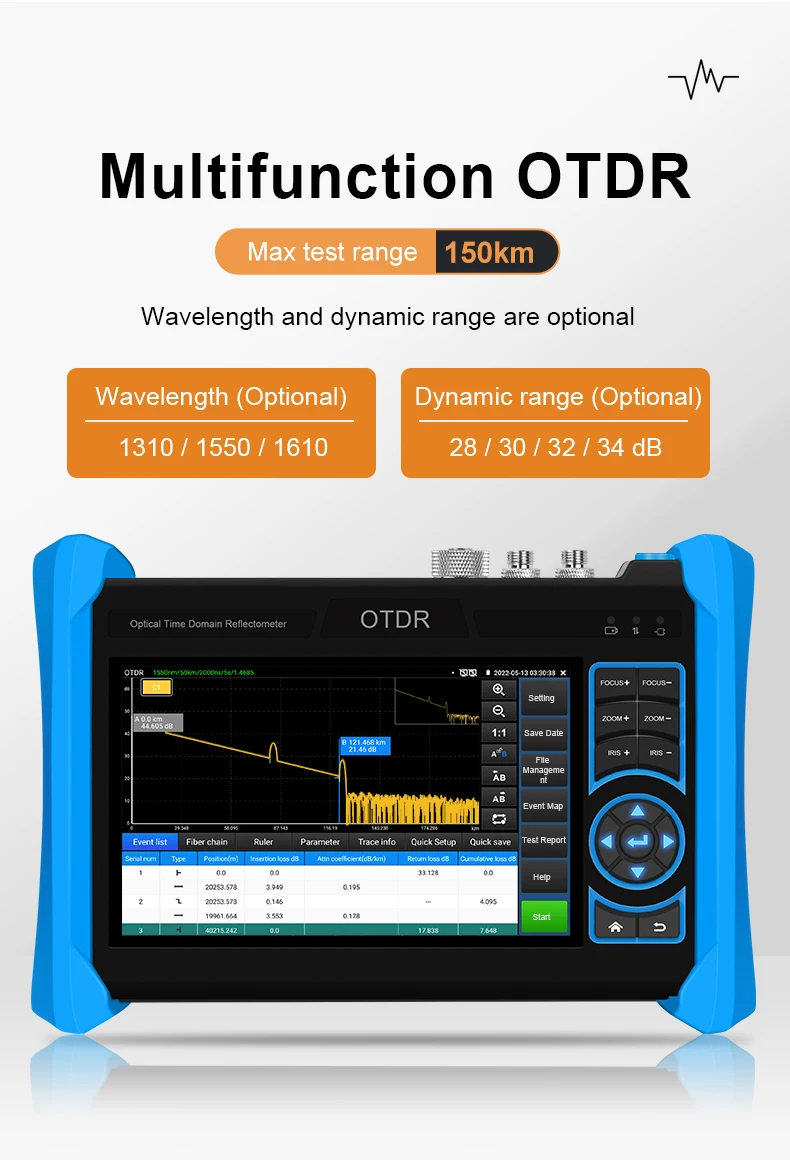

1310/1550/1610 wavelength optional, 26/28/30/32/34dB dynamic range optional, max test range 150KM

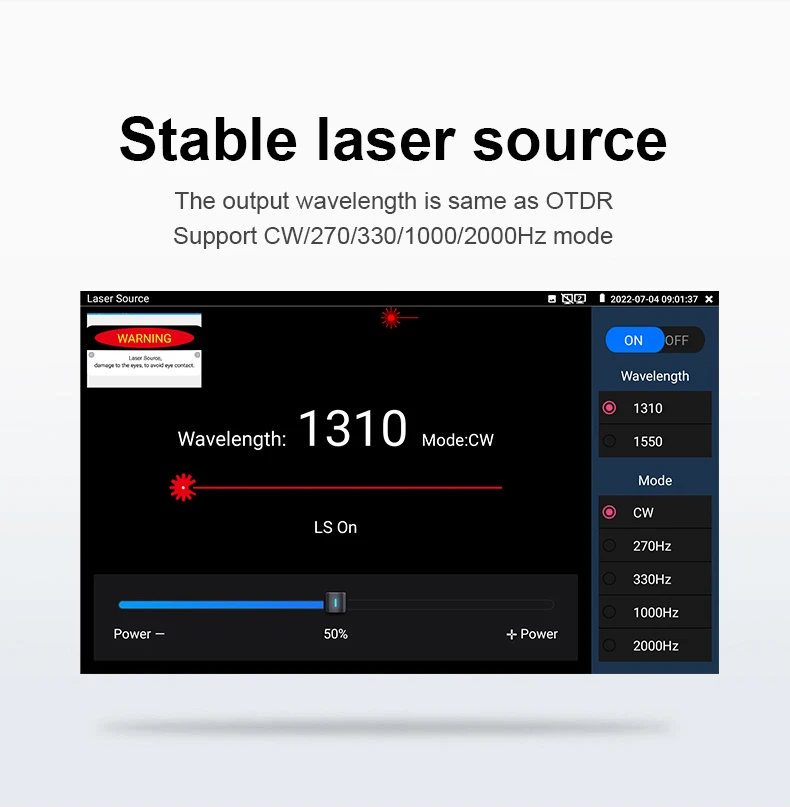

Stable laser source, support CW/270/330/1000/2000Hz
Optical power meter and visual fault locator

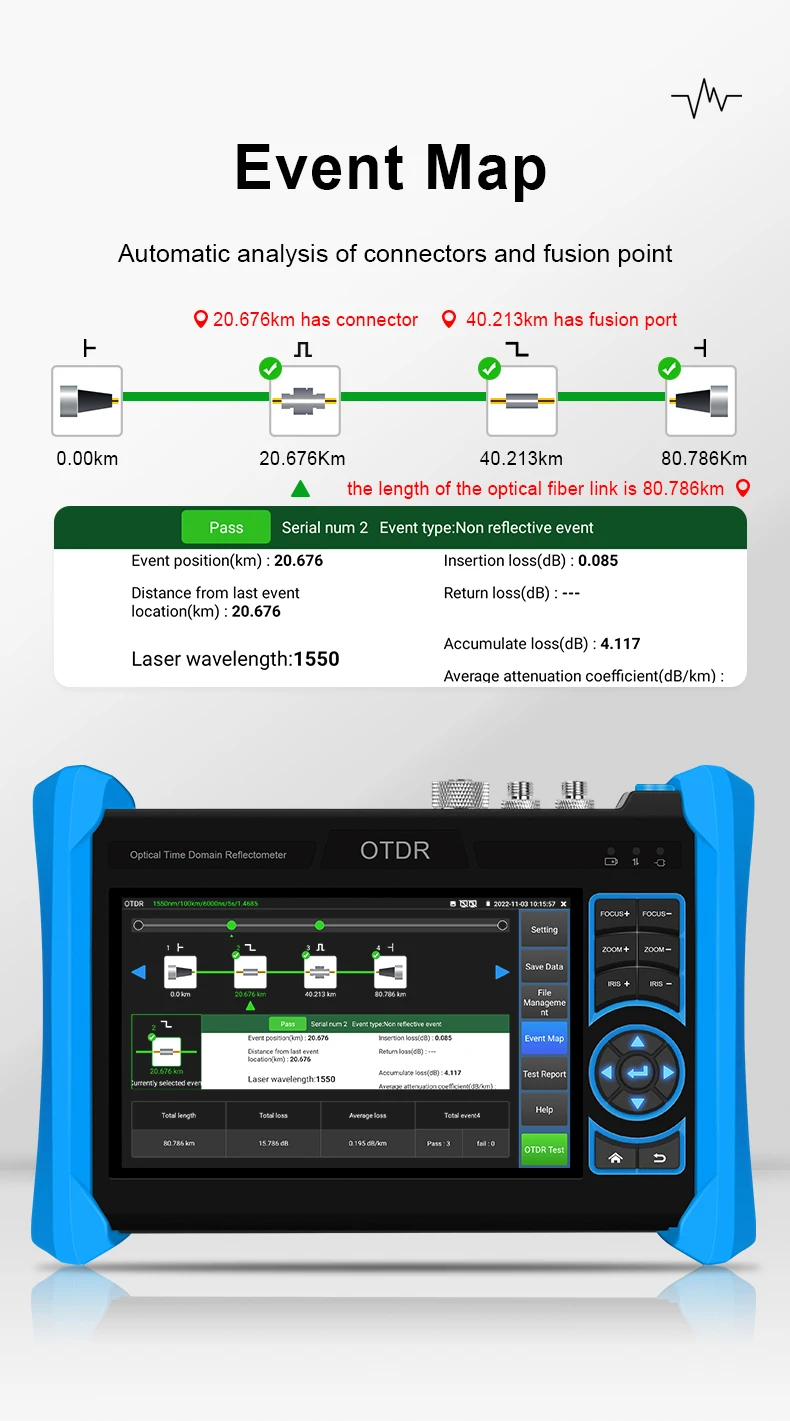

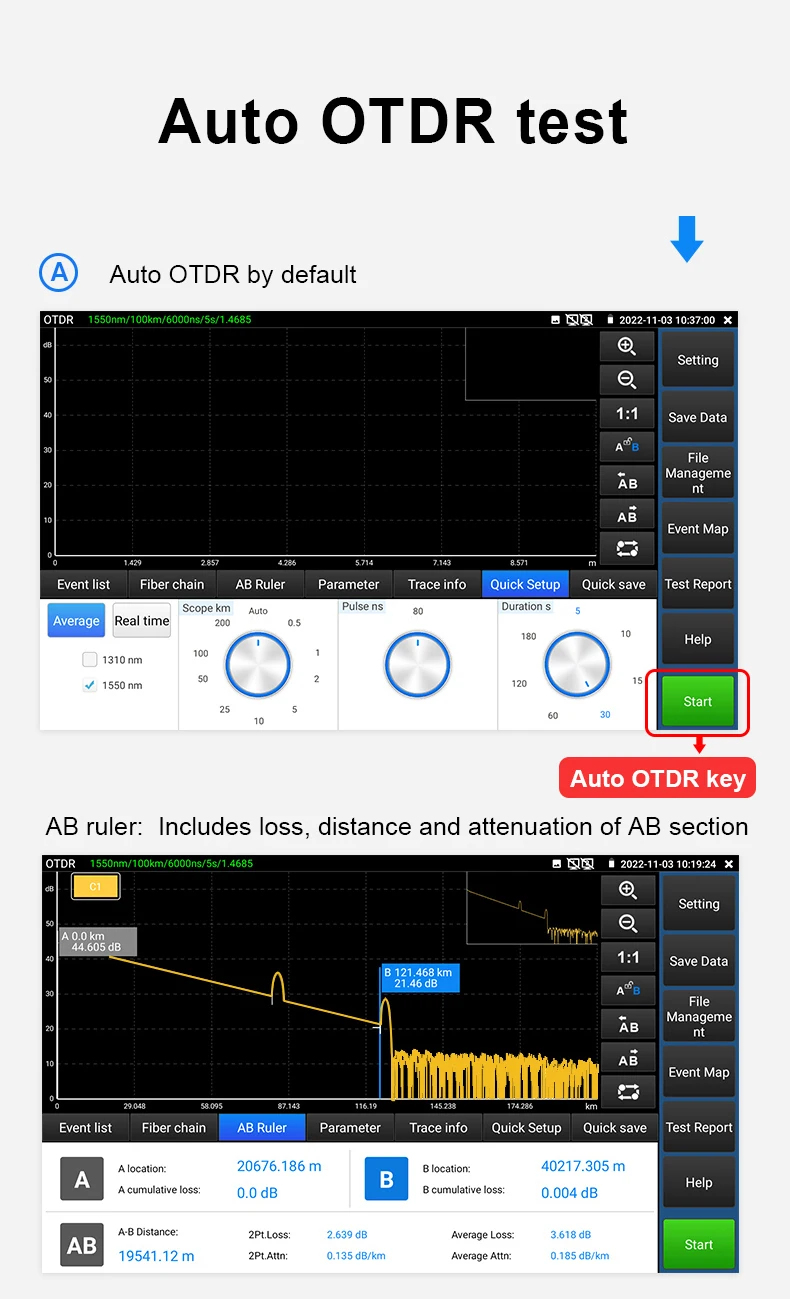

Test fiber’s length, loss, attenuation parameters and event map, locate connection point/ fusion point
Automatic analysis of various linkers/fusion points, easy analyze of various events

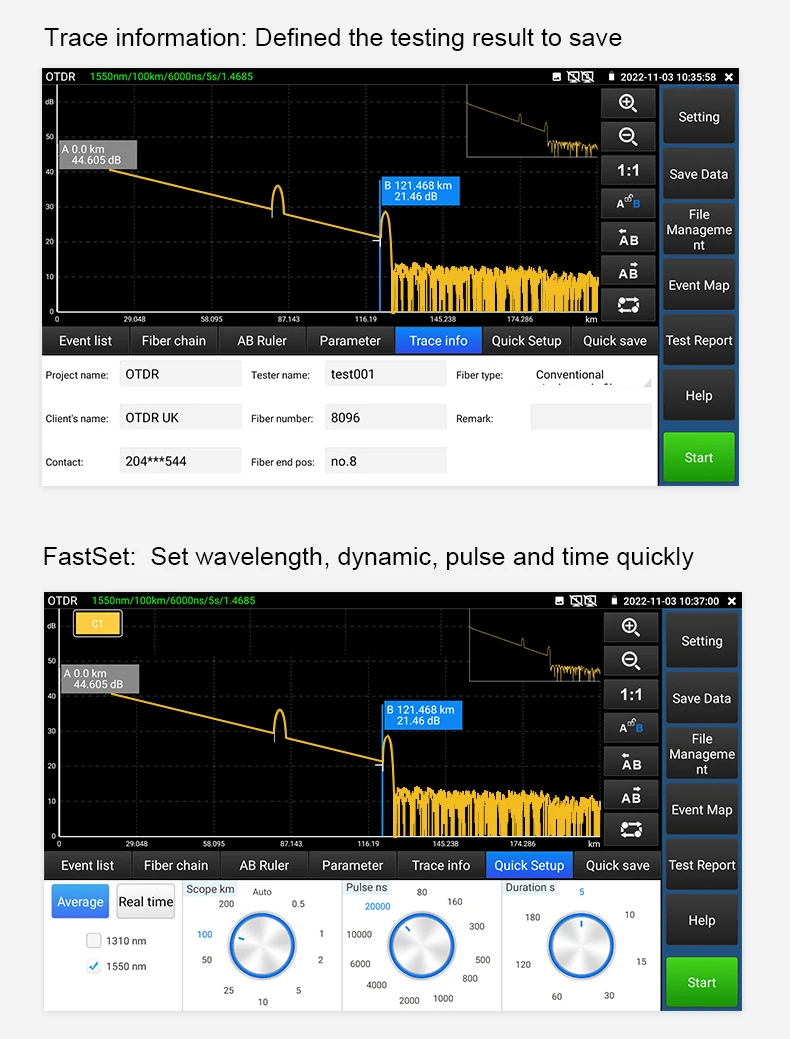

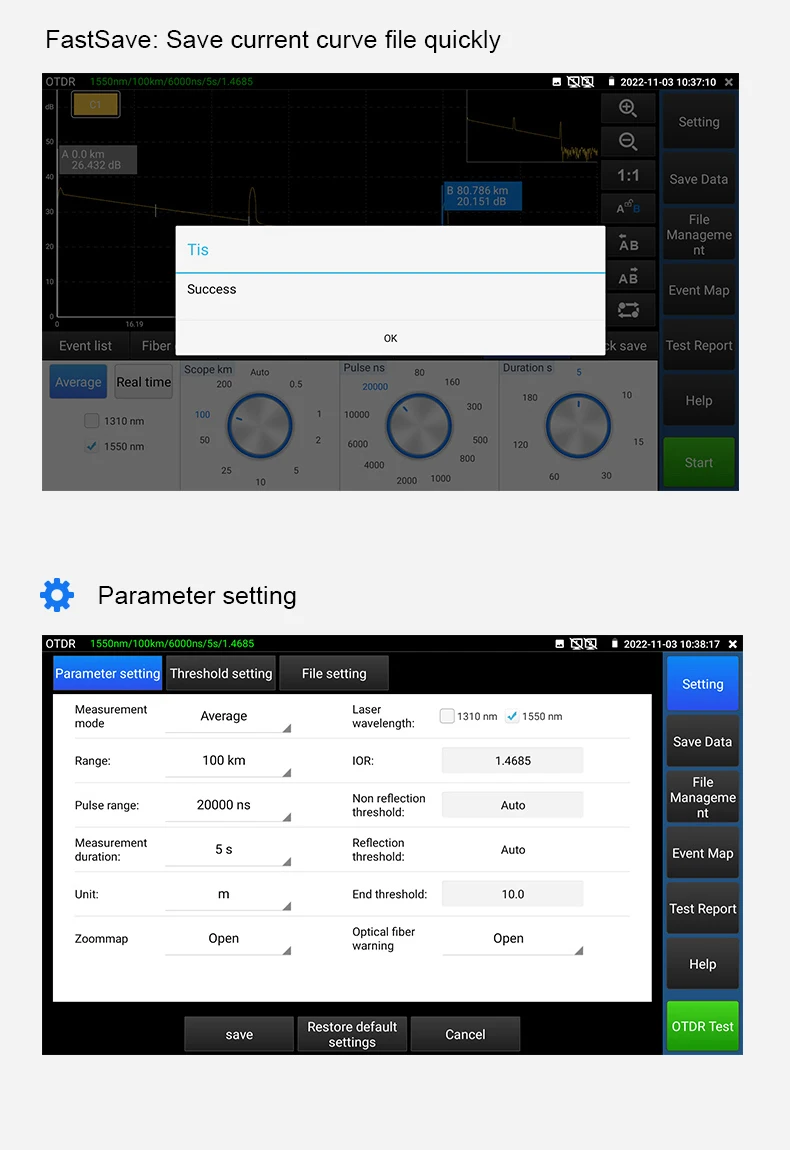

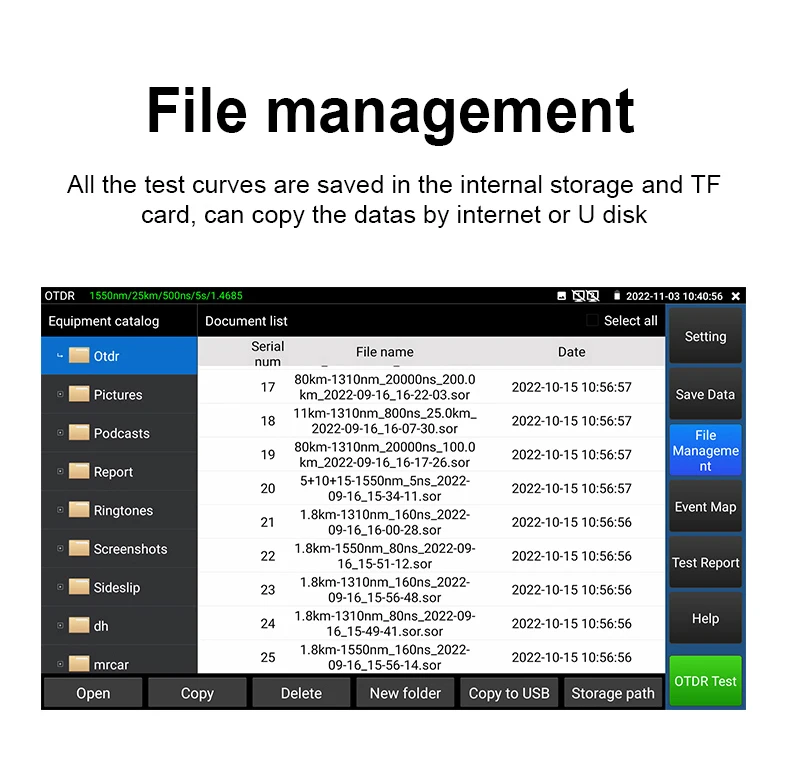

Save and view the testing curves, support zoom and move curves, view details.
Support saving curves number ≥30000pcs

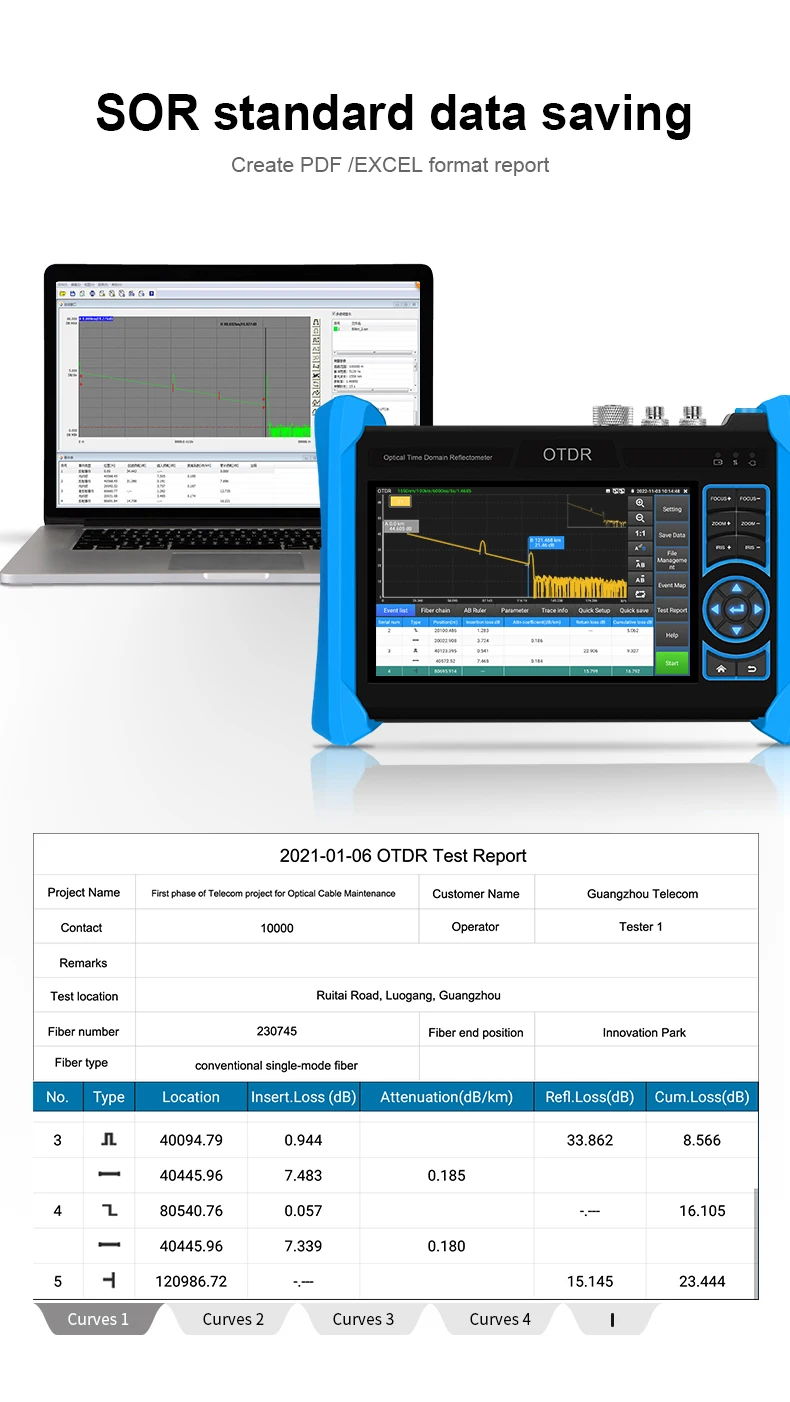

Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc

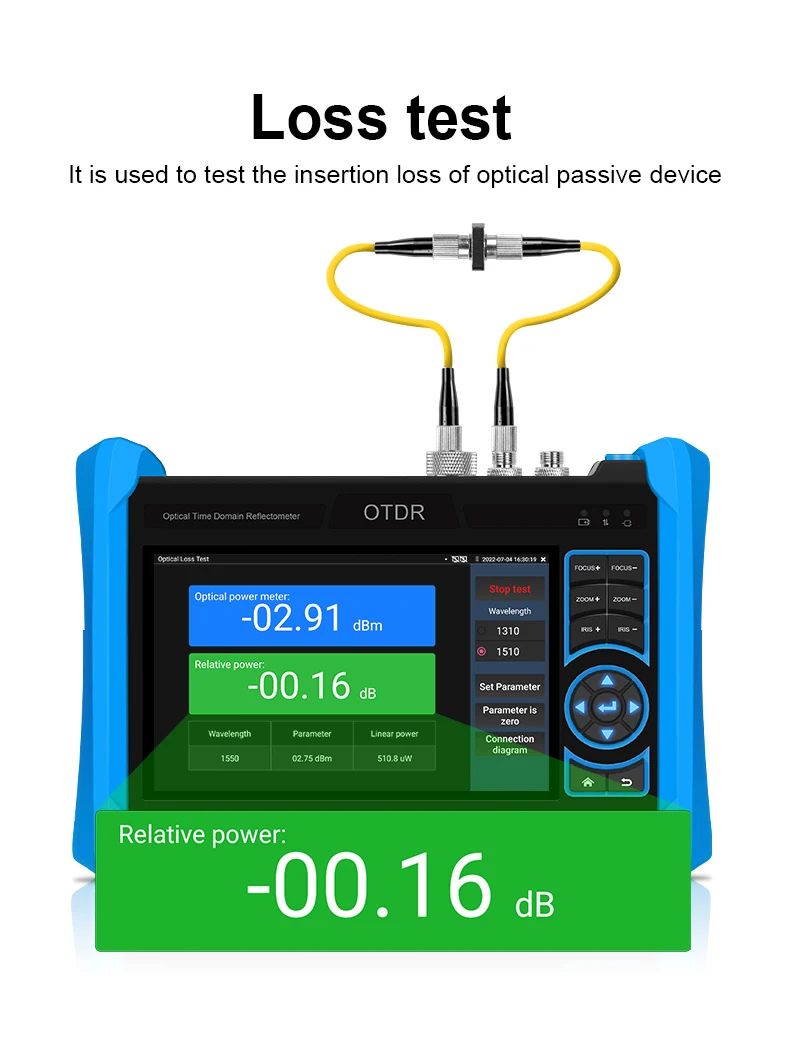

Loss test, detect the optical or optical components loss value
Optical power meter and Visual fault locator
Camera test:
8K H.265 video display via mainstream, analog camera tester
8MP TVI test, 3840*2160P 15 fps,4x zoom, video record &playback, coax PTZ control & call OSD menu
8MP AHD test, 3840*2160P 12.5/ 15fps, 4x zoom, video record & playback, coax PTZ & call OSD menu
8MP CVI test, 3840*2160P 12.5/15fps, 4x zoom, video record& playback, coax PTZ & call OSD menu
TVI 5.0 audio testing
Support 4K 60FPS HD-MI input, 4K 30 FPS HD-MI output New
2K 60FPS VGA input

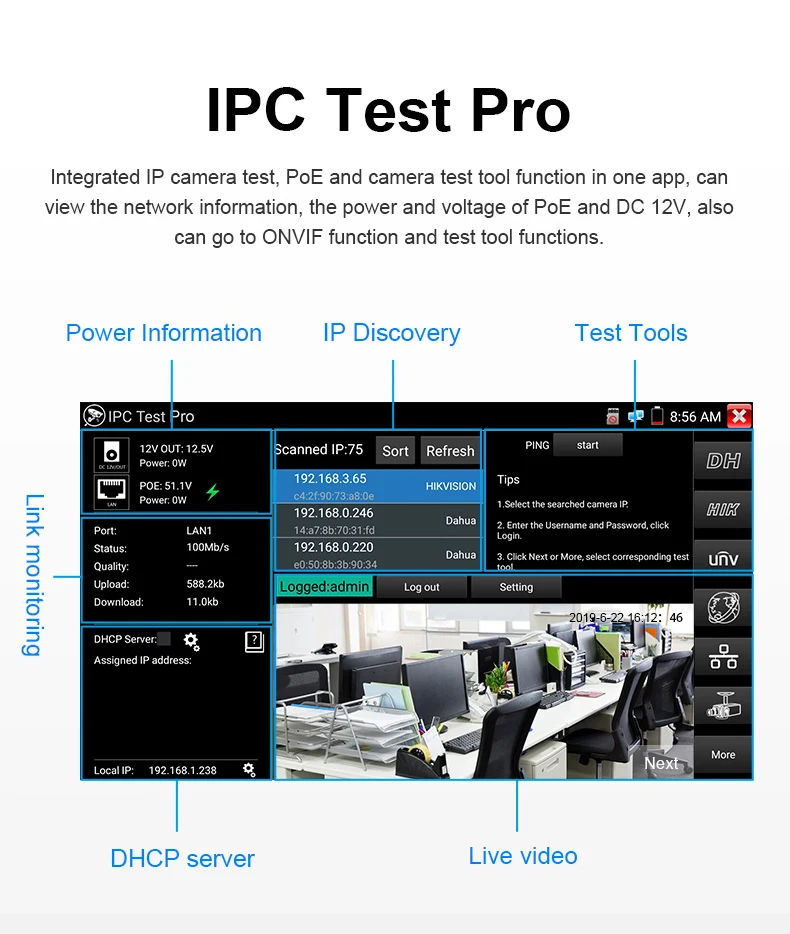

IPC TEST PRO app, camera test often need to open multiple apps,"IPC TEST PRO" app
Rapid ON-VIF, Auto log in and display image, create testing report
Chrome browser, test and set Axis camera
AXIS, Hikvision camera test, enter ON-VIF app, input username and password to test
IPC TEST (Non-ON VIF test)
Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
DC12V/3A power output, camera can be powered from DC 12V Voltage
48V PoE power output
Rapid video, just by one key to detect all network cameras and auto display
Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

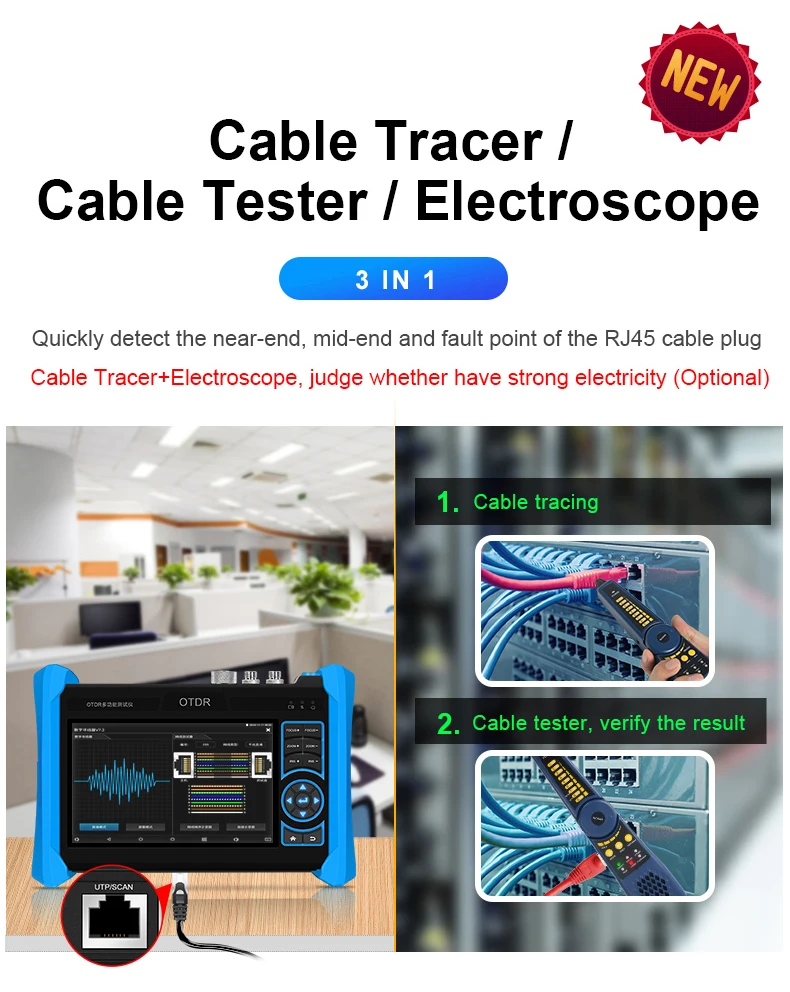

Cable test:

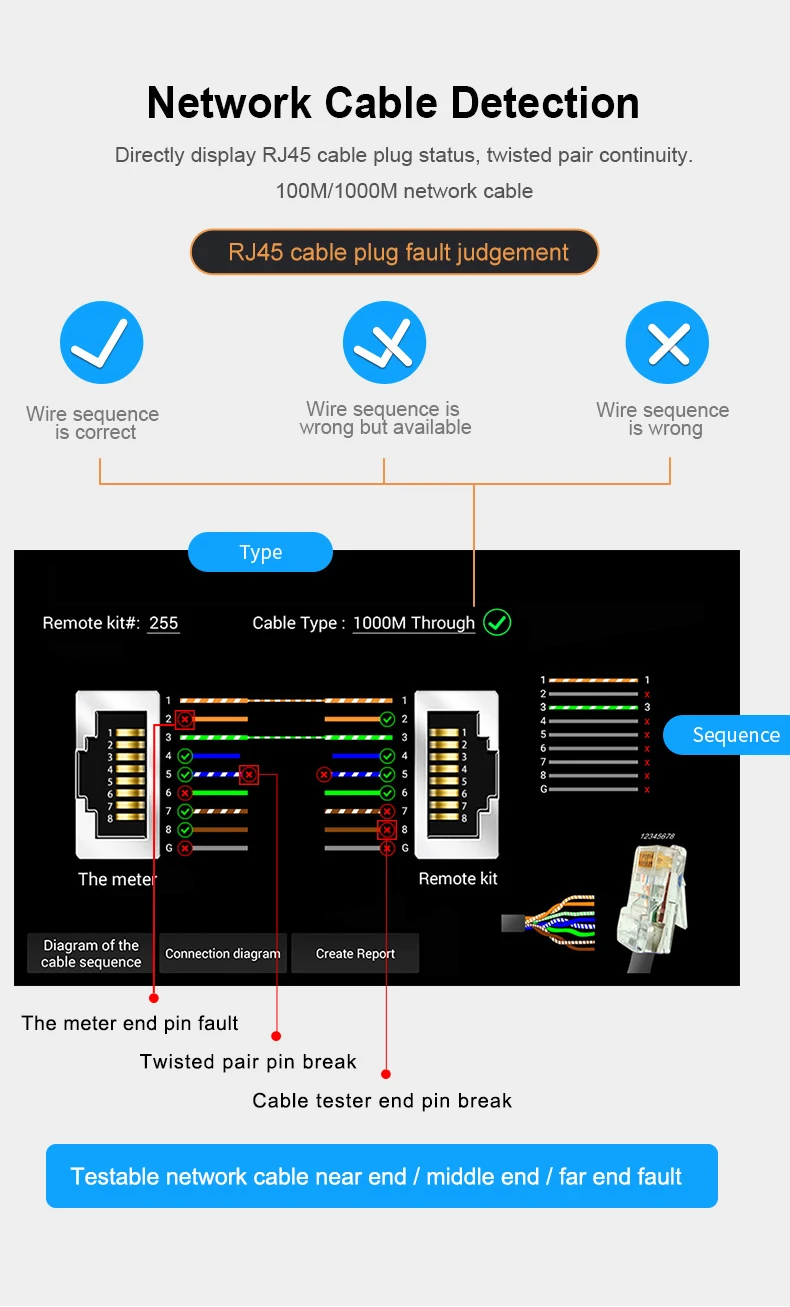

Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

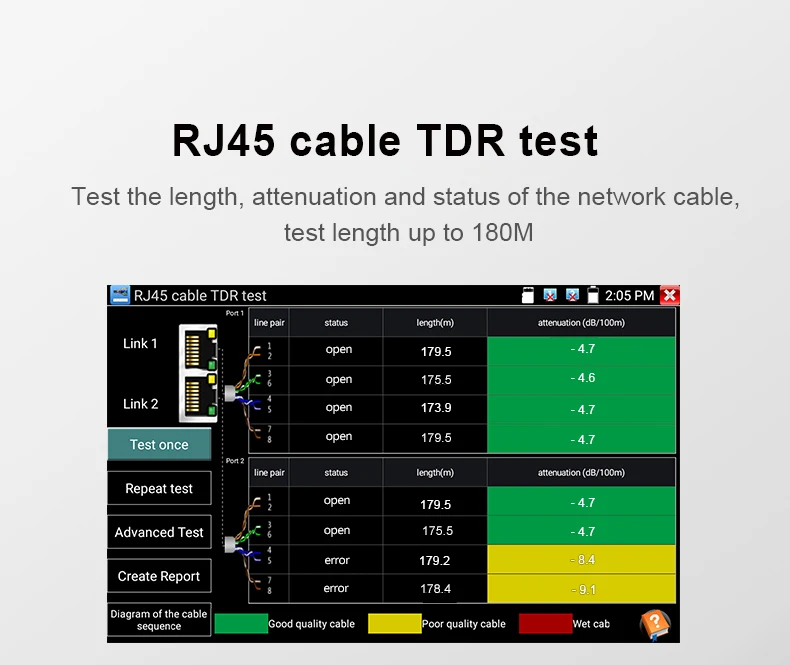

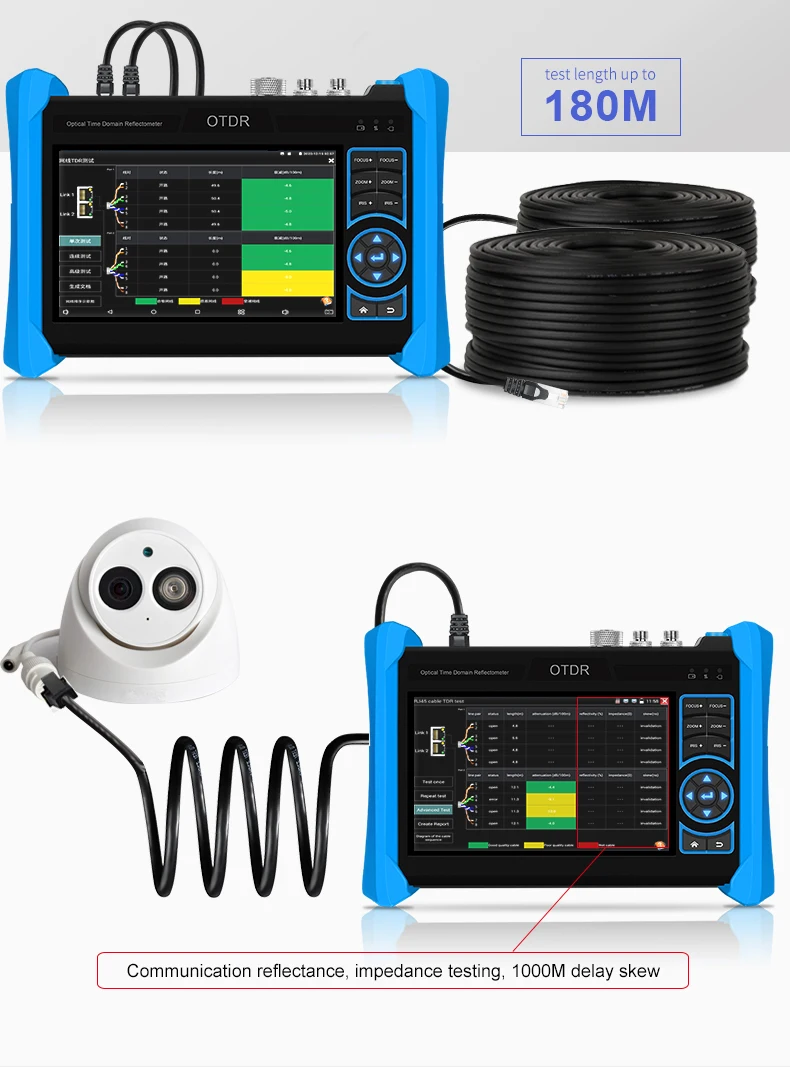

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, max test 180M
Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
Larger Lithium Ion Polymer Battery, 3.5 hours faster charging, working time lasts 11 hours
Specification | ||
Size & Display | 5.4 inch touch screen with retina display, 1920*1152 resolution | |
Network Port | Dual 1000M LAN port, 10/100/1000M auto adapt | |
WIFI | Built in 2.4G WIFI, speeds150M, display wireless camera image | |
H.265 mainstream test | H.265 & H .264 IP, 8K video display via mainstream | |
IP camera test | Support 500 brands IP camera test | |
IP discovery | Auto-scan the whole network segment IP address | |
HD coaxial camera test | TVI 5.0/ CVI 4.0/ AHD 4.0 camera test, UTC control & call OSD menu | |
CVBS camera test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
Zoom Image | 4x zoom, enlarge image, screen snapshot, save, view and record and playback | |
RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 180M. | |
HDMI input/output | 4K 60FPS HD-MI input, 4K 30 FPS HD-MI output | |
VGA input | Support 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS resolution | |
Power output | 48V PoE/DC 24V2A/ DC12V 3A / 5V 2A power output | |
UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable plug, can test shield cable | |
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | |

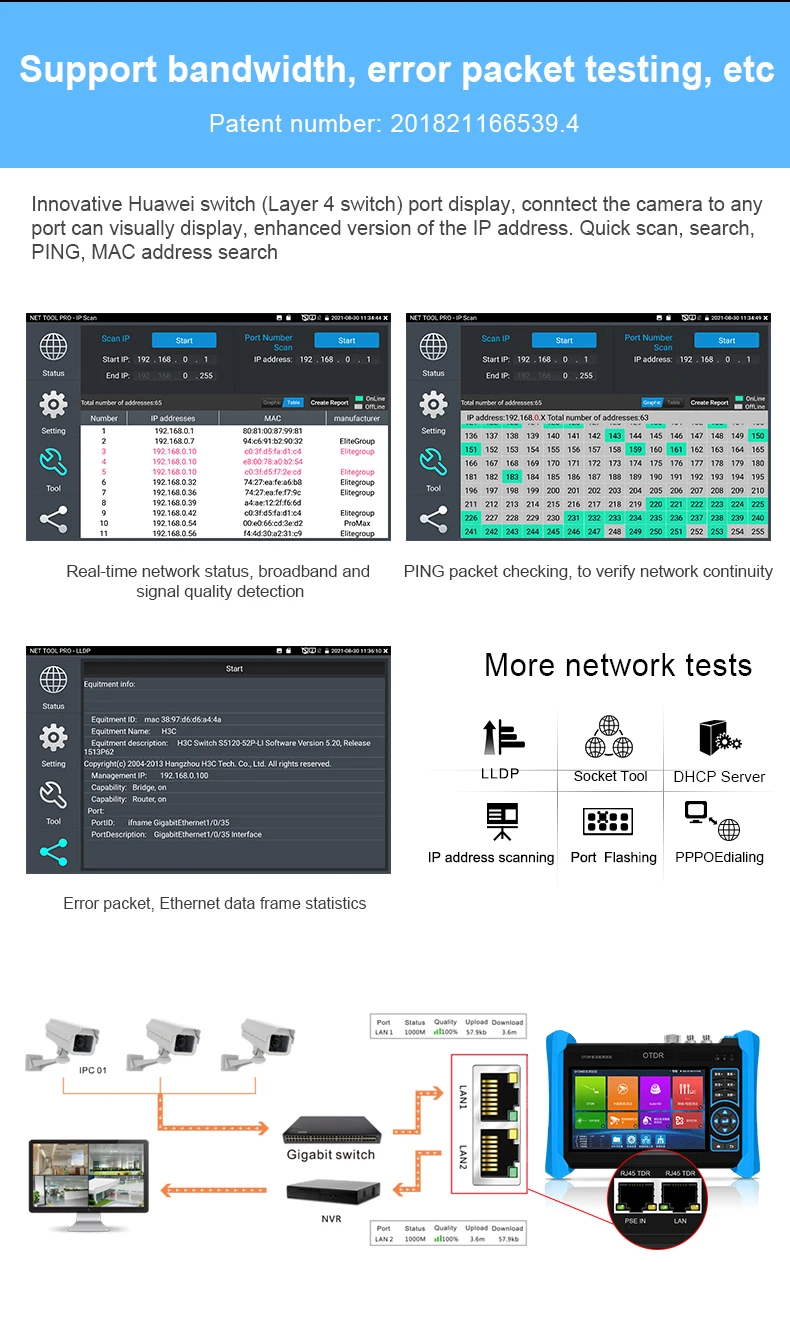

Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | |

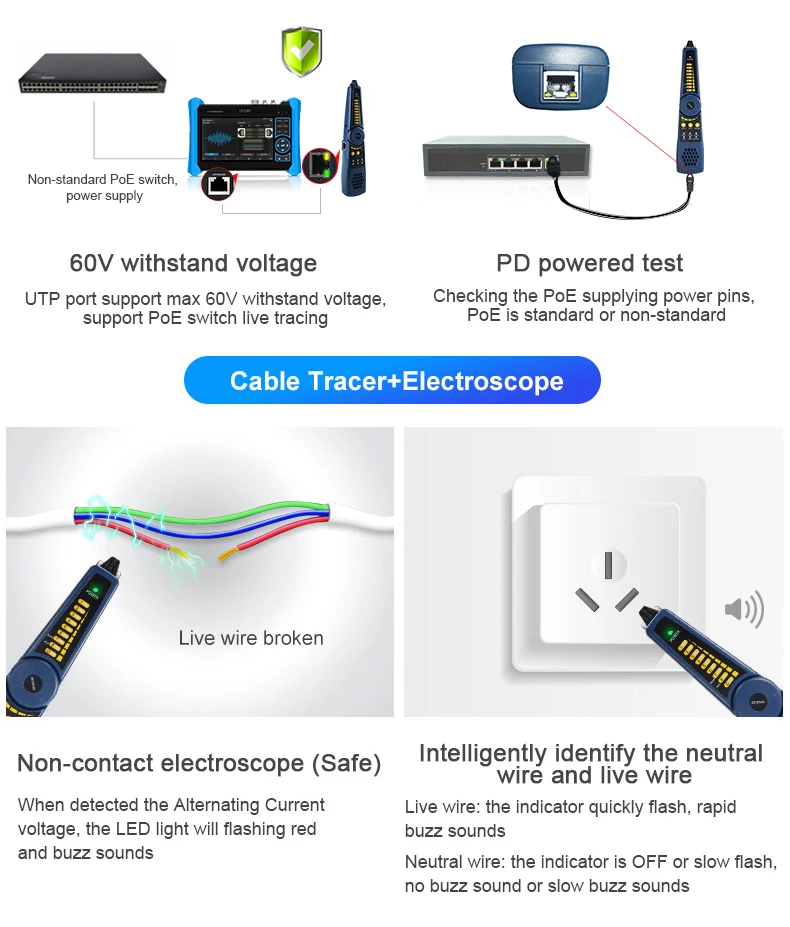

Digital Cable tracer | Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable | |

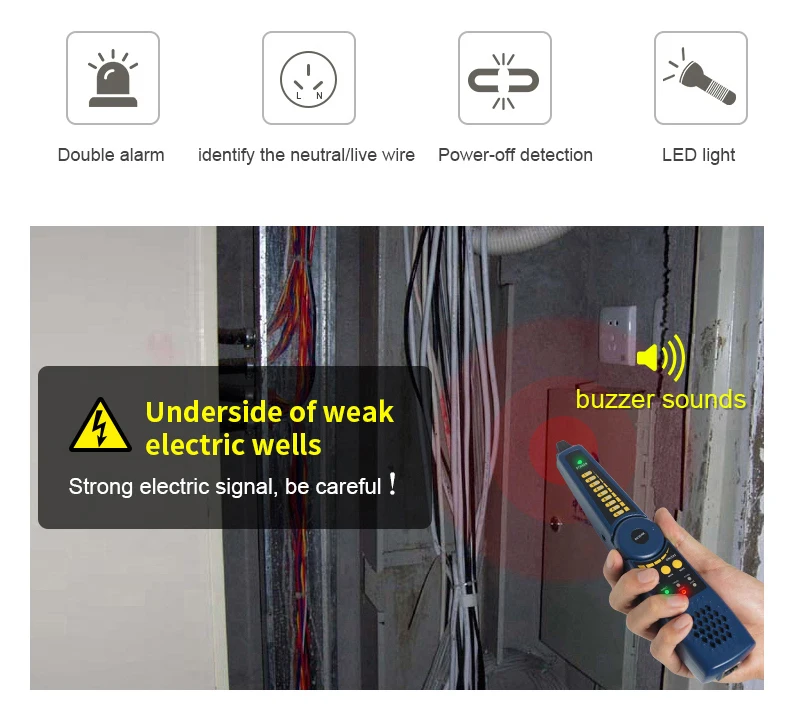

Electroscope | Voltage range | AC12-1000V |
Frequency | 50/60Hz | |
Alarm type | Sounds and light double alarms | |
Level | CAT.III 1000V / CAT.IV 600V; CE | |
PoE Voltage test | Measurement POE switch or PSE power supply voltage and cable connection status | |

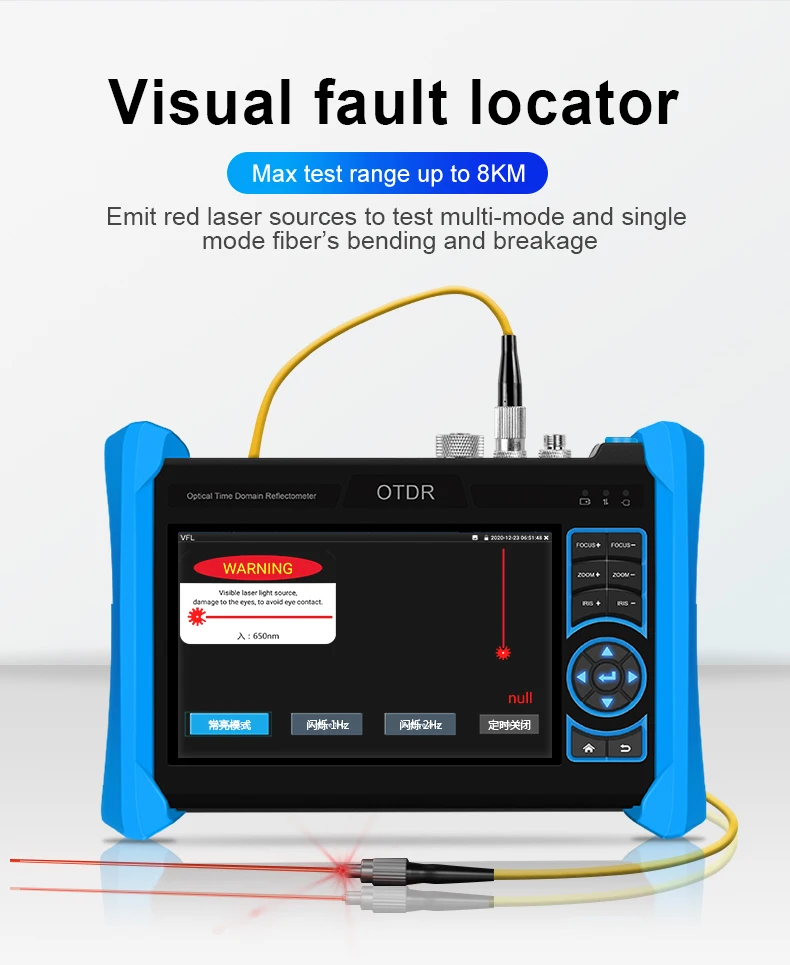

Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM | |

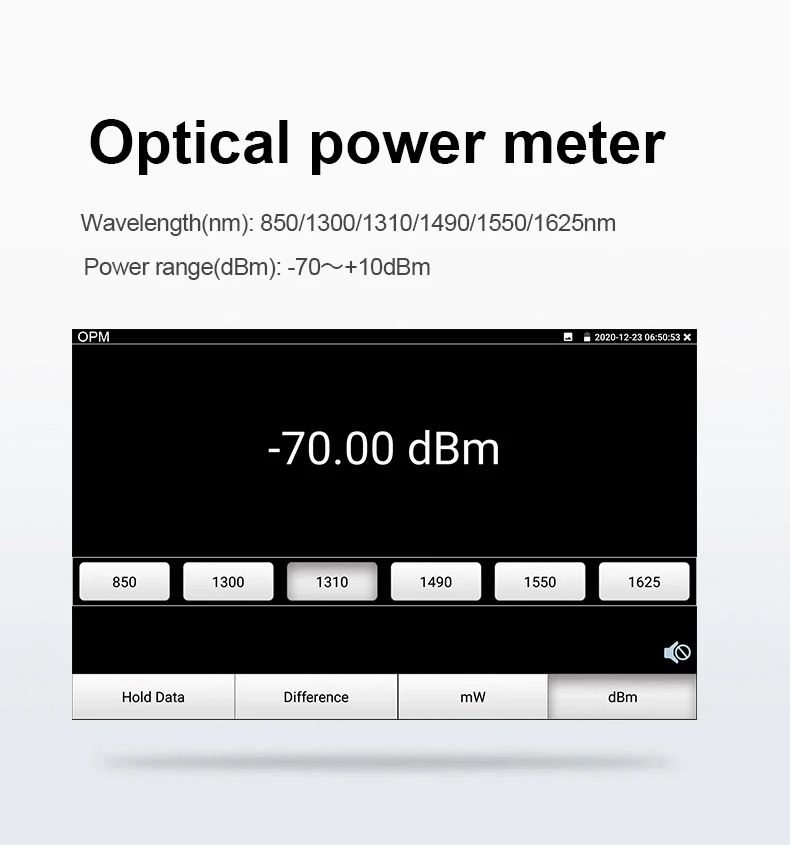

Optical power meter | Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement | |
Power | ||
External power supply | DC 12V(2A) | |
Battery | Built-in 7.4V Lithium polymer battery, 5200mAh | |
Rechargeable | After charging 2.5 hours, normal working time 11 hours | |
Parameter | ||
Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc | |
Auto off | 5-30 (mins) | |
Working environment | ||
Working Temperature | -10℃---+50℃ | |
Working Humidity | 30%-90% | |
Dimension/Weight | 264mm x 182mm x 43mm / 1KG | |
