Химический реактор из нержавеющей стали высокого давления

Химический реактор из нержавеющей стали высокого давления

Category: Reactors >>>
Supplier: Shanghai,Yuanhuai,Industrial,Co.,Ltd.

Price:5 800,00 $ - 9 800,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

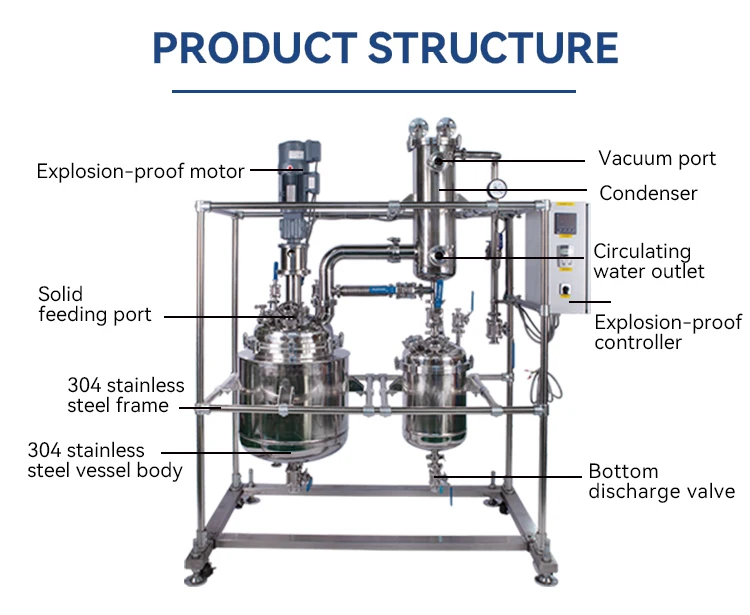

Chemical stainless steel reactor with high pressure

Multi-function stainless steel reactor is a multi-functional equipment developed based on general reactors, which has all the functions of the reactor and enhances the effects of distillation and sealing. It is very suitable for removal of solvent, drboxylation of natural extract, as well as reaction, mixing and crystallization as conventional reactors.

1. Material of parts contact with materials: SUS316/FKM/PTFE

2. Optional magnetic coupling seal for better vacuum effect
3. Double-layer jacket design, better heat preservation effect, prevent burns
4. Large area condenser, better cooling effect
5. Reflow design to achieve multiple functions
6. Certification: CE

Technical Specifications :

Module	JSR-10S	JSR-20S	JSR-30S	JSR-50S	JSR-100S	JSR-200S
Net volume(L)	10	20	30	50	100	200
Temperature control way	Jacketed for heating or cooling, circulation inlet and outlet size TC50.5*DN25, external heat insulation layer
Jacket volume(L)	5	6	10	20	30	45
Material	Material contact part S316, non-contact part S304
Sealing form	Magnetic drive, static seal
Speed control mode	Frequency control
Motor power(W)	200	200	370	370	1500	1500
Speed range(rpm)	80 ~ 460	80 ~ 460	80 ~ 460	80 ~ 350	80 ~ 350	80 ~ 350
Stirring paddle	Paddle type agitator (Can be customized)
Pressure gauge	M20*1.5
Temperature measure port	TC50.5*DN20
Feeding&gas protection port	KF16	KF16	KF16	KF16	KF25	KF25
Reflux port	DN32	DN32	DN32	DN32	DN32	DN50
Solid feeding port	DN50	DN50	DN80	DN80	DN80	DN100
Sight glass port	DN50	DN50	DN50	DN50	DN50	DN80
Outlet port	TC50.5*DN38
Jacket pressure	≤0.3MPa
Reactor pressure	—0.1~0.1MPa
Working temperature range	-20~200℃
Condensation area(square meter)	0.3	0.3	0.5	1	2	3
Condenser&receiving tank built material	S31603
Cooling liquid inlet&outlet port	TC50.5*DN15	TC50.5*DN15	TC50.5*DN15	TC50.5*DN15	TC50.5*DN15	TC50.5*DN20
Receiving tank volume(L)	10	10	20	30	50	100
Receiving tank sight glass	With sight glass
Explosion-proof	Standard non-explosion-proof (Optional: Explosion-proof)
Voltage	220V 1P	220V 1P	220V 1P	220V 1P	380V 3P	380V 3P
Weight(KG)	150	200	300	400	700	1000
Dimenions(LxWxH,mm)	1200×650×1600	1300×750×1800	1400×800×2000	190010002200	19009202850	210010203100
