Jinko Tiger Neo N Type 72HL4 BDV 560 580 Watt Bifacial Module With Dual Glass 560W 565W 570W 575W 580W Solar Panels for sale
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.Jiangsu Ltd.
Share on (1600805683281):
Product Overview
Description
Mechanical Data | ||
Model Number | Tiger Neo N-type 54HL4-(V) | |
Panel Efficiency | 22% | |
Warranty | 25 year | |
Solar cell | N type Mono-crystalline | |
Cell configuration | 108 (6*18) | |

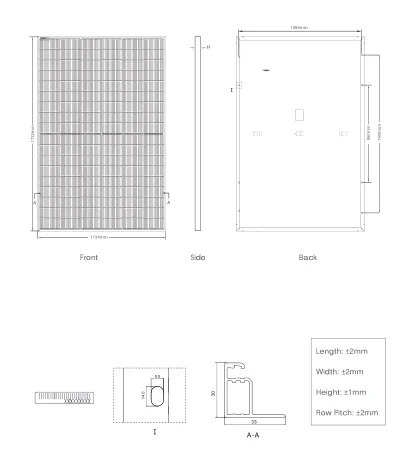

Module dimensions | 1722×1134×30mm (67.79×44.65×1.18 inch) | |
Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass | |
Substrate | White Back-sheet | |
Frame | Anodized Aluminum Alloy | |

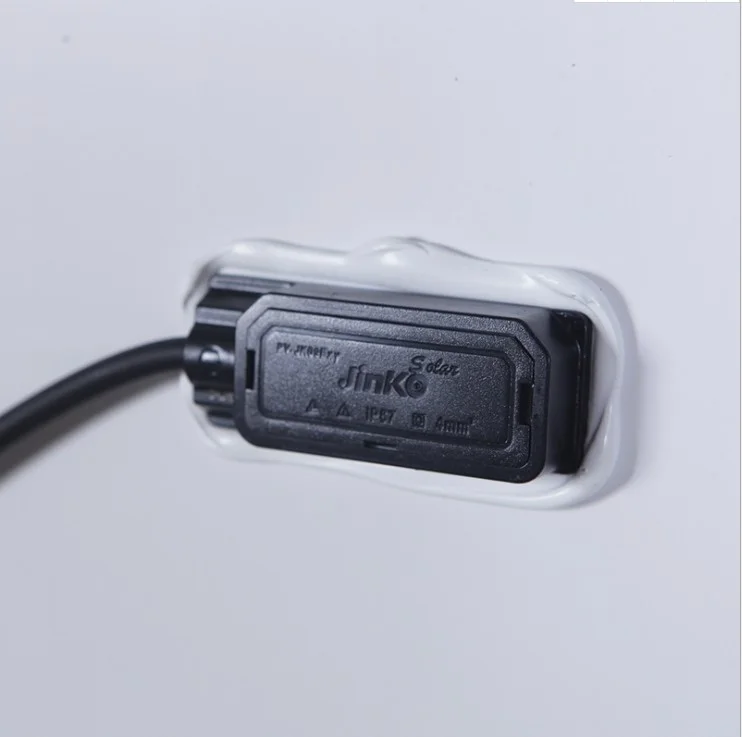

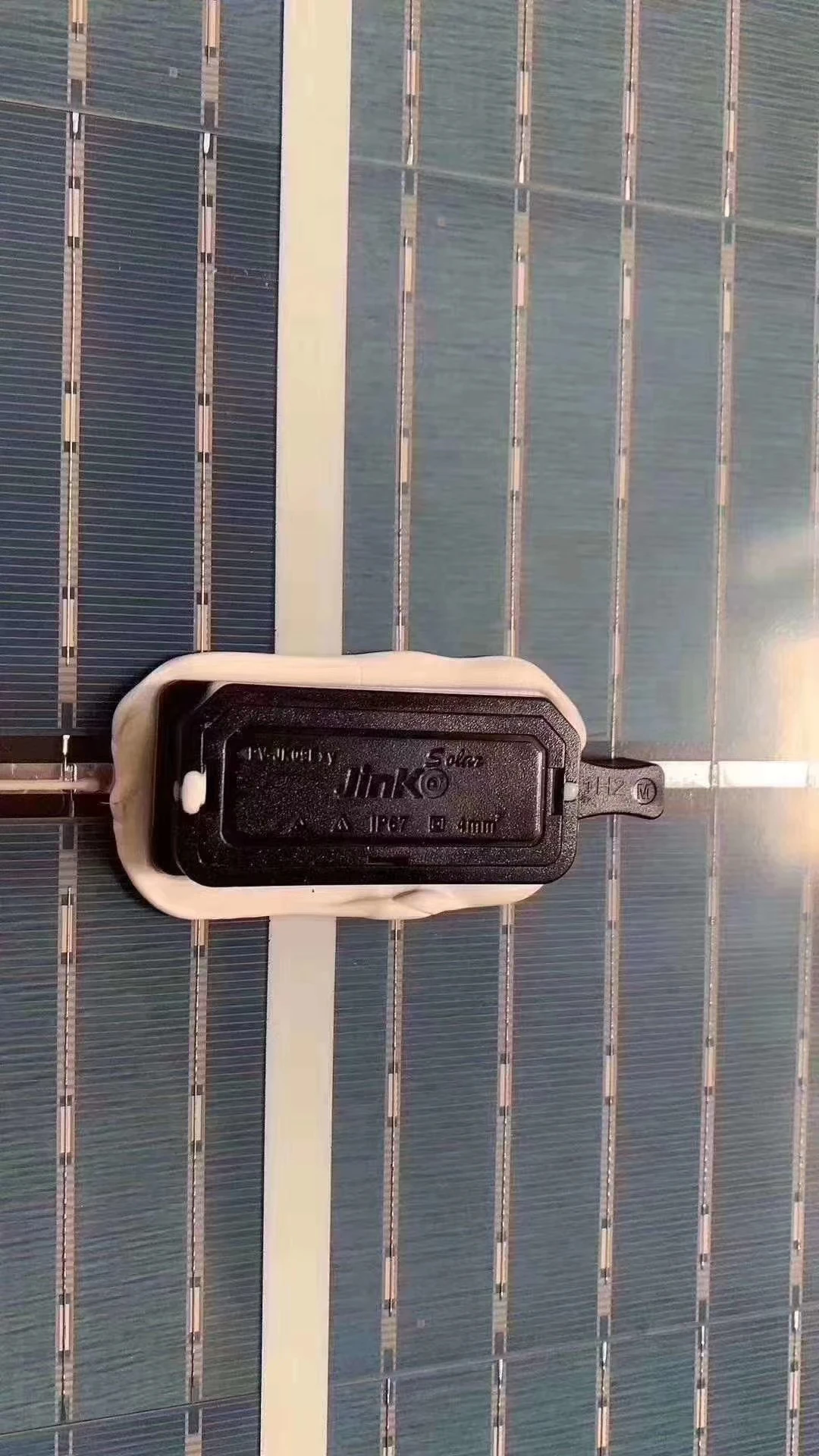

J-Box | IP68 Rated | |
Output Cables | TUV 1×4.0mm 2 (+): 400mm , (-): 200mm or Customized Length | |
Module Type | JKM410N-54HL4 | JKM415N-54HL4 | JKM420N-54HL4 | JKM425N-54HL4 | JKM430N-54HL4 | |||||
Maximum Power (Pmax) | 410 | 415 | 420 | 425 | 430 | |||||
Maximum Power Voltage (Vmp) | 31.13 | 31.32 | 31.51 | 31.7 | 31.88 | |||||
Maximum Power Current (Imp) | 13.17 | 13.25 | 13.27 | 13.41 | 13.49 | |||||
Open-circuit Voltage (Voc) | 37.73 | 37.92 | 38.11 | 38.3 | 38.49 | |||||
Short-circuit Current (Isc) | 13.91 | 13.99 | 14.07 | 14.15 | 14.23 | |||||
Module Efficiency STC (%) | 21 | 21.25 | 21.51 | 21.76 | 22.02 | |||||
Temperature coefficient of Voc | -40℃~+85℃ | |||||||||
Temperature coefficient of Isc | 0.046%/℃ | |||||||||
Temperature coefficient of Pmax | -0.3%/℃ | |||||||||
Operating Temperature | 45±2℃ | |||||||||
Maximum System Voltage | 1000/1500VDC(IEC) | |||||||||
Weight | 22KG | |||||||||
Packing & Delivery | ||||||||||
Pallet | 31pcs/pallet | |||||||||
40HQ | 620pcs/40'HQ | |||||||||
Product Parameter

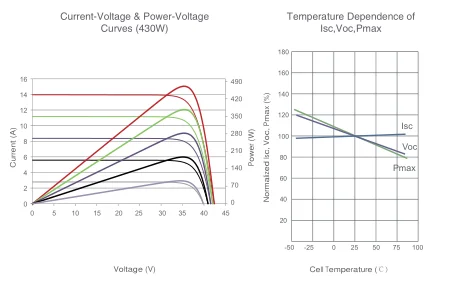

Electrical Performance & Temperature Dependence
ABOUT US
About JinkoSolar Holding Co., Ltd
JinkoSolar (NYSE: JKS) is one of the largest and most innovative solar module manufacturers in the world. JinkoSolar has built a vertically integrated solar product value chain, with an integrated annual capacity of 31 GW for mono wafers, 19 GW for solar cells, and 36 GW for solar modules, as of September 30, 2021.

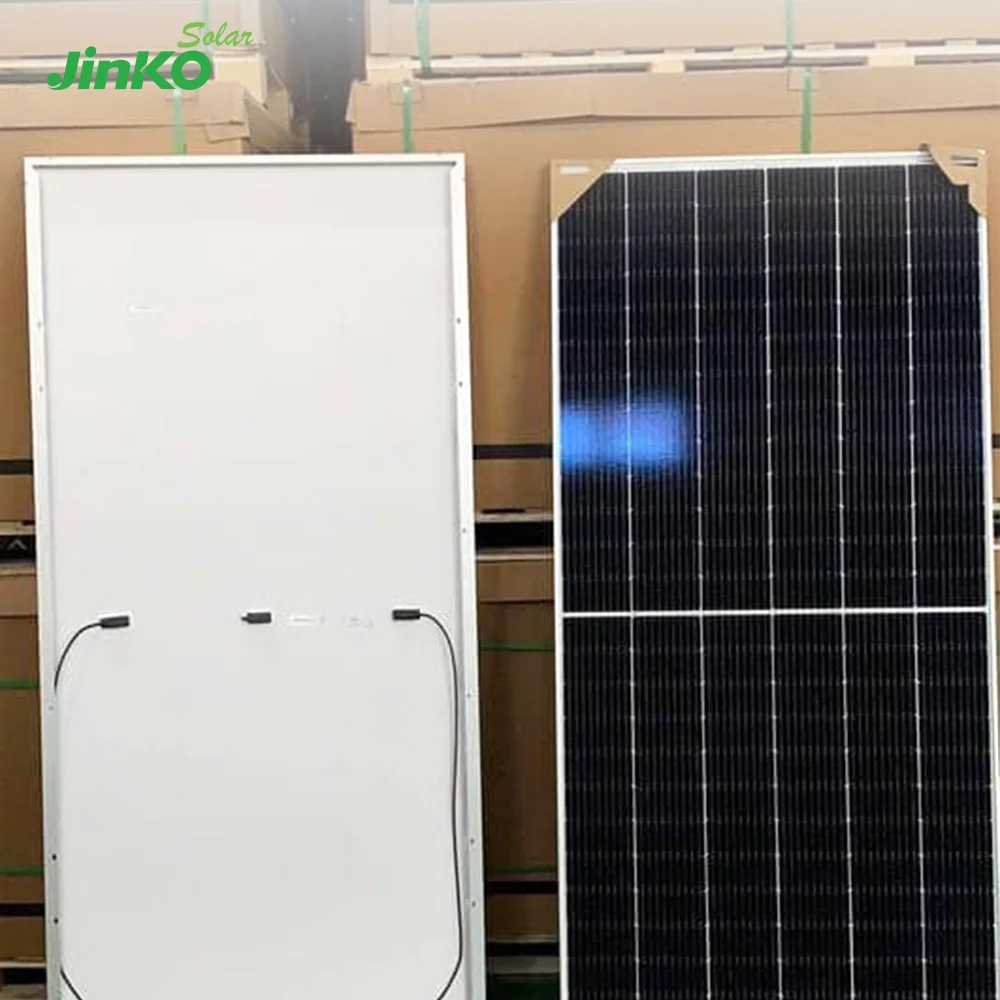

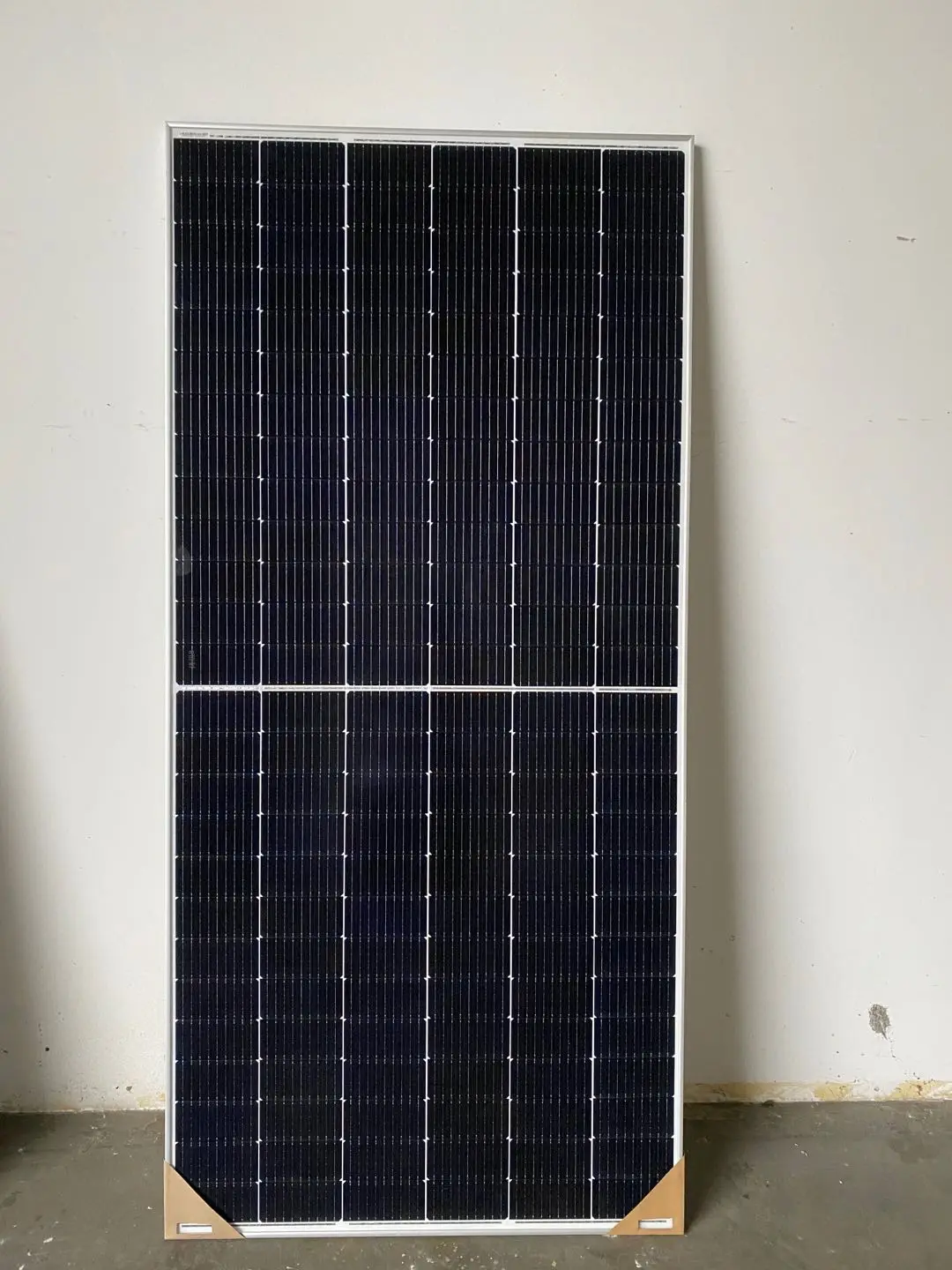

product details
Certificate

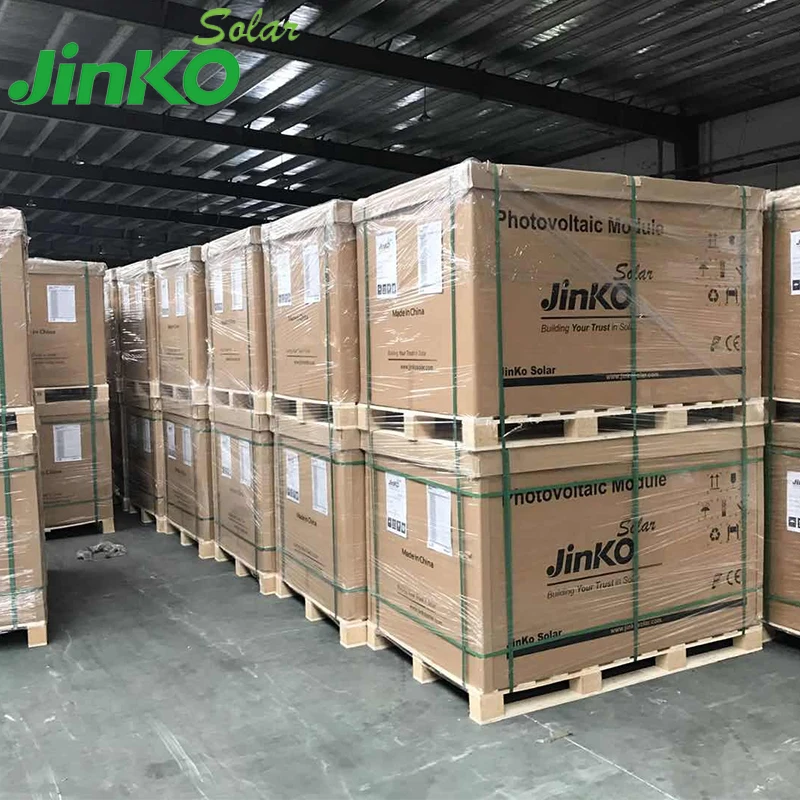

PACKAGING LOGISTICS
FAQ
1. Who are we?
We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province.
2. What can we provide?
We can provide solar panel,solar inverter,solar energy system.
3. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service
4. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province.
2. What can we provide?
We can provide solar panel,solar inverter,solar energy system.
3. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service
4. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
