Сервер dell PowerEdge нового поколения, ЦП intel xeon R750XS

Model

Dell EMC PowerEdge R750

Processor Name

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Memory

• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

• Supports registered ECC DDR4 DIMMs only

Storage controllers

• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N

• Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• External PERC (RAID): PERC H840, HBA355E

Drive Bays

Front bays:

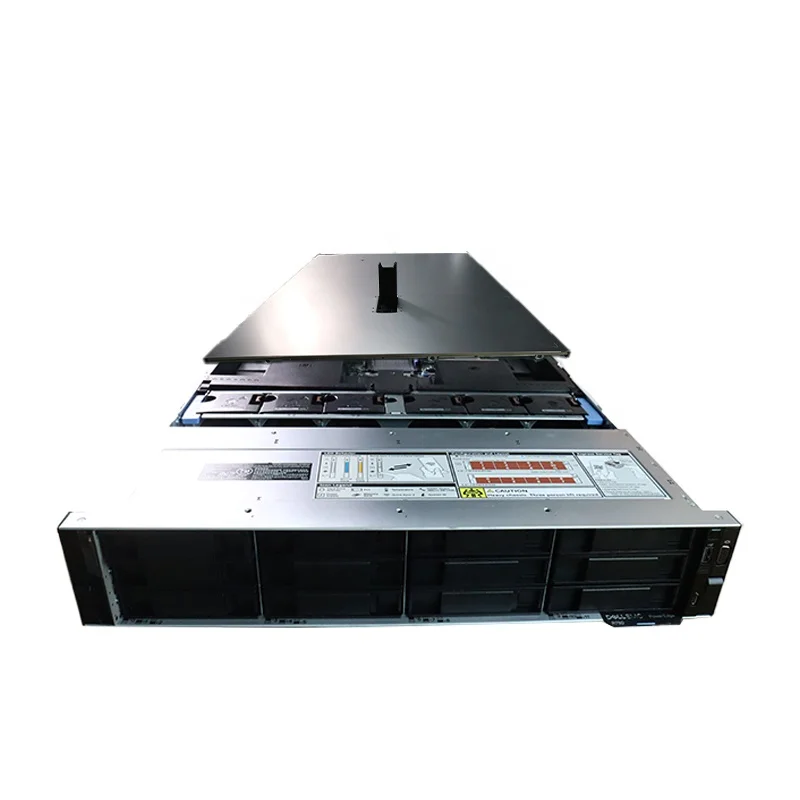

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power Supplies

• 800 W Platinum AC/240 mixed mode

• 1100 W Titanium AC/240 mixed mode

• 1400 W Platinum AC/240 mixed mode

• 2400 W Platinum AC/240 mixed mode

Dimensions

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel

GPU support

Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators

PCIe

Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Citrix Hypervisor

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi

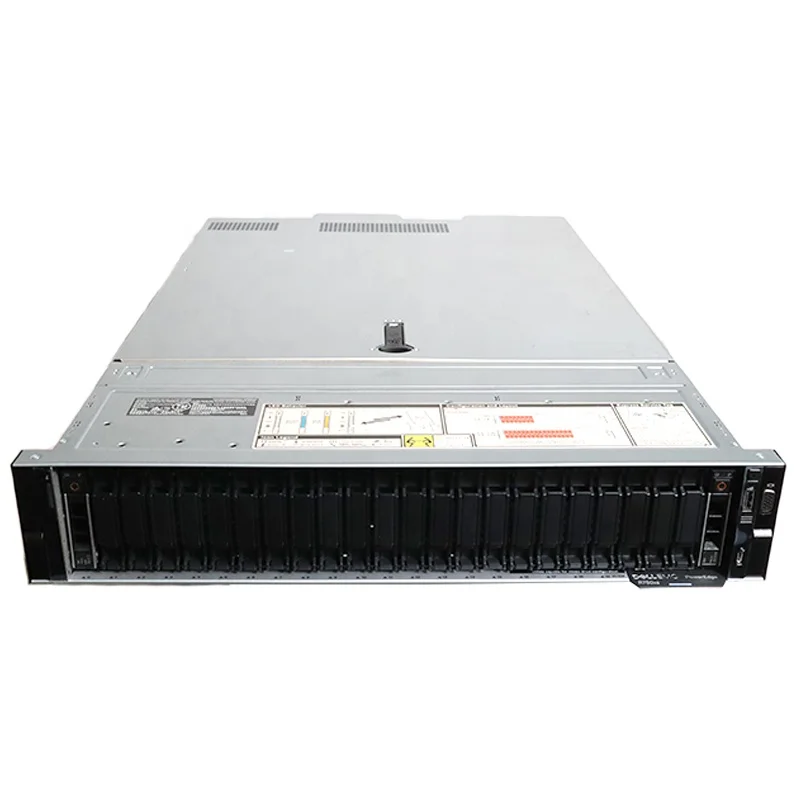

  Dell R750 R750xs 2U server

   Dell ram8G/16G/

32G/64G/128G

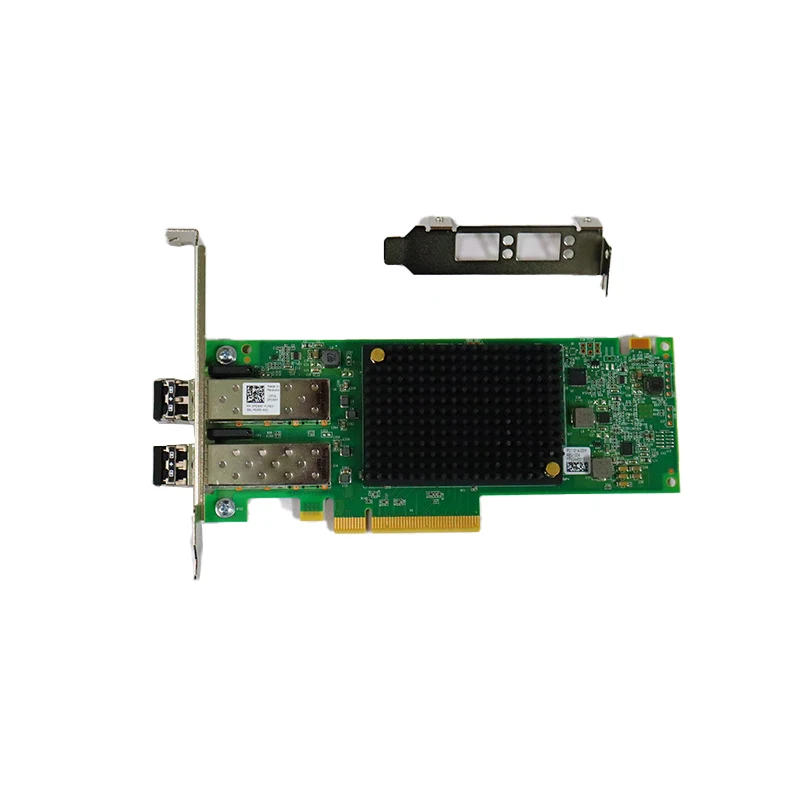

Dell intel X710 2port 10gb sfp card

         HPE ram

8G/16G/32G/64G/128G

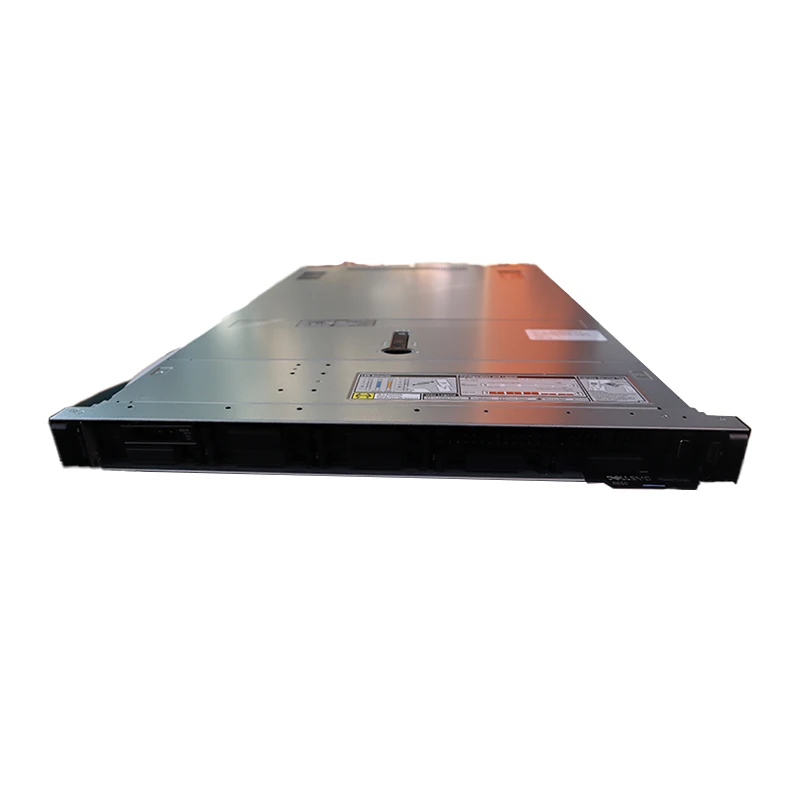

  Dell R750 R650 R550 R450 R350 R250
