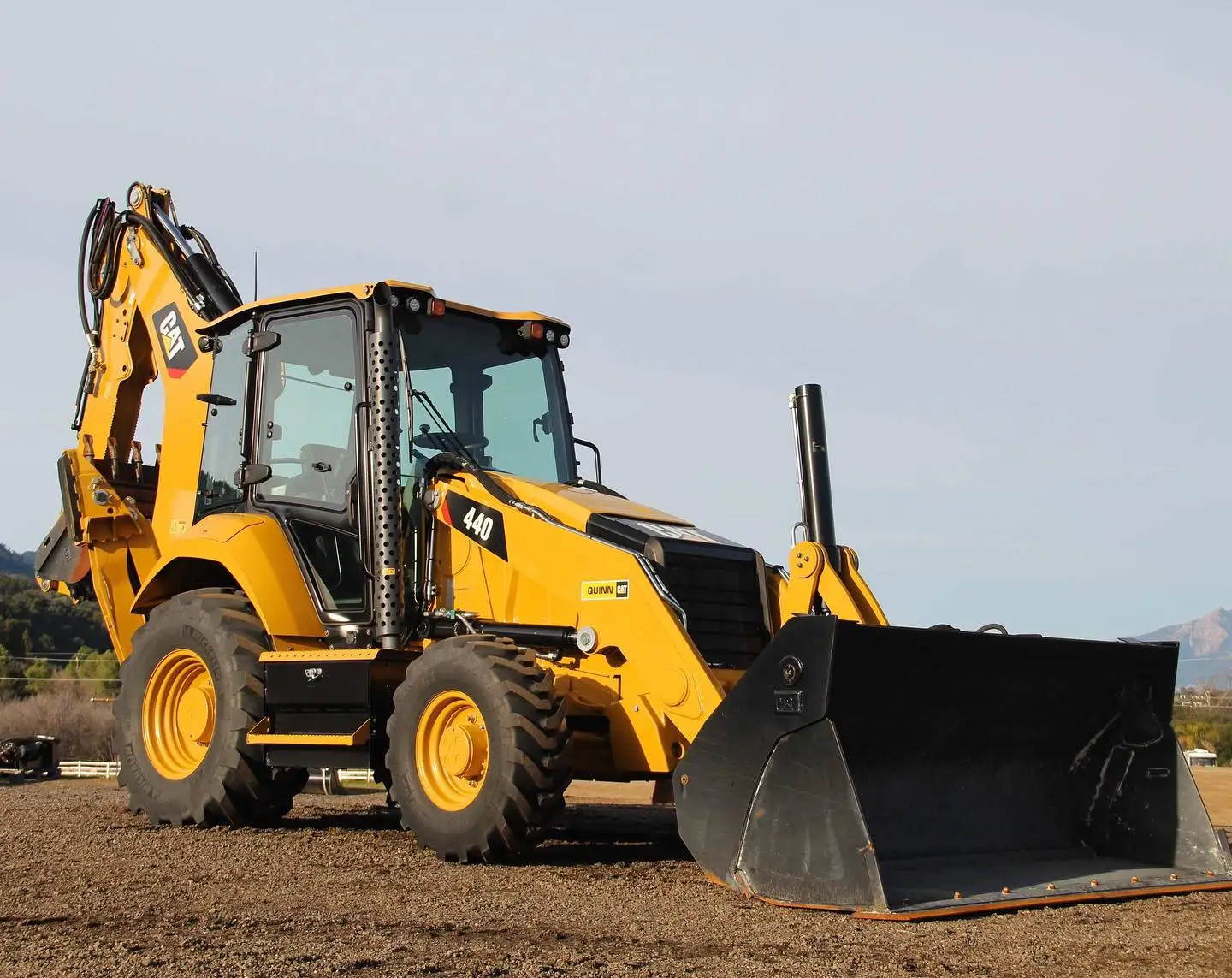

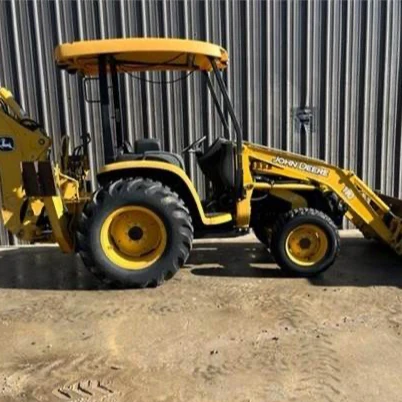

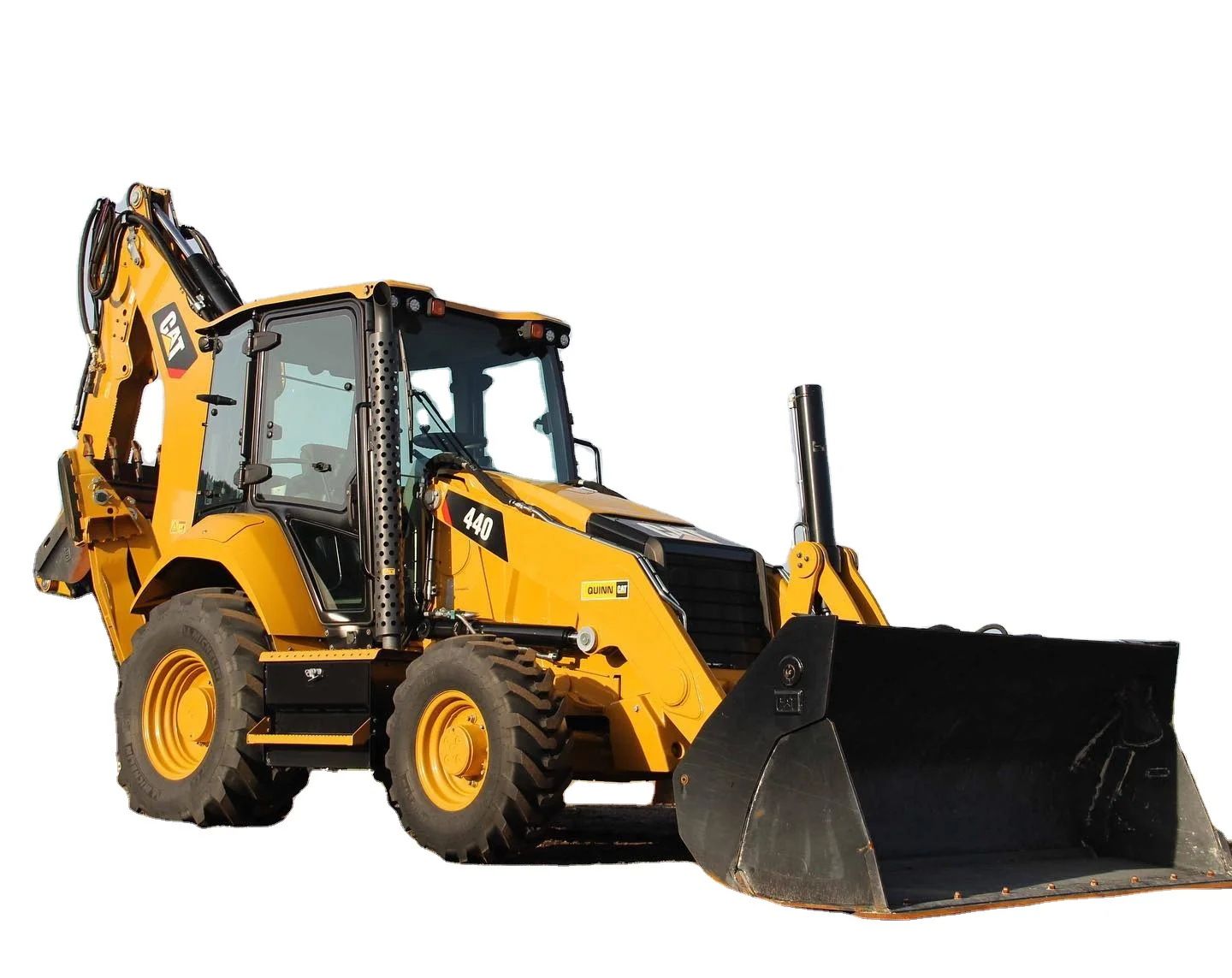

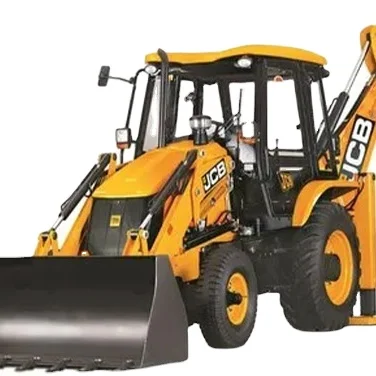

1Ton Manufacturer Mini Loader 4WD Tractor with Front End Loader and Backhoe small Yellow Long life Power ISO
- Category: >>>
- Supplier: 35 Funfunddreisig GmbH
Share on (1600805966414):
Product Overview
Description
| Operating Weight(kg) | 8000kg |
| Diamentions(H*W*H)(mm) | 5900*2150*3500 |
| Engine Rated Speed(RPM) | 2200 |
| Engine Rated Power(hp) | 95&100/110 |
| Max. Travel Speed(Km/H) | 38 |
| Traction Force(kN) | ≥67 |
| Wheel Base(mm) | 2100 |
| Wheel Tread(Front)(mm) | 1880 |
| Wheel Tread(Rear)(mm) | 1805 |
| Gradeability(°) | ≤28 |
| Tire(Front) | 14-17.5-14PR Option : 12.5-18 |
| Tire(Rear) | 19.5L-24-12PR Option : 16.9-28 |
| Loading Bucket Capacity(m³) | 1 |
| Bucket Max. Breakout Force(kN) | ≥61.1 |
| Boom Max. Breakout Force(kN) | ≥37 |
| Total Cycle Time(s) | ≤9.2 |
| Dumping Height(mm) | 2400 |
| Dumping Clearance(mm) | 780 |
| Digging Bucket Capacity(m³) | 0.18 |
| Bucket Max. Breakout Force(kN) | ≥63.5 |
| Bucket Arm Breakout Force(kN) | ≥32.2 |
| Max. Dumping Height(mm) | 3500 |
| Max. Digging Depth(mm) | 4000 |
| Max. Digging Radius(mm) | 5300 |
| IMAGE DETAILS |
