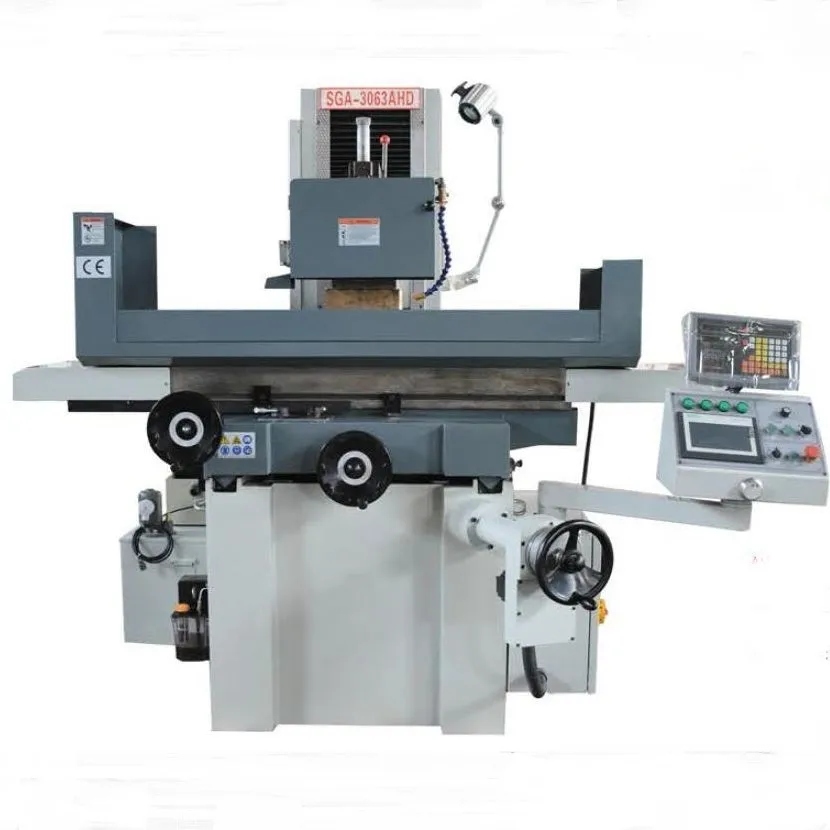

high precision SGA 3063AH/AHR/AHD horizontal shaft surface grinding machine for sale
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600806171273):
Product Overview
Description
Product Description
Specification | SGA-2050AH/AHR/AHD | SGA-3063AH/AHR/AHD |
Table size(WxL) | 508x200mm | 635x305mm |
Max.longitudinal travel | 560mm | 765mm |
Cross travel | 240mm | 340mm |
Max.distance from spindle center to table | 450mm | 580mm |
Magnetic chuck size | 200x460mm | 300x600mm |
Speed of table longitudinal movement | 7-23m/min | 7-23m/min |
Table transerve movement/ Auto feed | 0.1-8mm/min | 0.1-8mm/min |
Table transerve movement/ Repid speed | 990mm/min | 990mm/min |
Table transerve movement/ Feed of handlwheel | 0.02mm/div. | 0.02mm/div. |
Wheelhead vertical movement/ Auto feed | -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke | -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke |
Wheelhead vertical movement/Repid speed | -(H mode)610(only for R model)480mm/min(only for D model) | -(H mode)610(only for R model)480(only for D model)mm/min |
Wheelhead vertical movement/ Feed of handlwheel | 0.005mm/div. | 0.005mm/div. |
Grinding wheel Speed 50Hz | 2850rpm | 1450rpm |
Grinding wheel Speed 60Hz | 3450rpm | 1750rpm |
Grinding wheel (ODxWxID) Size | 200x20x31.75mm | 350x40x175mm |
Spindle motor | 2.2kw | 4/5.5kw |
Hydranlic Motor | 0.75kw | 2.2kw |
Coolant pump motor | 0.04kw | 0.09kw |
Elevating motor | -(Hmode)0.25(Rmode)0.5(D mode servo motor)kw | -(Hmode)0.25(Rmode)0.5(D mode servo motor)kw |
Cross feed Motor | 0.04kw | 0.04kw |
Max.loading capacity of table(include magnetic chuck) | 180kg | 270kg |
Total rated power | 3.7kw | 7.5/9kw |
Gross weight | 1050kg | 2800kg |
Packing dimensions(LxWxH) | 1750x1550x2100mm | 2315x2220x2230mm |
Standard accessories:
Coolant tank
Magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser stand (not include diamond pen)
Optional accessories:
Parallel wheel dresser
Digital readout
Wheel balance stand
Coolant tank with magnetic separator and paper filter
Coolant tank with magnetic separator

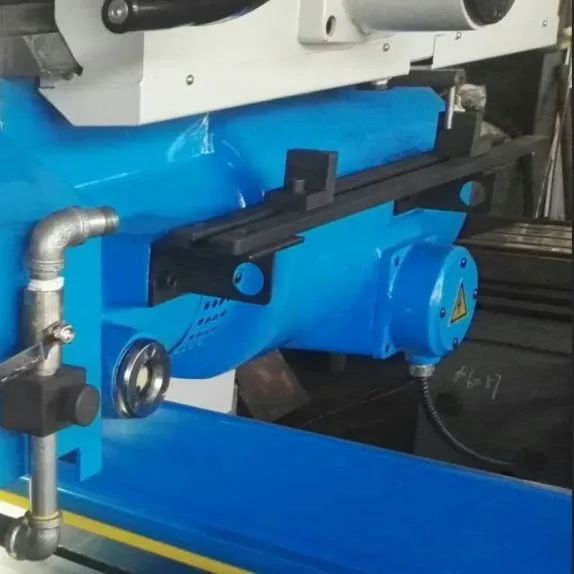

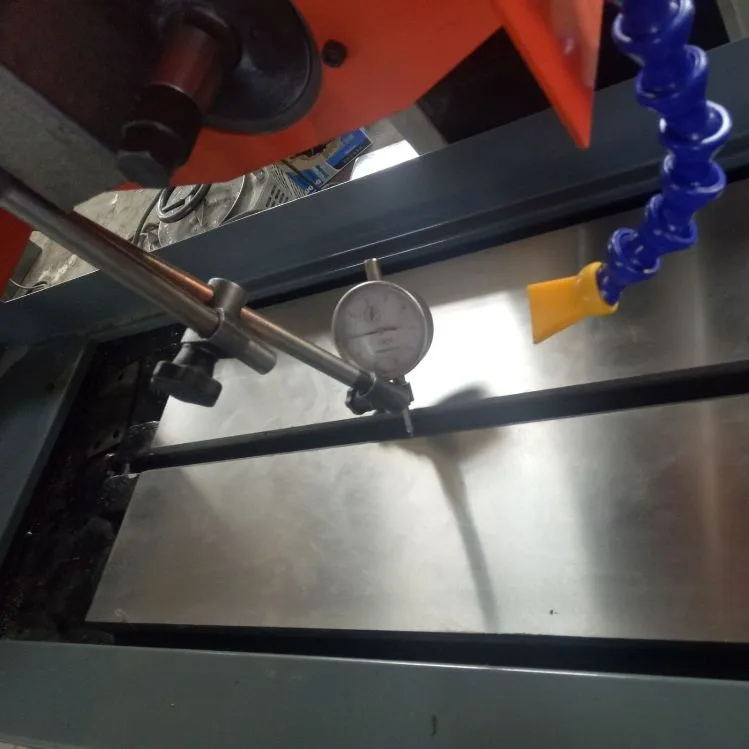

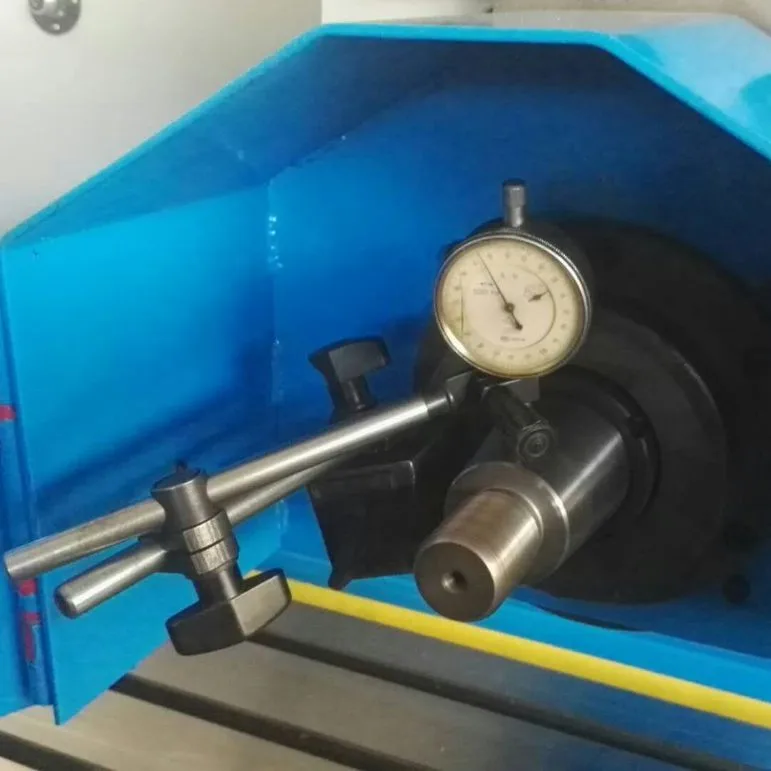

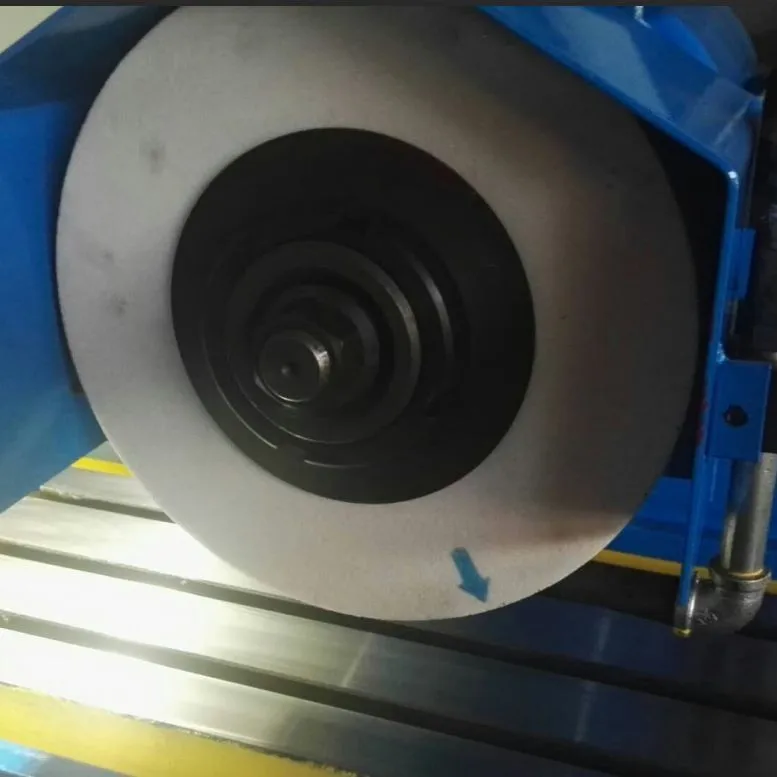

Detailed Images
