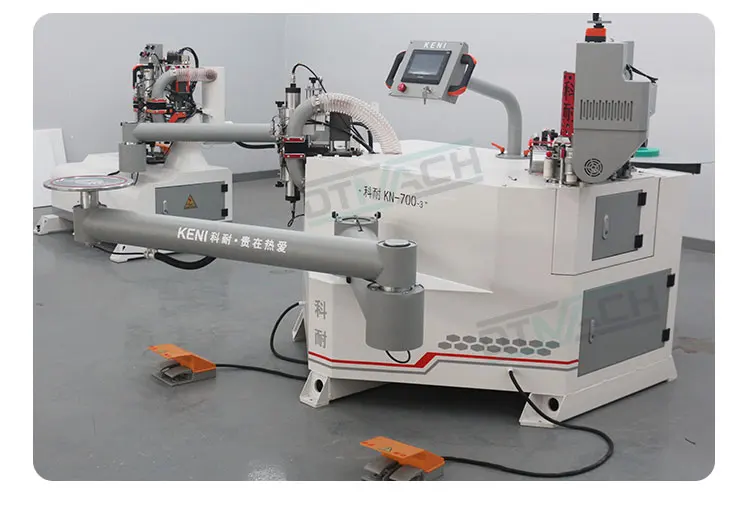

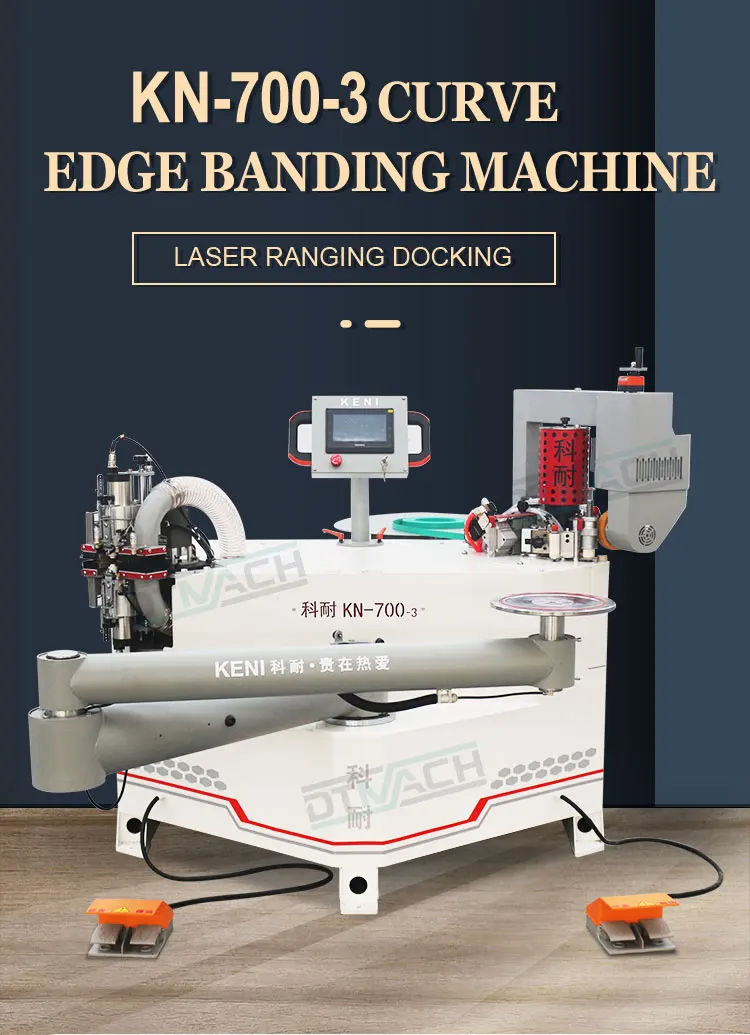

KN700 woodworking furniture pur full semi automatic curve edge bander auto edge banding machine curve and straight
- Category: >>>
- Supplier: Shandong Dongteng Machinery Co. Ltd.
Share on (1600806284434):
Product Overview
Description
DTMACH automatic curved edge banding and trimming machine features：
2. Laser ranging, precise docking (docking error ±0.3mm), high accuracy, no need the cut strip manual.
3. PUR and EVA, discharge glue by one click
4. Servo motor, which has fast action response and low noise. The machine has good stability.
5. Feeding speed is 0-30cm/s, high work efficiency.
6. The machine has 4 cleaning devices, which automatically spray cleaning liquid. Adjustable spray time and intermittent time.
7. The capacity of the glue pot is increased to 2600ml, and there is no need to add glue frequently. Heat preservation function of the glue pot reduces the waiting time for heating by one-click.
8. The touch screen can store 20 kinds of sheet data, which is convenient to use sheet data and greatly improves work efficiency.
9. Adopts 2L pressure-retaining air storage tank, when the external air pressure is unstable, it can ensure the normal operation of all pneumatic components of the whole machine.
10. 1 heating devices make the bonding between strips and the board more firmly.

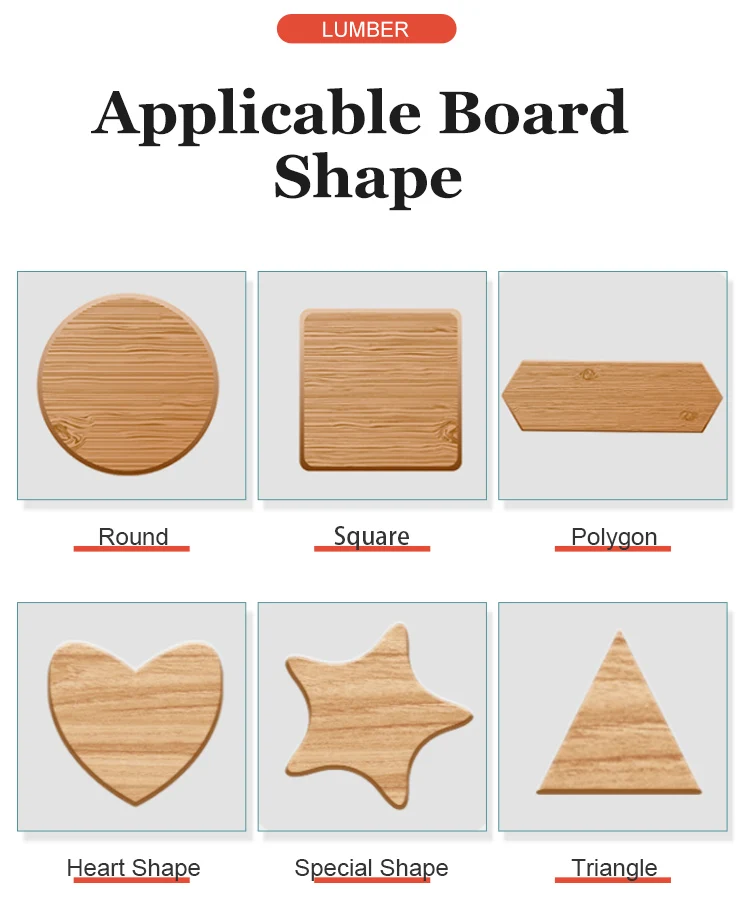

1. Automatically feeding for curve board, Especially for round, oval, rounded rectangle
2. Laser ranging, precise docking (docking error ±0.3mm), high accuracy, no need the cut strip manual.
3. PUR and EVA, discharge glue by one click
4. Servo motor, which has fast action response and low noise. The machine has good stability.
5. Feeding speed is 0-30cm/s, high work efficiency.
6. The machine has 4 cleaning devices, which automatically spray cleaning liquid. Adjustable spray time and intermittent time.
7. The capacity of the glue pot is increased to 2600ml, and there is no need to add glue frequently. Heat preservation function of the glue pot reduces the waiting time for heating by one-click.
8. The touch screen can store 20 kinds of sheet data, which is convenient to use sheet data and greatly improves work efficiency.
9. Adopts 2L pressure-retaining air storage tank, when the external air pressure is unstable, it can ensure the normal operation of all pneumatic components of the whole machine.
10. 1 heating devices make the bonding between strips and the board more firmly.
Voltage | 380V/50HZ/3phase |
Total power | 6.5KW |
Edge banding speed | 0-30cm/s |
Air pressure | 0.6-0.8Mpa |
Vacuuming | φ150mm |
Glue pot temperature | 110℃-210℃ |
Tank capacity | 2L |
Glue material | PUR/EVA |
Glue pot volume | 2600ml |
Strip thickness | 0.5-3mm |
Trimming | 14-70mm both sides trimming, ＜14mm single trimming |
Strip width | 12-70mm |
Size | 1870*1400*1530mm |
Details Images

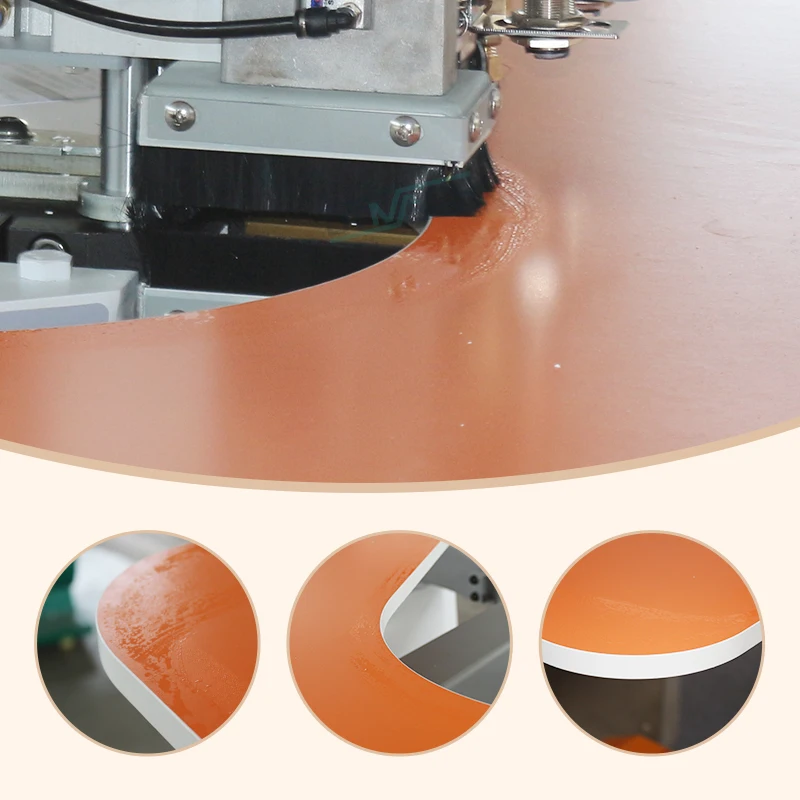

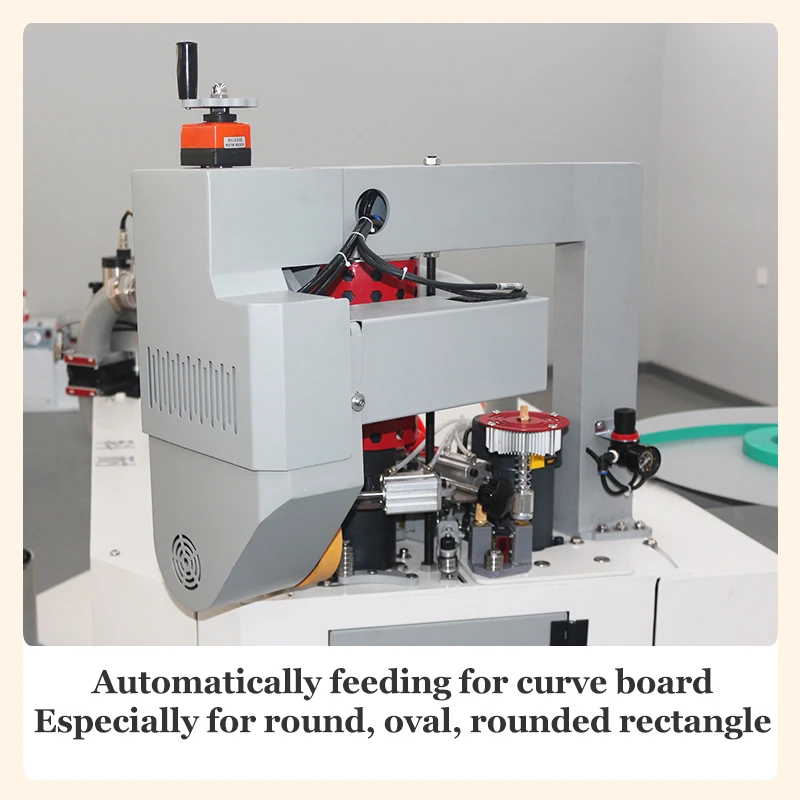

Feeding Automatically
Especially for: ROUND, OVAL, ROUNDED RECTANGLE

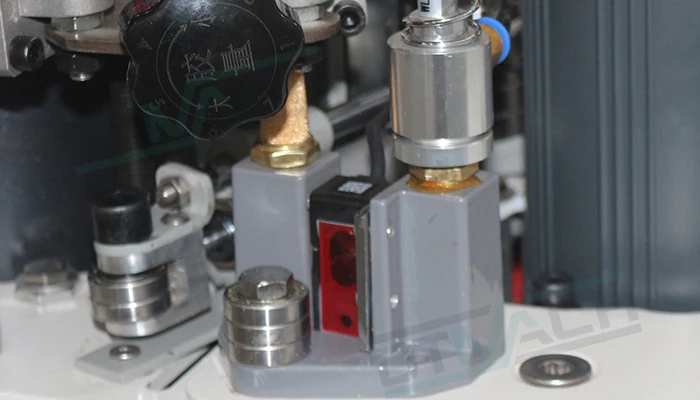

Laser Ranging
Laser ranging, docking error ±0.3 mm

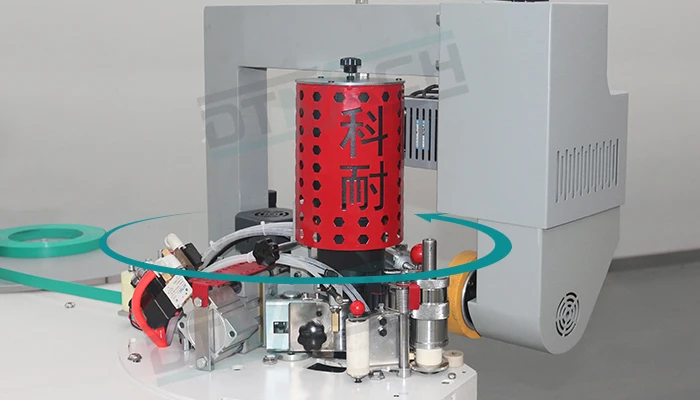

Rotatable 15°
Banding part can be rotated 15°, and the processing curve board is flexible

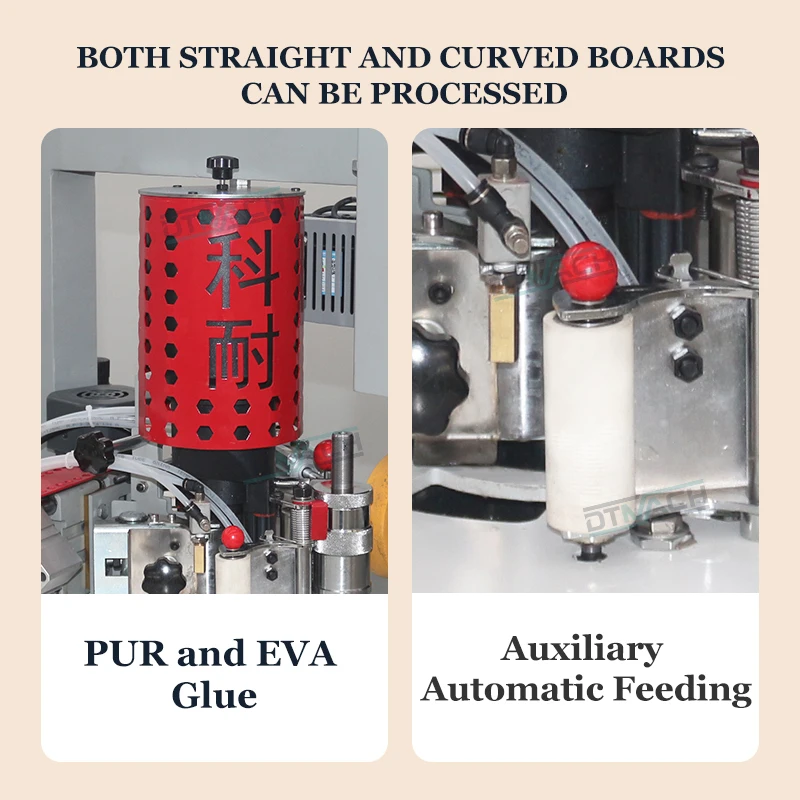

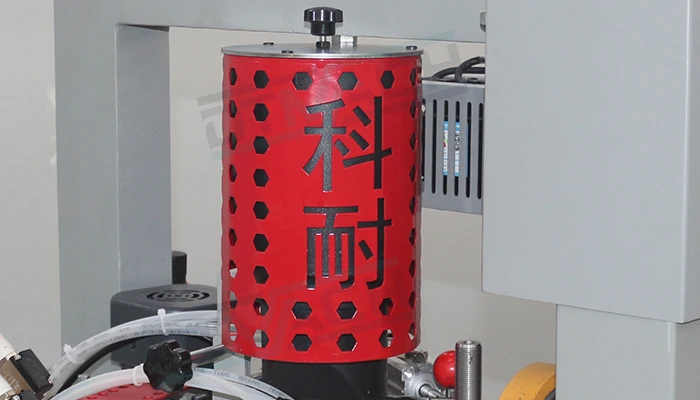

Both PUR & EVA
InnerTeflon layer. Discharge glue by one-click

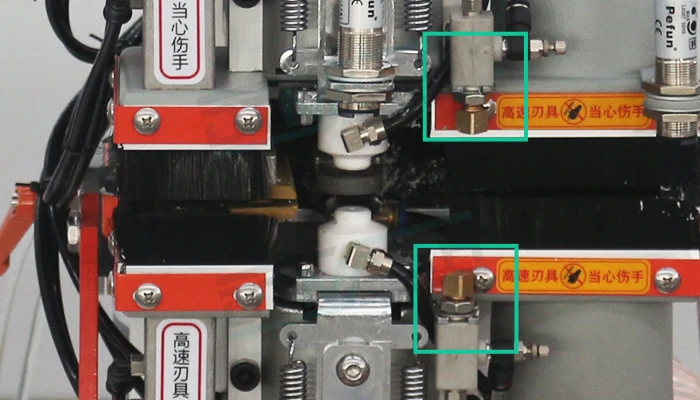

Cleaning Device
Cleaning devices spray cleaning liquid
Water-based cleaning liquid is recommended
Water-based cleaning liquid is recommended

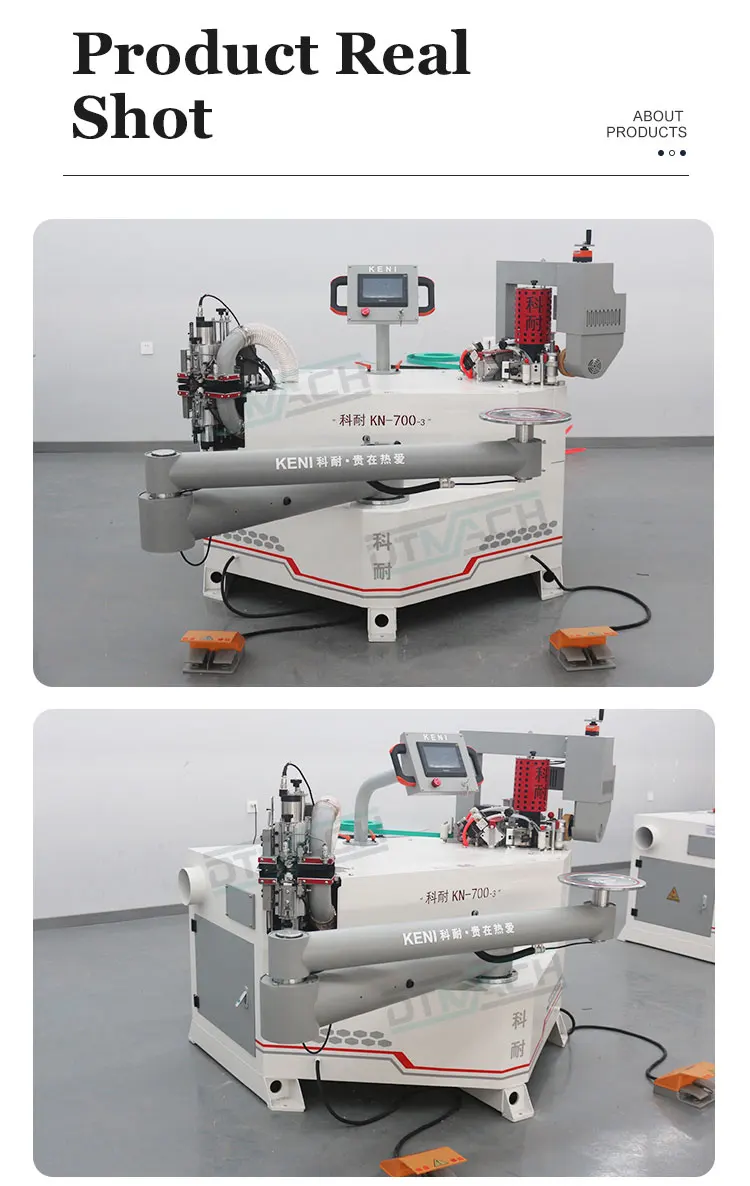

Product Display
Customer Feedback

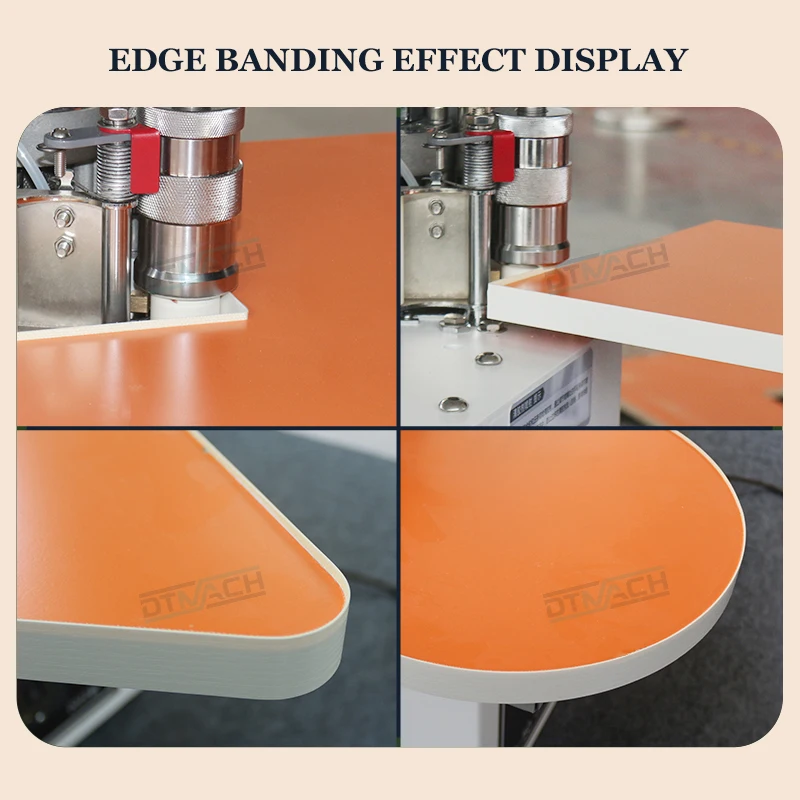

Application
Packing And Delivery
About Us
Shandong Dongteng Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry.The company’s factory covers an area of more than 30,000㎡, with more than 200 employees, more than 20 engineers of various types, more than 100 sales, an exhibition hall area of more than 1,500㎡, and a warehouse area of more 4,000 ㎡, providing customers with the best quality service as all times.
* In-depthcooperation with 5000companies
* 100 patents and certificates
* Factory more than 30000 square meters
* After sale Service experienced and knowledgeable team of technical support.
* In-depthcooperation with 5000companies
* 100 patents and certificates
* Factory more than 30000 square meters
* After sale Service experienced and knowledgeable team of technical support.
Certifications
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
