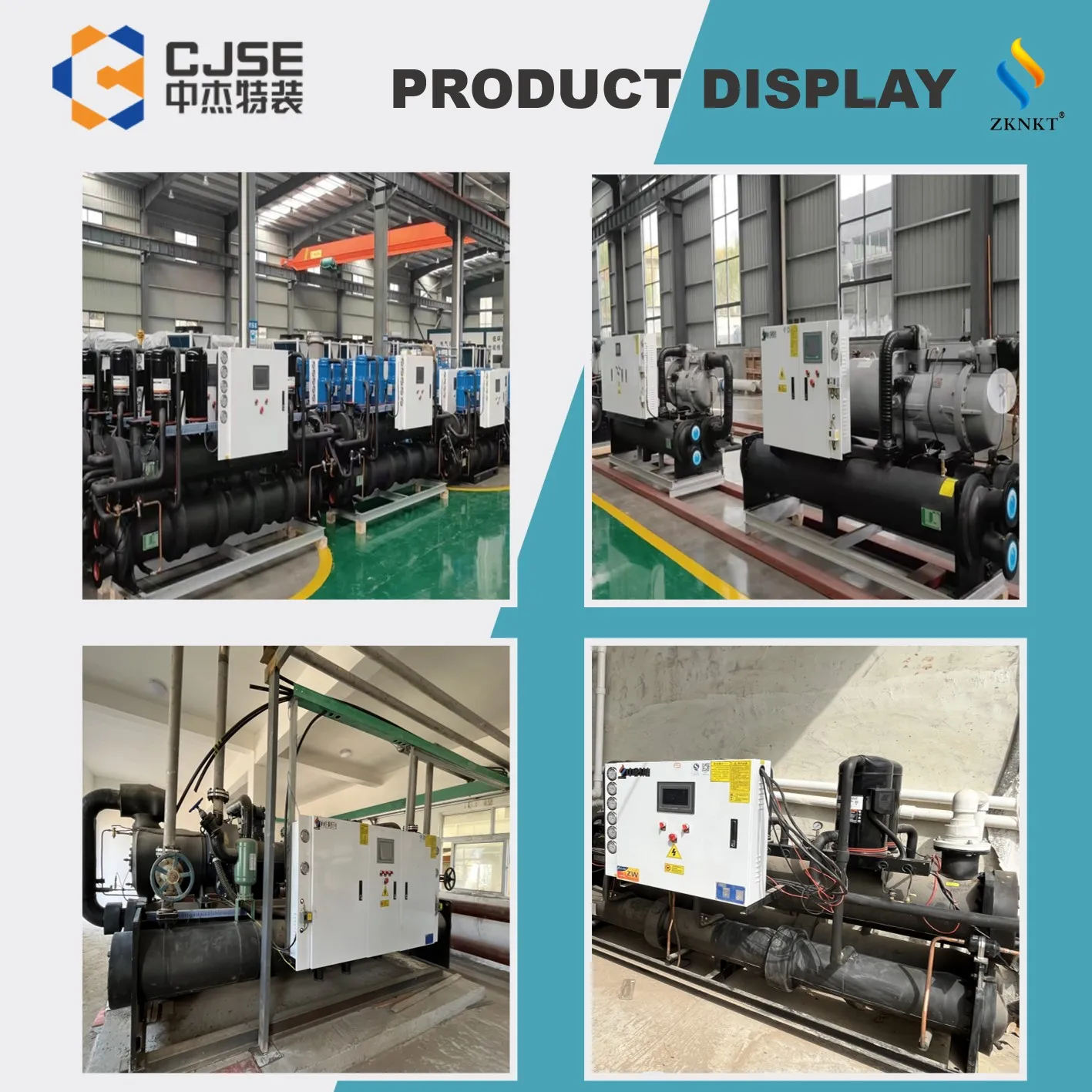

CJSE customized industrial chiller manufacturer water cooler chillerser ice bath with chiller
- Category: >>>
- Supplier: Shandong Zhongjie Pressure Equipment Co. Ltd.
Share on (1600806365035):
Product Overview
Description

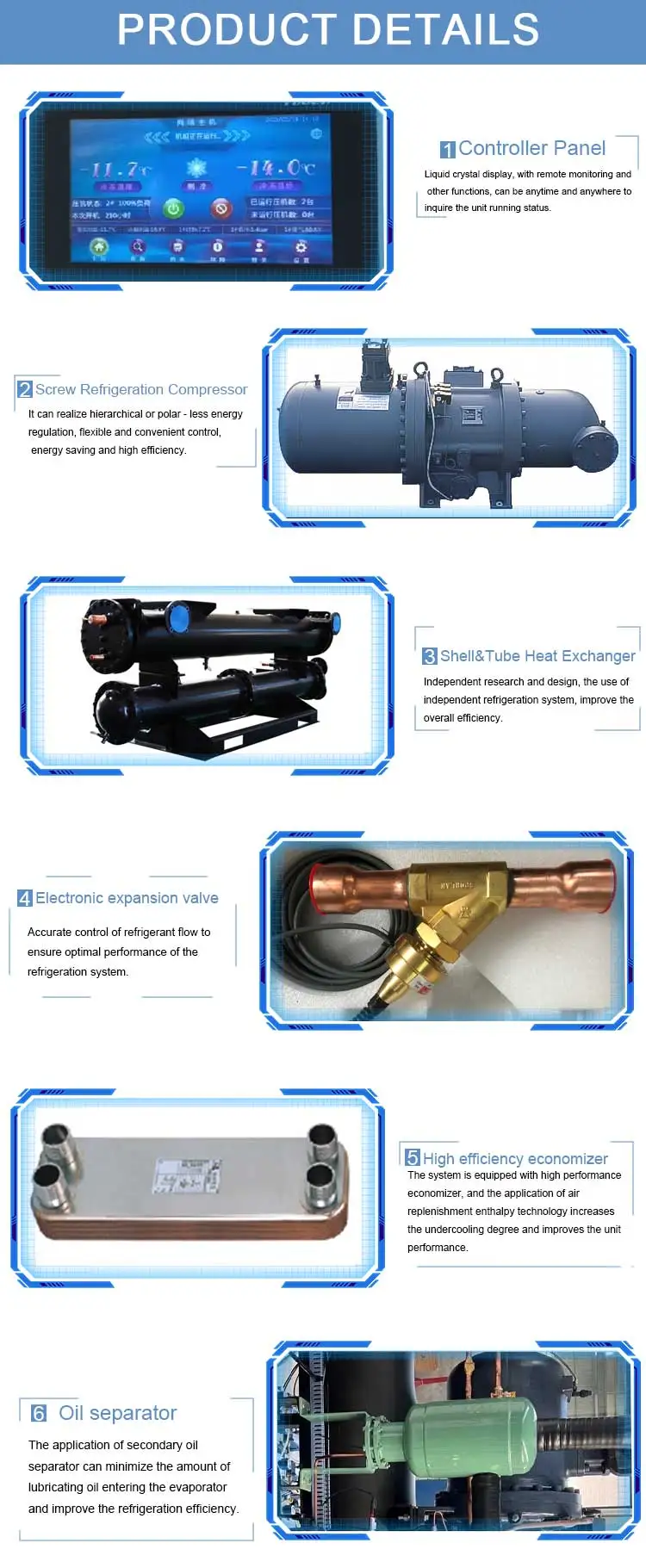

Product Details
Protection System

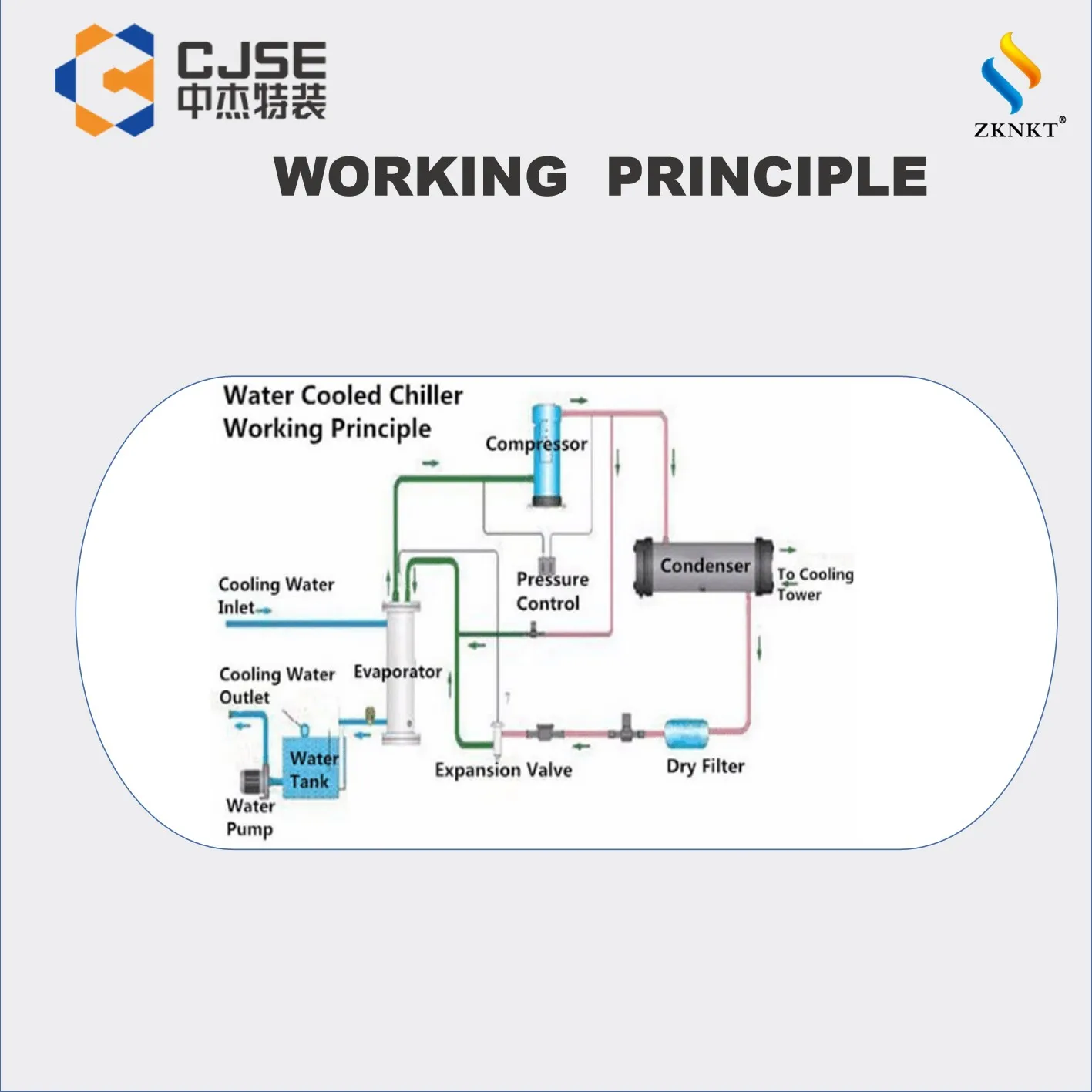

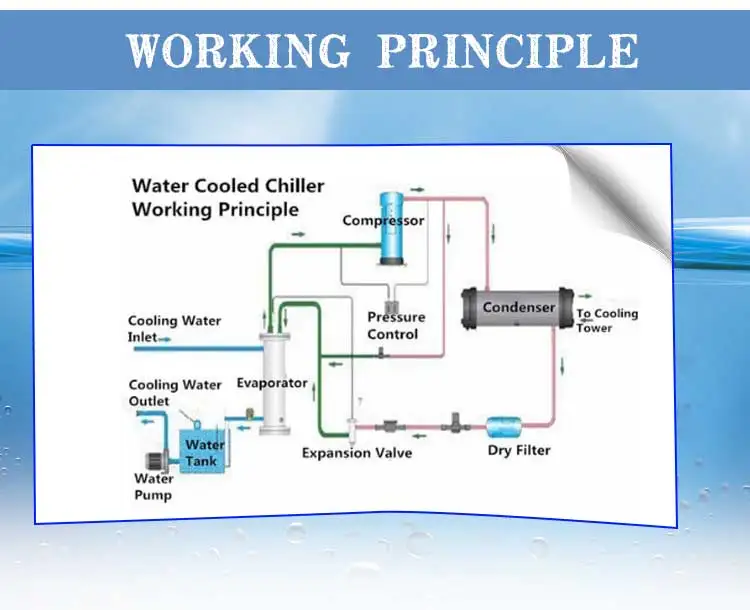

Working Principle
Chiller Shipment

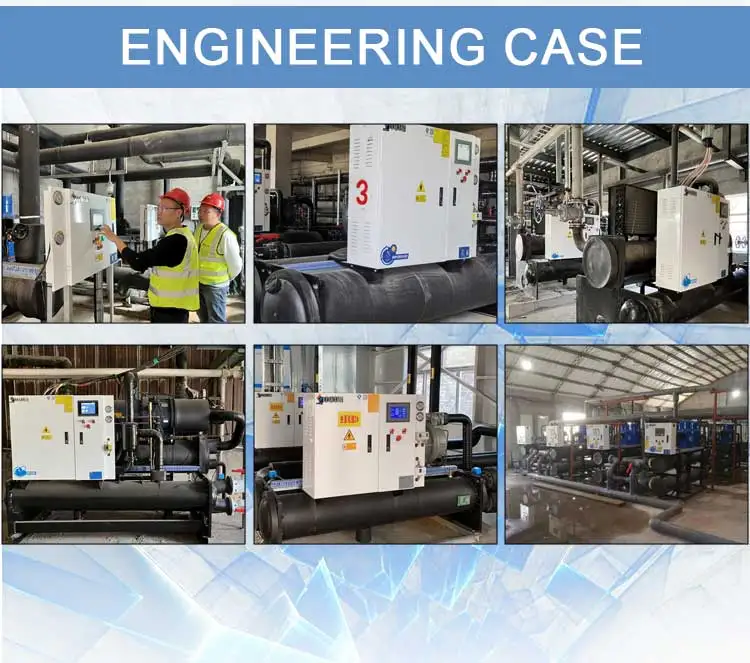

Engineering Cases
Unit model | CTESL | 430 | 480 | 560 | 600 | 710 | 800 | 900 | |||||||||
Cooling capacity | kW | 430 | 480 | 560 | 600 | 710 | 800 | 900 | |||||||||
Supply power | 3Phase 380V 50Hz | ||||||||||||||||
Energy control | 25%～100% | ||||||||||||||||
Compressor | Type | Semi-sealed screw | |||||||||||||||
Quantity | Set | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
Input power | kW | 94.5 | 96 | 115 | 122 | 142 | 161 | 182 | |||||||||
Refrigerant | (R22)Added amount | kg | 76 | 85 | 100 | 107 | 126 | 142 | 160 | ||||||||
Evaporator | Type | Shell and tube heat exchanger | |||||||||||||||
Water side resistance | kPa | 44 | 45 | 46 | 46 | 46 | 46 | 46 | |||||||||
Fouling factor | m2℃/kW | 0.018 | |||||||||||||||
Nozzle spec | mm | DN 100 | DN 125 | DN 125 | DN 125 | DN 125 | DN 125 | DN 125 | |||||||||
Water flow | m3/h | 74 | 83 | 96 | 103 | 122 | 138 | 155 | |||||||||
Condenser | Type | Shell and tube heat exchanger | |||||||||||||||
Water side resistance | kPa | 44 | 45 | 46 | 46 | 46 | 46 | 46 | |||||||||
Fouling factor | m2℃/kW | 0.044 | |||||||||||||||
Nozzle spec | mm | DN 100 | DN 125 | DN 125 | DN 125 | DN 125 | DN 125 | DN 125 | |||||||||
Water flow | m3/h | 90 | 99 | 116 | 124 | 147 | 165 | 186 | |||||||||
Outline size | Length | mm | 3200 | 3200 | 3635 | 3635 | 3635 | 3720 | 3720 | ||||||||
Width | mm | 1200 | 1200 | 1310 | 1310 | 1310 | 1415 | 1415 | |||||||||
Height | mm | 1630 | 1630 | 1810 | 1810 | 1810 | 2055 | 2055 | |||||||||
Unit weight | Standard type | 2640 | 2850 | 3250 | 3550 | 3750 | 3800 | 3850 | |||||||||
Noise blocking | 2710 | 2980 | 3325 | 3630 | 3835 | 3890 | 3945 | ||||||||||
Noise | Standard type | dB(A) | 70 | 72 | 72 | 73 | 73 | 74 | 75 | ||||||||
Noise blocking | 61 | 61 | 61 | 62 | 64 | 65 | 66 | ||||||||||
Unit model | CTESL | 960 | 1120 | 1240 | 1470 | 1660 | 1840 | 2000 | |||||||||
Cooling capacity | kW | 960 | 1120 | 1204 | 1470 | 1660 | 1840 | 2000 | |||||||||
Supply power | 3Phase 380V 50Hz | ||||||||||||||||
Energy control | 12.5%～100% | ||||||||||||||||
Compressor | Type | Semi-sealed screw | |||||||||||||||
Quantity | Set | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
Input power | kW | 193 | 227 | 250 | 301 | 336 | 376 | 406 | |||||||||
Refrigerant | (R22)Added amount | kg | 171 | 199 | 214 | 261 | 295 | 327 | 356 | ||||||||
Evaporator | Type | Shell and tube heat exchanger | |||||||||||||||
Water side resistance | kPa | 45 | 46 | 46 | 45 | 46 | 46 | 46 | |||||||||
Fouling factor | m2℃/kW | 0.018 | |||||||||||||||
Nozzle spec | mm | DN 150 | DN 150 | DN 150 | DN 150 | DN 200 | DN 200 | DN 200 | |||||||||
Water flow | m3/h | 165 | 193 | 207 | 253 | 285 | 316 | 344 | |||||||||
Condenser | Type | Shell and tube heat exchanger | |||||||||||||||
Water side resistance | kPa | 45 | 46 | 46 | 45 | 46 | 46 | 46 | |||||||||
Fouling factor | m2℃/kW | 0.044 | |||||||||||||||
Nozzle spec | mm | DN 150 | DN 150 | DN 150 | DN 150 | DN 200 | DN 200 | DN 200 | |||||||||
Water flow | m3/h | 198 | 232 | 250 | 305 | 343 | 381 | 414 | |||||||||
Outline size | Length | mm | 3860 | 3860 | 4360 | 4360 | 4650 | 4750 | 4750 | ||||||||
Width | mm | 1395 | 1395 | 1395 | 1395 | 1650 | 1670 | 1670 | |||||||||
Height | mm | 2020 | 2020 | 2020 | 2020 | 2350 | 2380 | 2380 | |||||||||
Click here to get a free quotation!

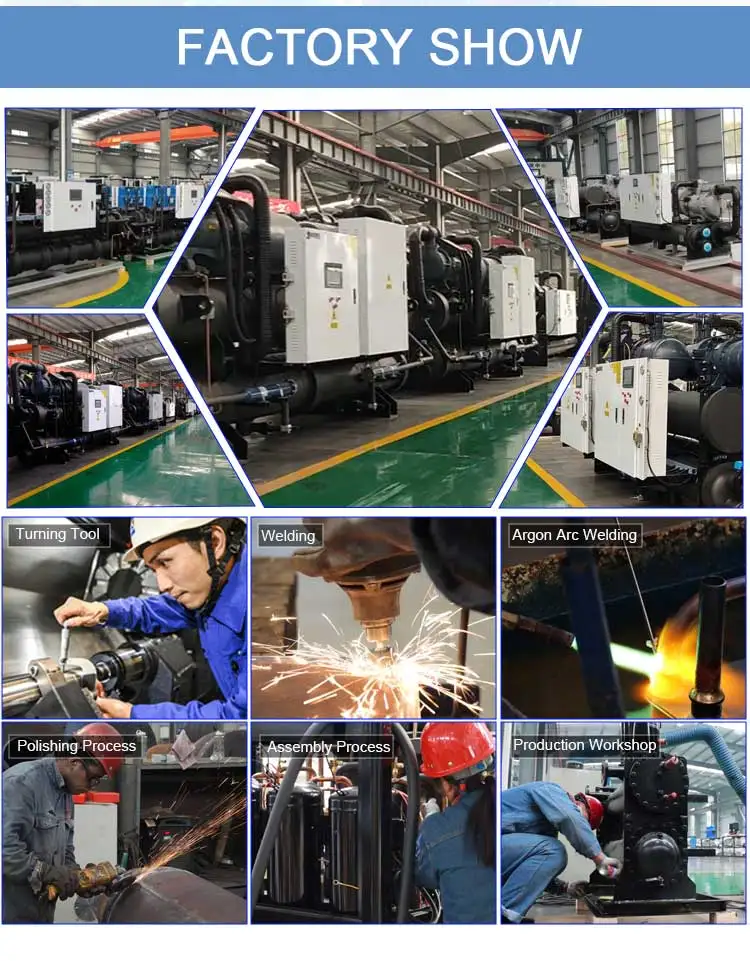

Factory Show
