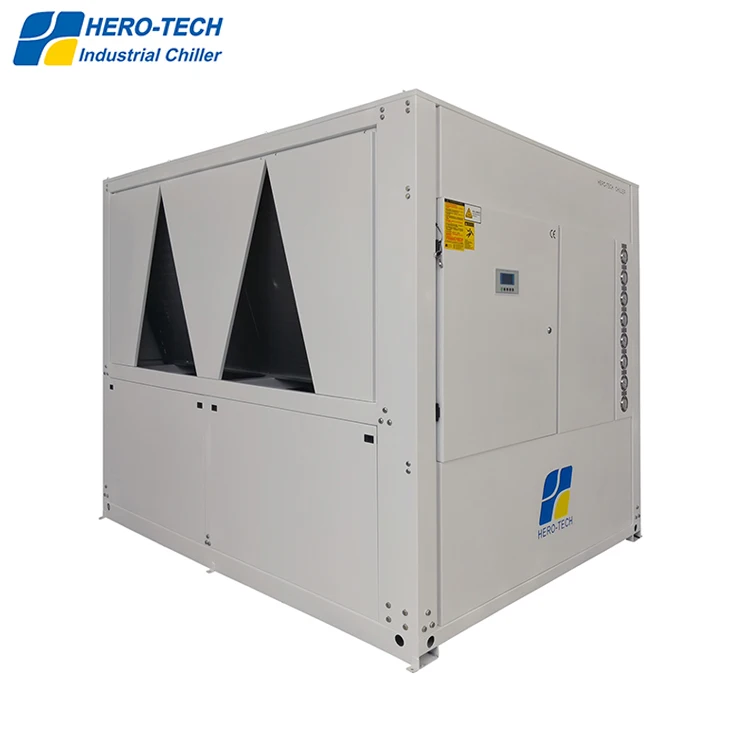

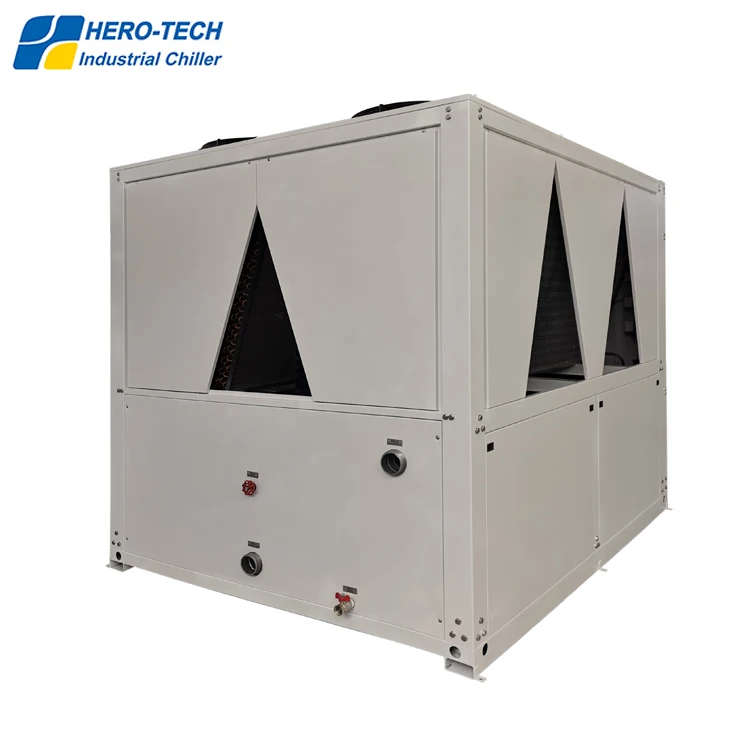

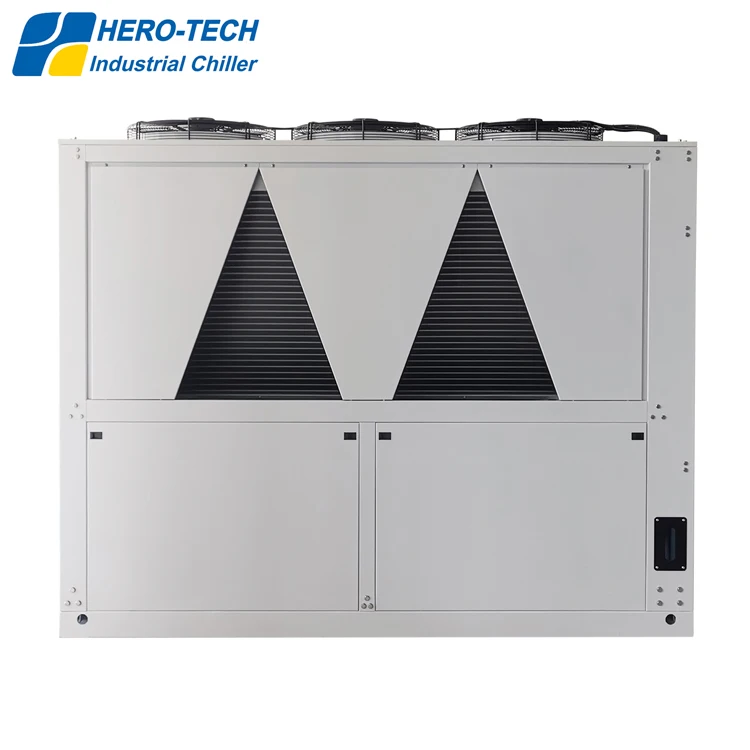

50hp low consumption CE standard air cooled 150kw cooling capacity water chiller
- Category: >>>
- Supplier: Shenzhen Hero-Tech Refrigeration Equipment Co. Ltd.
Share on (1600806398493):
Product Overview
Description
Product Description
Product Description
HTI-A series industrial chiller is mainly applied in Plastic & Rubber industry, it can accurately control the molding temperature and shorten the molding circle, increase the product quality and improve the production efficiency. They are widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.
Product Parameters
HTI-A series industrial chiller is mainly applied in Plastic & Rubber industry, it can accurately control the molding temperature and shorten the molding circle, increase the product quality and improve the production efficiency. They are widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.
Product Parameters

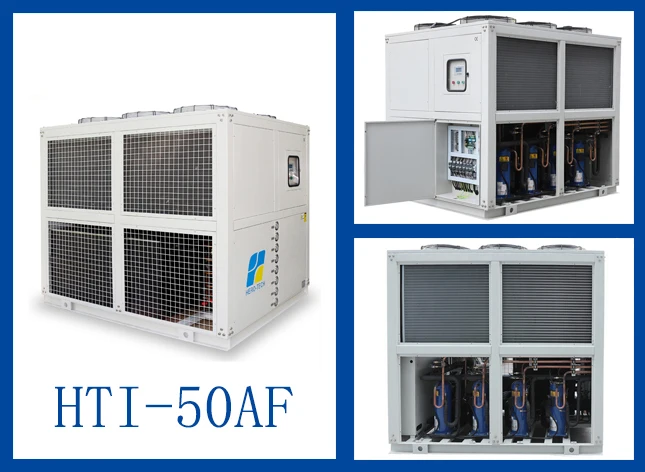

HTI-50AF Air Cooled Industrial Chiller
Model | HTI-50AF | ||||
Nominal Cooling Capacity | Kcal/h | 129000 | |||
KW | 150 | ||||
Input power | KW | 43.68 | |||
Power Source | 3PH 380V~415V 50HZ/60HZ | ||||
Refrigerant | Type | R22/R407C | |||
Control | Thermal expansion valve | ||||
Compressor | Type | Hermetic Scroll | |||
Power | KW | 9.095×4 | |||
Condenser | Type | High efficiency aluminum finned coil + big volume low noise fan | |||
Fan Motor | KW | 0.6×6 | |||
Air Volume | m3/h | 50000 | |||
Evaporator | Type | Tank with copper coil / Shell & tube | |||
Coolant Flow | m3/h | 21.9 | |||
Tank Volume | Litre | 580 | |||
Inlet and Outlet Connection(BSP) | Inch | 3 | |||
Pump | Power | KW | 3.7 | ||
Head | m | 20 | |||
Unit Protection Modules | Compressor Overheating, Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Tank Water Level | ||||
Dimension | Length | mm | 2350 | ||
Width | mm | 1800 | |||
Height | mm | 2040 | |||
Weight | KG | 1320 | |||
NOTE: The specifications based on the following design conditions
Chilled water supply/return temperature: 12℃/7℃
Cooling air inlet/outlet temperature: 30℃/38℃
We reserve the right to modify the specifications without further notice.
Product details

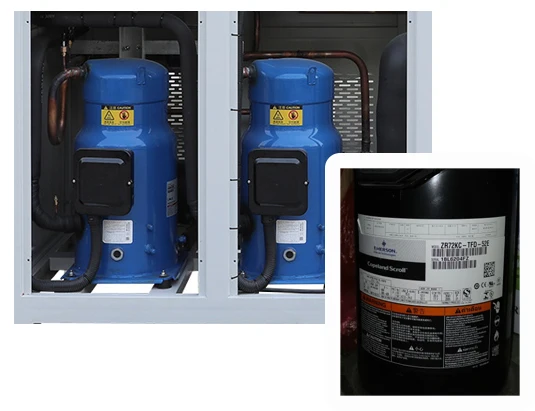

World famous brand compressor
Danfoss hermetic-scroll compressor. Low energy consumption and low noise.
Copeland compressor is optional.

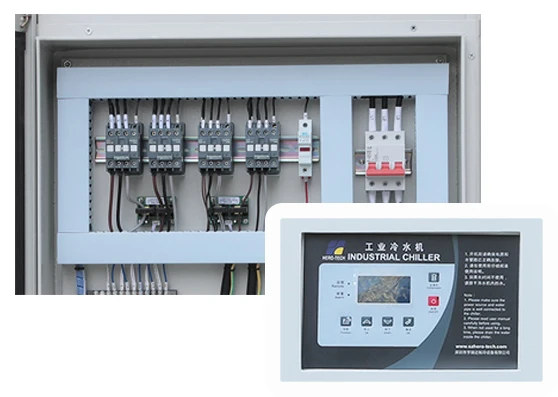

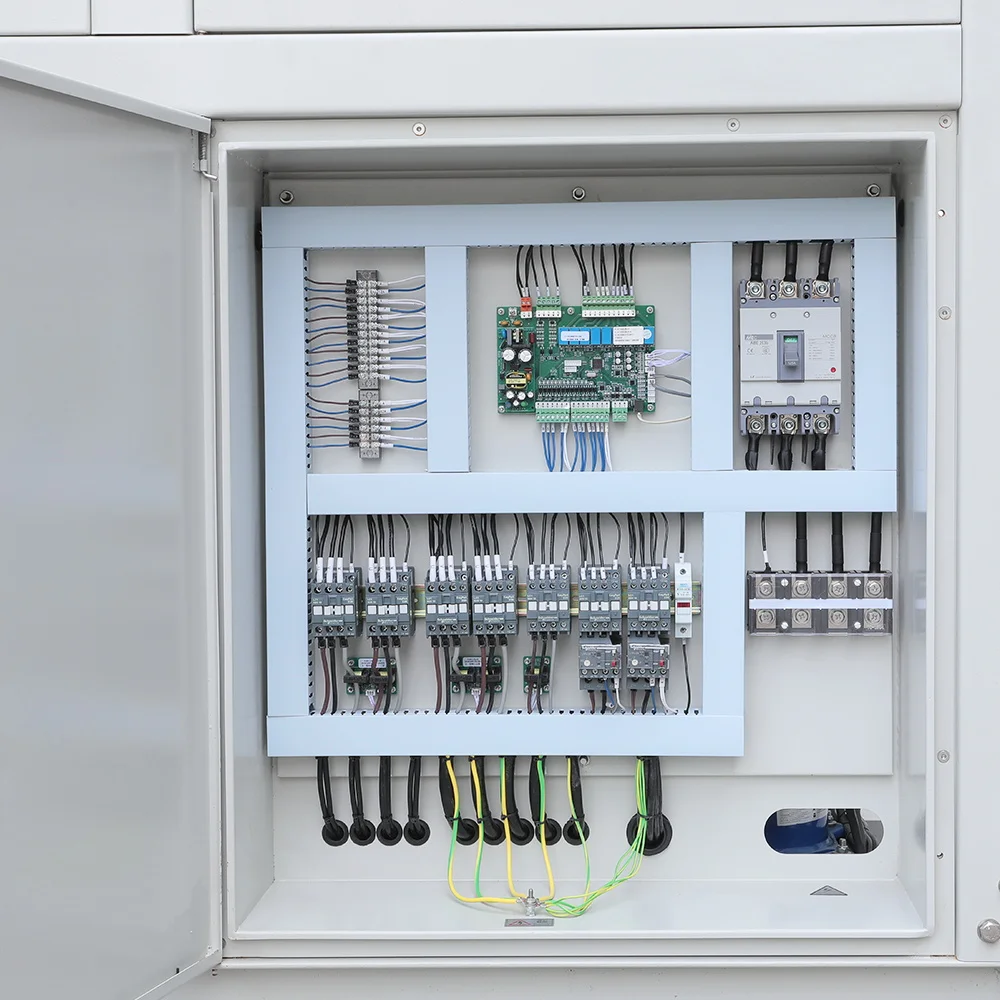

Schneider electrical components.
Reliable performance , A guarantee for long service life.
Microcomputer control system offering accurate temperature stability within ±1ºC. Easy operation. Running status indicated in a simple, visual way.

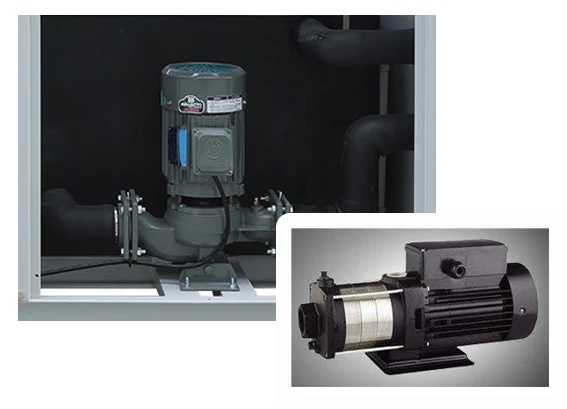

High standard pump
Large flow, adequate pressure.
Standard equipped Iron pump.
stainless steel or high lift pump for option.

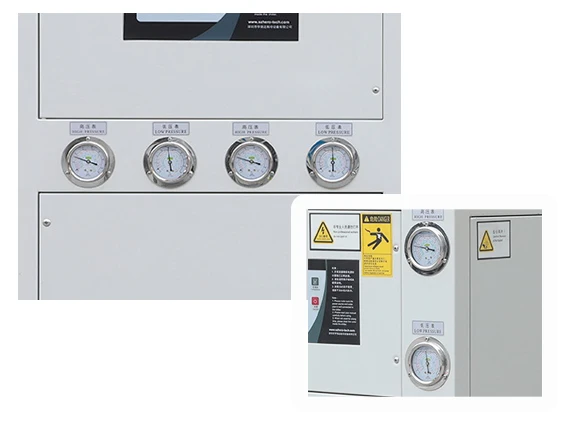

High and low pressure gage
Display the pressure values of high and low pressure in the refrigeration system, to understand the situation of the unit.
-high/low pressure protection
-over temperature protection
-High discharge temperature alarm

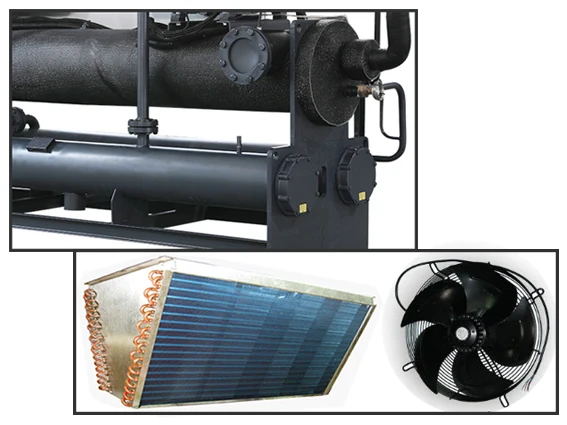

High efficiency cooling system
Over-sized evaporator and condenser ensure the chiller unit could running under 45ºC high ambient temperature.
Condenser: adopted aluminum fin/copper tube type condenser, easy for cleaning and installation. Lately designed fan motor, Low
working noise and big air volume.
Design features
1.Emerson expansion valve.
2.Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.
3.Evaporator: copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request). The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.
4.Refrigerant: R22 charged, CFC free type R407C, R410A, R134A for option.
5.Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy
consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.
6.Multi-protection devices ensure the chiller unit running safety.
-Compressor inner protection,
-over current protection,
-high/low pressure protection,
-over temperature protection,
-High discharge temperature alarm
-flow rate protection,
-phase sequence/phase missing protection,
-low level coolant protection,
-anti freezing protection,
-exhaust overheat protection
1.Emerson expansion valve.
2.Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.
3.Evaporator: copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request). The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.
4.Refrigerant: R22 charged, CFC free type R407C, R410A, R134A for option.
5.Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy
consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.
6.Multi-protection devices ensure the chiller unit running safety.
-Compressor inner protection,
-over current protection,
-high/low pressure protection,
-over temperature protection,
-High discharge temperature alarm
-flow rate protection,
-phase sequence/phase missing protection,
-low level coolant protection,
-anti freezing protection,
-exhaust overheat protection
Application
Our chillers are exported to more than 50 countries all over the world
Company Profile
About us
Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.
Exhibition
FAQ
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements; Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.
Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements; Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.
Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
