Model

ZH05

Performance

Passenger Capacity

2 Seats

Max.Speed

25-30km/h(adjustable)

Driving Range

80km

Climbing Ability

<20%

Braking Distance

<3.5

Mini Turning Radius

3.5m

Min.Clearance

105mm

Recharge Time

8-10hours

Dimension

L*W*H

3350*1220*1980mm

F/R Tread

855/980mm

Axle Distance

1670mm

Curb Weight

635kgs

Standard Configurations

Motor

48V/5KW Motor

Controller

 Controller

Battery

Huge capacity deep cycle lead-acid battery  8V/piece  6 pieces

Body & Roof

Injection molding design separable replacement

Windshield

Foldable

Seats

Sponge&artificial Leather with flexible three-point belt

Rear View Mirror

2 pcs

Bumper

Front and Rear bumper

Tire

Golf tyre 18×8.50-8 Wheel diameter 452mm

Chassis

High strength structural steel

Steering

Gear Steering, auto Backlash Compensation

Brake System

Rear Brake+ Composite Pedal Brake

Front Axle

Non Independent Suspension, Leaf Spring + Cylindrical Hydraulic Shock Absorb

Rear Axle

Integral Rear Axle, Non Independent Suspension, Spring, Sylinder Type Hydraulic Shock Absorb

Light System

Combination front light (turning light, high beam, dipped light) rear lighting (turning light, brake light) driving & reverse buzzer.

Charger

On board charger

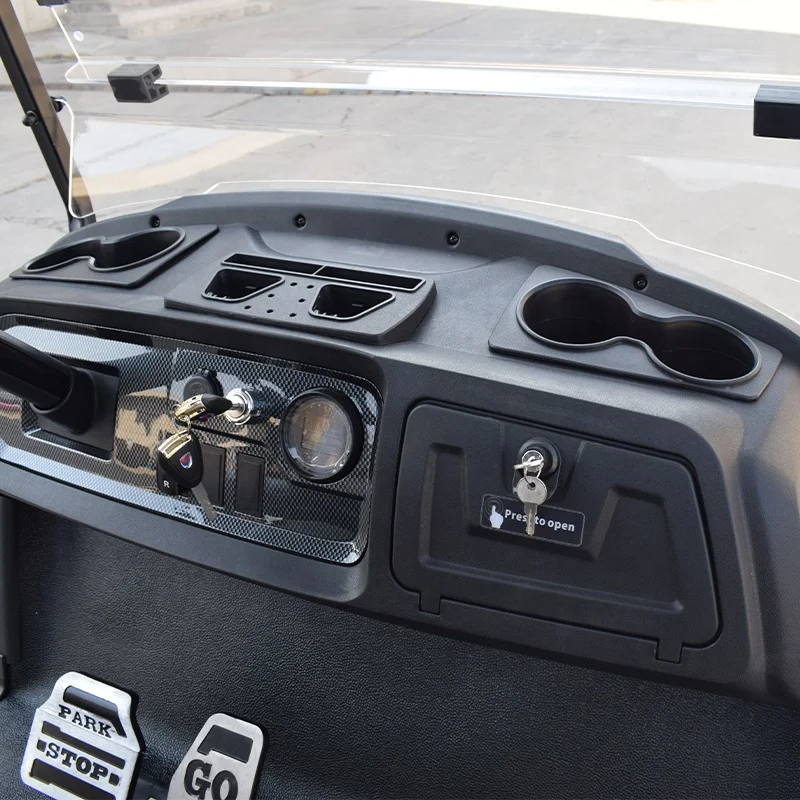

Dashboard

Plastic molding instrument board with volt meter, ammeter,electricity indicator, speedometer,electric key switch, radio with blue tooth, storage box, cup holder,turn signal indicator,forward and Revise indicator.
