Product Overview

Description

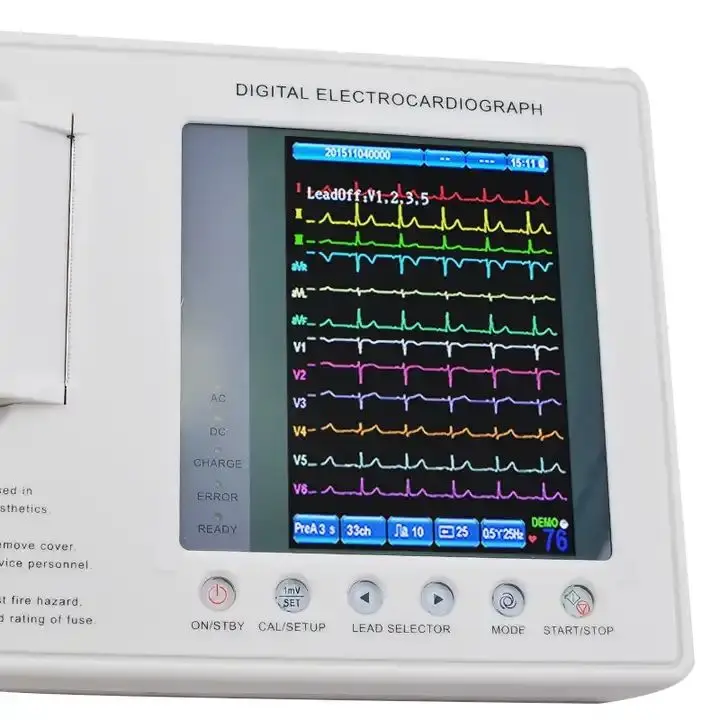

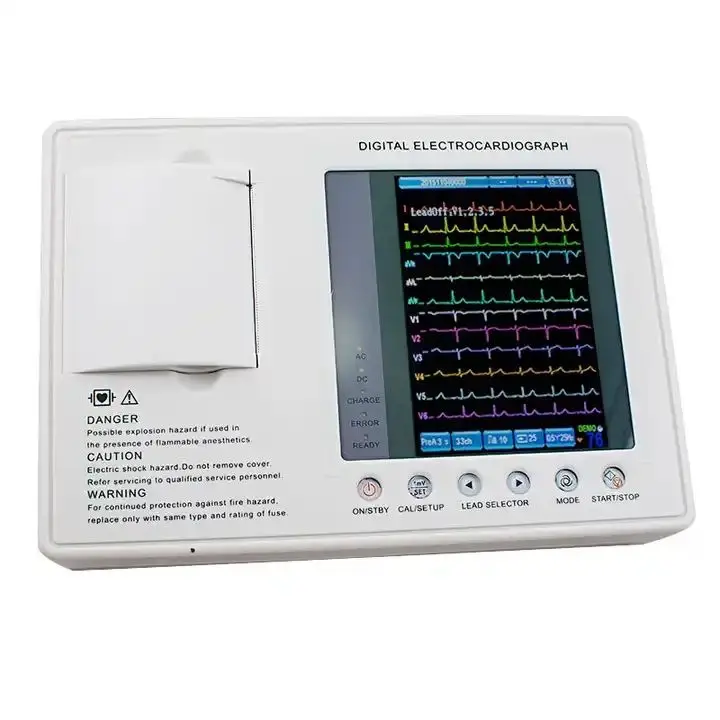

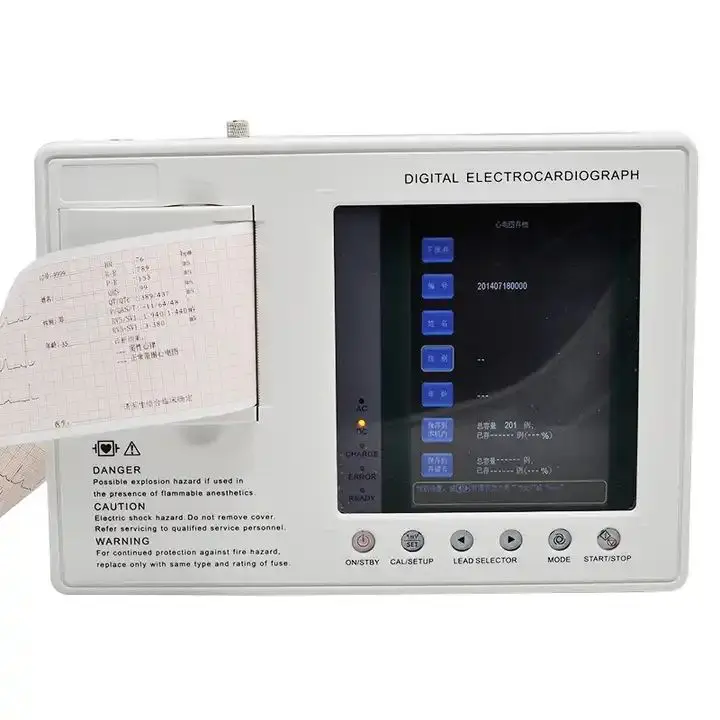

3-channel 12 lead color Screen ECG EKG machine Electrocardiograph





























































































































Lead


12 leads,Standard or Cabrera, 12 leads simultaneously acquisition


Input circuit


Floating,Defibrillation protection

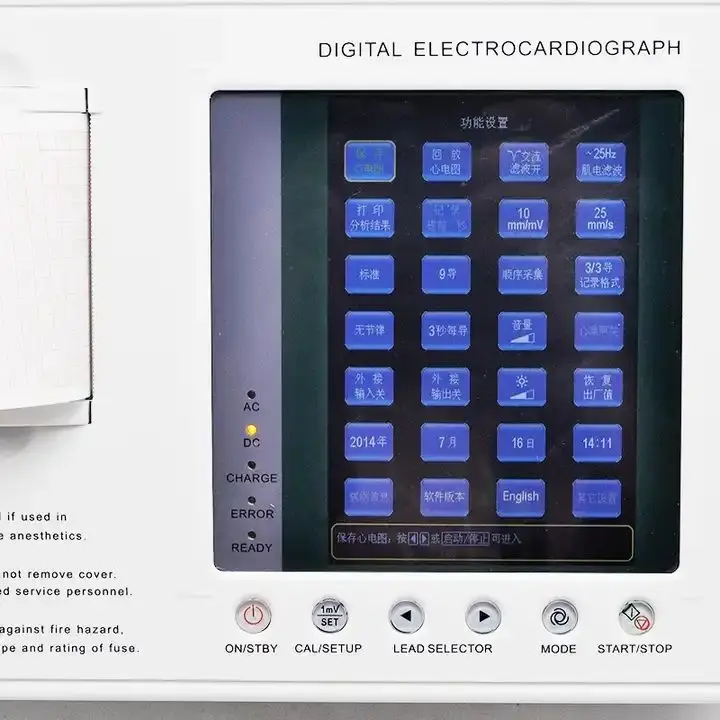

LCD display


480*680 ,7 inch color screen LCD display ECG waveform, operation conditions,Time,Heart-rate,etc


Safety


IEC class I, type CF


Sampling rate


8000 samples/Sec


Input dynamics


±500mV


Operation Mode


automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart)


Filter


AC(50Hz or 60Hz, -20dB),EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB),Drift (0.5Hz,-3dB)


CMRR


>100dB(with AC filter)


Input circuit current


≤0.1μA


Input Impedance


≥50Mohm


Time constant


≥ 3.2 Sec


Frequency Response


0.05--150Hz,-3dB


Noise Level


≤15μVp-p


Sensitivity


1.25; 2.5; 5; 10;20; 40mm/mV±2%


Calibration Voltage


1mV±2%


Calibration Voltage


<10uA


Patient Current Leakage


<10uA


Protection


Protect from defibrillation and pace-making

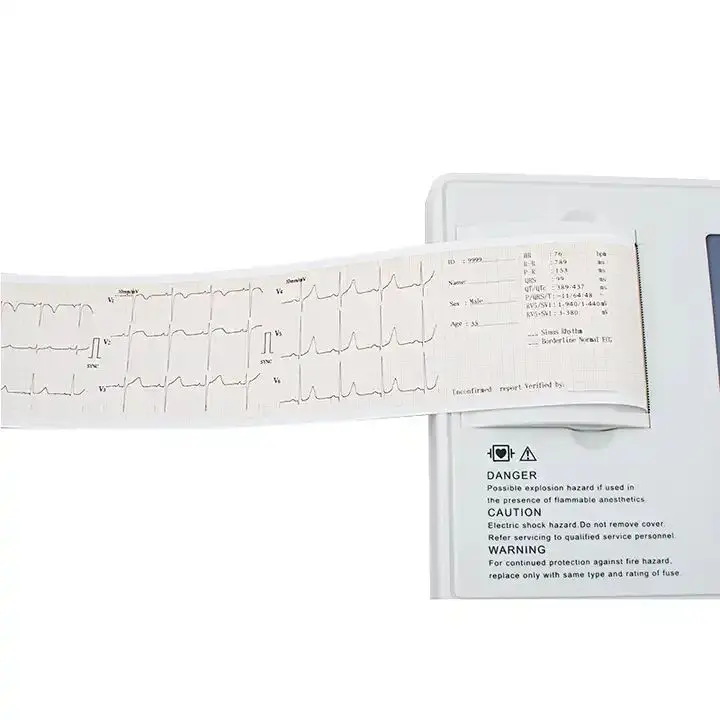

Printing system


Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s


Printing Speed


5; 6.25; 10; 12.5; 25; 50mm/s±3%


Printing Output


3/2 channel; 3/2+1 channel; 3/3channel; 3/3+1 channel


Paper size


80mm*20m roll type or Z-fold thermal paper

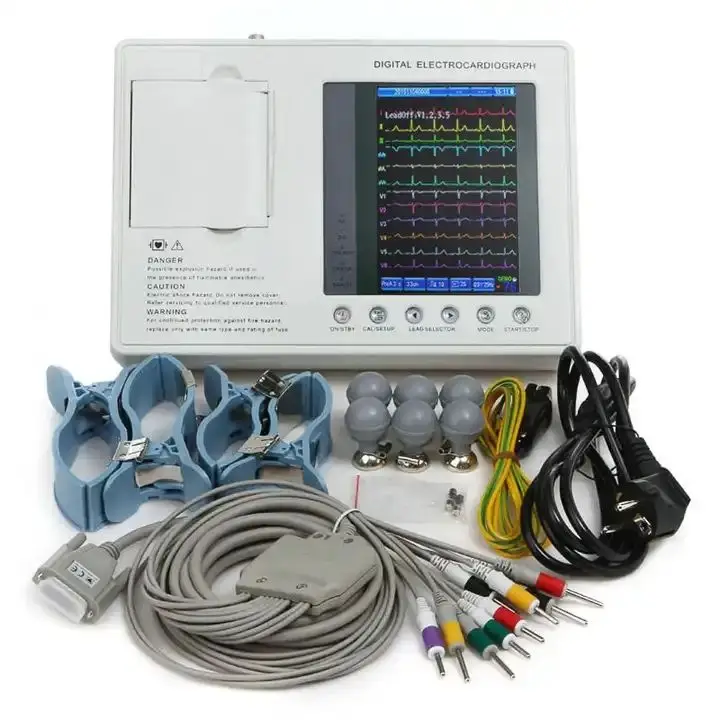

Patient Cable


standard 10 core


Report storage


200 reports in built-in memory, support external SD card,report presentation,review and re-printing.


Indicator


Lead-off detection


Power Supply


12.6V 1500mA Li-poly rechargeable battery pack (DC),220V±10%, 50Hz±2%, 75VA (AC)


Fuse Specification


2Φ5x20mm 3.15A 250V






_03


_07_10



FAQ


Q 1. What's the payment term?


A. We accept T/T, 30% deposit and 70% balance before shipment.





Q 2. How's the delivery time ?


A. Usually it will take about 25 days for production





Q 3. Tell me the standard of package?


A. For the any capacity, it use carton with for protection.





Q 4. What kind of material of monitor?


A. We apply a health and safe material - ABS, which consists of 70% of monitor body. The other materials include silica gel, PCB, Cooper. We are using high quality material in pursuit of high quality products.





Q 5. Could you offer Form A or C/O ?


A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.





Q 6. Would you accept to use our logo ?


A. If you have good quantity,it absolute no problem to do OEM.





Q 7. We want to know month capacity.


A. It depends on which model.For example for BPM small capacity , thermometer month capacity can reach near 800000pcs.





Q 8. Where is your market?


A. Our products are popular in Europe, Russia, Indonisia, Philippines, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.





Q9. What kind of certificate you have ?


A. Our company already achieve ISO, CE for products, we have CE, ISO 13458.
