AK 9808 best barcode scanner high speed scanners 2d desktop scan diagnostic tool 2023
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (1600807801030):
Product Overview
Description
Products Description

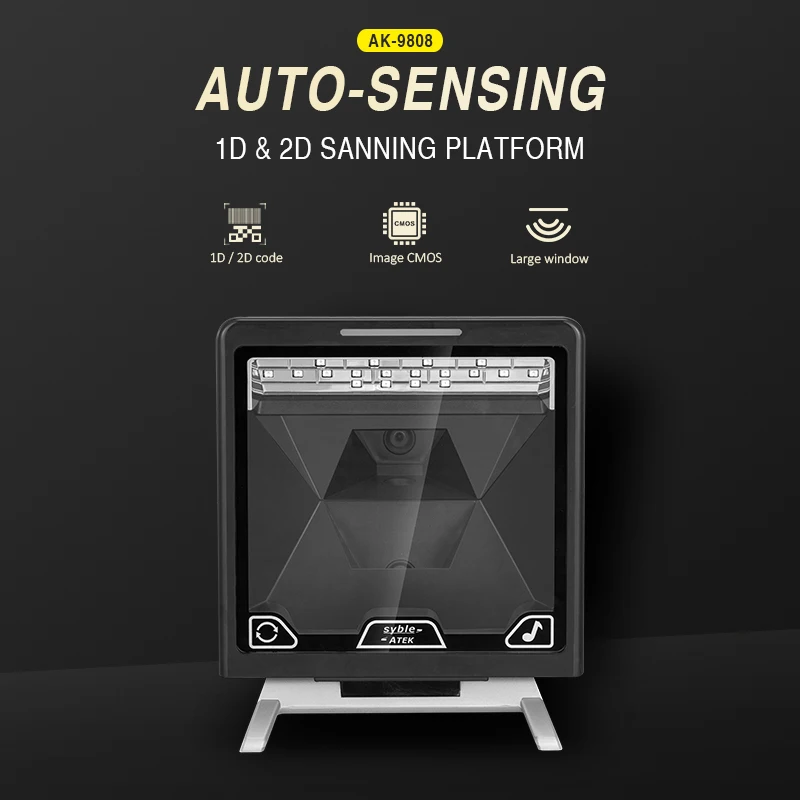

ATEK 2D Desktop CMOS Imaging Barcode Scanning Platform AK-9808 Barcode Scanner.This item is the high end product of our company.
It has the smart chip of the latest and it's much more professional for all kinds of usage applications.With its stronger decoding
ability,both 1Dand 2D as well as damaged bar codes can be scanned easily.The hands free model will bring you much more
convenience.
Model: AK-9808
It has the smart chip of the latest and it's much more professional for all kinds of usage applications.With its stronger decoding
ability,both 1Dand 2D as well as damaged bar codes can be scanned easily.The hands free model will bring you much more
convenience.
Model: AK-9808
Features
*Compatible with Linux, Android, Windows XP, 7, 8, 10, MAC
*Switch to read only 1D code, to prevent misreading adjacent 2D code
*Read the coated bar code and mobile phone payment code smoothly
*Quick and accurate reading of universal 1D & 2D code
*Ultra wide scan wide Angle and ultra far reading distance
*Soft color fills the light, does not hurt the eye
*Switch to read only 1D code, to prevent misreading adjacent 2D code
*Read the coated bar code and mobile phone payment code smoothly
*Quick and accurate reading of universal 1D & 2D code
*Ultra wide scan wide Angle and ultra far reading distance
*Soft color fills the light, does not hurt the eye
Specification:
Specification: | ||||||||||
Performance Parameters | ||||||||||
Light Sources | SXGA-W(Width1280*high1024) Ratio(5:4) | |||||||||
Supported symbologies | 1D: EAN-8,EAN-13,EAN-132 add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E, Code 11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5, Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar(RSS14), GS1 DataBar Limited,GS1 DataBar Expanded. 2D: PDF417,MicroPDF417,QR-code,Micro QR,Data Matrix,QR,Aztec. | |||||||||
Scan Range | 3mil(Code39) 0cm~8cm; 5mil 0cm~21cm; 13mil(UPC-13) 0cm~43cm; 20mil(QR Code) 1cm~35cm | |||||||||
System compatibility | Linux,Android,Windows XP,7,8,10,MAC | |||||||||
Minimum recognition accuracy | Code 39 4mil | |||||||||
Motion tolerance | 3.8meters/second | |||||||||
Scan Mode | Continuous Scanning | |||||||||
Print contrast | 20% | |||||||||
Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° | |||||||||
Mutual Move | Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt;Key: switch three tones; QR code switch. | |||||||||

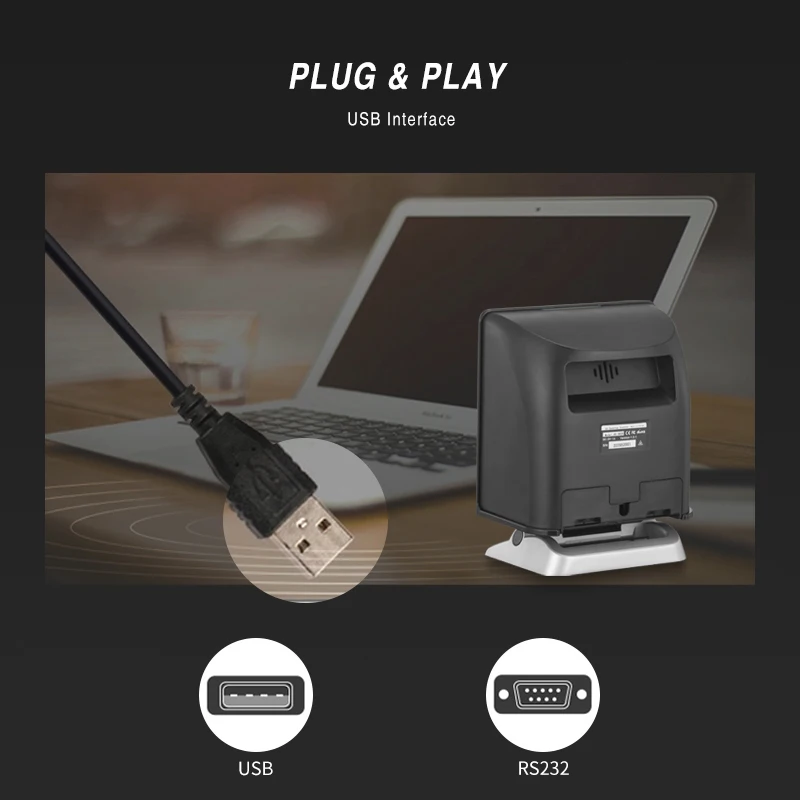

Interface | USB(Drive-Free), RS232, USB-COM | |||||||||
Physical Parameters | ||||||||||
Dimensions | 152mm*87mm*152mm | |||||||||
Weight | 390g | |||||||||
Material | ABS+PC | |||||||||
Cable length | 2M | |||||||||
Environmental Parameters | ||||||||||
Operating Temperature | -20℃ - 55℃ | |||||||||
Storage Temperature | -20℃-60℃ | |||||||||
Humidity | 5% to 95% RH.Non-condensing | |||||||||
Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | |||||||||
Electrical Parameters | ||||||||||
Voltage | DC5V±5% | |||||||||
Current | Standby current 160mA; Working current 310mA | |||||||||
Product Overviews
Related Products
Some other hot-selling barcode scanner recommand , Pls contact us
2D Barcode Scanning Platform
2D Barcode Scanning Platform
"Cat's eye" auxiliary Barcode Scanner
Stronger decoding Barcode Scanner
Quick and accurate Barcode Scanner
FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can
return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
Our warranty of the products is about 24 months from the shipment normally, some designated models can have as long as 24 months
warranty;
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, or others. About samples order, T/T, Western Union, Paypal are
acceptable. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can
return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
Our warranty of the products is about 24 months from the shipment normally, some designated models can have as long as 24 months
warranty;
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, or others. About samples order, T/T, Western Union, Paypal are
acceptable. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
