Acrel ADW300 4G GSM IoT Based 4G Smart Electricity Energy Meter 3 Phase MQTT
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600808302255):
Product Overview
Description
Product Description

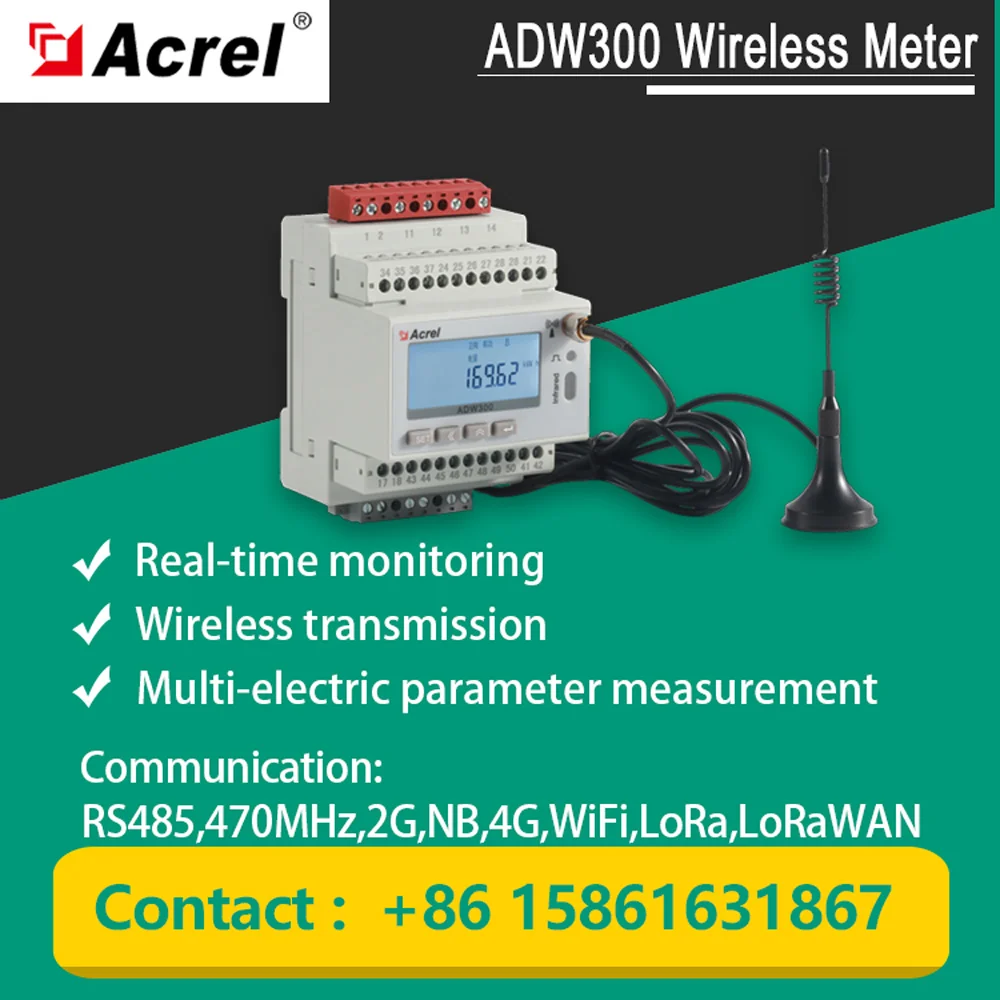

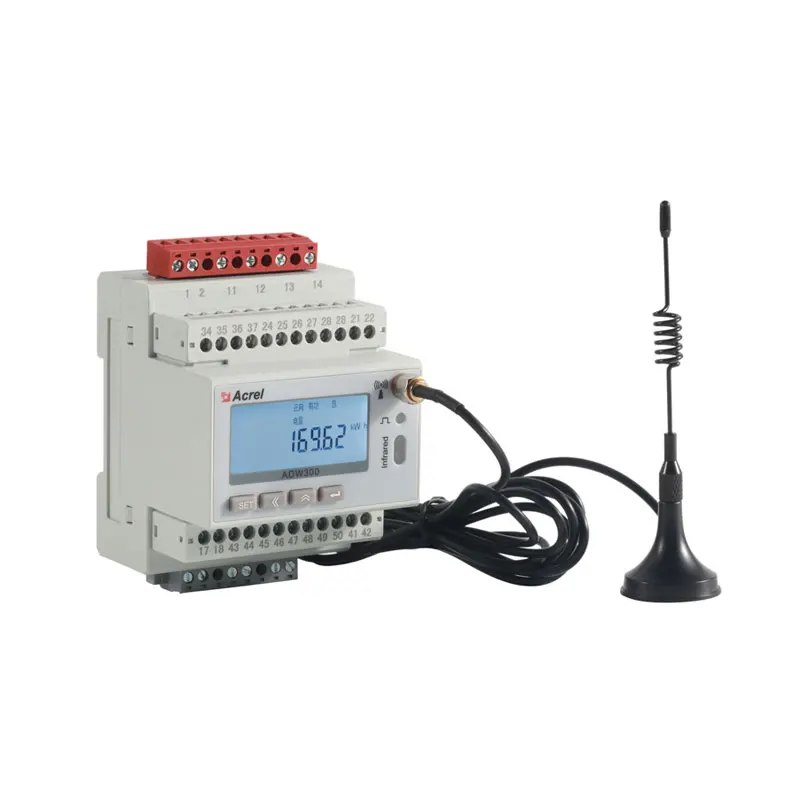

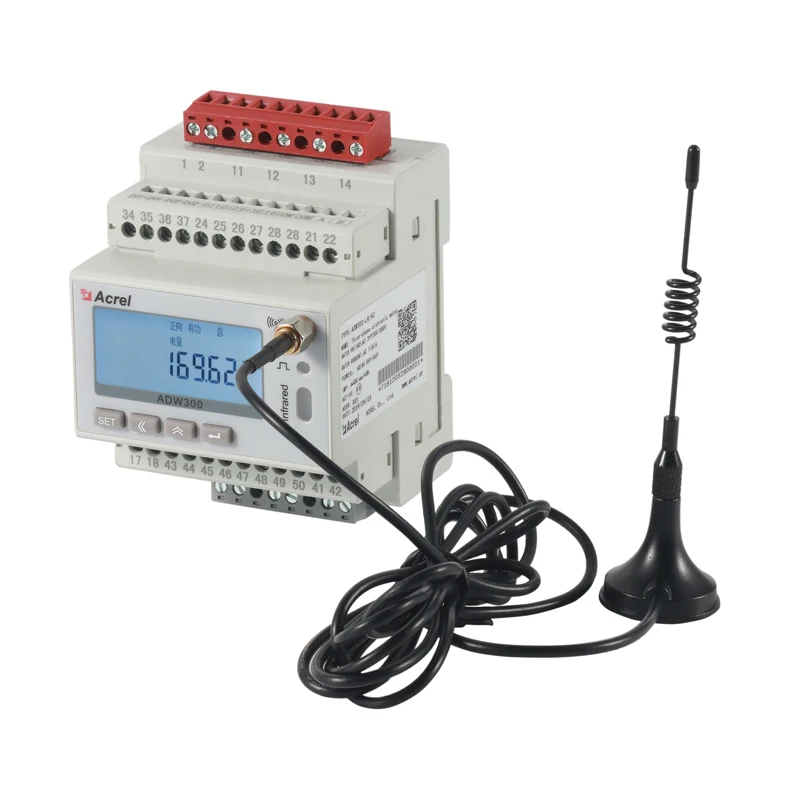

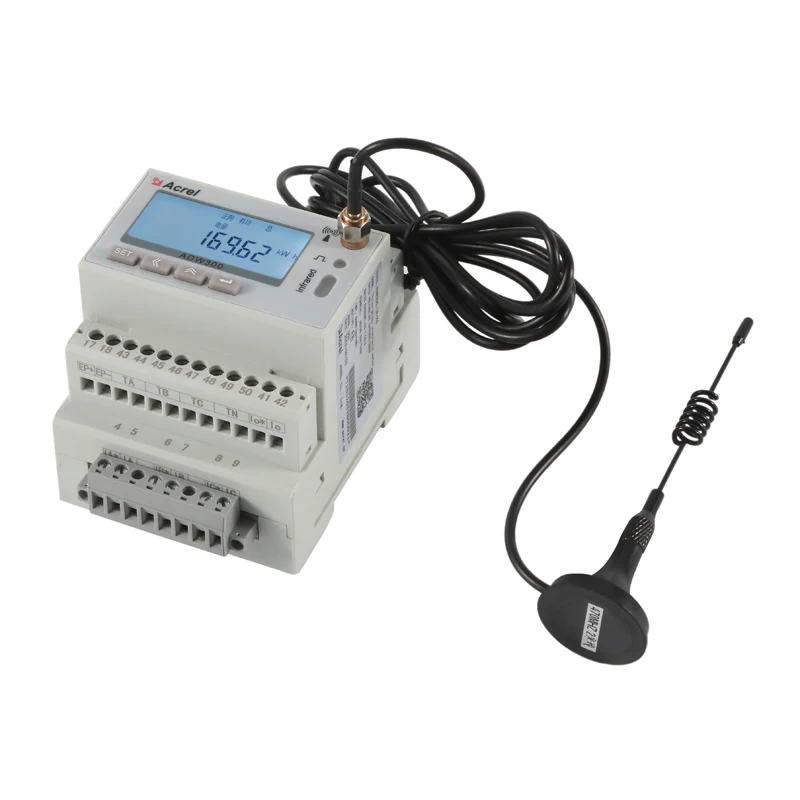

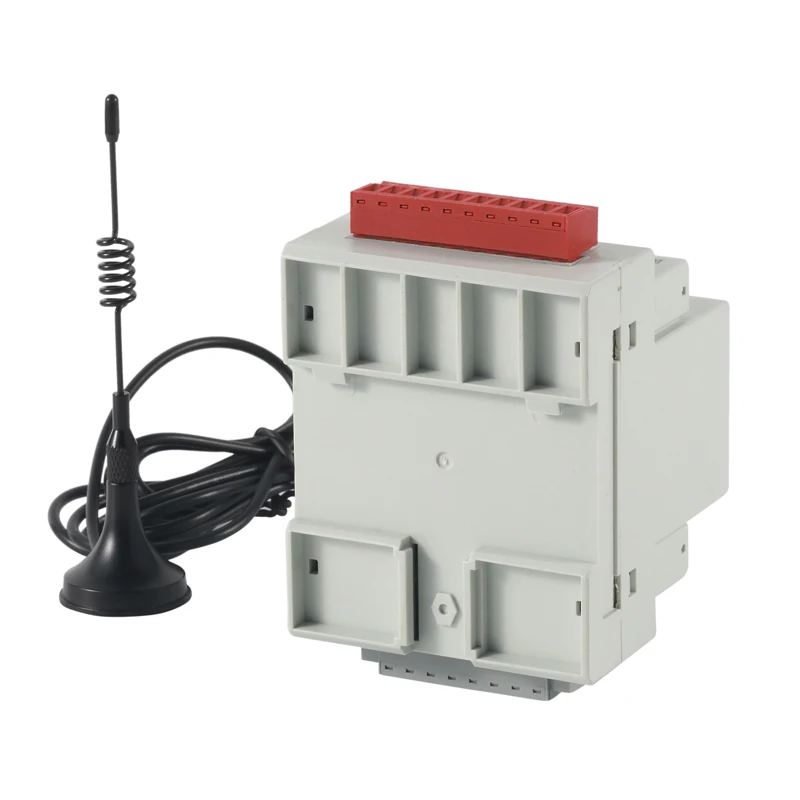

ADW300 Wireless Meter
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485
communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy
indifferent regions and loads.
communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy
indifferent regions and loads.
Function
Accuracy
Active energy: Class 0.5S
Reactive energy: Class 2
Frequency
Range: 50~60HZ
Pulse output
Contant:6400imp/kWh
Consumption
<10VA (Single phase)
Active energy: Class 0.5S
Reactive energy: Class 2
Frequency
Range: 50~60HZ
Pulse output
Contant:6400imp/kWh
Consumption
<10VA (Single phase)
Dimension(L*W*H)
72*87.8*71.5mm
Wireless
Transmission on 470MHz and maximum distance in open space is 1km; 2G; NB
Starting current
2‰In
72*87.8*71.5mm
Wireless
Transmission on 470MHz and maximum distance in open space is 1km; 2G; NB
Starting current
2‰In

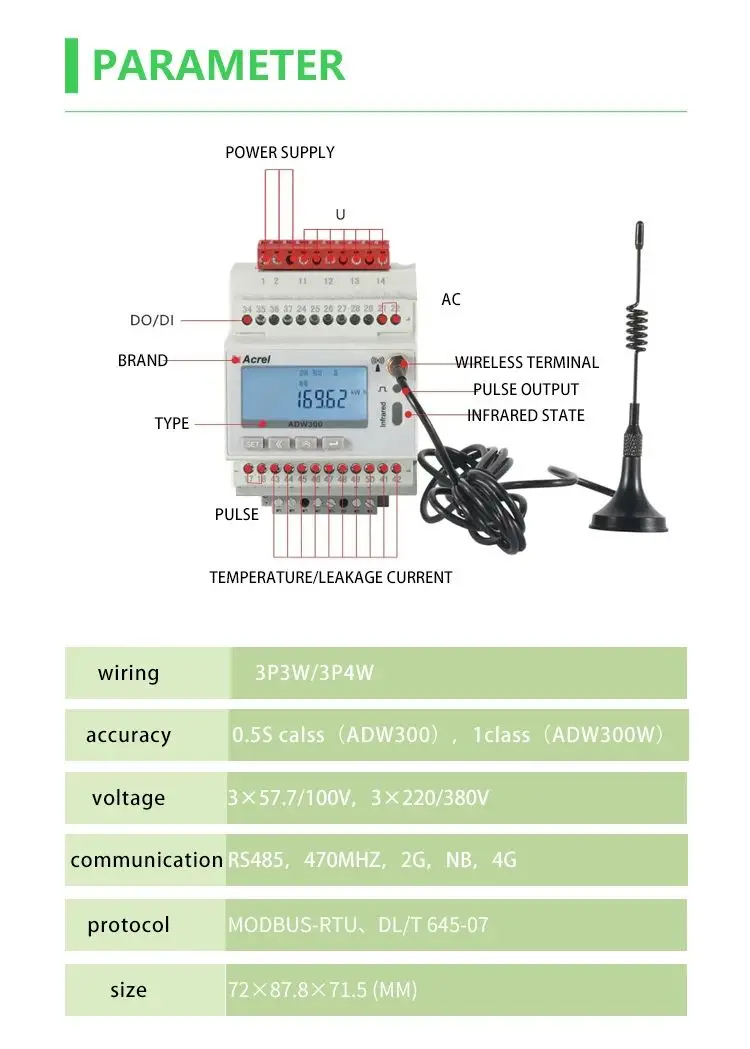

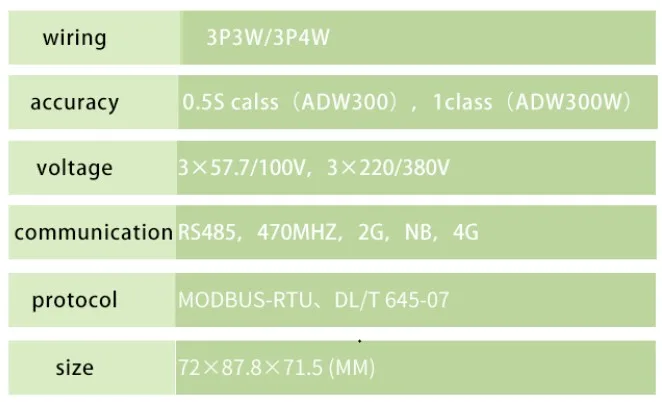

Specification
Input voltage | Nominal voltage | 3*220/380V，3*380V，3*57.7/100V，3*100V | |
Consumption | ＜10VA or 2W(A phase),＜0.5VA（B phase，C phase） | ||
Frequency | 50-60hz | ||
Input current | Maximun current | 6A | |
Starting current | 0.002A | ||
Consumption | ＜2VA | ||
Accuracy | Class 0.5S | ||
Temperature accuracy | ±2℃ | ||
optional Communication | Infrared | Infrared | |
RS485（Modbus-RTU） | |||
470MHz Wireless Transmission | |||
GPRS communication | |||
NB-IOT communication | |||
WiFi | |||
4G(Global) | |||
Pulse | Width | 80±20ms | |
Constant | 6400imp/kWh | ||
Outline | L*W*H（mm） | 72*71.5*92.6 | |
Temperature | Operating | -25~55℃ | |
Storing | -40~70℃ | ||
Humidity | ≤95%（No condensation） | ||
Altitude | ＜2000m | ||
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise which concentrates on research, production, sales and
services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. Acrel has
equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets
systemic solutions used in China to help users realizing energy visual management ,supplying energy data services and improving
electrical efficiency and safety.
services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. Acrel has
equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets
systemic solutions used in China to help users realizing energy visual management ,supplying energy data services and improving
electrical efficiency and safety.
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety
power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management
systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage
fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit
and environment variables, intelligent lighting and IT distribution insulation.
power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management
systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage
fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit
and environment variables, intelligent lighting and IT distribution insulation.

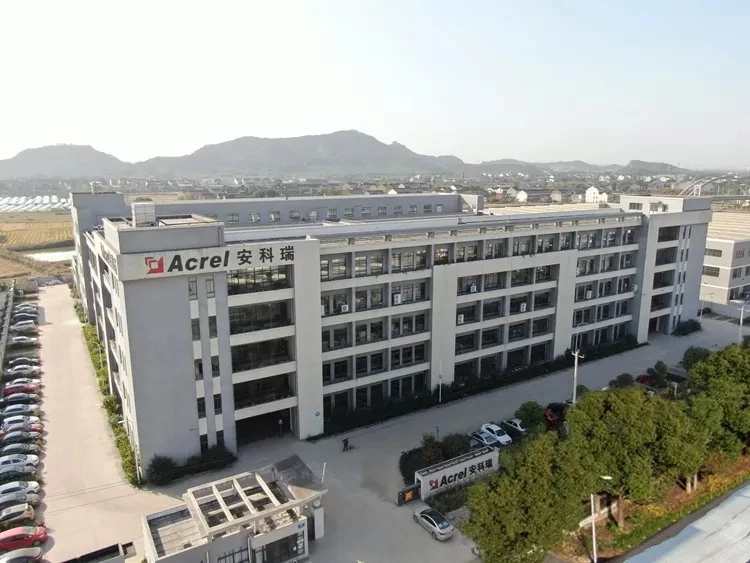

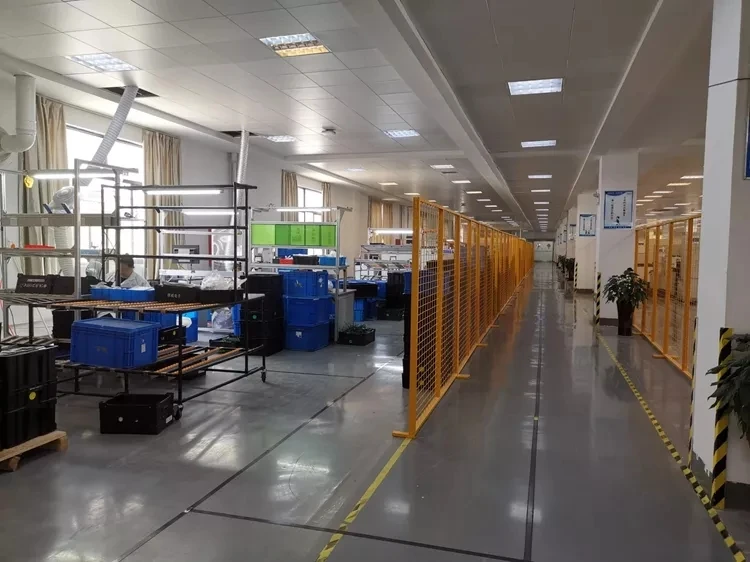

Jiangsu Acrel Electrical Appliance Manufacturing Co., Ltd., a production base located in Jiangyin City, Wuxi, is a pilot

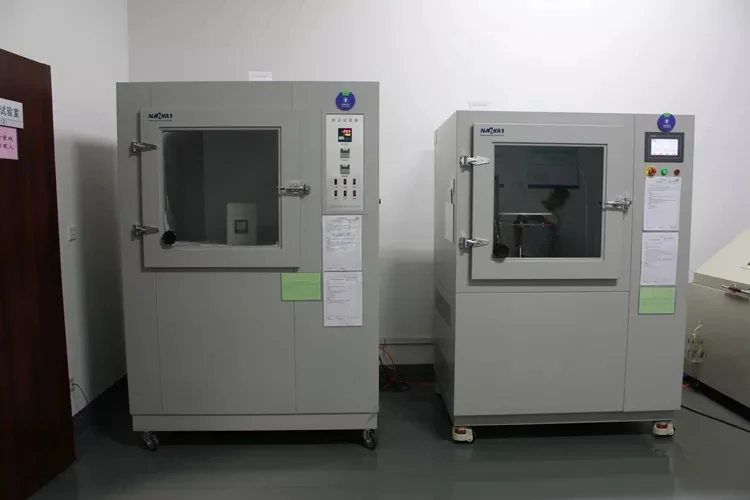

enterprise of Jiangsu Province, which integrates informatization and industrialization. It has a well-functioned product test

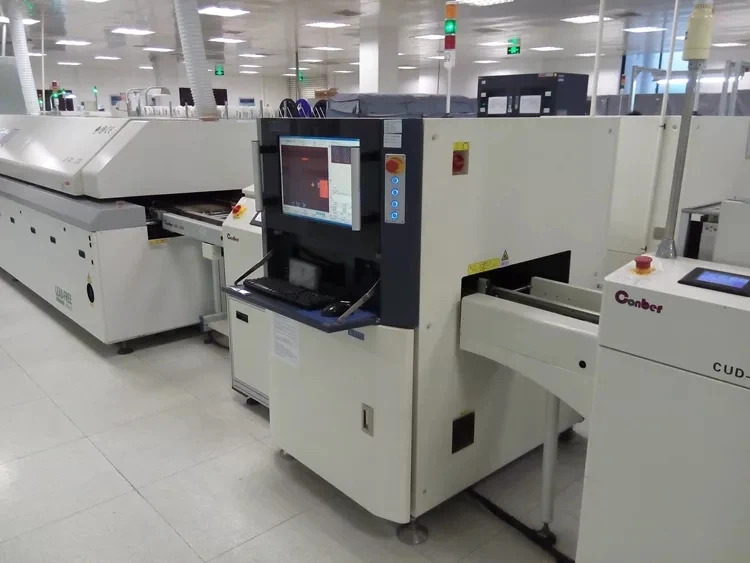

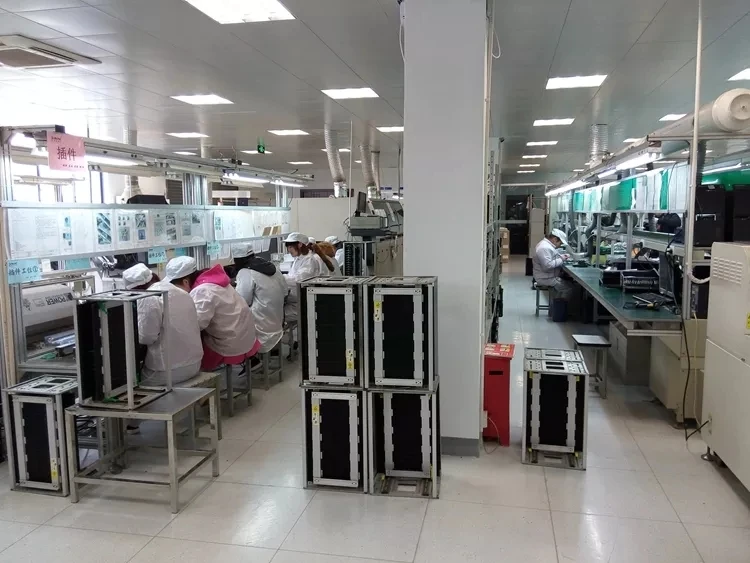

center, and can carry out environmental, electromagnetic compatibility, safety and reliability tests. The production process
