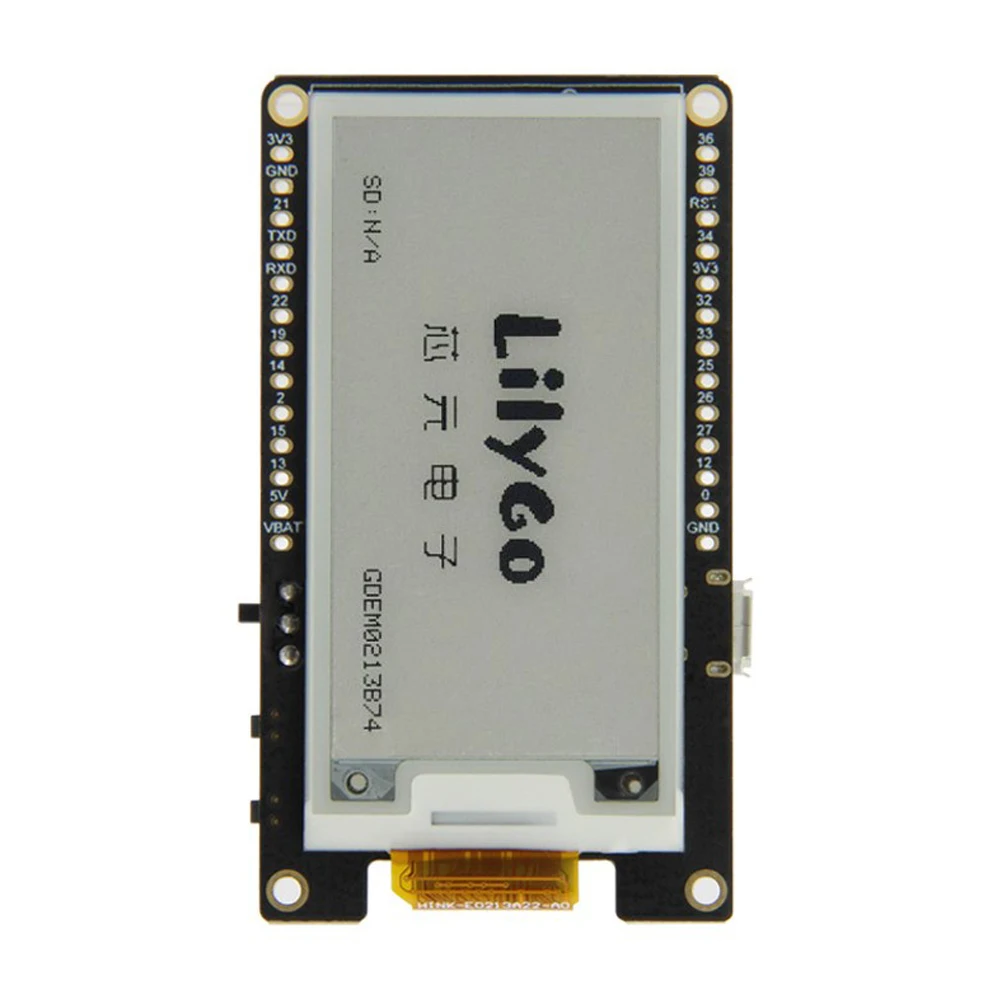

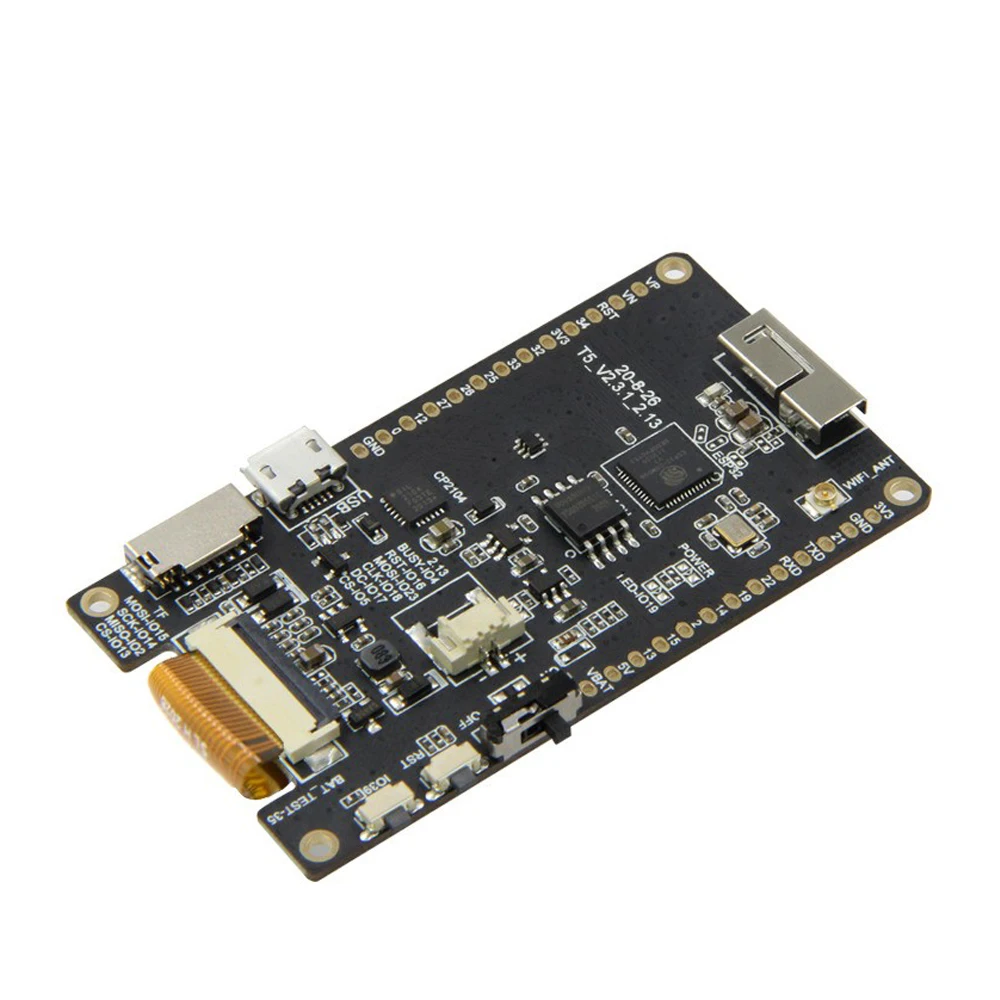

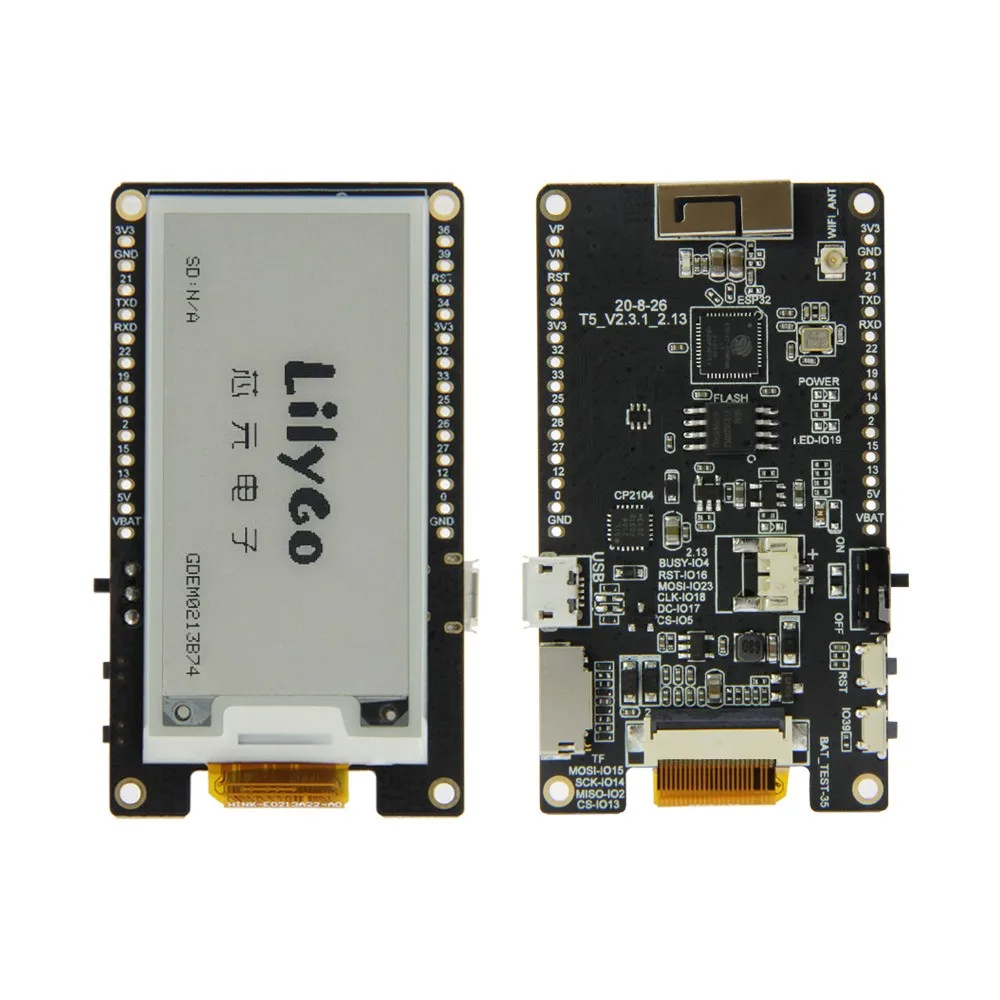

TTGO T5 V2.3.1_2.13 Inch E Paper Screen New Driver Chip DEPG0213BN GDEM0213B74 GDEM0213B74
- Category: >>>
- Supplier: Shenzhen Sunhokey Electronics Co. Ltd.
Share on (1600808422299):
Product Overview
Description
Product Description
Specification
* Operating voltage: 3.3V
* Interface: 3-wire SPI, 4-wire SPI
* Display color: black, white
* Grey level: 2
* Full refresh time: 8s
* Refresh power: 26.4mW(typ.)
* Driver chip：SSD1680
* Display Driver：DEPG0213BN/ GDEM0213B74 / GDEM0213B74
*
2.13 inch/DES electronic paper/ultra wide temperature
This is a 2.13-inch DES electronic paper display (what is DES?), with a resolution of 212x104 and communication via SPI interface
The driver IC includes gate buffer, source buffer, time control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and each panel provides
a frame.
Wide operating temperature range: -20℃ ~ 60℃.
Can be used in cold environment and sunlight, GDEW0213M21 is an excellent choice for shelf label, smart label, smart home
application, industrial tool, smart card, outdoor equipment application.
Power consumption: ultra-low power consumption
Viewing angle: 180 degrees
Use in the sun: support
Ultra-wide temperature -20 degrees use: support
Features
Manufactured using new technology: DES, DES has the following
characteristics: Compared with other similar products, DES hashigher contrast and better display effect.
(DES products are greater than 1:45, ordinary EPD products are less than 1:25)
Ultra-wide temperature working range: -20℃ ~ 60℃
(Working temperature range of conventional monochromatic electronic ink screen: 0℃-50℃, three-color working temperature 0℃-40℃,
ultra-low temperature working temperature: -25℃ ~ 25℃)
It can be used in the sun and cold environment.
* Interface: 3-wire SPI, 4-wire SPI
* Display color: black, white
* Grey level: 2
* Full refresh time: 8s
* Refresh power: 26.4mW(typ.)
* Driver chip：SSD1680
* Display Driver：DEPG0213BN/ GDEM0213B74 / GDEM0213B74
*
2.13 inch/DES electronic paper/ultra wide temperature
This is a 2.13-inch DES electronic paper display (what is DES?), with a resolution of 212x104 and communication via SPI interface
The driver IC includes gate buffer, source buffer, time control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and each panel provides
a frame.
Wide operating temperature range: -20℃ ~ 60℃.
Can be used in cold environment and sunlight, GDEW0213M21 is an excellent choice for shelf label, smart label, smart home
application, industrial tool, smart card, outdoor equipment application.
Power consumption: ultra-low power consumption
Viewing angle: 180 degrees
Use in the sun: support
Ultra-wide temperature -20 degrees use: support
Features
Manufactured using new technology: DES, DES has the following
characteristics: Compared with other similar products, DES hashigher contrast and better display effect.
(DES products are greater than 1:45, ordinary EPD products are less than 1:25)
Ultra-wide temperature working range: -20℃ ~ 60℃
(Working temperature range of conventional monochromatic electronic ink screen: 0℃-50℃, three-color working temperature 0℃-40℃,
ultra-low temperature working temperature: -25℃ ~ 25℃)
It can be used in the sun and cold environment.
