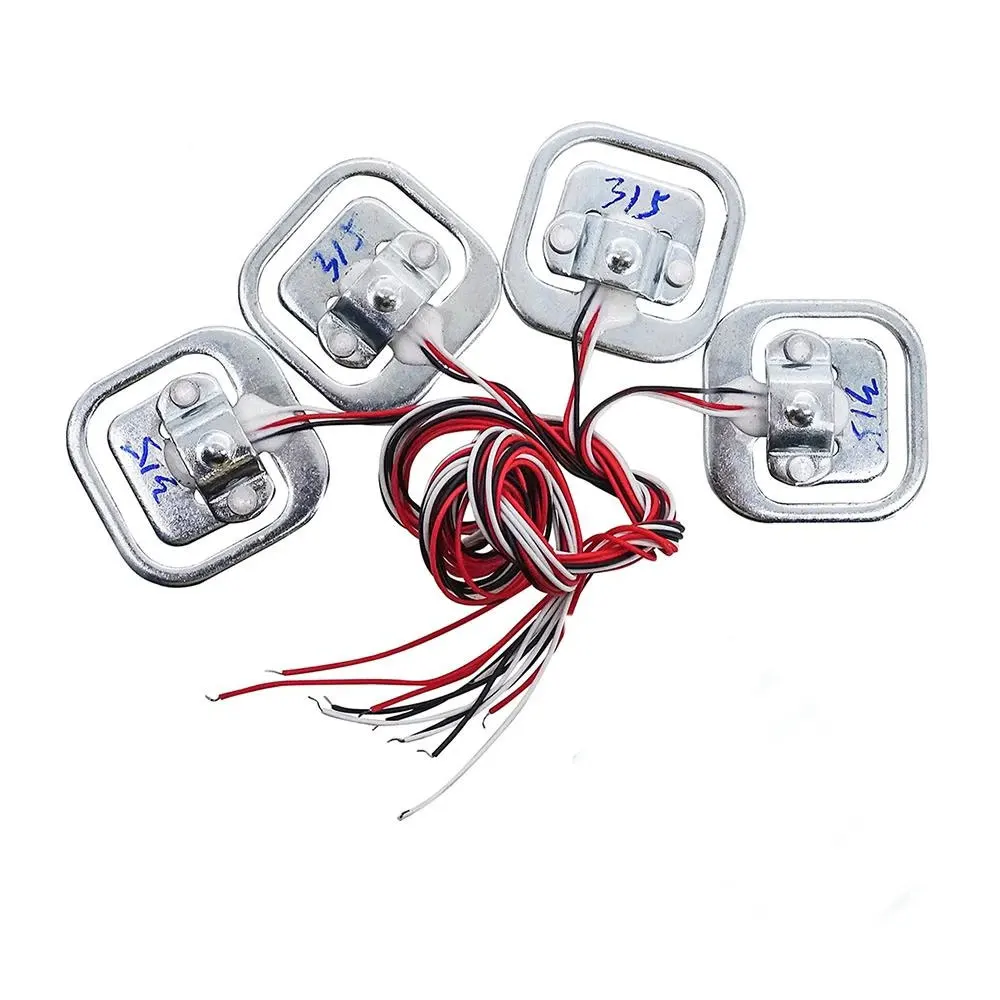

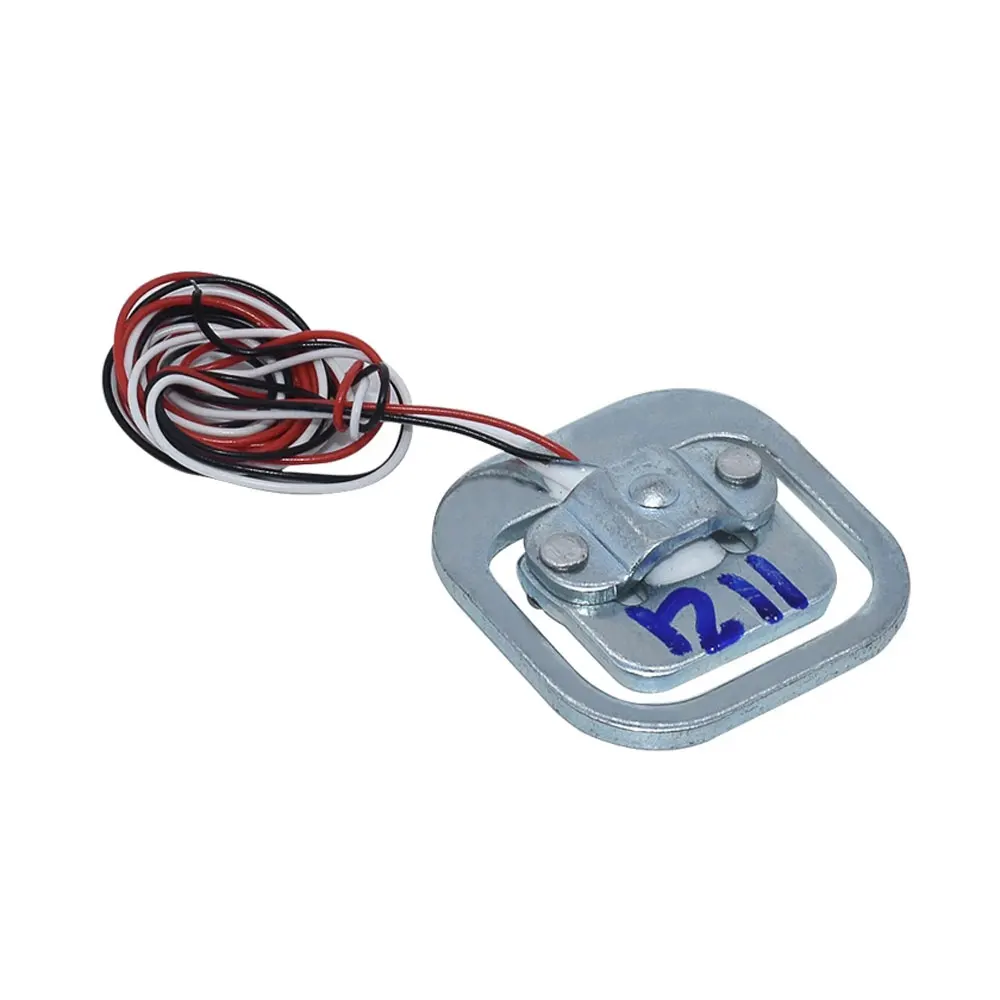

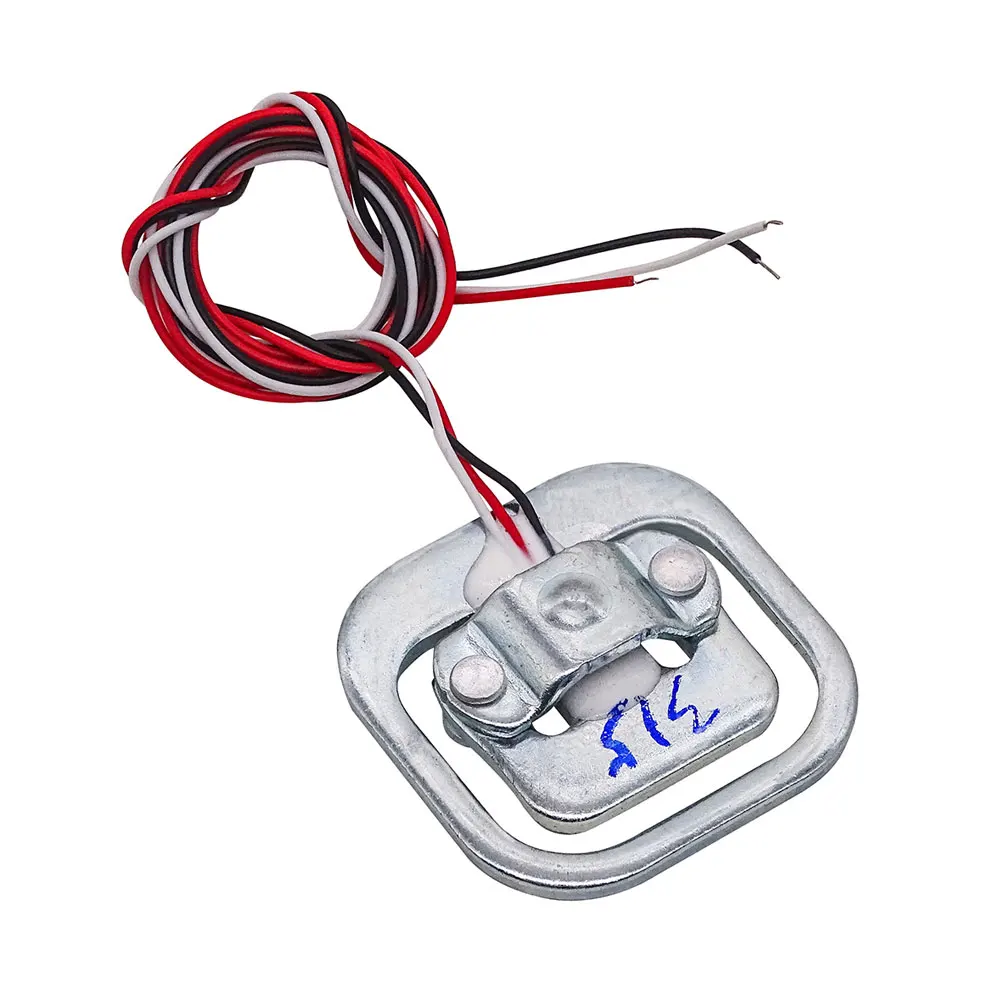

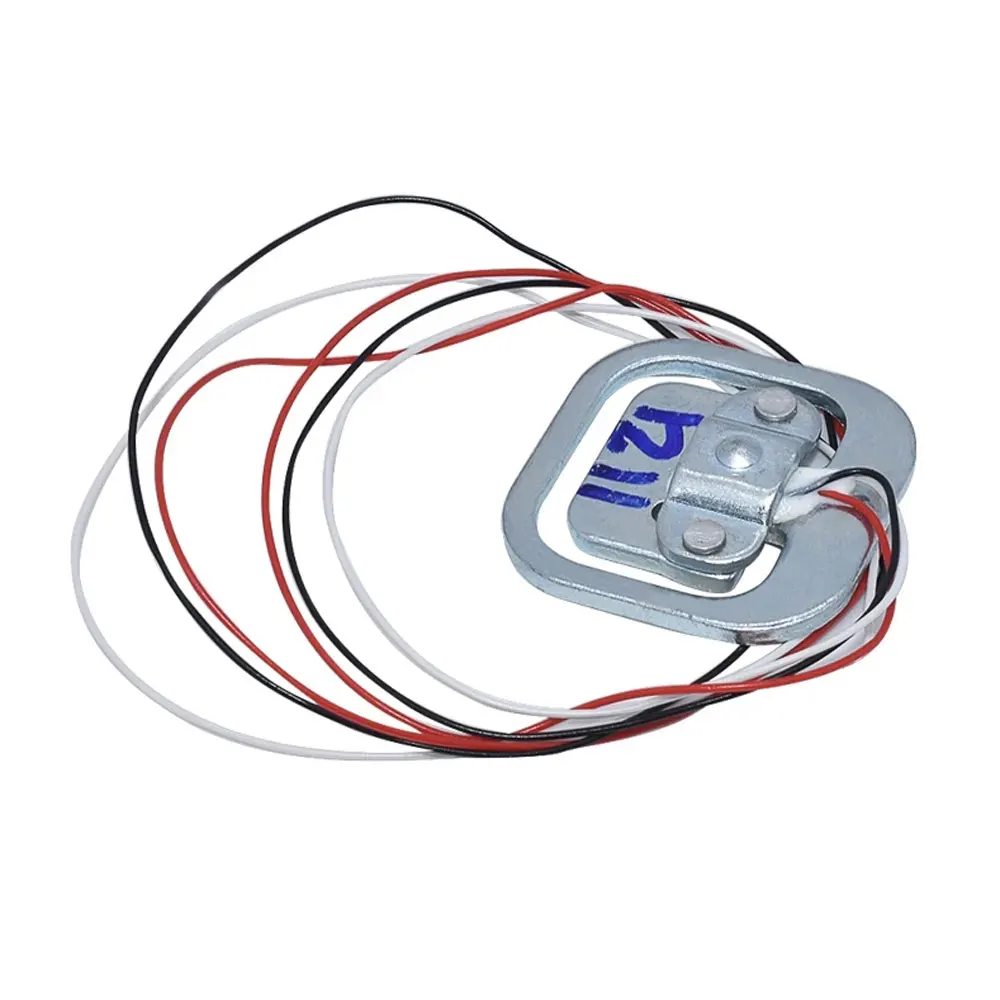

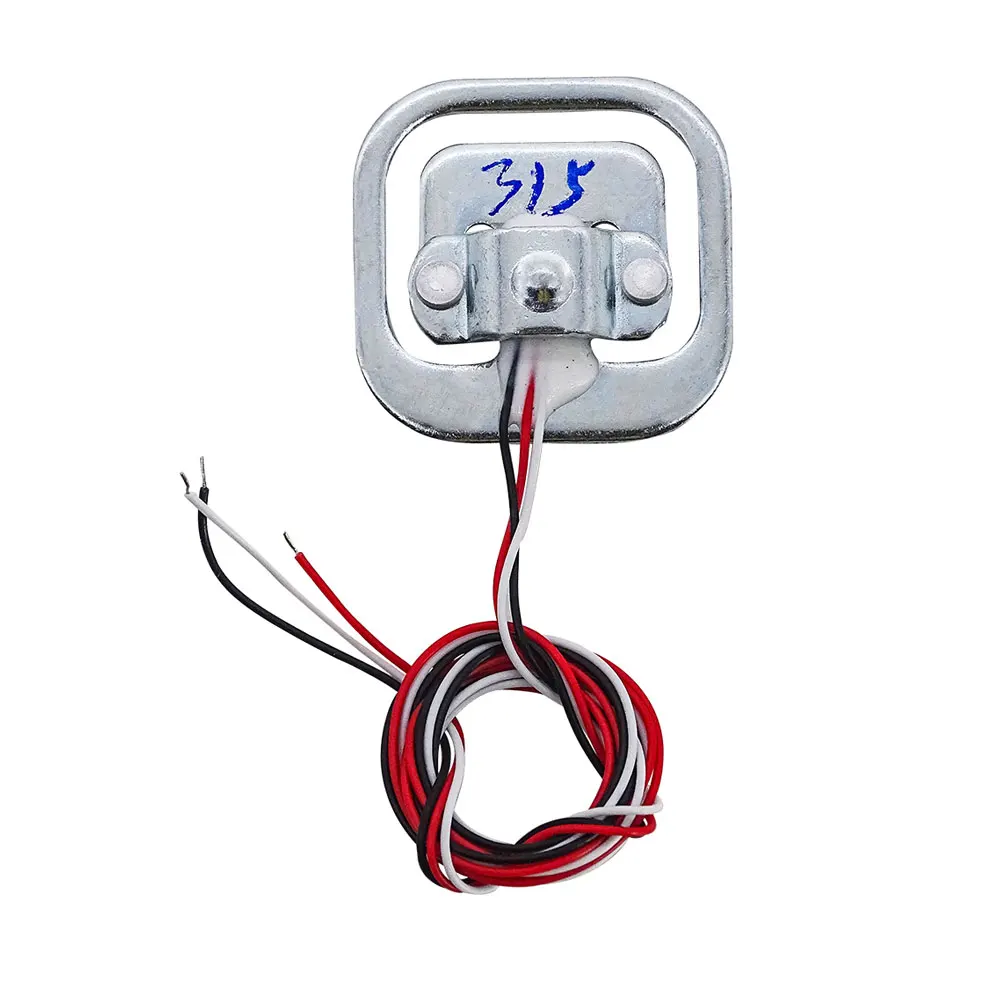

50kg Human Scale Load Cell Weight Sensors 50Kg Resistance Strain Half-Bridge Sensors Module
Product Description

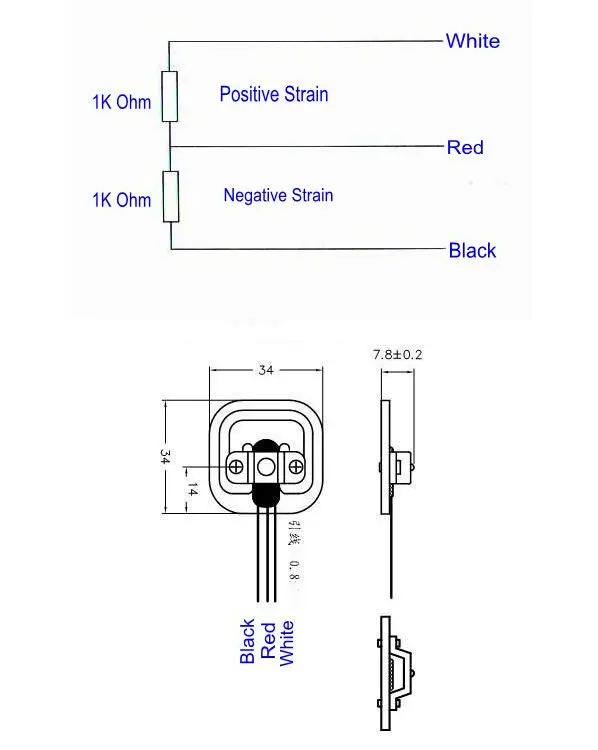

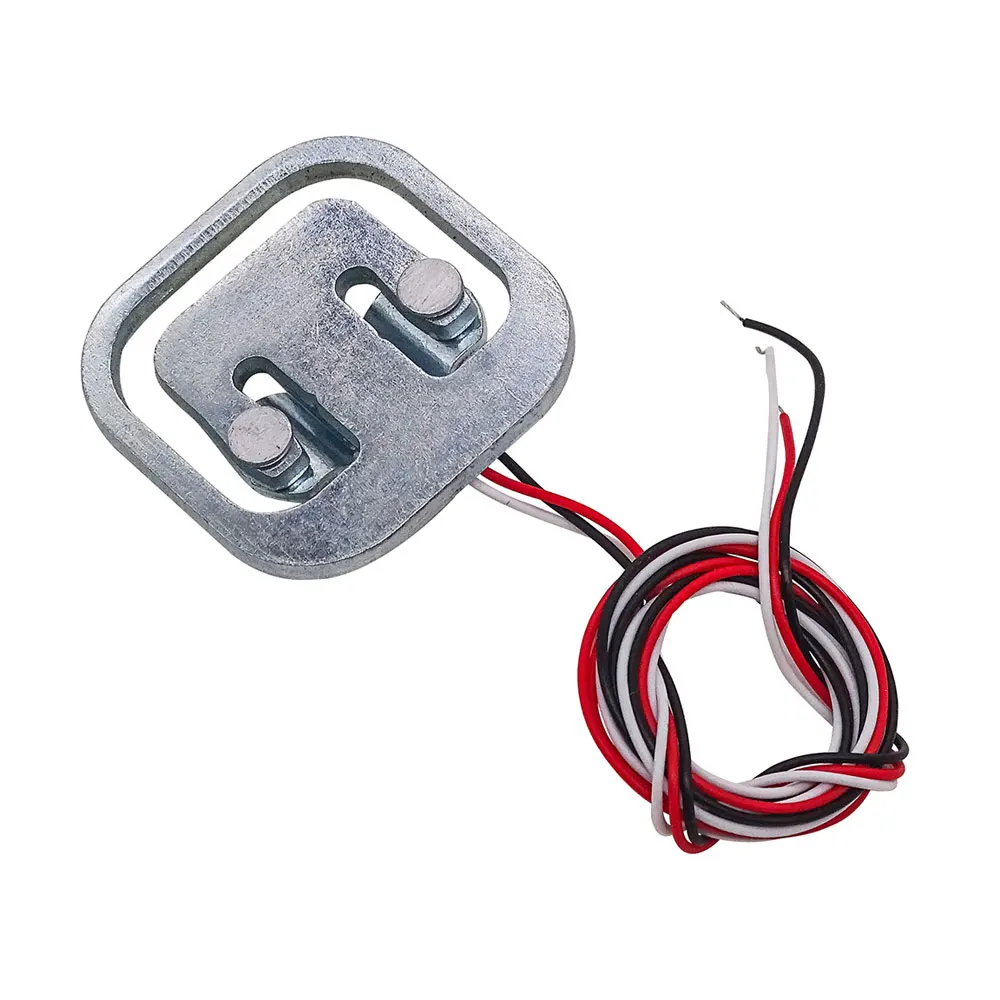

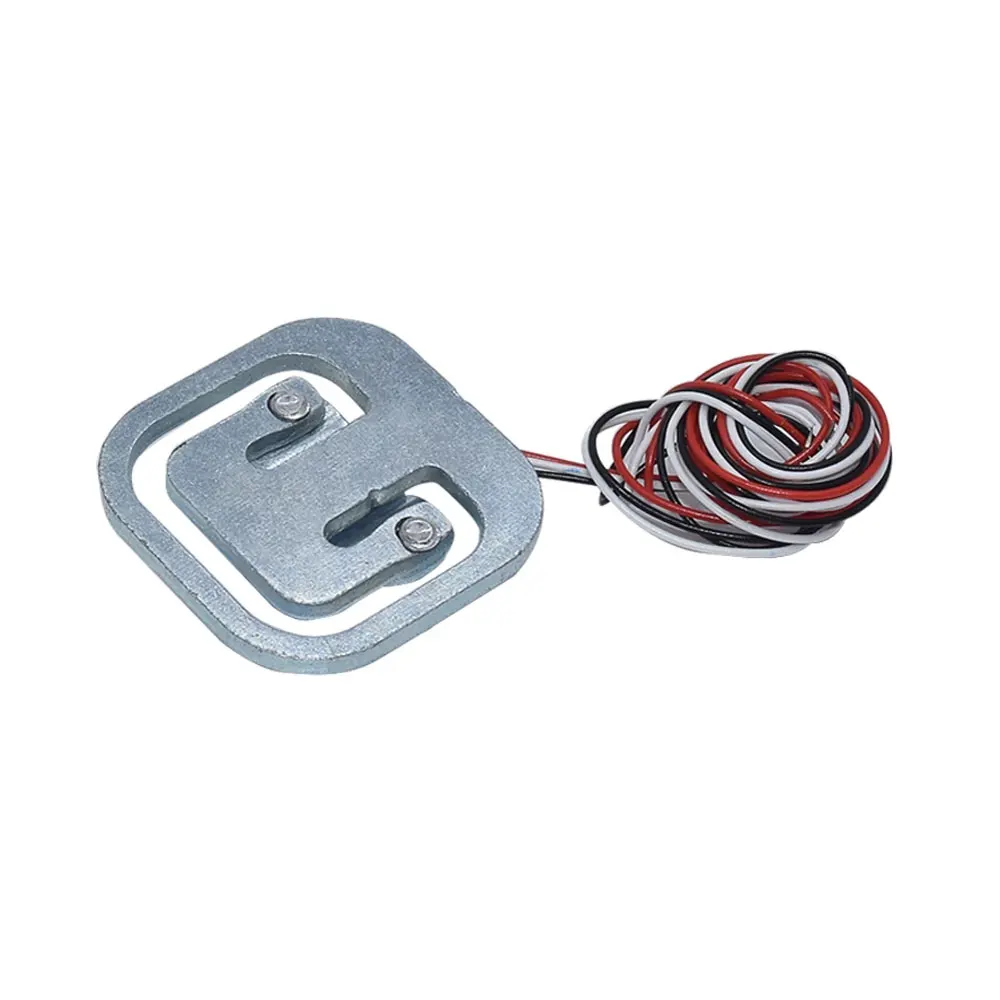

* Size: 34mmX34mm * Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure. * When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.
Product Applications:
The sensor use the following three methods: 1, using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor 2, the use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg 3, the use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg
Product Parameters
Specification | Unit | Parameters |
Capacity | Kg | 50 |
Comprehensive | % F.S | 0.10 |
Output Sensitivity | mv / V | 1.0 ± 15% |
Nonl Inearity | % F.S | 0.05 |
Repeatability | % F.S | 0.05 |
Hysteresis | % F.S | 0.05 |
Zero Output | mv / V | ± 0.3 |
Creep (1 min) | % F.S | 0.1 |
Zero Drift (1 min) | % F.S | 0.1 |
Temp effecet on zero | % F.S / 10 | 0.3 |
Temp effecet on output | % F.S / 10 | 0.1 |
Input Resistance | Ω | 1000 ± 10 |
Output Resistance | Ω | 1000 ± 10 |
Insulation Resistance | MΩ | ≥ 2000 |
Excitation Voltage | V | 5~10V DC |
Operation Temprange | ℃ | -10 ~+50 |
Overload Capacity | % F.S | 150 |
