JCW 322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine
JCW-322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine

JCW 322A Semi automatic wire harness braiding machinery cable shielding layer brushing twisting machine

Share on (1600808528753):


Price:

Quantity:


Product Overview

Description







Function

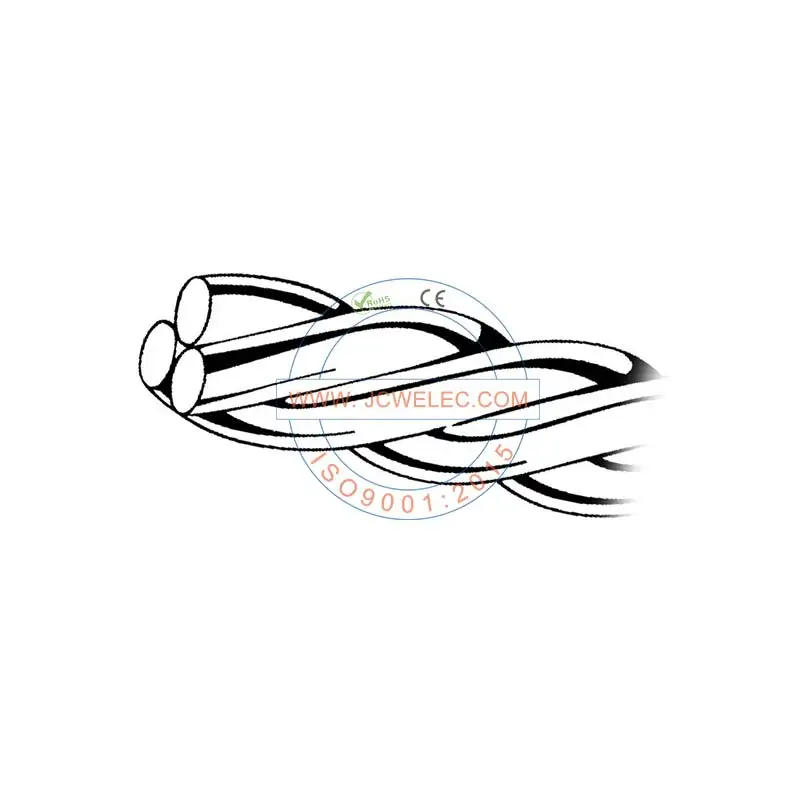

Braided metal shielding, stranded wire, enameled copper wire, two-way rotation, adjustable twisting speed
Twisting length
5 - 80 mm [ 200mm is customizable ]
Conductor cross-section
0.1 - 2 mm²
Rated power
10 W
Air supply
0.3 - 0.6 MPa
Power supply
AC 220 V ± 10%, 50 / 60 Hz [110V on request]
Dimensions
L 340 x W 190 x H 170 mm
Weight
12 KG






JCW-322A

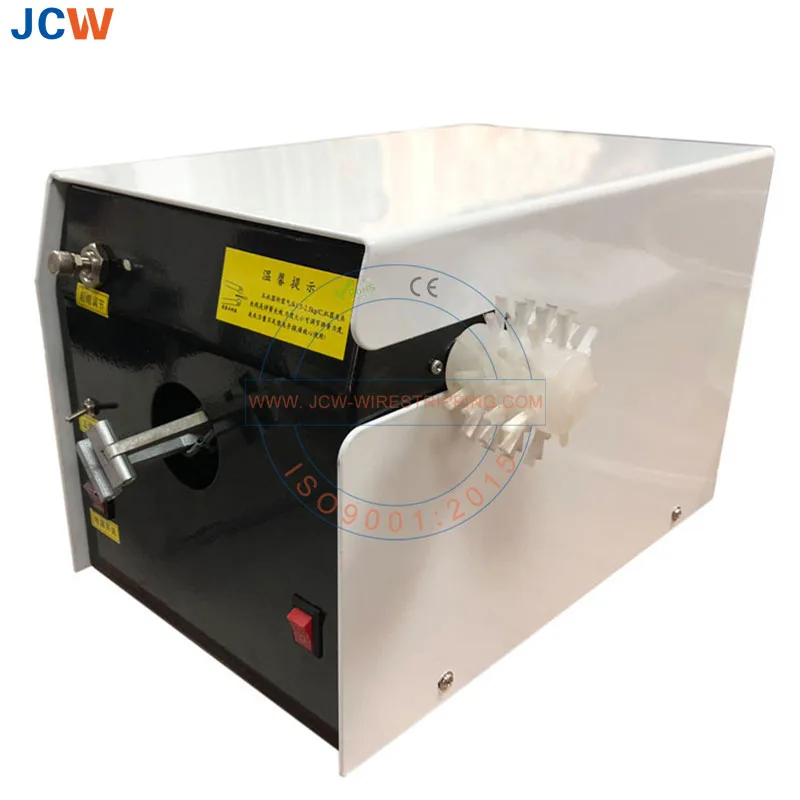

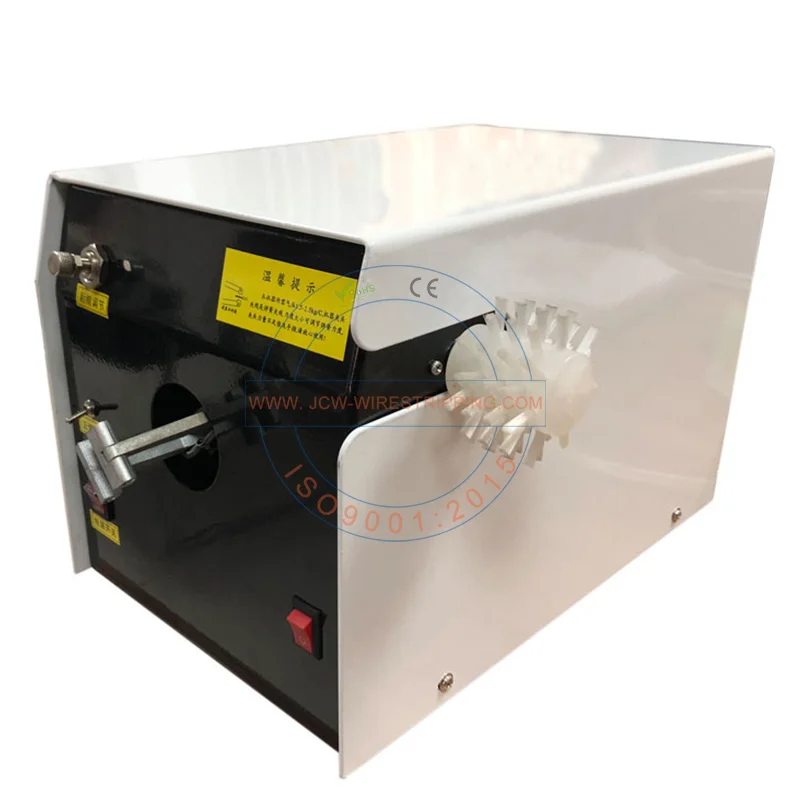

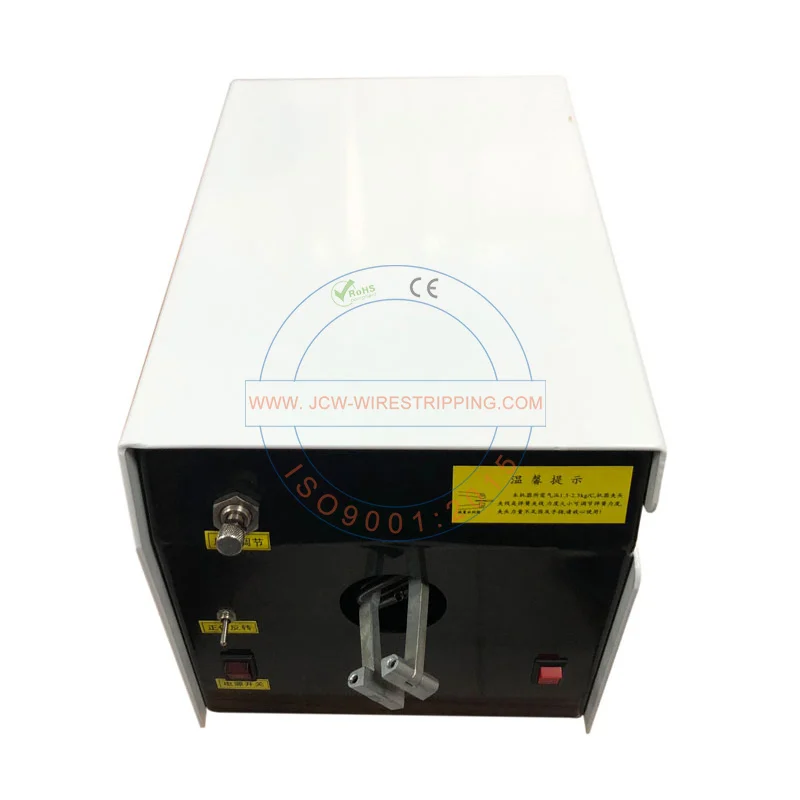

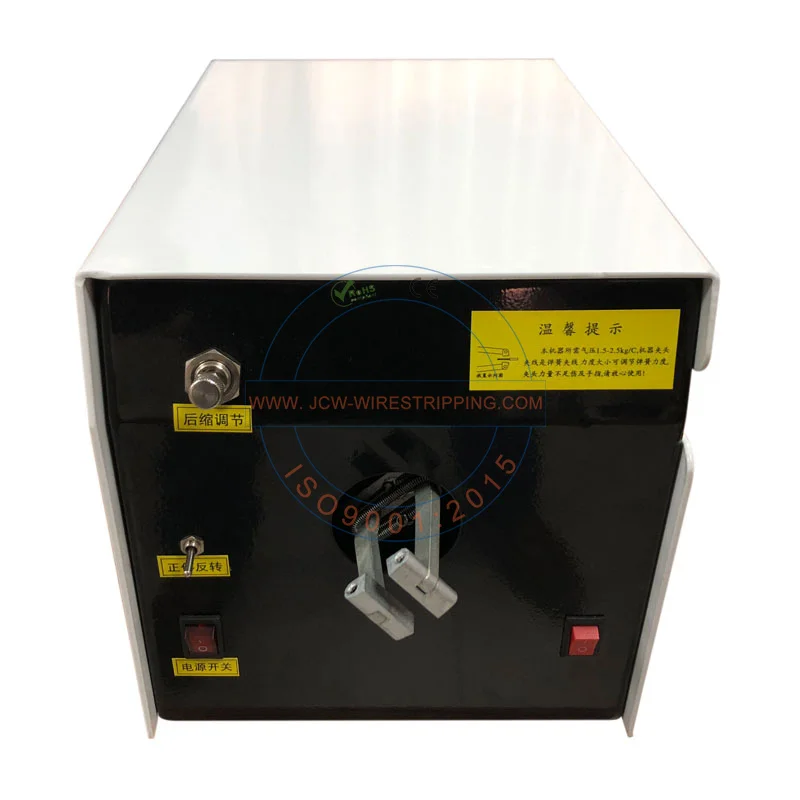

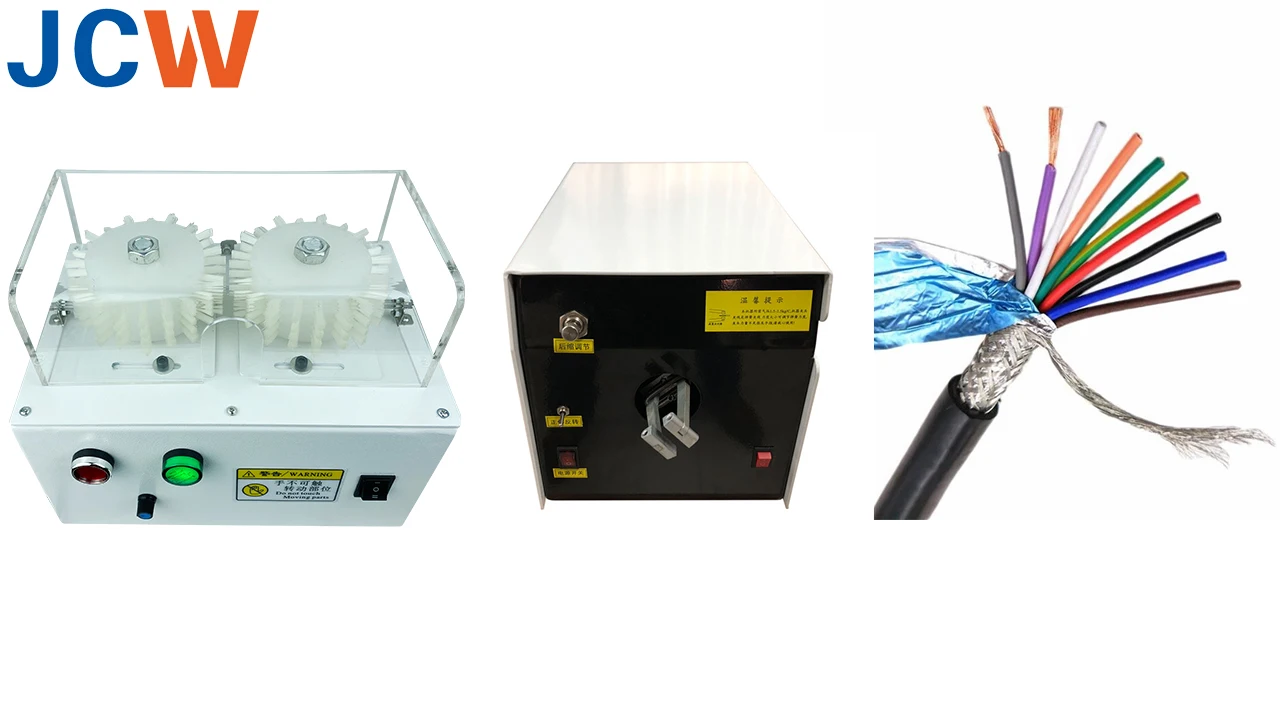

1. The JCW-322A is one pair of portable machines for brushing and twisting braided shield layer. Regular and necessary equipments for wire harness processing.

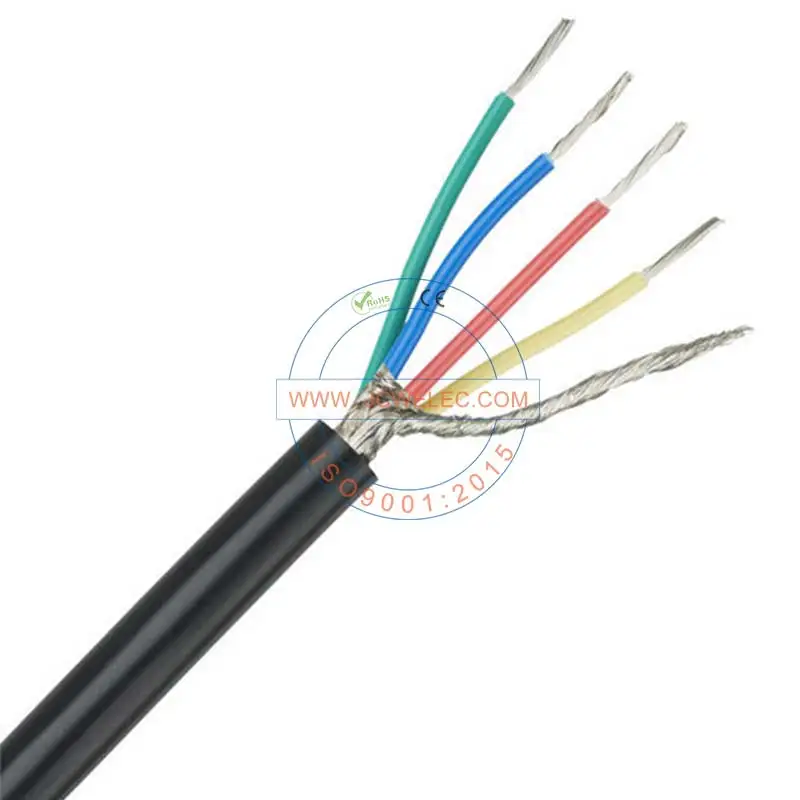

2. Cover wide range of different coaxial cables, shielded cable, braided cable, etc.




JCW-322

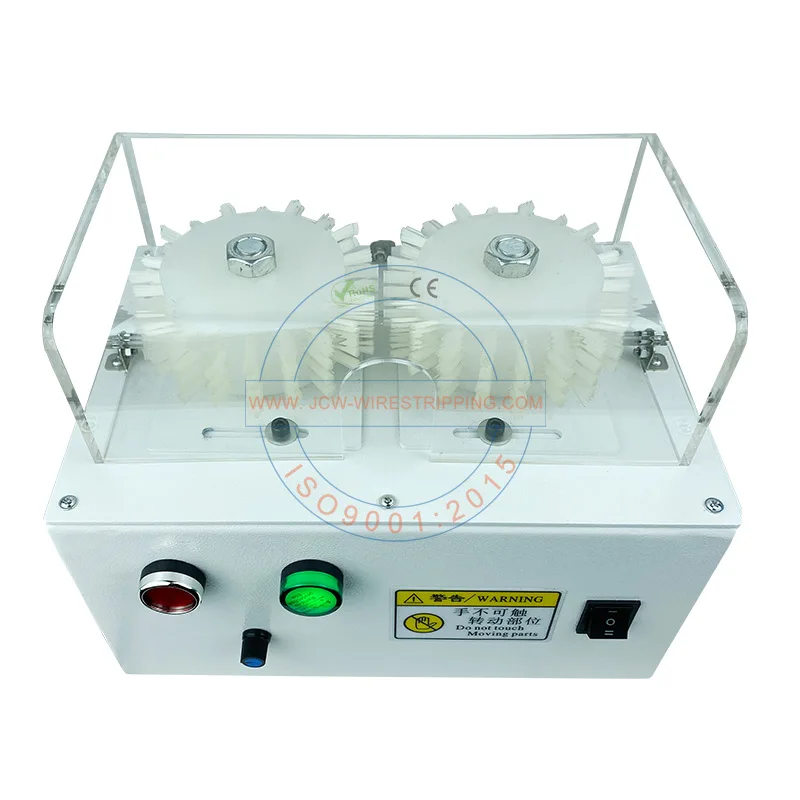

3. Adopt high-speed motor, brushing speed is adjustable by knot to guarantee high performance for different cables.
4. Both machines work in two directions, clockwise and anti-clockwise. Apply to tough braided shield layer.
