Горизонтальная винтовая центрифуга для очистки воды

Product Overview

Description

3 phase fish oil decanter centrifuge automatic fish meat deboner processing machine

Product Categories

Product description

Instruction

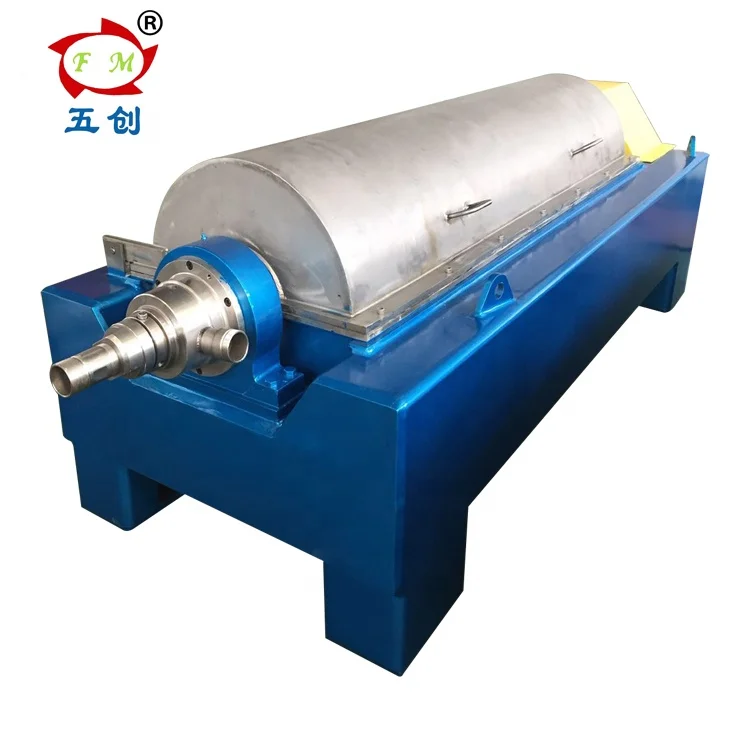

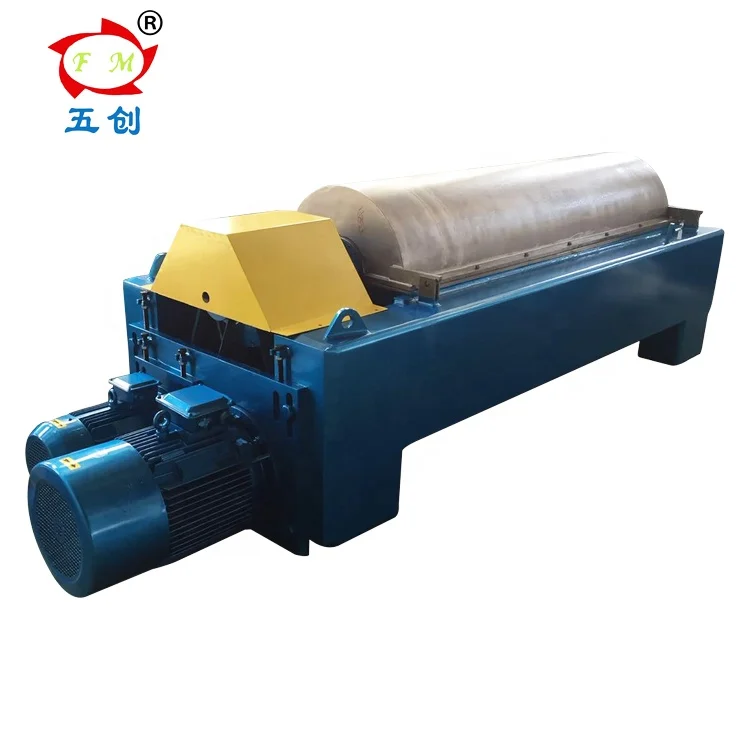

Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or    classify 1um-5um solid phased particles. It has two types, one is LW two phase centrifuge, which can separate the solid from the liquid, another is LWS three phase cntrifuge, which can separate the water and solid from the oil.

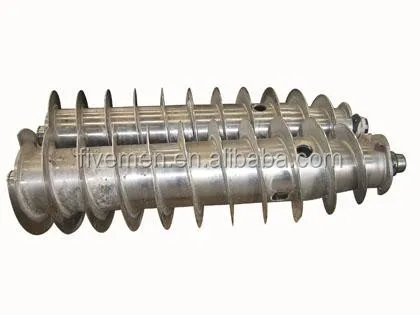

Spiral feeder

The spiral feeder is made of 304 stainless steel, and the forging process is adopted , which can enhance its corrosion resistance. BD structure, spraying hard alloy powder on the surface of the blade. The thickness is over 3mm .The spiral outlet is equipped with a replacement hard alloy sleeve, which greatly prolongs the service life of the machine blade. Because of this technology, the maintenance cost of the machine is greatly reduced. Other parts in contact with the material are 304 stainless steel.

Drum

The drum is cast by 304 stainless steel in centrifugal casting, the forging process is adopted , which can enhance its corrosion resistance, The replaceable alloy sleeve is installed in the solid state outlet, so that the mother material of the drum's outlet is not worn, and the wear-resistant bar is installed in the drum to make the drum inside not worn.

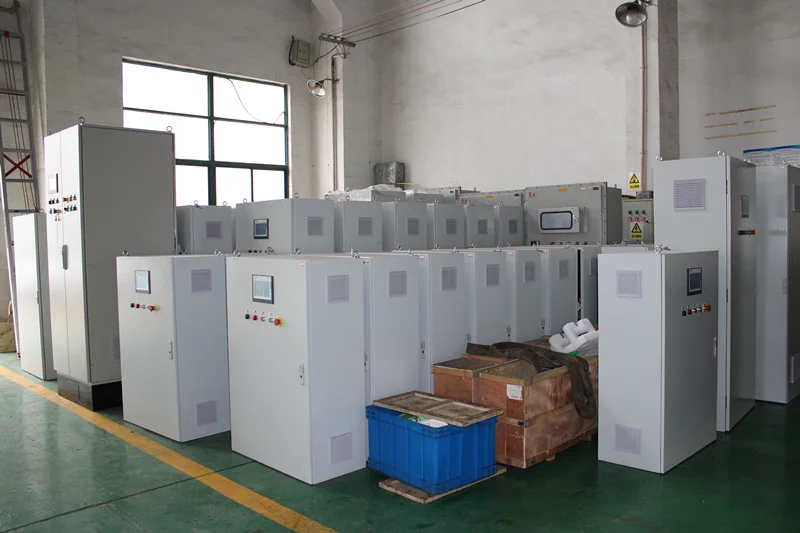

PLC Control  Panel

The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency, rotation speed, differential speed and current of operating major and auxiliary electrical engine.

Eletrical Components: SIEMENS/Schneider/ABB

                              Large end cap shaft

Product application

It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.

For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)

1) City tap water, domestic sludge dewatering;

2) Oil drilling mud dewatering;

3) Sludge Oil Recovery;

4) Fruit juice separation

5) Refinery sludge concentrated dehydration;

6) Distiller ‘s grains dehydration;

7) Paper, printing and dyeing wastewater separation;

8) Medical sludge dewatering;

9) Soy protein dehydration;

10) Plant oil clarification and separation;

11) Cosmetic clarification and separation;

12) Bleaching powder separation.

13)coal tar  separation

Product technical paramete

For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)

Three-phase Decanter Centrifuges technical parameters
