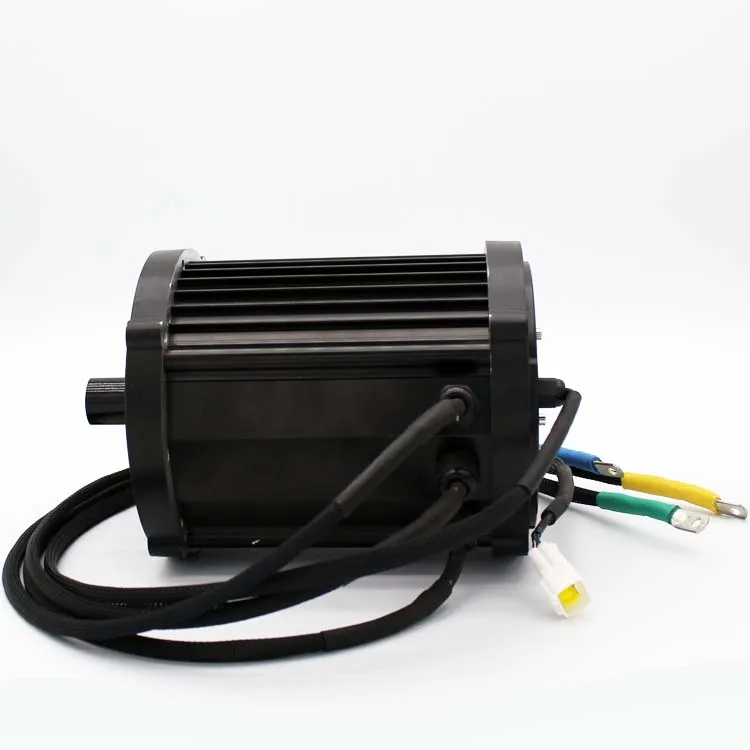

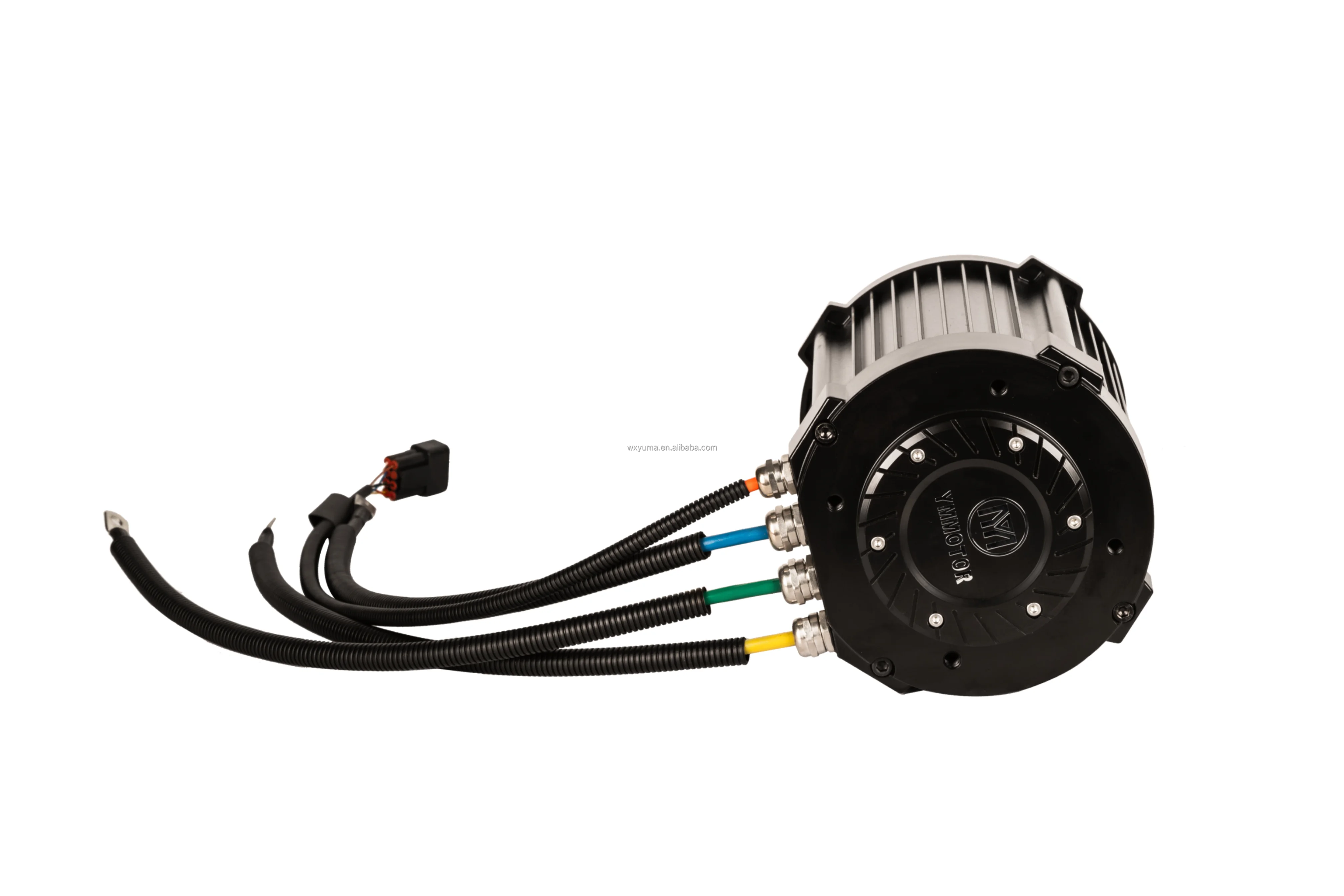

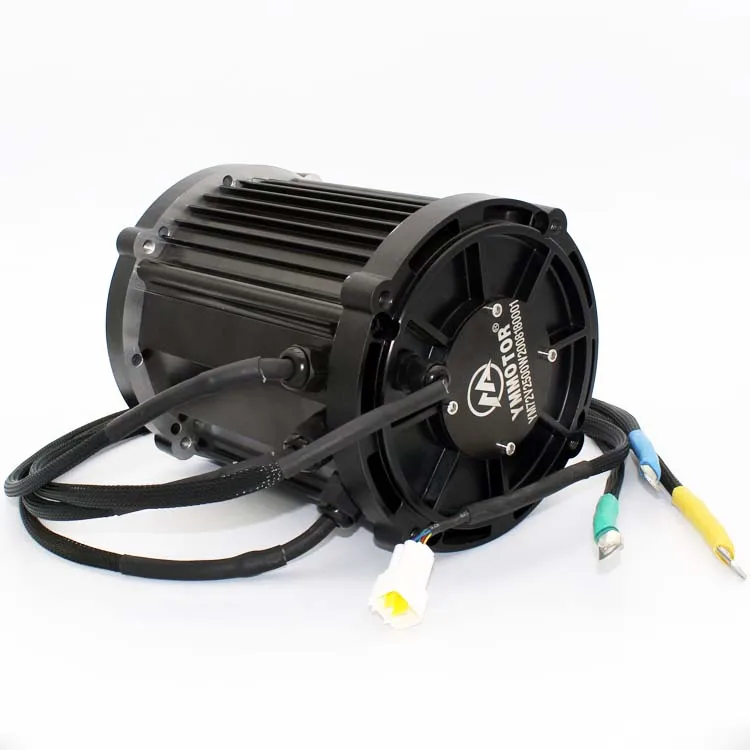

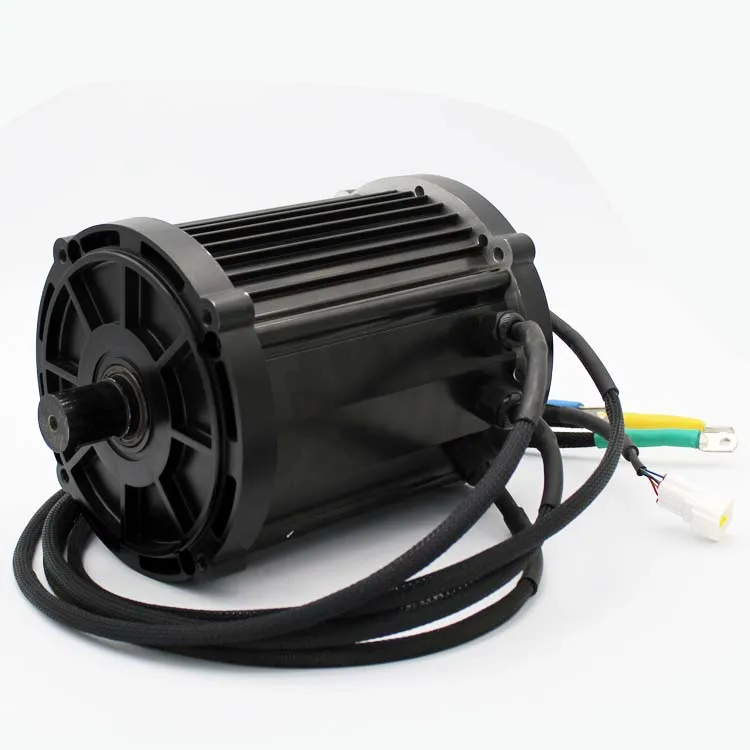

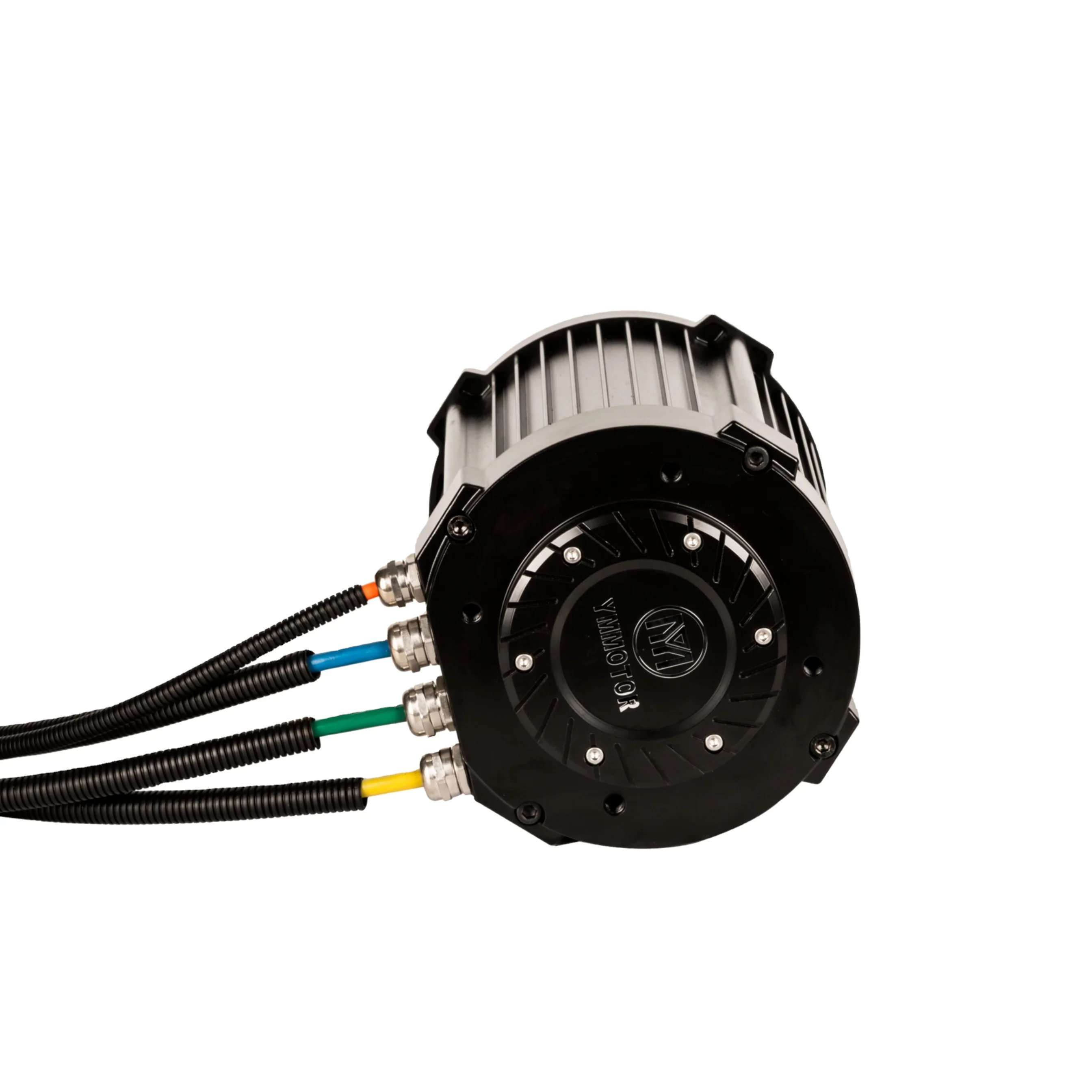

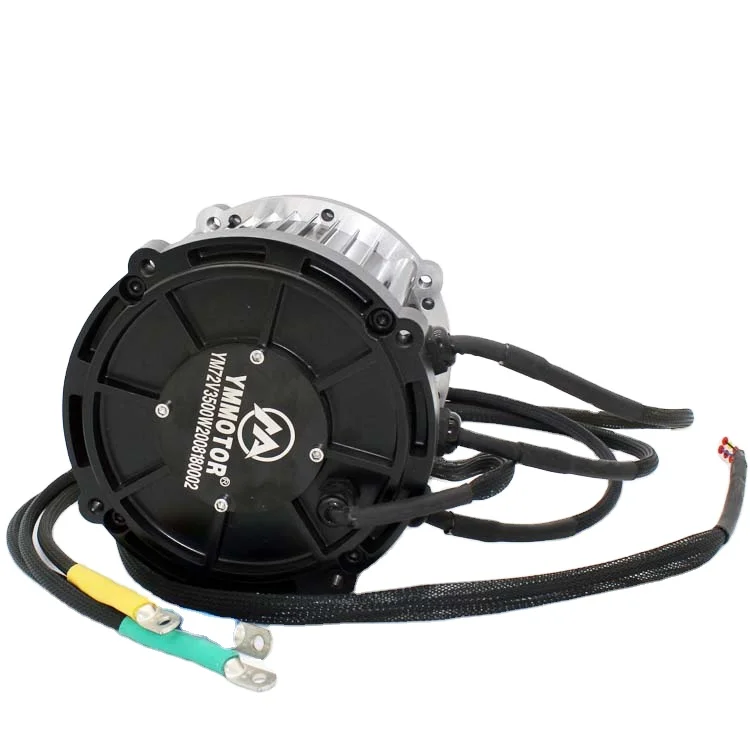

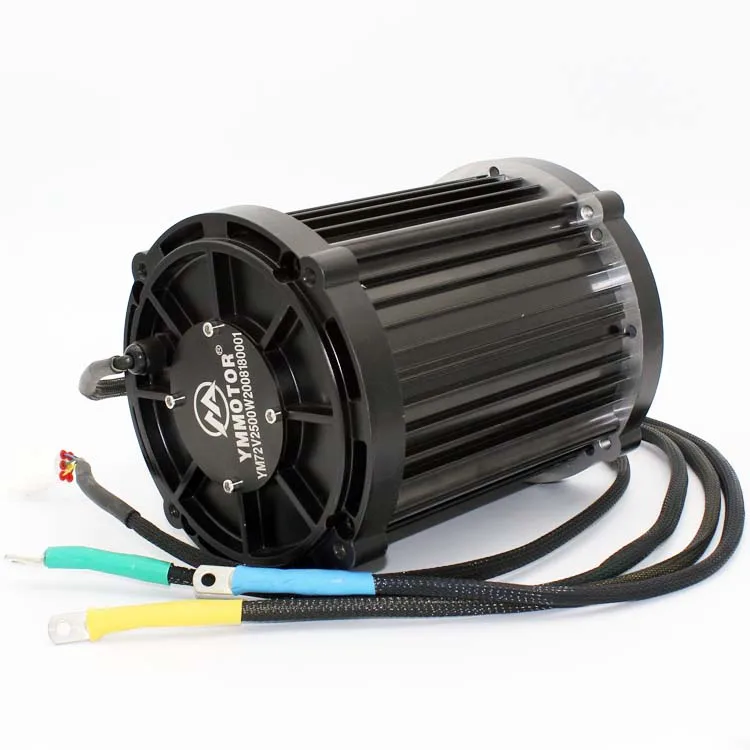

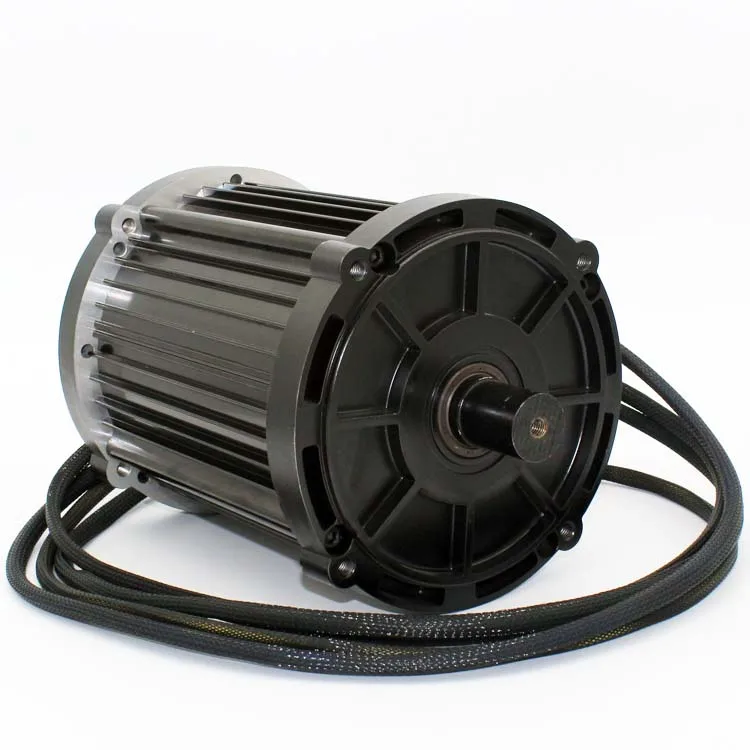

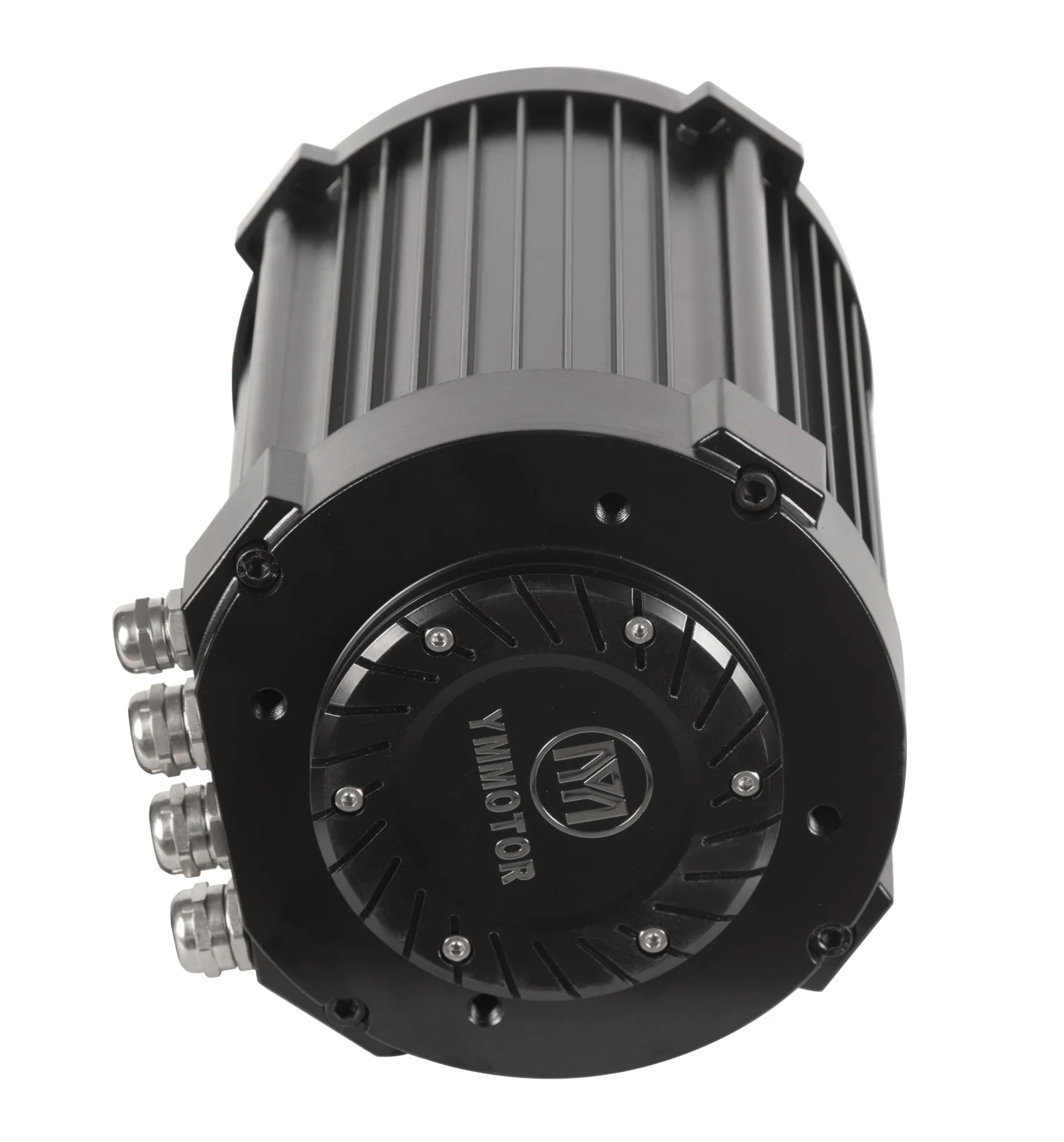

YMMOTOR 145 5000w 48v 96v 6500rpm Chain PMSM Mid Drive Motor for Ebike Motorcycle
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600808559641):
Product Overview
Description
Product Details
Motor Brand | YUMA Motor, YMMOTOR |
Motor Design | YMMotor 145 5000W IPMSM Mid Drive Motor |
Magnet Height | 4 Pole Pairs |
Rated Power | 5000W |
Peak Power | 9000W |
Speed | 2800rpm,after flux weakening 6500rpm, it's customized. |
Work Voltage Range | 48V-96V, will be 72V as default |
Peak Torque | 80N.m |
Thermic Probe | KTY84-130(as default, optional) |
Max Efficiency | 93.2% |
Phase Wire | 16mm² Cross Section |
Controller Recommend | DC 180A, Phase Current 400A |
Work Method | Encoder(7/8 wires) |
Waterproof Grade | IP65 |
Color | Black |
NOTE:
YMMotor Mid Drive Motor comes with encoder type(different from hall type), which are more stable especially on flux weakening status, and it ONLY matches with encoder type controller! Here we have 8 wires and 7 wires encoder for choice, only different on temp GND wire, it depends on your controller encoder design.

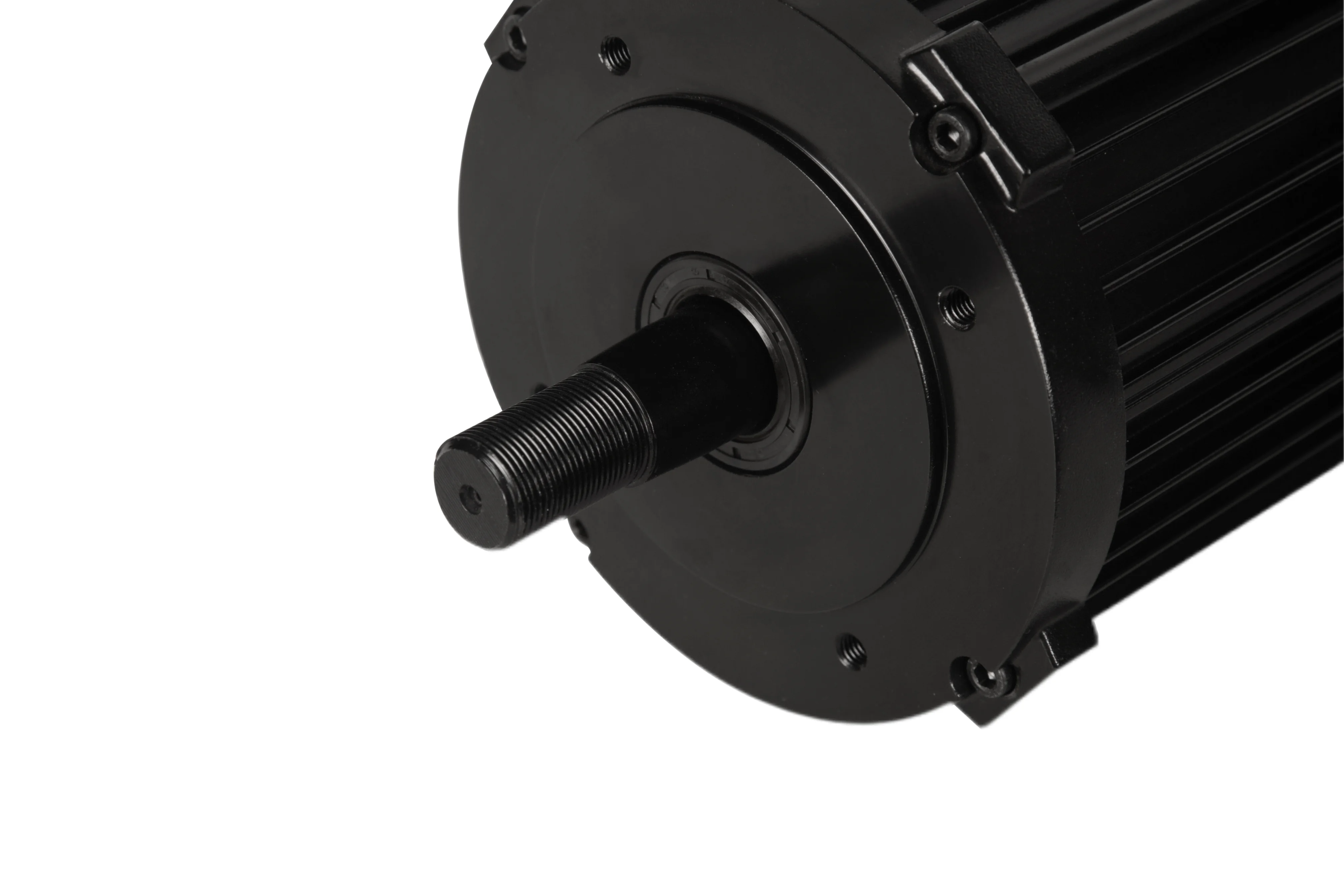

Pls note that this mid drive motor is taper shaft design, and match with synchronous wheel(not included with the motor).
Company Profile
About Us
Yuma Motor is now well positioned as a solution provider of electric bicycles, electric motorcycles, electric cars, electric truck and electric car driving system, matched controllers and accessories. Dedicated to strict quality control and thoughtful customer service, our products have been exported to the United States, Germany, the Netherlands, the United Kingdom, France, the Czech, Russia, South-East Asia.
We also welcome OEM orders, and you can tell us your purchase requirements at any time.
When our staff see your message, we will reply to you for the first time.

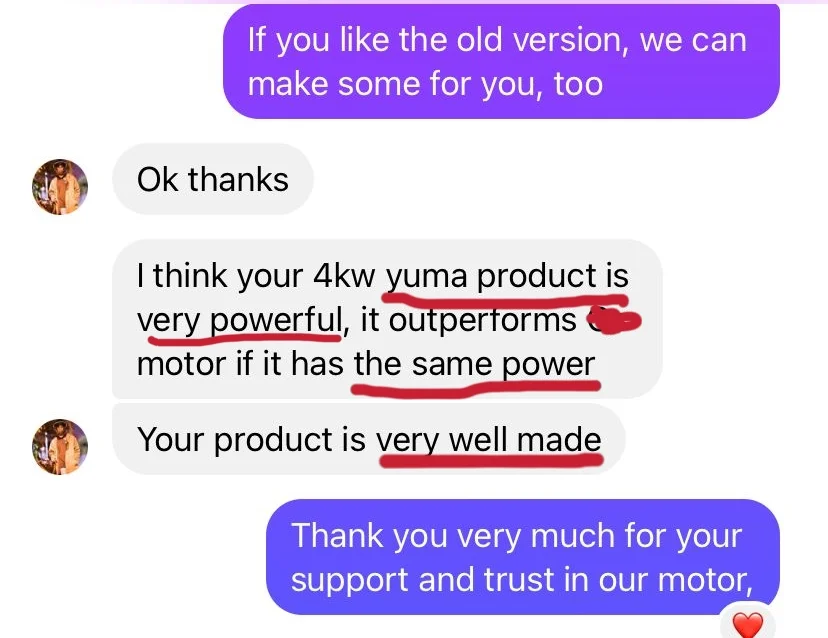

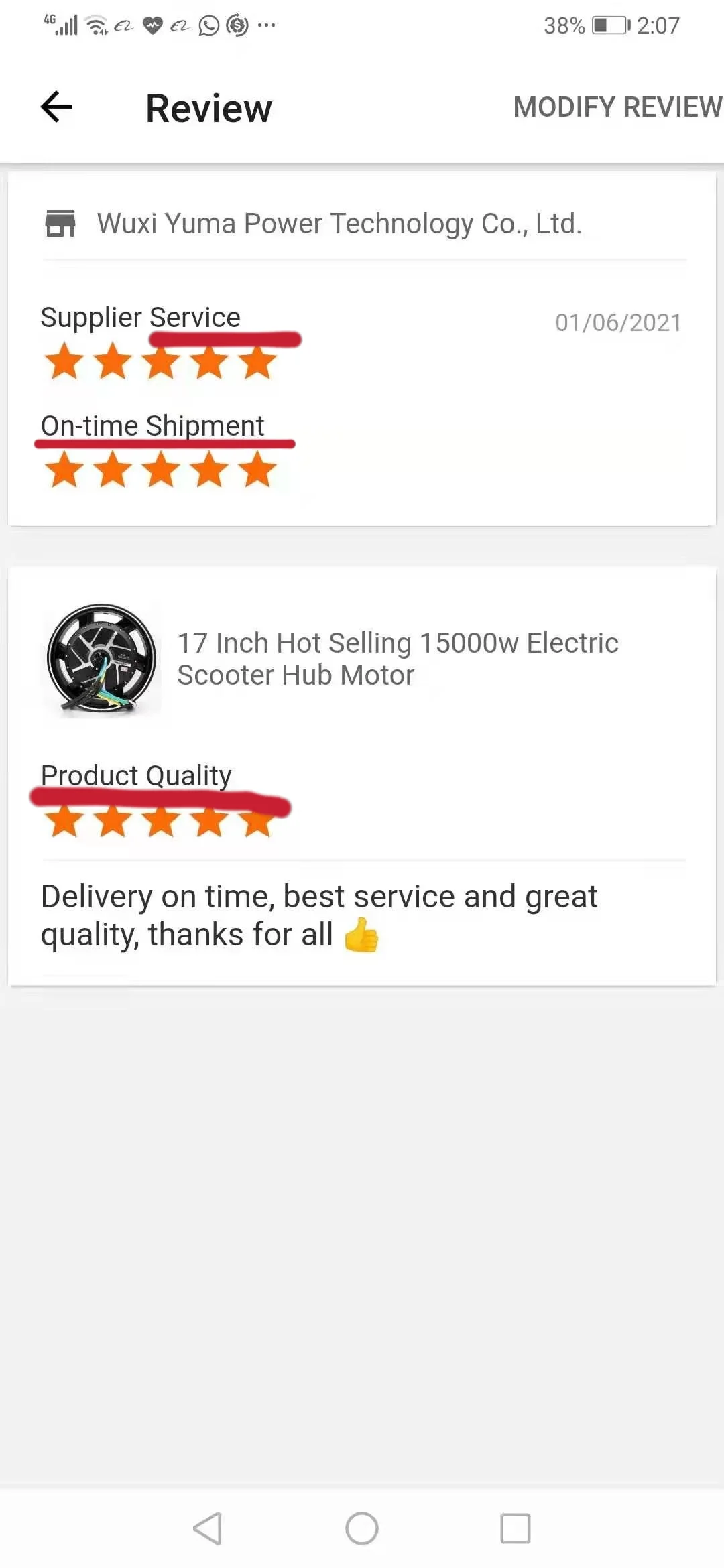

Customer Reviews
FAQ
Q: Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q: What is your warranty policy?
A: 15 months for motors, other parts with 1 year warranty time.
Q: Can I get some samples?
A: Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q: What is the delivery time?
A: It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q: What is your terms of payment?
A: For big order T/T 30% as deposit, and 70%before delivery, for small order pay by T/T or paypal 100% in advance.
Q: Does your products with CE certification?
A: Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
Q: What is your warranty policy?
A: 15 months for motors, other parts with 1 year warranty time.
Q: Can I get some samples?
A: Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q: What is the delivery time?
A: It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q: What is your terms of payment?
A: For big order T/T 30% as deposit, and 70%before delivery, for small order pay by T/T or paypal 100% in advance.
Q: Does your products with CE certification?
A: Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
