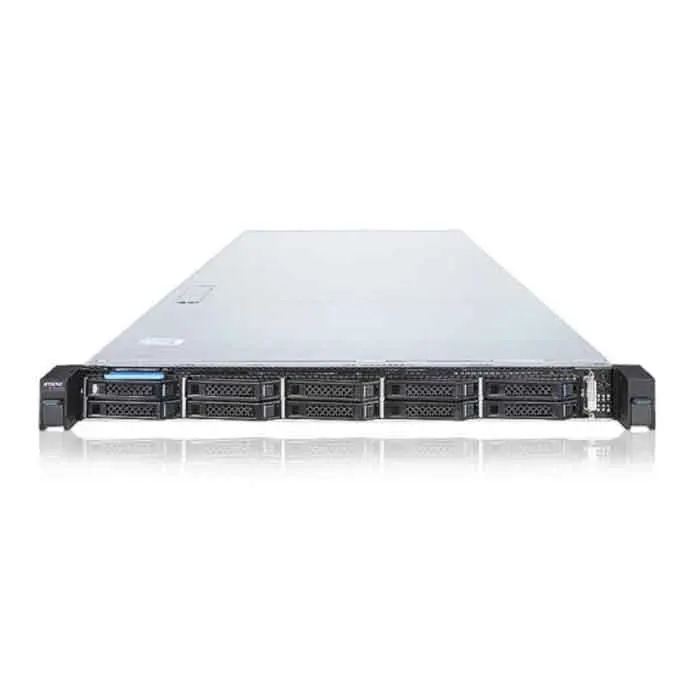

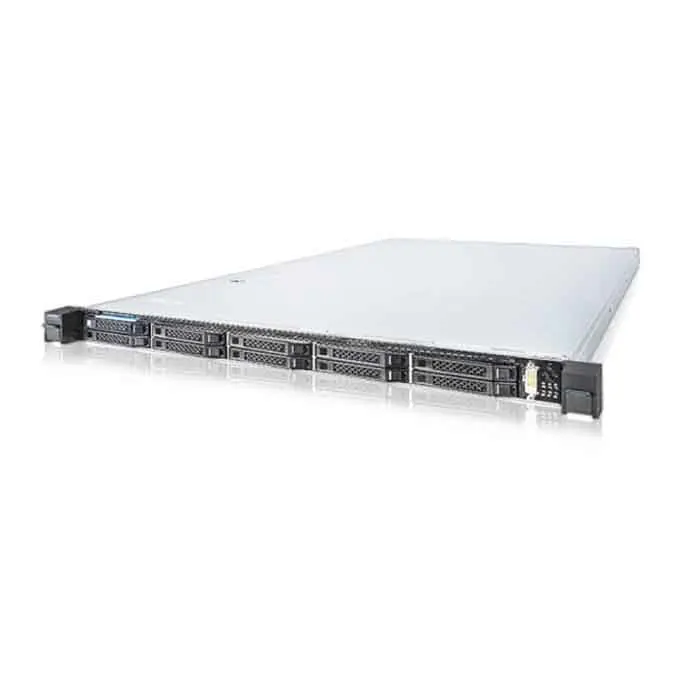

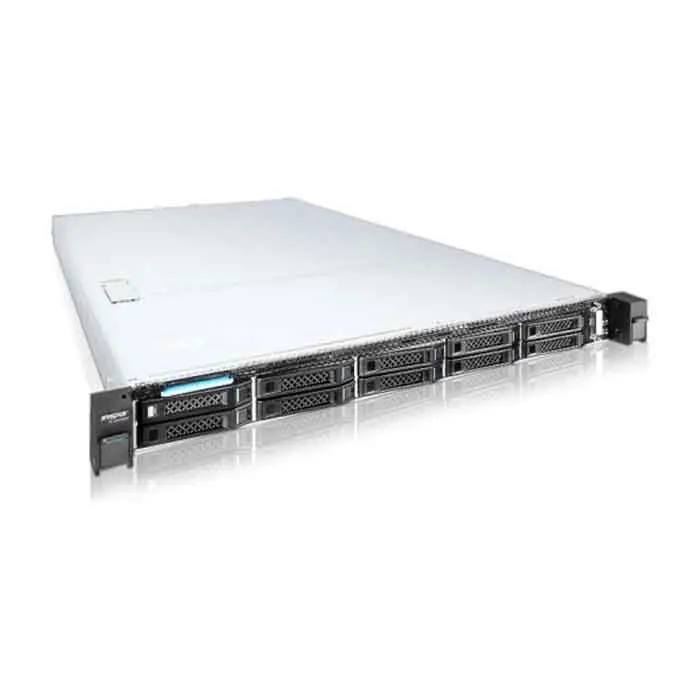

Inspur NF5180M5 | ||
Features | technical specifications | |
Form Factor | 1U Rack | |
Processor | Supports single and dual Intel® Xeon® series scalable processors: supports up to 28 cores at a frequency of 2.2 GHz; maximum 3.6 GHz (8 cores); 2 UPI interconnected chains with maximum speed of 10.4 GT/s per chain and maximum power of 205W; maximum turbo frequency 4.00 GHz(24 cores) | |
Chipset | Intel C621/C622/C624 | |
Memory | Supports up to 24 DDR4 2400/2666/2933 MT/s DIMMs; each CPU supports 12 DIMMs, two CPUs support 24 DIMMs; each CPU supports RDIMM/LRDIMM/Optane™ PMem; supports up to 3TB (64 GB per DIMM); supports up to 512GB per Optane™ PMem (The maximum number of supported Optane™ PMem is related to the specific configuration) | |
Storage | Each front node supports up to 4 x 3.5-inch hard drives and 2 x SATA SSD hard drives or 10 x 2.5-inch hard drives; each rear node supports up to 2 x SATA M.2 SSDs; each internal node supports 2 x SATA M.2 or 2 x PCIe M.2 SSDs (the maximum number of supported hard drives is configuration-specific) | |
Storage controller | SATA controller on motherboard, supports RAID 0/1/5/10; NVMe controller interface on motherboard configurable with Intel® NVMe RAID key | |
Network port | 10 Gb/s PHY; 10G b/s, 25 Gb/s OCP | |
I/O expansion slot | Expands up to 2 x standard PCIe x16 slots, each PCIe slot is a x8 slot | |

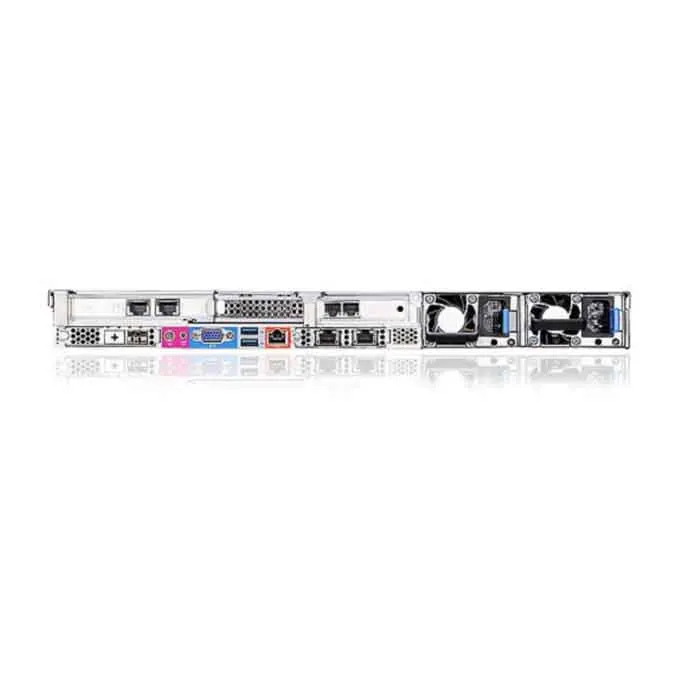

Ports | Front: 1 x USB2.0 port, 1 x USB3.0 port (2 x USB2.0 ports in 2.5 chassis), 1 x VGA port, 1 x UID indicator and button Rear: 2 x USB3.0 ports, 1 x VGA port, 1 x 1 GB management port, and 1 x UID indicator and button | |
Internal: | 1 x USB2.0 port, 1 x serial port | |
Fan | 7 x hot-swappable N+1 redundancy dual-rotor fans | |
Power supply | Supports 2 x 550W/800W/1300W/1600W PSUs (platinum), 1+1 redundancy | |
System management | The onboard BMC management module supports IPMI, SOL, KVM Over IP, and virtual media, and provides 1 external 1 Gb RJ45 network port | |
Operating system | Supports Windows/ Red Hat/ SUSE/ Centos/ Debian/ XenServer/ Oracle Linux/ ESXi/ Ubuntu etc. | |
Size | 435mm (W) x 43mm (H) x 751mm (D) 17.13 inch (W) x 1.60 inch (H) 29.57 inch (D) | |
Weight | Less than 28 kg at full load, please refer to the technical white paper for further details | |
Operating temperature | 5℃-35℃ 41℉-95℉ (please refer to the technical white paper for more details) | |
Performance Data | SPEC official result: Link Best application: Intel Xeon Gold 6238R Intel Xeon Silver 4215R | |
