Automatic wire stripping cable peeling cutting machine SWT508 Cable Stripper Cutter

Product Overview

Description

Cable Stripper Cutter for terminal or tin plating

0.1-70mm2 Automatic Wire Stripping Peeling Cutting Machine SWT508MAX SWT508E SWT508SD SWT508C Cable Cutter Stripper 220V 110V

P.S: The protective cover is not included. if you need. please contact the seller.
1. Model: SWT508C
2. Voltage: AC 110V/220V/50/60 Hz
3. Dimensions: 390x350x255

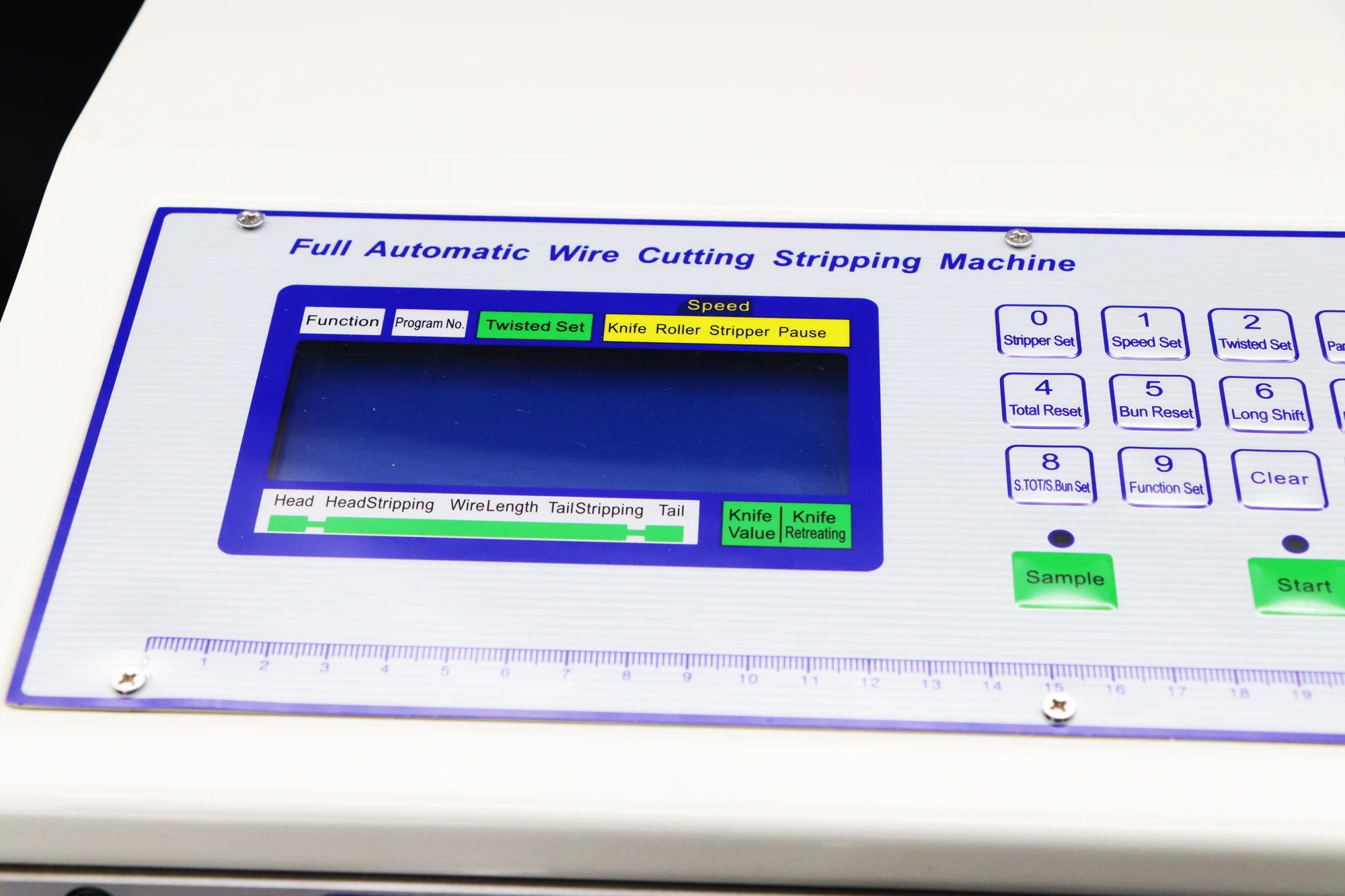

4. Display mode: LCD display in Chinese and English interface
5. Weight: 26(KG)
6. Power: 160(W)
8. Cutting tolerance: (0.2±0.002×L)mm
9. Cutting tolerance: correction
10. Stripping length: head 0-35mm, end 0-15mm
11. Intermediate stripping: eleven-place strip
12. Wire cross-section: 0.1~2.5mm2
13. Maximum diameter of tube: 6
14. Suitable wire stripping: PVC/PTFE/silicone cable/fiberglass wire
15. Blade material: Tungsten steel
16. Wire speed (pcs/h): 3000-8000
17. Drive: two wheels drive

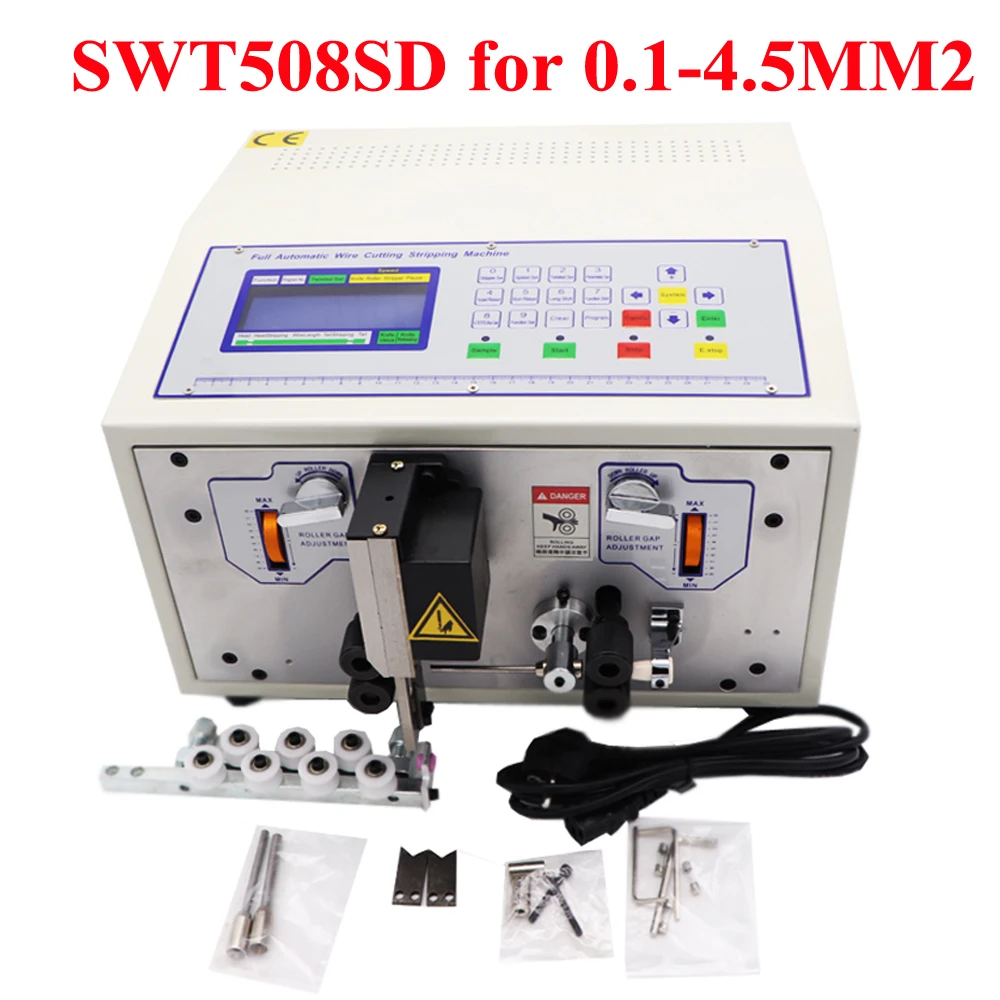

1, Model: SWT508-SD
SWT508-SD*/S --- Touch Screen
2, Power: AC 220V/110V 50/60 Hz>
3, POWER: 200W
4, Cutting length: 1-9999 mm
5,Cutting tolerance: (0.2+/- 0.002 by L) mm
6, Cut off the error: can be modified
7, Stripping length: front end 0-35mm, Rear end 0-15 mm
8, Middle strip cut: 11 places strip
9, Cutting wire core section: 0.1-4.5mm2
10, Max cut diameter: 6
11, Optimal stripped wire: PVC/Teflon/silica gel line /. Glass fiber cables, etc
12, The blade material: hard tungsten steel (import BaiGang optional)
13, Peel linear velocity (a/hour): L = 100 mm, 3000-8000 PCS/h (high yield)
14, Driving way: 4 wheels drive
15, Envelope dimensions: 537*507*410
16, Weight:31KG
17, Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)

1, Model: SWT508-SDB
SWT508-SDB/S --- Touch Screen
2, Power: AC 220V/110V 50/60 Hz
3, POWER:200W
4, Cutting length: 1-9999 mm
5, Cutting tolerance: (0.2+/- 0.002 by L) mm
6, Cut off the error: can be modified
7, Stripping length: Front end 0-35mm, Rear end 0-15 mm
8, Middle strip cut: 11 places strip
9, Cutting wire core section: Single wire 0.1-4.5mm2; double wires 0.1-2.5mm2
10, Max cut diameter: 6
11, Optimal stripped wire: PVC/Teflon/silica gel line /. Glass fiber cables, etc
12, The blade material: hard tungsten steel (import BaiGang optional)
13, Peel linear velocity (a/hour) : L = 100 mm, 5000-10000 PCS/h (high yield)
14, Driving way: 4 wheels drive
15, Envelop dimensions: 537*507*410
16, Weight:31KG
17, Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)

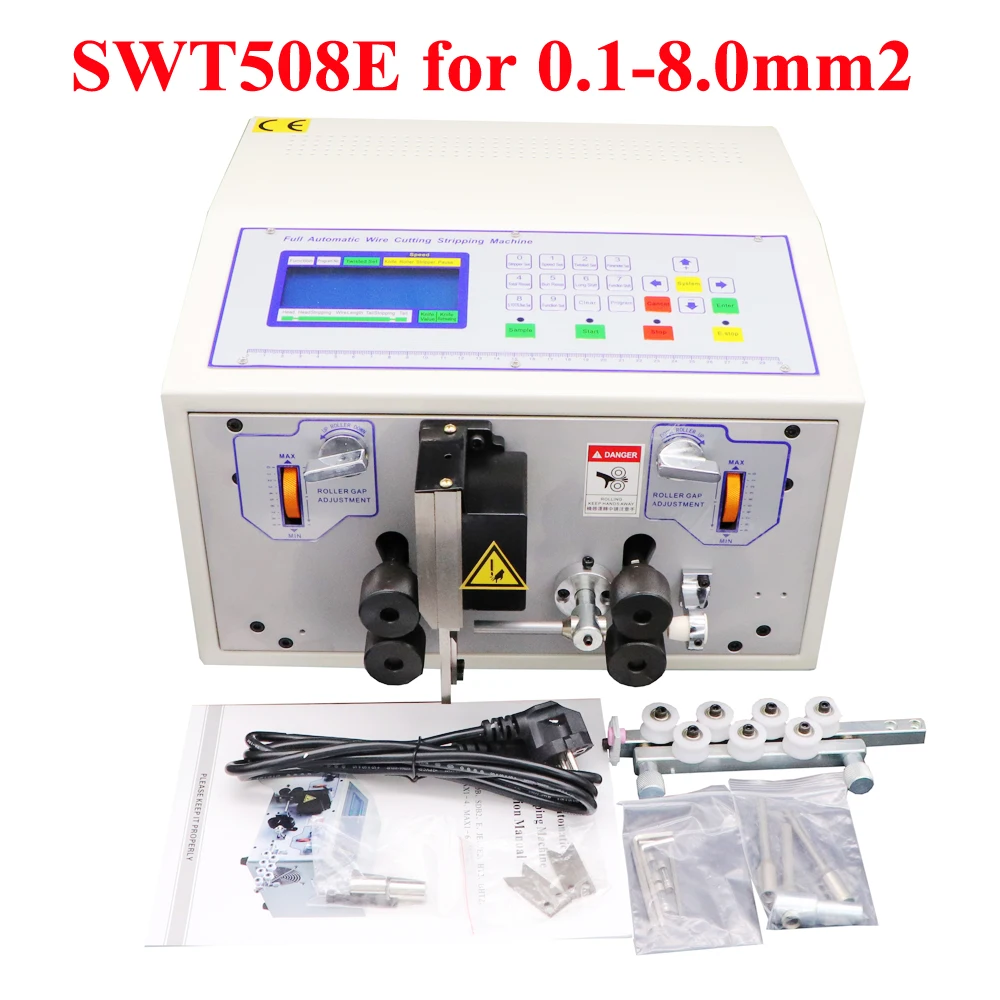

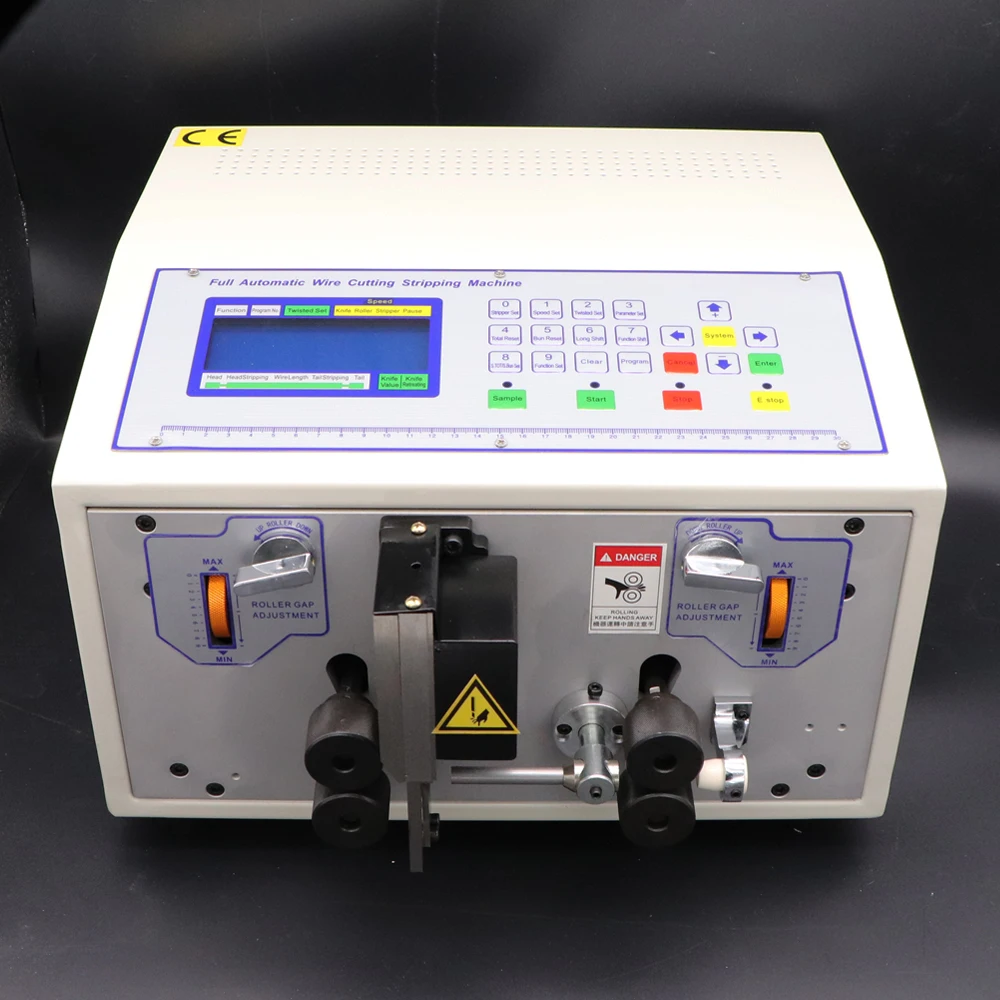

1. Model: SWT508E
SWT508E/S -- Touch Screen
2. Voltage: AC 110V/220V/50/60 Hz
3. Dimensions: 390x350x255
4. Display mode: LCD liquid crystal display in Chinese and English interface
5. Weight: 32(KG)
6. Power: 300(W)
7. Cutting length: 1-9999mm
8. Cutting tolerance: (0.2±0.002×L)mm
9. Cutting tolerance: correction
10. Stripping length: head 0-50mm, end 0-50mm
11. Intermediate stripping: eleven-place strip
12. Wire cross-section: 0.1~8mm2
13. Maximum diameter of tube: 8
14. Suitable wire stripping: PVC/PTFE/silicone cable/fiberglass wire
15. Blade material: rigid steel
16. Wire speed (pcs/h): 2000-5000
17. Drive: four-wheel drive

Model	SWT508MAX1-4/4S wheels	SWT508MAX1-8 wheels	SWT508MAX2-8 wheels
	BV7 core/16 square	BV7 core 25 square	BV7-19 core 50-70 square
	4-wheel drive	8-wheel drive	8-wheel drive
Voltage	AC220/ 50HZ	AC220/ 50HZ	AC220/ 50HZ
Power	500W	800W	1000W
Show	English/Chinese LCD	English/Chinese LCD	English/Chinese LCD
Cut length	1mm~60000mm	1mm~100000mm	1~100000mm
Wire stripe length	wire head 0-50,	wire head 0-100,	wire head 0-150,
	wire tail 0-50	wire tail 0-100	wire tail 0-150
Cut tolerance	(0.002xL)mm	(0.0001xL)mm	± (0.0001xL)
Middle stripe	13 places strips	16 places strips	16 places strips
Cut wire section	0.2~16mm2	0.3~25mm2	1~70mm2
Max diameter	13	13	18
Suitable for	PVC, teflon, glass wire, steel wire	PVC, teflon, glass wire, steel wire	PVC, teflon, glass wire, steel wire
Blade stuff	Imported steel	Imported steel	Imported steel
Speed(L=100MM/Hour)	16square:2000-3000	4000-5000	5000-6000
	25 square:3000-4000
Drive	4 wheels drive	8 wheels drive	8 wheels independent drive
