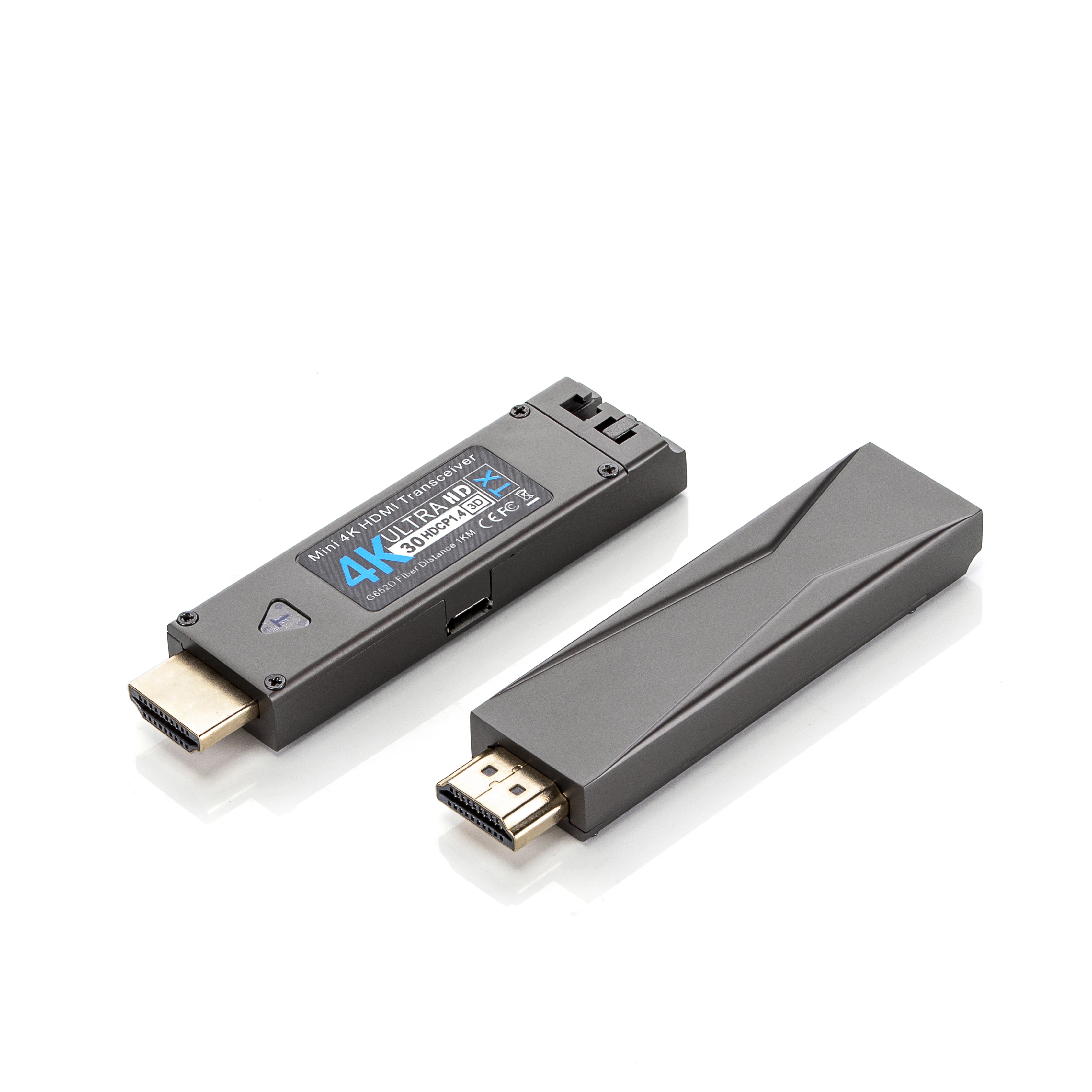

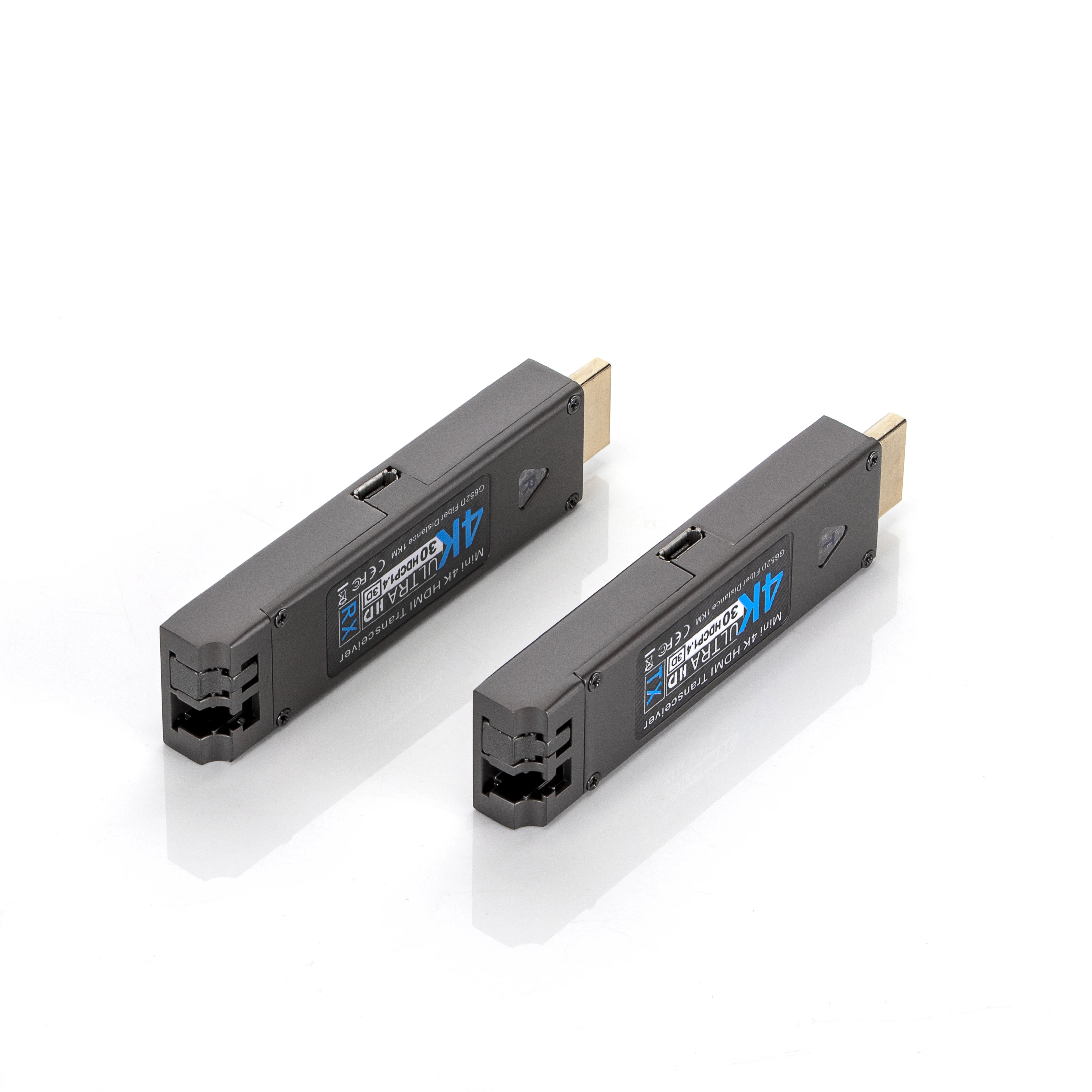

Mini 4K Video to Fiber Optical Converter DDC/CEC/HPD signal micro usb power LC connector HD/DVD/DVR

Product Overview

Description

Mini 4K Video to Fiber Optical Converter DDC CEC HPD signal micro usb power LC connector HD DVD/DVR

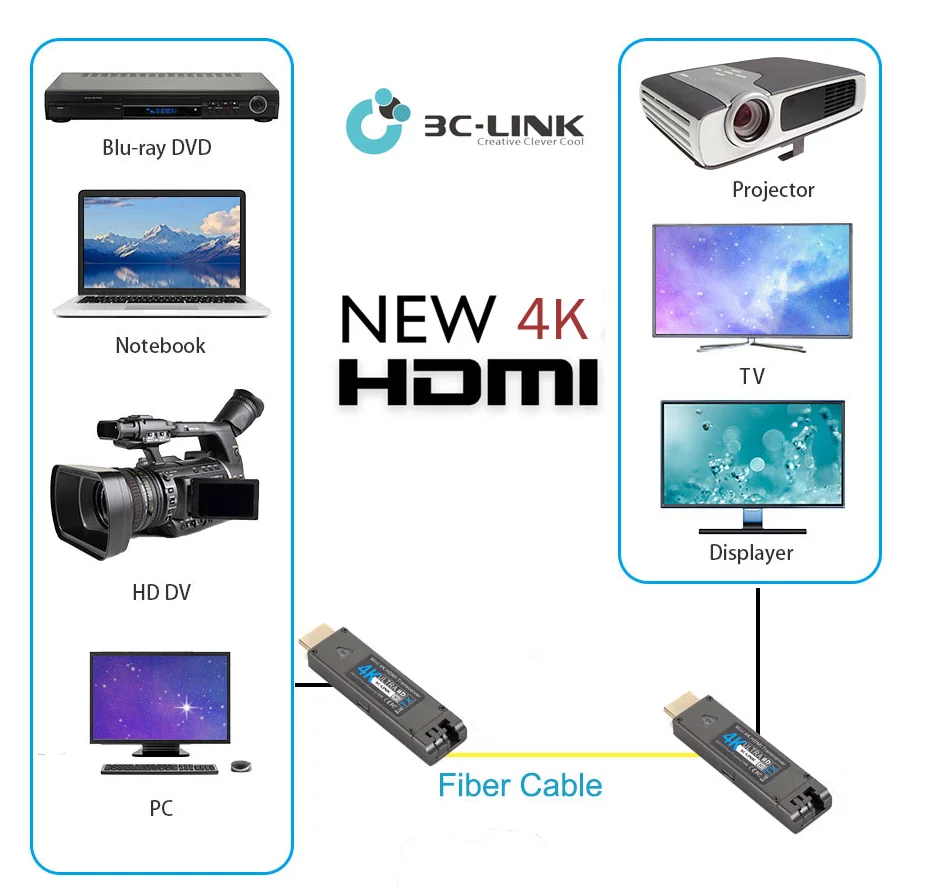

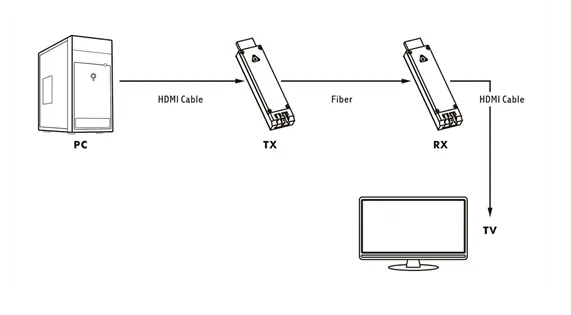

Mini 4K HDMI video to fiber optical converter is composed of the transmitter and the receiver. The video/audio output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through optical fiber, and the image and sound of the computer host are broadcasted in real time at the remote end.

4 K HDMI OPTICAL TRANSCEIVER converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in worldwide. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.





1.HDMI video support maximum resolution 4096*2160@30Hz and downward compatibility

2.Support international standard HDMI1.4 HDCP1.4

3.Support DDC CEC HPD signal

4.EDID transparent transmission mode

5.Support RGB&YCBCR4:4:4 YUV4:4:4 4:2:2 4:2:0

6.Single/multi-mode compatibility, multi-mode transmission distance 1KM, single-mode transmission distance 2KM

7.Delay <2ms

8.Plug and play, no setting required





Fiber index
Wavelength	1310-1550nm
Rate	10Gbps
Tx power	>-5db
Rx sensitivity	>-14db
Fiber connector	LC
Video index
Video bandwidth	10GHz Gbps
Resolution	4096*2160@30Hz and downward compatibility
Pixel clock	297MHZ

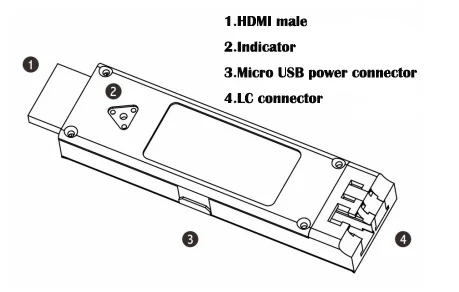

Physical connector	HDMI male (19Pins HDMI Type Port)
Other index
Operating temperature	-20°C ~75°C
Storage temperature	-40°C ~85°C
Power supply	5V/+-5%
Power dissipation	<1.5W
Power supply physical connector	Micro-USB
Dimensions	79.2*20*10.3mm







Product Types

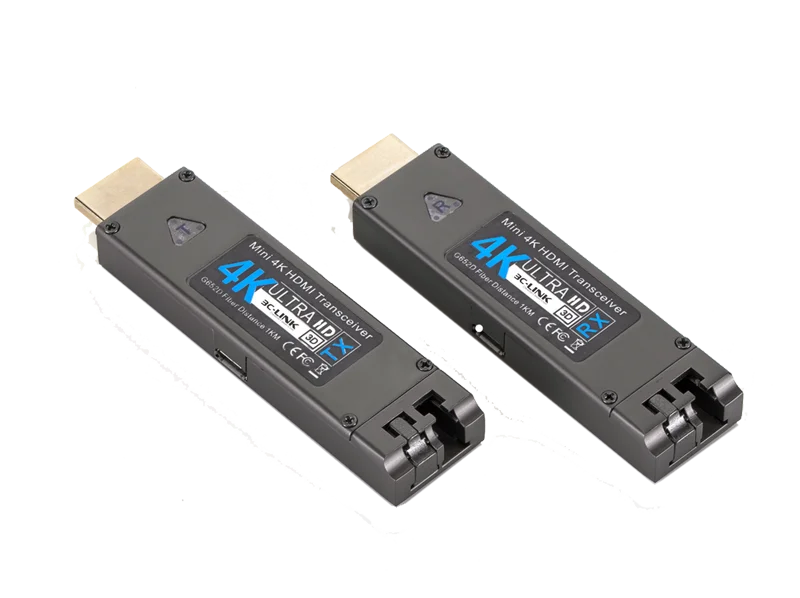

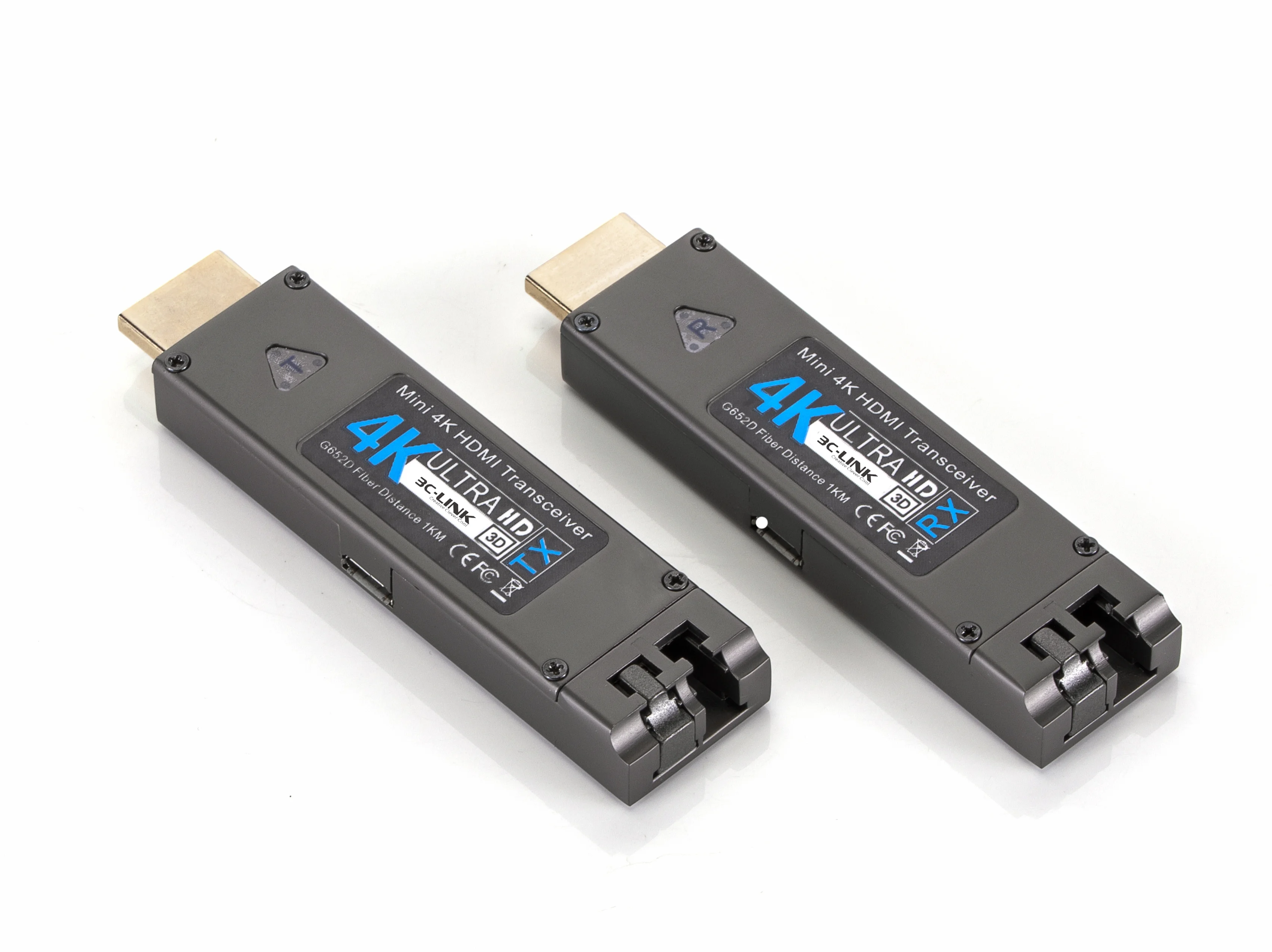

1.Mini 4K HDMI single fiber

2.Mini 4K HDMI dual fiber





Packing List

1.Transmitter   1 pcs

2.Receiver     1 pcs

3.Micro-USB cable + 5V adapter 2 pcs

4.User’s manual 1 pcs



Transmitter:Powered up-->red light     Video input-->purple light

Receiver:Powered up-->red light       Fiber signal-->purple light(if red light is on means no fiber signal)
