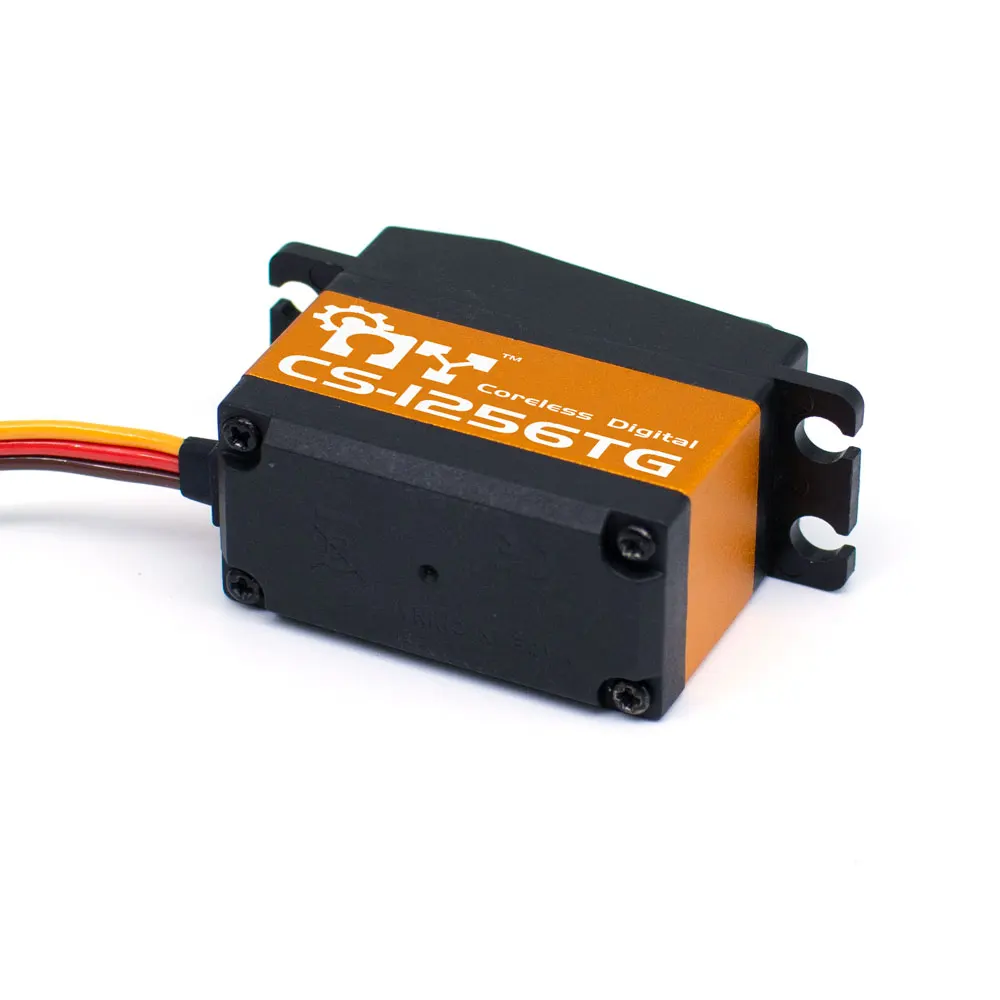

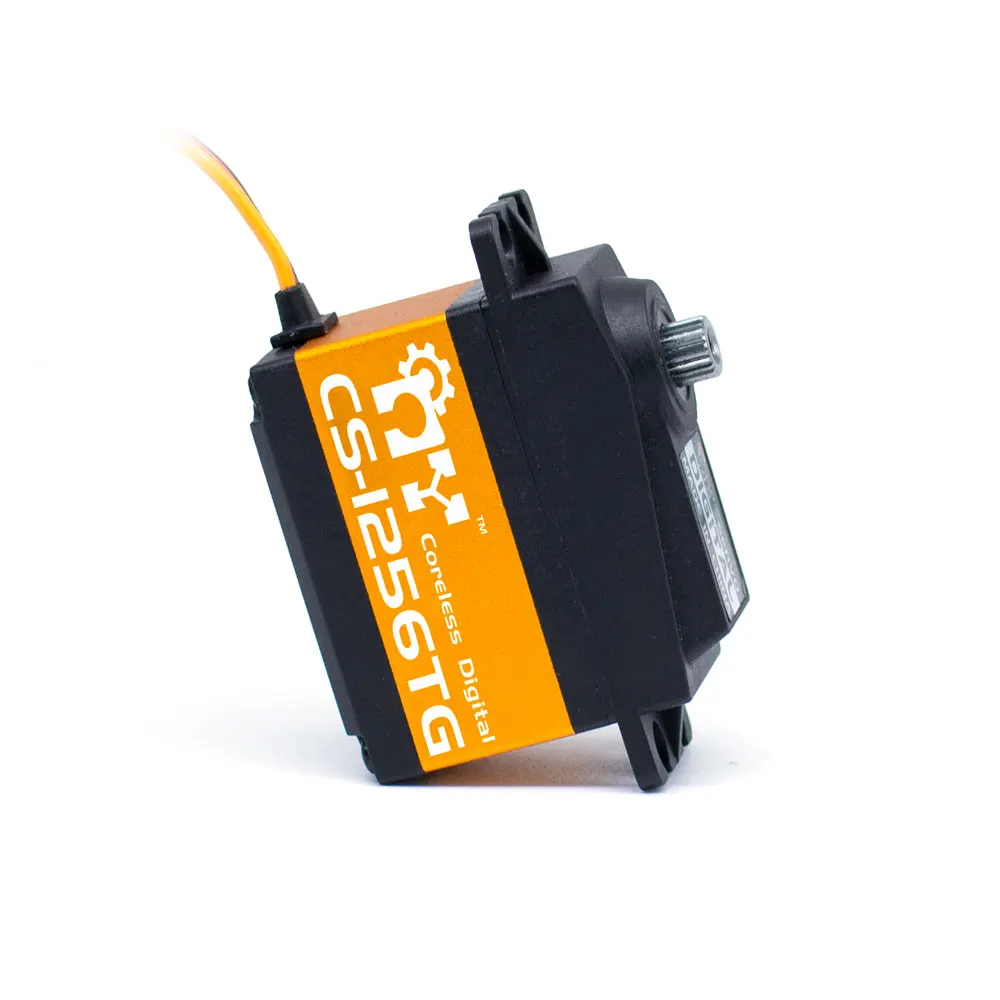

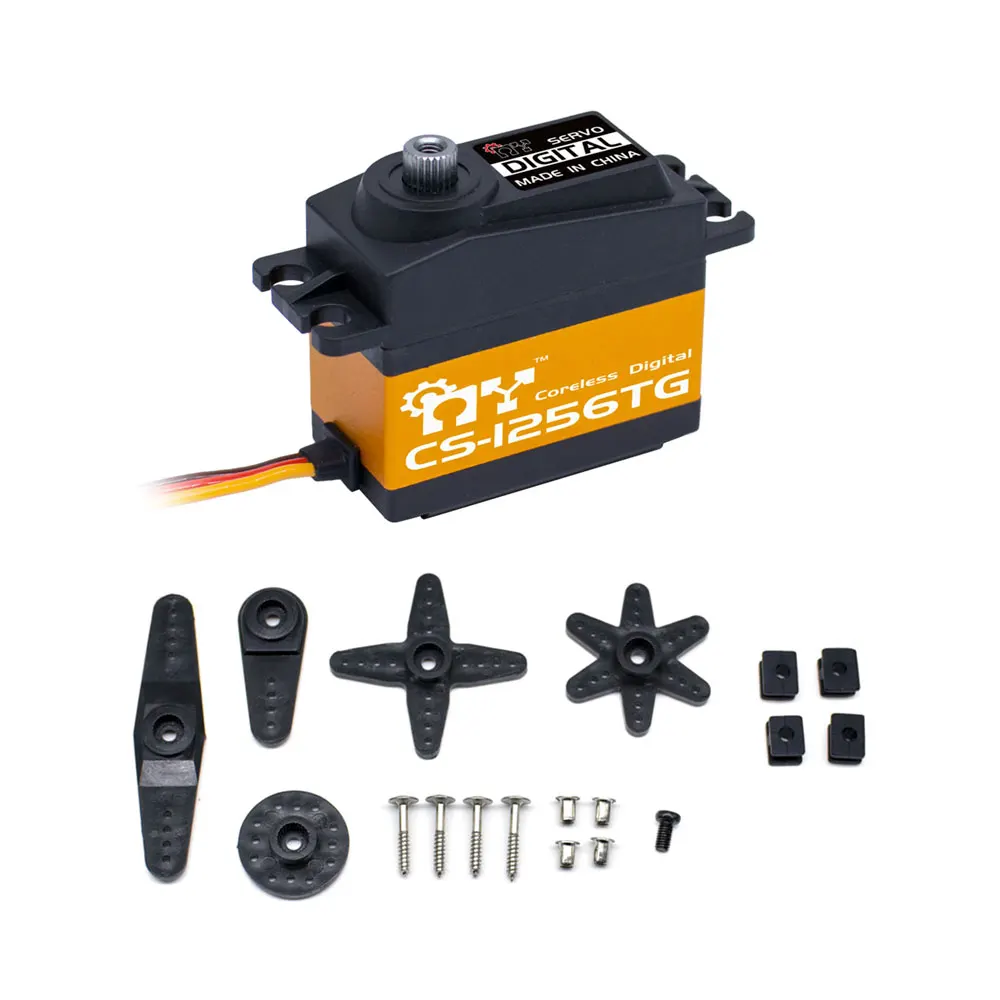

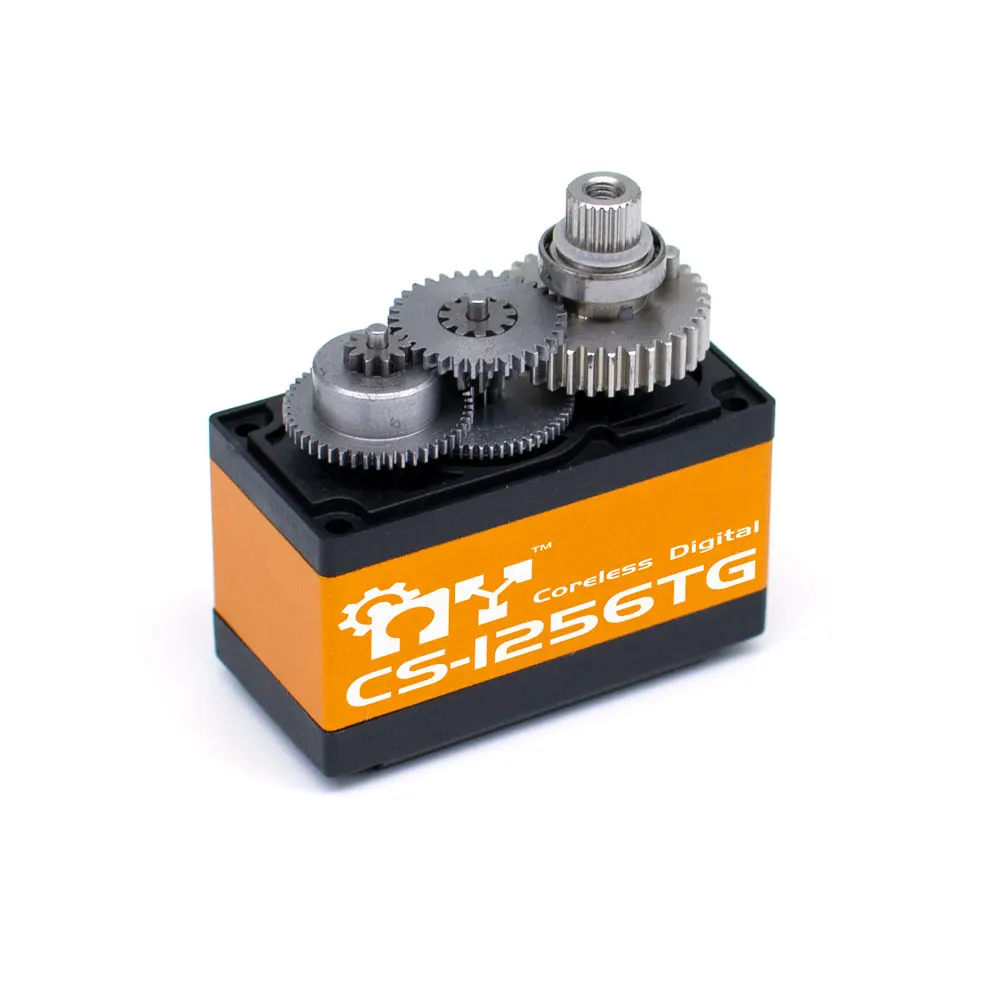

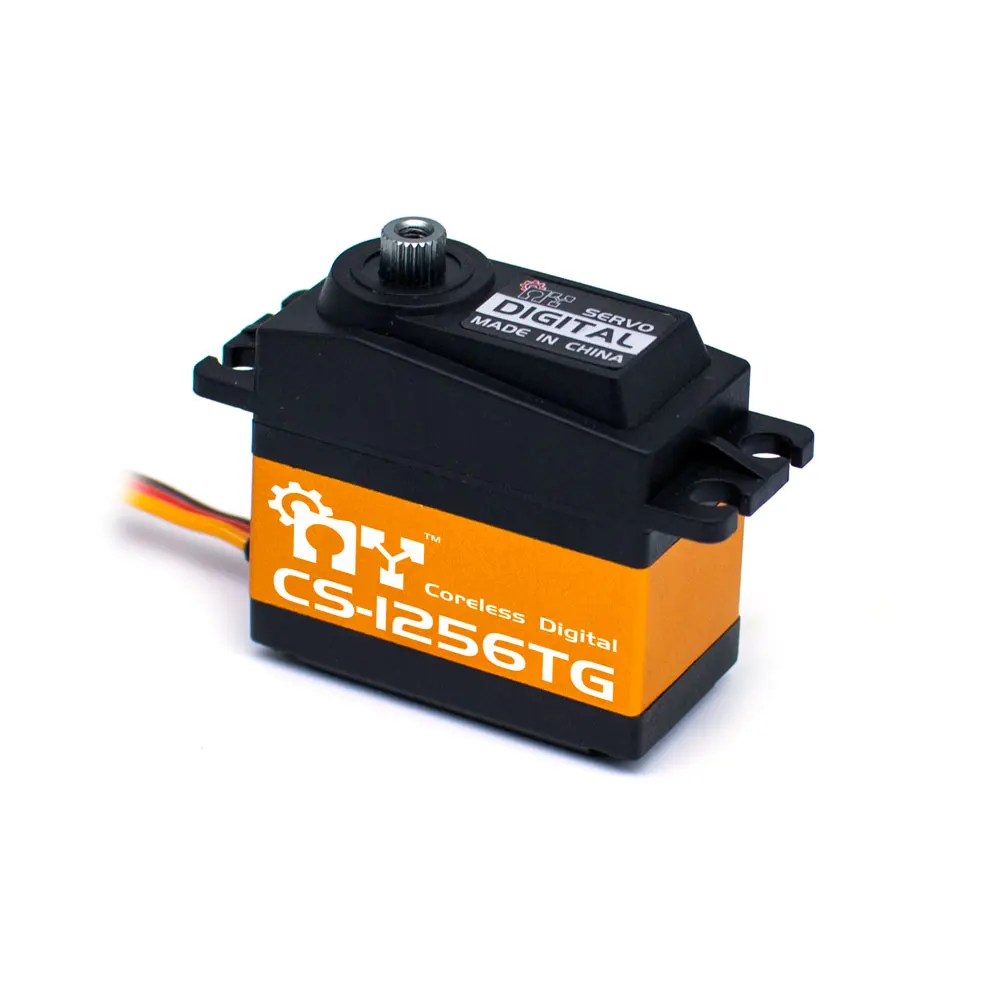

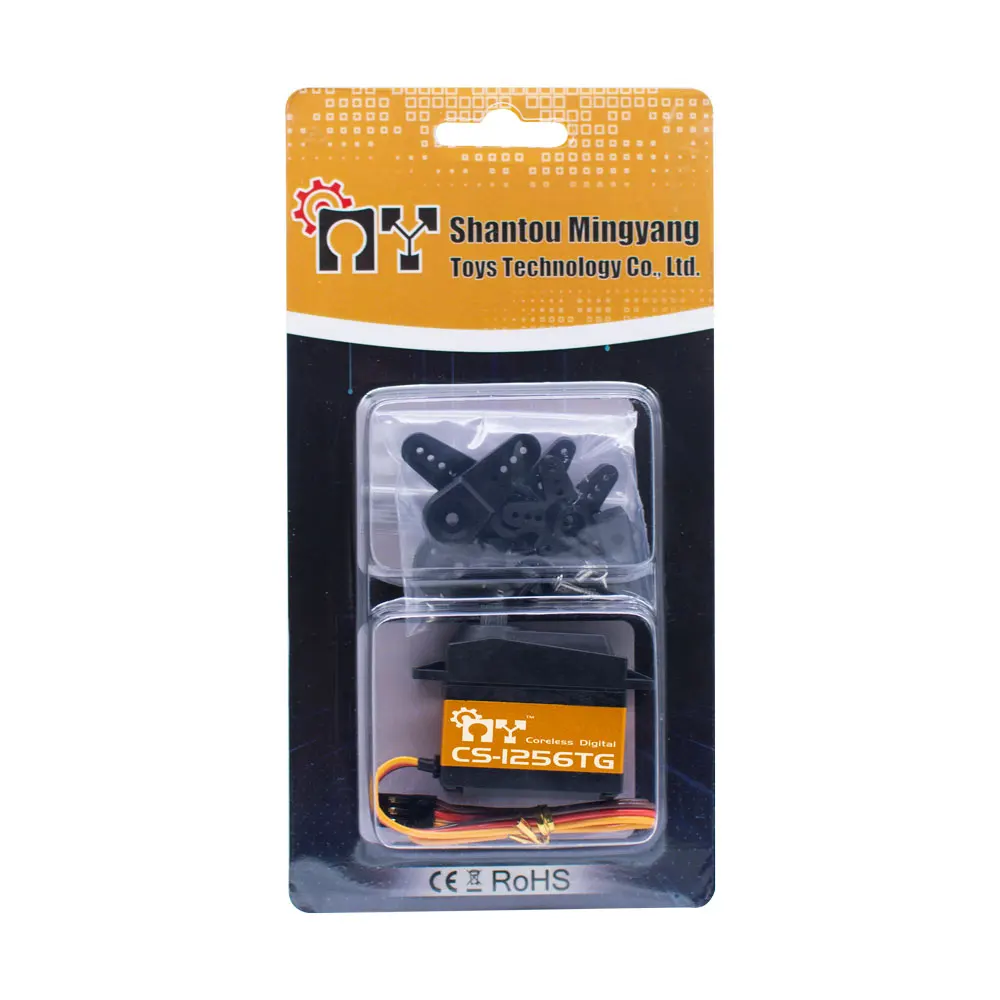

CS 1256TG 6V 0.15S 20KG high speed metal teeth servo steering gearr remote control aircraft car robot modified parts

Product Overview

Description

Brand:MY SERVO

Model:CS-1256TG

Description: 6.0V 20KG Coreless motor servo

Dead band: 3μs

Working frequence: 1520μs / 330hz

Motor: Coreless Motor
Operating Speed 4.8V): 0.18sec/60°
Operating Speed (6.0V): 0.15sec/60°
Stall Torque (4.8V):16.0kg.cm
Stall Torque (6.0V): 20.0kg.cm
Dimensions: 40.3X20.2X37.2mm
Weight: 64 g

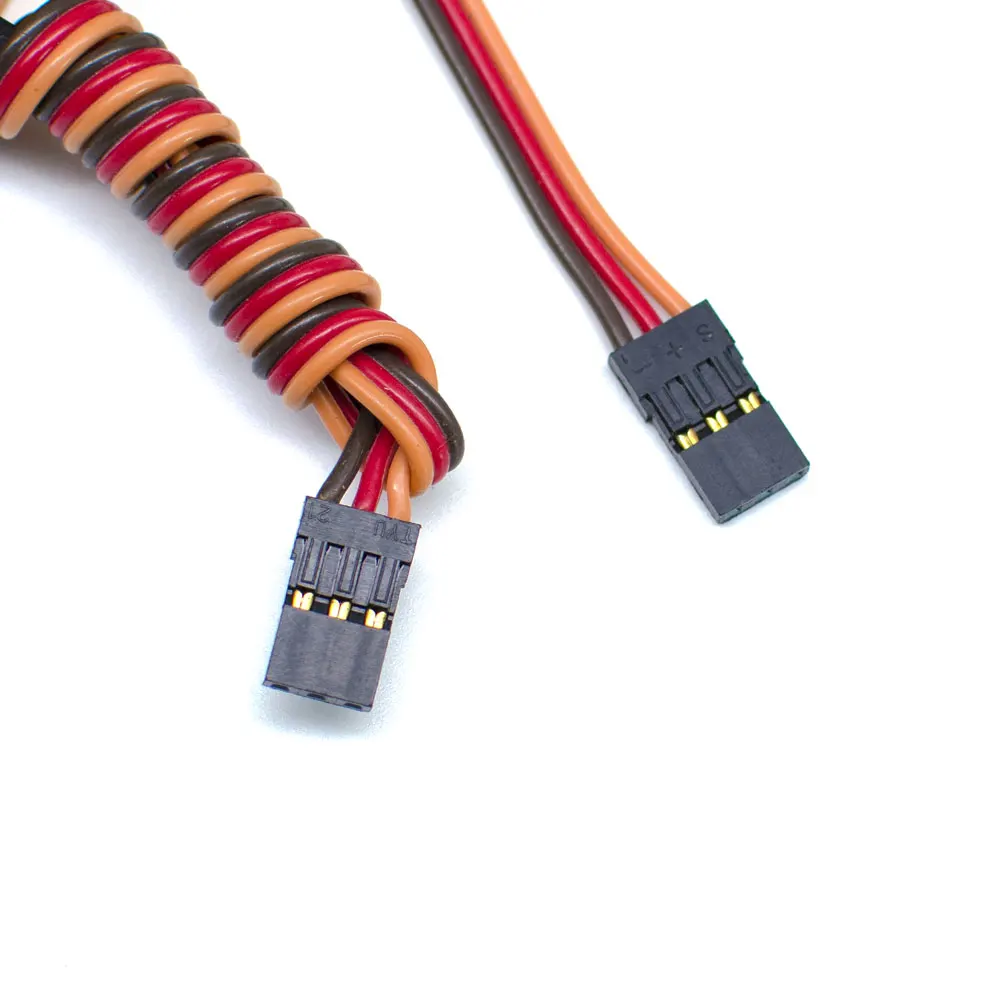

Connector Wire Length: JR 265 mm
Bearing: 2BB

Output Gear Spline:25T
