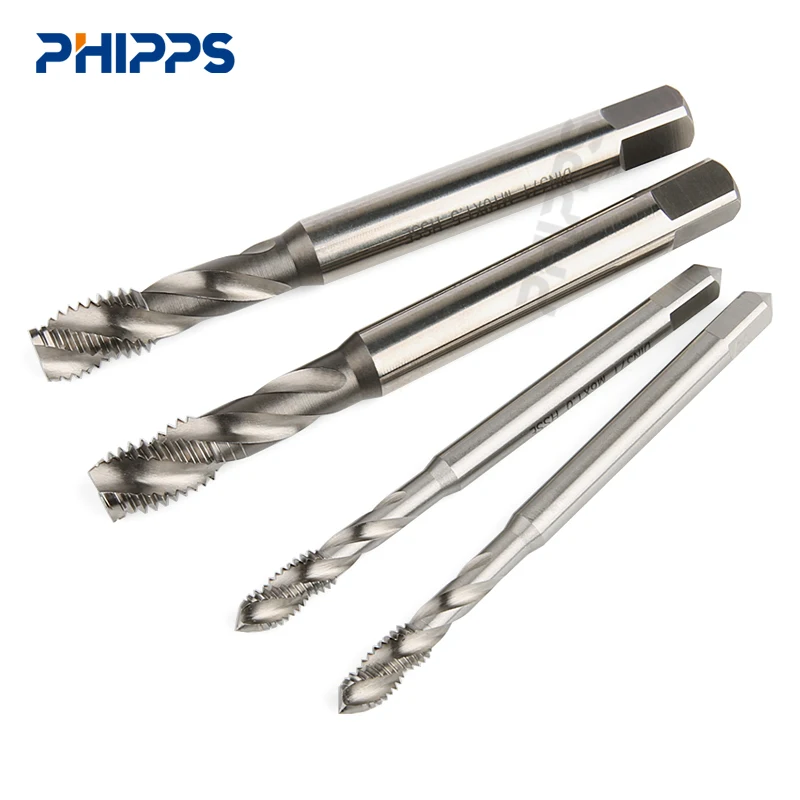

PHIPPS wholesale solid carbide taps DIN371 DIN376 M10*1.5 cutting straight spiral flute screw machine HSSE tap
- Category: >>>
- Supplier: Shenzhen Phipps Technology Co. Ltd.
Share on (1600808931378):
Product Overview
Description
Product Paramenters

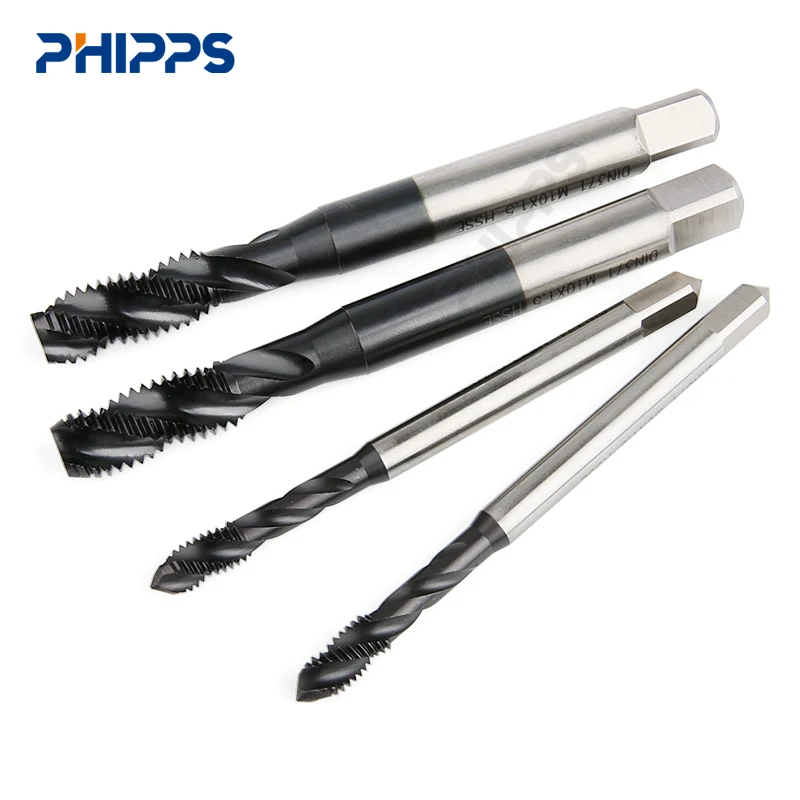

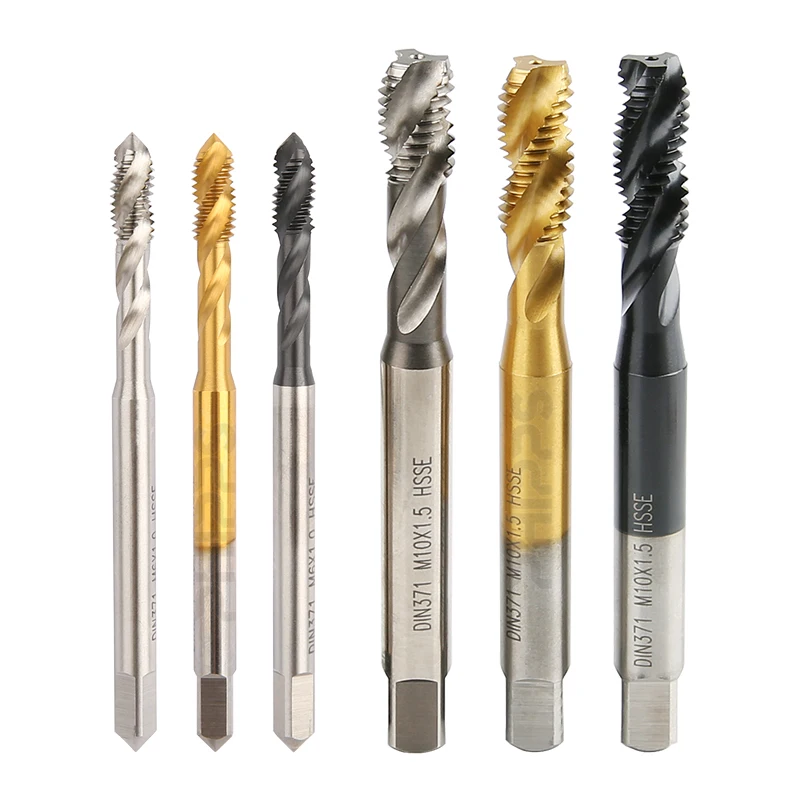

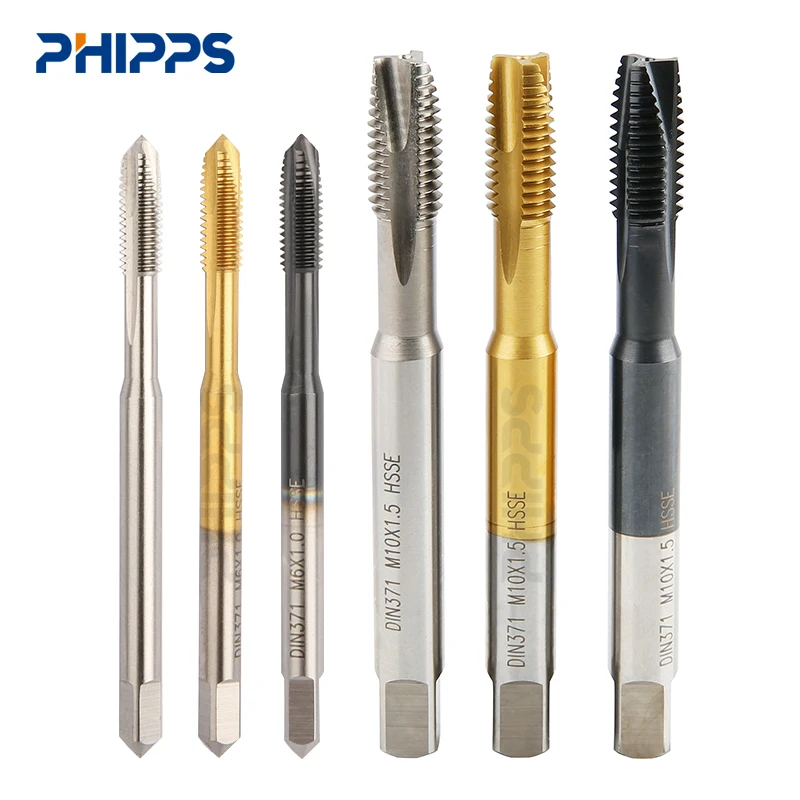

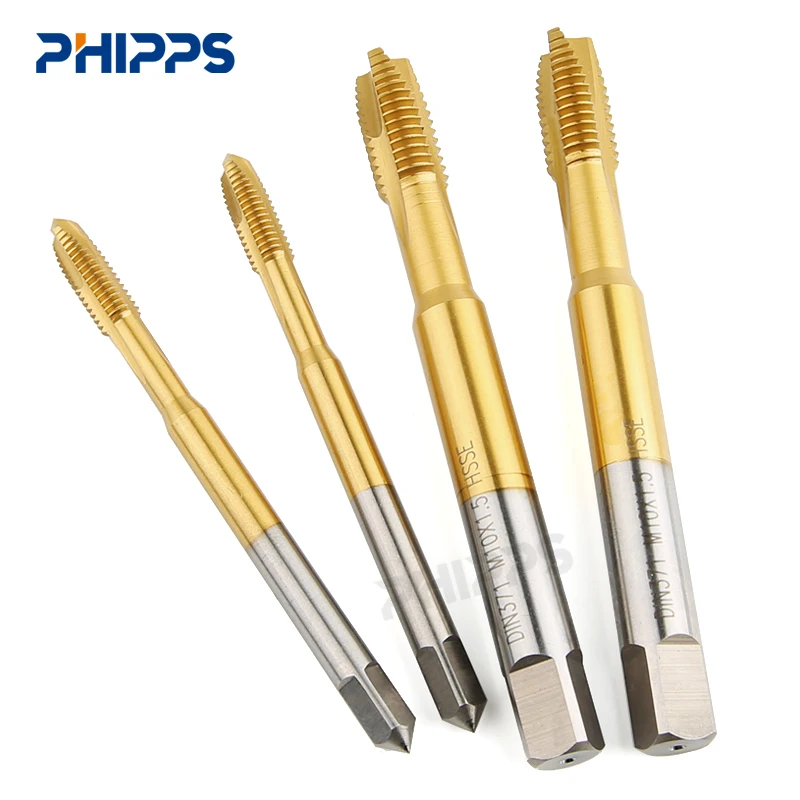

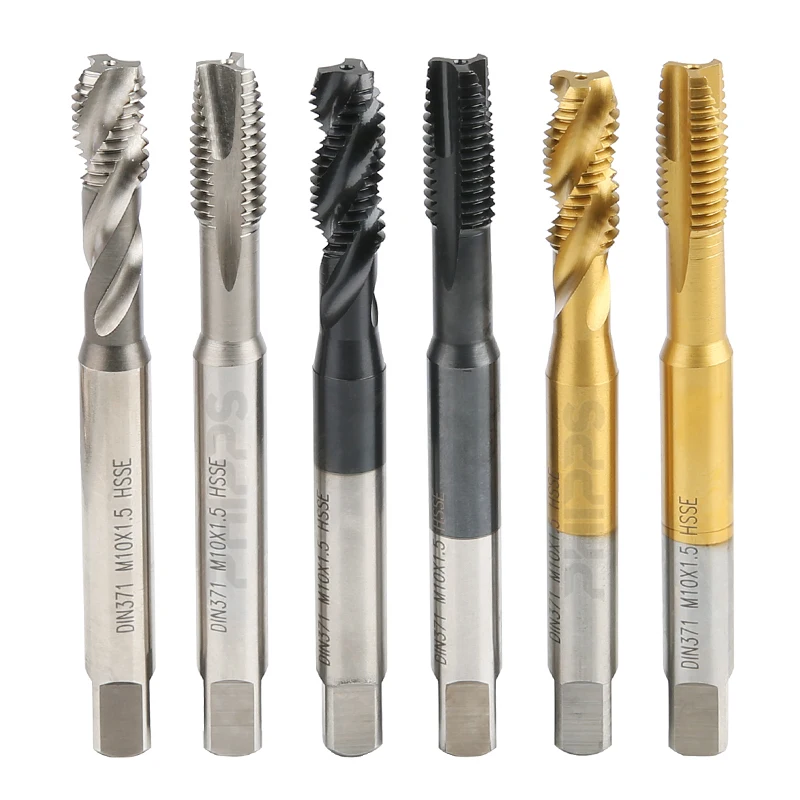

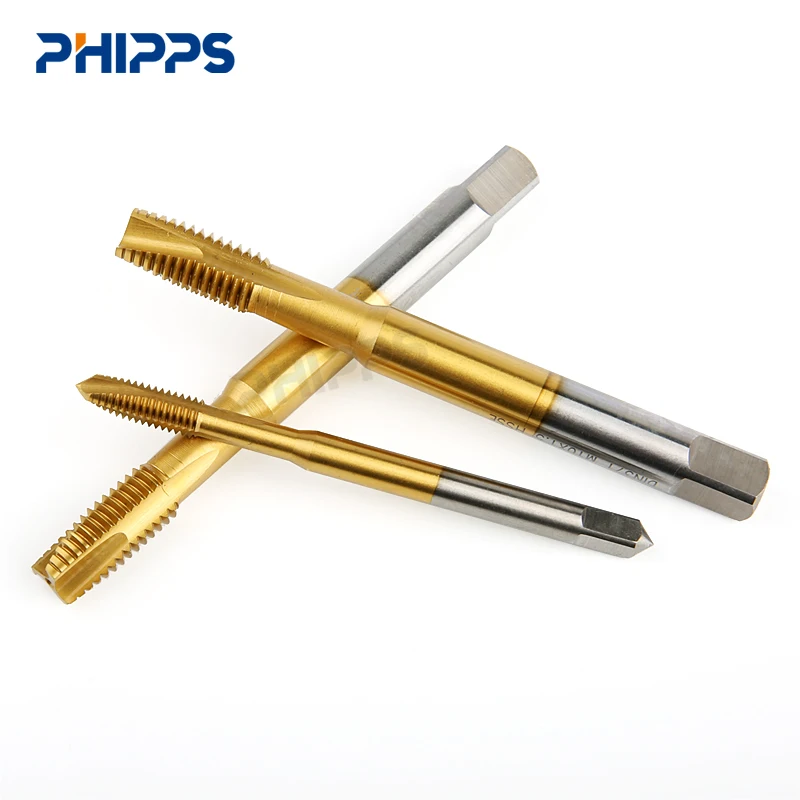

PHIPPS wholesale solid carbide taps DIN371 DIN376 M10*1.5 cutting straight spiral flute screw machine HSSE tap
Product Name | cutting straight spiral flute screw machine HSSE tap |
Material | Alloy steel, HSS/HSS-CO |
Type | Machine tap, hand tap, forming tap etc. |
Flute | Spiral flute tap; Spiral pointed flute tap; Straight flute tap |
Pitch | Coarse Pitch, Fine Pitch |
Tolerance | H1, H2, H3, H4 |

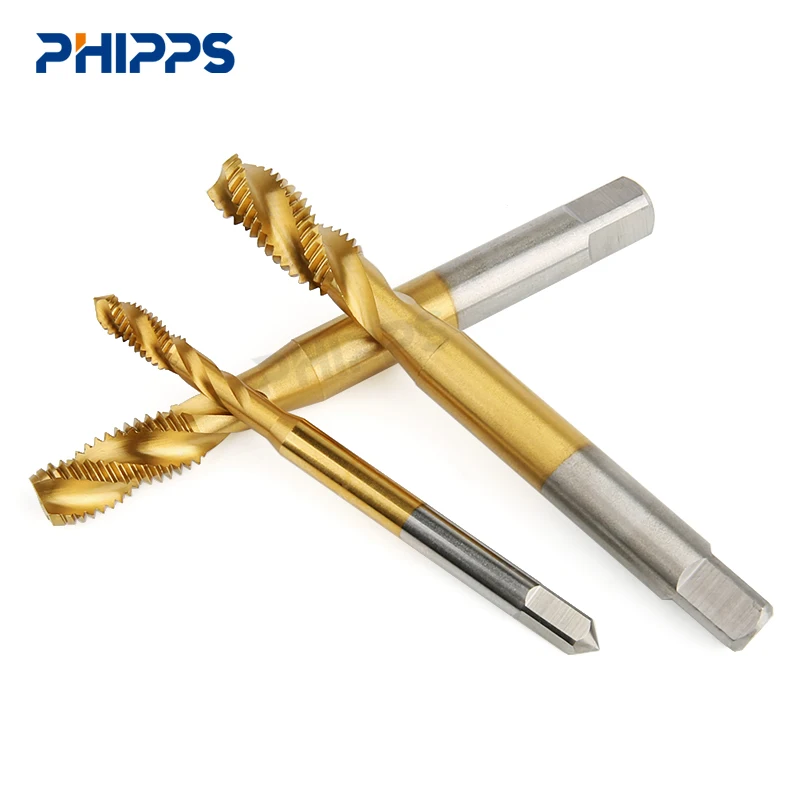

Coating | TiN/TiCN/uncoated |
Standard | DIN, JIS, BS, ANSI and ISO |
Size | M2~M24 |
Hole type | Spiral flute taps: Longhole + Blind Hole Straight flute taps: Through-hole + Shallow blind hole Tip tap: Through-hole |
Workpiece material | Hardened Steel, stainless steel, carbon Steel, general steel, iron aluminum, copper and other metal steel |
Used | Lathe, Radial Drilling Machine, Bench Drill Machine, Pillar Drill Machine, Vertical Milling Machine |
Flexibilitiy | Small orders are acceptable for quick delivery and to help you to test firstly |
Notes: DIN371 standard below M10, M10 and above DIN376 standard, M2~M6 are tip heads
Products Description

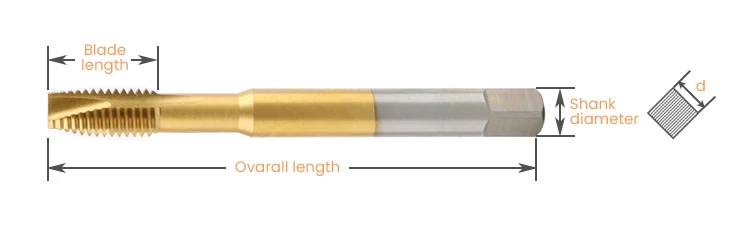

Size | Ovarall length | Blade length | shank diamer | d |
M2 | 45 | 8 | 2.8 | 2.1 |
M2.5 | 50 | 9 | 2.8 | 2.1 |
M3 | 56 | 9 | 3.5 | 2.7 |
M3.5 | 56 | 11 | 4 | 3 |
M4 | 63 | 12 | 4.5 | 3.4 |
M4.5 | 70 | 13 | 6 | 4.9 |
M5 | 70 | 13 | 6 | 4.9 |
M6 | 80 | 15 | 6 | 4.9 |
M7 | 80 | 15 | 7 | 5.5 |
M8 | 90 | 18 | 8 | 6.2 |
M9 | 90 | 18 | 9 | 7 |
M10 | 100 | 20 | 10 | 8 |
M12 | 110 | 23 | 9 | 7 |
M14 | 110 | 25 | 11 | 9 |
M16 | 110 | 25 | 12 | 9 |
M18 | 125 | 30 | 14 | 11 |
M20 | 140 | 30 | 16 | 12 |
M22 | 140 | 30 | 18 | 14.5 |
M24 | 160 | 36 | 18 | 14.5 |

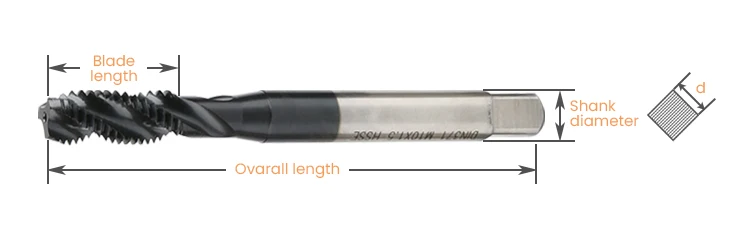

Size | Ovarall length | Blade length | shank diamer | d |
M2 | 45 | 6 | 2.8 | 2.1 |
M2.5 | 50 | 7.5 | 2.8 | 2.1 |
M3 | 56 | 5 | 3.5 | 2.7 |
M3.5 | 56 | 6 | 4 | 3 |
M4 | 63 | 7 | 4.5 | 3.4 |
M4.5 | 70 | 8 | 6 | 4.9 |
M5 | 70 | 8 | 6 | 4.9 |
M6 | 80 | 10 | 6 | 4.9 |
M7 | 80 | 10 | 7 | 5.5 |
M8 | 90 | 13 | 8 | 6.2 |
M9 | 90 | 13 | 9 | 7 |
M10 | 100 | 15 | 10 | 8 |
M12 | 110 | 18 | 9 | 7 |
M14 | 110 | 20 | 11 | 9 |
M16 | 110 | 20 | 12 | 9 |
M18 | 125 | 25 | 14 | 11 |
M20 | 140 | 25 | 16 | 12 |
M22 | 140 | 25 | 18 | 14.5 |
M24 | 160 | 30 | 18 | 14.5 |
Company Profile
Package & Shipment
FAQ
1) Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 12 years experience in this field.
2) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3) Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
4) How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
5) How can I pay?
we accept paypal as the sample. if large amount need pay by western union or TT.
6) Whats your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So no MOQ.
