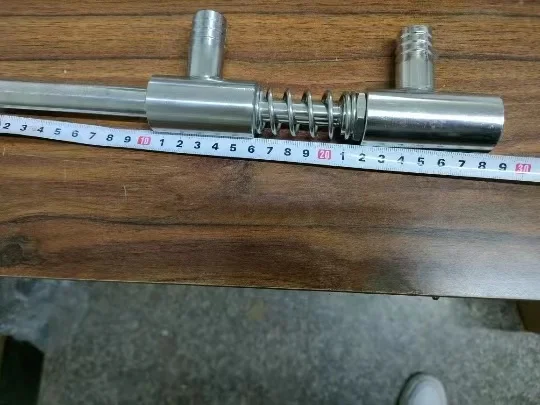

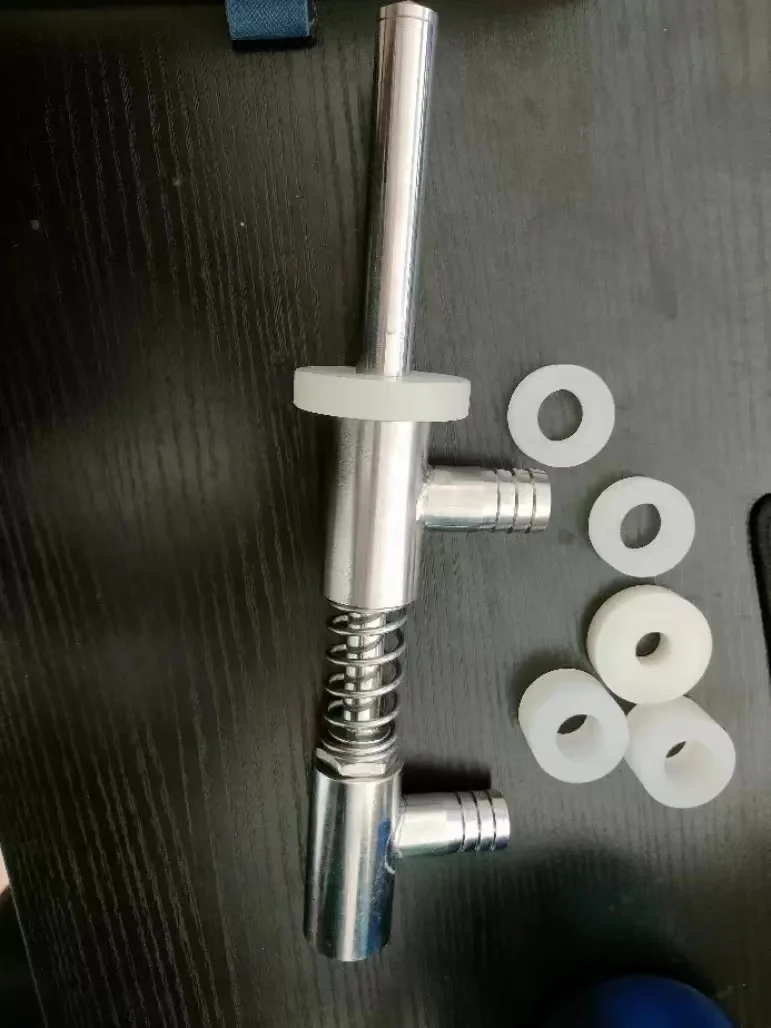

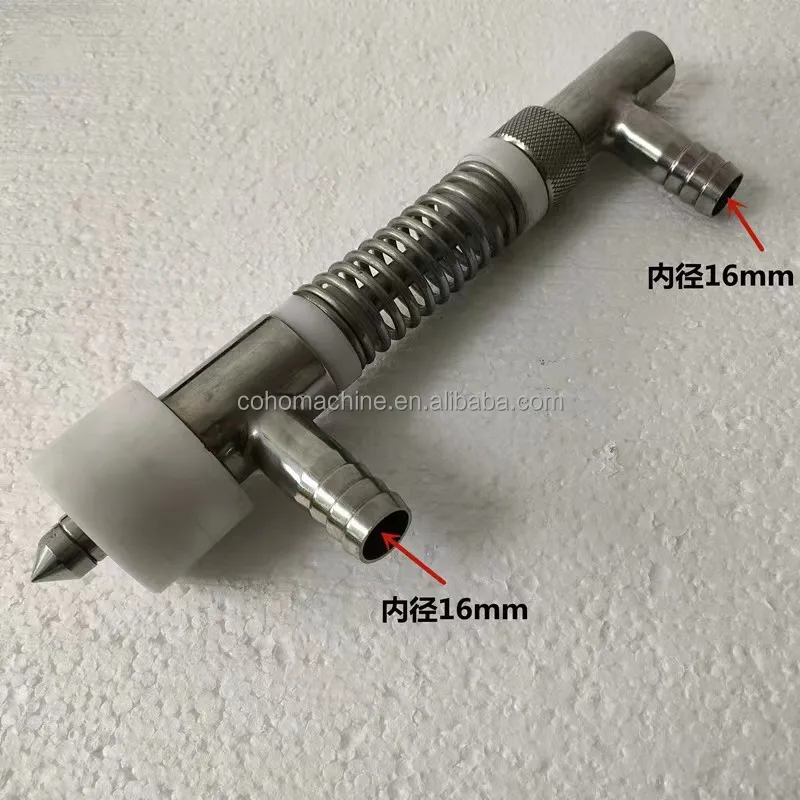

Factory direct selling High precision stainless steel bottle filling nozzle overflow nozzle

Product Overview

Description

Advantages:

1. Easy installation, maintenance-free, super long life;

2. Self-adjusting stem seals, reliable operation, , cylinder can be 360 rotated free;

3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;

4. Low control air consumption. Optical position indication,



Filling valve is made of stainless steel, with built-in ptfe seal, non-toxic and tasteless, safe and hygienic.

Widely used in filling, packaging machinery, especially for viscous, paste liquid filling easy to foam.

Fast filling speed, precision and stability. The valve is delicate and compact for easy pipe layout.

The bottom of the filling head is specially designed for sealing, which can realize filling without dripping.

Applicable fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye

Fluid pressure: Max.0 .7 mpa

Fluid temperature: -10c-- --+200c

Max. Viscosity: 300 mm2/s

Control fluid: Neutral gas, air

Control pressure: 0.35-0.4 mpa

Environment temperature: -10c---+120c

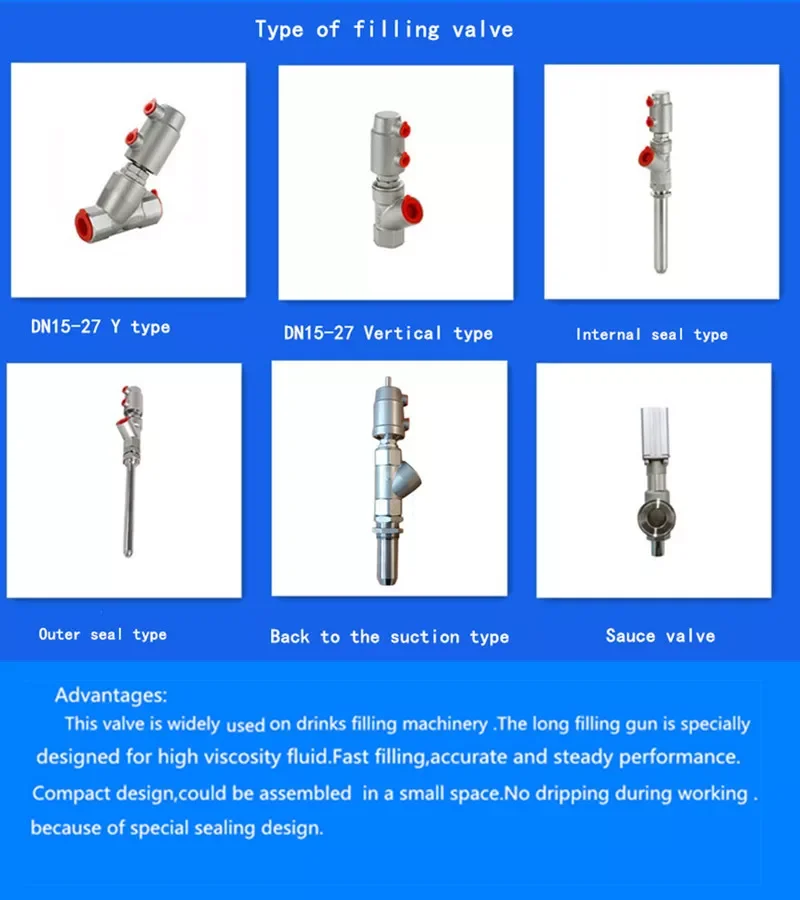

There are 3 types of filling valves for filling.

1. Outseals, the filling rods are inserted into the bottom of the bottle and the liquid is discharged in a spraying state.

2. Inner seal type: the filling lever can be placed at the lower part of the bottle mouth, and the liquid is discharged in a direct state.

3. Suction back type: the valve inner rod is hollow, better to suck foam and viscous media back into the wall, better to achieve the effect of anti-drip.

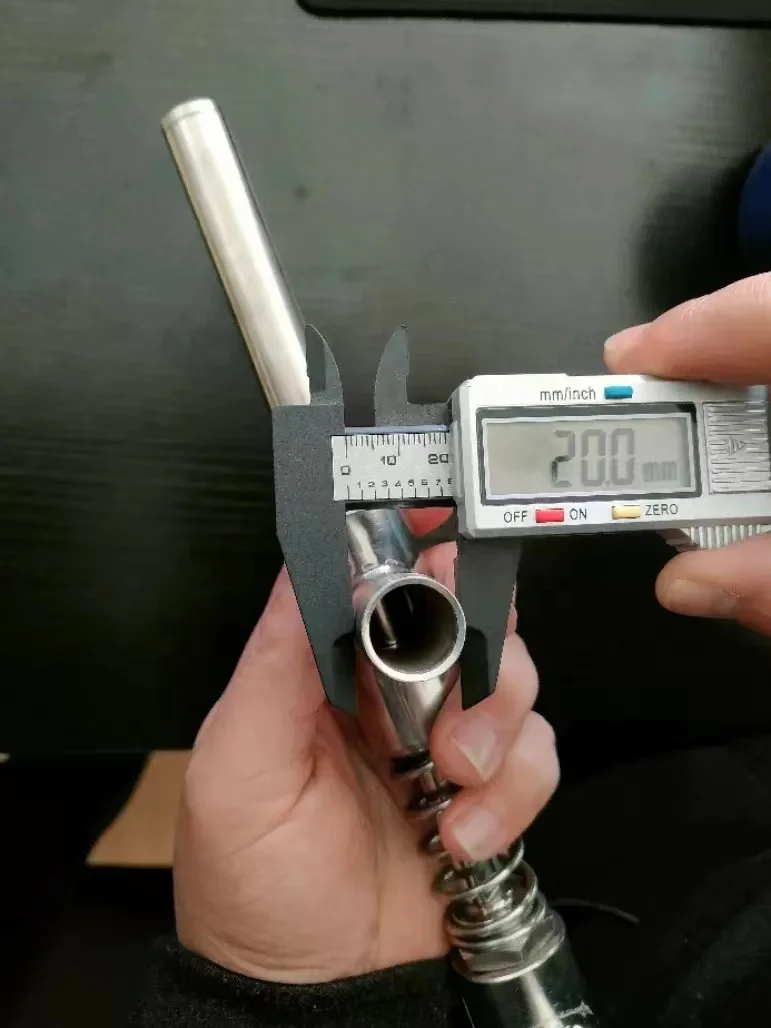

DN15, can make nozzle diameter from 10mm ~20mm

DN20 with nozzle diamter 25mm ,nozzle length 120mm.

DN25 with nozzle diameter 35mm,nozzle length 150mm or 180mm

DN32 with nozzle diameter 42mm,nozzle length 150mm

DN40 with nozzle diameter 50mm, nozzle length 150mm

DN50 with nozzle diameter 70mm, nozzle length 150mm

NOZZLE DIAMETER CAN CHOOSE AS NEEDING.

NOZZLE DIAMETER AND LENGTH CAN MAKE AS NEEDING

CONTACT ME ~
