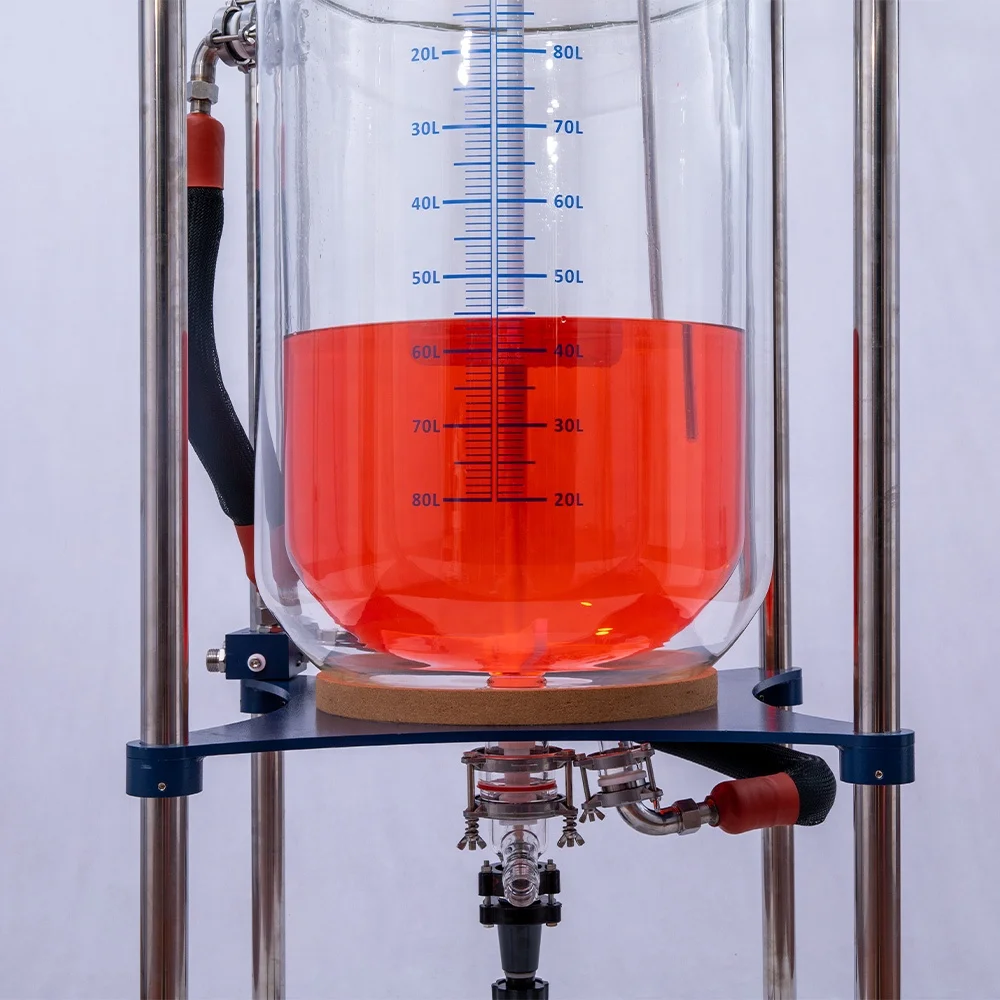

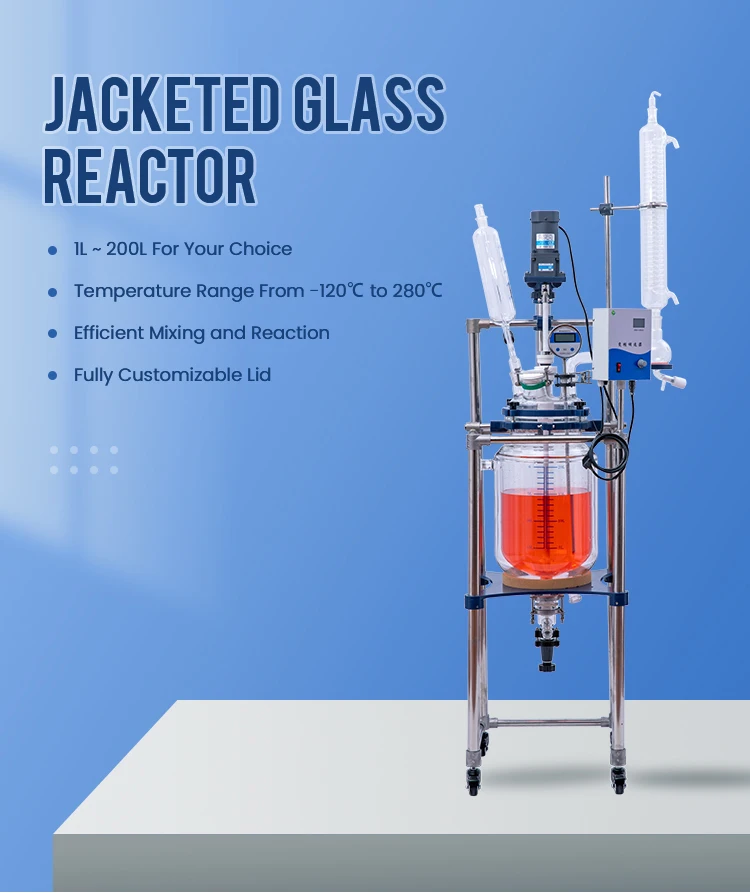

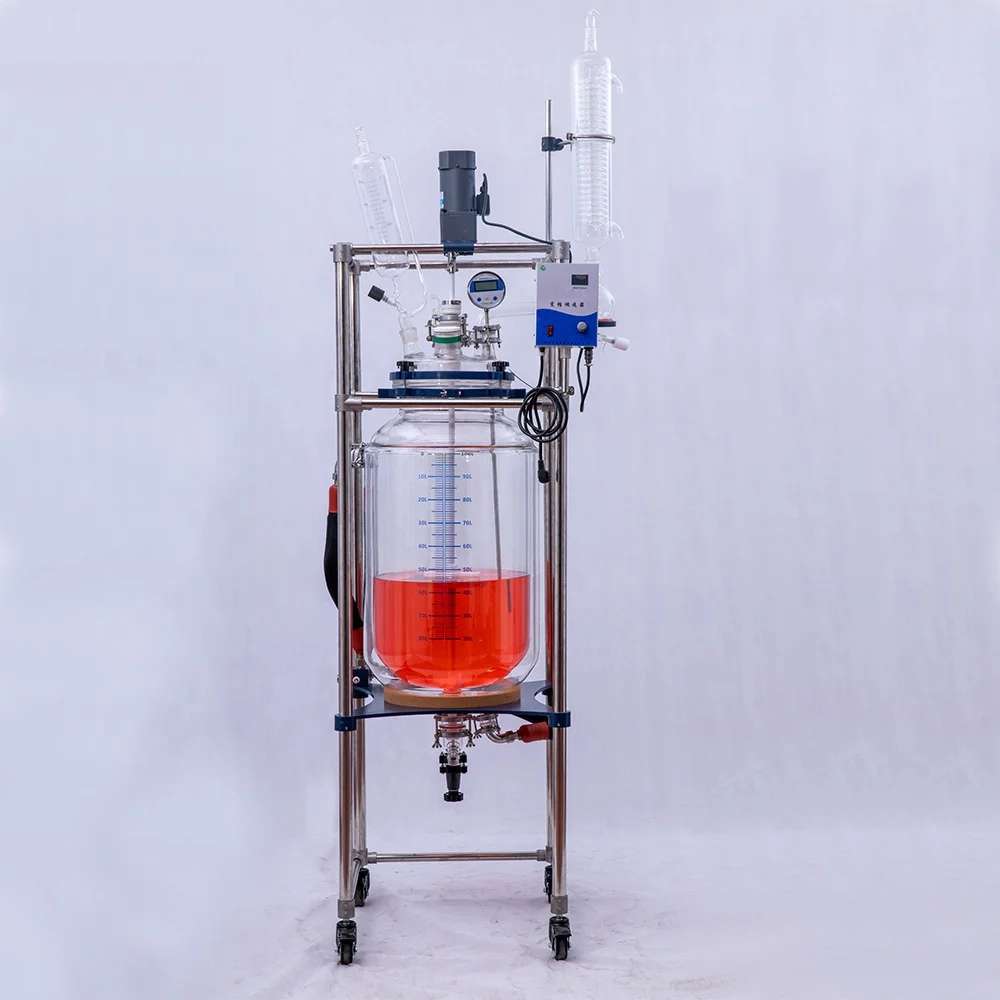

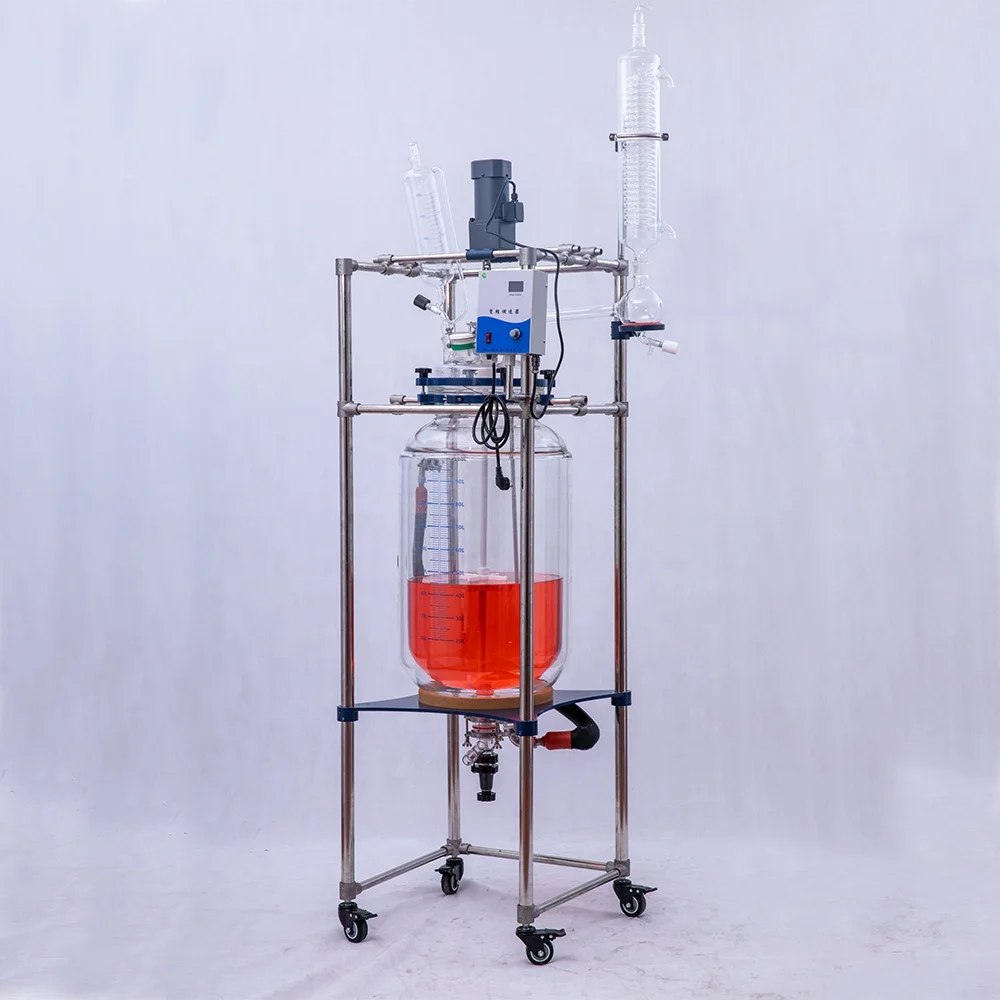

Chemical Distillation Jacketed Glass Reactor Reaction Vessel
- Category: >>>
- Supplier: Zhengzhou Mino Scientific Instruments Co. Ltd.
Share on (1600809486015):
Product Overview
Description
Chemical Distillation Jacketed Glass Reactor Reaction Vessel
Product Description
Technical Parameters
| 1L~5L Jacketed Glass Reactor | ||||
| Model | SF-1L | SF-2L | SF-3L | SF-5L |
| Reaction Flask | 1L | 2L | 3L | 5L |
| Jacket Volume | 0.6L | 0.8L | ||

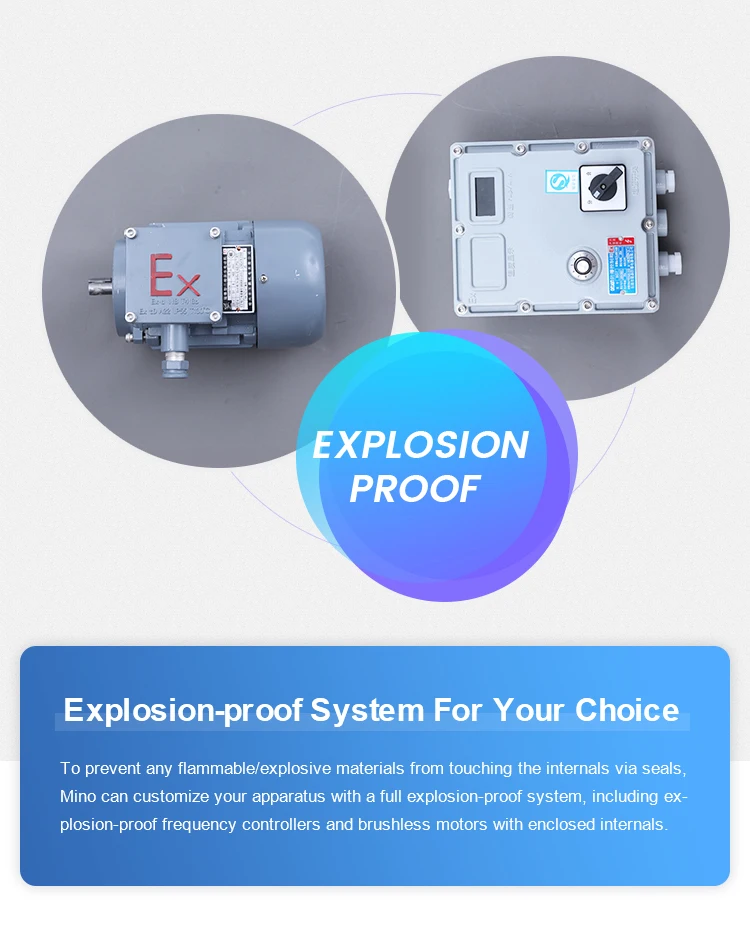

| Motor Power | 90W / 180W(Ex-proof Model) | |||
Port Number on The Lid | 5 or Customized | |||
Constant Pressure Drop Funnel | 250ml | |||
Rotating Speed | 0-460rmp | |||
| Reachable Vacuum | -0.098MPA | |||
| Power Supply | 220V / 50Hz or Customized | |||

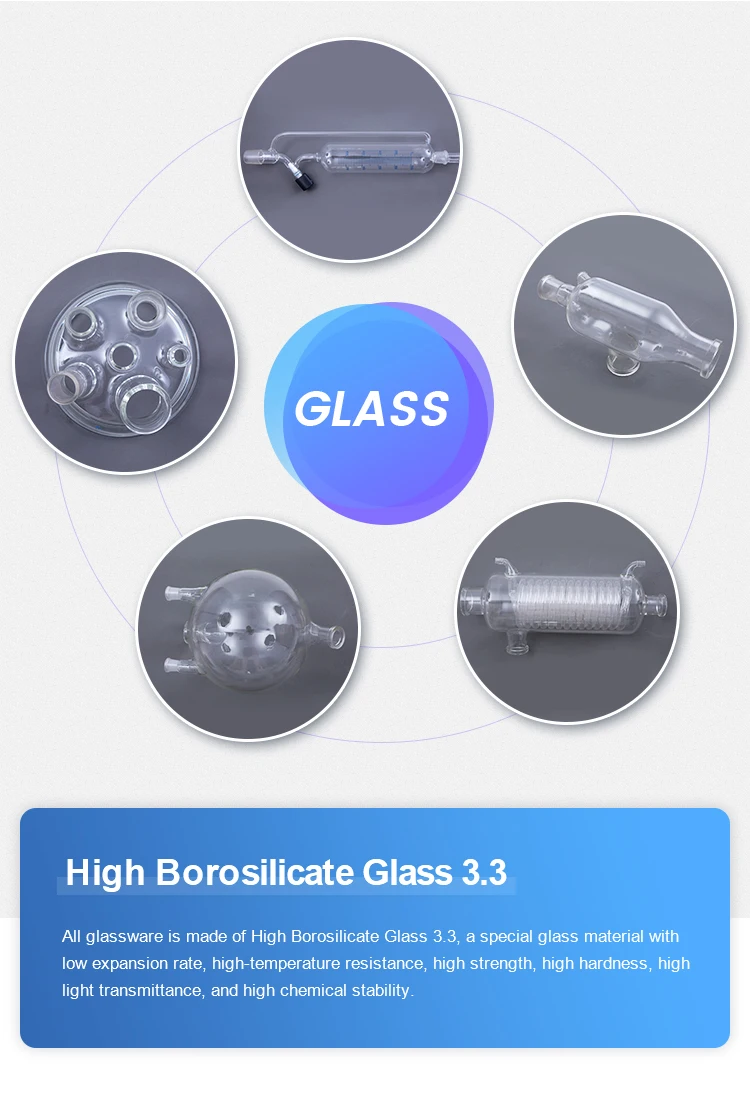

| Glass Material | High Borosilicate Glass 3.3 | |||
| Frame Material | 304 Stainless Steel | |||
| 10L~200L Jacketed Glass Reactor | |||||||
| Model | SF-10L | SF-20L | SF-30L | SF-50L | SF-100L | SF-150L | SF-200L |
| Reaction Flask | 10L | 20L | 30L | 50L | 100L | 150L | 200L |
| Jacket Volume | 3.8L | 5L | 8L | 15L | 20L | 40L | 45L |
| Motor Power | 120W | 200W | 400W | ||||
Port Number on The Lid | 5+1 / 6+1 or Customized | ||||||
Outer Diameter of Lid | 265mm | 340mm | |||||
Outer Diameter of Kettle | 290mm | 330mm | 365mm | 410mm | 500mm | 550mm | 650mm |
| Height of Kettle | 450mm | 550mm | 730mm | 850mm | 950mm | 980mm | 1050mm |
Constant Pressure Drop Funnel | 1000ml | 2000ml | |||||
| Charging Port | φ80mm | φ125mm | |||||
| Power Supply | 220V / 50Hz or Customized | ||||||
| Glass Material | High Borosilicate Glass 3.3 | ||||||
| Frame Material | 304 Stainless Steel | ||||||

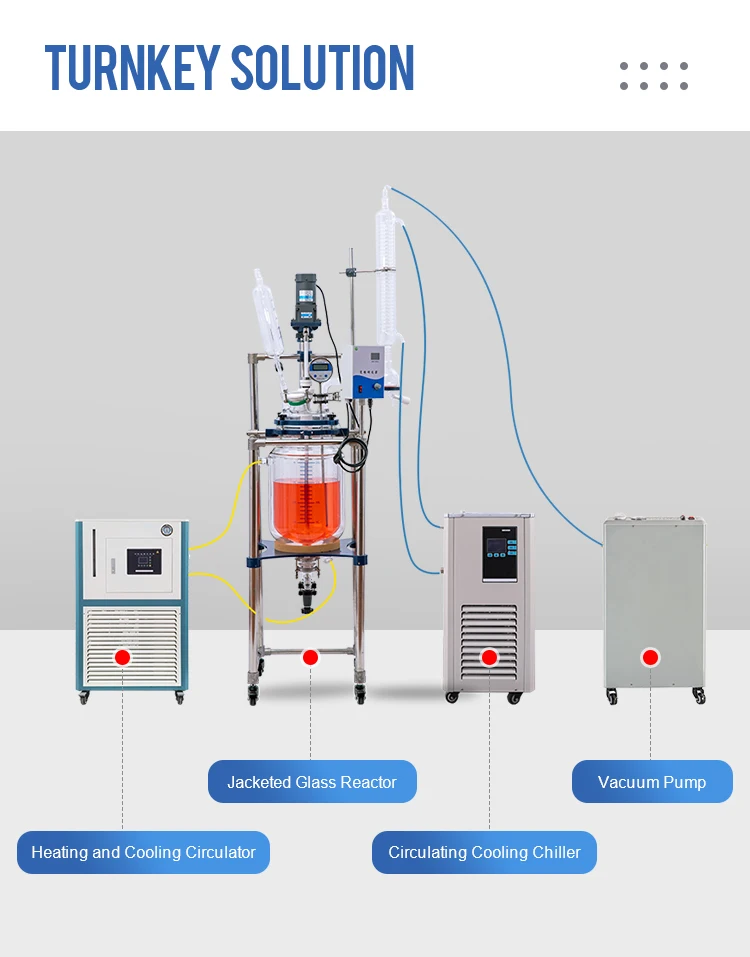

Turnkey Solution
