1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0
1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0
1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0
1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0
1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0

1.0mm Full HD CMOS Sensor Medical Industrial Endoscope Camera Module OVM6948 with High Speed USB 2.0

Share on (1600809886901):


Price:$155.00 - $170.00

Quantity:


Product Overview

Description



OVM6948

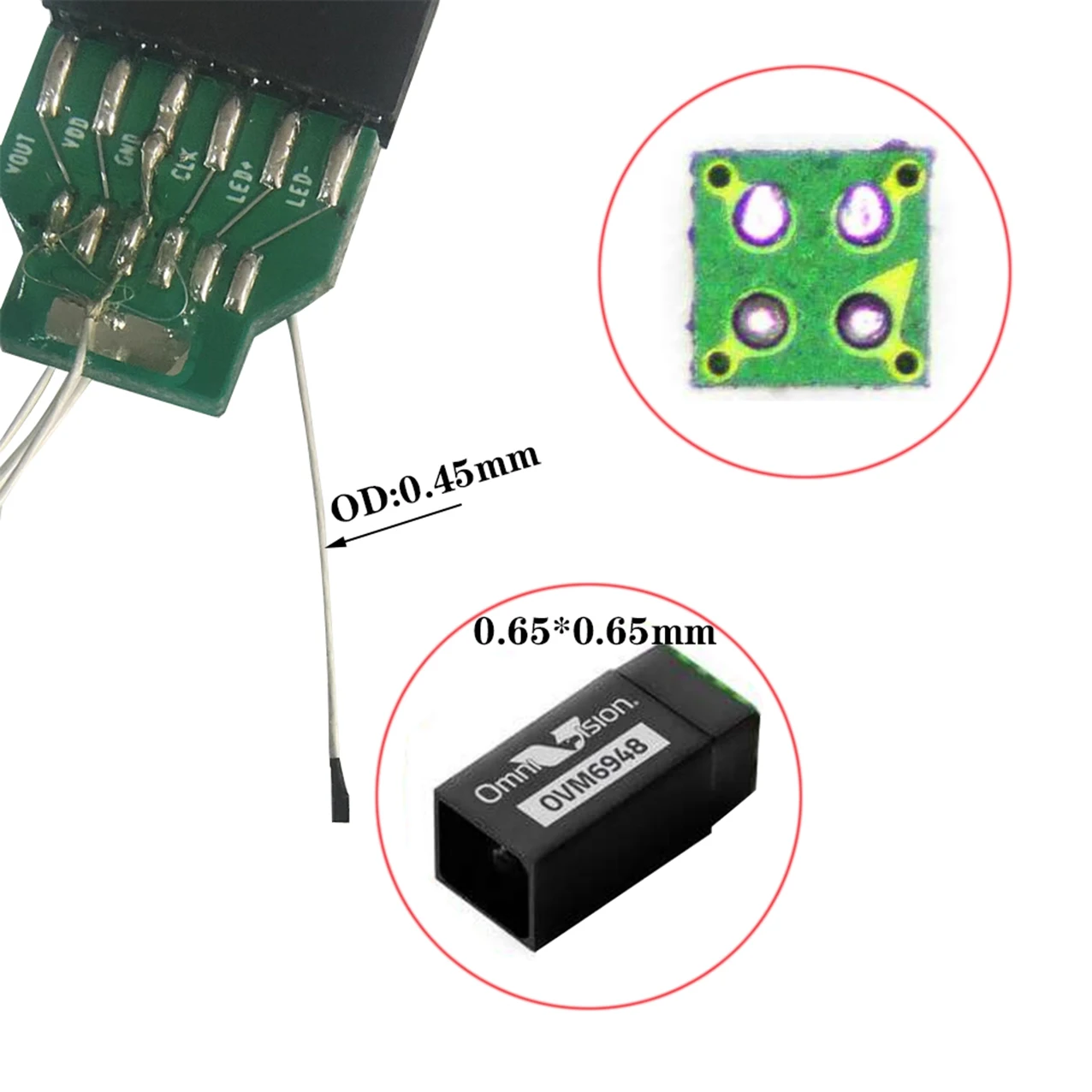

1.4mm medical endoscope camera module micro HD USB module with OVM6948 Sensor
































































































ParameterStandard value
Power consumptionDC5V,115mA
Operating temperature-10℃~50℃
Operating humidity30%~90%Rh
Lens (FOV)FOV120(D)
Lens F/NOF2.8
depth of field3~30mm
Frame rate30fps
Camera head sizeCamera Size D1.4mm×L6.0mm
CMOS SensorOV6948
Sensor size1/36 inch
resolutioncolor CMOS Analog half VGA(200×200)
S/N ratio34.4dB
Dynamic range67.1dB
Auto Gain ControlAuto
Auto Exposure ControlFixed
Auto White BalancePush White  balance mode
LED4pcs  0100 LED light
LED Power Supply4pcs  5.0V_10mA
cableOD0.6(4 Coaxial+2wire)
Cable length30mm~3000mm
Scan modeProgressive scan

69486948LED





Packaging & Shipping

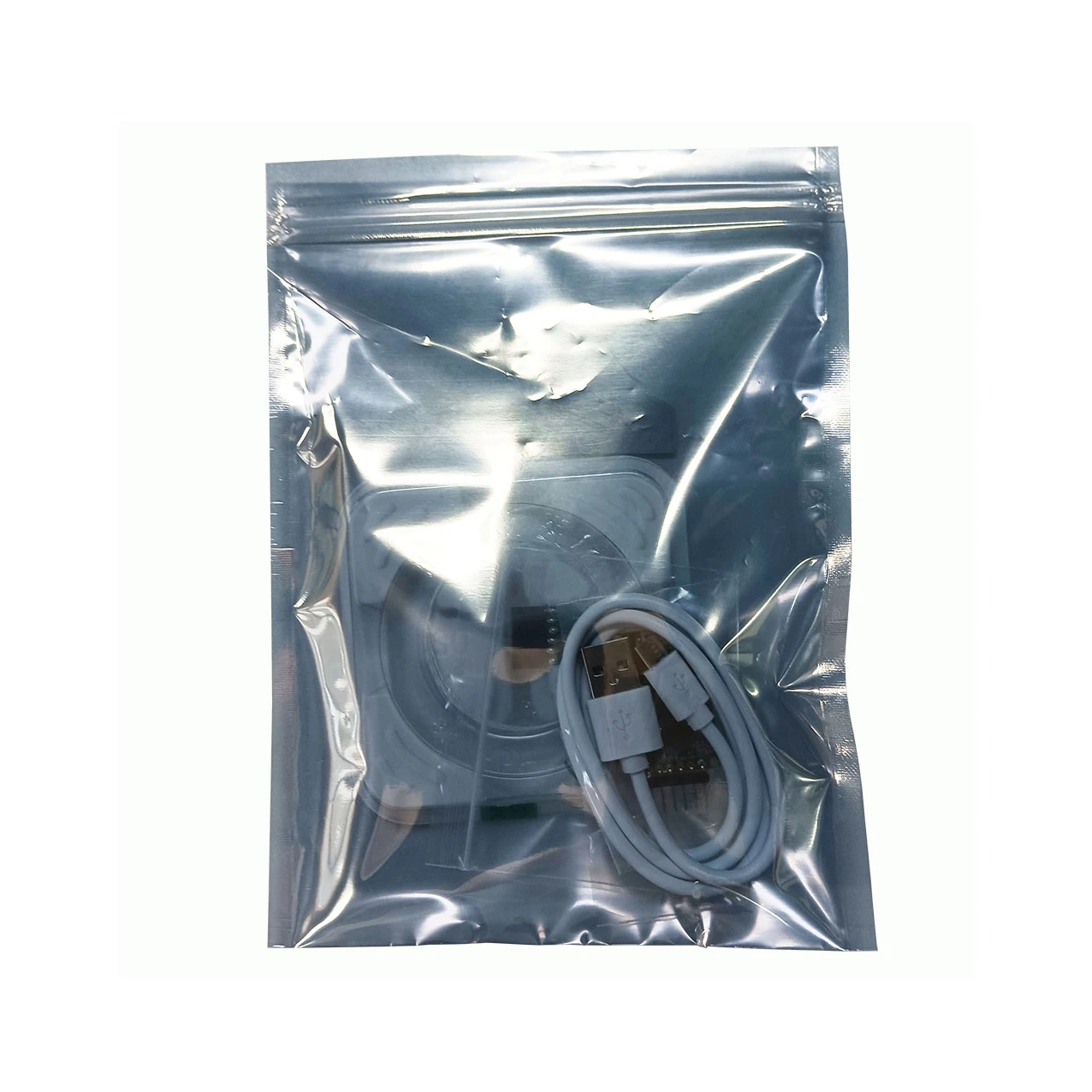

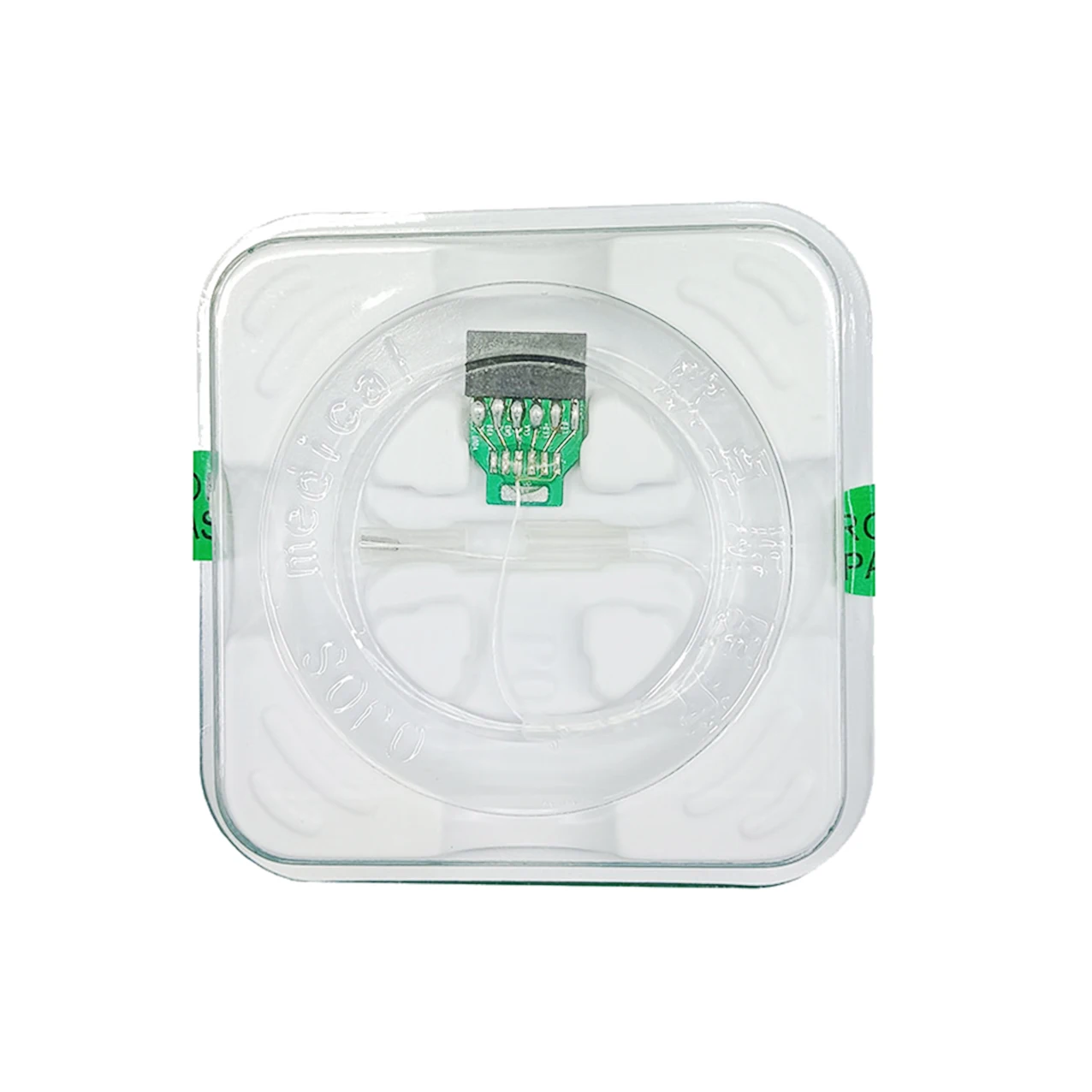

packagePackage-1
