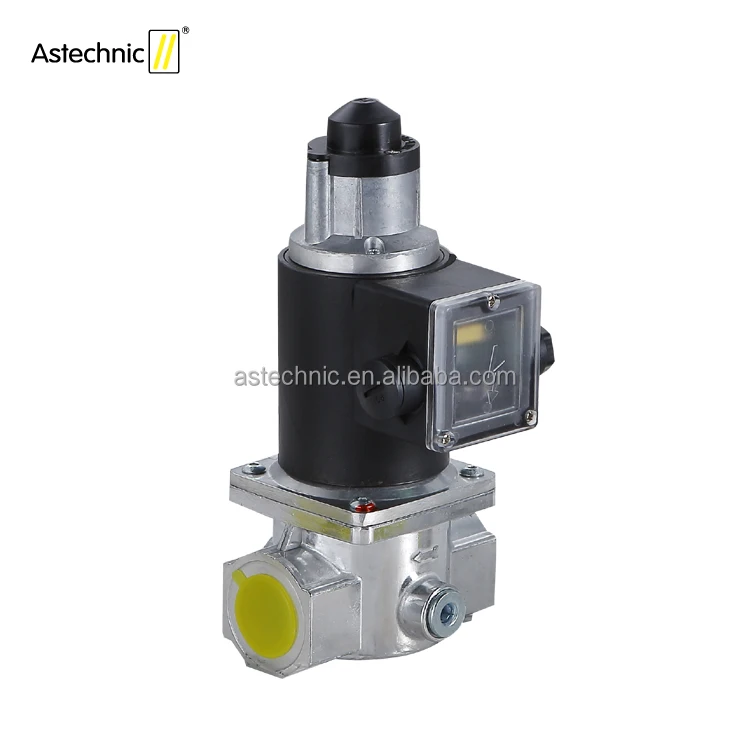

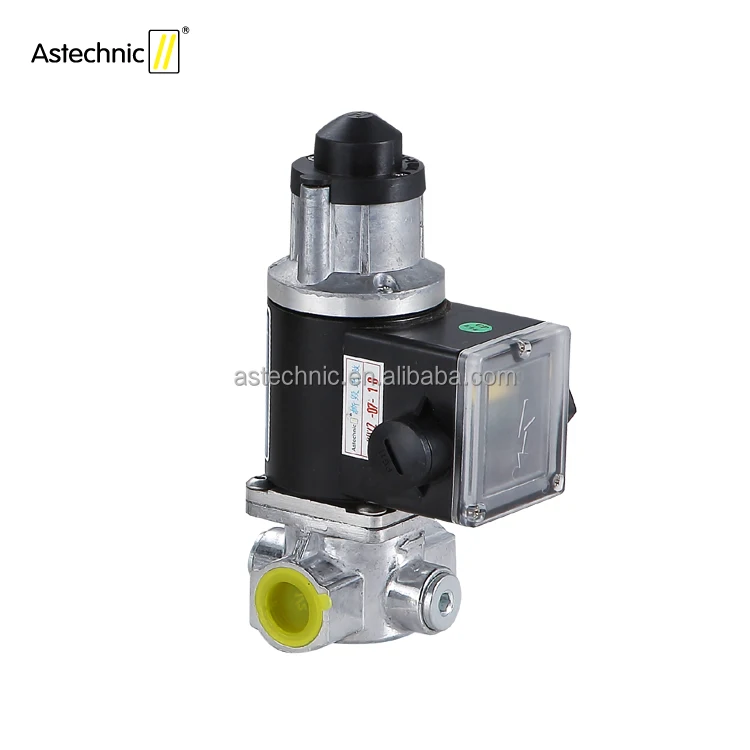

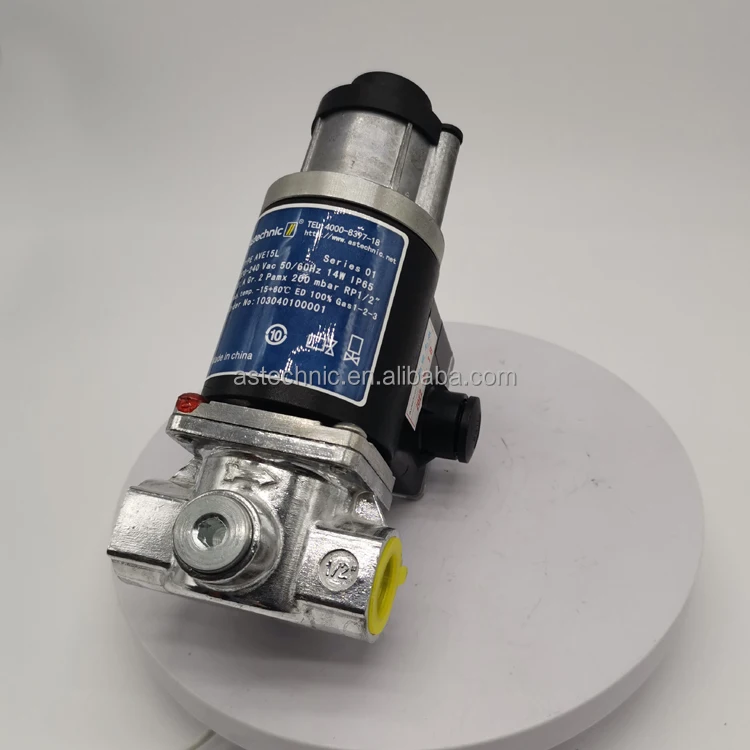

Industrial kiln pipeline accessories 220V quick opening gas solenoid valve 3/4IN

AVE.L Series slow opening and fast closing gas solenoid valves,

Both series are widely used in the field of safe transmission control to provide on-off or cut-off gas supply;
The solenoid valve is suitable for two position on-off power exchange of gas medium, such as natural gas, methane, liquefied petroleum gas and other gases as heating combustion medium pipelines;
It is widely used in gas heating automatic control systems of metallurgy, textile and printing industries, furnace heating of glass and light bulb industries and other industries.
Wide range of models and specifications, suitable for a variety of gas media;
The coil junction box is equipped with a power indicator, which can directly observe the on-off status of the valve;
It can work normally under vacuum, negative pressure and zero pressure, and the maximum working pressure can reach 200mabr;
High safety, reliability, adaptability and economy;

Ave. L series solenoid valves have adjustable opening time and flow.
Ave series solenoid valves are safety devices suitable for cutting off gas circuits;
Since Ave Because of the reliable working characteristics of N / L series solenoid valves, they are usually installed in gas pipelines as equipment for safety and regulating gas flow;
Ave.n/l series solenoid valves are normally closed, which can be quickly opened when energized. The green light will be on after opening, and will be turned off immediately after power failure. The light will be off. Bypass holes are

provided on both sides of the valve body, with a hole diameter of G1 / 4 ";
Ave. L series solenoid valve is normally closed. When used for the first time, it can re adjust the mode state set by the factory under the energized state, adjust the opening time, adjust the output flow at the rear end, and open the

fast opening or slow opening section within the opening stroke range.

Technical parameters of ave.n/l series solenoid valves
 opening time: Ave. n series is less than 1s; Ave.l series 2-30s adjustable;
 working medium: natural gas, methane, liquefied petroleum gas, etc;
 working temperature: - 15 ℃ ~ 60 ℃;
 maximum working frequency: Ave. n series 20 times per minute; Ave.l series: once per minute;
 maximum working pressure: dn15-50 200mbar;
 rated voltage: 50 / 60Hz, 230VAC, coil grade F, 360 ° rotation, 100% long-term continuous operation.
 protection grade: IP54;
 sealing material: nitrile rubber;
 valve body material: aluminum alloy for valve; Aisi 302 steel spring;
 coil temperature: 65 ℃ (ambient temperature 20 ℃);
 standards and certification: "a" level standards;
 service life: meet the technical requirements of JB / T 7352-2010;
 leakage: meet the technical requirements of JB / T 7352-2010;
 rated flow coefficient: in accordance with JB / T 7352-2010.
