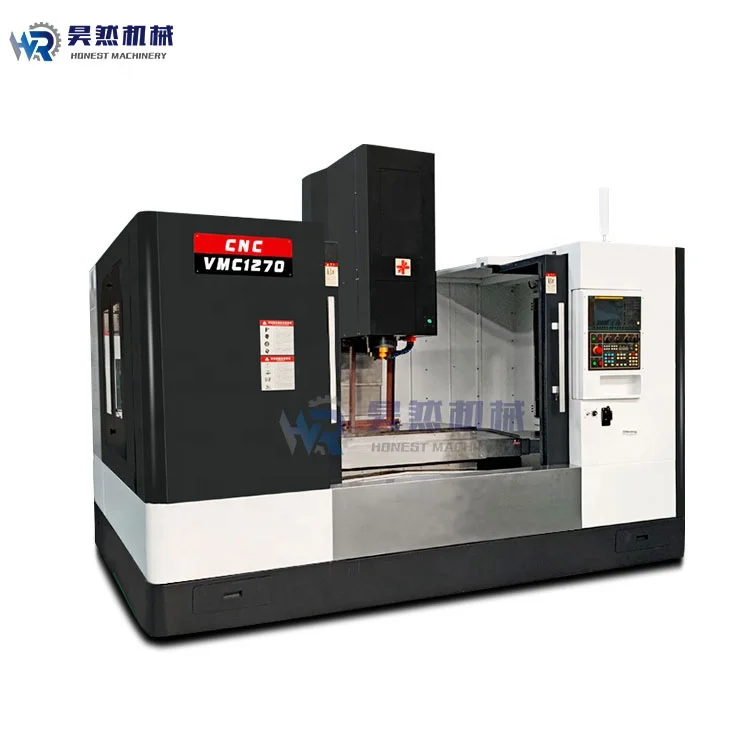

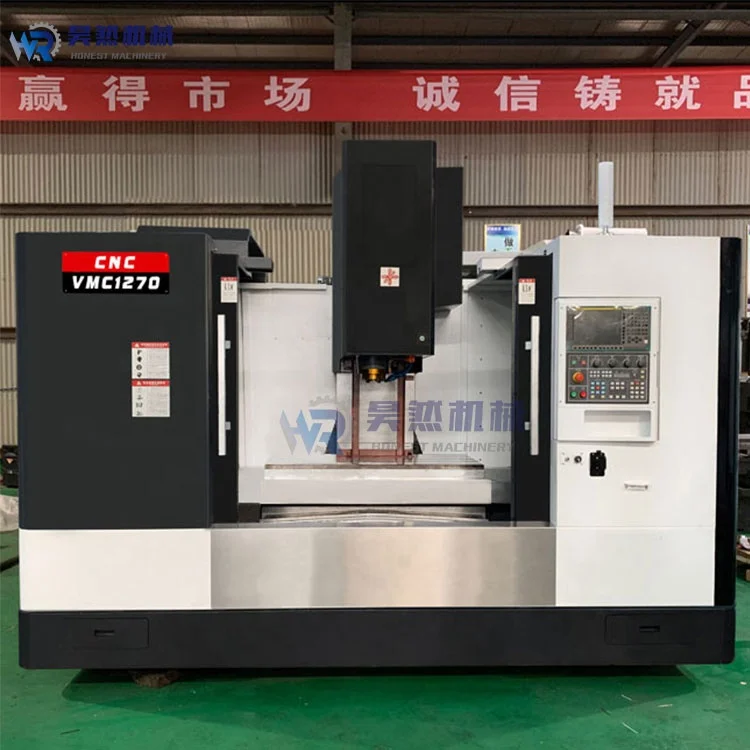

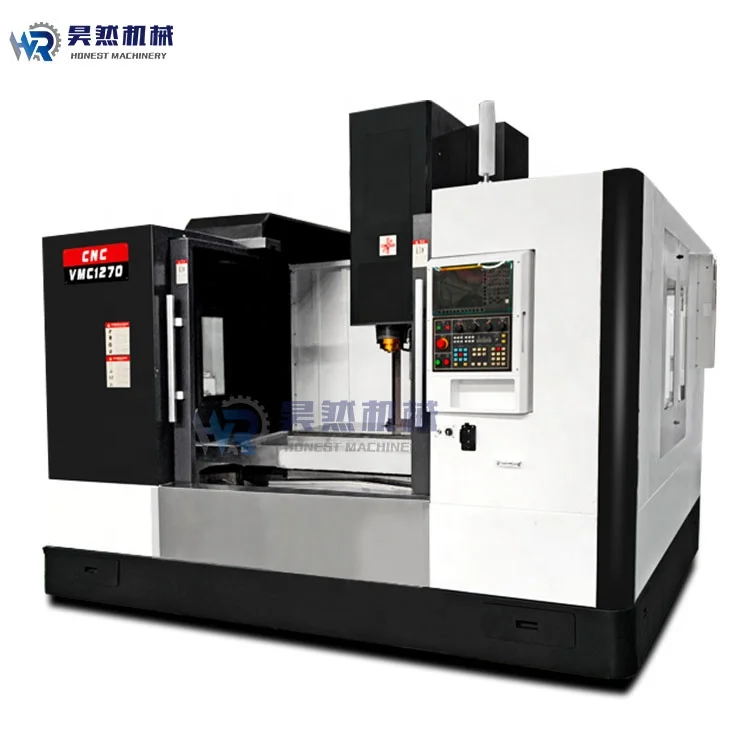

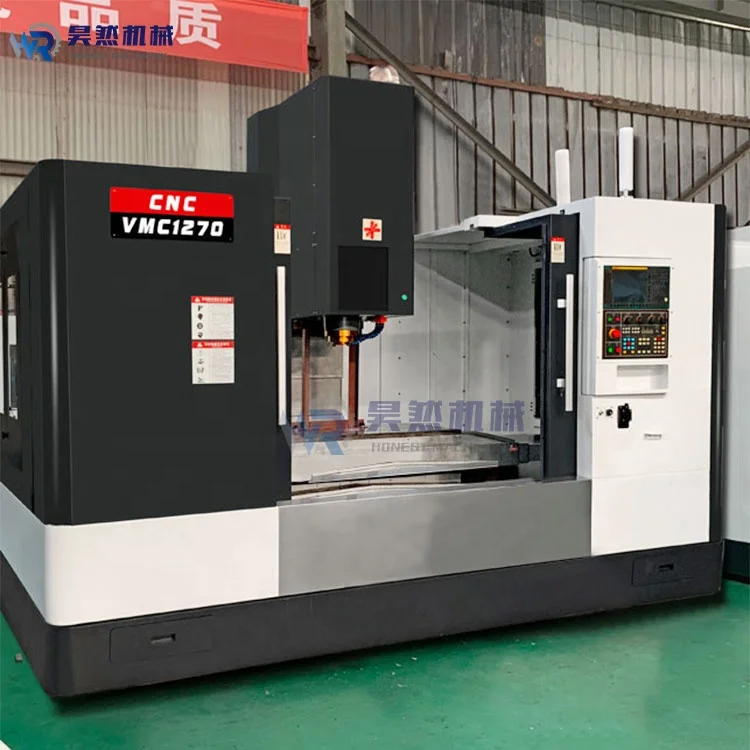

Hot selling CNC vmc 1270 vertical machine center 5 AXIS cnc vertical machining center
- Category: >>>
- Supplier: Shandong HR Machinery CO. Ltd
Share on (1600810059538):
Product Overview
Description
Product Paramenters
Model | VMC1050 | VMC1160 | VMC1165 | VMC1265 | VMC1270 | VMC1370 | VMC1580 |
Table size (mm) | 1200x420 | 1200x600 | 1200x600 | 1200x600 | 1300X700 | 1400x700 | 1700X800 |
Max. allowable load (Kg) | 500 | 800 | 800 | 800 | 800 | 800 | 1500 |
X-axis stroke (mm) | 1000 | 1100 | 1100 | 1200 | 1200 | 1300 | 1500 |
Y-axis travel (mm) | 500 | 600 | 650 | 650 | 700 | 700 | 800 |
Z-axis travel (mm) | 550 | 600 | 650 | 650 | 700 | 750 | 700 |
T-slot | 5-18-100 | 5-18x100 | 5-18-100 | 5-18-100 | 5-18-125 | 5-18-130 | 5-22-135 |
spindle center to Z-axis guide surface (mm) | )575 | 650 | 710 | 710 | 710 | 713 | 855 |
spindle end face to work table (mm) | 100-650 | 120-720 | 120-720 | 120-770 | 120-850 | 120-870 | 160-860 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT50-155 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
X/Y/Z rapid movement (m/min) | 18/18/18 | 36/36/24 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/24 | 24/24/18 |
Machine Weight (Kg) | 5500 | 6500 | 6800 | 7000 | 8000 | 8000 | 12000 |
Product Description

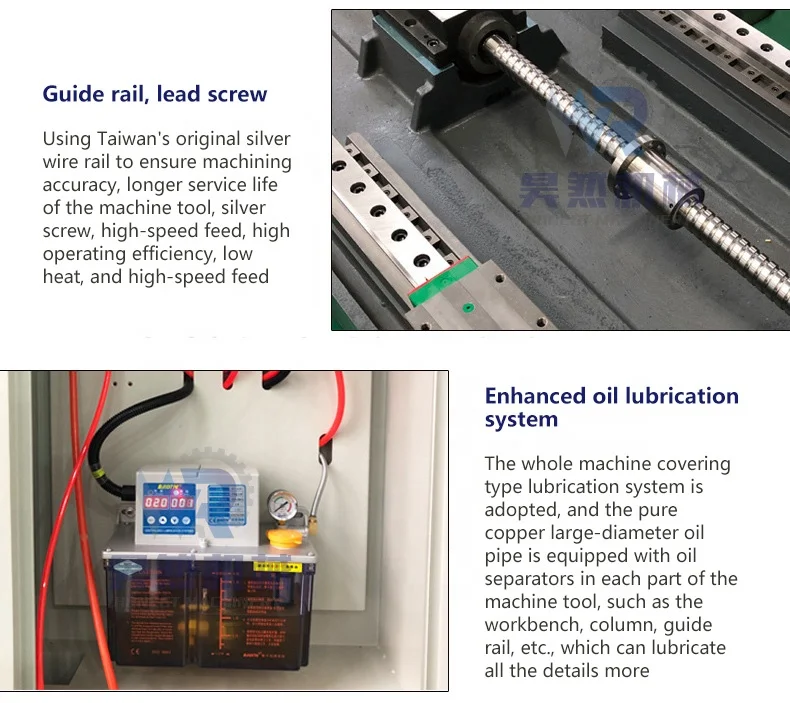

Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages
The advantages of Machining center
1. The main parts of machine tool in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal structure.
2. Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal graphic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
2. Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal graphic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
Hot Products
Machine detection
Before leaving the factory, each CNC machine tool has undergone complete dynamic and static precision inspection and test. The inspection items of vertical CNC machining center mainly include: laser inspection, circular inspection, vibration inspection, dynamic balance inspection, noise inspection, geometric accuracy inspection, appearance inspection, commissioning inspection, and processing inspection.The precision of HR machine tool products meets the standards, and precision inspection is the quality assurance,
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Exhibition
We welcome customers to visit the factory, we have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1:How can I choose the most suitable machines ?
A:Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2.How can I get a quotation?
A:Directly inquiry on alibaba,with the detail you needed,we will reply in 1 hour on work days.Or you can send Email to us.
3.What is the delivery time and the package?
A:Normally about 20 days.International logistics standard for transport machine tools,like wooden package.
4.Do you have any certification?
A:Yes,we have CE
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6. What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
7. What's the MOQ?
A: 1 set
A:Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2.How can I get a quotation?
A:Directly inquiry on alibaba,with the detail you needed,we will reply in 1 hour on work days.Or you can send Email to us.
3.What is the delivery time and the package?
A:Normally about 20 days.International logistics standard for transport machine tools,like wooden package.
4.Do you have any certification?
A:Yes,we have CE
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6. What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
7. What's the MOQ?
A: 1 set
